slide1

UNIT 6: Mixed-Type Description

Writing with several styles (data flow, behavioral, structural,..) in the same module

7.1 Why Mixed-Type Description?

Each type (style) has its own advantages. The system can be divided into segments, each segment is described using the most suitable style

HDL Programming Fundamentals

slide2

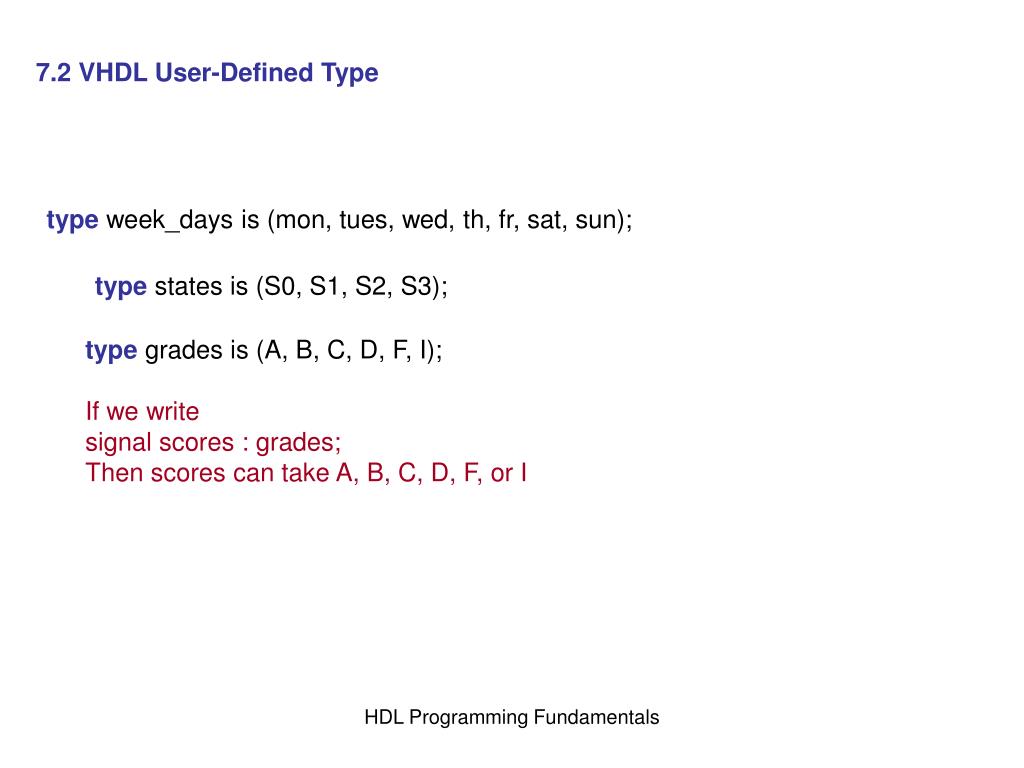

7.2 VHDL User-Defined Type

type week_days is (mon, tues, wed, th, fr, sat, sun);

type states is (S0, S1, S2, S3);

type grades is (A, B, C, D, F, I);

If we write

signal scores : grades;

Then scores can take A, B, C, D, F, or I

HDL Programming Fundamentals

slide3

7.3 VHDL Packages

Packages may include type and subtype declarations, constant definitions,

function and procedure, and component declarations.

Listing 7.2 An Example of a VHDL package

library ieee;

use ieee.std_logic_1164.all;

package codes is

type op is (add,mul, divide, none);

end;

use work. codes;

entity ALUS2 is

port (a, b: in std_logic_vector(3 downto 0);

cin: in std_logic; opc :in op;

z: out std_logic_vector(7 downto 0);

cout: buffer std_logic);

end ALUS2;

HDL Programming Fundamentals

slide4

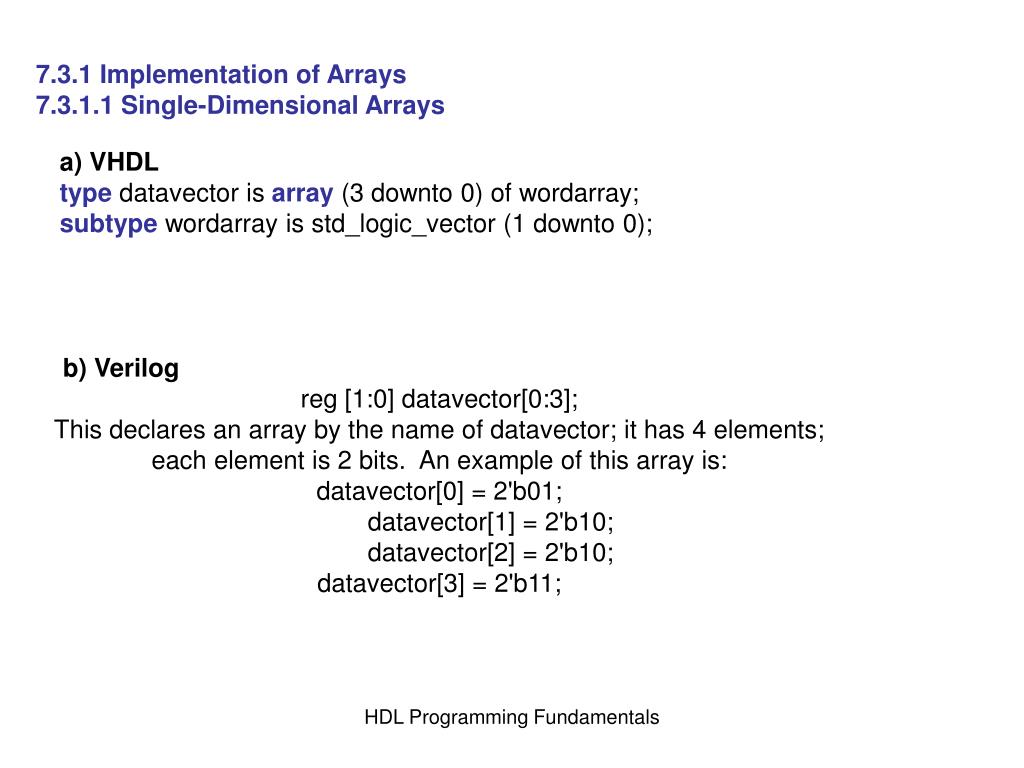

7.3.1 Implementation of Arrays

7.3.1.1 Single-Dimensional Arrays

a) VHDL

type datavector is array (3 downto 0) of wordarray;

subtype wordarray is std_logic_vector (1 downto 0);

b) Verilog

reg [1:0] datavector[0:3];

This declares an array by the name of datavector; it has 4 elements; each element is 2 bits. An example of this array is:

datavector[0] = 2'b01;

datavector[1] = 2'b10;

datavector[2] = 2'b10;

datavector[3] = 2'b11;

HDL Programming Fundamentals

slide5

Example 7.1 Find the greatest among N elements of an Arrays

a) VHDL Description

library IEEE;

use IEEE.STD_LOGIC_1164.all;

--Build a package for an array

package array_pkg is

constant N: integer := 4;

--N+1 is the number of elements in the array.

constant M: integer := 3;

--M+1 is the number of bits of each element

--of the array.

subtype wordN is std_logic_vector (M downto 0);

type strng is array (N downto 0) of wordN;

end array_pkg;

library IEEE;

use IEEE.STD_LOGIC_1164.ALL;

use work.array_pkg.all;

-- The above statement makes the package array_pkg visible in

--this module

-- A program to find the greatest value among elements of an array

entity array1 is

generic (N:integer :=4; M: integer := 3);

--N+1 is the number of elements in the array; M=1 is the

--number of bits of each element.

Port ( a : inout strng; z : out std_logic_vector (M downto 0));

end array1;

HDL Programming Fundamentals

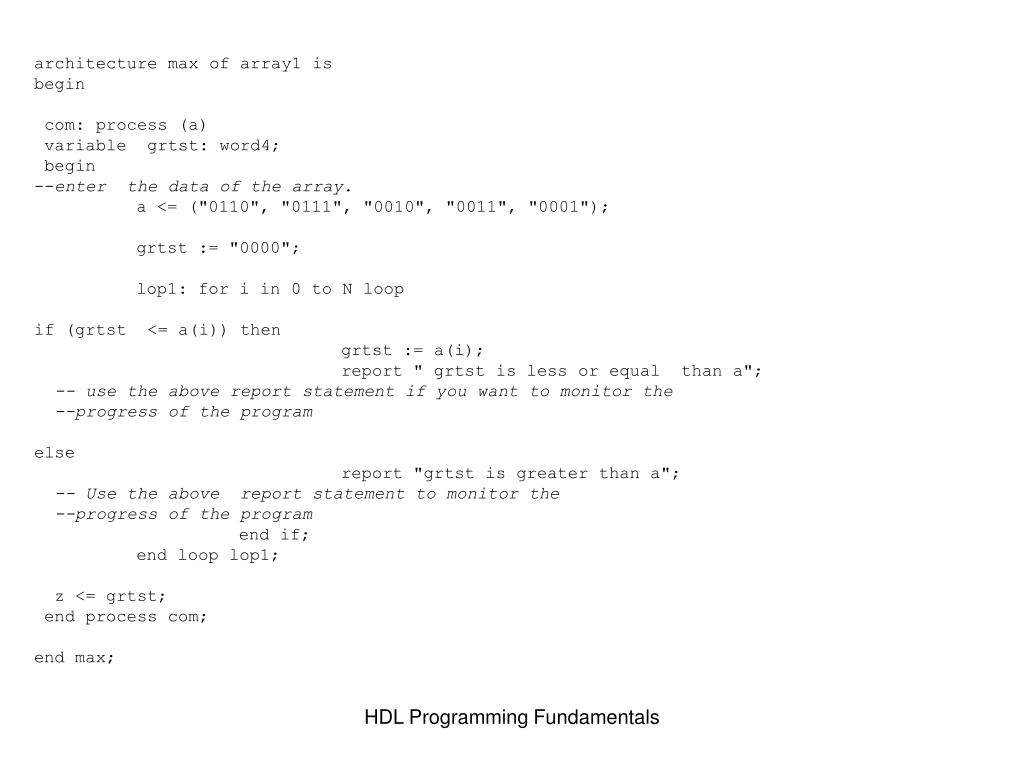

slide6

architecture max of array1 is

begin

com: process (a)

variable grtst: word4;

begin

--enter the data of the array.

a <= ("0110", "0111", "0010", "0011", "0001");

grtst := "0000";

lop1: for i in 0 to N loop

if (grtst <= a(i)) then

grtst := a(i);

report " grtst is less or equal than a";

-- use the above report statement if you want to monitor the

--progress of the program

else

report "grtst is greater than a";

-- Use the above report statement to monitor the

--progress of the program

end if;

end loop lop1;

z <= grtst;

end process com;

end max;

HDL Programming Fundamentals

slide7

b) Verilog Description

module array1( start ,grtst );

parameter N = 4;

parameter M = 3;

input start;

output [3:0] grtst;

reg [M:0] a[0:N];

/*The above statement is declaring an array of N+1 elements; each

element is M bits. */

reg [3:0] grtst;

integer i;

always @ (start)

begin

a [0] = 4'b0110;

a[1] = 4'b0111;

a[2] = 4'b0010;

a[3] = 4'b0011;

a[4] = 4'b0001;

grtst = 4'b0000;

HDL Programming Fundamentals

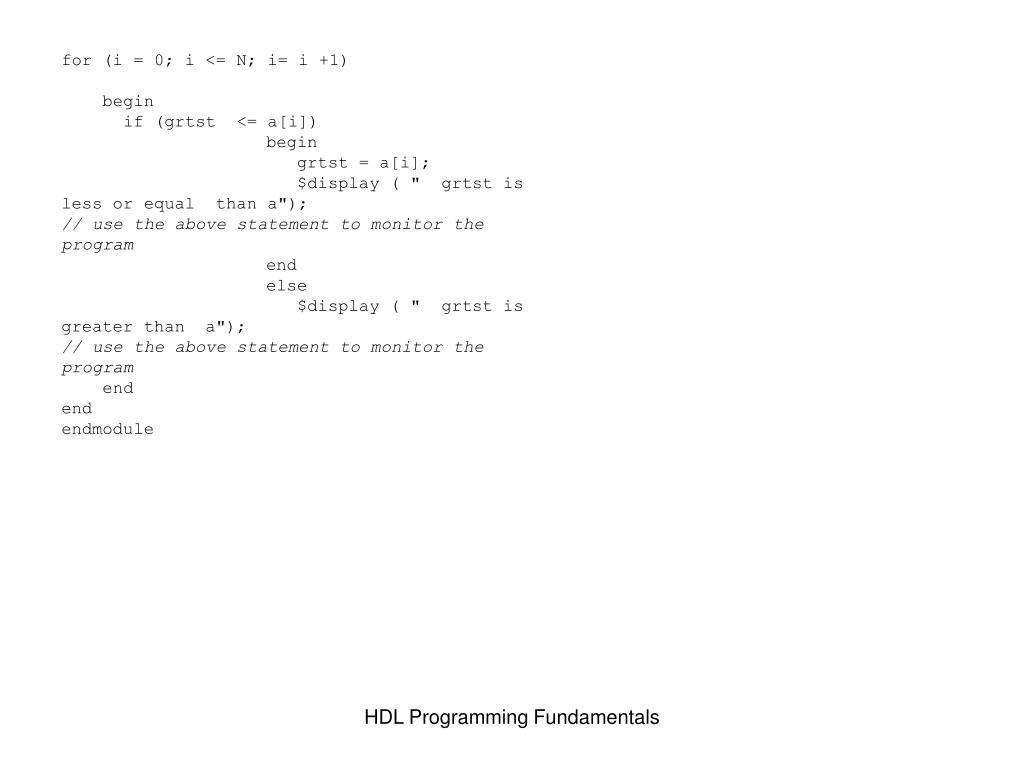

slide8

for (i = 0; i <= N; i= i +1)

begin

if (grtst <= a[i])

begin

grtst = a[i];

$display ( " grtst is less or equal than a");

// use the above statement to monitor the program

end

else

$display ( " grtst is greater than a");

// use the above statement to monitor the program

end

end

endmodule

HDL Programming Fundamentals

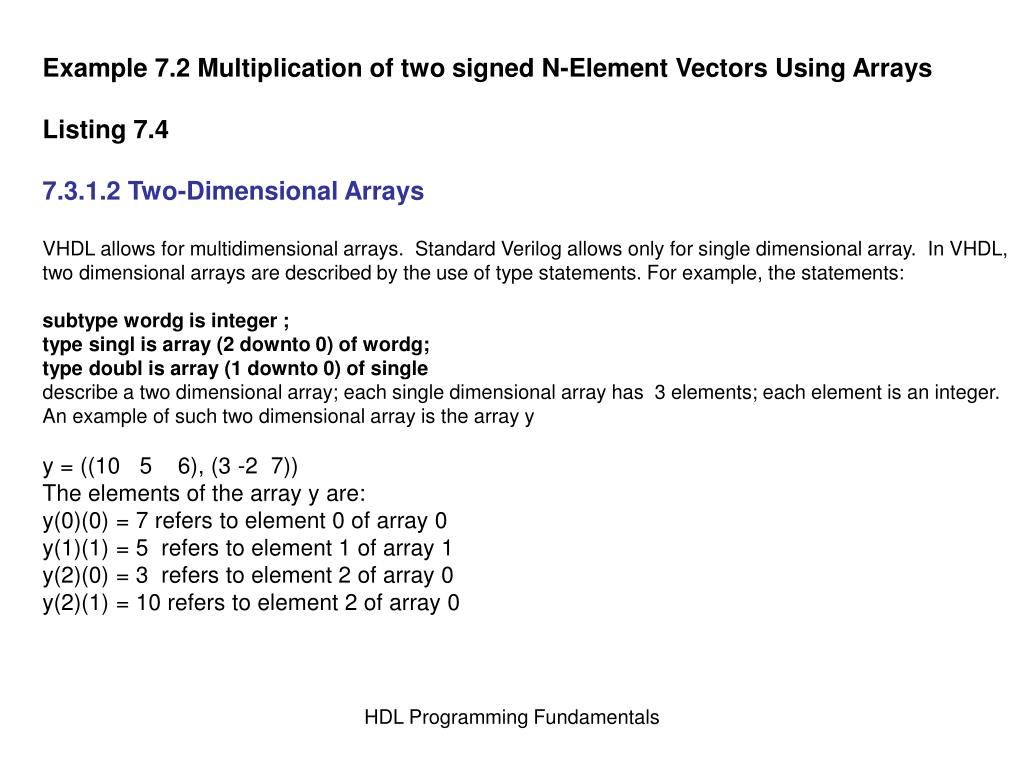

slide9

Example 7.2 Multiplication of two signed N-Element Vectors Using Arrays

Listing 7.4

7.3.1.2 Two-Dimensional Arrays

VHDL allows for multidimensional arrays. Standard Verilog allows only for single dimensional array. In VHDL, two dimensional arrays are described by the use of type statements. For example, the statements:

subtype wordg is integer ;

type singl is array (2 downto 0) of wordg;

type doubl is array (1 downto 0) of single

describe a two dimensional array; each single dimensional array has 3 elements; each element is an integer. An example of such two dimensional array is the array y

y = ((10 5 6), (3 -2 7))

The elements of the array y are:

y(0)(0) = 7 refers to element 0 of array 0

y(1)(1) = 5 refers to element 1 of array 1

y(2)(0) = 3 refers to element 2 of array 0

y(2)(1) = 10 refers to element 2 of array 0

HDL Programming Fundamentals

slide10

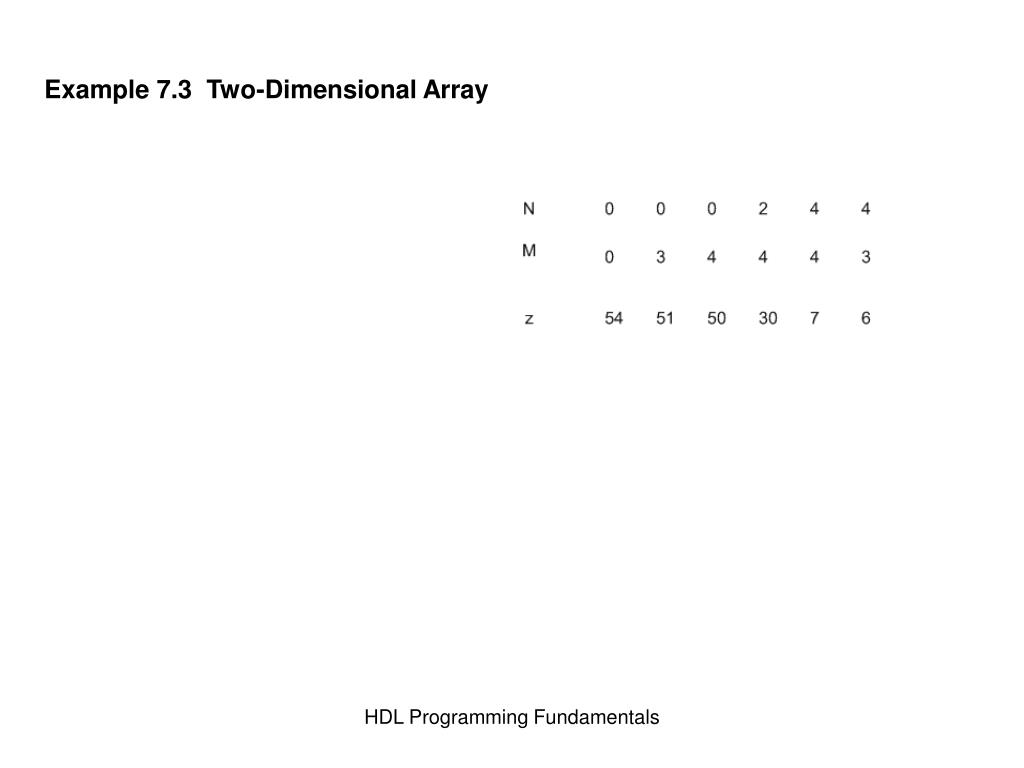

Example 7.3 Two-Dimensional Array

HDL Programming Fundamentals

slide11

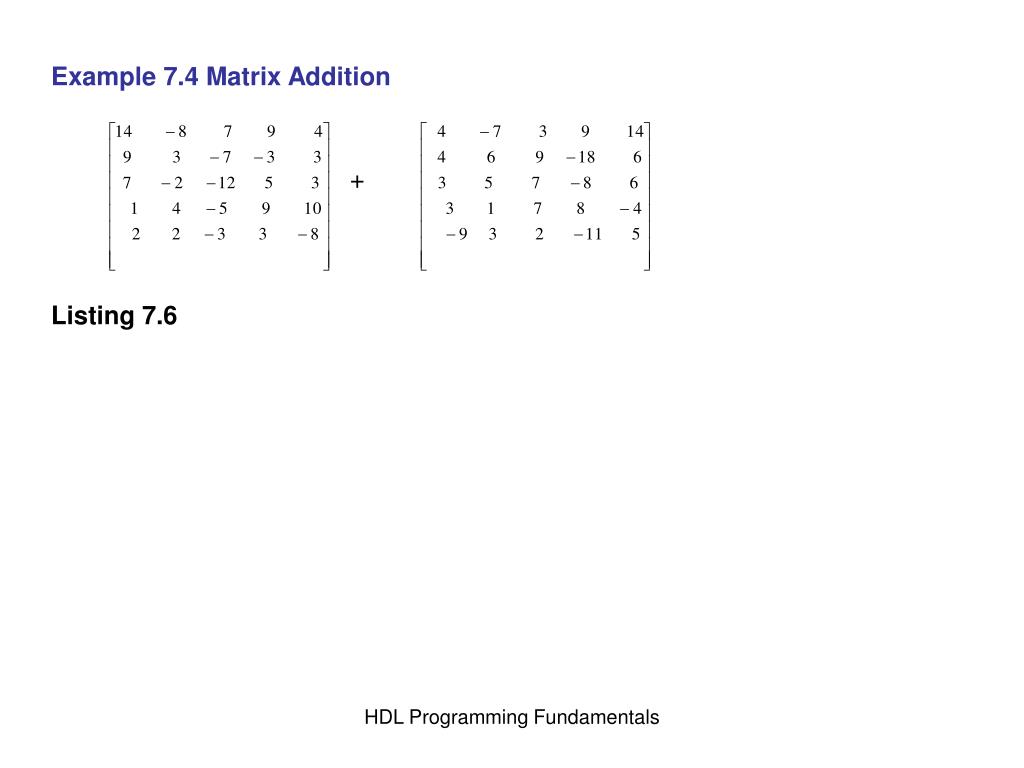

Example 7.4 Matrix Addition

+

Listing 7.6

HDL Programming Fundamentals

slide12

7.4 Mixed-Type Description Examples

Example 7.5 HDL Description of an Arithmetic-Logic Unit (ALU)

HDL Programming Fundamentals

slide13

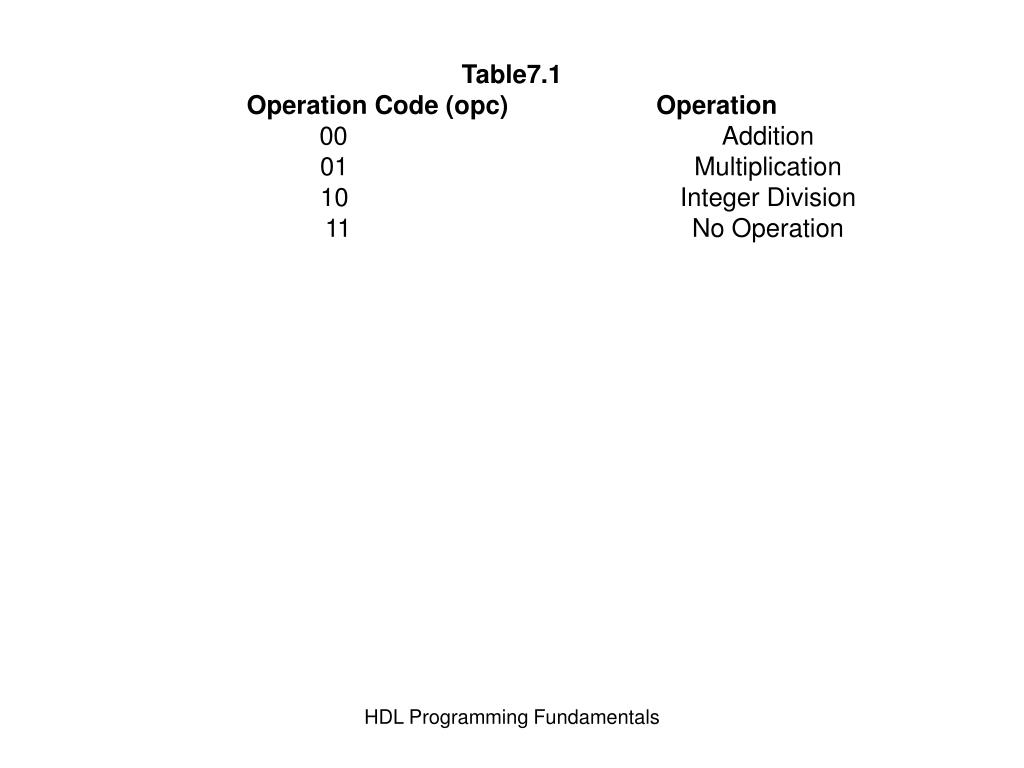

Table7.1

Operation Code (opc)Operation

00 Addition

01 Multiplication

10 Integer Division

11 No Operation

HDL Programming Fundamentals

slide14

Example 7.6 HDL Description of a 16x8 Static RAM.

Listing 7.8

HDL Programming Fundamentals

slide15

Table 7.2 Function Table of Static RAM.

CS R_ Data_out Memory function

0 x Z (high impedance) The memory is deselected.

1 1 M (ABUS) This is a read; M refers to

memory locations. contents of memory

location pointed by ABUS is placed on

the output data.

1 0 This is a write cycle; data in the

Data_in are stored in M(ABUS)

HDL Programming Fundamentals

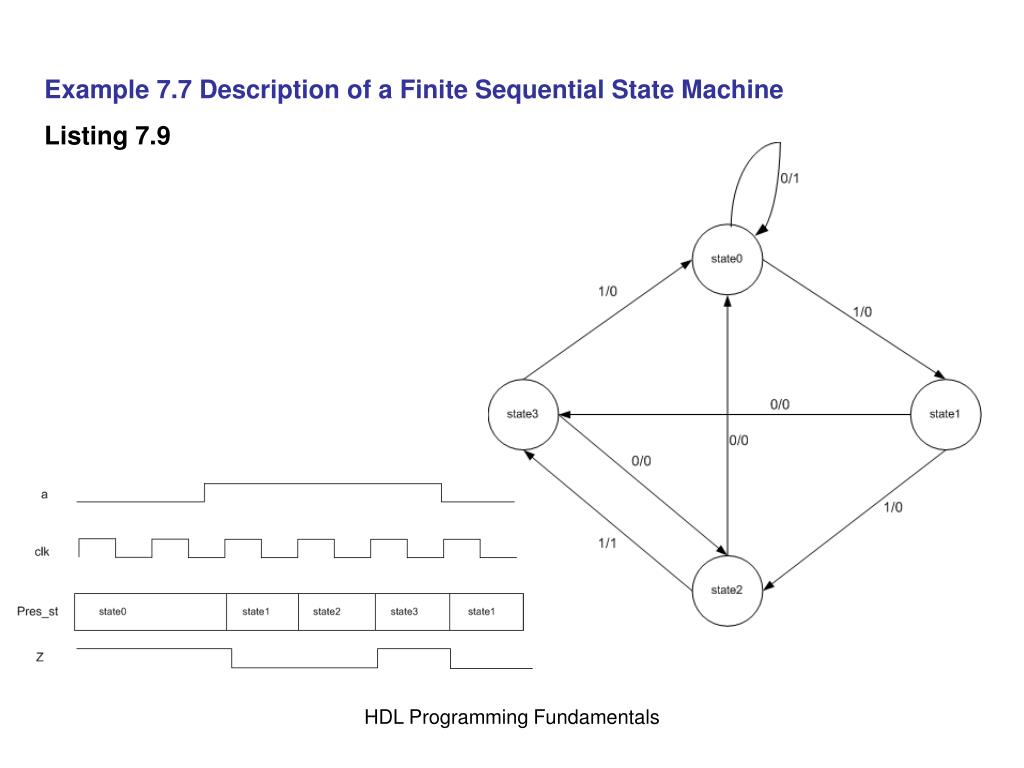

slide17

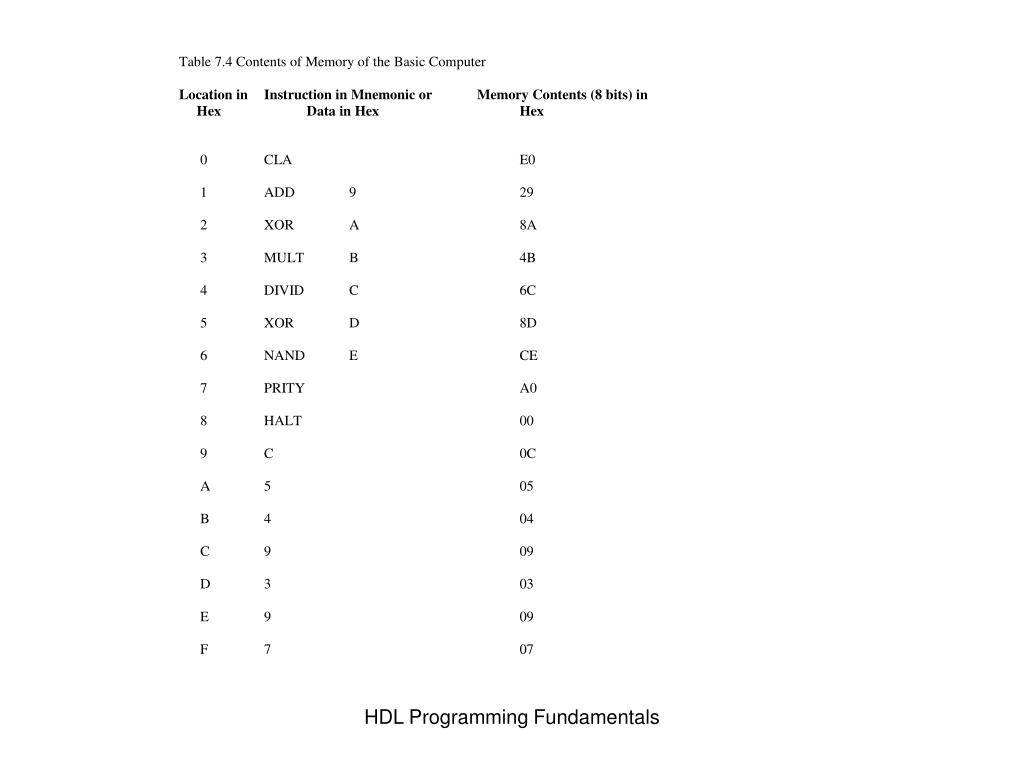

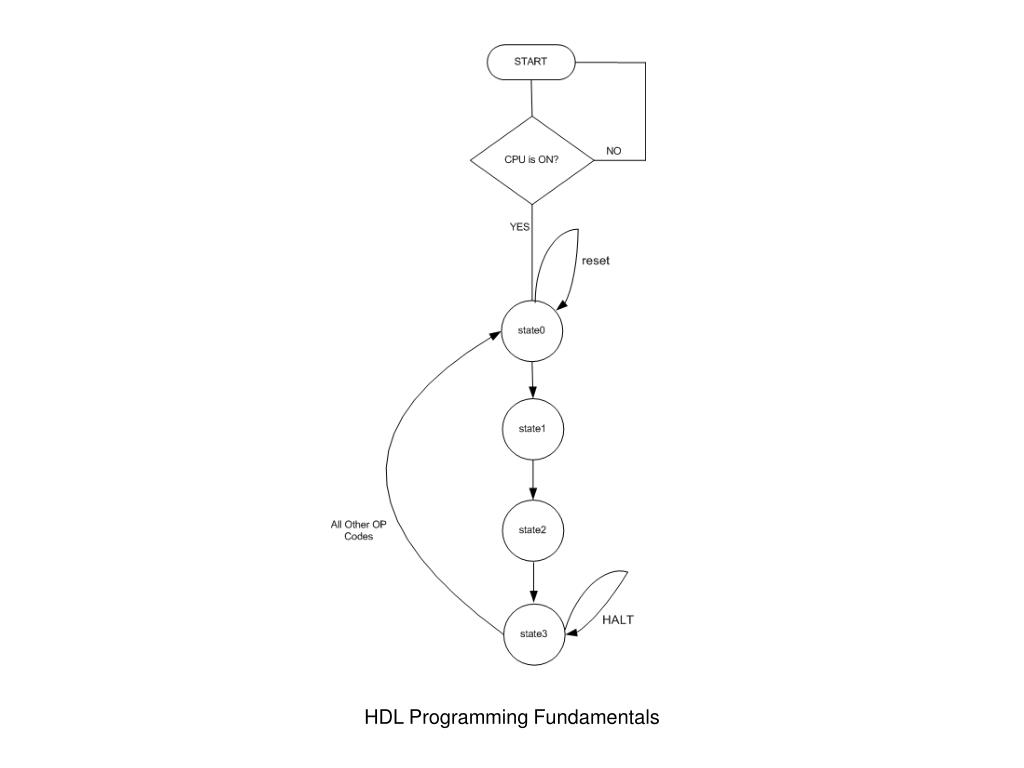

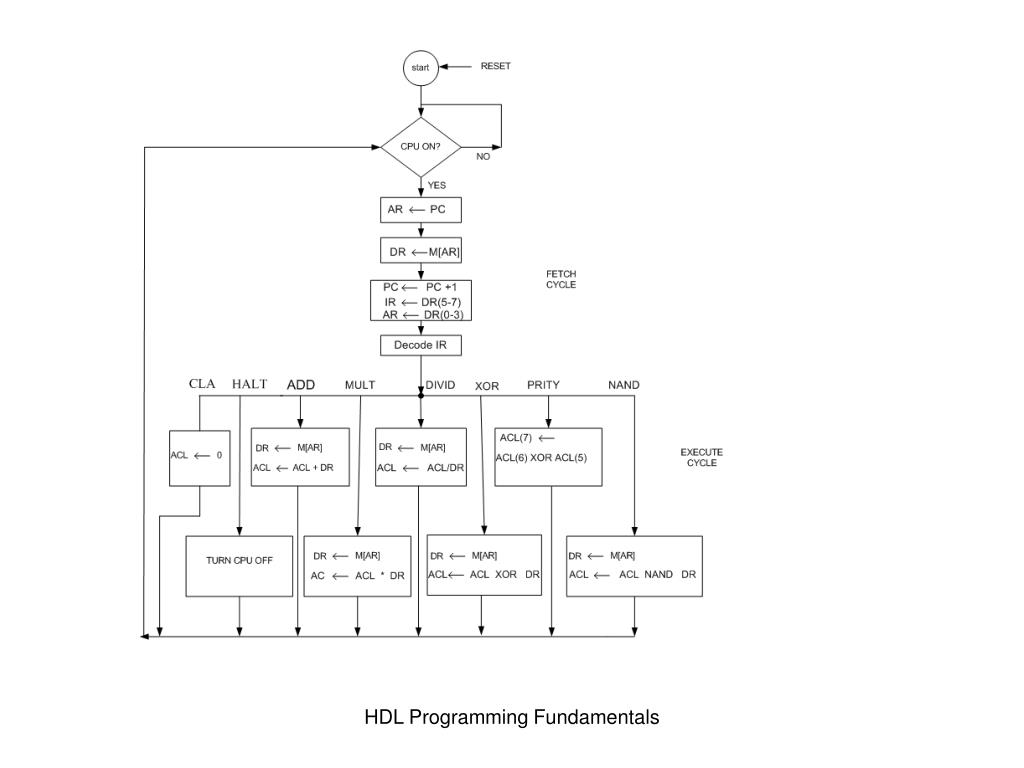

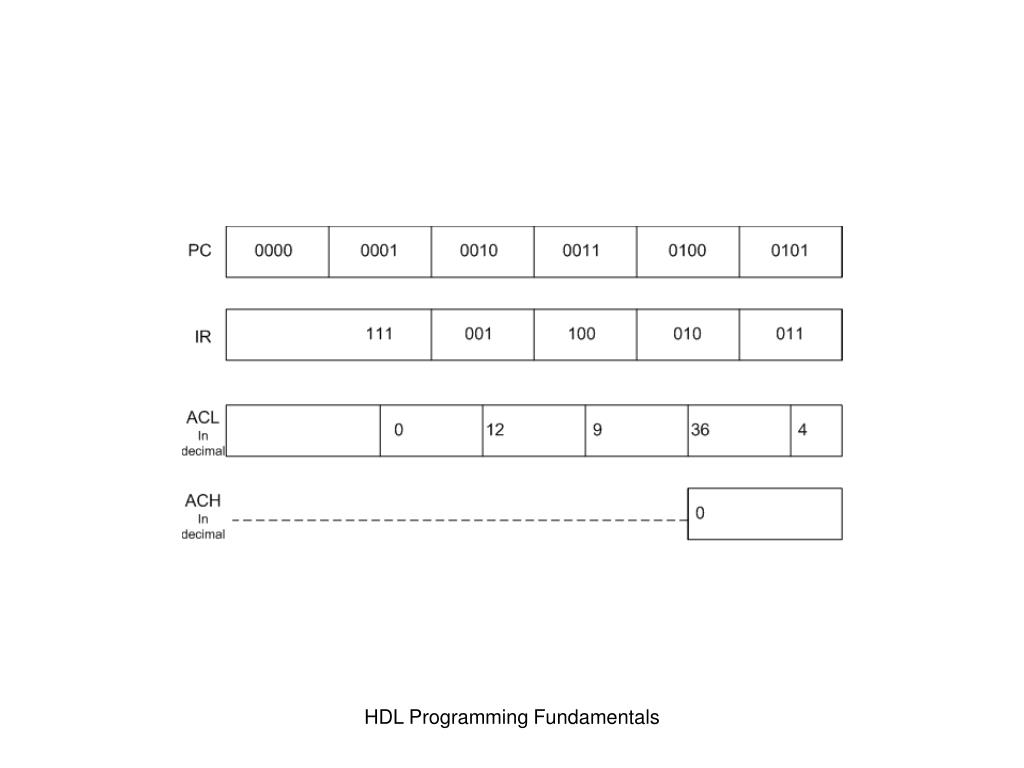

Case Study 7.1 HDL Description of a Basic Computer

Listing 7.10

HDL Programming Fundamentals

slide23

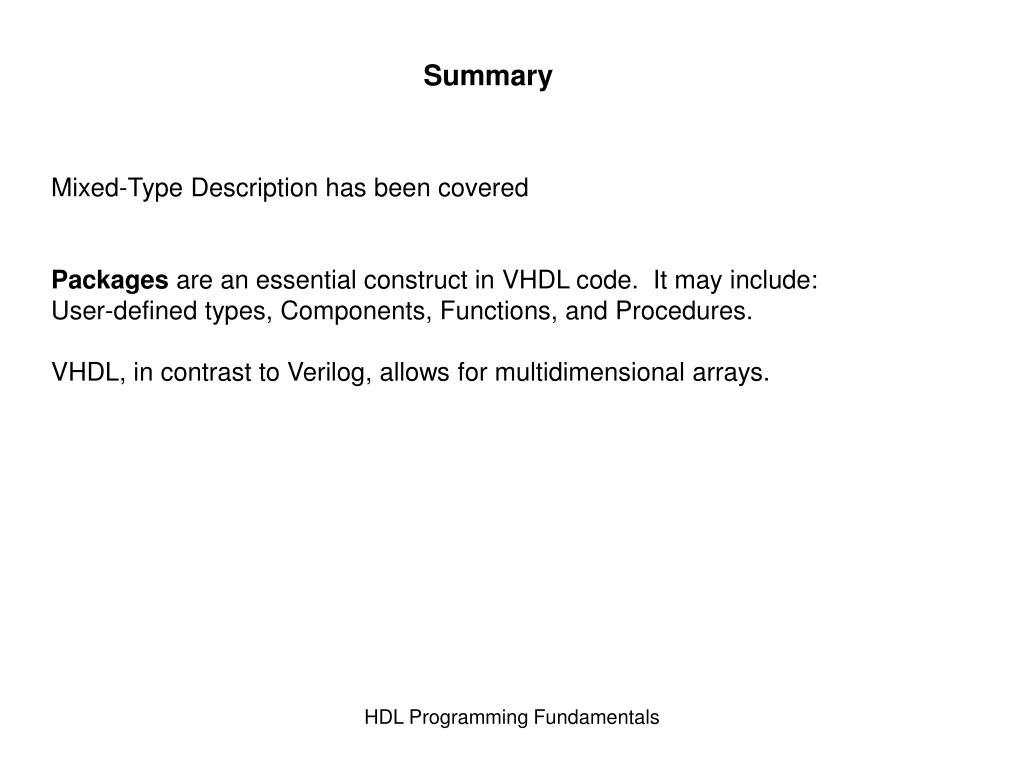

Summary

Mixed-Type Description has been covered

Packages are an essential construct in VHDL code. It may include:

User-defined types, Components, Functions, and Procedures.

VHDL, in contrast to Verilog, allows for multidimensional arrays.
