Lithosphere. Upper Mantle. Asthenosphere. Mantle. Solid Inner Core. Liquid Inner Core. Crust. Earth’s Interior. Visual 2.1. Continental Plate (light). thick lithosphere beneath continents (~ 100 km). Oceanic Plate (heavy). continental crust. thin lithosphere under oceans

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Earth’s Interior' - daniel_millan


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
earth s interior

Lithosphere

Upper Mantle

Asthenosphere

Mantle

Solid Inner Core

Liquid

Inner Core

Crust

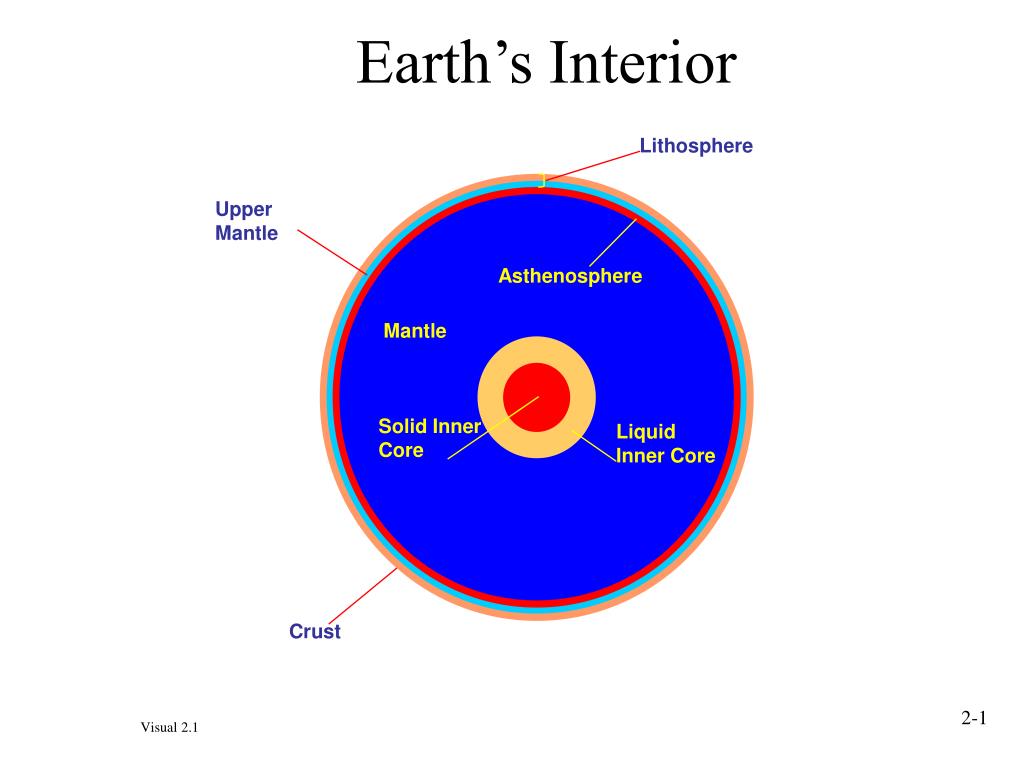

Earth’s Interior

Visual 2.1

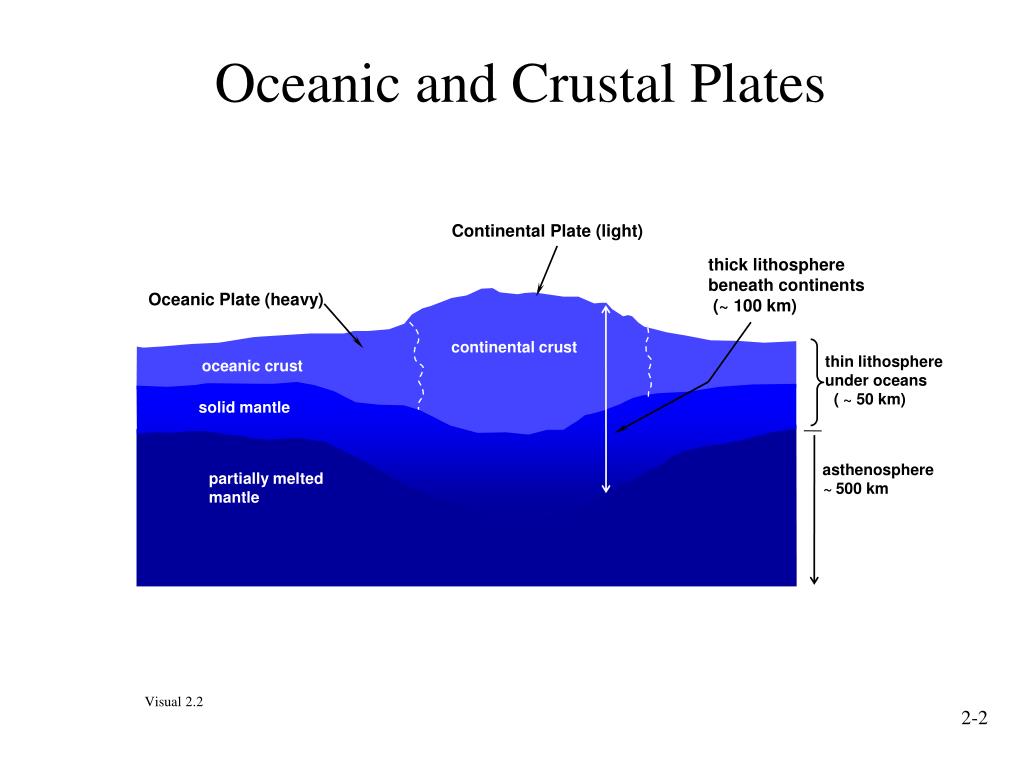

oceanic and crustal plates

Continental Plate (light)

thick lithosphere beneath continents

(~ 100 km)

Oceanic Plate (heavy)

continental crust

thin lithosphere

under oceans

( ~ 50 km)

oceanic crust

solid mantle

asthenosphere

~ 500 km

partially melted

mantle

Oceanic and Crustal Plates

Visual 2.2

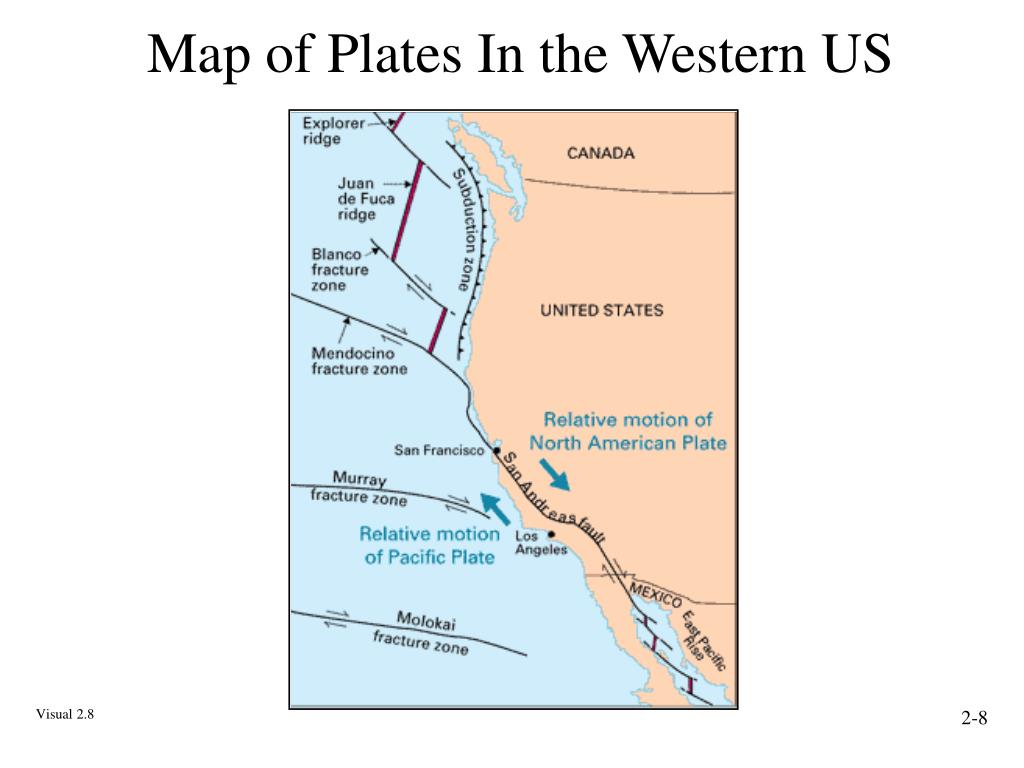

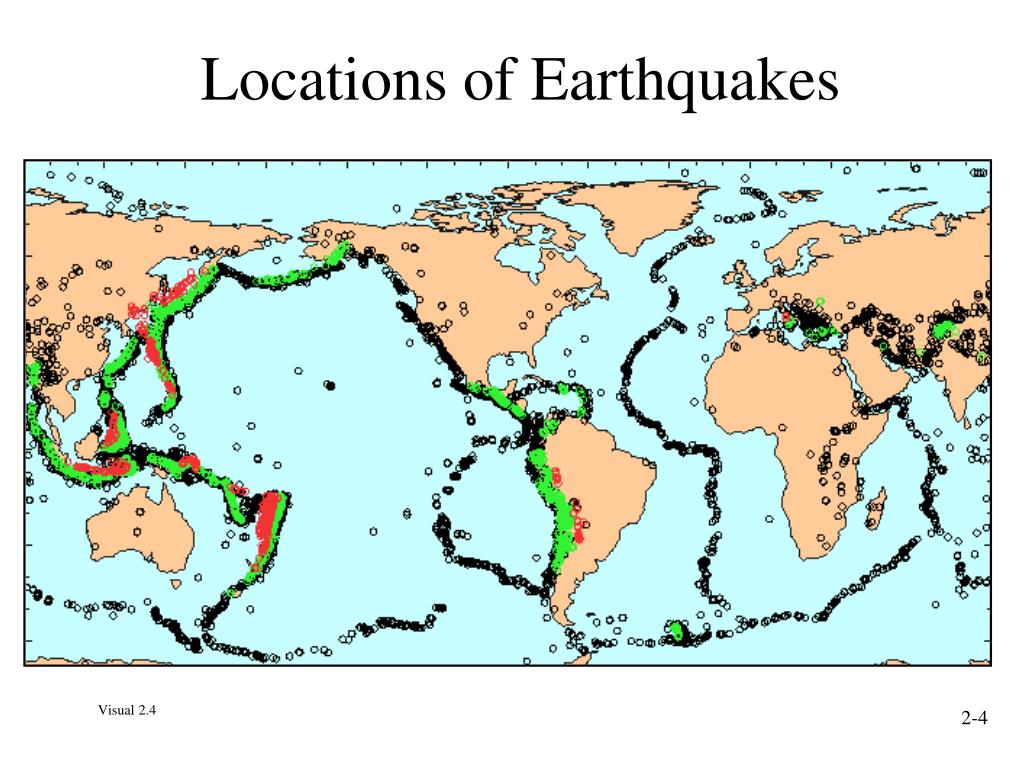

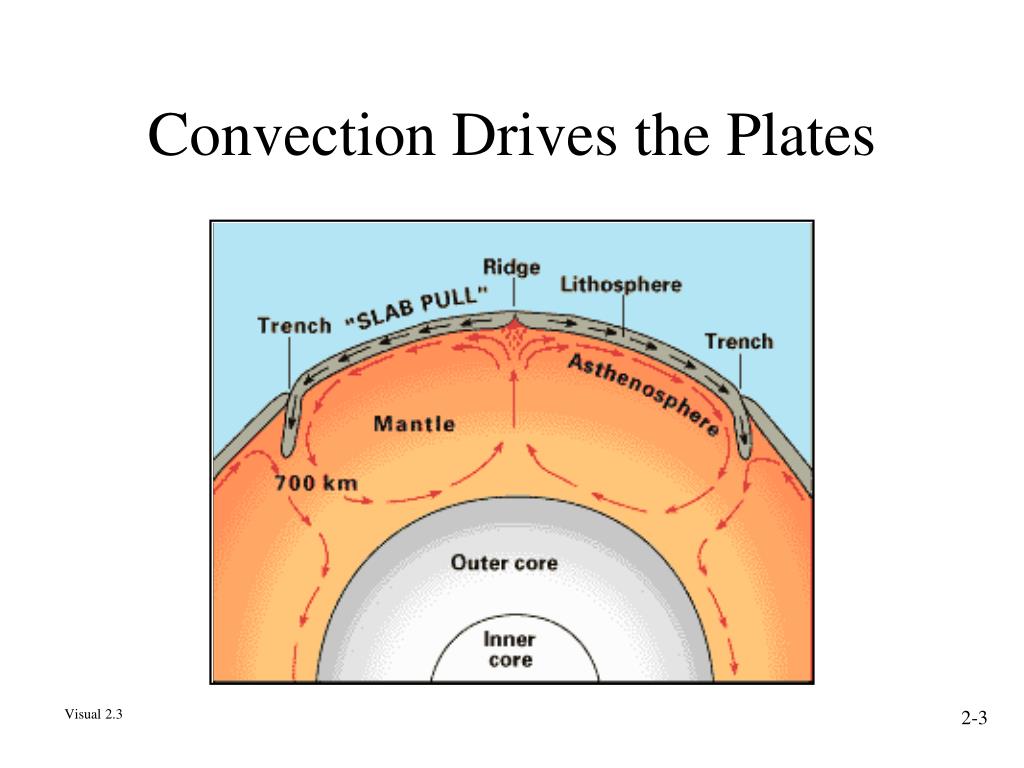

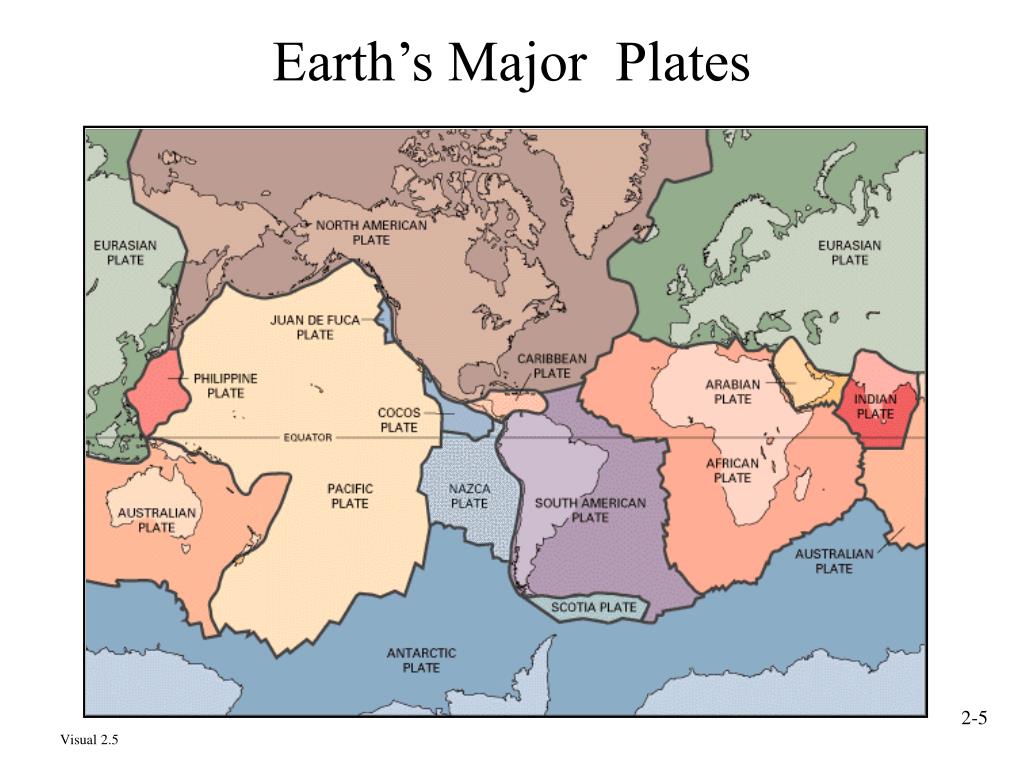

subduction zone
Subduction Zone

Visual 2.9

elastic rebound theory

Time = 0 Years

Fault

New Fence

Elastic Rebound Theory

Visual 2.10

slide11

Time = 40 Years

(strain building)

Fault

New Road

Old Fence

Visual 2.11

slide12

Time = 41 Years

(strain energy released)

Fault

New Road

Old Fence

Visual 2.12

san andreas fault offset 1906 s f eq
San Andreas Fault Offset- 1906 S.F. EQ

fence offset from

fault movement

fault trace

Visual 2.13

types of faults
Types of Faults

Visual 2.15
