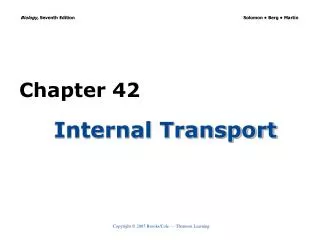

  1. Chapter 42 Internal Transport

  2. Diffusion • Small, simple invertebrates • Sponges, cnidarians, and flatworms

  3. Invertebrates with no circulatory system

  4. Specialized circulatory system • Larger animals • Blood • Heart • System of blood vessels • Spaces through which blood circulates

  5. Interstitial fluid • Tissue fluid between cells • Brings oxygen and nutrients into contact with cells • All animals

  6. Open circulatory system • Arthropods and most mollusks • Blood flows into a hemocoel • Bathes the tissues directly

  7. Closed circulatory system • Some invertebrates • All vertebrates • Blood flows through a continuous circuit of blood vessels

  8. Closed circulatory system

  9. Vertebrate circulatory system • Muscular heart • Arteries • Capillaries • Veins

  10. Vertebrate circulatory system • Transports nutrients, oxygen, wastes, and hormones • Helps maintain • Fluid balance • Appropriate pH • Body temperature • Defends body against disease

  11. Plasma • Water • Salts • Substances in transport • Plasma proteins • Albumins • Globulins • Fibrinogen

  12. Blood components

  13. Red blood cells (erythrocytes) • Transport oxygen and carbon dioxide • Produce large quantities of hemoglobin • Red pigment that binds with oxygen

  14. White blood cells (leukocytes) • Defend the body against disease organisms • Agranular white blood cells • Lymphocytes • Monocytes

  15. Granular white blood cells • Neutrophils • Eosinophils • Basophils

  16. Platelets • Patch damaged blood vessels • Release substances essential for blood clotting

  17. Blood clotting • Damaged cells and platelets release substances that activate clotting factors • Prothrombin is converted to thrombin

  18. Thrombin catalyzes the conversion of fibrinogen to an insoluble protein, called fibrin • Fibrin forms long threads that form the webbing of the clot

  19. Blood clotting

  20. Arteries • Carry blood away from the heart • Veins • Return blood to the heart

  21. Arterioles • Constrict (vasoconstriction) • Dilate (vasodilation) • Regulate blood pressure and distribution of blood to the tissues

  22. Capillaries • Thin-walled exchange vessels through which blood and tissues exchange materials

  23. Blood flow through a capillary network

  24. Vertebrate heart • One or two atria • Receive blood • One or two ventricles • Pump blood into the arteries

  25. Fish heart • Single atrium and ventricle • Part of a single circuit of blood flow

  26. Terrestrial vertebrates • Complex circulatory systems separate oxygen-rich from oxygen-poor blood • Allows the higher metabolic rate needed to support an active terrestrial lifestyle

  27. Amphibians • Two atria and a ventricle • Blood flows through a double circuit • Oxygen-rich blood is partly separated from oxygen-poor blood

  28. Most reptiles • Wall that partly divides the ventricles, minimizing the mixing of oxygen-rich and oxygen-poor blood

  29. Birds and mammals • Four-chambered hearts separate oxygen-rich blood from oxygen-poor blood

  30. Human heart • Enclosed by a pericardium • Valves that prevent backflow of blood

  31. Right atrioventricular (AV) valve (tricuspid valve) • Between right atrium & ventricle • Mitral valve • Between left atrium and ventricle • Semilunar valves • Guard the exits from the heart

  32. Human heart

  33. Cardiac muscle fibers are joined by intercalated discs • The sinoatrial (SA) node (pacemaker) initiates each heartbeat • A specialized electrical conduction system coordinates heartbeats

  34. Cardiac cycle • One complete heartbeat • Contraction occurs during systole • Period of relaxation is diastole

  35. Beginning of ventricular systole • Closing of the AV valves • Low-pitched “lub” sound • Beginning of ventricular diastole • Closing of the semilunar valves • Short, loud, sharp “dup” sound

  36. Cardiac output (CO) • Stroke volume times heart rate • Stroke volume depends on venous return and on neural messages and hormones, especially epinephrine and norepinephrine

  37. Starling’s law of the heart • The more blood delivered to the heart by the veins, the more blood the heart pumps

  38. Heart rate • Regulated mainly by the nervous system • Influenced by hormones and body temperature

  39. Blood pressure • Force blood exerts against the inner walls of the blood vessel • Greatest in the arteries • Decreases as blood flows through the capillaries

  40. Blood pressure depends on • Cardiac output • Blood volume • Resistance to blood flow

  41. Peripheral resistance • Resistance to blood flow • Blood viscosity • Friction between blood and blood vessel wall

  42. Blood pressure

  43. Baroreceptors • Sensitive to blood pressure changes • Send messages to the cardiac and vasomotor centers in the medulla of the brain

  44. When blood pressure increases • Cardiac center stimulates parasympathetic nerves that slow heart rate • Vasomotor center inhibits sympathetic nerves that constrict blood vessels • Blood pressure is reduced

  45. Angiotensin • Hormone that raises blood pressure • Aldosterone • Helps regulate salt excretion • Affects blood volume and blood pressure

  46. Pulmonary circulation • Connects heart and lungs • Systemic circulation • Connects heart and tissues

  47. Pulmonary circulation • Right ventricle pumps blood into the pulmonary arteries, one going to each lung • Blood circulates through pulmonary capillaries in the lung • Blood is conducted to the left atrium by a pulmonary vein

  48. Systemic circulation • Left ventricle pumps blood into the aorta • Aorta branches into arteries leading to the body organs • Blood flows through capillary networks within various organs

  49. Blood flows into veins that conduct it to the superior vena cava or inferior vena cava • Blood returns to the right atrium

  50. Systemic and pulmonary circulation
