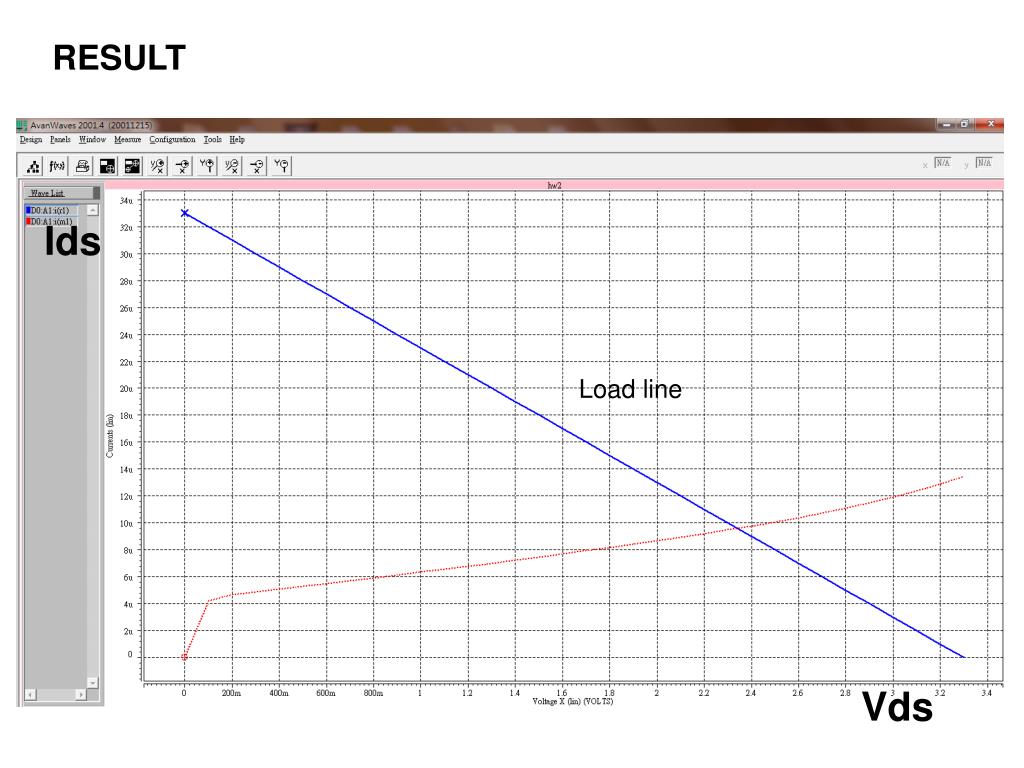

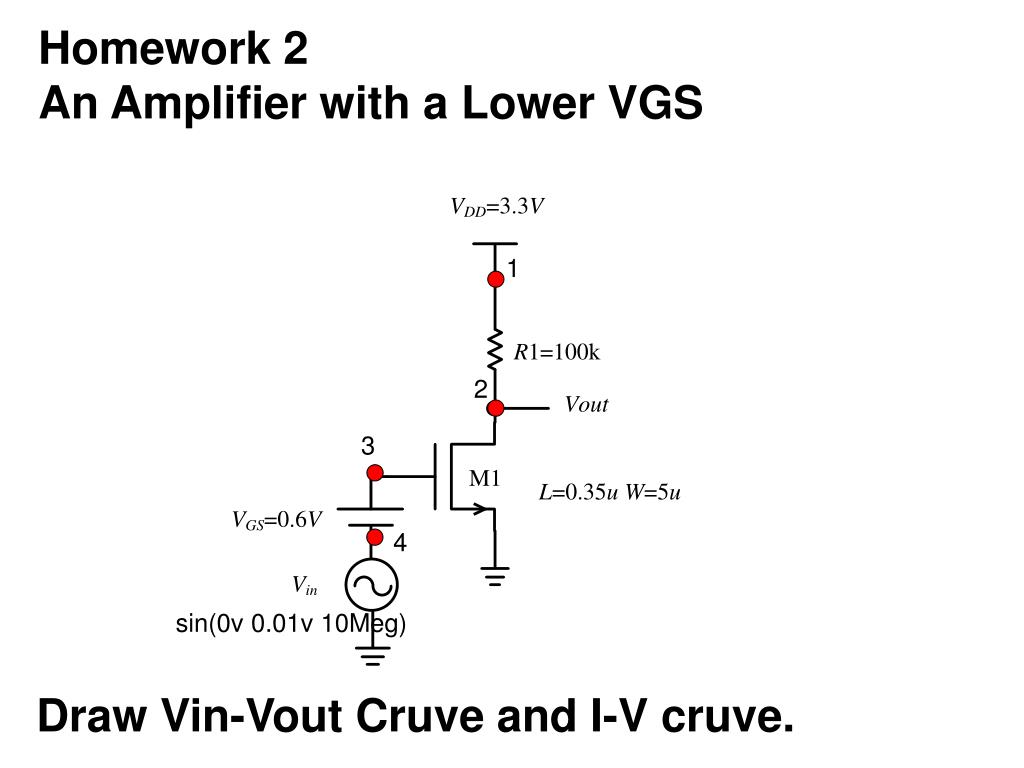

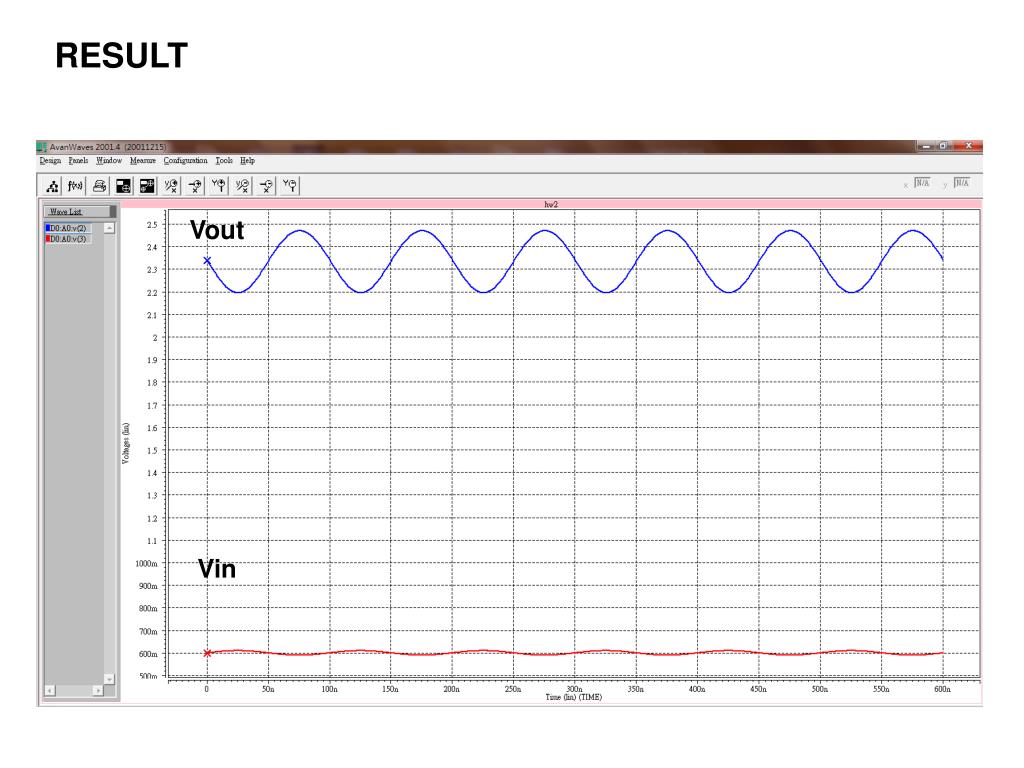

Homework 2 An Amplifier with a Lower VGS. 1. 2. 3. 4. sin(0v 0.01v 10Meg). Draw Vin-Vout Cruve and I-V cruve. RESULT. Vout. Vin. RESULT. Ids. Load line. Vds.
