Homework # 2. Due Date: 25 Feb , 2010. Problem #1. If you represent the three forces and the couple by an equivalent system consisting of a force F acting at A and a couple M, what are the magnitudes of F and M?. Ay. Ax. M A. Problem #2.

brandi
Download Presentation

Homework # 2

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Homework #2 Due Date: 25Feb, 2010

  2. Problem #1 If you represent the three forces and the couple by an equivalent system consisting of a force F acting at A and a couple M, what are the magnitudes of F and M?

  3. Ay Ax MA

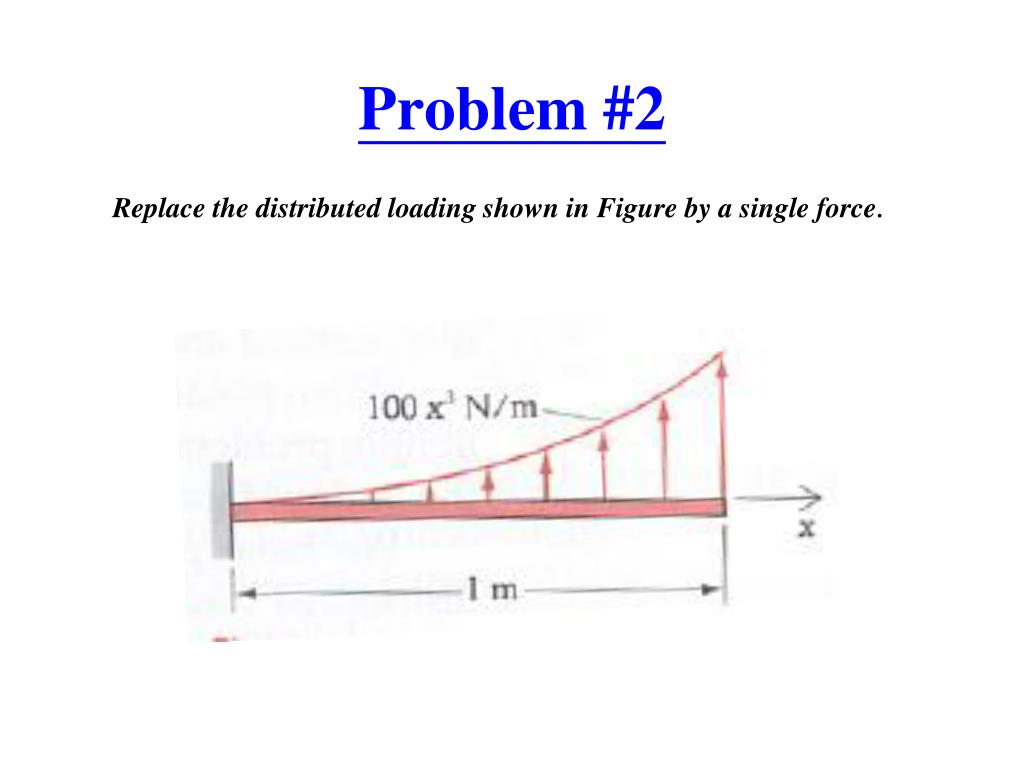

  4. Problem #2 Replace the distributed loading shown in Figure by a single force.

  5. F 0.8m

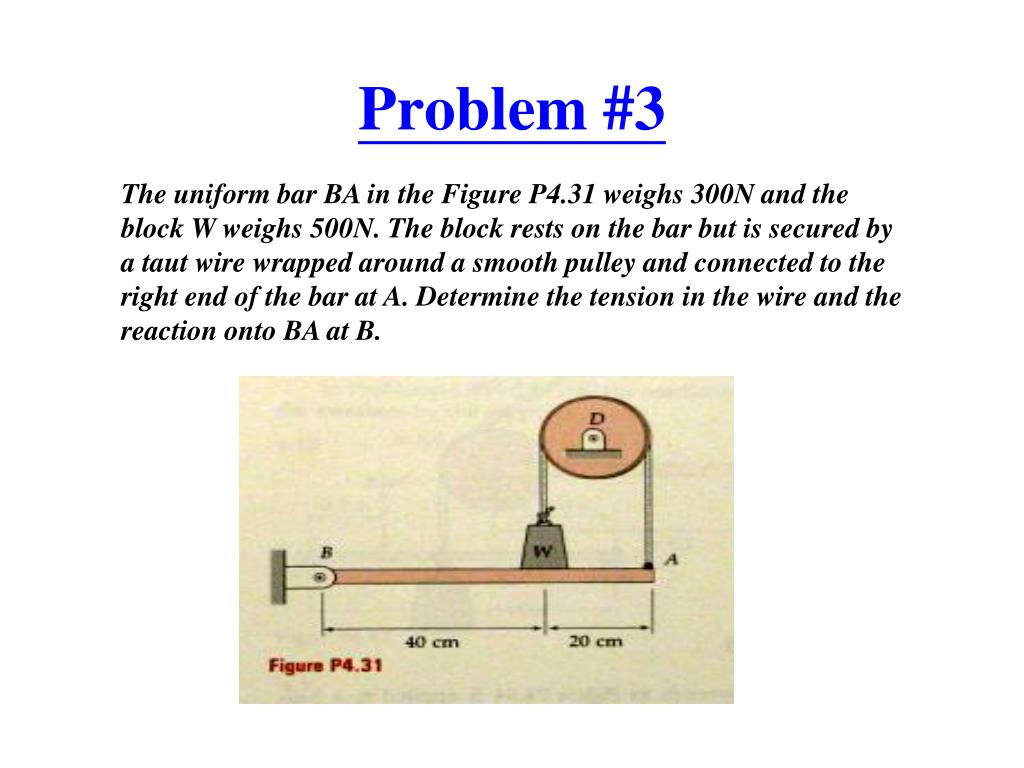

  6. Problem #3 The uniform bar BA in the Figure P4.31 weighs 300N and the block W weighs 500N. The block rests on the bar but is secured by a taut wire wrapped around a smooth pulley and connected to the right end of the bar at A. Determine the tension in the wire and the reaction onto BA at B.

  7. T Nm Nm T Bx G G By Referring to the block, Referring to the beam,

  8. Problem #4 Find the reactions exerted on the members by the supports.

  9. 30N 4N C 50Nm Ax By Ay 0.2m 0.2m

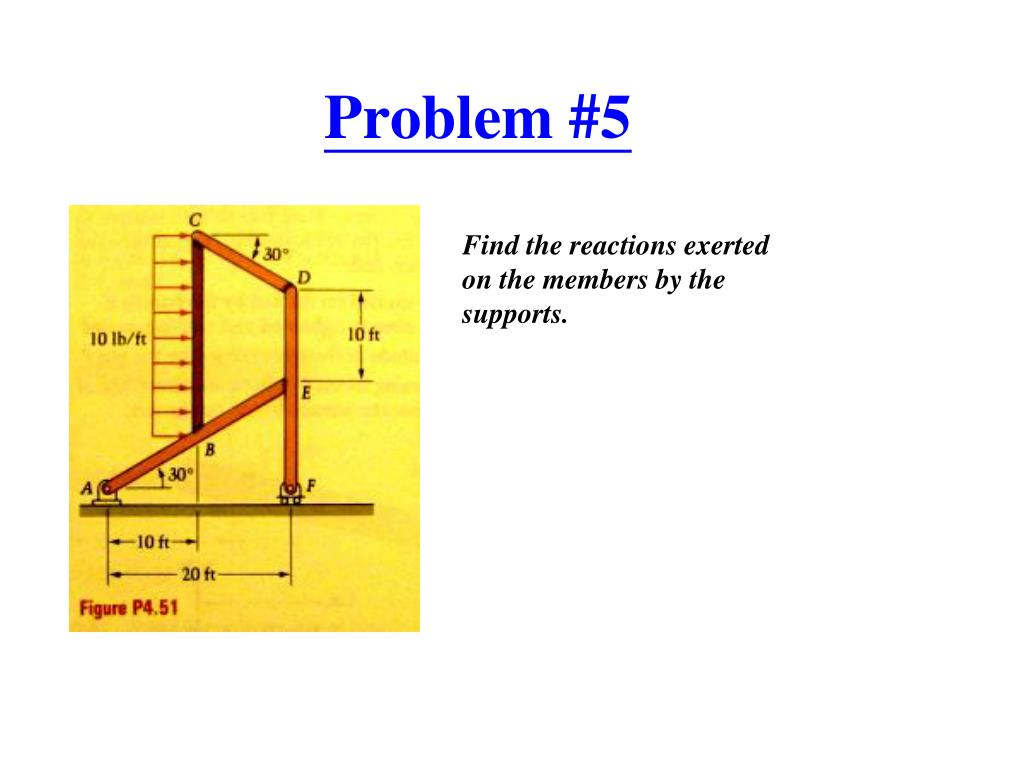

  10. Problem #5 Find the reactions exerted on the members by the supports.

  11. F Ax Nf Ay
