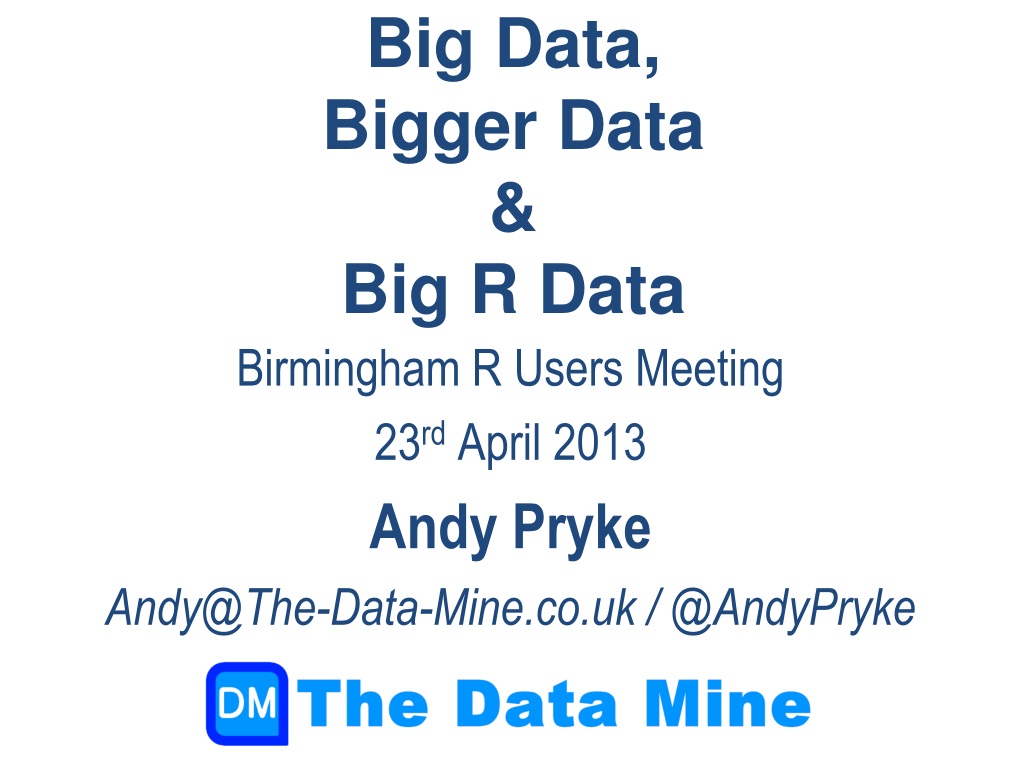

  1. Birmingham R Users Meeting 23rd April 2013 Andy Pryke Andy@The-Data-Mine.co.uk / @AndyPryke Big Data,Bigger Data & Big R Data

  2. My Bias… I work in commercial data mining, data analysis and data visualisation Background in computing and artificial intelligence Use R to write programs which analyse data

  3. What is Big Data? Depends who you ask. Answers are often “too big to ….” …load into memory …store on a hard drive …fit in a standard database Plus “Fast changing” Not just relational

  4. My “Big Data” Definition “Data collections big enough to require you to change the way you store and process them.” - Andy Pryke

  5. Data Size Limits in R Standard R packages use a single thread, with data held in memory (RAM) help("Memory-limits") • Vectors limited to 2 Billion items • Memory limit of ~128Tb Servers with 1Tb+ memory are available • Also, Amazon EC2 servers up to 244Gb

  6. Overview • Problems using R with Big Data • Processing data on disk • Hadoop for parallel computation and Big Data storage / access • “In Database” analysis • What next for Birmingham R User Group?

  7. Background: R matrix class “matrix” - Built in (package base). - Stored in RAM - “Dense” - takes up memory to store zero values) Can be replaced by…..

  8. Sparse / Disk Based Matrices • Matrix – Package Matrix. Sparse. In RAM • big.matrix – Package bigmemory / bigmemoryExtras & VAM. On disk. VAM allows access from parallel R sessions • Analysis – Packages irlba, bigalgebra, biganalytics (R-Forge list)etc. More details? “Large-Scale Linear Algebra with R”, Bryan W. Lewis, Boston R Users Meetup

  9. Commercial Versions of R Revolution Analytics have specialised versions of R for parallel execution & big data I believe many if not most components are also available under Free Open Source licences, including the RHadoop set of packages Plenty more info here

  10. Background: Hadoop • Parallel data processing environment based on Google’s “MapReduce” model • “Map” – divide up data and sending it for processing to multiple nodes. • “Reduce” – Combine the results Plus: • Hadoop Distributed File System (HDFS) • HBase – Distributed database like Google’s BigTable

  11. RHadoop – Revolution Analytics Package: rmr2, rhbase, rhdfs • Example code using RMR (R Map-Reduce) • R and Hadoop – Step by Step Tutorials • Install and Demo RHadoop(Google for more of these online) • Data Hacking with RHadoop

  12. wc.map <- function(., lines) { ## split "lines" of text into a vector of individual "words" words <- unlist(strsplit(x = lines,split = " ")) keyval(words,1) ## each word occurs once } wc.reduce <- function(word, counts ) { ## Add up the counts, grouping them by word keyval(word, sum(counts)) } wordcount <- function(input, output = NULL){ mapreduce( input = input , output = output, input.format = "text", map = wc.map, reduce = wc.reduce, combine = T) } E.g. Function Output ## In, 1 ## the, 1 ## beginning, 1 ##... ## the, 2345 ## word, 987 ## beginning, 123 ##... RHadoop

  13. Other Hadoop libraries for R Other packages: hive, segue, RHIPE… segue – easy way to distribute CPU intensive work - Uses Amazon’s Elastic Map Reduce service, which costs money. - not designed for big data, but easy and fun. Example follows…

  14. # first, let's generate a 10-element list of # 999 random numbers + 1 NA: > myList <- getMyTestList() # Add up each set of 999 numbers > outputLocal <- lapply(myList, mean, na.rm=T) > outputEmr <- emrlapply(myCluster, myList, mean, na.rm=T) RUNNING - 2011-01-04 15:16:57 RUNNING - 2011-01-04 15:17:27 RUNNING - 2011-01-04 15:17:58 WAITING - 2011-01-04 15:18:29 ## Check local and cluster results match > all.equal(outputEmr, outputLocal) [1] TRUE # The key is the emrlapply() function. It works just like lapply(), # but automagically spreads its work across the specified cluster RHadoop

  15. Oracle R Connector for Hadoop • Integrates with Oracle Db, “Oracle Big Data Appliance” (sounds expensive!) & HDFS • Map-Reduce is very similar to the rmrexample • Documentation lists examples for Linear Regression, k-means, working with graphs amongst others • Introduction to Oracle R Connector for Hadoop. • Oracle also offer some in-database algorithms for R via Oracle R Enterprise (overview)

  16. Teradata Integration Package: teradataR • Teradata offer in-database analytics, accessible through R • These include k-means clustering, descriptive statistics and the ability to create and call in-database user defined functions

  17. What Next? I propose an informal “big data” Special Interest Group, where we collaborate to explore big data options within R, producing example code etc. “R” you interested?
