  1. 8 Bits Gray Code Converter By: Dawei Kou Flora Wu Linda Htay

  2. Specification • 8 bits Gray Code Converter converts regular binary number to Gray code number • Clock frequency = 200 MHz • Power < 250mW@200MHz • No Metal 2

  3. Design Method • 3 bits and 4 bits Gray Code Converter by K-map • Verify 8 bits input and 8 bits output in excel • Design XOR and DFF

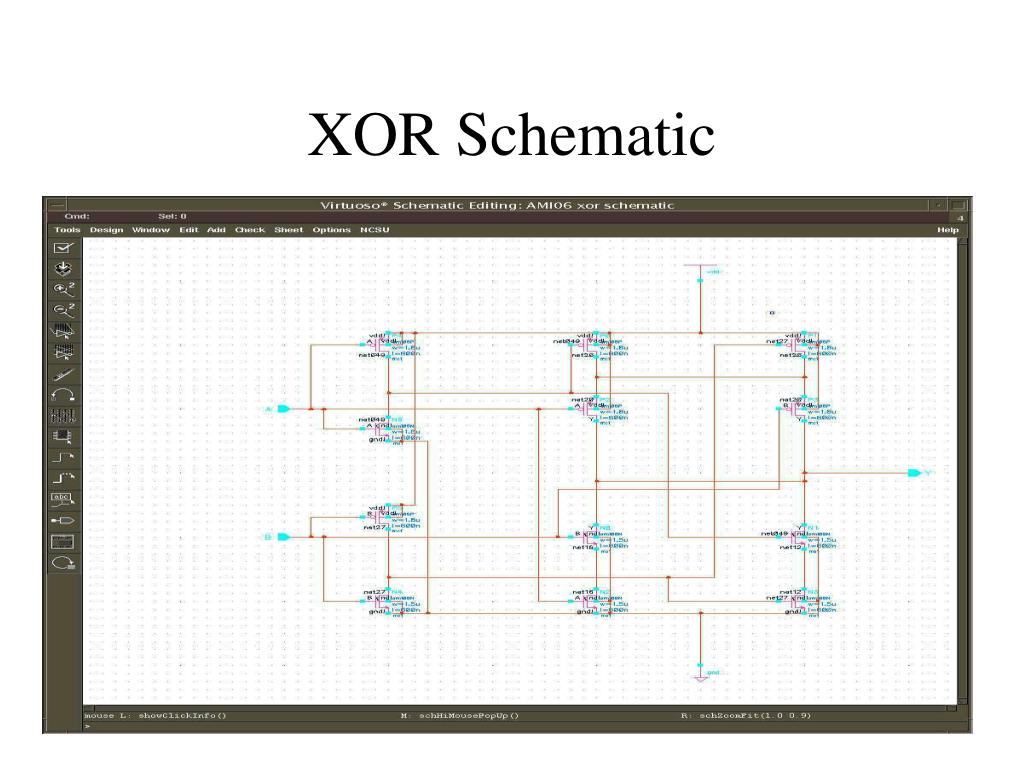

  4. XOR Schematic

  5. XOR Layout

  6. XOR LVS

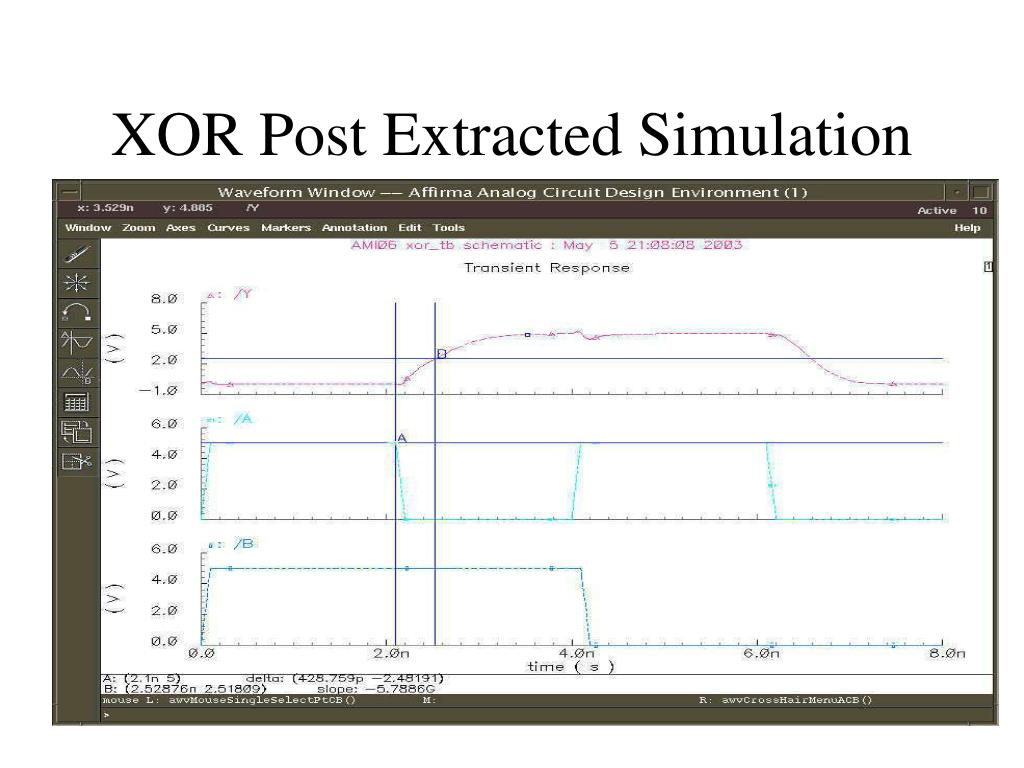

  7. XOR Post Extracted Simulation

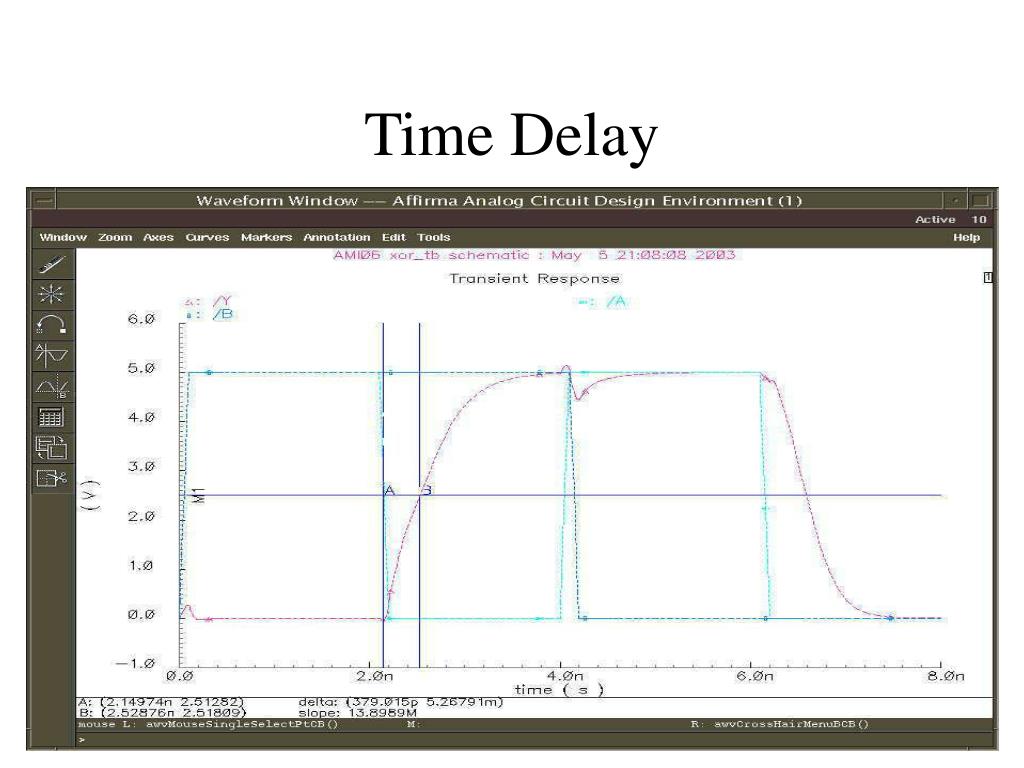

  8. Time Delay

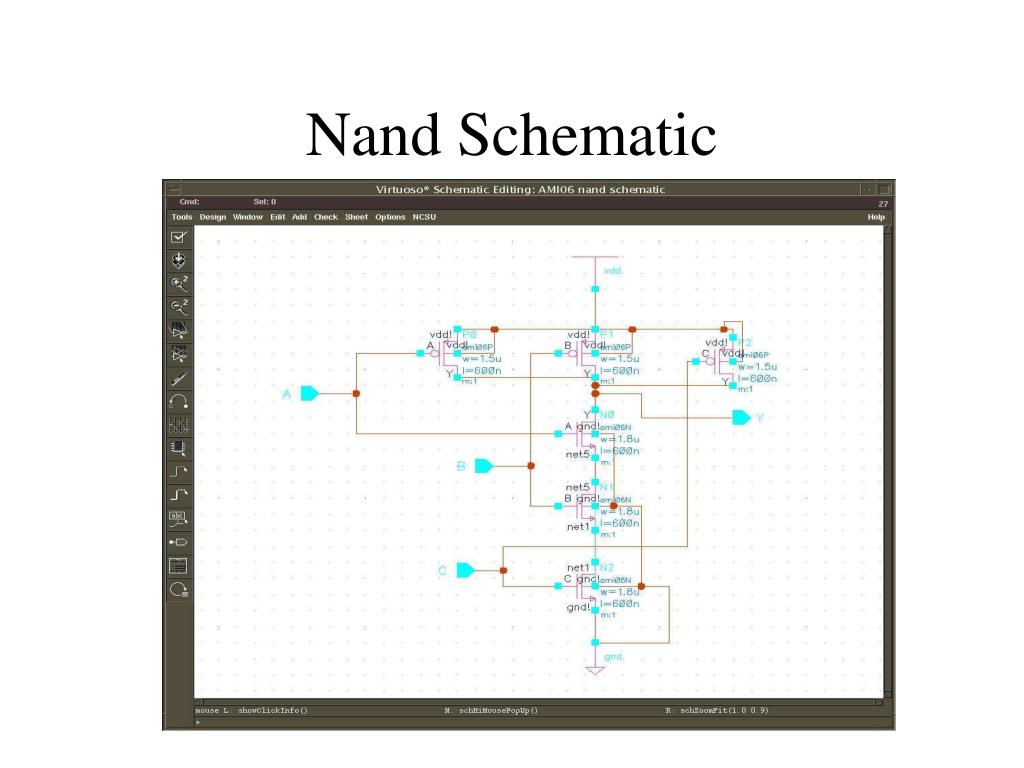

  9. Nand Schematic

  10. Nand Layout

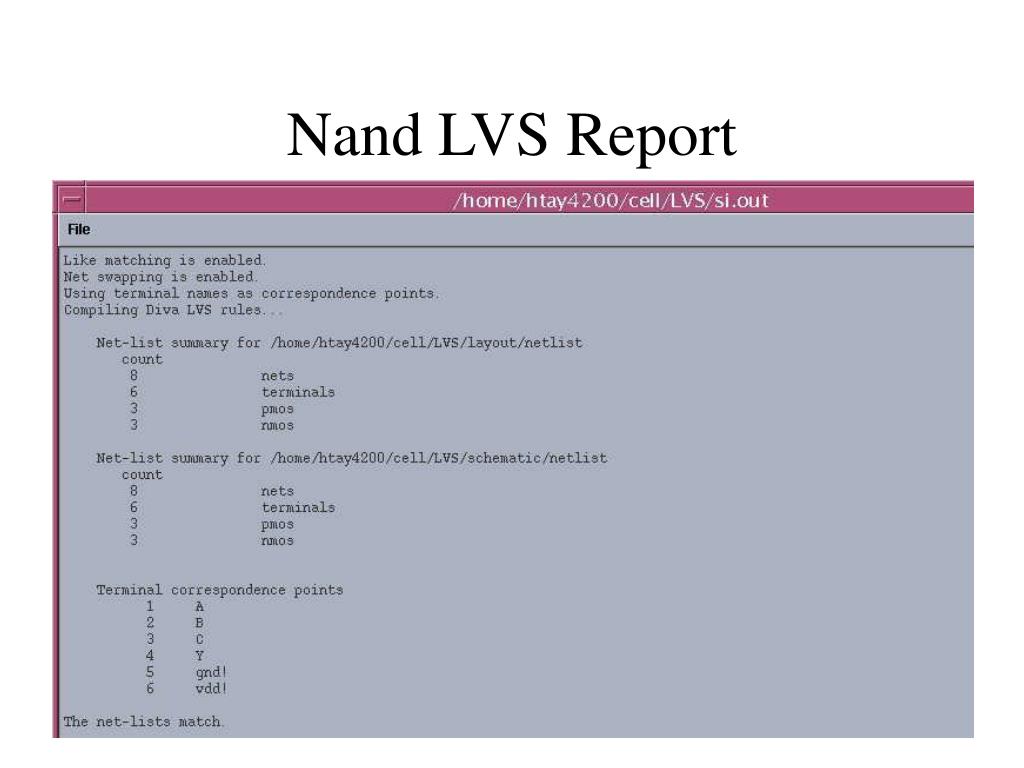

  11. Nand LVS Report

  12. Nand Post Extracted Stimulation

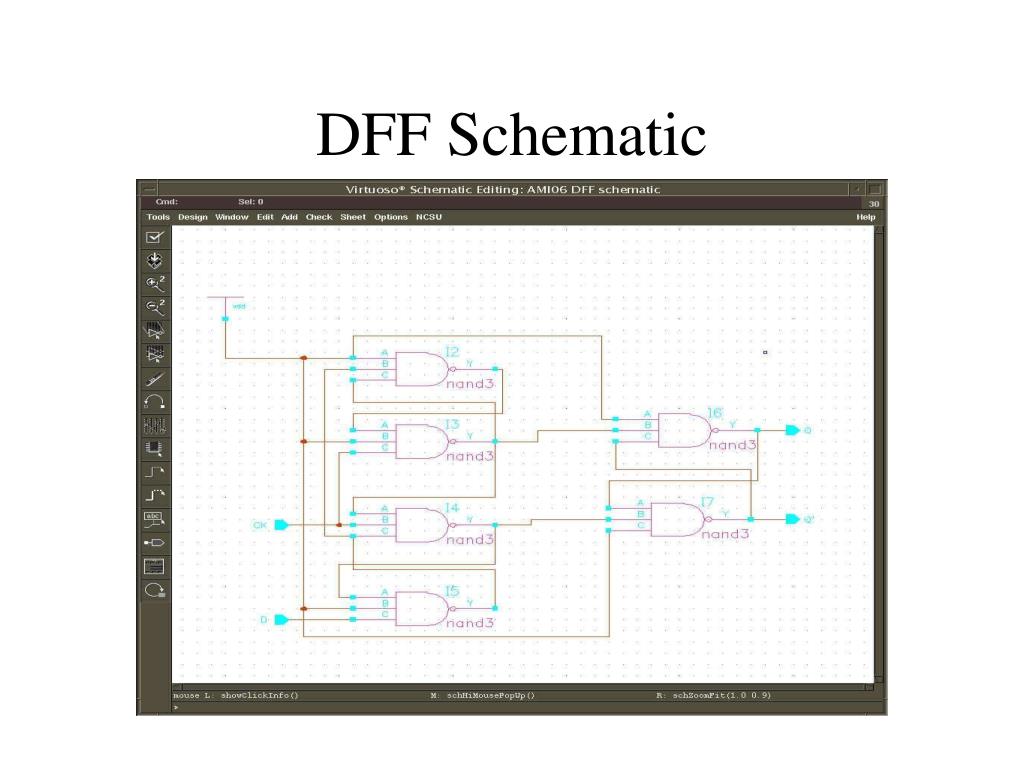

  13. DFF Schematic

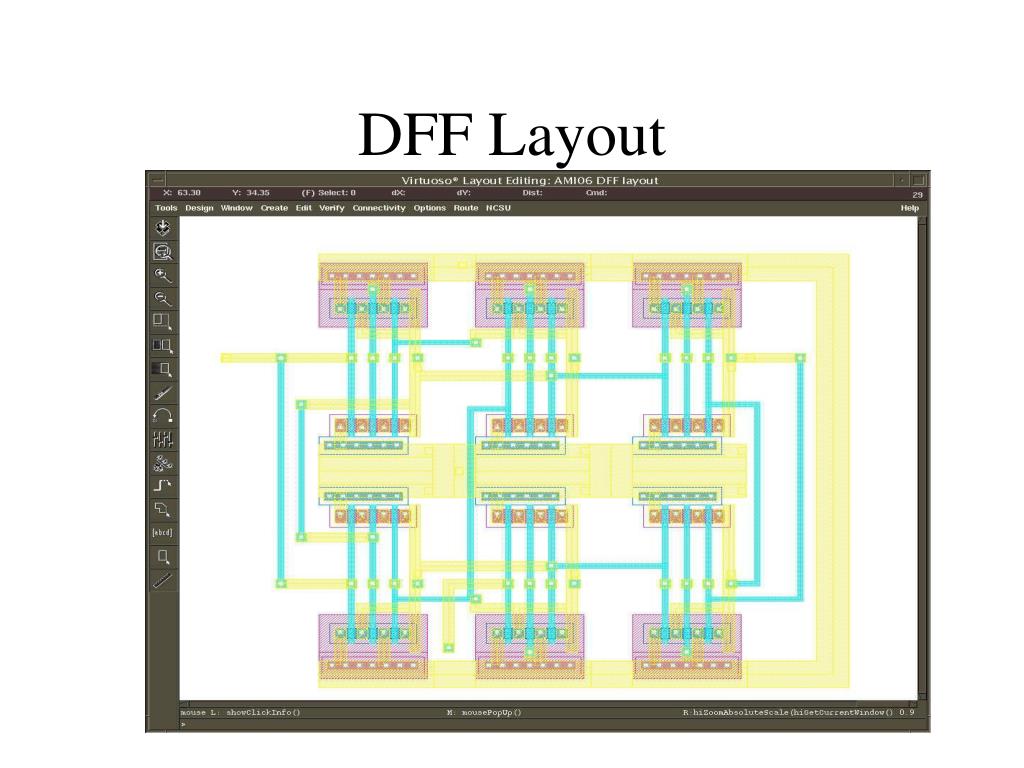

  14. DFF Layout

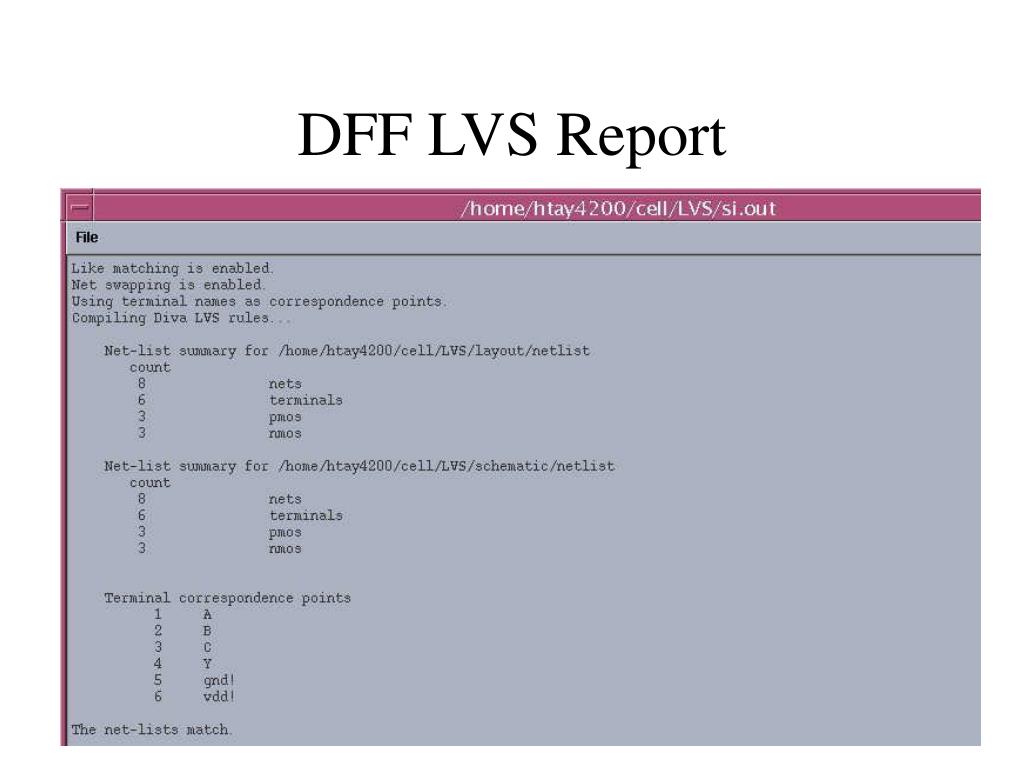

  15. DFF LVS Report

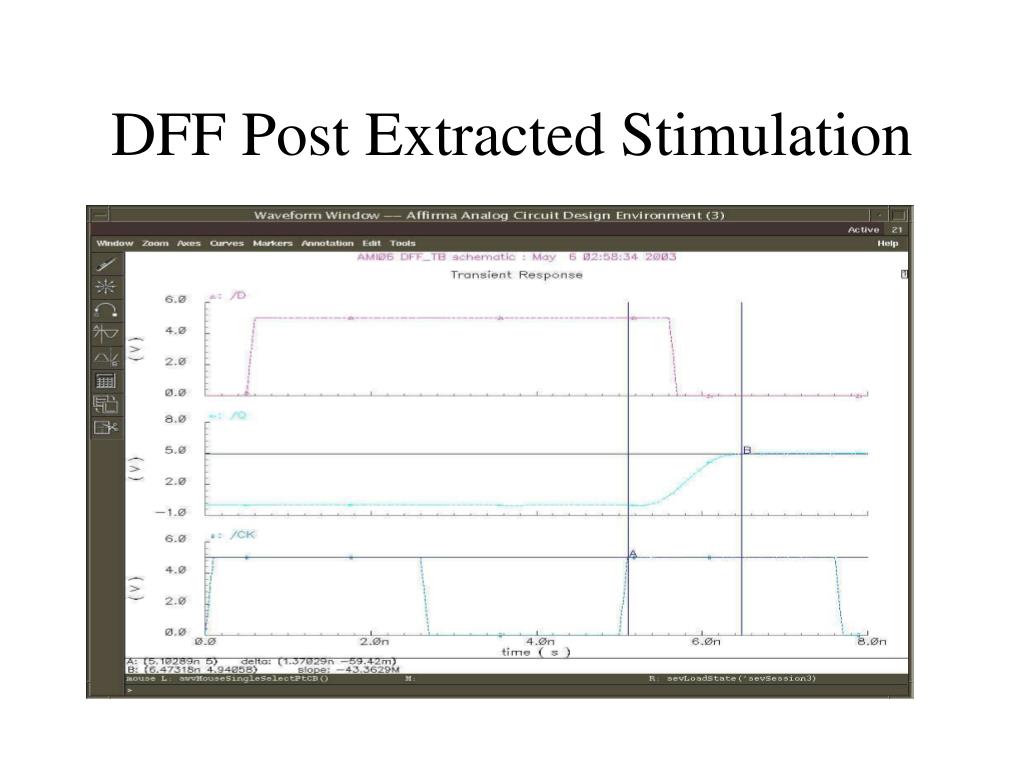

  16. DFF Post Extracted Stimulation

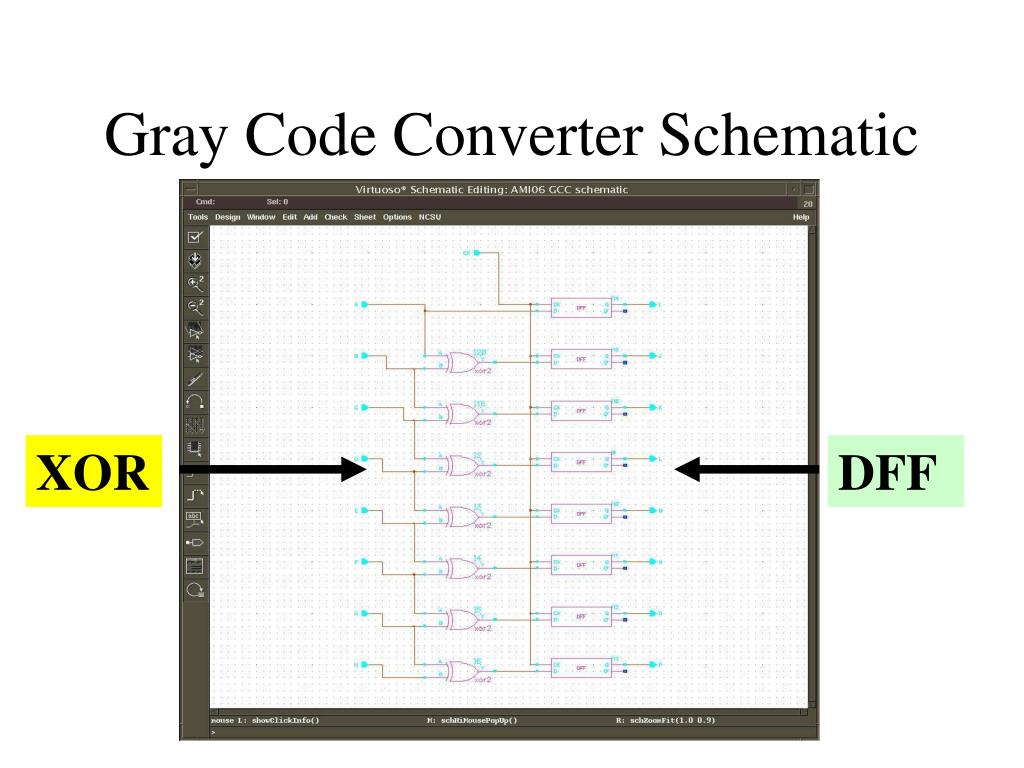

  17. Gray Code Converter Schematic XOR DFF

  18. Gray Code Converter Cell XOR DFF

  19. Gray Code Converter Layout

  20. Gray Code Converter LVS

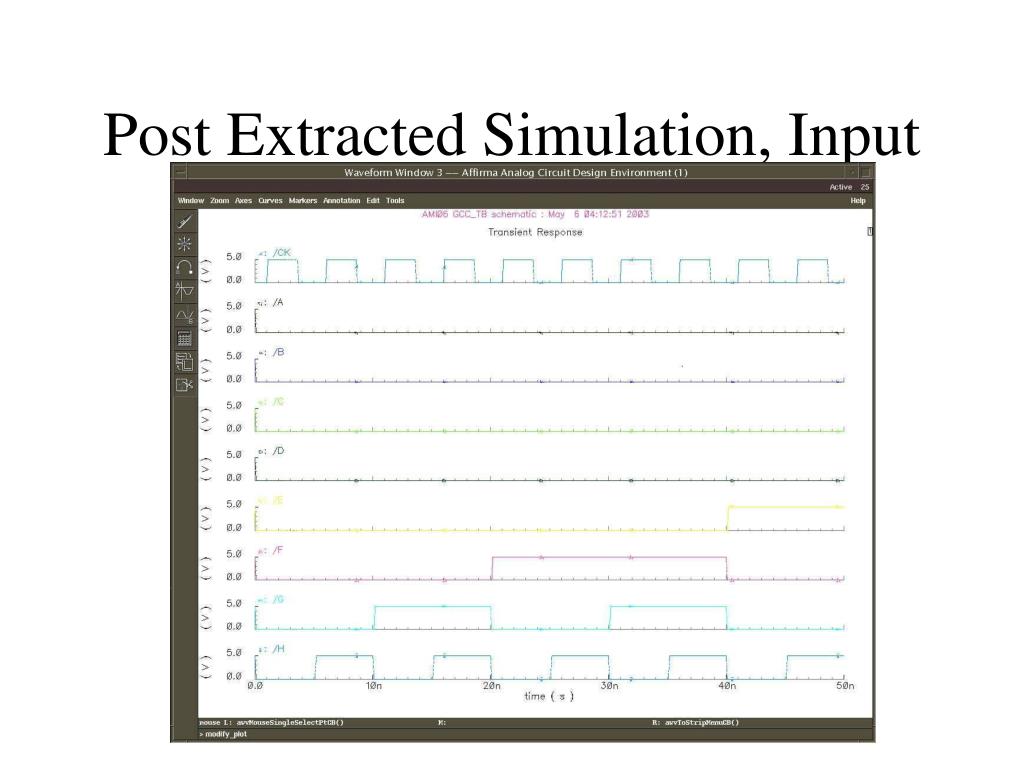

  21. Post Extracted Simulation, Input

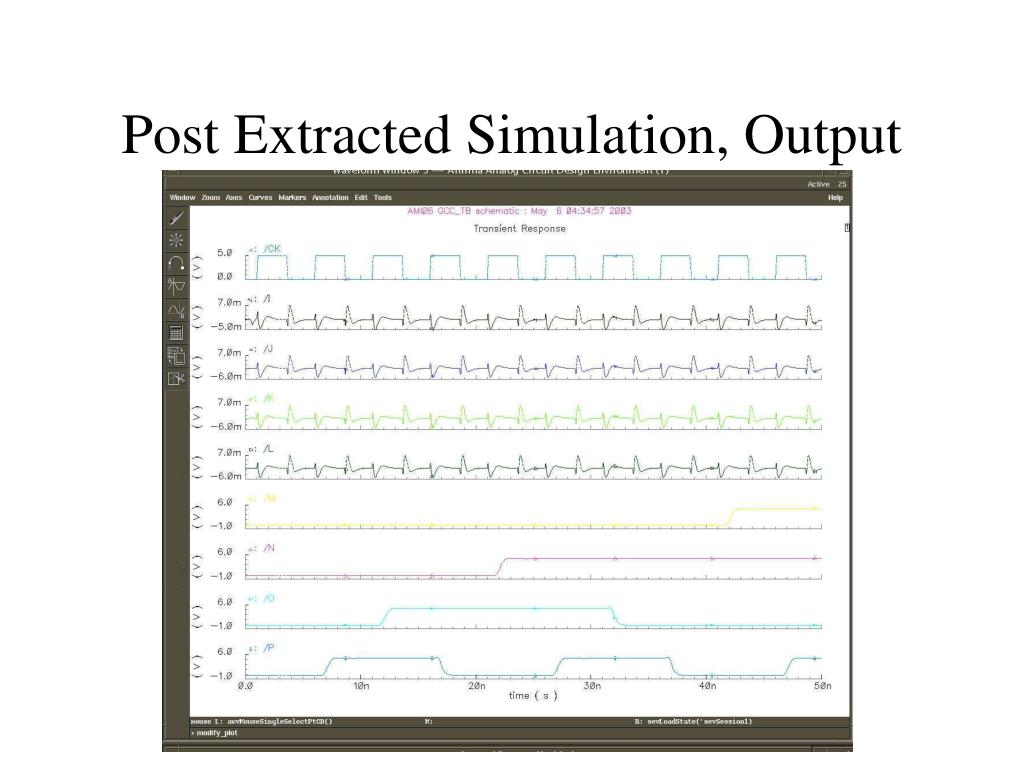

  22. Post Extracted Simulation, Output

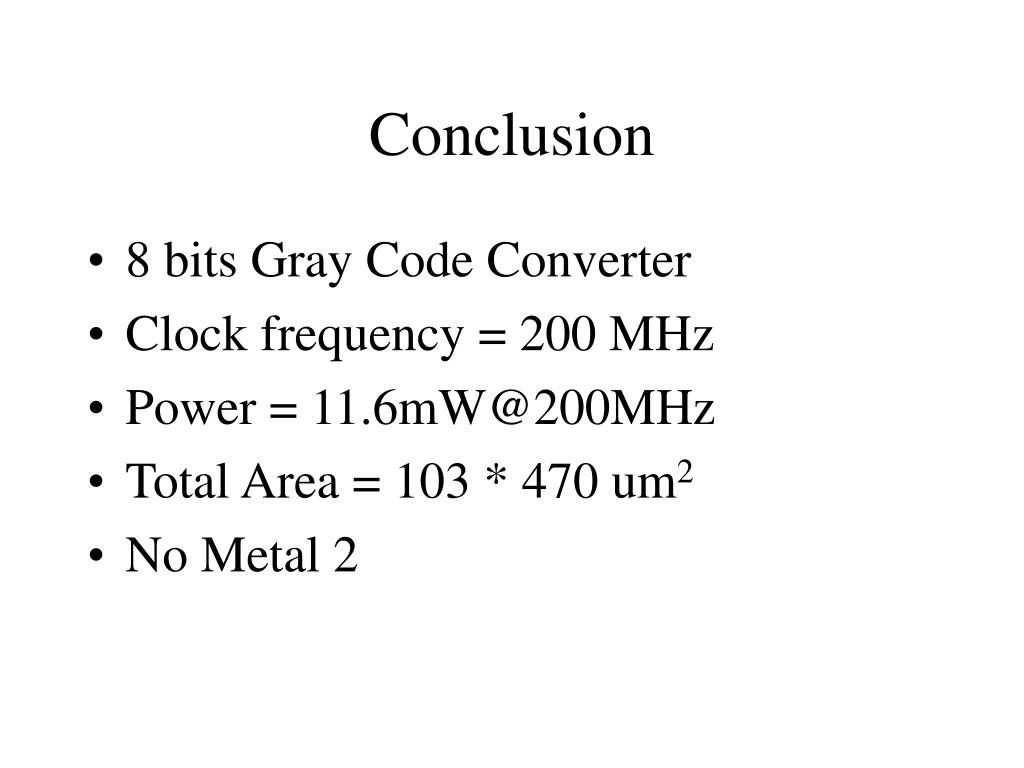

  23. Conclusion • 8 bits Gray Code Converter • Clock frequency = 200 MHz • Power = 11.6mW@200MHz • Total Area = 103 * 470 um2 • No Metal 2
