  1. 7847i Internet Communication Module

  2. Agenda • Introduction • Overview of the 7847i / 7847iE Communication Path • Features • Summary of connections • Before You Leave the Shop • Network Connectivity • Programming the Device • Registering the Device • Updating Code

  3. Introduction The 7847i delivers highly secure, reliable, Internet communication of alarm data while the 7847i-E is suitable for enterprise private network applications using local LAN or point to point connections.

  4. Applications • Banking Institutions • Jewelry Industry • Federal Government • Medical • Industrial • Residential

  5. Features • Secure IP Reporting • Dialer Capture Ready • Universal Control Panel Compatibility • Full Contact ID or ADEMCO High Speed Reporting • Six Input Zones • Tamper Protected Enclosure • Remote Services Capability* • Network Friendly • Ease of installation • Upload/Download

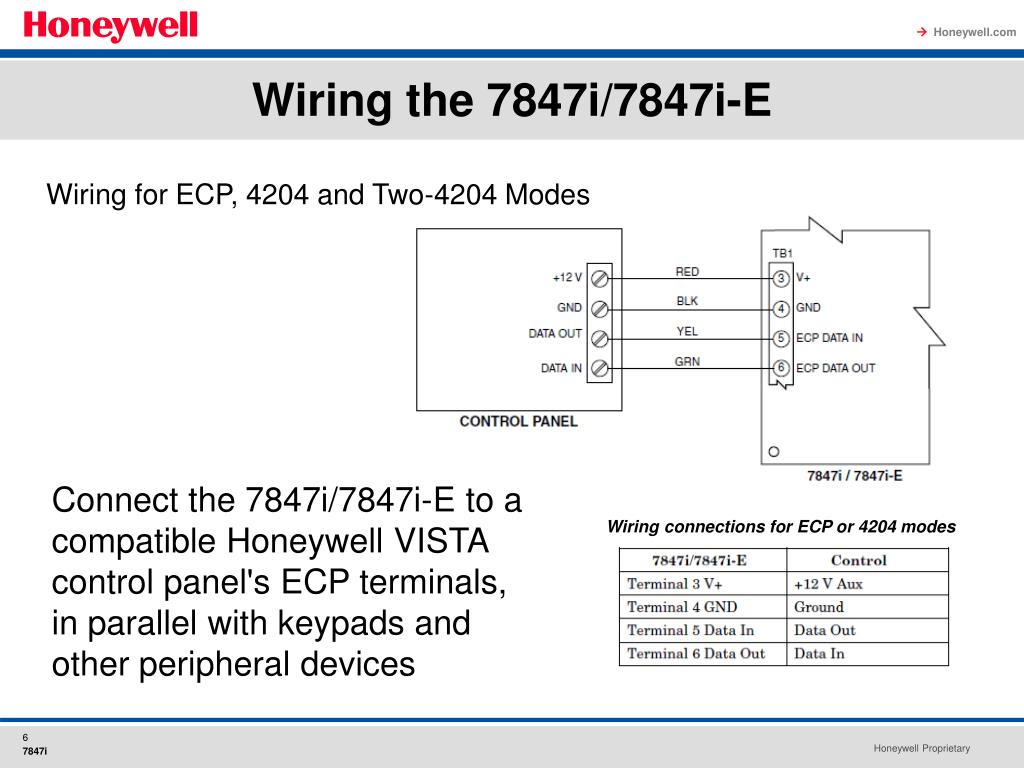

  6. Wiring the 7847i/7847i-E Wiring for ECP, 4204 and Two-4204 Modes Connect the 7847i/7847i-E to a compatible Honeywell VISTA control panel's ECP terminals, in parallel with keypads and other peripheral devices Wiring connections for ECP or 4204 modes

  7. Wiring the 7847i/7847i-E Wiring a LynxR-I for ECP Mode To trip the zone on the 7847i/7847i-E in V+ trigger mode, the positive triggering voltage from the control panel must be within 2.0V-14V. To trip the zone on the 7847i/7847i-E in V- trigger mode, the negative triggering voltage must be less than 1.0V. • Note: • Trigger levels above this range may cause permanent damage to the unit. • Trigger levels below this range result in unreliable operation.

  8. Wiring the 7847i/7847i-E Wiring for Zone Trigger Mode To trip the zone on the 7847i/7847i-E in V+ trigger mode, the positive triggering voltage from the control panel must be within 2.0V-14V. To trip the zone on the 7847i/7847i-E in V- trigger mode, the negative triggering voltage must be less than 1.0V. • Note: • Trigger levels above this range may cause permanent damage to the unit. • Trigger levels below this range result in unreliable operation.

  9. Wiring the 7847i/7847i-E Primary power for the 7847i/7847i-E is provided by the auxiliary power output of the control panel 9.6V –13.8V, typical, or other external power source. Zone 1 Input to a LynxR Trigger Output Zone 1 Input for EOL Supervised N.O./N.C. Triggers

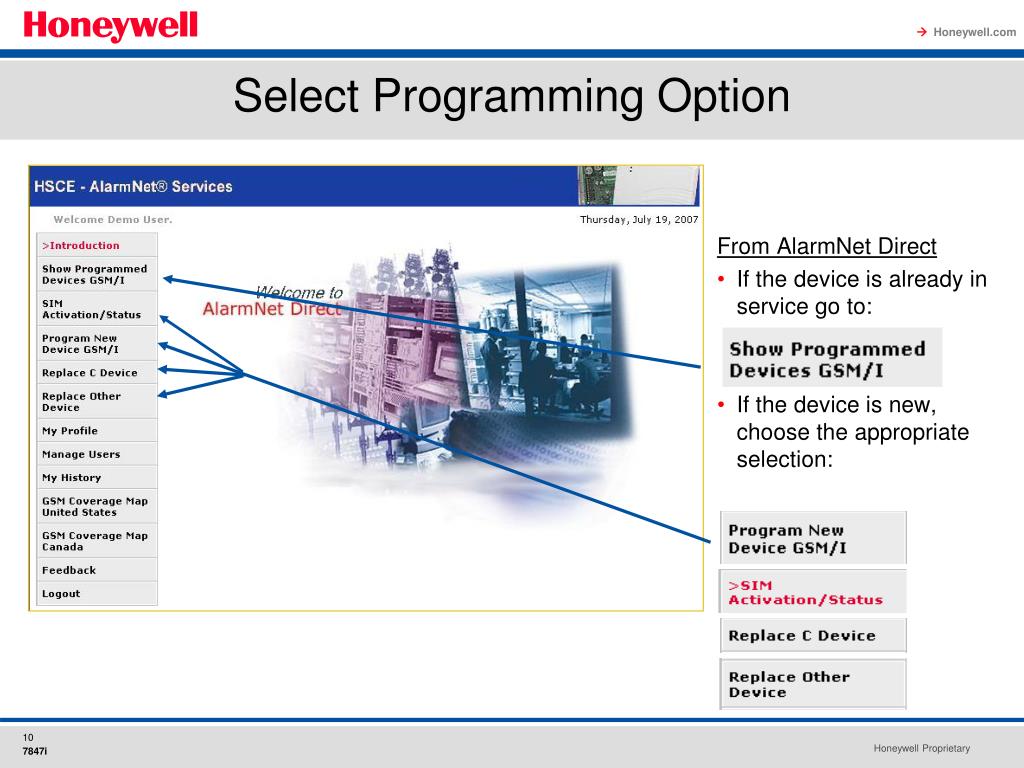

  10. Select Programming Option From AlarmNet Direct If the device is already in service go to: If the device is new, choose the appropriate selection:

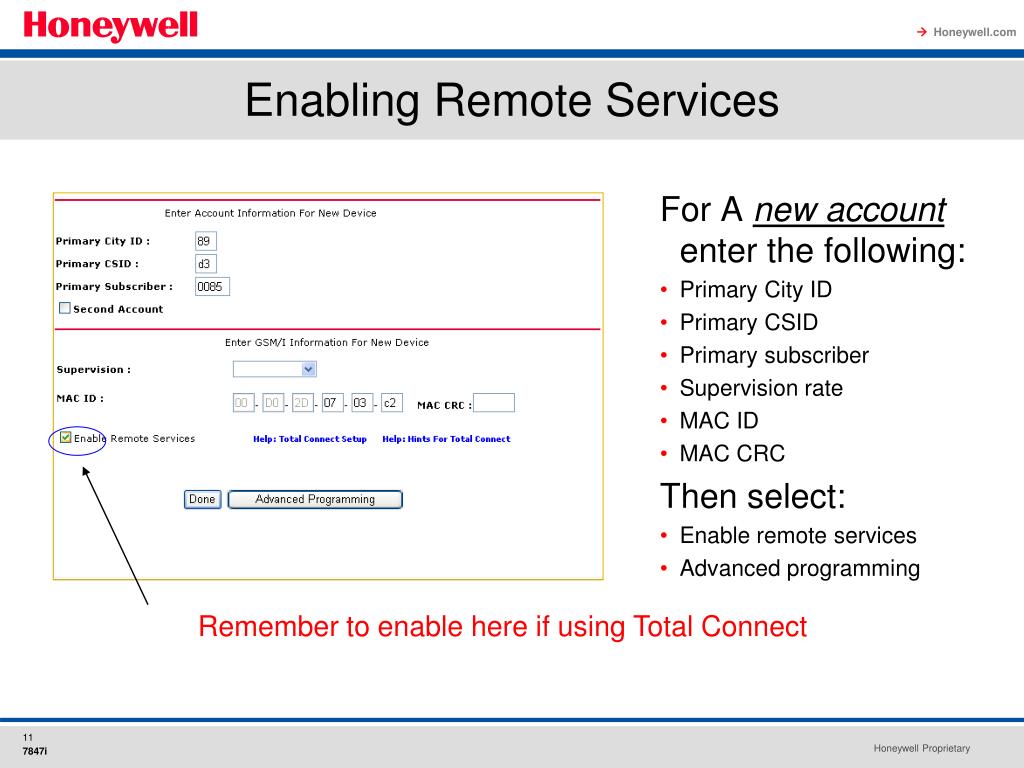

  11. For A new account enter the following: Primary City ID Primary CSID Primary subscriber Supervision rate MAC ID MAC CRC Then select: Enable remote services Advanced programming Enabling Remote Services Remember to enable here if using Total Connect

  12. Edit Mode Status of the device is displayed. • With Edit displayed in the Actions box Click GO.

  13. Select Mode and Options Select Operation Mode ECP – 4204 Emulation – 2-4204s Emulation – Zone Select Options • Old Alarm Time • IP Fault Time • Fault Relay Normally On • Tamper Report • Use DHCP • NIC IP Address • Subnet Mask • Gateway IP Address • DNS Server IP Address • Enable Power Save

  14. AlarmNet Direct Programming ECP Mode • Enable Direct Wire Downloading • Keypad Address • Total Connect Features • Remote Access • Keypad Address/Type • Multimode • Multimode Address • Zone 6 and 7 • EOLR, V+ or V- • Invert Zone • Zone Restore • Zone Delay

  15. AlarmNet Direct Programming Zone Mode • Trip Inputs 1 or 2 w/Bell out • Increases Trip Voltage to 5V for V+ mode • Lynx Panic • Telco Zone • Open/Close Zone • Multimode • Total Connect • Trigger Type • Invert Zone • Zone Restore • Zone Delay • Zone Report On Arm

  16. AlarmNet Direct Programming 4204 Emulation Modes • Fault Relay Normally On • Telco Zone • Open/Close Zone • Enable Direct Wire Downloading • Keypad Address • Total Connect Feature • Remote Access • Keypad Address/Type • Set Multi Partition View • Zone Restore • Zone Delay • Zone Report On Arm • Zone 4 or Zone 8 Arms

  17. AlarmNet Direct Programming If the device is powered and connected to the Internet: • Save And Transfer Data to Device If the device is not powered or connected to the Internet: • Click “Save” • Click “Exit” Return to Show Program Devices page.

  18. 7720 Programming Tool • The device can also be programmed using a 7720P Programmer. • This 7720P allows access to Useful Diagnostic Tools.

  19. 7720P Programming Enters programming mode. Change Password? (Y/N)_ Strt Prog Mode? (Y/N)_ If a password has been previously assigned, this prompt appears. Enter a 4-digit password (0-9, A-F, N, S, T, X, Y). The next prompt appears. Enter Password Program Device? (Y/N)_ NOTE: The central station can remotely block access to local device programming. If this has been done, the following prompt appears: Access to Prog Mode Denied

  20. Programming Press the [space] key to scroll through the modes of operation. Press [ENTER] to select ECP mode. Device Mode (ECP)_ • ECP • Zone Triggers • 4204 Emu • Two 4204s In ECP mode, the 7847i/7847i-E communicates with the panel as a Long Range Radio (LRR) device. Enter the appropriate ECP device address. For controls, see the control panel’s Installation and Setup Guide. Device Address (03)_

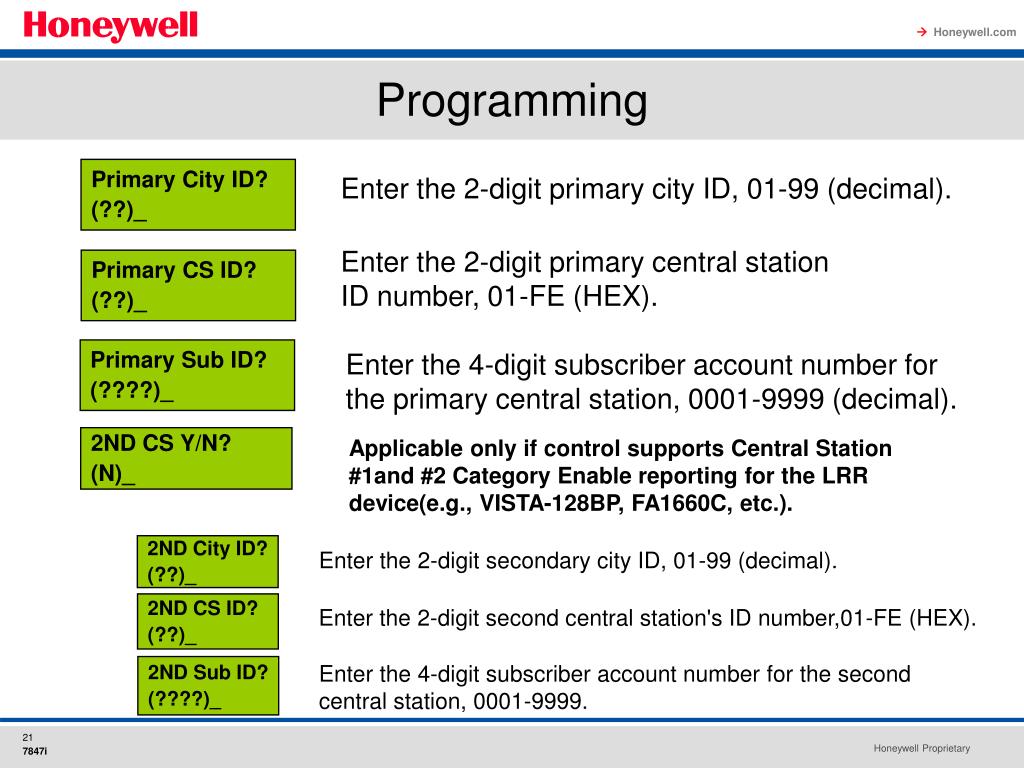

  21. Programming Primary City ID? (??)_ Enter the 2-digit primary city ID, 01-99 (decimal). Enter the 2-digit primary central station ID number, 01-FE (HEX). Primary CS ID? (??)_ Primary Sub ID? (????)_ Enter the 4-digit subscriber account number for the primary central station, 0001-9999 (decimal). 2ND CS Y/N? (N)_ Applicable only if control supports Central Station #1and #2 Category Enable reporting for the LRR device(e.g., VISTA-128BP, FA1660C, etc.). 2ND City ID? (??)_ Enter the 2-digit secondary city ID, 01-99 (decimal). 2ND CS ID? (??)_ Enter the 2-digit second central station's ID number,01-FE (HEX). Enter the 4-digit subscriber account number for the second central station, 0001-9999. 2ND Sub ID? (????)_

  22. Programming Press [Y] to allow the end user to access their system via a website. Remote Access Y/N (N)_ Select "4204 Sourced" to send up to four events or "2-4204 Sourced" to send eight events. Disable for normal alarm processing and go to Prompt21: "Primary City ID". Multi Mode (Disabled)_ Device address must be unique from the normal LRR Device Address (Prompt 28), and the Keypad Address used for Remote Access or Direct Wire downloading. Multi Mode Addr (12)_ Multi-Mode (email notification) is intended as a convenience for the user, and does not replace Central Station reporting of critical events (alarms, troubles, etc.).

  23. Programming Applies only to VISTA-128BP/250BP and FBP Series controls, and FA1600C and FA1700C Series controls. Direct Wire Y/N (N)_ Must be programmed if using either the Remote Access feature or Direct Wire downloading. Enter the appropriate device address. Keypad Address (28)_ The AlarmNet network must hear at least one supervisory message from the module during this supervision period; otherwise, AlarmNet notifies the central station that a communication failure has occurred. Supervision (24 Hours)_ 24 Hours • 1 Hour • US UL Line (6 Min) • CN UL Line Lvl 3 (3 Min) • US UL Line (90 Sec) • CN UL Line Lvl 4 (90 Sec) • CN UL Line Lvl 5 (75 Sec) • None • 30 Day

  24. Programming Sets how long an undeliverable alarm is retried for delivery to the central station. Enter the time delay (01-99) in minutes before the 7847i/7847i-E notifies the control panel that there is loss of contact with the network. The fault open collector output is normally energized to ground, and de-energizes (open circuit) in the event of a module fault. Allows the Cover Tamper to be disabled/enabled. Old Alarm Time (10 Minutes)_ UL NOTE: Must be 10 Minutes IP Flt Time (60 mins)_ Flt Rel ON Y/N (N)_ Tamper Rpt Y/N (Y)_

  25. Programming Mode Use DHCP Y/N (Y) _ If using DHCP the screens below will not be shown. It will skip to the “PWR Save Mode” question. NIC IP Address: 255.255.255.255_ Subnet Mask: 255.255.255.255_ DNS Serv IP Addr: 255.255.255.255_ Gateway IP Addr: 255.255.255.255_

  26. Programming Mode Enable Zn 6 (Y/N) (N) Zn 6 Trigger Type (V+) Invert Zn 6 (Y/N) (N) V+ 2V to 13V Trips Zone V- 0V Ground Trips Zone EOLR Loss of 2k EOLR Trips No - Normal Zone Activation Yes - Faulted Zone sends normal report. - Normal Zone sends alarm report. Delay Zn 6 (secs) (00) Restore Zn 6 Y/N (Y) • Zone can be Delayed from 1 to 15 seconds • Zone must remain faulted for the full extent of delay to send report. Yes - Zone sends Restore report. No - Zone will not send Restore report. Repeat for zone 7 if required

  27. Programming Mode Pwr Save Mode (Y/N) (Y) _ • When Power Save Mode is enabled, the Network Interface Card (NIC) powers up, Pings a Redir, and turn back off. • This process takes about 3 seconds and the process repeats every 20 seconds. • Some Routers may see this as being “under attack” and shut down the Port on the router. • Devices connected to routers that shut down the port may try using Static IP Addressing, before disabling the Power Save Mode feature. Power cycle the Router to reset the port, and determine if this was the problem. • NOTE: If this feature is disabled, the device will not meet the UL Requirement for Battery Backup. It will reduce the backup time to 18 hours.

  28. Programming Mode Review? Y/N Press Enter to Continue and Exit Create Password? Y/N Press Enter to Continue and Exit Exit Prog Mode? Y/N Press Shift Y then Enter to Continue and Exit DONE Resetting……… Updating Root File \

  29. Zone Mode Setup

  30. Programming Zone Mode Lynx Panic Y/N (N) • With a LynxR/R-EN Panel, enable Lynx Panic • Temporal Pulse = Zone 1 Report • FIRE • Constant or Steady = Zone 2 Report • BURG • Single 3 second Pulse = Zone 3 Report • Silent Panic, Medical, Duress • Always program Zone 1/2 as a negative trip (V-) and install a 2k EOLR across the zone input and ground.

  31. Programming Zone Mode Trip Inputs 1 or 2 w/Bell Out (N) • Enabling this option will change the required trip voltage on zones 1, 2 and 3, as described below. • Positive Trip –Always enable for Positive Trip. • Disabled – 2V • Enabled – 5V • Negative Trip • Disabled – 0V ground potential • Enabled – 0V to 5V will trip. Must be greater than 5V to be normal. • This field also affects the zone 3 input.

  32. Programming Zone Mode Telco Zone (0) • Enabling this option will cause the specified zone input to send the High Speed Telco Report to Central Station. • Available for zones 3 through 7. • Telco Fault 5555 5155 6 • Telco Restore 5555 5355 6

  33. Programming Zone Mode Open/Close Zone (0) • Enabling this option will cause the specified zone to send a High Speed Open or Close report to central station, in the zone that was indicated. • Example uses zone 3 to indicate Open/Close • Available for zones 3 through 7. • Arming 5545 5555 7 – Restore Report • Disarming 5525 5555 7 – Alarm Report • Note: If your trigger activates for Arming, you will need to enable INVERT for the zone. (Invert option will be discussed later.)

  34. Programming Zone Mode Multi-mode (N) • Enabling this option will cause the specified zone ONLY attempt to generate an email message via Total Connect Remote Services. • When enabled, only device Supervisory Messages will be sent to Central Station, i.e. Low Batt, AC Loss, Swinger Suppression, etc. (Not Tamper) NOTE: This option should only be enabled when using Remote Services and Alarm Reports are not desired to be received by Central Station.

  35. Programming Zone Mode Invert Zn x (Y/N) (N) Zn x Trigger Type (V+) V+ 2V to 13V Trips Zone V- 0V Ground Trips Zone EOLR Loss of 2k EOLR Trips No - Normal Zone Activation Yes - Faulted Zone sends normal report. - Normal Zone sends alarm report. Restore Zn x Y/N (Y) Delay Zn x (secs) (00) • Zone can be Delayed from 1 to 15 seconds • Zone must remain faulted for the full extent of delay to send report. Yes - Zone sends Restore report. No - Zone will not send Restore report.

  36. Exiting Program Mode Correctly • NEVER disconnect the programmer while in program mode. • ALWAYS exit program mode AND leave the programmer connected until the screen displays “DONE”. If you didn’t exit correctly… Plug the programmer back in and… • Press enter then exit as normal. - or - • Power cycle the 7845GSM radio.

  37. Registering… Shift Registering… Registration Successful

  38. Registering…PIN Replacement • When registering the GSM radio press • Enter PIN • Wait for acknowledgement PIN: _ Registering… Registration SUCCESS

  39. Status Codes The 7847i sends status messages to the control panel for tamper and network communication failures. When using Honeywell’s VISTA-10P, VISTA-15P, Vista 20P series control panels, the status is displayed on the control panel’s keypad as “Check 103 LRR” followed by a 4-digit code).

  40. Status Display LEDs

  41. Mode & Status LEDs Press and hold the Mode & Status button to view. The two Yellow LEDs indicate which mode the device is programmed in. The first Green LED indicates the status of the Internet or Web connection.

  42. Network Connectivity LEDs

  43. Central Station Messages

  44. 7720P ProgrammerDiagnostic Commands

  45. Programmer Keyboard Commands The 7720P Programmer is an invaluable tool for troubleshooting the device and network connection. Section 5 of the Installation Instructions provides details of each command. INTERNAL IP/GSM x.x.xx mm/dd/yy [ A ] Software Revision MAC xxxxxxxxxxxx MAC CRC yyyy MAC Address [ B ] Mon 01 Jan 2001 05:48:39 am [ C ] GMT Time and Date

  46. Programmer Keyboard Commands For more information on Network Diagnostics, see Section 6 of the Installation Instructions. Network Diagnostics Display Physical Link Good [ D ] [ * ] to go to NIC IP Address NIC IP Address xxx.xxx.xxx.xxx If using DHCP, this information is assigned by the Gateway/Router. If not using DHCP, this information must match the information provided by the site Network Administrator. [ * ] to go to Subnet Mask Subnet Mask xxx.xxx.xxx.xxx [ * ] to go to Gateway IP Address Gateway IP Addr xxx.xxx.xxx.xxx [ * ] to go to DNS Server IP

  47. Programmer Keyboard Commands If using DHCP, this information is assigned by the Gateway/Router. If not using DHCP, this information must match the information provided by the site Network Administrator.If using DHCPRun Network Diagnostic Tests Network Diagnostics Display Continued DNS Serv IP xxx.xxx.xxx.xxx [ * ] to go to encryption test Encryption Test AES Passed! [ * ] to go to DHCP Status DHCP OK Testing Gateway Redir 1 [ F ]

  48. Programmer Keyboard Commands [ S ] ECP 67 TmPB Flt xx 5 ++ OK Status Display for ECP Mode [ * ] = next field, [BS] = previous field 12345678 TmPB Flt 5555555x 5 ++ OK Status Display for 4204 Emulation Mode [ * ] = next field, [BS] = previous field 1234 67 TmPB Flt 5555 xx 5 ++ OK Status Display for 2-4204 Emulation Mode [ * ] = next field, [BS] = previous field 1234567 TmPB Flt 5555555 5 ++ OK Status Display for Zone Trigger Mode [ * ] = next field, [BS] = previous field Bat NLd: x.xxV Bat Ld: x.xxV Battery Voltage Status Display [ * ] = next field, [BS] = previous field

  49. Programmer Keyboard Commands [ S ] ECP 67 TmPB Flt xx 5 ++ OK Status Display for ECP Mode [ * ] = next field, [BS] = previous field 12345678 TmPB Flt 5555555x 5 ++ OK Status Display for 4204 Emulation Mode [ * ] = next field, [BS] = previous field 1234 67 TmPB Flt 5555 xx 5 ++ OK Status Display for 2-4204 Emulation Mode [ * ] = next field, [BS] = previous field 1234567 TmPB Flt 5555555 5 ++ OK Status Display for Zone Trigger Mode [ * ] = next field, [BS] = previous field Bat NLd: x.xxV Bat Ld: x.xxV Battery Voltage Status Display [ * ] = next field, [BS] = previous field

  50. Programmer Keyboard Commands [ S ] Continued Battery Charger Status Display Battery Charger OK [ * ] = next field, [BS] = previous field Line Voltage xx.xxV Line Voltage Status Display Test Msg Sent [ T ] Send Test Alarm [ * ] = next field, [BS] = previous field Reset CPU Y/N [ X ] Reset the 7847i [ * ] = next field, [BS] = previous field
