  1. Molecular Orbitals An overview

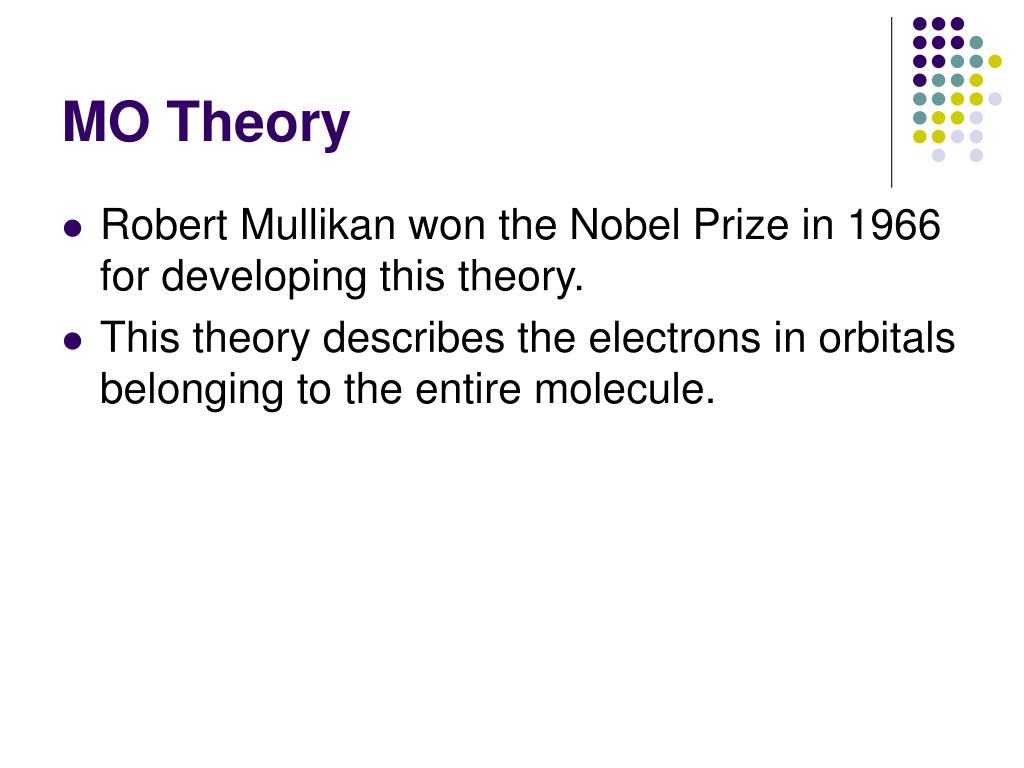

  2. MO Theory • Robert Mullikan won the Nobel Prize in 1966 for developing this theory. • This theory describes the electrons in orbitals belonging to the entire molecule.

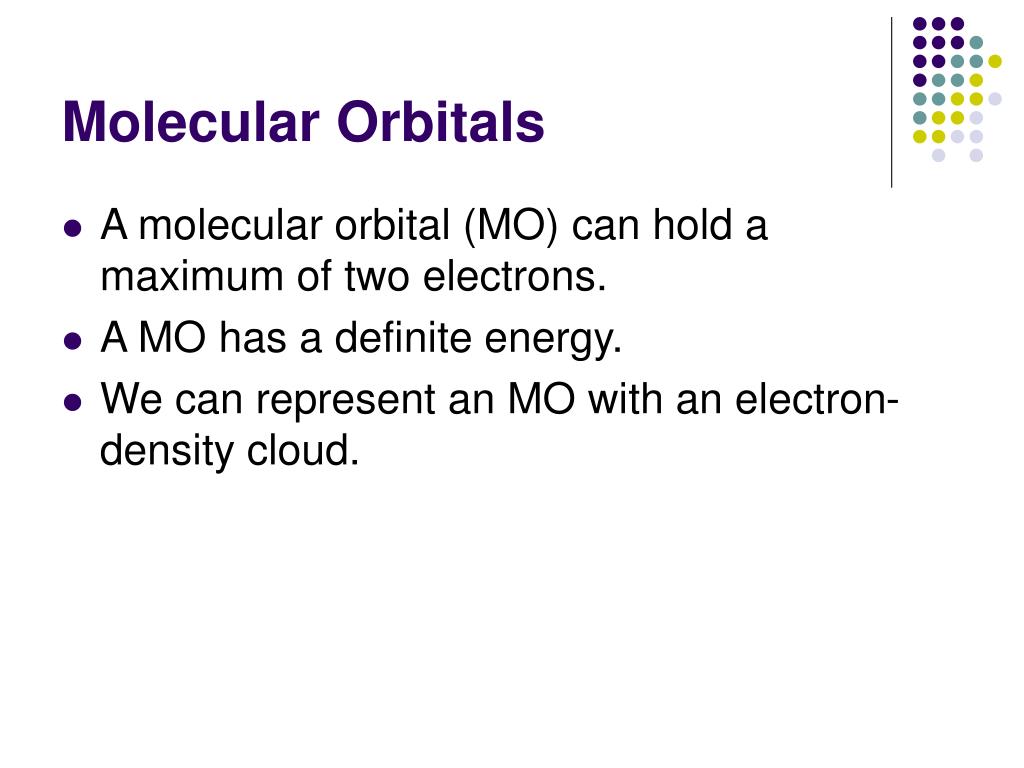

  3. Molecular Orbitals • A molecular orbital (MO) can hold a maximum of two electrons. • A MO has a definite energy. • We can represent an MO with an electron-density cloud.

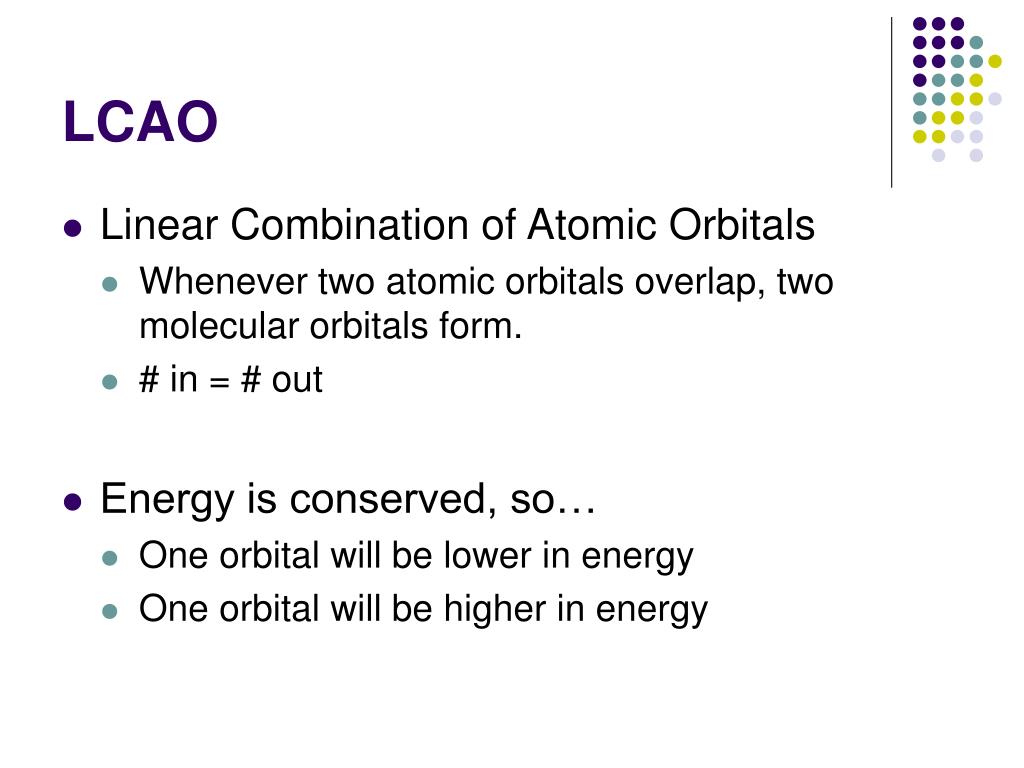

  4. LCAO • Linear Combination of Atomic Orbitals • Whenever two atomic orbitals overlap, two molecular orbitals form. • # in = # out • Energy is conserved, so… • One orbital will be lower in energy • One orbital will be higher in energy

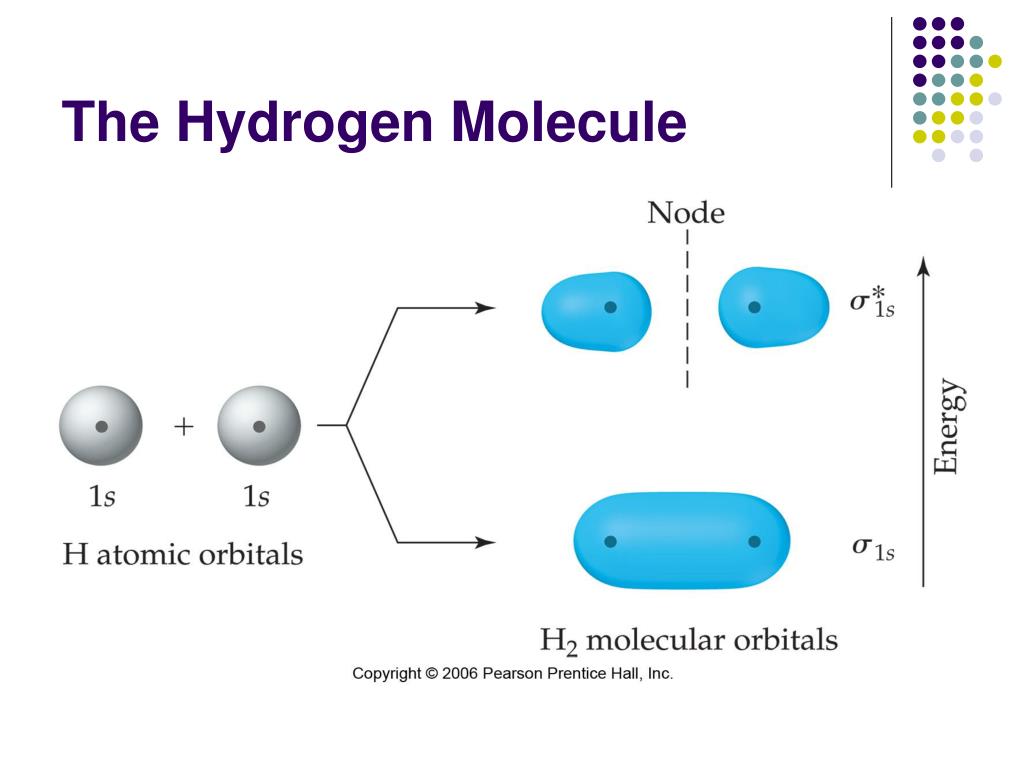

  5. The Hydrogen Molecule

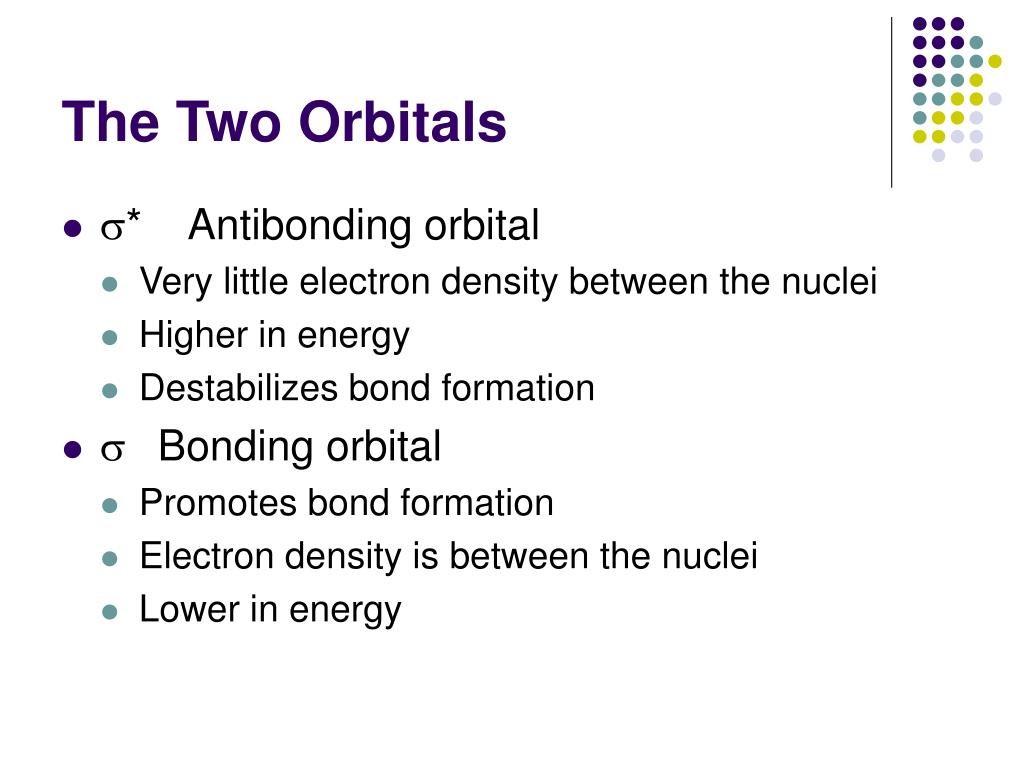

  6. The Two Orbitals • s* Antibonding orbital • Very little electron density between the nuclei • Higher in energy • Destabilizes bond formation • s Bonding orbital • Promotes bond formation • Electron density is between the nuclei • Lower in energy

  7. Bonding and Antibonding Orbitals

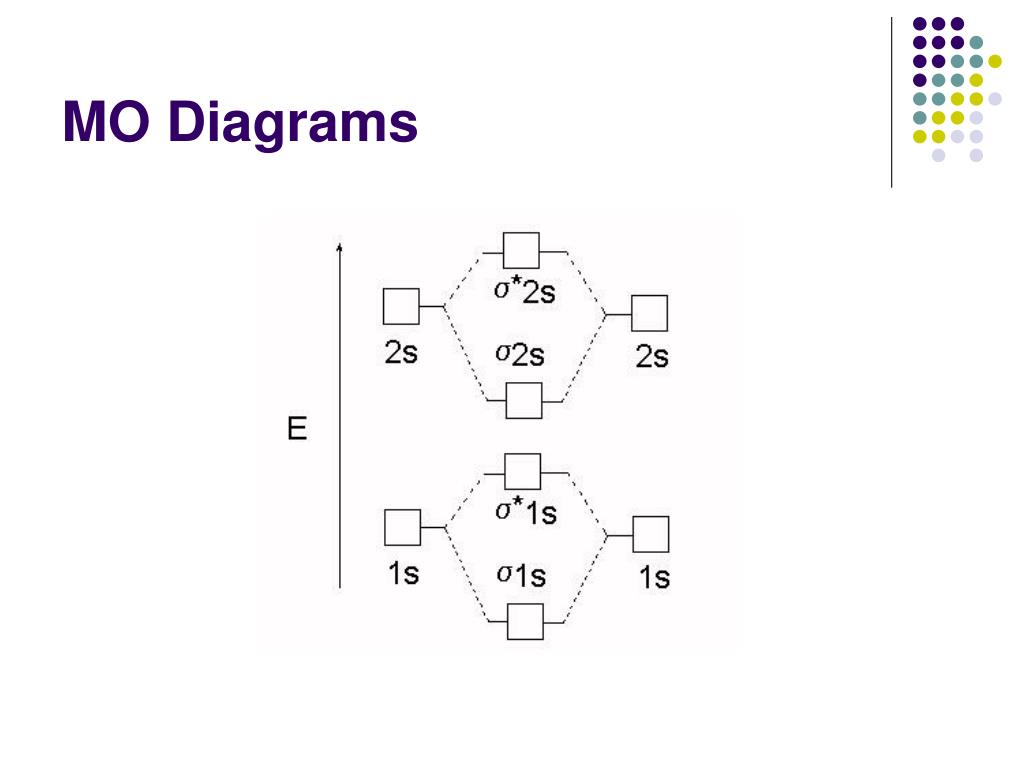

  8. MO Diagrams

  9. H2 and He2

  10. Complex MO Diagrams

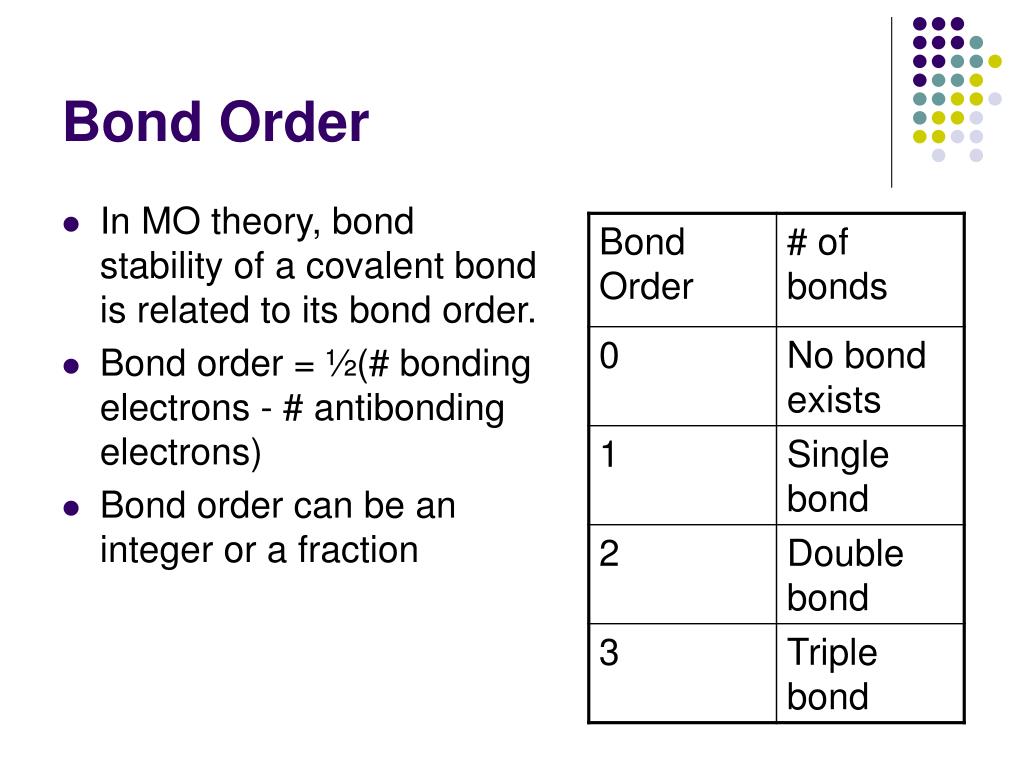

  11. Bond Order • In MO theory, bond stability of a covalent bond is related to its bond order. • Bond order = ½(# bonding electrons - # antibonding electrons) • Bond order can be an integer or a fraction

  12. Calculate Bond Order for He2+

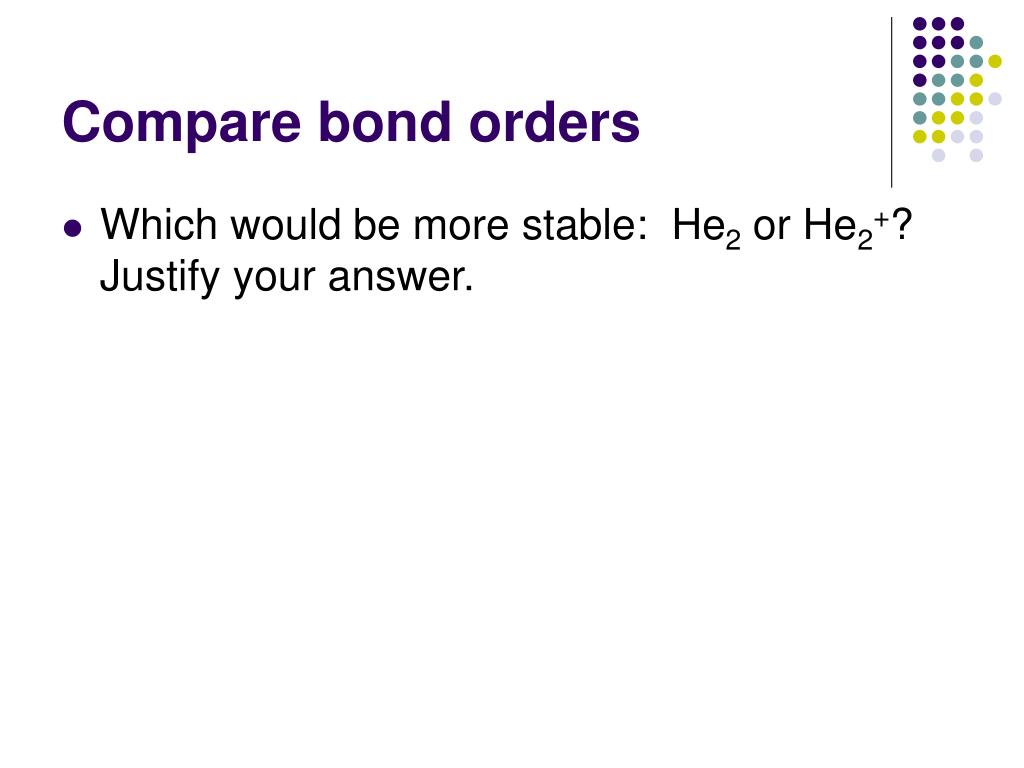

  13. Compare bond orders • Which would be more stable: He2 or He2+? Justify your answer.
