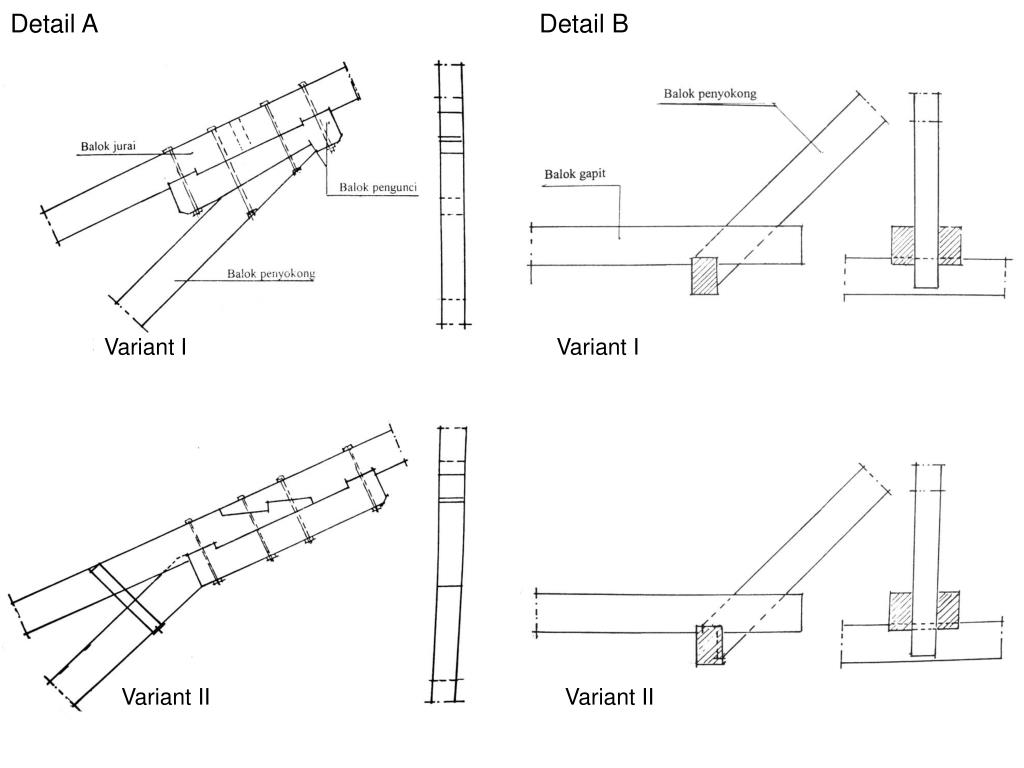

Detail A

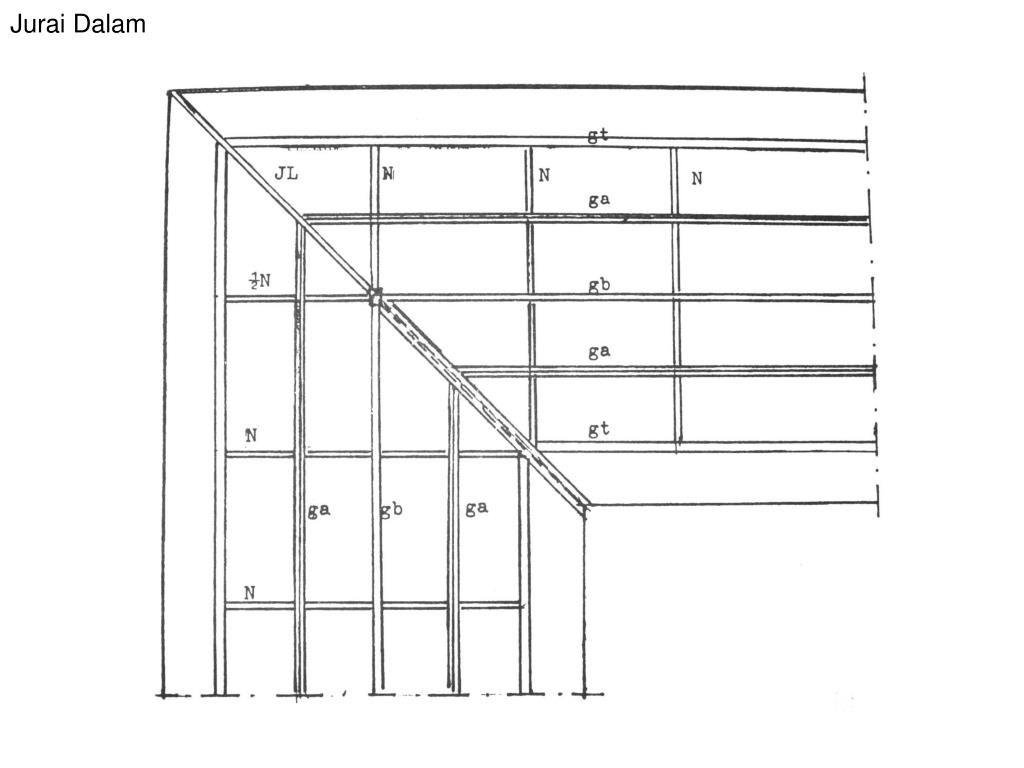

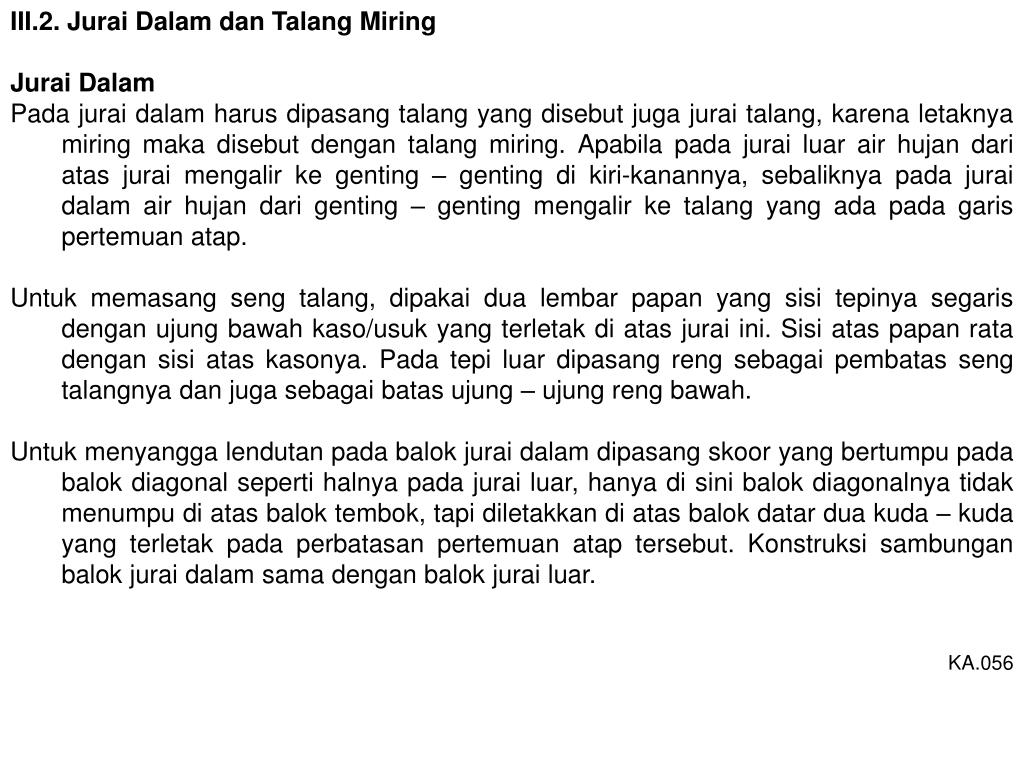

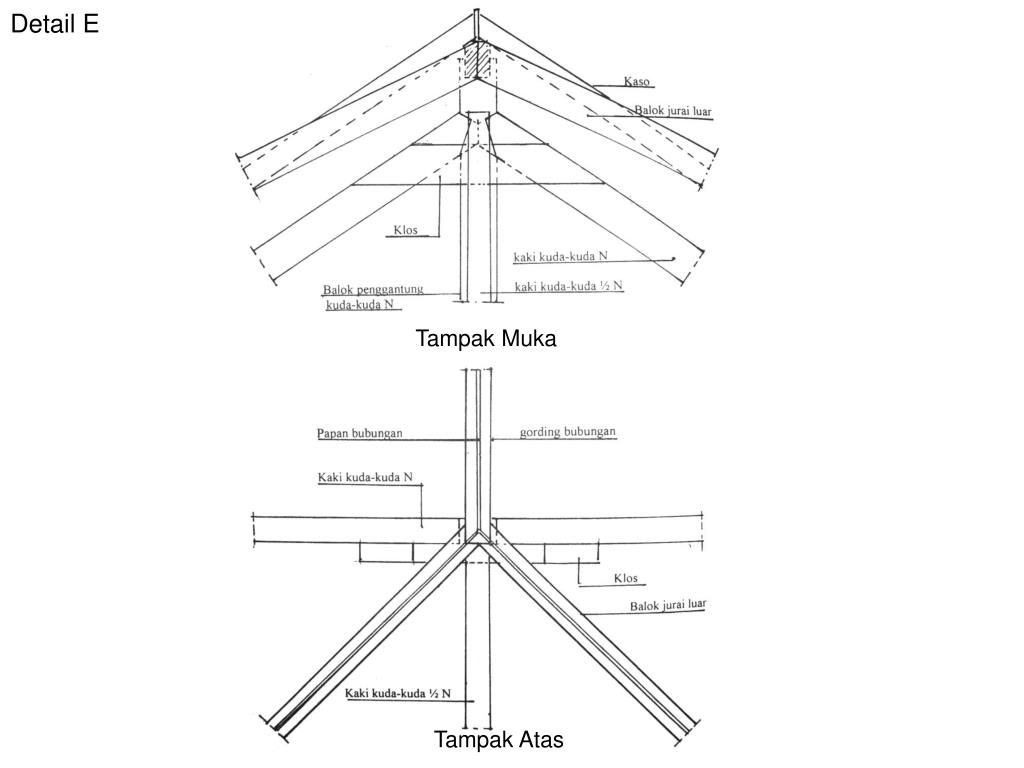

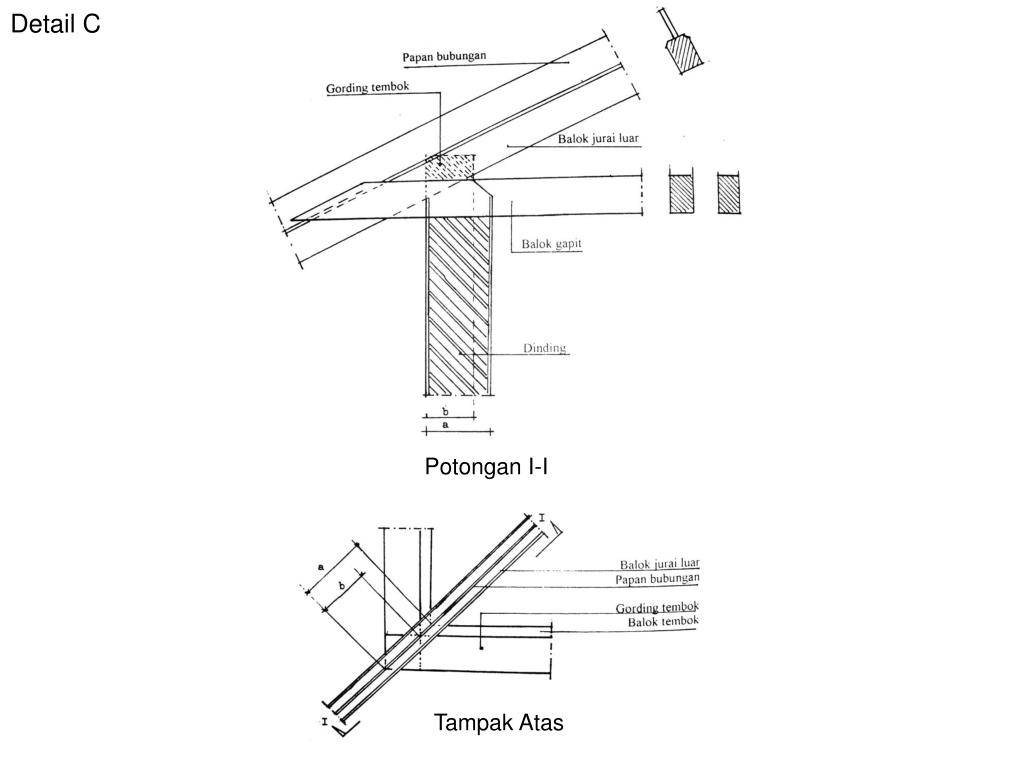

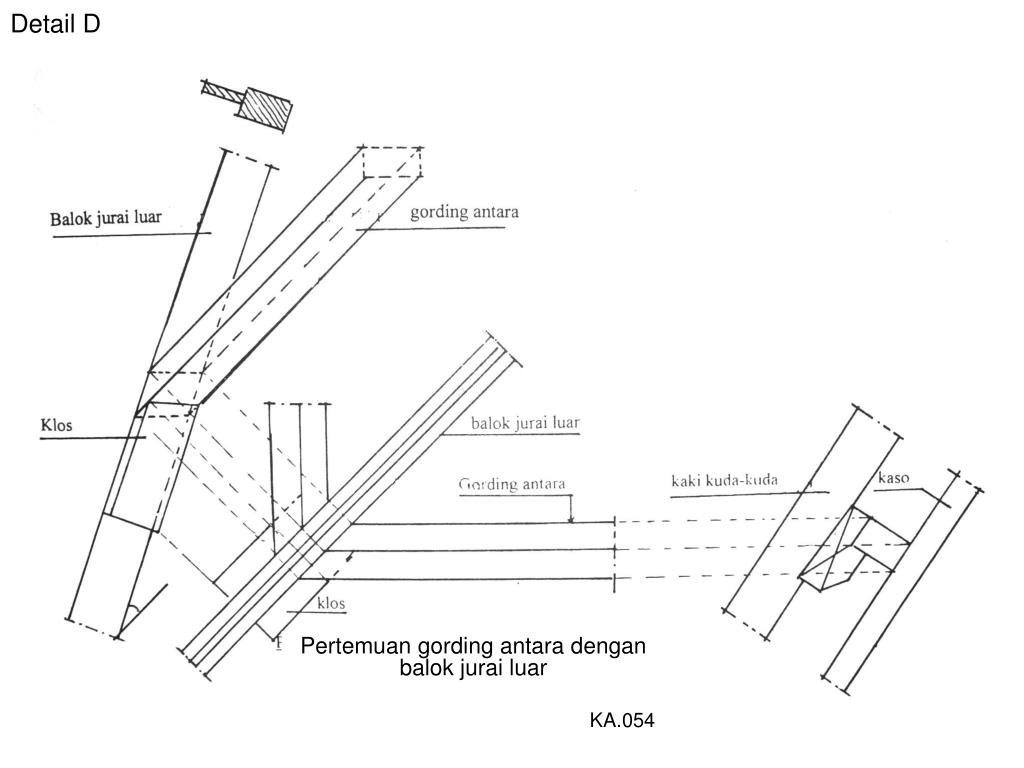

Detail A. Detail B. Variant I. Variant I. Variant II. Variant II. Detail C. Potongan I-I. Tampak Atas. Detail D. Pertemuan gording antara dengan balok jurai luar KA.054. Detail E. Tampak Muka. Tampak Atas. III.2. Jurai Dalam dan Talang Miring Jurai Dalam
