New Model Evaluation Report. Manisha Patil. Test Detail :-. Old model name : REF VAE173 New model introduced with Blue Plant Doors & Light Blue Shell Drop test done. Energy consumption test done. Pull down test done. Result OK.

Download Presentation

Test Detail :-

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

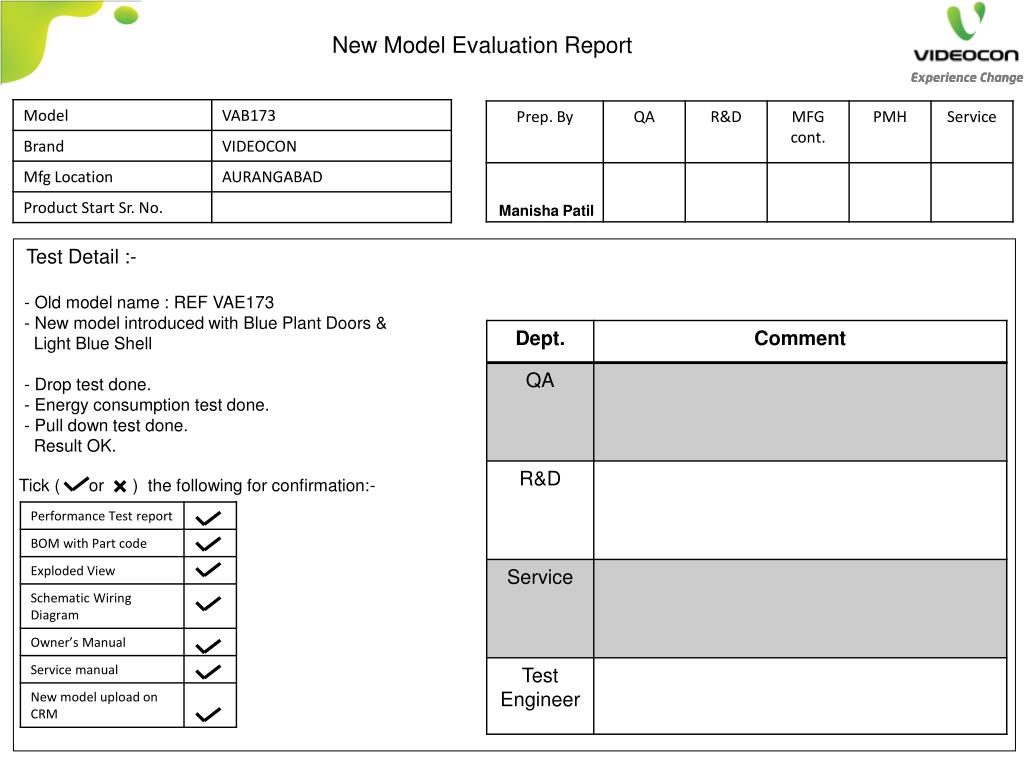

  1. New Model Evaluation Report Manisha Patil Test Detail :- • Old model name : REF VAE173 • New model introduced with Blue Plant Doors & • Light Blue Shell • Drop test done. • Energy consumption test done. • Pull down test done. • Result OK. Tick ( or ) the following for confirmation:-

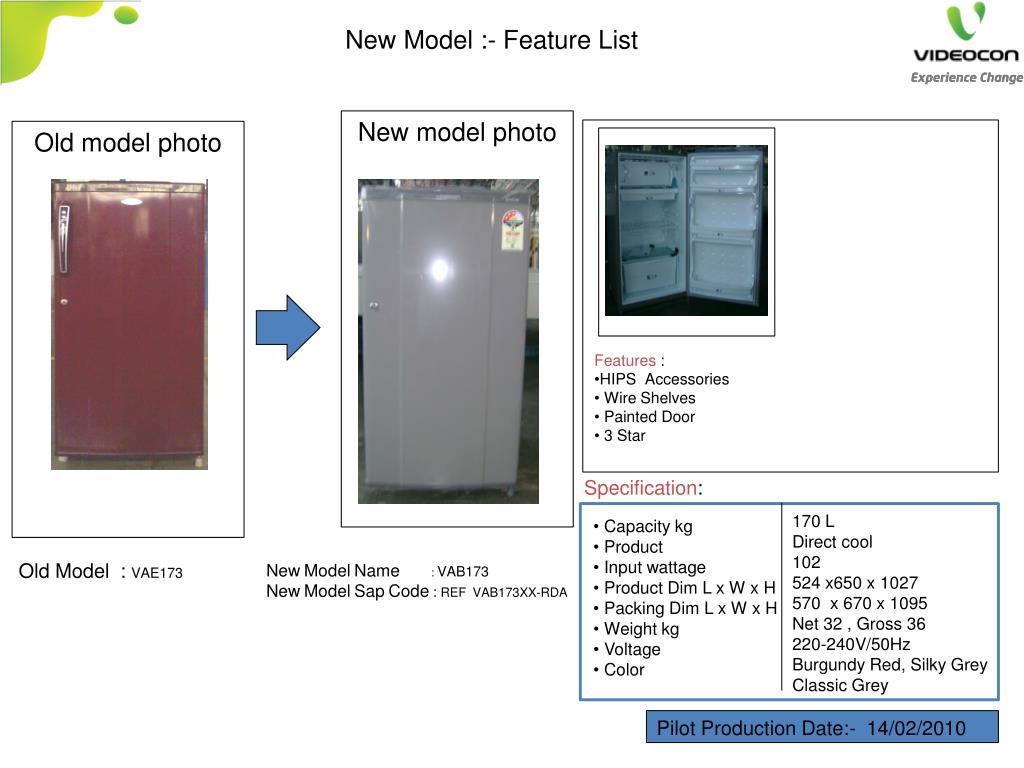

  2. New Model :- Feature List New model photo Old model photo • Features : • HIPS Accessories • Wire Shelves • Painted Door • 3 Star Specification: 170 L Direct cool 102 524 x650 x 1027 570 x 670 x 1095 Net 32 , Gross 36 220-240V/50Hz Burgundy Red, Silky Grey Classic Grey • Capacity kg • Product • Input wattage • Product Dim L x W x H • Packing Dim L x W x H • Weight kg • Voltage • Color Old Model : VAE173 NewModelName: VAB173 NewModelSapCode : REF VAB173XX-RDA Pilot Production Date:- 14/02/2010

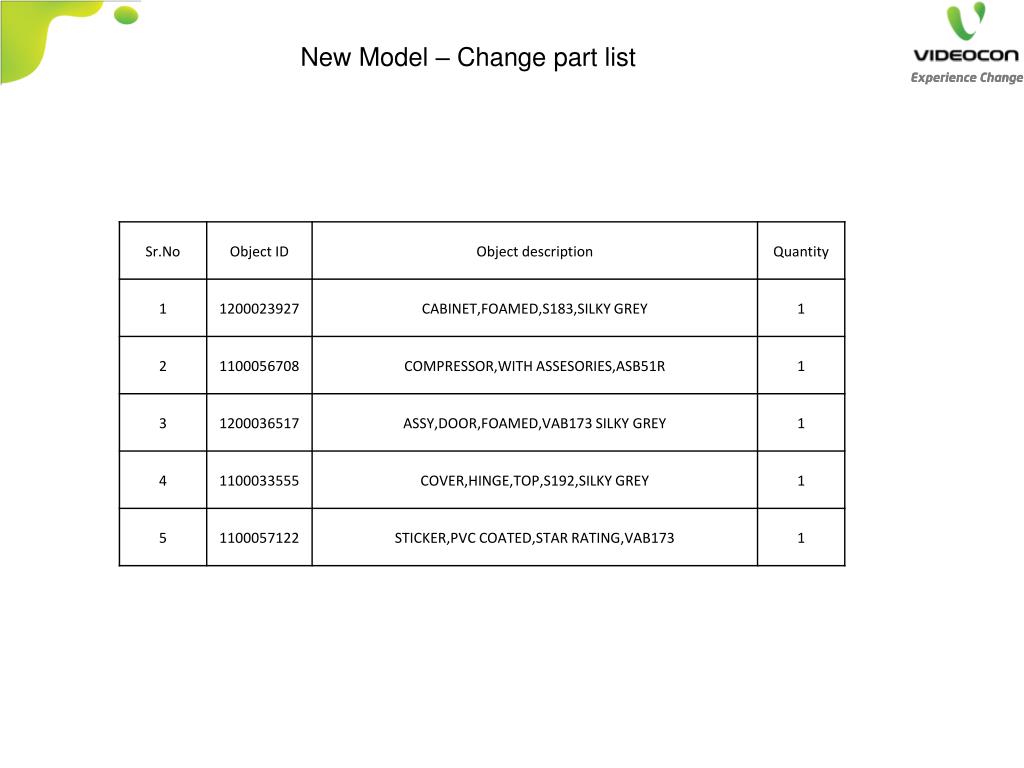

  3. New Model – Change part list

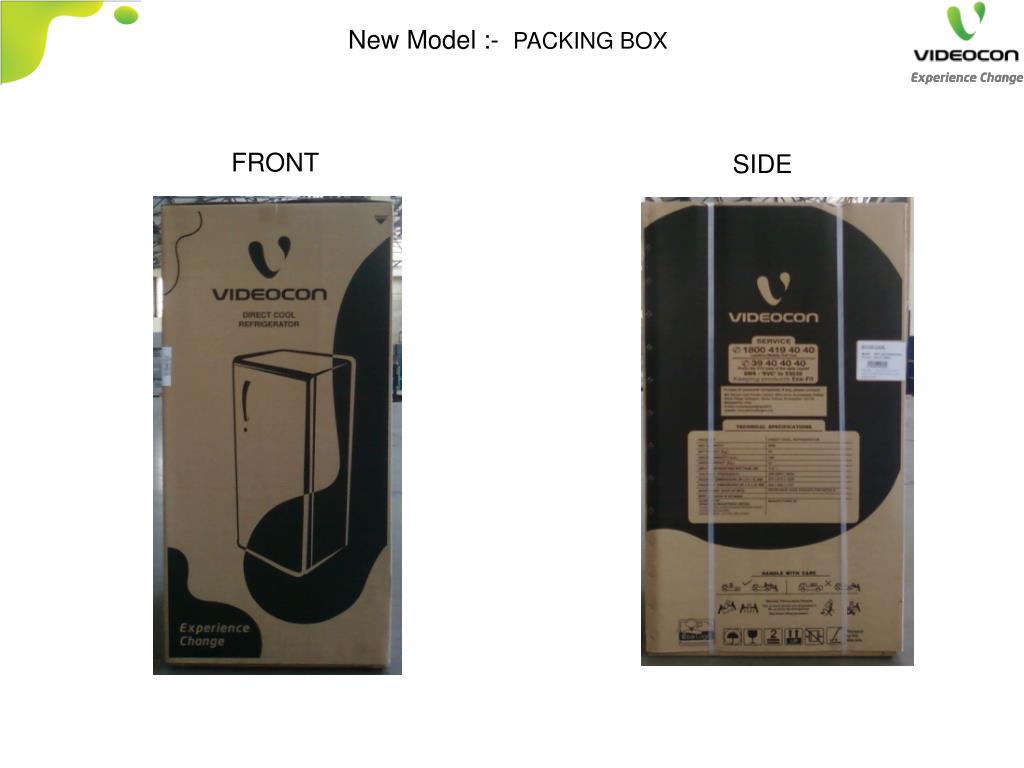

  4. New Model :- PACKING BOX FRONT SIDE

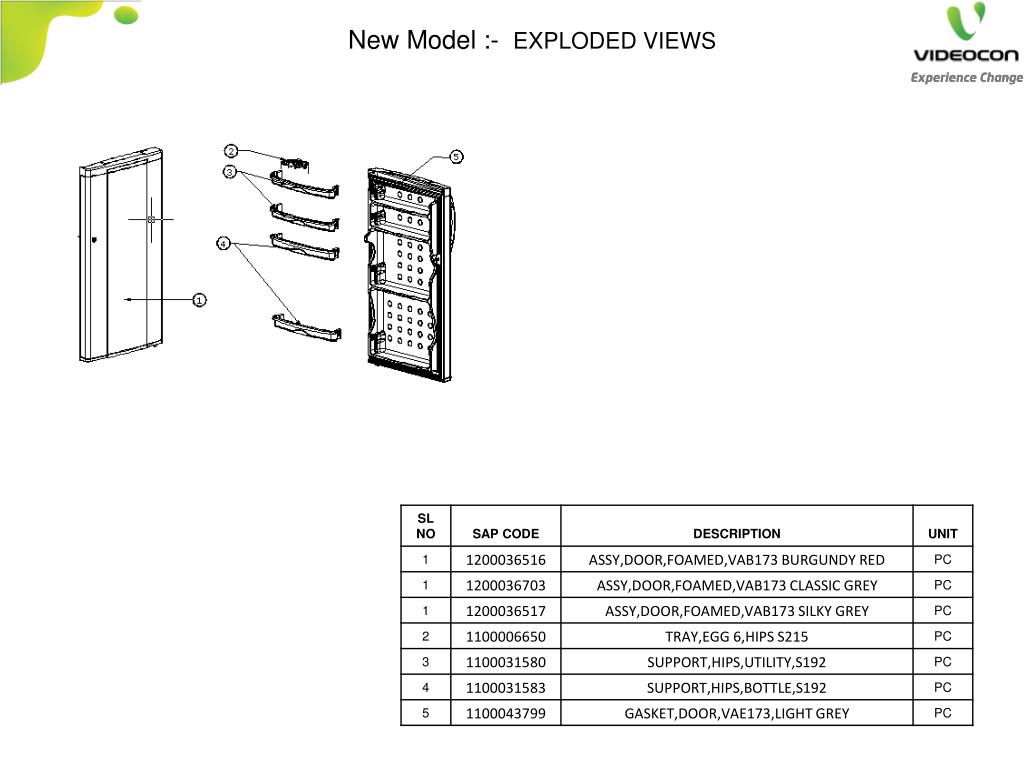

  5. New Model :- EXPLODED VIEWS

  6. New Model :- EXPLODED VIEWS

  7. New Model :- EXPLODED VIEWS

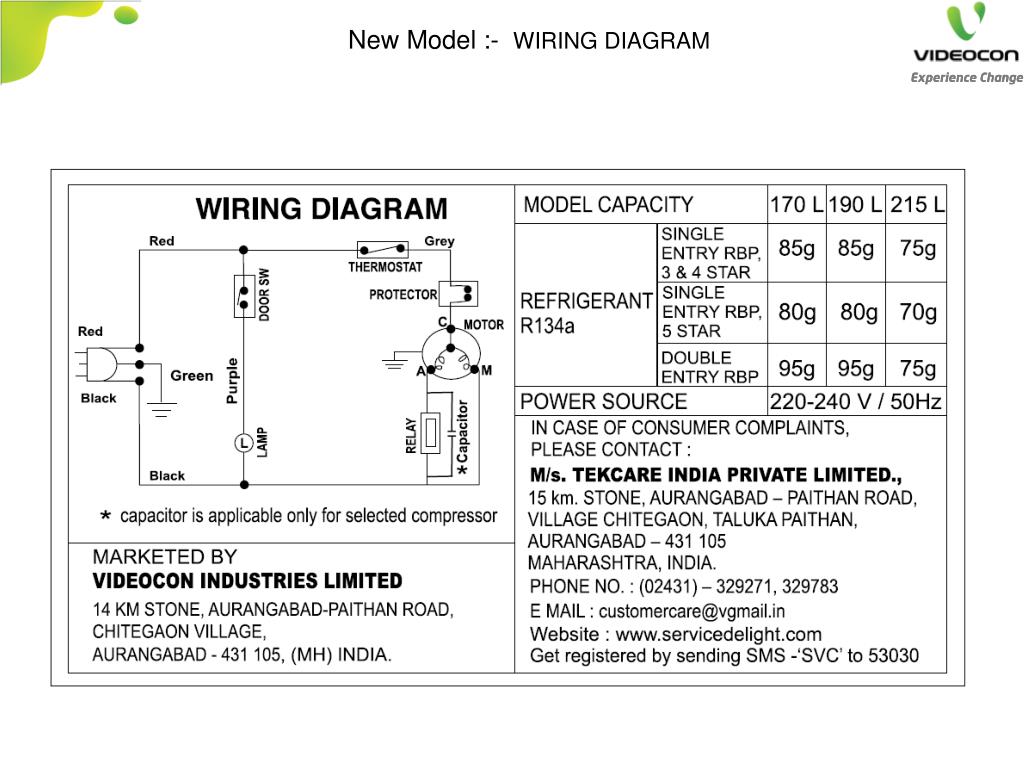

  8. New Model :- WIRING DIAGRAM

  9. Model Test report

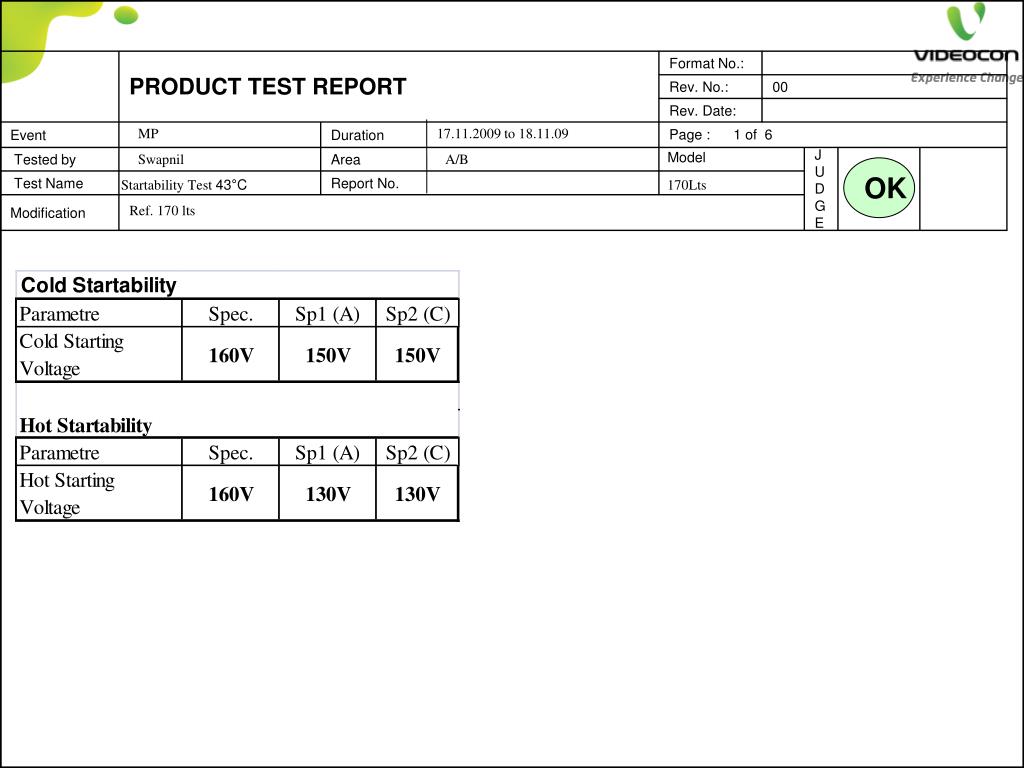

  10. PRODUCT TEST REPORT Format No.: Rev. No.: 00 Rev. Date: Event Duration Page : 1 of 6  Tested by Area JUDGE  Test Name Report No. Modification MP 17.11.2009 to 18.11.09 Model Swapnil A/B OK Startability Test 43°C 170Lts Ref. 170 lts

  11. PRODUCT TEST REPORT Format No.: Rev. No.: 00 Rev. Date: Event Duration Page : 2 of 6  Tested by Area JUDGE  Test Name Report No. Modification MP 27.05.2009 to 28.05.09 Model Swapnil A/B OK Pull Down Test 43°C Ref. 170Lts Ref. 170 lts

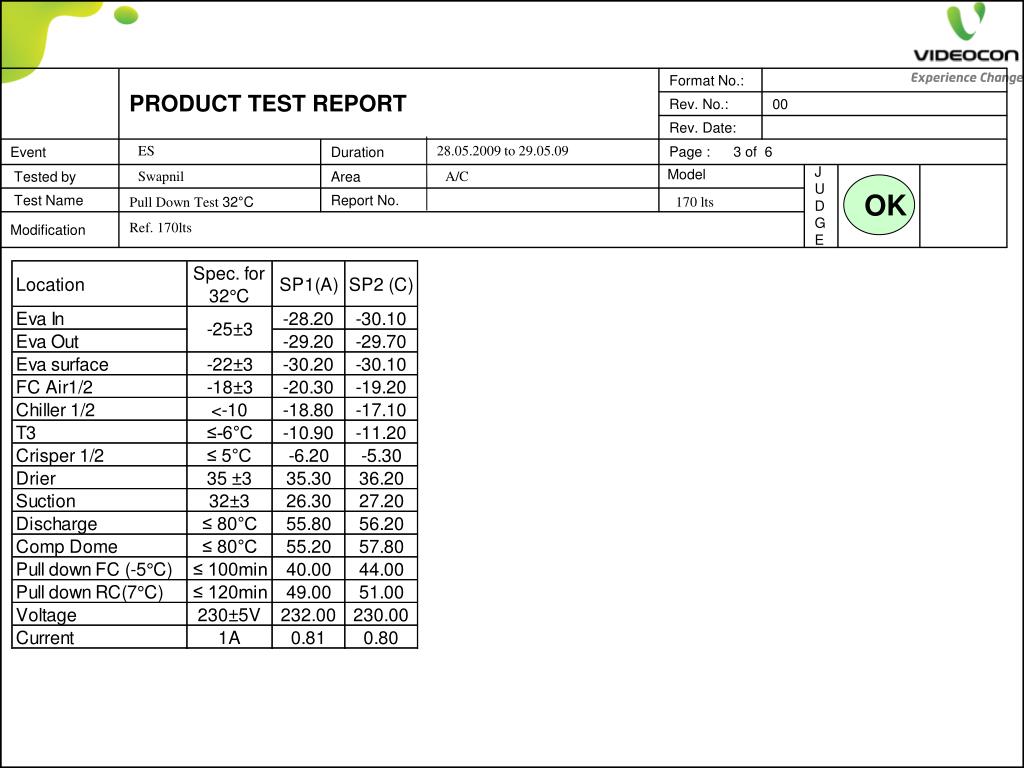

  12. PRODUCT TEST REPORT Format No.: Rev. No.: 00 Rev. Date: Event Duration Page : 3 of 6  Tested by Area JUDGE  Test Name Report No. Modification ES 28.05.2009 to 29.05.09 Model Swapnil A/C OK Pull Down Test 32°C 170 lts Ref. 170lts

  13. PRODUCT TEST REPORT Format No.: Rev. No.: 00 Rev. Date: Event Duration Page : 4 of 6  Tested by Area JUDGE  Test Name Report No. Modification MP 29.05.2009 to 30.05.09 Model Swapnil A/B OK Cycle Test 43°C Ref. 170Lts Ref 170Lts

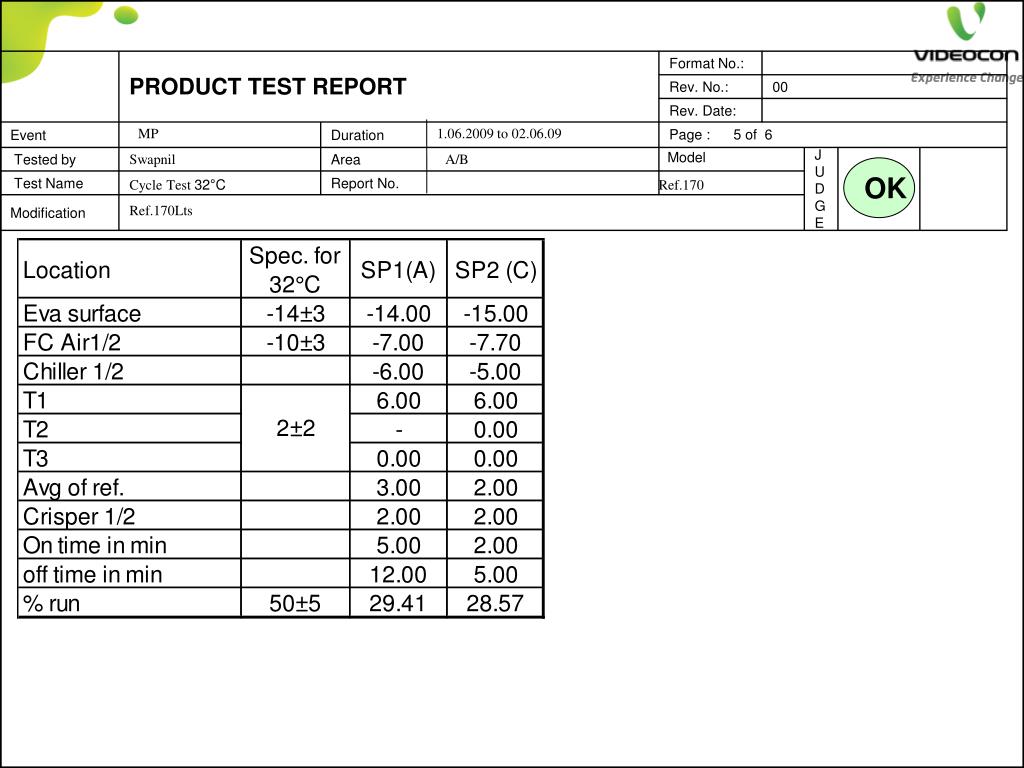

  14. PRODUCT TEST REPORT Format No.: Rev. No.: 00 Rev. Date: Event Duration Page : 5 of 6  Tested by Area JUDGE  Test Name Report No. Modification MP 1.06.2009 to 02.06.09 Model Swapnil A/B OK Cycle Test 32°C Ref.170 Ref.170Lts

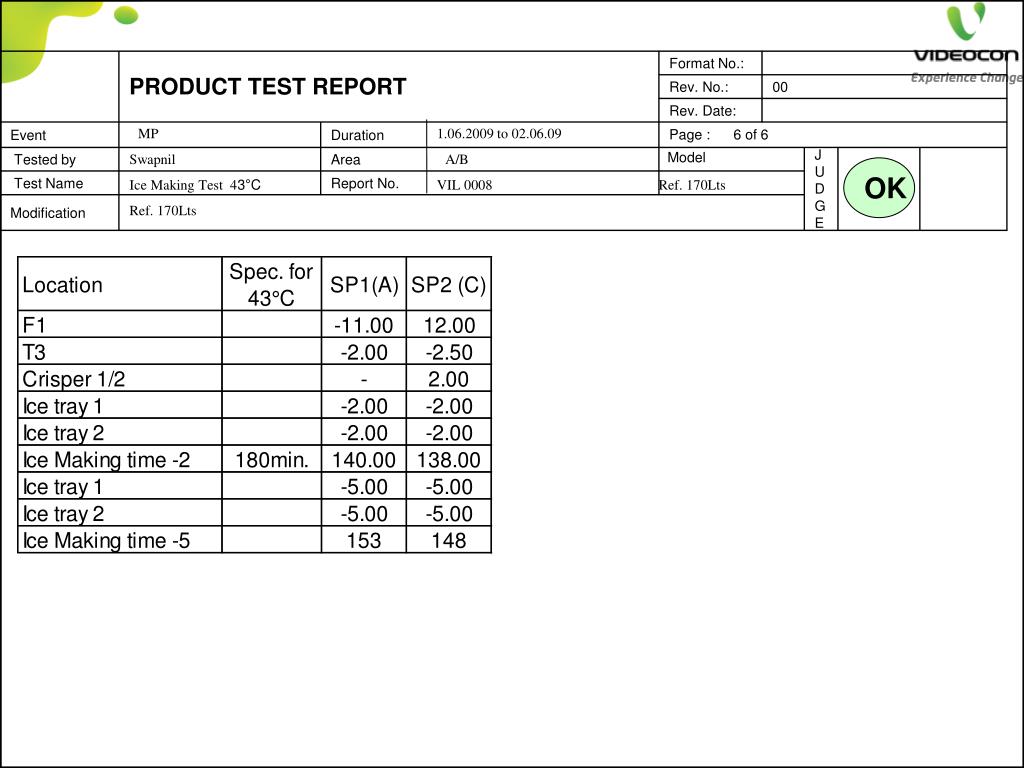

  15. PRODUCT TEST REPORT Format No.: Rev. No.: 00 Rev. Date: Event Duration Page : 6 of 6  Tested by Area JUDGE  Test Name Report No. Modification MP 1.06.2009 to 02.06.09 Model Swapnil A/B OK Ice Making Test 43°C VIL 0008 Ref. 170Lts Ref. 170Lts
