  1. New Model Evaluation Report Test Detail :- • Old model name :VAL193 • New model introduced with 5 STAR RATING • Drop test done. • Energy consumption test done. • Pull down test done. • Result OK. Tick ( or ) the following for confirmation:-

  2. New Model :- Feature List New model photo Old model photo • Features : • 5 Star Rating • Transparent Accessories • Deodorizer • 2 Wire Shelves Specification: 190 L Direct cool 115 524 x650 x 1137 570 x 670 x 1205 Net 33 kg, Gross 37 kg 220 - 240V / 50 Hz AC MAROON PLANT – FLORAL TWO TONE, SILVER PLANT – FLORAL TWO TONE • Capacity kg • Product • Input wattage • Product Dim L x W x H • Packing Dim L x W x H • Weight kg • Voltage • Color NewModelName: VAL195 NewModelSapCode : REF VAL175XX-RDA Old Model :VAL194 Pilot Production Date:- 31/01/2010

  3. New Model – Change part list

  4. New Model :- PACKING BOX FRONT SIDE

  5. New Model :- EXPLODED VIEWS

  6. New Model :- EXPLODED VIEWS

  7. New Model :- EXPLODED VIEWS

  8. New Model :- WIRING DIAGRAM

  9. Model Test report

  10. PRODUCT TEST REPORT Format No.: Rev. No.: 00 Rev. Date: Event Duration Page : 1 of 6  Tested by Area JUDGE  Test Name Report No. Modification MP 12.09.2009 to 12.09.09 Model Swapnil A/B OK Startability Test 43°C Ref.190Lts Ref.190Lts

  11. PRODUCT TEST REPORT Format No.: Rev. No.: 00 Rev. Date: Event Duration Page : 1 of 3  Tested by Area JUDGE  Test Name Report No. Modification MP 13.09.2009 to 13.0.09 Model Swapnil A/B OK Pull Down Test 43°C Ref.190Lts Ref.190Lts

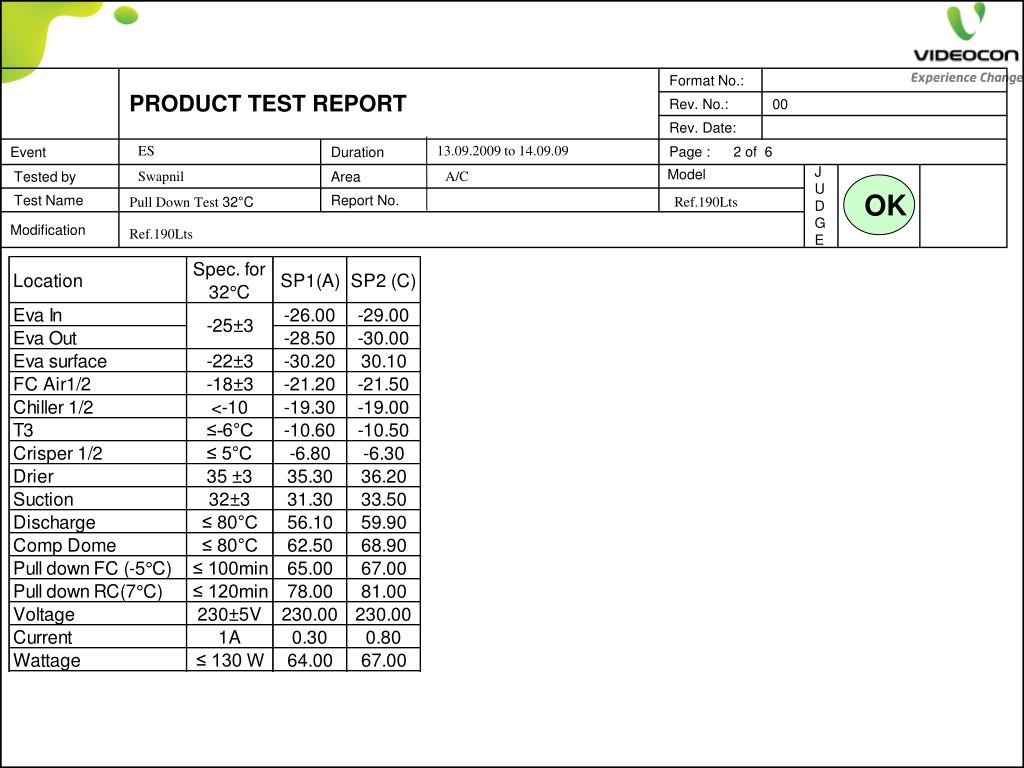

  12. PRODUCT TEST REPORT Format No.: Rev. No.: 00 Rev. Date: Event Duration Page : 2 of 6  Tested by Area JUDGE  Test Name Report No. Modification ES 13.09.2009 to 14.09.09 Model Swapnil A/C OK Pull Down Test 32°C Ref.190Lts Ref.190Lts

  13. PRODUCT TEST REPORT Format No.: Rev. No.: 00 Rev. Date: Event Duration Page : 2 of 3  Tested by Area JUDGE  Test Name Report No. Modification MP 19.09.2009 to 20.09.09 Model Swapnil A/B OK Cycle Test 43°C Ref.190Lts Ref.190Lts

  14. PRODUCT TEST REPORT Format No.: Rev. No.: 00 Rev. Date: Event Duration Page : 3 of 3  Tested by Area JUDGE  Test Name Report No. Modification MP 17.09.2009 to 18.09.09 Model Swapnil A/B OK Cycle Test 32°C Ref.190Lts Ref.190Lts

  15. PRODUCT TEST REPORT Format No.: Rev. No.: 00 Rev. Date: Event Duration Page : 3 of 3  Tested by Area JUDGE  Test Name Report No. Modification MP 19.09.2009 to 20.09.09 Model Swapnil A/B OK Ice Making Test 43°C Ref.190Lts Ref.190Lts
