agenda
Agenda
  • Introduction
  • Logical Architecture
  • Taxonomy
  • Project Planning
  • Technical Requirements
  • Scenarios
  • Conclusion
introduction

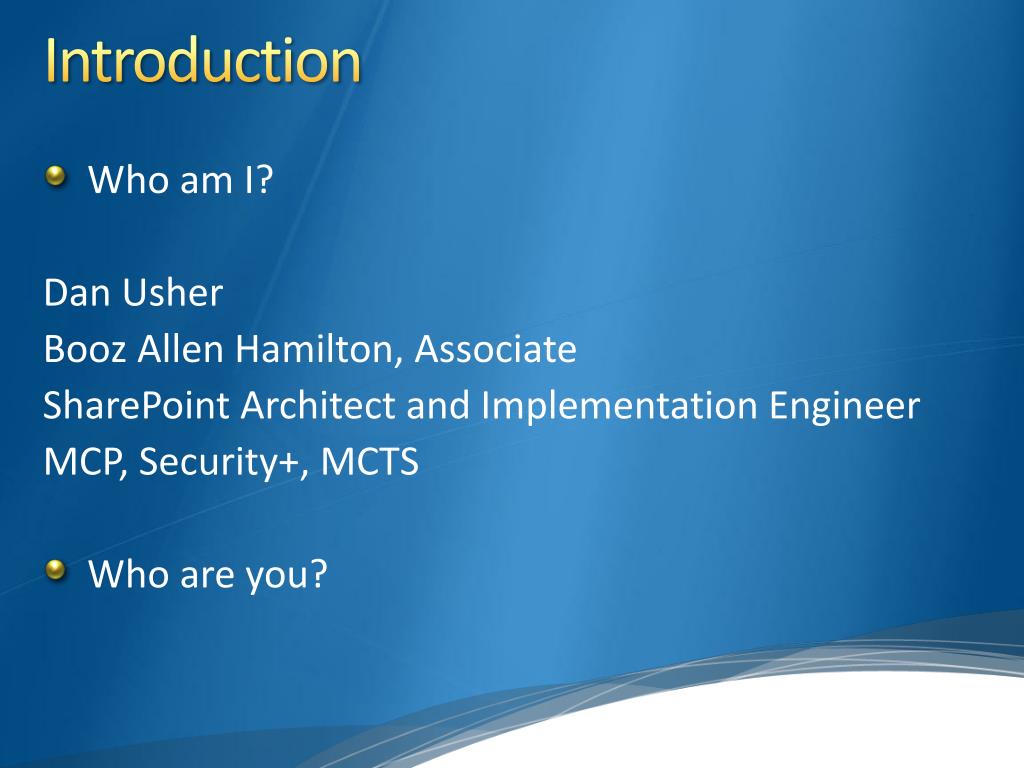

Introduction
  • Who am I?

Dan Usher

Booz Allen Hamilton, Associate

SharePoint Architect and Implementation Engineer

MCP, Security+, MCTS

  • Who are you?
where i ve been
Where I’ve been…
  • What environments have I worked in?
  • What have I seen?
  • What is this talk about?
what could go wrong
What could go wrong?
  • Logical Architectures skipped…
  • Site Collections gone viral…
  • Site Permissions are confusing…
  • Where’d my admin access go….
  • Information can’t be found…
  • Search isn’t working right…
  • System seems to be dragging…

Was this system intended for users?

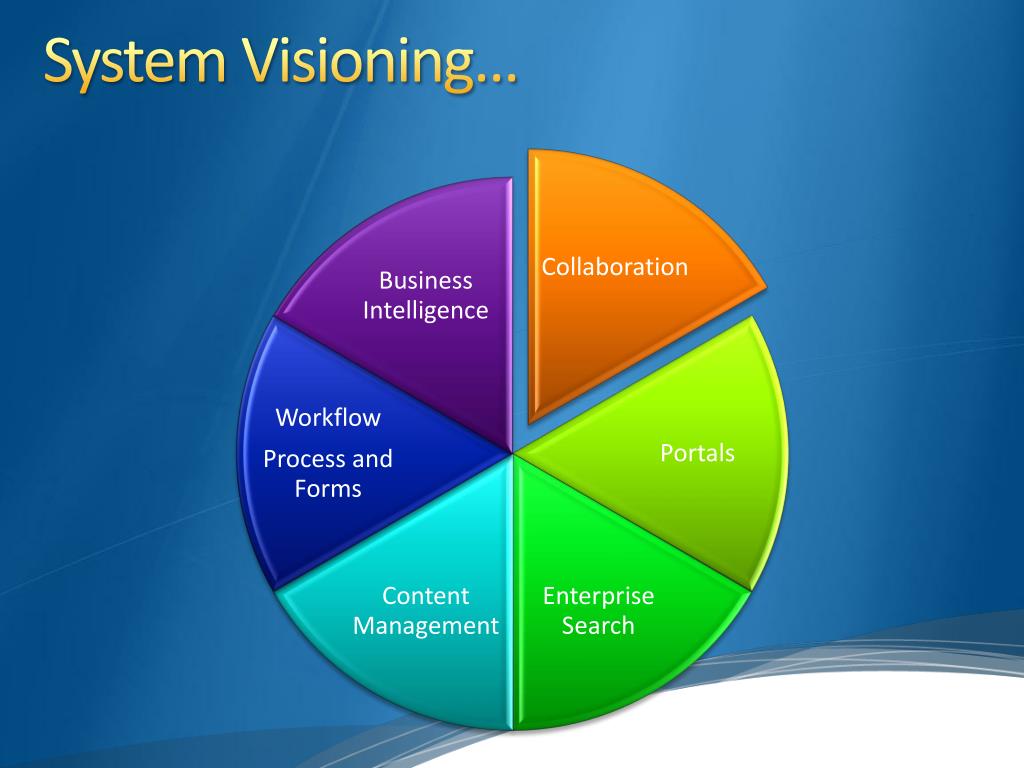

what s a vision look like
What’s a vision look like?
  • What’s the context of your use for SharePoint?
  • What are you trying to accomplish with SharePoint?
  • Do you need to be able to aggregate and roll up data to dashboards?
  • Do you have a defined organizational hierarchy?
vision components cont d
Vision components (cont’d)
  • Are Workflow or Business Process Management tools a need?
  • Consider the context of your environment and requirements
  • SharePoint as a Service?
    • Small order of document library
    • Large order of Business Intelligence and Excel Services
    • Medium order of collaboration
stepping into contextual thinking
Stepping into Contextual Thinking…
  • Considerations, Tradeoffs and Compromises to meet the Context
  • Assessing the context…

…every situation has its circumstances

logical architecture and users
Logical Architecture and Users
  • Defines the underlying information lifecycle management framework
  • Impacts usability of information and experience
  • Defines process flow
logical architecture

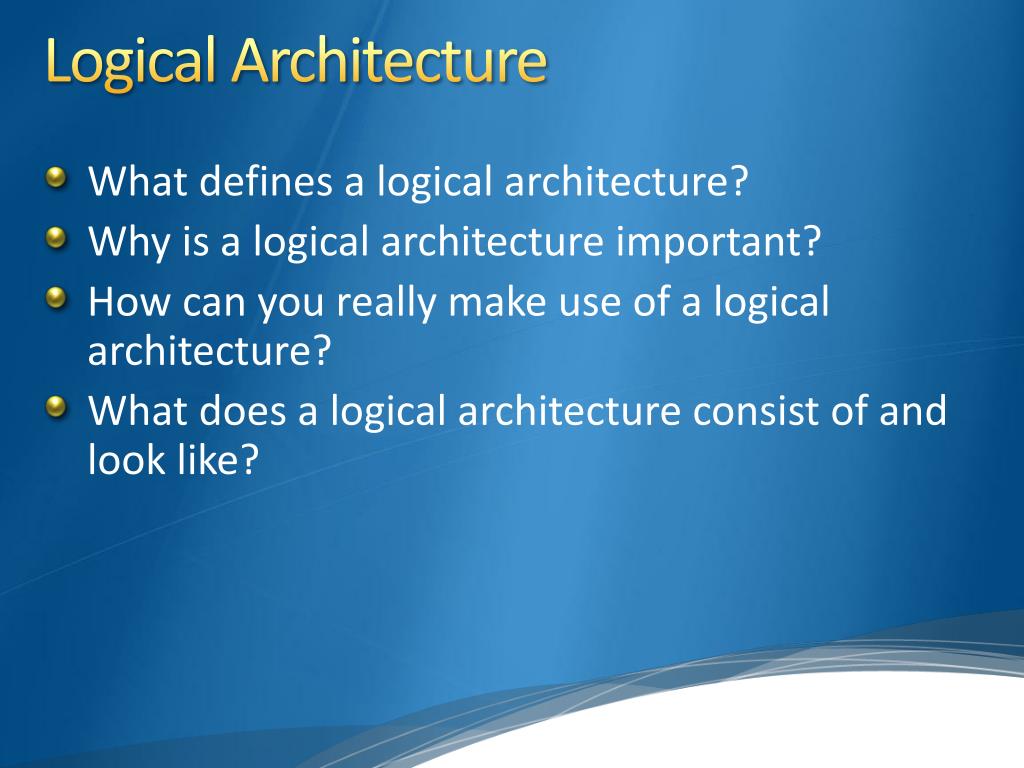

Logical Architecture
  • What defines a logical architecture?
  • Why is a logical architecture important?
  • How can you really make use of a logical architecture?
  • What does a logical architecture consist of and look like?
what technically makes up a logical architecture
What technically makes up a logical architecture?
  • Web Zones (Intranet, Extranet, Internet, etc.) and Zone Policies
  • Different Authentication Models
  • Content Databases
  • Application Pools
  • Web Applications
    • Multiple SSPs
    • My Sites
    • Collaborative Team Sites
    • Secure Content Authoring and Publishing
  • Site Collections
slide14
Windows SharePoint Services Example

Reference: http://bit.ly/sps-ref-wssLA

slide15
Microsoft Office SharePoint Server 2007 Logical Architecture Example

Reference: http://bit.ly/sps-ref-mossLA

how is your logical architecture affected by your requirements
How is your logical architecture affected by your requirements?
  • Extranet / Public Facing Website
  • Permissions models
  • Authentication Schemes
  • Interoperability with other applications
    • Silverlight & WCF
  • How you anticipate your users interacting with your platform

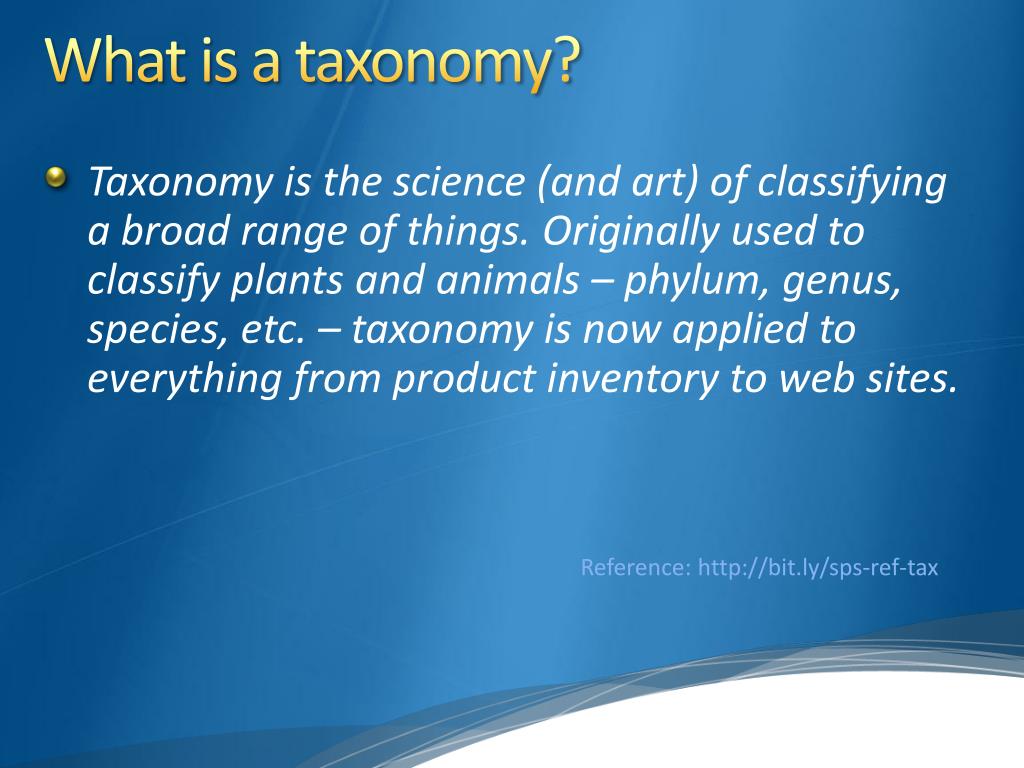

what is a taxonomy
What is a taxonomy?
  • Taxonomy is the science (and art) of classifying a broad range of things. Originally used to classify plants and animals – phylum, genus, species, etc. – taxonomy is now applied to everything from product inventory to web sites.

Reference: http://bit.ly/sps-ref-tax

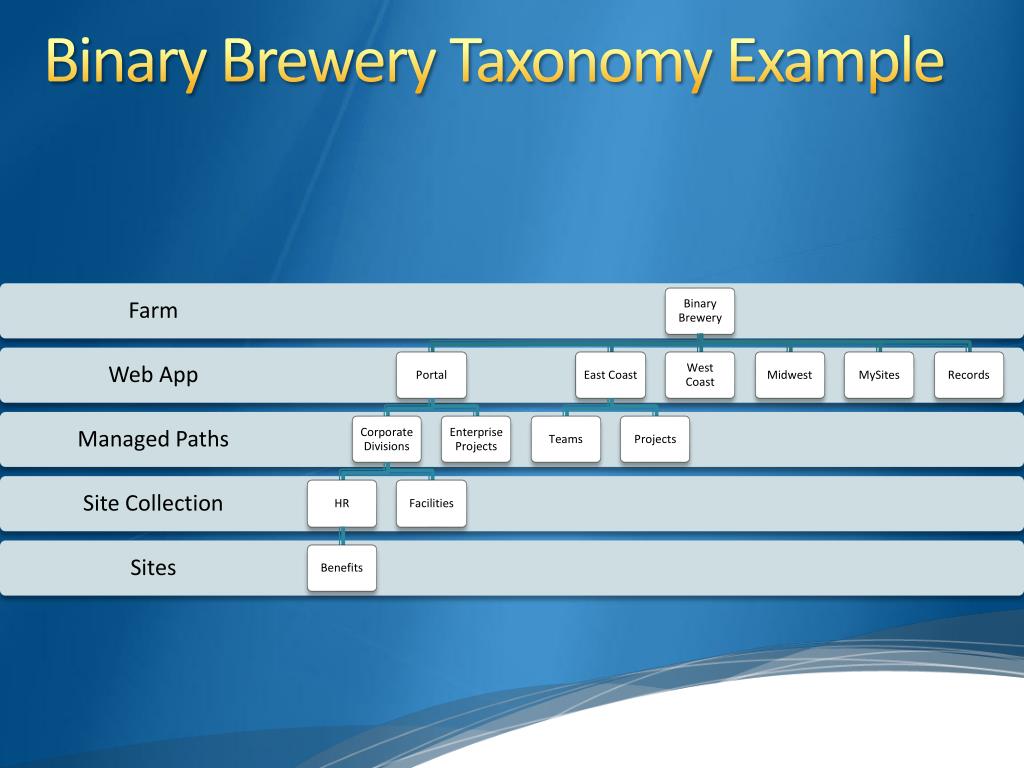

sharepoint s site taxonomy

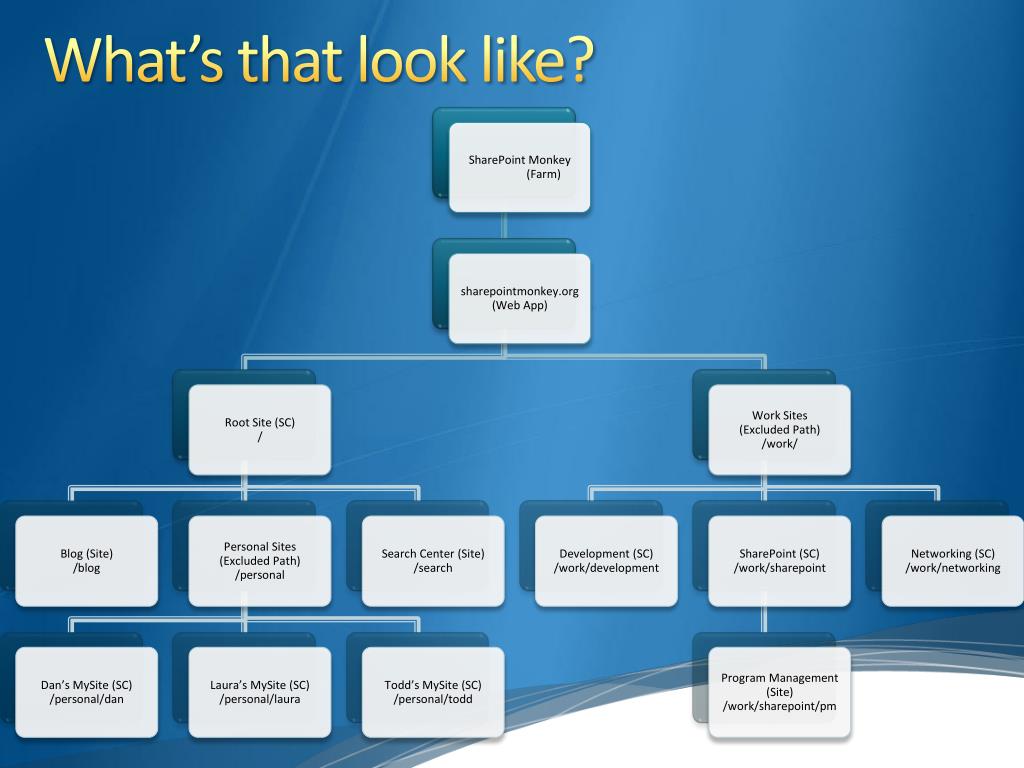

SharePoint’s Site Taxonomy
  • SharePoint Farms
    • Web Applications
      • Collections of Site Collections
        • Collections of Sites
    • Managed Paths
    • Nesting Paths / Excluding Paths
  • Reflection of the Organization
  • Requires out of the box thinking
  • Federated Search
  • Shared Services across Farms
but do i really need a taxonomy

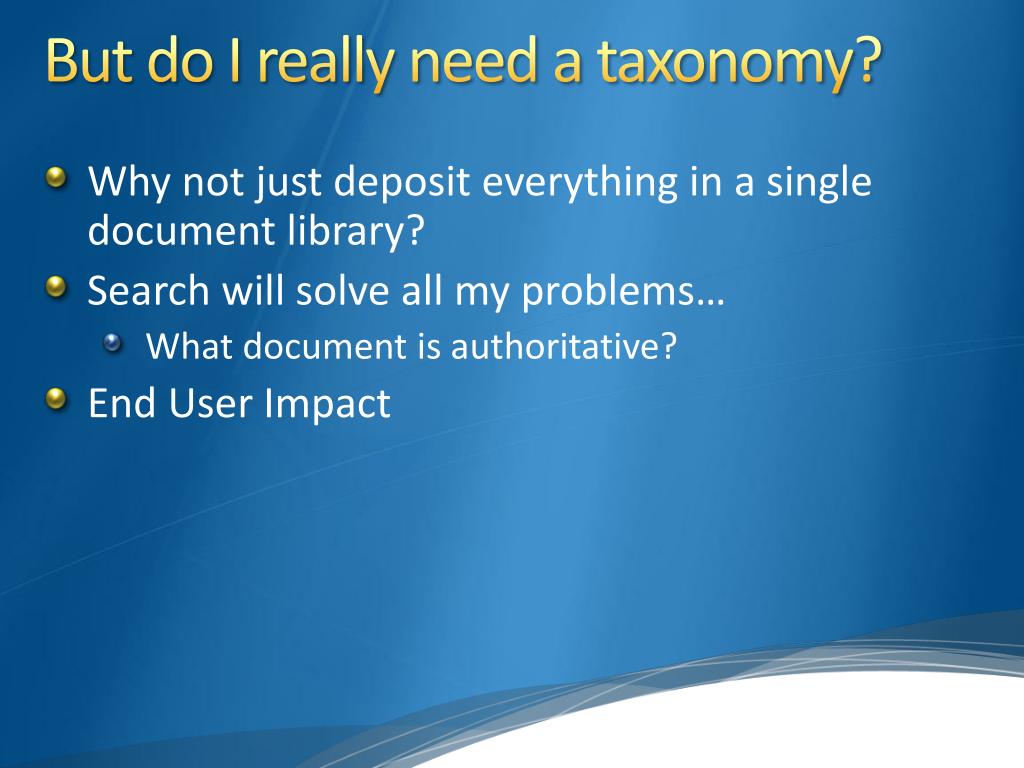

But do I really need a taxonomy?
  • Why not just deposit everything in a single document library?
  • Search will solve all my problems…
    • What document is authoritative?
  • End User Impact
taxonomy limitations

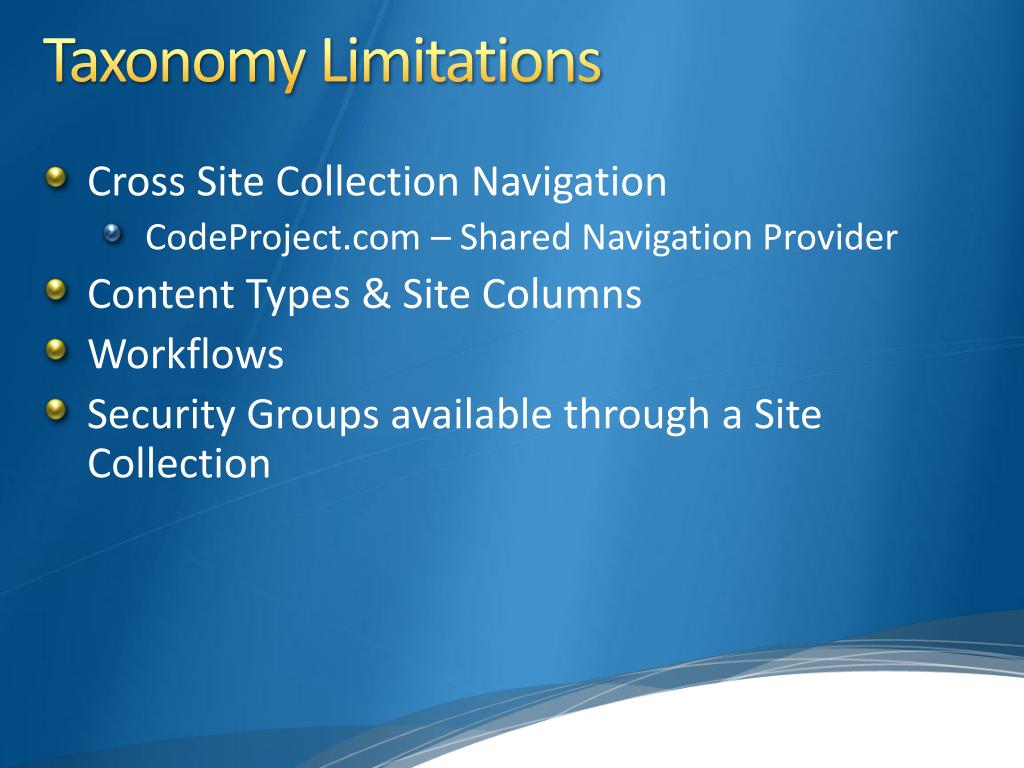

Taxonomy Limitations
  • Cross Site Collection Navigation
    • CodeProject.com – Shared Navigation Provider
  • Content Types & Site Columns
  • Workflows
  • Security Groups available through a Site Collection
what about permissions
What about permissions?
  • Well it depends on the site taxonomy…
  • Inheritance and Breaking it…
    • …and re-inheriting it
  • Web Application Policy
    • Overriding all your other policies…
  • Defined in a Governance Plan hopefully?
    • SharePoint Groups
    • AD / LDAP Groups
    • Single Users
taxonomy logical architecture what s the bridge
Taxonomy & Logical Architecture – What’s the Bridge?
  • Site collections and their web applications
    • Site Collections root container for sites
    • Web Applications tied to content databases and infrastructure
  • The design goals for site collections in the model are to satisfy requirements for URL design and to create logical divisions of content.*

Reference: http://bit.ly/sps-ref-sc

project plans
Project Plans
  • How does a project plan fit into logical architectures and taxonomies?
  • Or rather…
  • How does a logical architecture and taxonomy fit into a project plan… 
project plans26
Project Plans

http://go.spdan.com/hmewo

  • Microsoft has a project plan for planning…
there s no turning back
There’s no turning back???
  • Critical Mass has been reached…
  • SharePoint has gone viral…
course corrections
Course Corrections…
  • Never too late to pin down a way ahead
  • SharePoint’s flexibility provides for change
    • Third party management and migration tools
    • SharePoint Admin Toolkit
    • Moving to Features rather than WSS v2 webparts
  • Migrate to a clean environment
    • Utilize a proxy for access
technical requirement considerations
Technical Requirement Considerations
  • What’s the vision again? What will the platform provide for?
    • Heavy Collaboration?
    • WCM Publishing?
    • Workflow Application Development Platform?
  • How much content will there be?
  • How will it be accessed?
  • What will be the level of usage?
  • Are we dealing with a cross domain solution?
  • Do we have SLAs to meet?

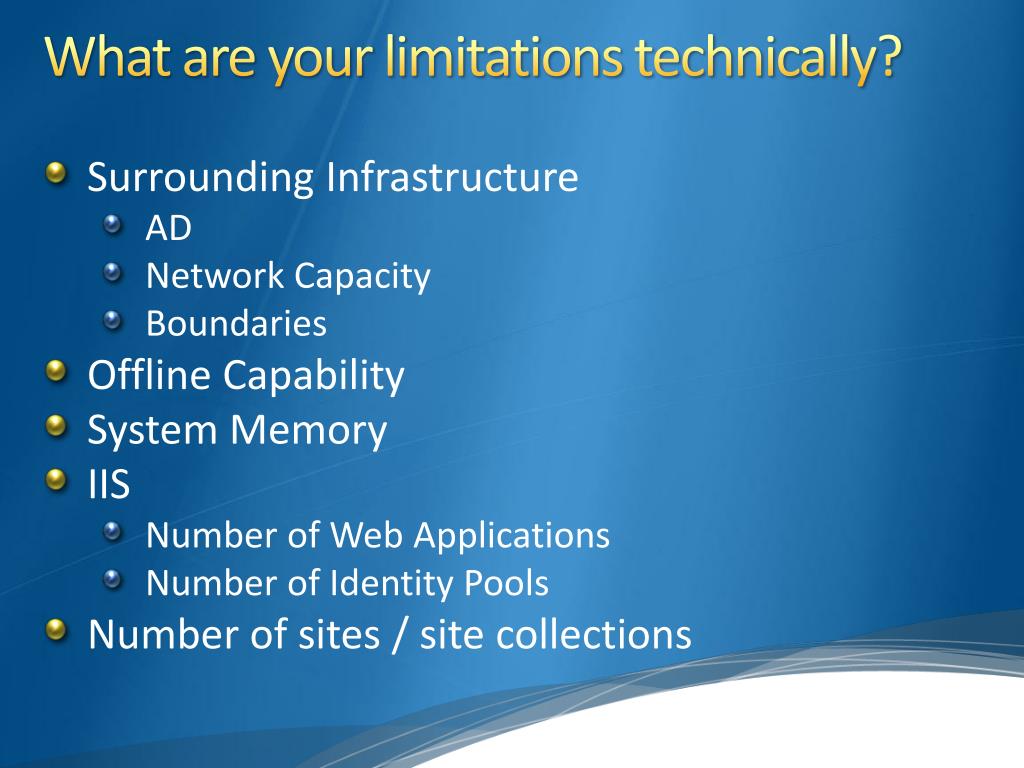

what are your limitations technically
What are your limitations technically?
  • Surrounding Infrastructure
    • AD
    • Network Capacity
    • Boundaries
  • Offline Capability
  • System Memory
  • IIS
    • Number of Web Applications
    • Number of Identity Pools
  • Number of sites / site collections
technical limitations cont d
Technical limitations (cont’d)
  • DNS
  • Authentication Methods
  • PKI / SSL / Wildcard Certificates
  • Network Interfaces / IP Addresses
  • Storage

It all ends up impacting the end user experience…

what s a good reference
What’s a good reference?
  • Planning for Software Boundaries
    • Office SharePoint Server - http://technet.microsoft.com/en-us/library/262787.aspx
    • Windows SharePoint Services - http://technet.microsoft.com/en-us/library/cc287790.aspx
scenario 1 requirements
Scenario 1 – Requirements
  • Small Organization (250-300)
  • Document Management
  • Collaboration
  • Federation
  • Low Budget
  • Information Rollups
scenario 1 considerations
Scenario 1 – Considerations
  • Taxonomy may reflect the organization’s natural divisions
  • Single Site Collection Use Case
    • Allows for the roll up of information easily
    • Allows for the re-use of SharePoint Groups
    • Shared Information Architecture
  • Works well with small numbers of users
  • Out of the box method…
scenario 1 potential solution
Scenario 1 – Potential Solution
  • Small Farm Infrastructure
  • Use of SharePoint Designer for Customizations
  • User Management Tool (USPM 07, DeliverPoint, DocAve, Quest, etc.)
  • ADFS for partner federation
  • Taxonomy using…
    • Single Site Collection
      • Rolled Up Information
      • Security Group Madness
      • User Training

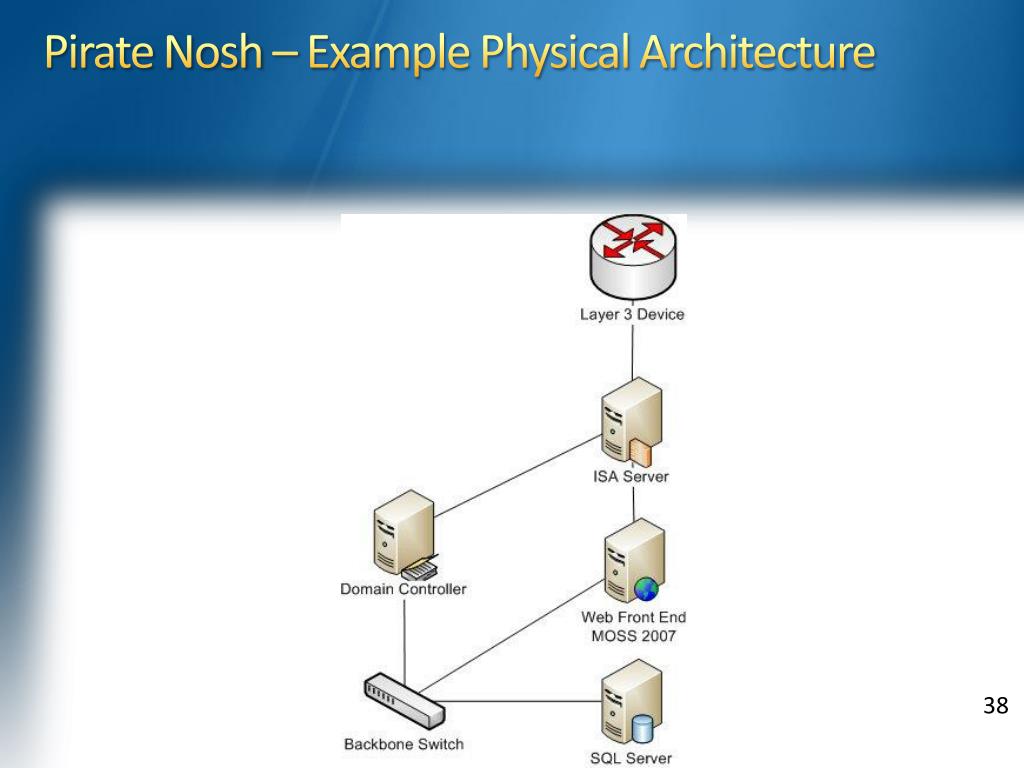

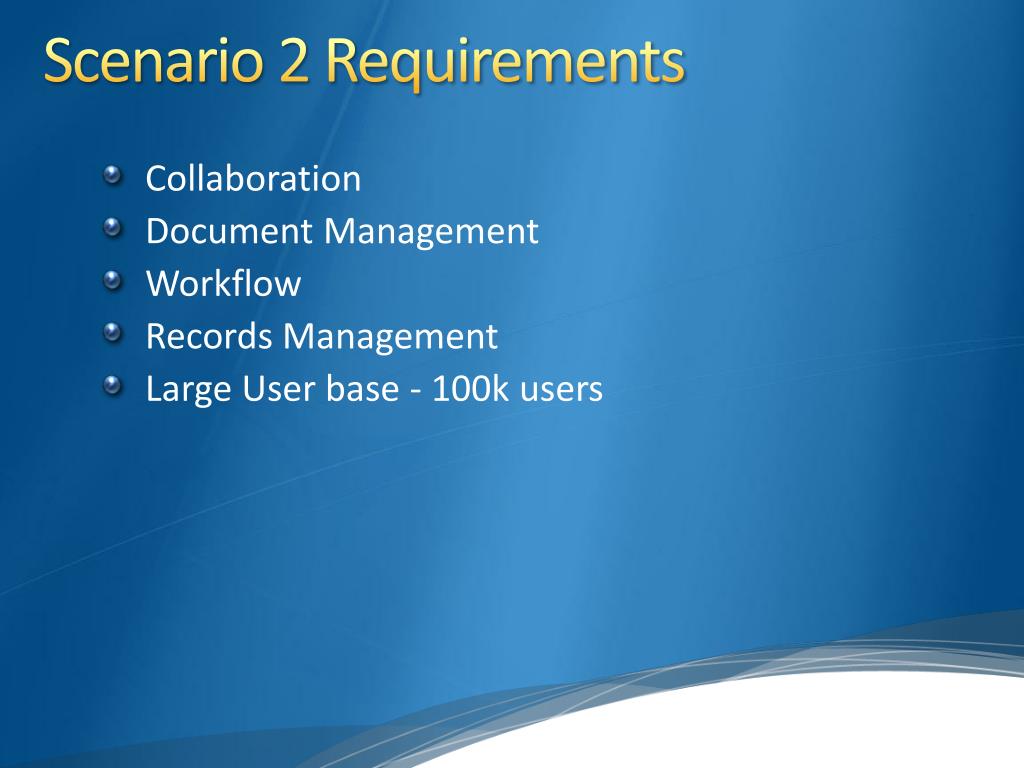

scenario 2 requirements
Scenario 2 Requirements
  • Collaboration
  • Document Management
  • Workflow
  • Records Management
  • Large User base - 100k users
scenario 2 requirements but wait there s more
Scenario 2 Requirements – But wait there’s more…
  • Complex Permissions
  • Extranet Access
  • Smartcard Authentication
  • High Availability
  • Integrity of Data
  • AD Infrastructure - Security Groups
scenario 2 potential solutions
Scenario 2 – Potential Solutions
  • Integration of 3rd Party Records Management Solution
  • Third Party Wiki Integration (Confluence, MediaWiki, etc.)
  • Windows Rights Management Server / Information Rights Management Server
  • Epok for Extranet
  • User Management through AD or Third Party Tools
  • Large Farm Infrastructure
scenario 2 potential solutions42
Scenario 2 – Potential Solutions
  • SQL Configuration
    • Mirroring - remove the complexity
    • Clustering - better scalability
    • Mirror the data of the cluster - best of both worlds
  • Log Shipping
  • Third Party Mirroring Tool
  • Split DNS for internal and external accessibility
  • WCM System
  • 3rd Party Workflow Tool (Captaris, K2, Nintex, etc.)
scenario 2 considerations

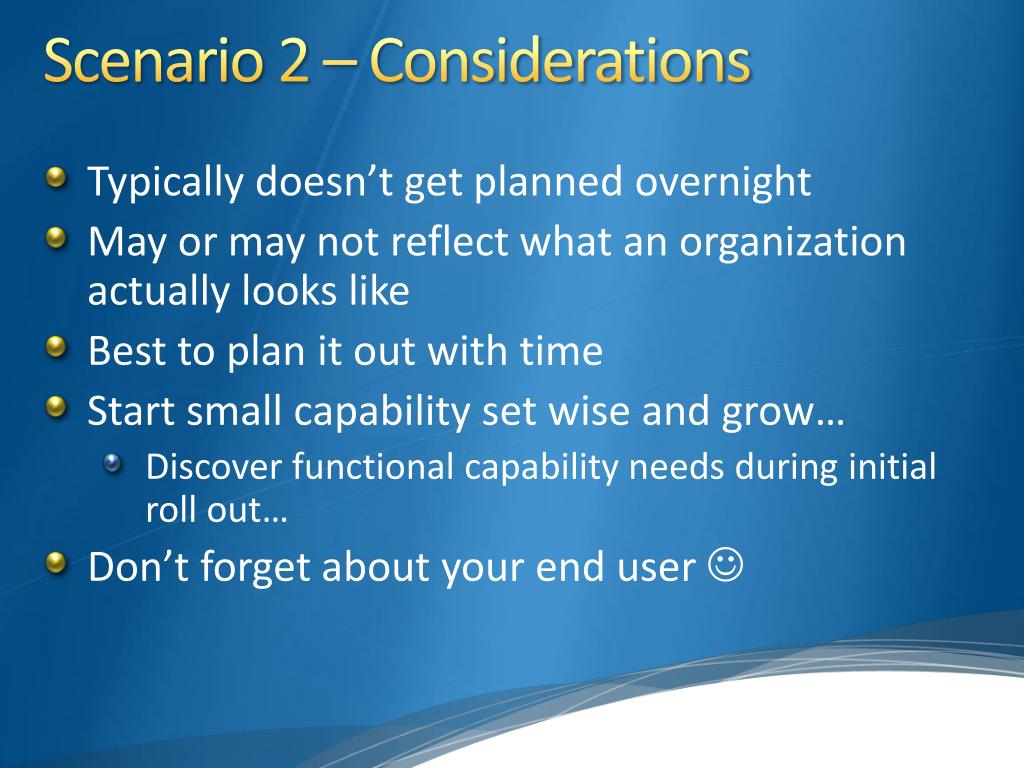

Scenario 2 – Considerations
  • Typically doesn’t get planned overnight
  • May or may not reflect what an organization actually looks like
  • Best to plan it out with time
  • Start small capability set wise and grow…
    • Discover functional capability needs during initial roll out…
  • Don’t forget about your end user 
conclusion i
Conclusion I

Each SharePoint implementation project requires that you examine the contextual considerations of the environment and define a vision.

Defining such a vision will provide goals to work toward, to make your implementation both successful and effective to end users.

conclusion ii
Conclusion II
  • Your requirements drive your taxonomy and logical architecture...
  • Which in turn drive your hardware requirements...
  • If you don't know what you're going to use SharePoint for, start off small and scale your farm up as you go...
  • Crawl… Walk… Run…
conclusion iii
Conclusion III
  • What you start with on Day One isn’t what you’re going to end up with in…
    • Six months…
    • A year…
    • Day 472…

Remain Flexible!!!

conclusion iv
Conclusion IV

User adoption in and of itself will cause your environment to change…

…adapt to the context as it changes.

and that s a wrap
Follow me on Twitter – twitter.com/usherAnd that’s a wrap…
