Shafts and Axels. Shaft is a rotating member and it provides axis of rotation for gears, pulley, flywheels, cranks, sprockets. Axels are non rotating member, carries no torque and it is used to support rotating wheels. Design should consider the following . Deflection,

candide
Download Presentation

Shafts and Axels

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Shafts and Axels Shaft is a rotating member and it provides axis of rotation for gears, pulley, flywheels, cranks, sprockets. Axels are non rotating member, carries no torque and it is used to support rotating wheels.

  2. Design should consider the following • Deflection, Bending deflection, Torsional deflection. Slope at the bearings and shaft support elements, shear deflection due to transverse loading • Stress and Strength Static and Fatigue Static Strength Fatigue Strength Reliability

  3. Example of shafts

  4. Connections to the shaft

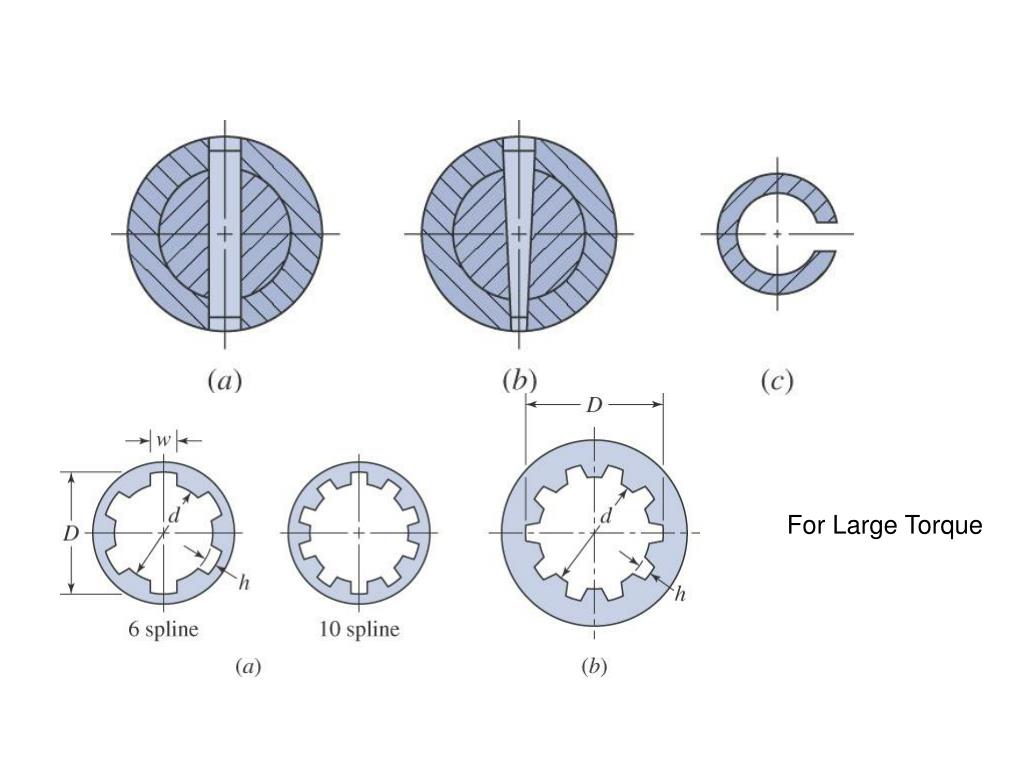

  5. For Large Torque

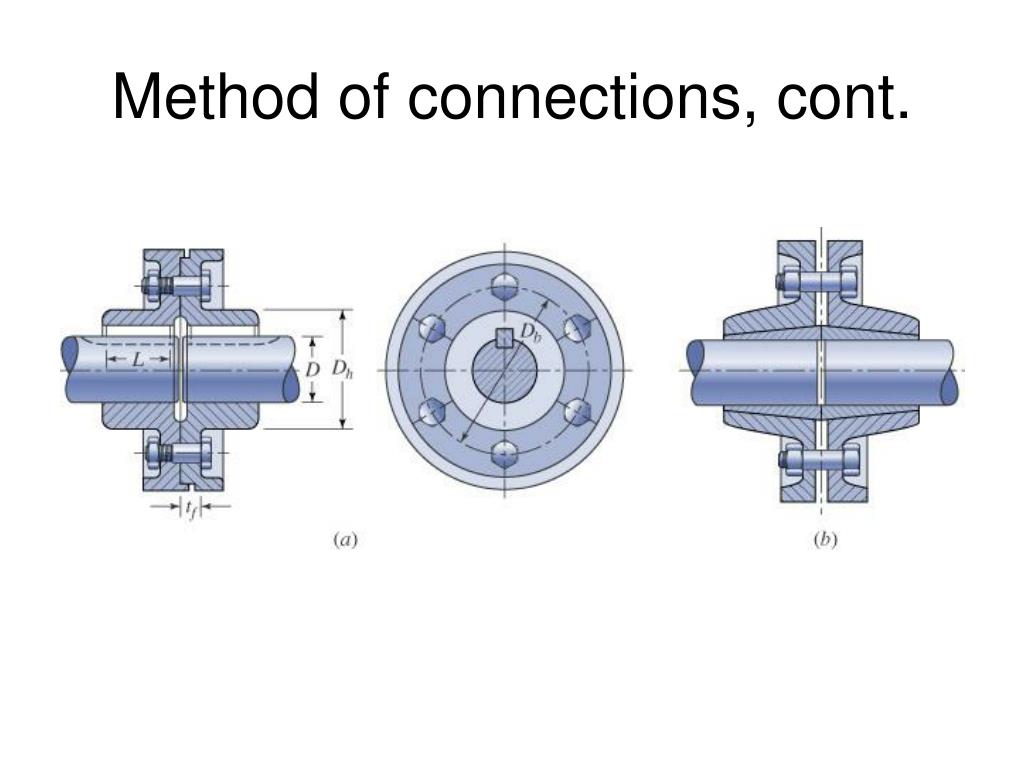

  6. Method of connections, cont.

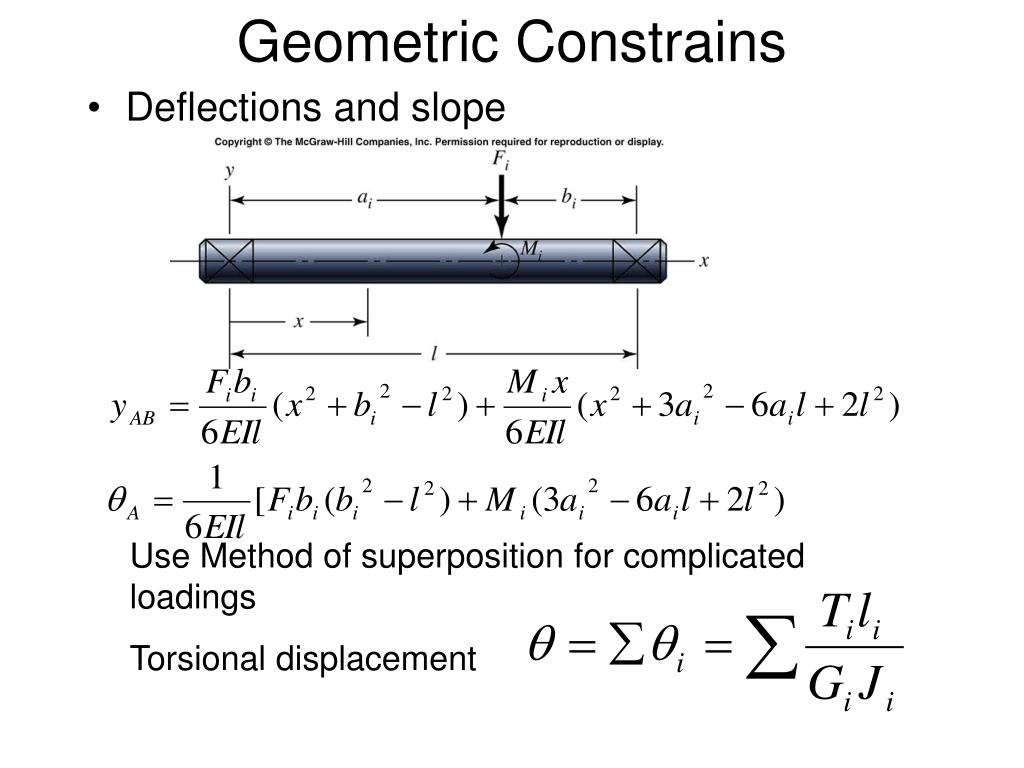

  7. Geometric Constrains • Deflections and slope Use Method of superposition for complicated loadings Torsional displacement

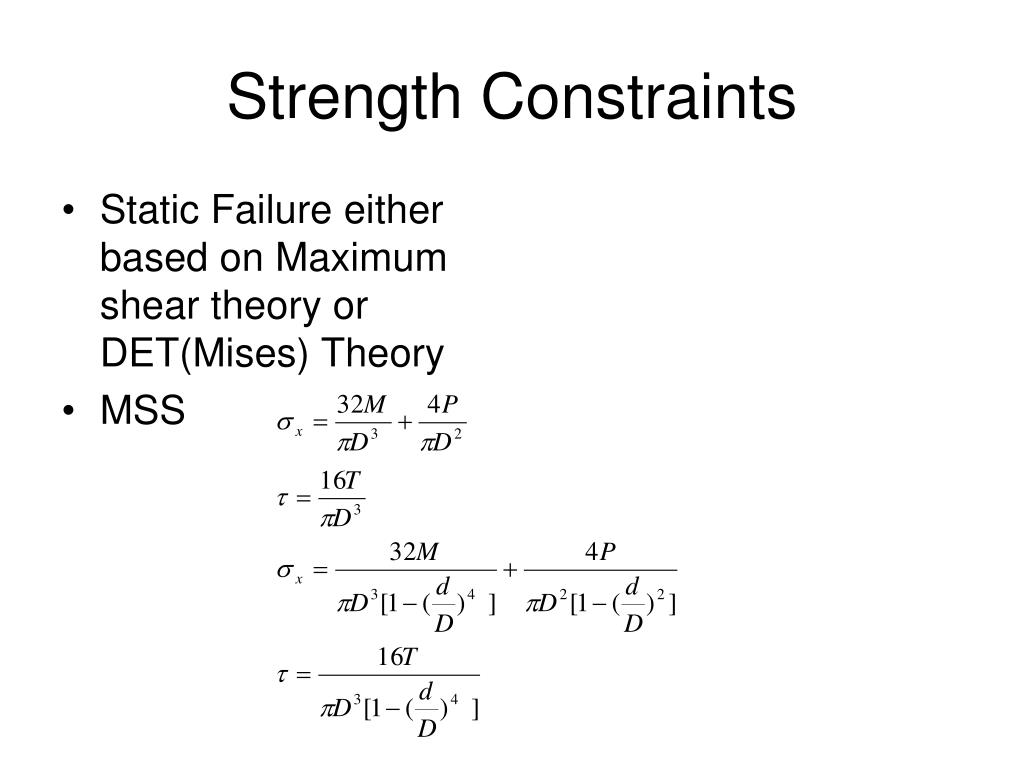

  8. Strength Constraints • Static Failure either based on Maximum shear theory or DET(Mises) Theory • MSS

  9. MSS, cont.

  10. DET theory , Static

  11. Fatigue design of shafts

  12. Fatigue, cont.

  13. Natural frequency of the shaft W individual attachment weigh deflection of the shaft at the attachment
