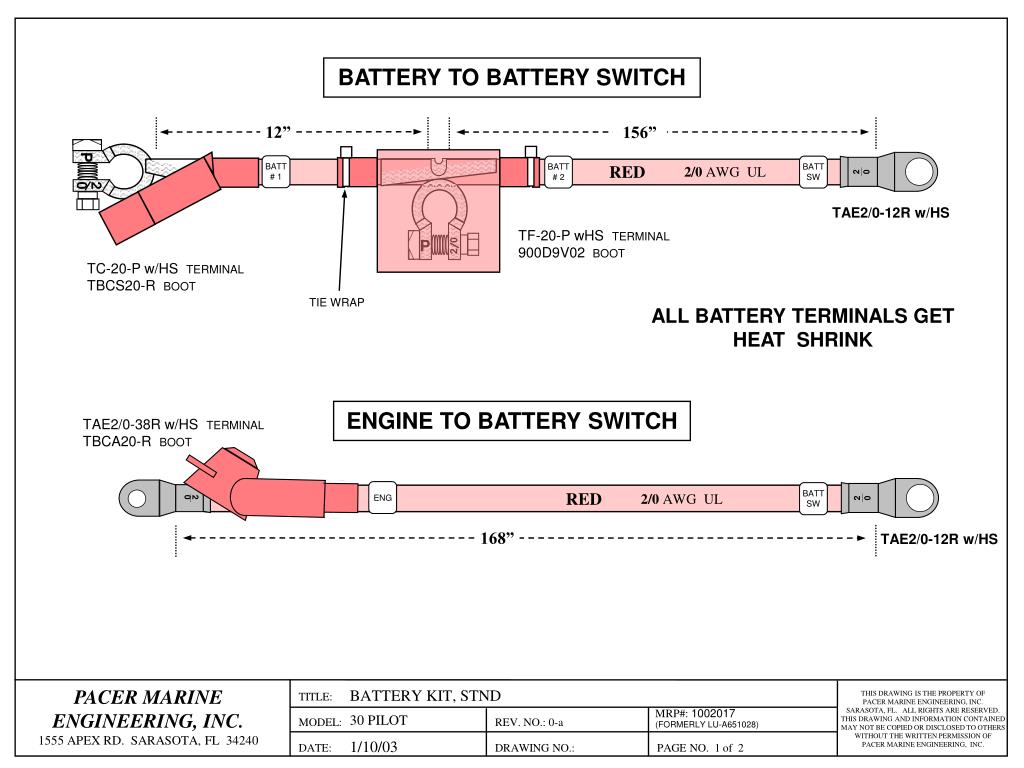

  1. P BATT SW BATT SW BATT # 2 BATT # 1 2 0 2 0 2 0 2 0 12” 156” RED 2/0 AWG UL TAE2/0-12R w/HS TF-20-P wHS TERMINAL 900D9V02 BOOT P 2 0 TC-20-P w/HS TERMINAL TBCS20-R BOOT ENG TIE WRAP BATTERY TO BATTERY SWITCH ALL BATTERY TERMINALS GET HEAT SHRINK ENGINE TO BATTERY SWITCH TAE2/0-38R w/HS TERMINAL TBCA20-R BOOT RED 2/0 AWG UL 168” TAE2/0-12R w/HS PACER MARINE ENGINEERING, INC. 1555 APEX RD. SARASOTA, FL 34240 BATTERY KIT, STND THIS DRAWING IS THE PROPERTY OF PACER MARINE ENGINEERING, INC. SARASOTA, FL. ALL RIGHTS ARE RESERVED. THIS DRAWING AND INFORMATION CONTAINED MAY NOT BE COPIED OR DISCLOSED TO OTHERS WITHOUT THE WRITTEN PERMISSION OF PACER MARINE ENGINEERING, INC. TITLE: MRP#: 1002017 (FORMERLY LU-A651028) 30 PILOT MODEL: REV. NO.: 0-a 1/10/03 DATE: DRAWING NO.: PAGE NO. 1 of 2

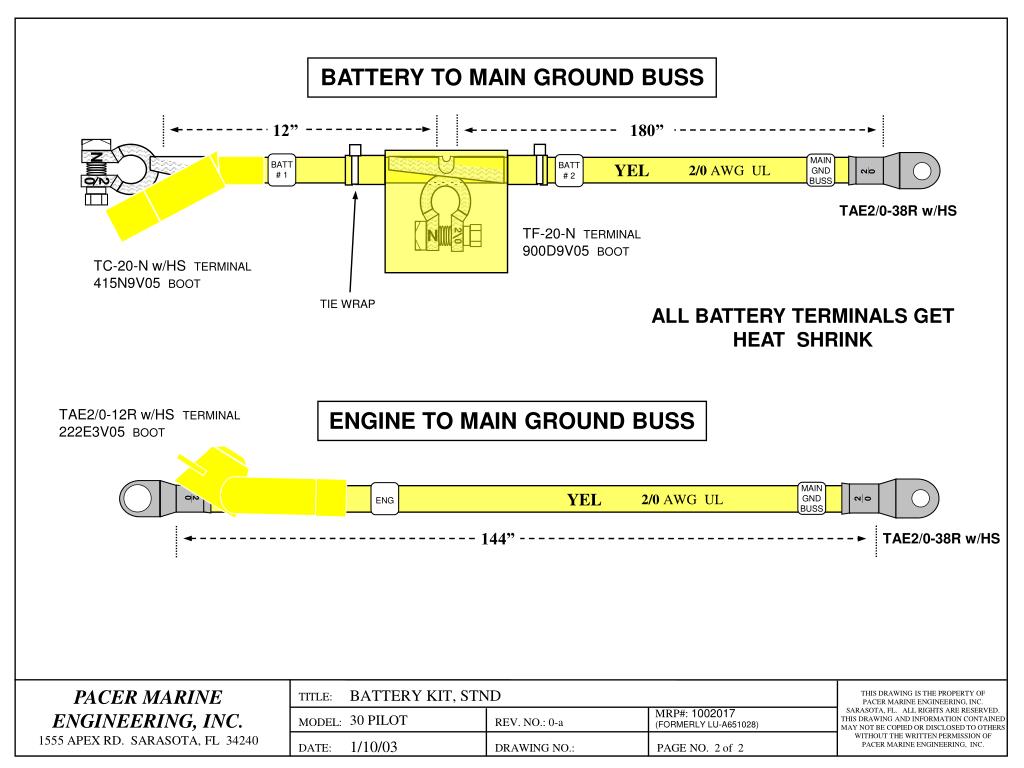

  2. 12” 180” BATT # 1 BATT # 2 2 0 MAIN GND BUSS YEL 2/0 AWG UL TAE2/0-38R w/HS TF-20-N TERMINAL 900D9V05 BOOT TC-20-N w/HS TERMINAL 415N9V05 BOOT TIE WRAP 2 0 N 2 0 2 0 N MAIN GND BUSS ENG BATTERY TO MAIN GROUND BUSS ALL BATTERY TERMINALS GET HEAT SHRINK TAE2/0-12R w/HS TERMINAL 222E3V05 BOOT ENGINE TO MAIN GROUND BUSS 2 0 YEL 2/0 AWG UL 144” TAE2/0-38R w/HS PACER MARINE ENGINEERING, INC. 1555 APEX RD. SARASOTA, FL 34240 BATTERY KIT, STND THIS DRAWING IS THE PROPERTY OF PACER MARINE ENGINEERING, INC. SARASOTA, FL. ALL RIGHTS ARE RESERVED. THIS DRAWING AND INFORMATION CONTAINED MAY NOT BE COPIED OR DISCLOSED TO OTHERS WITHOUT THE WRITTEN PERMISSION OF PACER MARINE ENGINEERING, INC. TITLE: MRP#: 1002017 (FORMERLY LU-A651028) 30 PILOT MODEL: REV. NO.: 0-a 1/10/03 DATE: DRAWING NO.: PAGE NO. 2 of 2
