  1. Extracting Metals by Electrolysis

  2. Extracting metals from ores Most metals that we use are found combined with other elements, as compounds in ores. These metals must be extracted from their ores before they can be made useful. potassium The method of extraction which is most appropriate depends on the reactivity of the metal being extracted. This can be discovered using the reactivity series. increasing reactivity sodium calcium magnesium aluminium (carbon) zinc iron lead (hydrogen) Metals above carbon in the reactivity series must be extracted using electrolysis. copper silver gold platinum

  3. aluminium oxide + aluminium oxygen What is electrolysis? Electrolysis is a process that uses electricity to separate the elements in a compound. Electrolysis is expensive and so it is only used to extract reactive metals that cannot be extracted in other ways. Aluminium is a reactive metal that is found in the ore bauxite combined with oxygen as aluminium oxide (Al2O3). Electrolysis breaks down the Al2O3 into aluminium and oxygen. As the aluminium loses oxygen, reduction takes place. What is the word equation for the extraction of aluminium?

  4. Al Al3+ Ionic substances Electrolysis involves breaking down ionic substances into simpler substances using electricity. An ionic substance contains charged particles called ions. An ion is an atom that has gained or lost electrons and so carries a positive or negative charge, which is shown after its formula. Aluminium atom loses 3 electrons Aluminium ion Ions with a positive charge have lost electrons, and ions with a negative charge have gained electrons. In electrolysis, the ionic substance must be dissolved in water or melted so that the ions are free to move.

  5. heat Oxidation and reduction In electrolysis, the substance that the current passes through and splits up is called the electrolyte. The electrolyte contains positive and negative ions. What happens to these ions during electrolysis? Negative ions move to the positive electrode and lose electrons. This is oxidation. Positive ions move to the negative electrode and gain electrons. This isreduction.

  6. Oxidation Is Loss of electrons ReductionIs Gain of electrons  magnesium + oxygen magnesium oxide +  2Mg(s) O2 (g) 2MgO(s) reduction: O2 + 4e-2O2- oxidation: Mg Mg2+ + 2e-   OILRIG An easy way to remember what happens to the electrons during oxidation and reduction is to think OILRIG. Equations written to show what happens to electrons during oxidation and reduction are called half-equations, i.e.:

  7. Extracting aluminium Aluminium is one of the most useful metals in the world. Electrolysis is used to extract aluminium from its ore. Why is it not possible to extract aluminium by heating its ore with carbon? Aluminium ore (bauxite) is more reactive than carbon and has a very high melting point (2050°C). In electrolysis, the ore is dissolved in a compound called cryolite (Na3AlF6), which effectively lowers the melting point to 1,000°C.

  8. Aluminium from bauxite

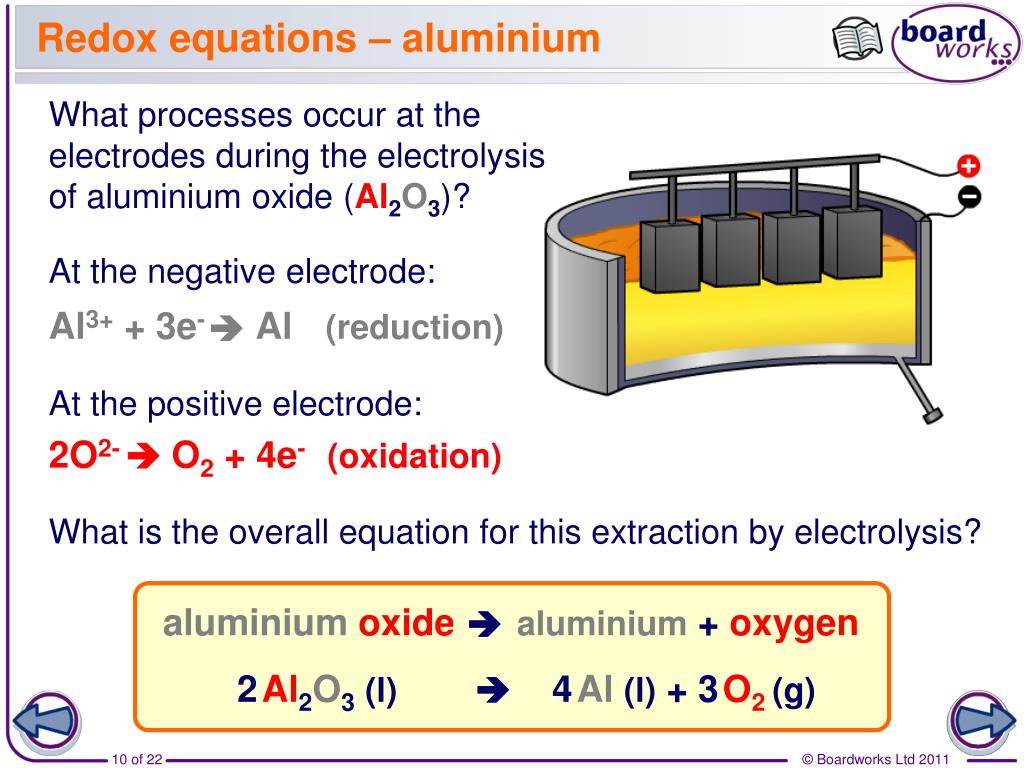

  9. At the positive electrode: 2O2- O2 + 4e-(oxidation)  aluminiumoxidealuminium + oxygen 2Al2O3(l) 4Al(l) + 3O2(g)   Redox equations – aluminium What processes occur at the electrodes during the electrolysis ofaluminium oxide (Al2O3)? At the negative electrode: Al3+ + 3e-Al(reduction)  What is the overall equation for this extraction by electrolysis?

  10. Economics of electrolysis The extraction of aluminium from its ore by electrolysis requires large amounts of energy in the form of expensive electricity to complete the many stages in the process. This energy is needed both to melt the aluminium oxide and to split up the compound. To reduce costs, aluminium extraction plants are often located near sources of cheap electricity such as hydroelectric dams.

  11. Extracting aluminium summary

  12. How is copper purified? Copper is an excellent conductor and does not corrode quickly which makes it a good material for wiring and plumbing. Only pure copper can be used for electric wires because even very low levels of impurities will reduce the conductivity. Copper can occur as a native metal, but more often it is found combined with other elements, such as in the ore malachite. The copper extracted from compounds by reduction with carbon is impure. Electrolysis can be used after reduction to remove the impurities and obtain pure copper.

  13. Purifying copper using electrolysis

  14. Labelling copper purification

  15. Redox equations – copper What happens at the electrodes during the purification of copper by electrolysis? At the negative electrode: Cu2+ + 2e- Cu(reduction)  At the positive electrode: Cu Cu2+ + 2e-(oxidation)  This process is carried out on a huge scale in industry. The copper formed on the negative electrodes is 99.99% pure. The precious metals recovered from the impurities are also sold off and help to make this industrial process profitable.

  16. Purifying copper – true or false?

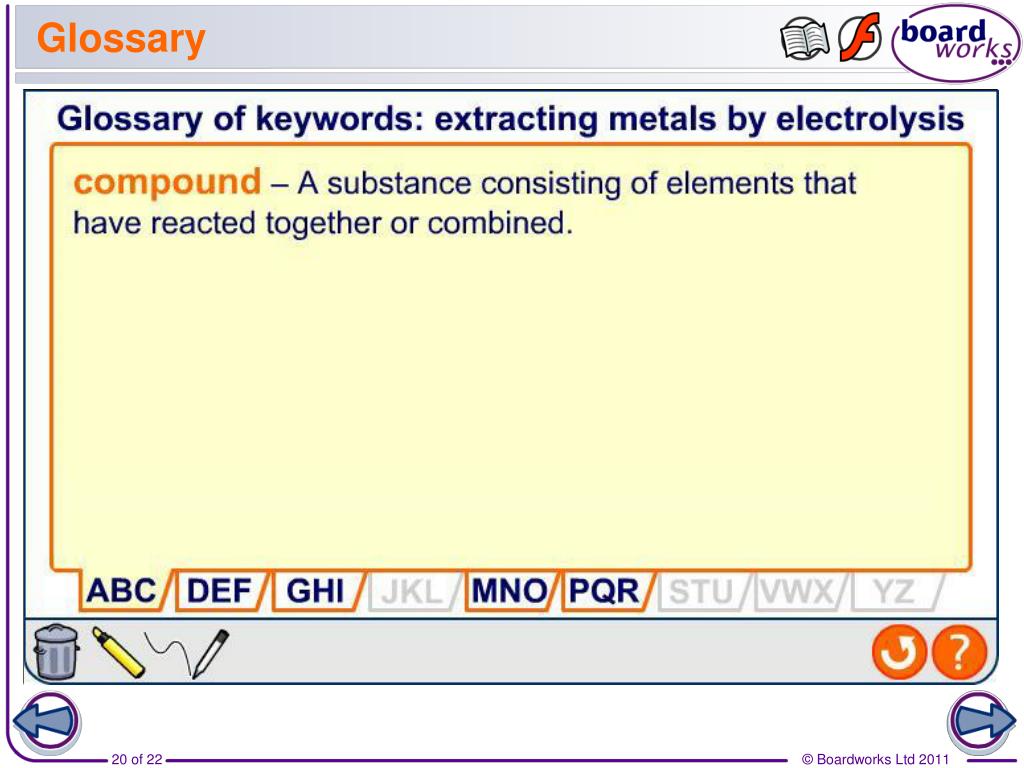

  17. Glossary

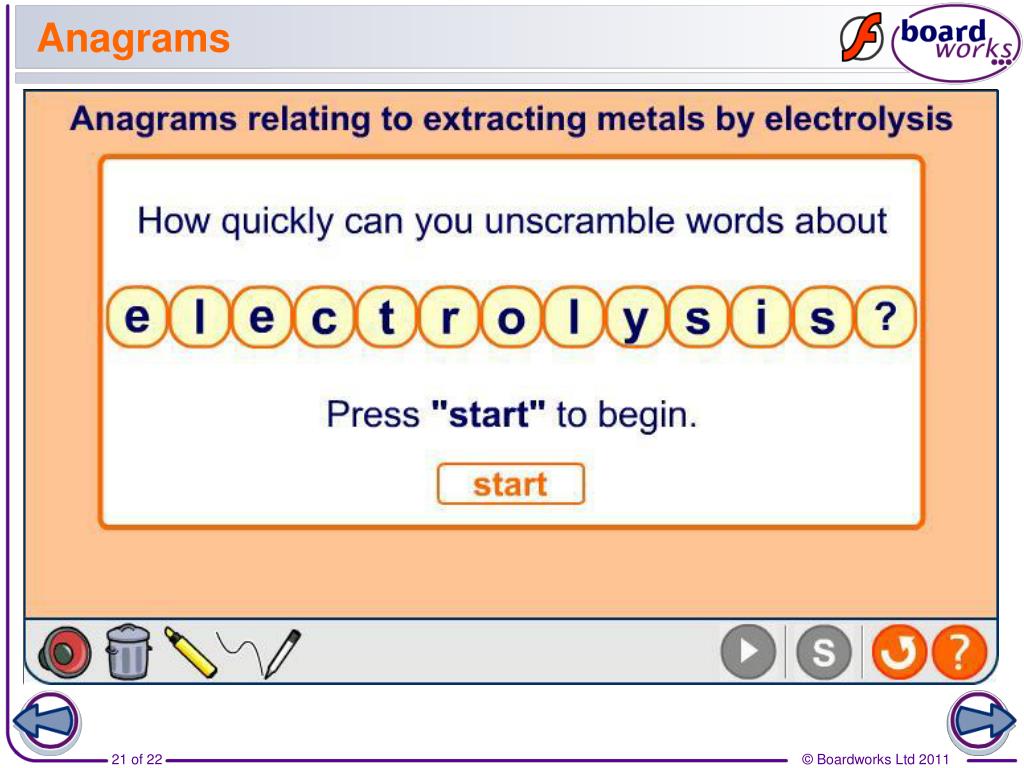

  18. Anagrams

  19. Multiple-choice quiz
