ELECTROLYSIS. The purpose of electrolysis is to split up ionic compounds using electricity to produce useful products.

Download Presentation

ELECTROLYSIS

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. ELECTROLYSIS The purpose of electrolysis is to split up ionic compounds using electricity to produce useful products. Electrolysis is used a lot in industry and is a multi-billion pound industry. It is used to produce all of the Copper, Aluminium, Chlorine and Caustic Soda (sodium hydroxide) that we use today as well as to produce gold and silver plated jewellery and chrome-plated taps and bicycle parts Click below to see the things your exam board expect you to know: AQA OCR Edexcel Edexcel From 2011

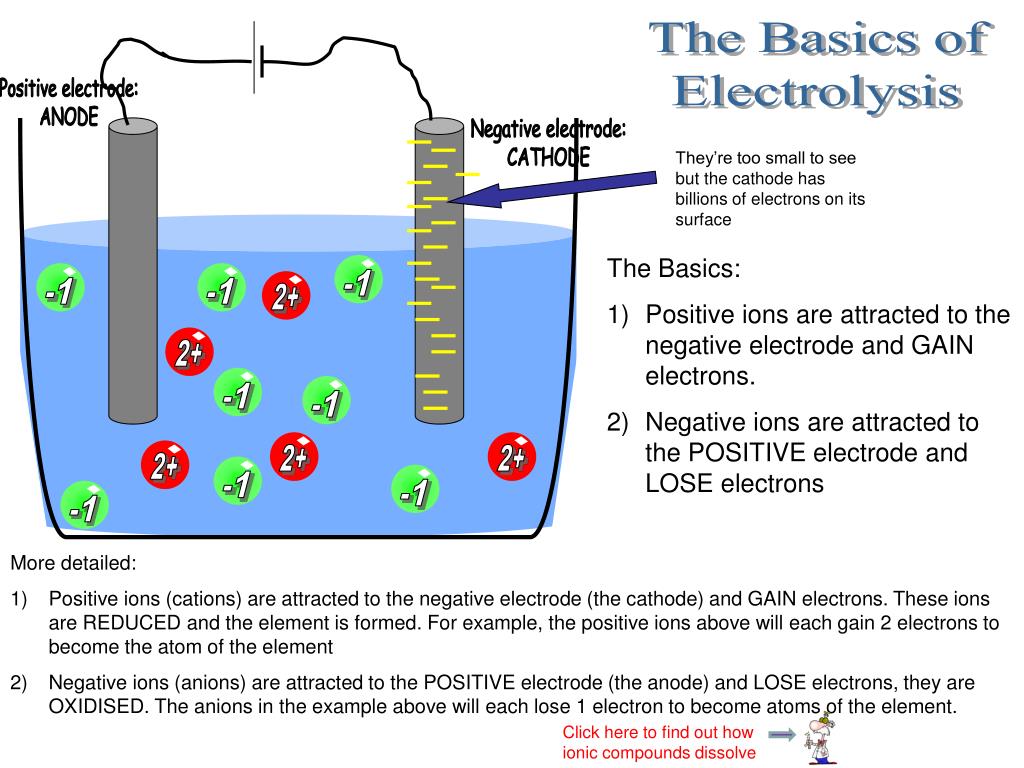

  2. 2+ 2+ 2+ 2+ 2+ -1 -1 -1 -1 -1 -1 -1 -1 The Basics of Electrolysis Positive electrode: ANODE Negative electrode: CATHODE They’re too small to see but the cathode has billions of electrons on its surface • The Basics: • Positive ions are attracted to the negative electrode and GAIN electrons. • Negative ions are attracted to the POSITIVE electrode and LOSE electrons • More detailed: • Positive ions (cations) are attracted to the negative electrode (the cathode) and GAIN electrons. These ions are REDUCED and the element is formed. For example, the positive ions above will each gain 2 electrons to become the atom of the element • Negative ions (anions) are attracted to the POSITIVE electrode (the anode) and LOSE electrons, they are OXIDISED. The anions in the example above will each lose 1 electron to become atoms of the element. Click here to find out how ionic compounds dissolve

  3. A Simple Example: The electrolysis of Copper Chloride Positive electrode: ANODE Negative electrode: CATHODE Cl-1 Cl-1 Cl-1 Cl-1 Cl-1 Cl-1 To find out how these ions got into the solution, click here • The Basics: • When the current is switched on the Copper ions are attracted to the negative electrode and gain electrons. You’d see a light brown coating form on the electrode as the copper is deposited. • The Chloride ions are attracted to the POSITIVE electrode and LOSE electrons. You’d observe bubbles of Chlorine gas being produced. Cu+2 Cu+2 Cu+2 More detailed: At the cathode (negative electrode): Each Copper ion gains 2 electrons to form Copper metal Cu2+ (aq) + 2e- Cu (s) At the anode (positive electrode): Each Chloride ion loses one electron to form Chlorine atoms. These combine to form molecules of Chlorine gas. 2Cl-(aq) - 2e- Cl2(g)

  4. This one is trickier: The electrolysis of Potassium Bromide Br -1 Br -1 Br -1 Br -1 Br-1 Br-1 • The Basics: • When the current is switched on the Potassium ions are attracted to the negative electrode and gain electrons. You’d expect to see Potassium metal coating the electrode wouldn’t you? Instead you’d see Bubbles • The Bromide ions are attracted to the POSITIVE electrode and LOSE electrons. You’d observe water around the electrode turning a red / brown colour as BROMINE is formed K + K+ K + K+ K+ More detailed: At the cathode (negative electrode): Each Potassium ion gains 1 electron to form Potassium metal. The Potassium immediate reacts with the water to produce Potassium Hydroxide and Hydrogen gas K+ (aq) + 1e- K (s) K (s) + H2O (l) KOH (aq) + H2(g) At the anode (positive electrode): Each Bromide ion loses one electron to form Bromine atoms. These combine to form Bromine, which is a liquid and dissolves in water. 2Br-(aq) - 2e- Br2(g) These are called “electrode equations” and show how electrons are lost or gained at the electrode.

  5. Specific examples that you must know about: Electrolysis of Brine (sodium chloride solution)_ Cl-1 Cl-1 Cl -1 Cl-1 Cl-1 Cl-1 • The Basics: • Sodium Chloride from seawater is electrolysed to make a number of important products. The company then sells these to make a profit. • Because the raw material is so cheap, the company only has to pay for the electricity to electrolyse the salt solution (called brine). • The products are Sodium Hydroxide (detergents), Chlorine (bleach and water treatment) and Hydrogen (fuel) H H H H O O O O Na+ Na + Na+ Na + Na+ Na+ Na+ Na+ Na+ More detailed: At the cathode (negative electrode): Each Sodium ion gains 1 electron to form Sodium metal. The Sodium immediate reacts with the water to produce Sodium Hydroxide and Hydrogen gas Na+ (aq) + 1e- Na (s) Na (s) + H2O (l)NaOH(aq) + H2(g) At the anode (positive electrode): Each Chloride ion loses one electron to form Chlorine atoms. These combine to form Chlorine, which is a green coloured gas. 2Cl-(aq) - 2e- Cl2(g) Cl2 Cl2 Cl2 Cl2 These are called “electrode equations” and show how electrons are lost or gained at the electrode. H2 H2 H2 H2

  6. Specific examples that you must know about: Purification of Copper_ SO4-2 SO4-2 SO4-2 SO4-2 SO4-2 SO4-2 Cu Cu Cu • The Basics: • Impure Copper starts off at the anode. When the current starts Copper ions from the solution are attracted to the cathode and form copper metal. • Copper atoms LEAVE the anode and go into the solution, replacing the ones that have already gone to the cathode. • As this process continues the cathode becomes heavier since it is gaining Copper metal and the anode becomes lighter as it loses Copper atoms and impurities. • These impurities fall to the bottom of the vessel. Cu2+ Cu2+ Cu2+ Cu2+ Cu2+ Cu2+ Cu2+ Cu2+ Cu2+ More detailed: At the cathode (negative electrode): Each Copper ion gains 2 electrons to form Copper metal. Cu+2 (aq) + 2e- Cu (s) At the anode (positive electrode): Each Bromide ion loses one electron to form Bromine atoms. These combine to form Bromine, which is a liquid and dissolves in water. Cu (s) - 2e- Cu+2 (aq) Remember: Whatever is attracted to the cathode GAINS electrons. We say that it is REDUCED Remember: Electrons are always lost at the anode. We call this Oxidation. To find out more about oxidation and reduction, click here. Note: Nothing happens to the Sulphate (SO4-2 ) ions in this process

  7. Electrolysis of a Molten Salt: • The Basics: • Some substances react with water or are completely insoluble. To electrolyse these you have to melt them in order to free the ions so they can move. • Molten electrolytes are usually much easier to figure out; positive ion goes to negative electrode / negative ion goes to the positive electrode. For example: Lead Bromide (PbBr2) At the cathode (negative electrode): Each Lead ion gains 2 electrons to form Lead metal Pb+2 (l) + 2e-Pb(s) At the anode (positive electrode): Each Bromide ion loses one electron to form Bromine atoms. These combine to form Bromine which, at that temperature, is a brown gas. 2Br- -(l) - 2e-Br2(g) Click the button to watch a video of molten Lead Bromide being electrolysed For example: Potassium Oxide(K2O) At the cathode (negative electrode): Each Potassium ion gains 1 electron to form Potassium metal K+ (l) + 1e- K (s) At the anode (positive electrode): Each Oxide ion loses 2 electrons to form Oxygen atoms. These combine to form Oxygen gas. O -2(l) - 2e- O2(g)

  8. Electrolysis of Aluminium Oxide (Bauxite): • The Basics: • The bauxite ore is purified and called alumina. It’s chemical name is Aluminium Oxide (Al2O3) It has to be melted so that the ions are free to move. A compound called cryolite is used to lower the melting point of Alumina. • The negatively charged Oxide ions move to the positive electrode, lose electrons and form Oxygen gas. • The positively charged Aluminium ions move to the negative electrode, gain electrons and form Aluminium metal. More detail At the cathode (negative electrode): Each Aluminium ion gains 3 electrons * to form Aluminium metal. Al+3 (l) + 3e- Al (s) At the anode (positive electrode): Each Oxide ion loses 2 electrons * and Oxygen gas is released 2O-2(l) - 4e- O2(g) Click below to watch a video of Aluminium being extracted industrially This would probably be good enough to get all of the marks but, to be completely accurate we have to balance the overall equation – this means balancing the electrons, which, as you can see, aren’t balanced above: Reduction: 4 Al+3 + 12e- 4Al Oxidation: 6 O-2 - 12 e- 3O2 Overall: 2 Al2O3 4 Al + 3 O2 To learn more about charges on ions, click here.

  9. Test Yourself Have a go at these questions then click the button at the bottom of the page for the answers. Click here for the answers

  10. Even though these questions aren’t specifically about electrolysis, the examiner is testing whether you appreciate the industrial, economic and environmental impact of Chemistry. Click below to find out more about this part of the course Click here for the answers

  11. Click here for the answers

  12. Click here to return to questions

  13. Answers Check your answers to the questions – click the button to go to the relevant slide in the turorial. Problems? Click this button to revise this topic Chloride ions are negatively charged and are electrostatically attracted to the positive electrode Hydrogen Click here to return to the questions

  14. Even though these questions aren’t specifically about electrolysis, the examiner is testing whether you appreciate the industrial, economic and environmental impact of Chemistry. Click below to find out more about this part of the course Chlorine is a poisonous gas. An accident releasing Chlorine would damage plants and animals Closing the factory would mean people losing their jobs, which would be bad for the community. Scientists working for the chemical company might be biased.

  15. AQA Additional Science: The things you need to know about Electrolysis

  16. OCR Additional Science: The things you need to know about Electrolysis

  17. EDEXCEL Additional Science: The things you need to know about Electrolysis

  18. EDEXCEL 2011 syllabus: The things you need to know about Electrolysis

  19. EDEXCEL 2011 syllabus: The things you need to know about Electrolysis (cont’d)

  20. Dissolving Ionic Compounds The water particles break the bonds holding the ions together allowing the ions to move freely and randomly. In this dissolved state, or when molten, ionic compounds will conduct electricity because THE IONS ARE FREE TO MOVE when a voltage is applied As you probably remember, ionic compounds are almost always solids at room temperature. The ions are held together by strong electrostatic forces of attraction ( +ive ions attract –ive ions). They have high melting points and DO NOT conduct electricity in the solid state Cl- Cl- Cl- Cl- Cl- Cl- Na+ Na+ Na+ Na+ Na+ Na+ Na+ Click here to see why some ionic compounds dissolve and others don’t

  21. Dissolving Ionic Compounds As you probably remember, ionic compounds are almost always solids at room temperature. The ions are held together by strong electrostatic forces of attraction ( +ive ions attract –ive ions). They have high melting points and DO NOT conduct electricity in the solid state. The ionic bonds require a lot of energy to break them. O O O O O O O O O O O O H H H H H H H H H H H H H H H H H H H H H H H H + + + + + + + + + + + + + + + + + + + + + + + + - - - - - - - - - - - - d d d d d d d d d d d d d d d d d d d d d d d d d d d d d d d d d d d d If you look closely you will see that the d- Oxygen atoms are clustering around the Na+ ions and the d+ Hydrogen atoms pack closely around the Cl- ions. Many many tiny little bonds are formed which make the Sodium and Chloride ions stable in the water. This is why Sodium Chloride dissolves in water. Note: The Sodium ions and the Chloride ions float around randomly in solution until a voltage is applied Water is called a “polar molecule”. This means that the Oxygen atom has a slightly negative charge (d- means slightly negative) and each Hydrogen atom is slightly positive (d+ means slightly positive) Cl- Cl- Na+ Na+ Click here to see why some ionic compounds dissolve and others don’t
