  1. IDS-3000 Sales Kit Pamela.Lin #7175 Pamela.lin@advantech.com.tw Esther.Lin #7041 Esther.lin@advantech.com.tw Rev: 1.0 May-08-2012

  2. Open Frame Monitor IDS-3000 Bezel-less Design for Embedded Applications Features: • 10.4” /15” LED backlight Open Frame Monitor • Bezel-less design for embedded applications • Slim and Lightweight design • Dual signal interface with VGA and DVI • Easy installation, true plug and play • -20 ~ 60° C wide range operating temp. support • Versatile touch options : Res./PCT/Tempered glass • Combo RS-232 & USB interface (touch function) • DC 12V power input

  3. Front View Bezel-less Design for Embedded Applications Ultra Slim Design -20~60 ˚C Wide Temperature Support Rear/VESA Mounting

  4. Back View • VESA Mounting • 75 x 75mm • 100 x100mm LED Backlight • OSD Key • Power • Menu • Auto • Adjust + • Adjust – • I/O Port • VGA • DVI • RS-232 • USB

  5. Signal Interface Standard Version DC-12V Input USB VGA DVI RS-232 Economic Version (VGA only) USB VGA DC-12V Input RS-232

  6. Ultra Slim and Super Lightweight Design • Slim and Lightweight design, 20~30% thinner and lighter than other competitors • Designed with integrated brackets for Easy Installation

  7. Flexible Mounting Support • Rear Mount • Easy installation with integrated brackets • ( screw size : M3) • Optional clampers for mounting from • chassis (screw size: M4) • VESA Mount • Compliant with standard VESA • mounting holes of : • - 75 x 75 mm • - 100 x 100 mm • Suitable for display size under 22” or • weight under 14kg

  8. Wide Temperature Support • Support -20~60˚C wide range temperature • Ideal for semi-out door and out door applications

  9. Full Customization Solutions Touch Solution • Resistive Touch • Capacitive Touch • Projected Capacitive Touch • SAW Mechanical Design • Customized ID Design • Rugged Design Optical Treatment • Optical Bonding • Air Bonding Sunlight Readable • High Brightness (1200 nits~) • AR Film • AR Glass

  10. IDS-3000 Embedded in Various Applications Machine Automation Gaming Retail Intelligence In-Vehicle Self-Service Kiosk Nursing Care Transportation Instrumentation Equipment Equipment Control Monitor Vending Machine

  11. Product Portfolio -IDS-3115 Ideal for harsh environment Ideal for indoor application Slim and light

  12. IDS-3115 Drawing

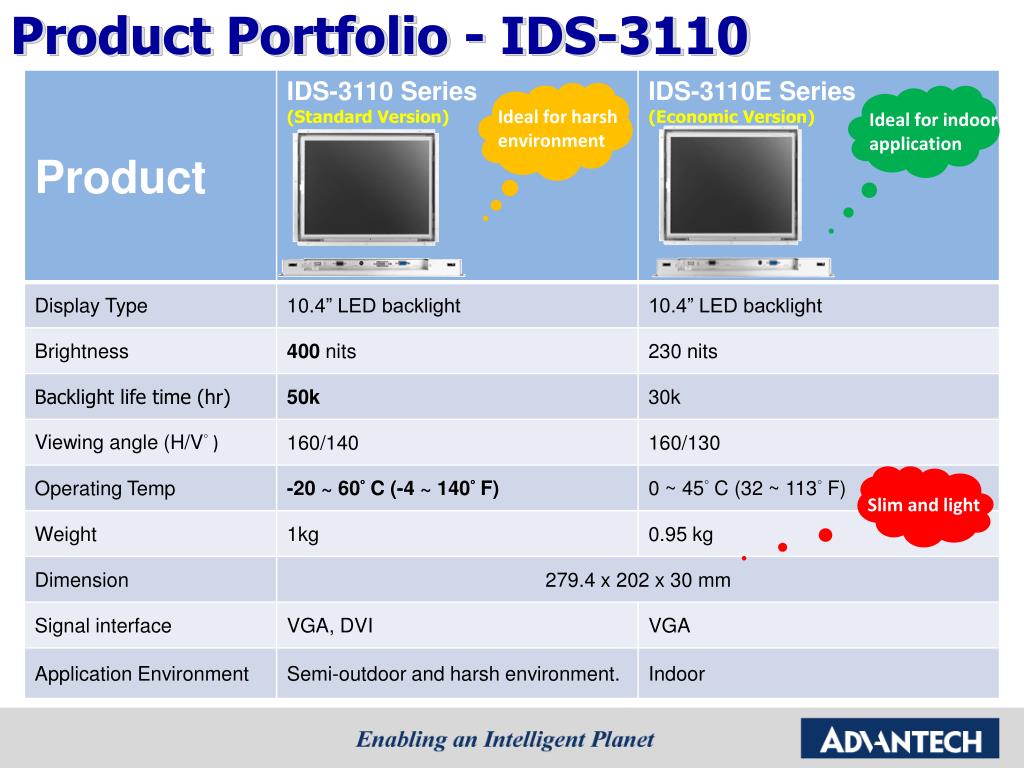

  13. Product Portfolio -IDS-3110 Ideal for harsh environment Ideal for indoor application Slim and light

  14. IDS-3110 Drawing

  15. Application Story (Outdoor Kiosk) • Case 1 • Application: • - Outdoor ATM • Display Solution: • - 15” 1200nits open frame monitor • - -20~60°C wide range temperature • Benefit: • Excellent sunlight readable solution • Wide temperature support for harsh • environment • Ready display solution with touch screen

  16. Application Story (Information Kiosk) • Case 2 • Application Environment • - Convenient store self-service kiosk • Display Solution • -15” 250nits open frame monitor • - Projected capacitive touch solution • with USB interface • - VGA signal interface • Benefit: • Superior visibility of high transparency • Excellent touch response and durability • Touch solution for variable OS platform • Ready display solution for faster time • to market

  17. Application Story (Monitor/Machine Automation) • Case 3 • Application: • - 3D Modeling System (Printer/ Production) • Display Solution: • - 10.4” 400nits open frame monitor • - Resistive touch solutionwith Combo USB & RS232 interface • - Dual signal interface with VGA & DVI • Benefit: • Good visibility of brightness for indoor application. • Wide temperature support for harsh • environment from -20~60 degree C • Ready display solution with touch screen

  18. Application Story (Transportation) • Case 4 • Application Environment • - Control Monitor for Truck Depots • Display Solution • -10.4” 400nits open frame monitor , non touch solution • - -20~60°C wide range temperature • - Dual signal interface with VGA & DVI • Benefit: • Superior visibility of high transparency • Good visibility for equipment located in indoor and semi-outdoor environment. • Easy installation with integrated brackets • Bundle solution with ARK-3360

  19. Packing List *IUSB cable is only included in IDS-3000 series. Note: Package contents are subject to change without prior notice

  20. Optional Items OS Support List (Touch Driver) • Windows 2000/Vista/XP/7 • Windows CE5.0/6.0/7.0 • Windows NT4 • Linux • DOS • QNX

  21. AccessoryPacking Clampers Cable tie USB Cable CD ROM - Touch Driver & User Manual are included VGA cable Screws for clampers Cable clamp and screw Cable clamp – fix the power cable Cable tie – fix USB cable

  22. System bundled solution with Box PC • Flexible Bundle with ARK BOX PC • Fully compatible solution, true plug and play • Easy for system integration as a space saver • Ideal for small / light weight application VESA Mounting Bracket Side Back Panel

  23. Roadmap of IDS-3000 (Open Frame) 0 ~ 45°C 0 ~ 50°C -20 ~ 60°C -5 ~ 60°C -20 ~ 70°C • 15” LED backlight • XGA (1024 x 768) • 400 nits brightness • Resistive Touch • PCT (Project base) • 15” CCFL backlight • XGA (1024 x 768) • 250 nits brightness • Resistive Touch • PCT (Project base) • 10.4” LED backlight • SVGA (800 x 600) • 230 nits brightness • Resistive Touch • PCT ( Project base) MP MP Q4‘12 IDS-3117E IDS-3117 IDS-3110 NEW NEW July‘12 July‘12 MP MP IDS-3115P IDS-3110E IDS-3115E IDS-3115 MP 10.4’’ 17’’ 15’’ • 10.4” LED backlight • SVGA (800 x 600) • 400 nits brightness • Resistive Touch • PCT ( Project base) • 17” LED backlight • SXGA (1280 x 1024) • 350 nits brightness • Resistive Touch • PCT ( Project base) • 17” CCFL backlight • SXGA (1280 x 1024) • 380 nits brightness • Resistive Touch • PCT ( Project base) • 15” LED backlight • XGA (1024 x 768) • 1200 nits brightness • Projected Capacitive Touch Developing Planning Available 2012

  24. Roadmap of IDS-3000 (Open Frame) 0 ~ 45°C 0 ~ 50°C -20 ~ 60°C -5 ~ 60°C -20 ~ 70°C • 12” LED backlight • SVGA (800 x 600) • 450 nits brightness • Resistive Touch • PCT (Project base) • 12” LED backlight • SVGA (800 x 600) • 450 nits brightness • Resistive Touch • PCT (Project base) Q4‘12 • 19” LED backlight • SXGA (1280x 1024) • 350 nits brightness • Resistive Touch • PCT (Project base) IDS-3112E IDS-3119 IDS-3112 Q3‘12 Q3‘12 Q3‘12 IDS-3106 19’’ 6.5’’ 12.1’’ • 6.5” LED backlight • VGA (640 x 480) • 800 nits brightness • Resistive Touch • PCT (Project base) Developing Planning Available 2012

  25. IDS-3000 Naming Rule

  26. IDS-3000 (new model) V.S. ES-2000 (old model) NEW ES-2000 Series IDS-3000 Series

  27. Competitor Comparison : 15” Open Frame Win

  28. Competitor Comparison : 10.4” Open Frame Win
