    1. Sales Training Seminar

    2. Sales Training Seminar September 16-17, 2007 • Introduction • Mechanical draft systems and their applications • Mechanical combustion air supply systems and their applications • Boiler room simulator • Mechanical dryer venting systems and their applications • Product trailer • Competition • Specification writing • FanCalc – CASV/CASI/MODS/MCAS

    3. Sales Training Seminar September 16-17, 2007 • FanCalc – MDVS • Sales Training Part I – Engineering presentation • Test • Summary

    4. Introduction

    5. EXHAUSTO Inc in North America • In Atlanta since 1990 • 25,000 sq.ft. office and warehouse • 86 authorized sales and service offices in USA and Canada.

    6. EXHAUSTO in North America • 95% of products are in stock ready for immediate shipping. • Inventory level of $800-1,000,000 • Complete parts inventory

    7. The First Fan - 1957 • The first chimney fan - a “first” worldwide and the foundation of EXHAUSTO’s existence

    8. A 50-year Old Company • Founded in 1957 • 300,000+ sq.ft. of manufacturing and administration • High-tech ISO 9001 certified manufacturing facilities

    9. Certifications

    10. Code Development and Publication • Involved in code and standard development (NFPA 54, NFPA 211 etc.) • Publish articles about venting and venting design. • Make presentations at regional ASHRAE chapters and other organizations every year.

    11. CASV / CASIChimney Automation System

    12. Mechanical Draft Systems

    13. Products – RSV Fan • 3/16 “ Cast aluminum housing • Hinged for easy service and cleaning • Direct drive • Class H insulated motor • Maintenance free • 482 ºF Continuous Duty • 575 ºF Intermittent Duty • UL 378 – Draft Equipment • Capacity: • 6,000 MBH on CAT I Appliances • 10,000 MBH on CAT IV Appliances

    14. Products – RSV Fan • Stainless steel axial vane • Models range from 300-1750 CFM • Cooling vane mounted on the motor shaft for low static pressure systems • Quick response to pressure changes • Single phase 120 V AC RSV 009-016

    15. Products – RSV Fan • Cast aluminum impeller wheel • 500-4000 CFM • Permanently attached balance weights • Cooling vane mounted on the back of the impeller • RSV200-315 are single phase 120 V AC • RSV400-450 are three phase 208 or 400 V AC RSV 200--450

    16. Fan – Motor Characteristics

    17. Products – RSV Fan • The RSV fan can vent all appliance categories with or without barometric dampers • Up to 6,000 - 10,000 MBH • High temperature motor eliminates the need for secondary fan cooling • Simple design with few components reduces the risk of failure and simplifies service

    18. CASI – Chimney Automation System

    19. RSIB – Power Venter • SS316 construction • Removable access door • Direct drive • Class A insulated motor - eliminates the need for secondary fan cooling • Maintenance free • Up to 575 ºF Duty • The RSIB fan can vent category I, II, III & IV appliances • Simple design with few components reduces the risk of failure and simplifies service • RSIB is of Type B, Spark Resistant Construction • UL 378 – Draft Equipment • Capacity: • 8,000 MBH on CAT I Appliances • 15,000 MBH on CAT IV Appliances

    20. Installation Options - RSIB

    21. RSIF Power Venter • Rated to 400°F non-condensing applications • Forward inclined impeller. Statically and dynamically balanced. • Insulated housing in galvanized steel • Hinged fan housing easily opens to provide easy access to duct and impeller • Direct drive, variable speed, TEFC motor located outside housing for easy access • Capacity: • 1,800 MBH on CAT I Appliances

    22. Modulating Overdraft Damper System

    23. MDF Available in 316SS

    24. Controls • EBC30 – Modulating Pressure Control

    25. Controls – EBC30 Features • 100% microprocessor based control • Plug-and-Play initialization process • Integrated PDS function with adjustable time delay • Intermittent or continuous operation for all fans • Field-adjustable PID loop • Priority Operation function • Bearing Cycle function • Rotation Check for three-phase fans

    26. Controls – EBC30 More Features.. • Controls up to six appliances standard • Add-on single-phase motor speed control available • Add-on relay board for four additional appliances • Customizable Pre and Post-Purge cycles • Manual Override • Alarm Relay output • RS 232 Port • 2 x 16 character alphanumerical backlit display

    27. Controls – EBC30 Applications • CASV Chimney Automation Systems (All Appliances) • MCAS Modulating Air Combustion Supply • MODS Modulating Overdraft Damper System • (MDVS Modulating Dryer Venting System) • Any Combination of the Above!

    28. EBC 30 Control - Design Fan Control Module (optional) Main Board Display and processor Relay Module (optional)

    29. Controls Applications • CASV Chimney Automation Systems (All Appliances) • MCAS Modulating Air Combustion Supply • MODS Modulating Overdraft Damper System • (MDVS Modulating Dryer Venting System) • Any Combination of the Above! PDS – Proven Draft Switch

    30. Controls EBC 12 Pressure Control Controls RSV, RSIB and RSIF Fans Controls three-phase fans using a VFD Activates on 10-120 V AC or DC signal Built-in proven draft logic Time delay and active response to avoid nuisance alarms Post-Purge cycle Single appliance applications

    31. EBC10 • For Single-Stage or Draft Hooded Appliances • For Gas Fireplaces • Controls RSV, RSIB, RSIF, GSV • Provides 10-120V to fan or 0-10V to VFD • Built-in Fan Speed Control • Time delay and active response to avoid nuisance alarms • Pre and Post - Purge

    32. EBC10-P or EBC10-E

    33. Controls EBC12X – Motor Power Relay “Slave” motor speed control Will operate additional fans at the same speed as the fan connected to the ECB30 LED’s for easy setup and troubleshooting

    34. Controls ES12 – Relay Box Extension for EBC10 input and output to appliances Up to four appliances per unit Can be connected in multiples for more than four appliances Accepts 10-120 V AC or DC for thermostat input LED’s for easy setup and troubleshooting

    35. Controls VFD – Variable Frequency Drive Pre-programmed from the factory 1 – 5 HP in 200 Volt Class input 1 – 7. All wiring is done externally – conduits and wires are pre-installed Quick-menu for field adjustable parameters NEMA 1 rating

    36. Products - Accessories SCA – Steel Chimney Adapter Steel chimney adapter Used as transition between a round stack and the fan Made of 304 stainless steel

    37. Aluminum Plenum Boxes • Frame constructed of extruded aluminum; covered with aluminum panels • Watertight silicone seal • Corrosion resistance • Adapters used to connect to any flue size • Stock standard parts, assemble as needed with shorter lead time • Easily expanded for 3-4 fan plenum • Weight reduced

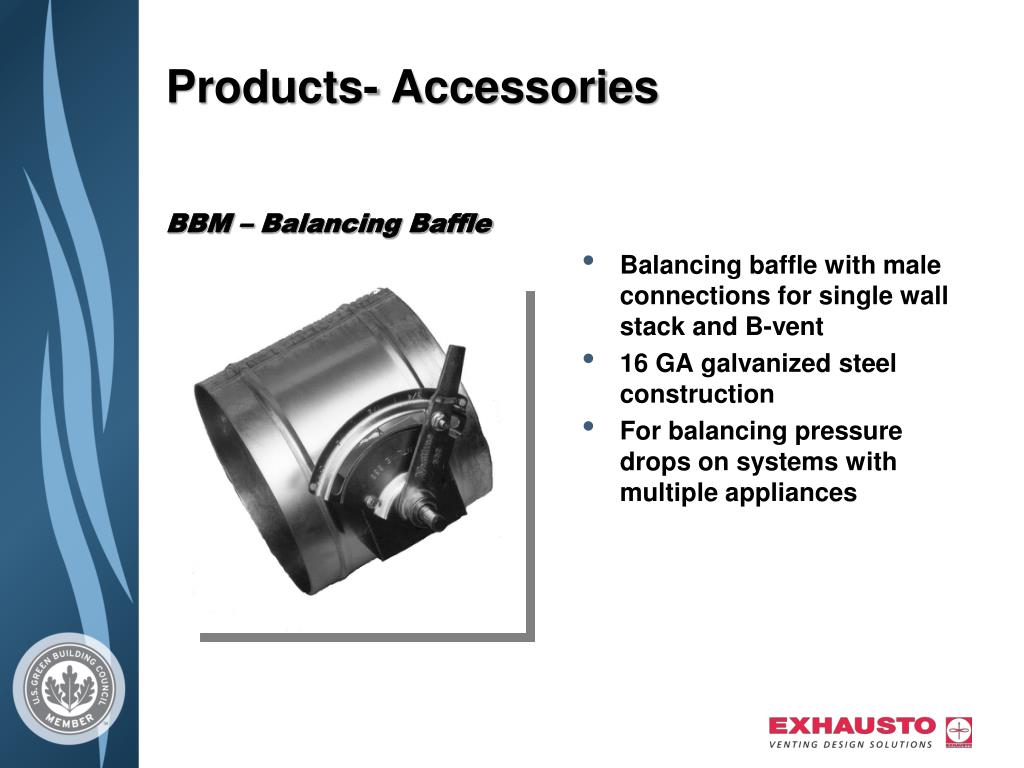

    38. Products- Accessories BBM – Balancing Baffle Balancing baffle with male connections for single wall stack and B-vent 16 GA galvanized steel construction For balancing pressure drops on systems with multiple appliances

    39. Products- Accessories BBF – Balancing Baffle Balancing baffle with flange connections for positive pressure stacks For balancing pressure drops on systems with multiple appliances

    40. CASV Chimney Automation Systems APPLICATIONS

    41. CASV Applications – Stack Downsizing / Energy efficiency St. Lukes Hospital, Kansas City

    42. CASV Applications – Stack Downsizing / Energy efficiency St. Lukes Hospital, Kansas City

    43. CASV Applications – Stack Downsizing Hazen High School – Renton, WA Soldier Field - Chicago, IL

    44. CASV Applications – Stack Downsizing Casino Magic-Bay, MS Miami Condos, FL

    45. CASV Applications - Aesthetics Getty Center – Los Angeles Rigel – San Francisco

    46. CASI Applications Steinbach Credit Union, Winnipeg, SK

    47. Coffee Break – 30 minutes

    48. MCASMechanical Combustion Air Supply Systems
