cs 221

CS 221

Analysis of Algorithms

Instructor: Don McLaughlin

algorithms
Algorithms
  • What are they and
  • Why do we care?
algorithms1

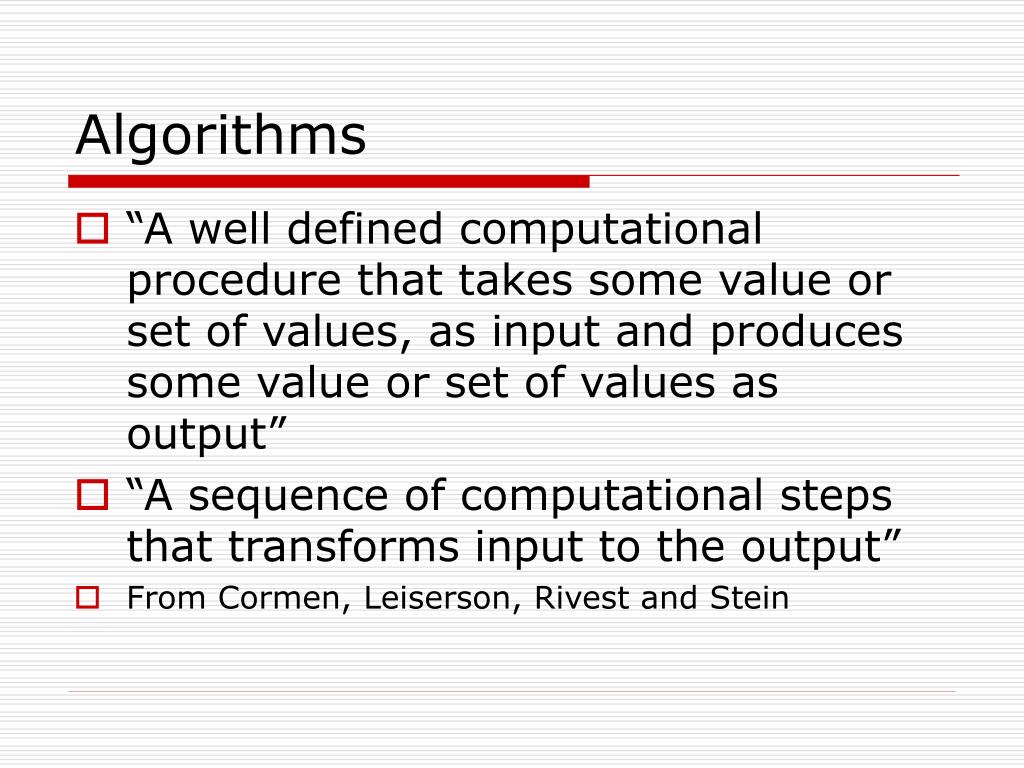

Algorithms
  • “A well defined computational procedure that takes some value or set of values, as input and produces some value or set of values as output”
  • “A sequence of computational steps that transforms input to the output”
  • From Cormen, Leiserson, Rivest and Stein
algorithms2
Algorithms
  • “Algorithms + Data Structures = Programs”
      • Niklaus Wirth, Swiss Computer Scientist
  • Or, perhaps-
    • Programs = Programming_language(Algoritms + Data Structures)
algorithms3

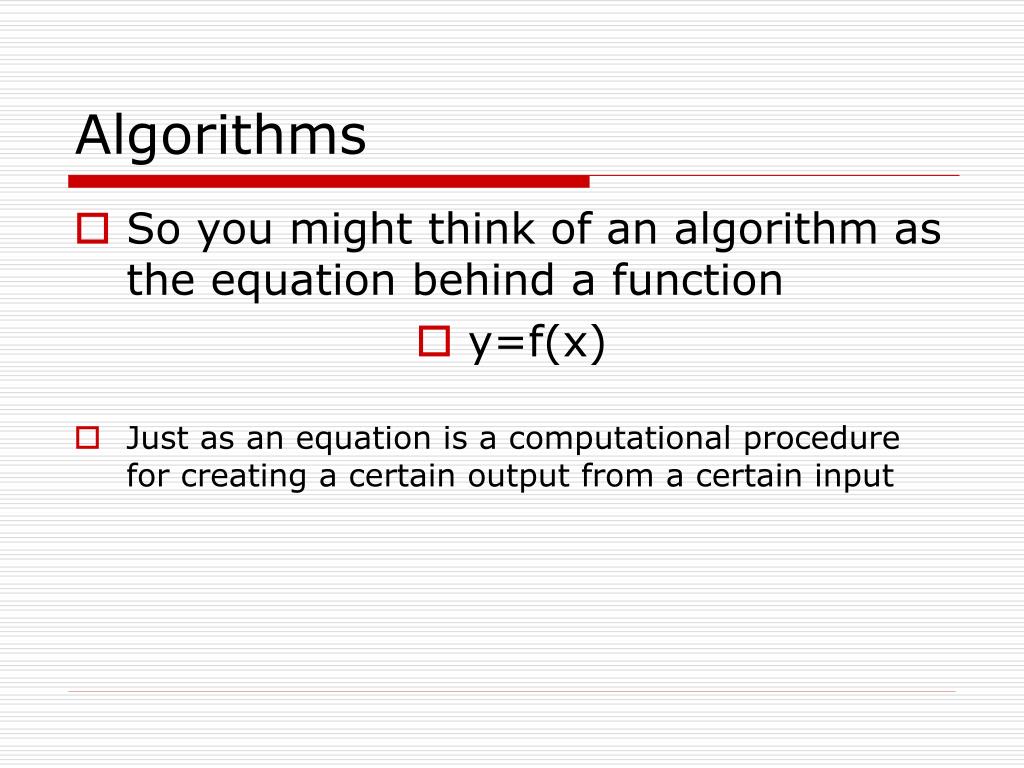

Algorithms
  • So you might think of an algorithm as the equation behind a function
  • y=f(x)
  • Just as an equation is a computational procedure for creating a certain output from a certain input
algorithms4
Algorithms
  • “A sequence of unambiguous instructions for solving a problem, i.e. for obtaining a required output for any legitimate input in a finite amount of time”
    • From Levitin, 2007
algorithms5

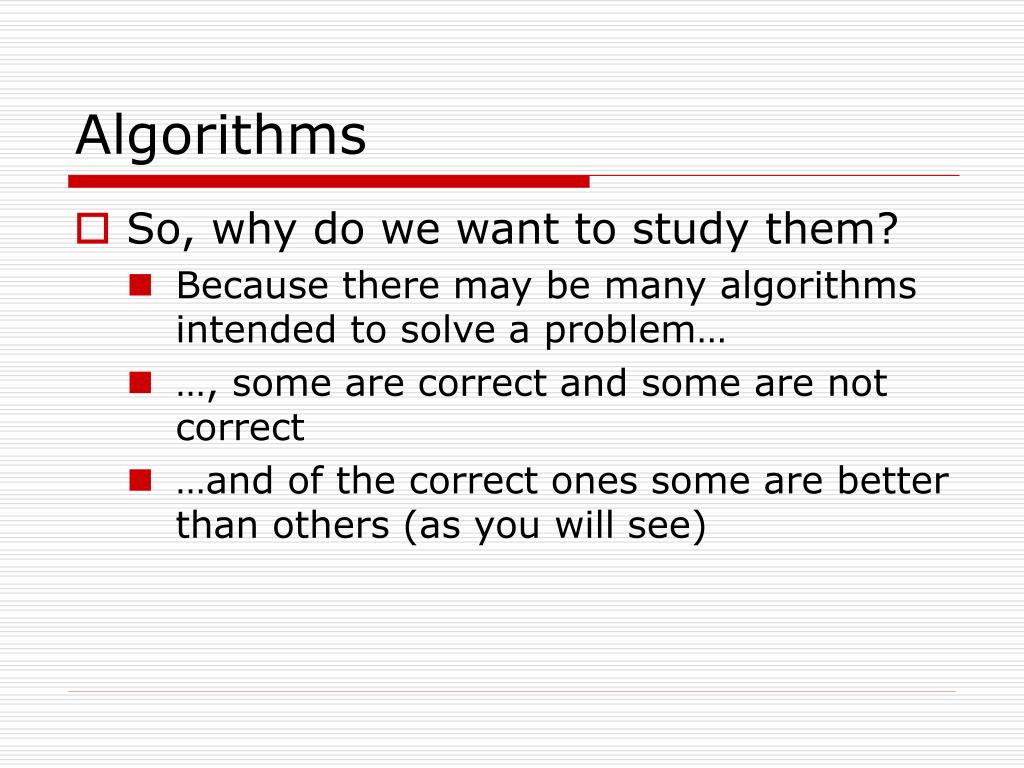

Algorithms
  • So, why do we want to study them?
    • Because there may be many algorithms intended to solve a problem…
    • …, some are correct and some are not correct
    • …and of the correct ones some are better than others (as you will see)
algorithms6
Algorithms
  • We are largely going to be concerned about the efficiency of algorithms
    • What do we mean by efficiency?
      • Memory
      • Time
algorithms7
Algorithms
  • Mostly we are going to explore the efficiency of algorithms in terms of run time (T)
  • In particular we are going to study the growth of algorithms in relation to the size of the problem
algorithms8

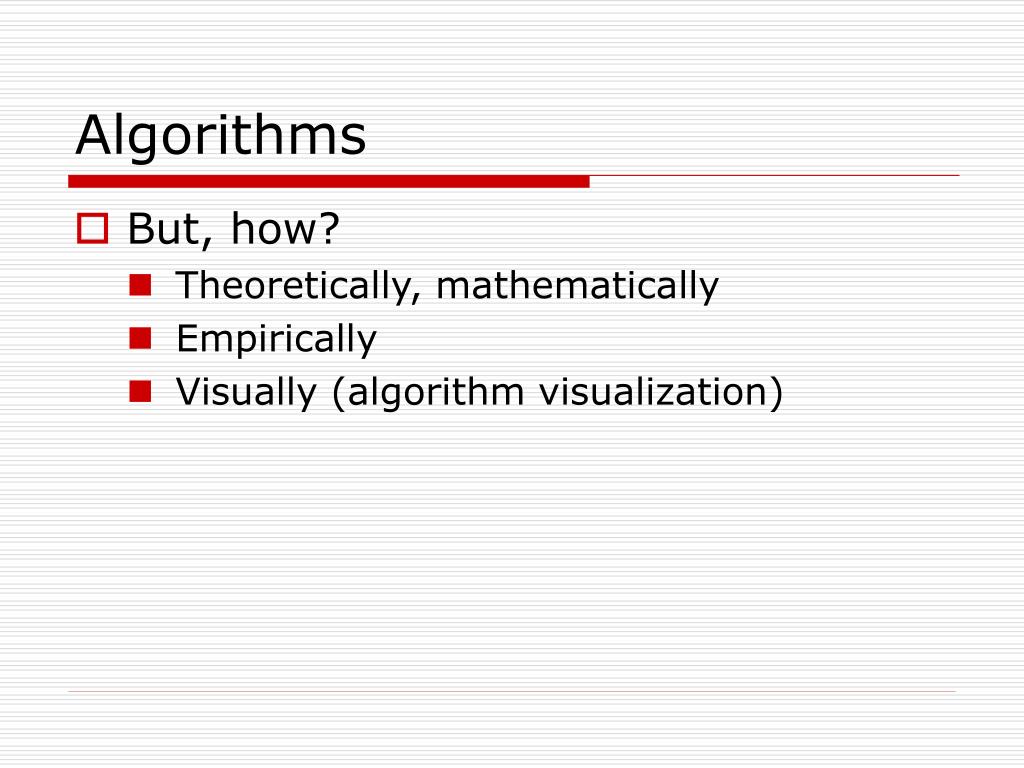

Algorithms
  • But, how?
    • Theoretically, mathematically
    • Empirically
    • Visually (algorithm visualization)
theoretical analysis of algorithms
Theoretical Analysis of Algorithms
  • To do this we need a few things-
    • A computational model (what is the computer)
    • A language for expressing the algorithm
    • A metric and methodology for measuring the performance and efficiency of an algorithm
theoretical analysis of algorithms1

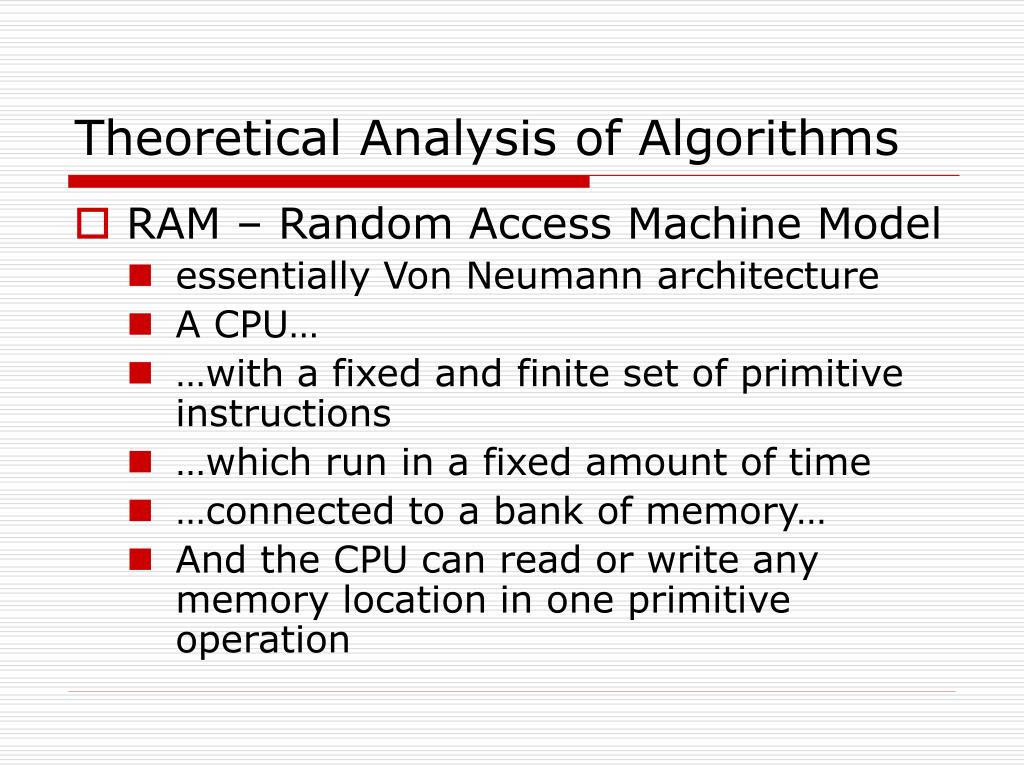

Theoretical Analysis of Algorithms
  • RAM – Random Access Machine Model
    • essentially Von Neumann architecture
    • A CPU…
    • …with a fixed and finite set of primitive instructions
    • …which run in a fixed amount of time
    • …connected to a bank of memory…
    • And the CPU can read or write any memory location in one primitive operation
theoretical analysis of algorithms2

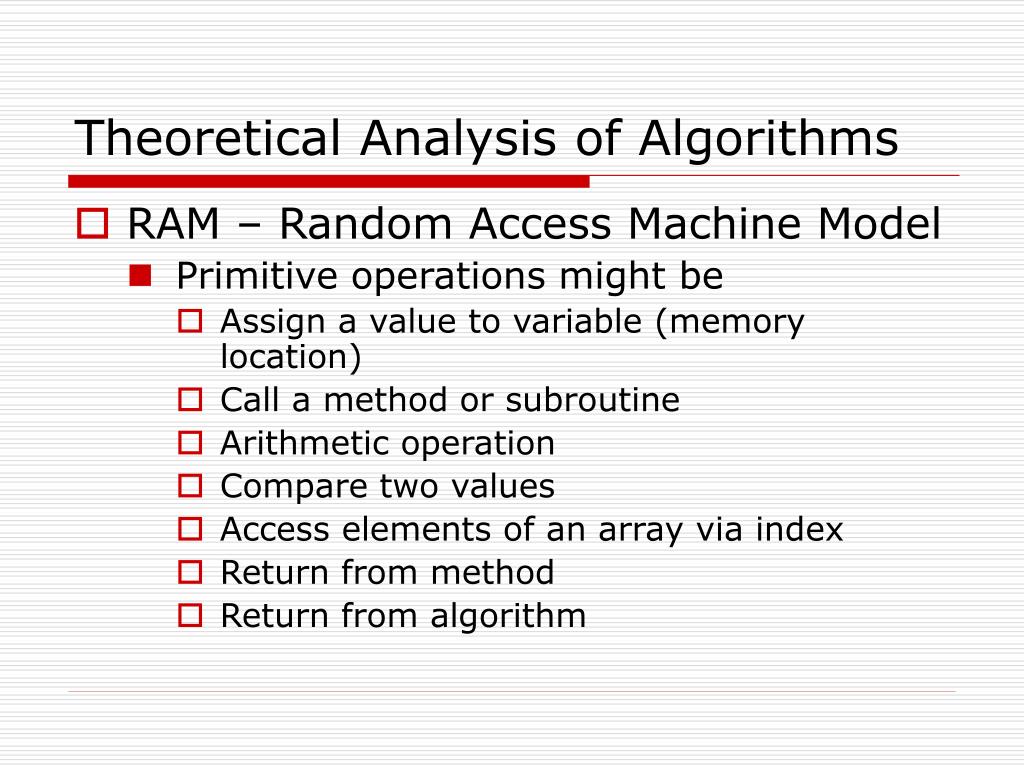

Theoretical Analysis of Algorithms
  • RAM – Random Access Machine Model
    • Primitive operations might be
      • Assign a value to variable (memory location)
      • Call a method or subroutine
      • Arithmetic operation
      • Compare two values
      • Access elements of an array via index
      • Return from method
      • Return from algorithm
theoretical analysis of algorithms3

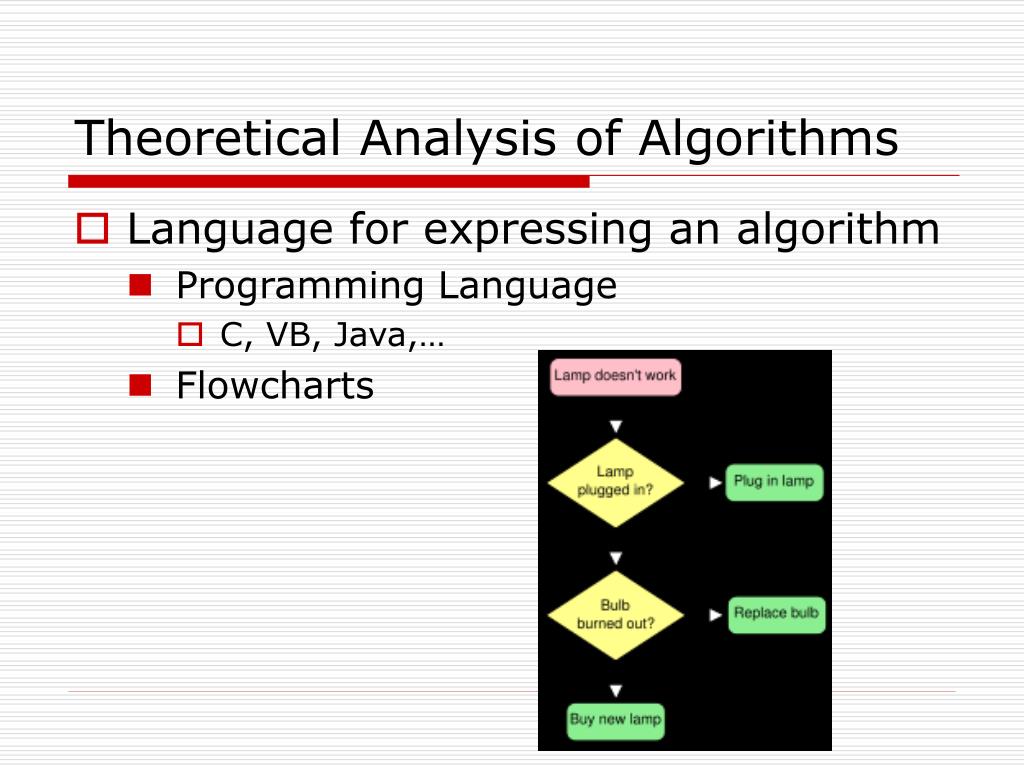

Theoretical Analysis of Algorithms
  • Language for expressing an algorithm
    • Programming Language
      • C, VB, Java,…
    • Flowcharts
theoretical analysis of algorithms4
Theoretical Analysis of Algorithms
  • Language for expressing an algorithm
    • Pseudocode
      • Natural language expression of algorithm
      • Really mix of natural language and language from programming language constructs
      • Intended for human consumption, not computers
theoretical analysis of algorithms5
Theoretical Analysis of Algorithms
  • Pseudo-code – has some rules
    • Algorithm declaration – must name algorithm and its parameters
    • Must define range of input, and domain of output
    • Expressions – use <- for assignment, = for logical comparison
    • Scope denoted by indentation
    • Decision structures
      • If – Then – Else
      • While – Do loops
      • Repeat – until loops
      • For loops
    • Method calls
    • Method returns (including return from algorithm)
theoretical analysis of algorithms6
Theoretical Analysis of Algorithms
  • Pseudo-code – an example
  • arrayMax – find the largest value in an array of values

Algorithm arrayMax(A, n)

Input:An array A storing n >= 1 integers)

Output: the maximum value in the array A

currentMax <- A[0]

for i <-1 to n – 1 do

if currentMax < A[i] then

currentMax <- A[i]

return currentMax

theoretical analysis of algorithms7
Theoretical Analysis of Algorithms
  • Insertion-Sort

Algorithm Insertion-sort(A, n)

Input:An array A storing n >= 1 integers)

Output: the array A sorted such that A0 < A1 < A2 < …An

for j <- 2 to n

do key <- A[j]

#insert A[j] into the sorted sequence

i <- j – 1

while i > 0 and A[j] > key do

A[j +1] <- A[j]

i <- i -1

A[i + 1] <- key

return A

theoretical analysis of algorithms8
Theoretical Analysis of Algorithms
  • So now the question is - how do we determine the run-time T of these algorithms?
  • Keep in mind that we need to understand the run-time of algorithms in the context of the size of the problem
    • …which we will express as n
  • So we are looking for T(n) … for any given algorithm
theoretical analysis of algorithms9

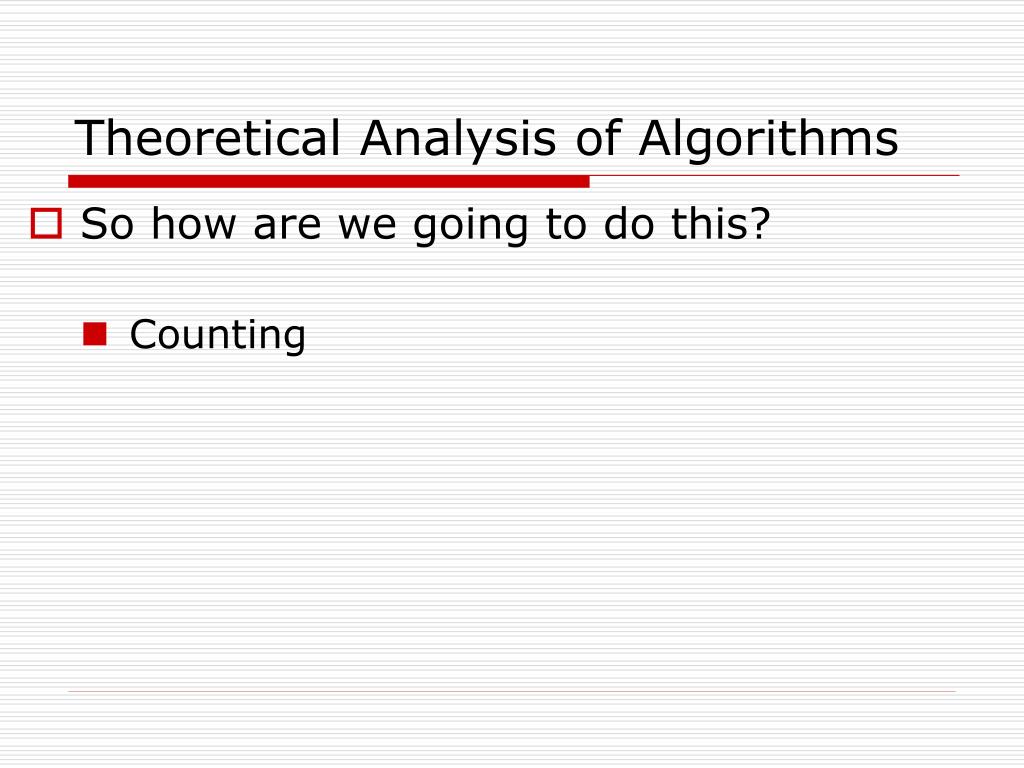

Theoretical Analysis of Algorithms
  • So how are we going to do this?
    • Counting
theoretical analysis of algorithms12

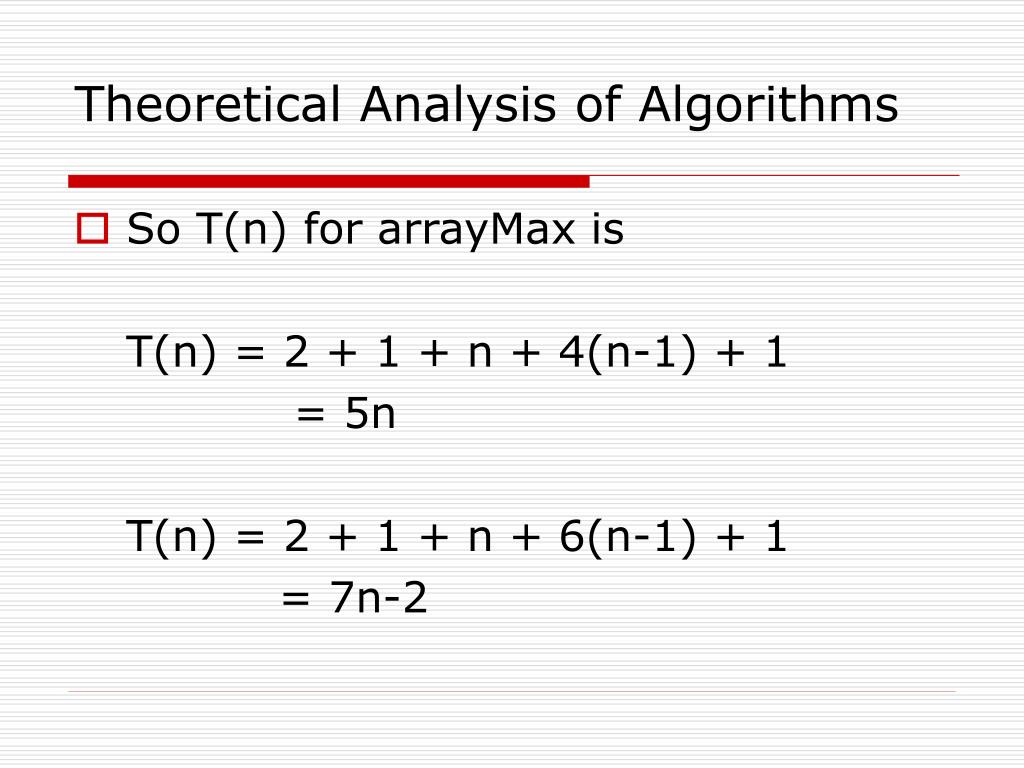

Theoretical Analysis of Algorithms
  • So T(n) for arrayMax is

T(n) = 2 + 1 + n + 4(n-1) + 1

= 5n

T(n) = 2 + 1 + n + 6(n-1) + 1

= 7n-2

theoretical analysis of algorithms13
Theoretical Analysis of Algorithms
  • So T(10) for arrayMax is
    • At least 5(10) = 50
        • Or
    • No worse than 7(10)-2 = 68
theoretical analysis of algorithms17

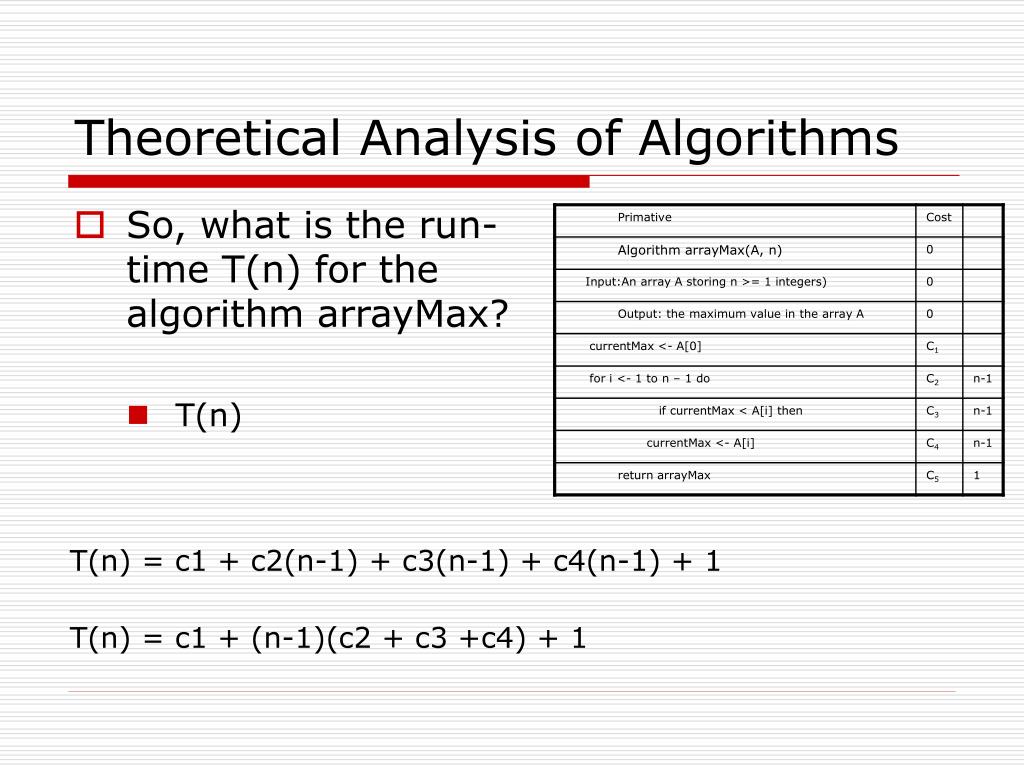

Theoretical Analysis of Algorithms

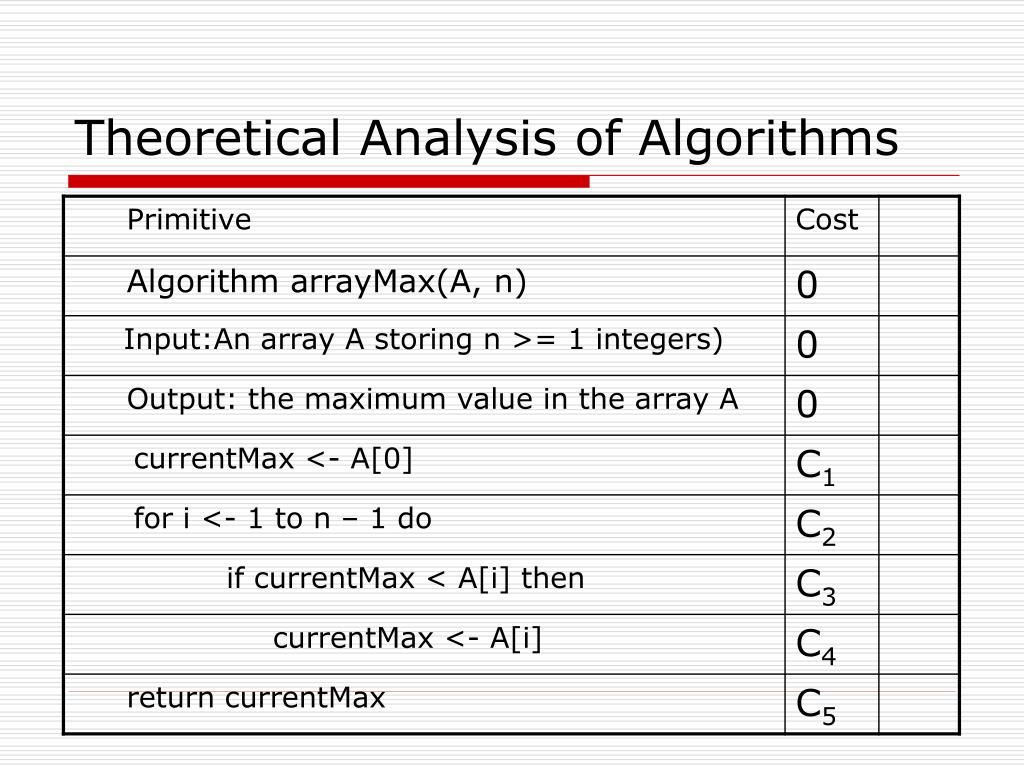

  • So, what is the run-time T(n) for the algorithm arrayMax?
    • T(n)

T(n) = c1 + c2(n-1) + c3(n-1) + c4(n-1) + 1

T(n) = c1 + (n-1)(c2 + c3 +c4) + 1

theoretical analysis of algorithms18
Theoretical Analysis of Algorithms
  • Was that every-case, best-case, worst-case?
  • Why?
theoretical analysis of algorithms19

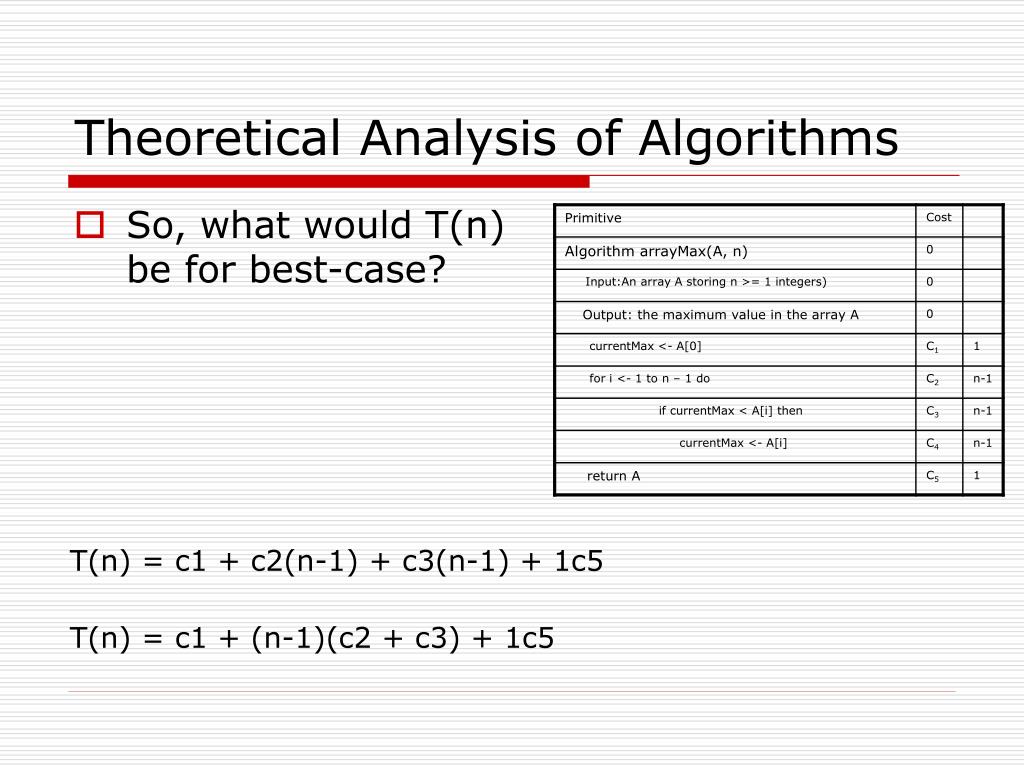

Theoretical Analysis of Algorithms
  • So, what would T(n) be for best-case?

T(n) = c1 + c2(n-1) + c3(n-1) + 1c5

T(n) = c1 + (n-1)(c2 + c3) + 1c5

theoretical analysis of algorithms20
Theoretical Analysis of Algorithms

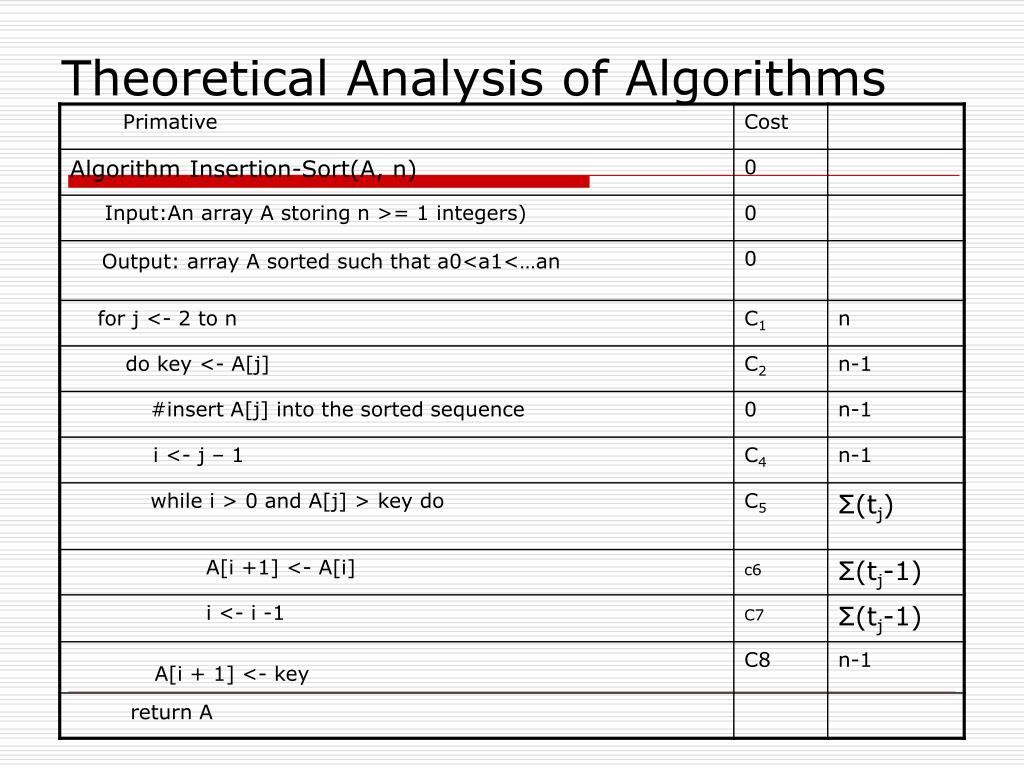

  • Insertion-Sort

Algorithm Insertion-sort(A, n)

Input:An array A storing n >= 1 integers)

Output: the array A sorted such that A0 < A1 < A2 < …An

for j <- 2 to n

do key <- A[j]

#insert A[j] into the sorted sequence

i <- j – 1

while i > 0 and A[j] > key do

A[j +1] <- A[j]

i <- i -1

A[I + 1] <- key

return A

theoretical analysis of algorithms23

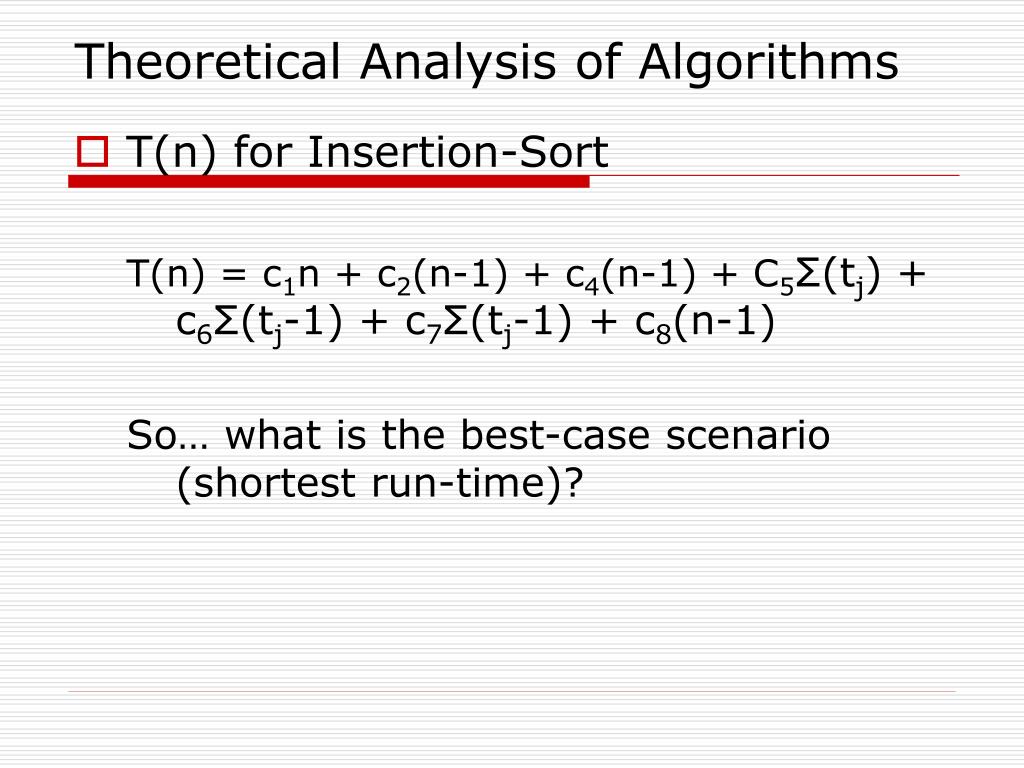

Theoretical Analysis of Algorithms
  • T(n) for Insertion-Sort

T(n) = c1n + c2(n-1) + c4(n-1) + C5Σ(tj) + c6Σ(tj-1) + c7Σ(tj-1) + c8(n-1)

So… what is the best-case scenario (shortest run-time)?

theoretical analysis of algorithms24
Theoretical Analysis of Algorithms
  • T(n) for Insertion-Sort

Ok, that would mean what in terms of the execution of the algorithm?

… that tj = 1 for all j

…therefore…

… Σ(tj) = n – 1

…and c6 and c7 drop out

theoretical analysis of algorithms25
Theoretical Analysis of Algorithms
  • T(n) for Insertion-Sort
    • So, T(n) best-case is

T(n) = c1n + c2(n-1) + c4(n-1) + c5(n-1) + c8(n-1)

= c1n + (c2 + c4 +c5 +c8)(n-1)

= (c1+c2+ c4+c5+c8)n-(c2+c4+c5+c8)

theoretical analysis of algorithms27

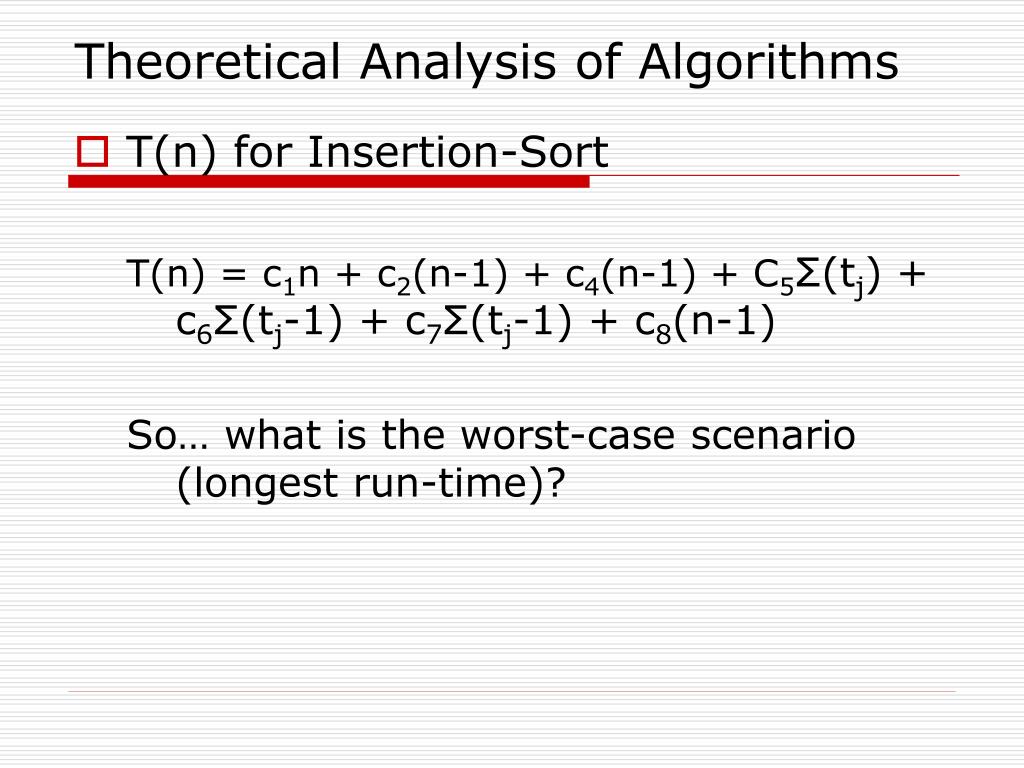

Theoretical Analysis of Algorithms
  • T(n) for Insertion-Sort

T(n) = c1n + c2(n-1) + c4(n-1) + C5Σ(tj) + c6Σ(tj-1) + c7Σ(tj-1) + c8(n-1)

So… what is the worst-case scenario (longest run-time)?

theoretical analysis of algorithms28
Theoretical Analysis of Algorithms
  • By the way - rules of thumb (for now)
    • Σnj=2j = n(n+1)/2 - 1
    • Σnj=2(j-1) = n(n-1)/2
theoretical analysis of algorithms29
Theoretical Analysis of Algorithms
  • So, the worst-case

T(n) = c1n + c2(n-1) + c4(n-1) + C5(n(n+1)/2-1) + c6(n(n-1)/2) + c7(n(n-1)/2) + c8(n-1)
