Presentation Transcript

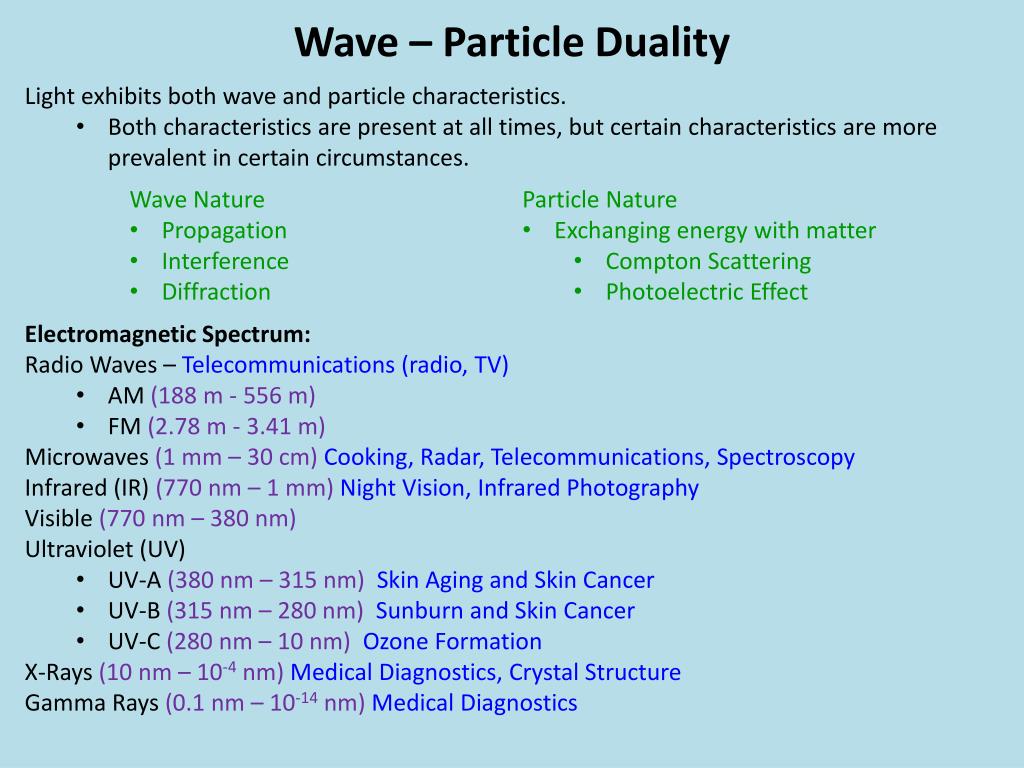

slide2

Wave – Particle Duality

  • Light exhibits both wave and particle characteristics.
    • Both characteristics are present at all times, but certain characteristics are more prevalent in certain circumstances.
  • Particle Nature
  • Exchanging energy with matter
    • Compton Scattering
    • Photoelectric Effect
  • Wave Nature
  • Propagation
  • Interference
  • Diffraction
  • Electromagnetic Spectrum:
  • Radio Waves – Telecommunications (radio, TV)
    • AM (188 m - 556 m)
    • FM (2.78 m - 3.41 m)
    • Microwaves (1 mm – 30 cm)Cooking, Radar, Telecommunications, Spectroscopy
    • Infrared (IR) (770 nm – 1 mm)Night Vision, Infrared Photography
    • Visible (770 nm – 380 nm)
  • Ultraviolet (UV)
    • UV-A (380 nm – 315 nm)Skin Aging and Skin Cancer
    • UV-B (315 nm – 280 nm)Sunburn and Skin Cancer
    • UV-C (280 nm – 10 nm)Ozone Formation
    • X-Rays (10 nm – 10-4nm)Medical Diagnostics, Crystal Structure
  • Gamma Rays (0.1 nm – 10-14 nm)Medical Diagnostics

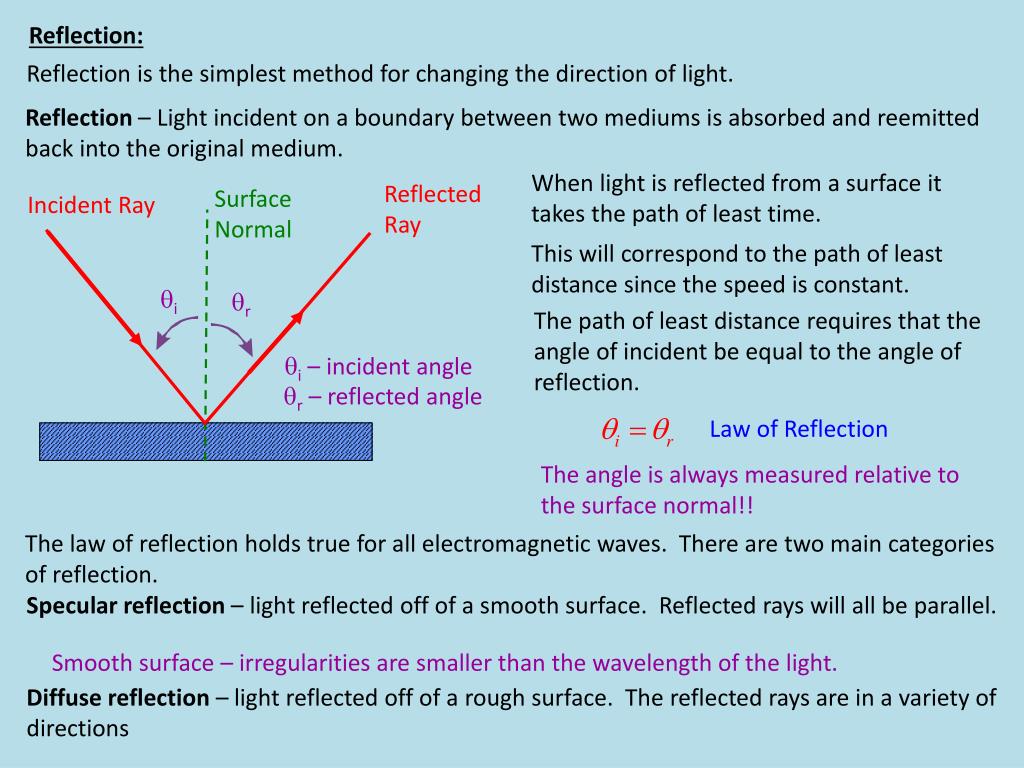

slide5

Reflection:

Reflection is the simplest method for changing the direction of light.

Reflection – Light incident on a boundary between two mediums is absorbed and reemitted back into the original medium.

When light is reflected from a surface it takes the path of least time.

Reflected Ray

Surface Normal

Incident Ray

This will correspond to the path of least distance since the speed is constant.

qi

qr

The path of least distance requires that the angle of incident be equal to the angle of reflection.

qi – incident angle

qr – reflected angle

Law of Reflection

The angle is always measured relative to the surface normal!!

The law of reflection holds true for all electromagnetic waves. There are two main categories of reflection.

Specular reflection – light reflected off of a smooth surface. Reflected rays will all be parallel.

Smooth surface – irregularities are smaller than the wavelength of the light.

Diffuse reflection – light reflected off of a rough surface. The reflected rays are in a variety of directions
