  1. GIS on Fire! Coeur d’Alene, Idaho May 9 – 13, 2005 Remote Sensing on the Nez Perce Reservation Nez Perce Tribe -Land Services Laurie Ames Remote Sensing Analyst By asking for the impossible we obtain the best possible. ~Italian Proverb

  2. Nez Perce Tribe • Laurie Ames, Remote Sensing Analyst - - Land cover/use detection through Remote Sensing (NASA Grant) • Jennifer Jensen, University of Idaho -Predicating Forest Biophysical  Properties with LiDAR  Atoms for peace. Man is still the greatest miracle and the greatest problem on this earth. ~David Sarnoff

  3. Tribal Departments University of Idaho Spencer B. Gross, Inc (LiDAR) NASA – Stennis Space Center Ascent GIS (SPOT, IRS) USDA/USFS Fire Sciences Lab University of Montana (MODIS) SPOT Image Corporation Battelle/PNNL HyVista Corporation (Hyperspectral) Partners The beginning is the most important part of the work.  ~Plato

  4. 1. Landcover & Landuse Classification Crop Map 2. Road Delineation WEPP 3. Vegetation greenness, stress & drought 4. Forest Characterization 5. Hazard Rating of Invasive Weeds Task Objectives First, have a definite, clear practical ideal; a goal, an objective. Second, have the necessary means to achieve your ends; wisdom, money, materials, and methods. Third, adjust all your means to that end. ~Aristotle

  5. Over all costs FY1 FY2 FY3 Total Salary, wages & fringe $109,061 $109,690 $100,980 $319,731 Subcontracts $ 63,272 $ 63,673 $ 53,695 $180,640 Equipment & supplies $ 51,927 $ 15,040 $ 8240 $ 75,207 Travel $ 13,000 $ 13,000 $ 12,000 $ 38,000 Administrative $ 28,464 $ 28,432 $ 24,982 $ 81,878 Data Costs $ 68,800$ 57,300$ 46,300$172,400 Total Cost $296,406 $252,961 $224,510 $773,878 The earth is given as a common for men to labor and live in. ~Thomas Jefferson

  6. Landsat satellite multispectral imagery. 7 bands of information. 30 meter resolution. Multi-temporal 3 scenes each year. Spring, End of Summer, Late Fall (leaf off). 7 classes Urban, crop, grass, brush, mixed forest, coniferous forest, water. Land use & Crop Maps Range, crops and forest monitoring. 1. Land-cover/Land-use/Crop Maps

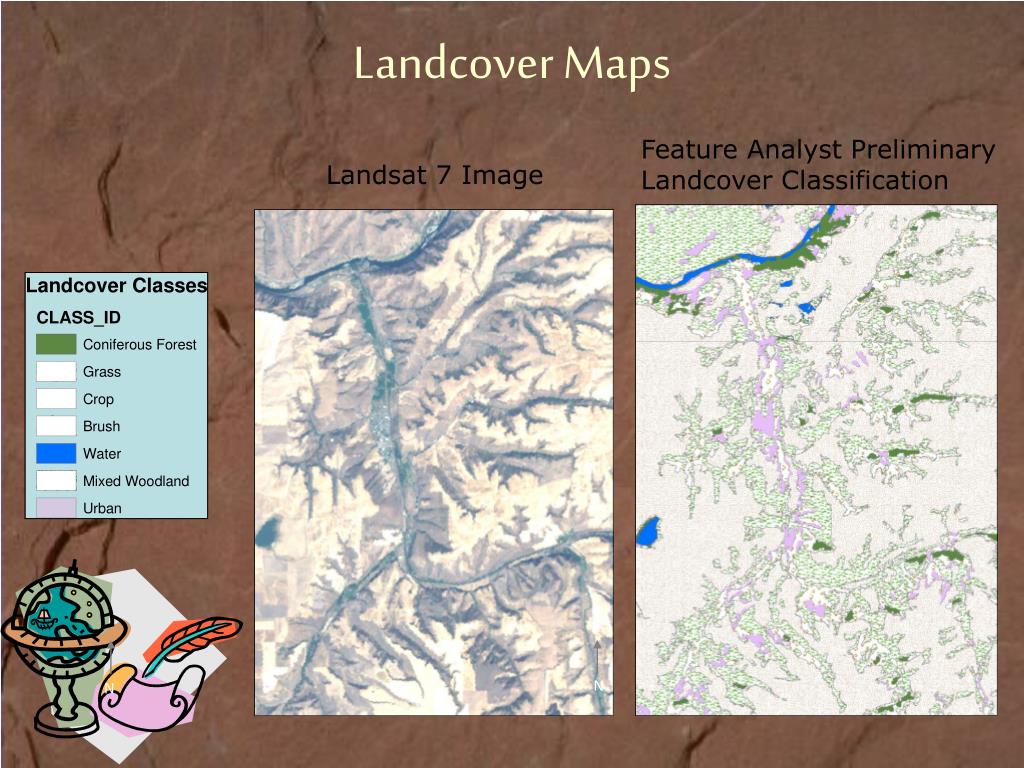

  7. Landcover Maps Feature Analyst Preliminary Landcover Classification Landsat 7 Image N N

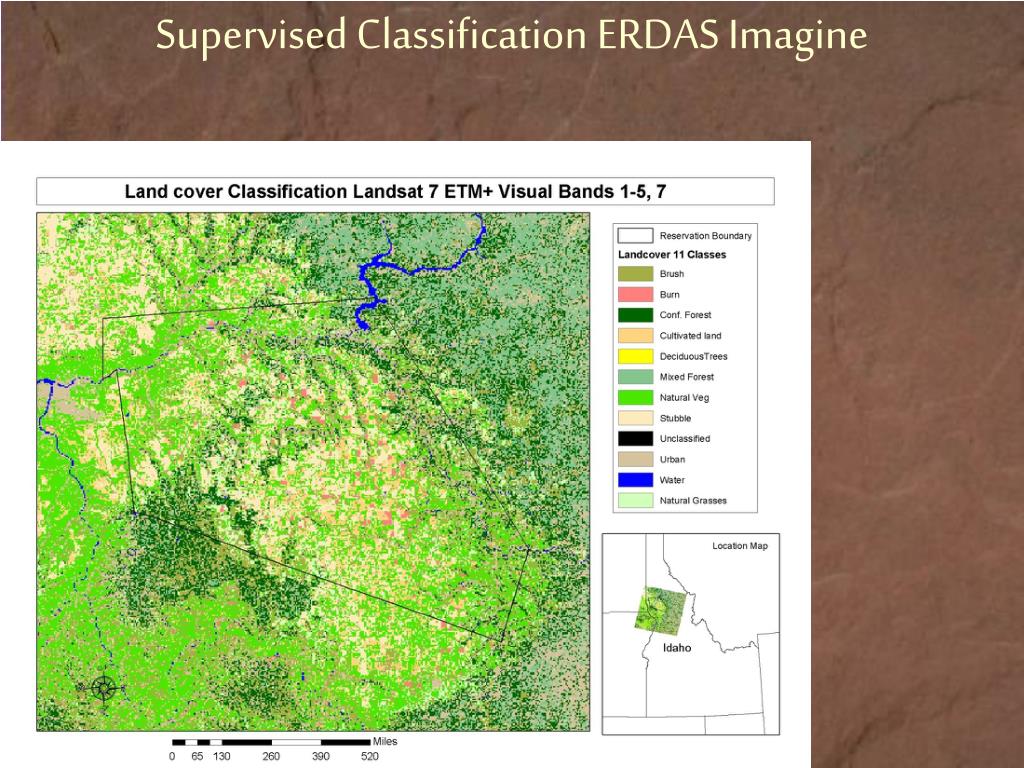

  8. Supervised Classification ERDAS Imagine

  9. Costs of Landsat Data Landsat 5 $425 Landsat 7 $608 Cost per acre less than $0.01

  10. Indian Remote Sensing (IRS) Panchromatic Images 2 scenes to cover majority of 1863 boundary. Different Algorithms Edge Detection Battelle/PNNL Matrix Feature Analyst Extraction 2. Road Delineation

  11. Feature Analyst

  12. Costs of Indian Remote Sensing Data IRS Panchromatic $5,800 For 3 archived scenes For special requested $6,800 Cost per acre less than $0.45

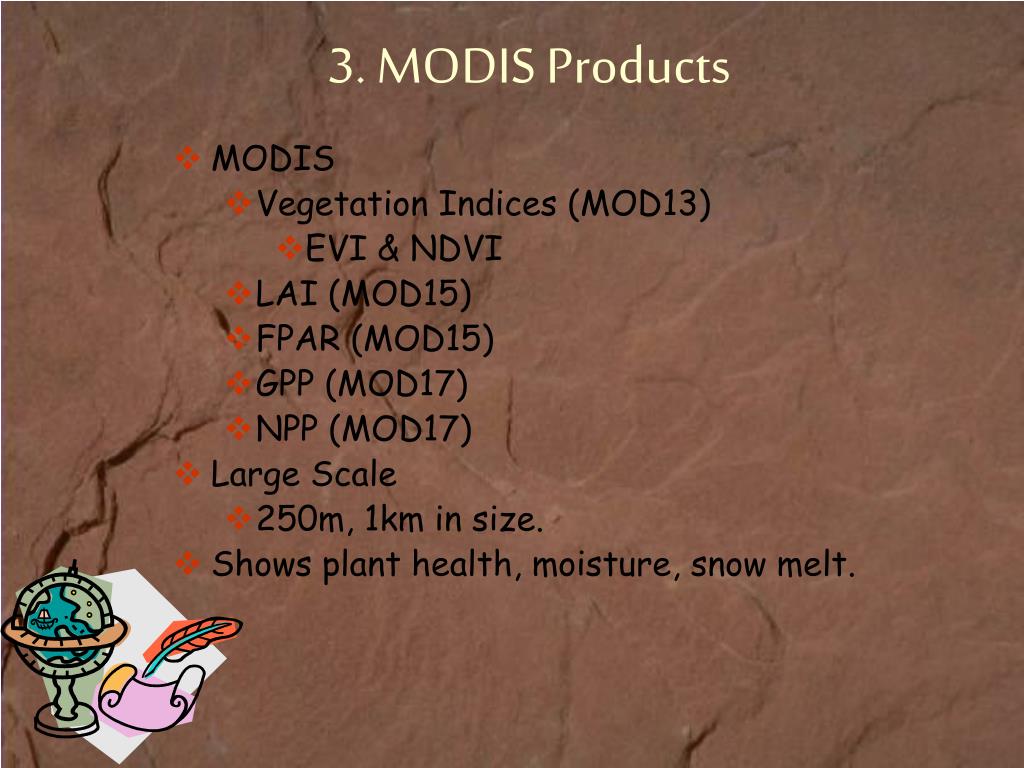

  13. MODIS Vegetation Indices (MOD13) EVI & NDVI LAI (MOD15) FPAR (MOD15) GPP (MOD17) NPP (MOD17) Large Scale 250m, 1km in size. Shows plant health, moisture, snow melt. 3. MODIS Products

  14. MODIS Leaf Area Index - Amount of leaf area that covers a given unit of ground. Helps to estimate active growing vegetation. Pixel size: 1 km Composite every 8 days

  15. Forest Characterization Species composition Stand stress Insect infestation Fuel load estimation Imagery Used: LiDAR -Active system (current work) Landsat & SPOT Hyperspectral Ikonos 1m 4. Monitoring & Characterization of Forest Lands

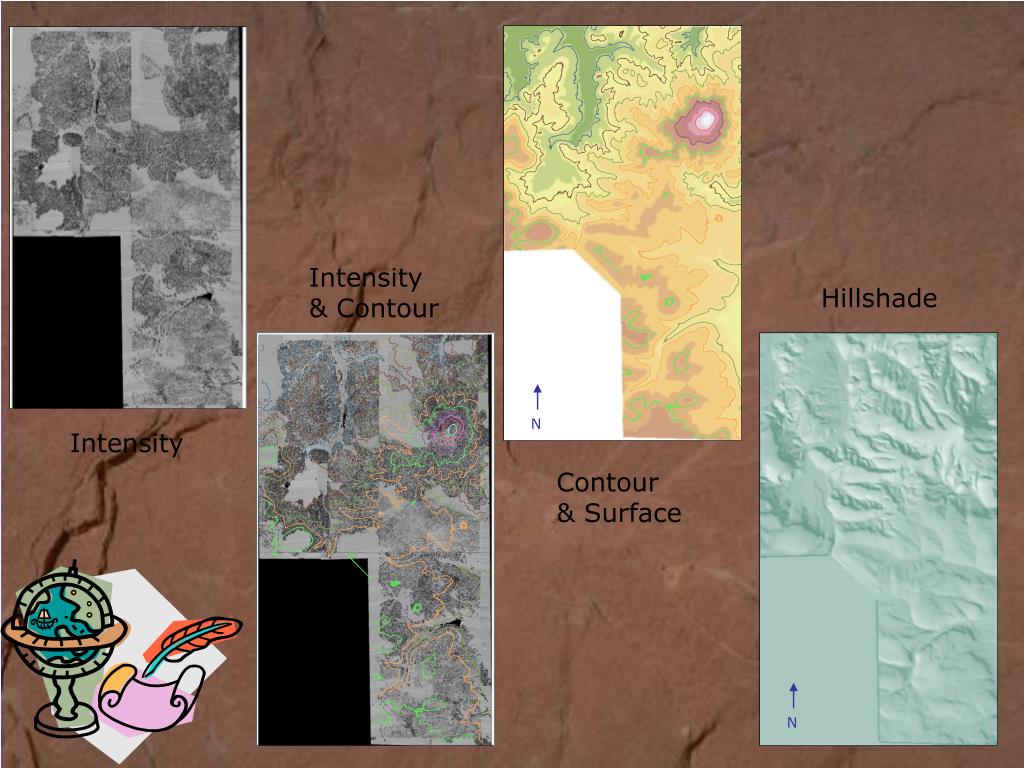

  16. Intensity & Contour Hillshade N N Intensity Contour & Surface N N

  17. Costs of LiDAR Data Cost $65,505 Total Acres 29,000 Cost per acre $1.87

  18. Cost Per Acre Comparison

  19. 5. Hazard Rating & Monitoring of Invasive Weeds • SPOT 10 & 20m multispectral data • Sub-ecosystem map • Areas of susceptibility • MODIS Vegetation products

  20. Costs of SPOT Data SPOT 20 m $5,600 Total Acres 17297 Cost per acre $0.15 SPOT 10m $10,800 Total Acres 5683 Cost per acre $0.45

  21. Thank You Nothing in the world can take the place of persistence. Talent will not; nothing is more common than unsuccessful men with talent. Genius will not; unrewarded genius is almost a proverb. Education will not the world is full of educated derelicts. Persistence and determination alone are omnipotent. The slogan, 'Press on,' has solved and always will solve the problems of the human race. ~Calvin Coolidge Contact: Laurie Ames ext. 2619 lames@nezperce.org
