EPICS-Habitat for Humanity Disaster Relief Team

1. EPICS-Habitat for HumanityDisaster Relief Team

2. Disaster Relief Team Members Structures Group Gil Bullock Adam Bechtel Daniel Morton Lauren Myers Research Group Janice Soriano Taylor Shirley MiSun Kong

3. Area of Impact Latin American/Caribbean Region

4. Devastation of Haiti

5. Scope • Design an affordable disaster resistant home • Withstand natural disasters • Immediate Relief • Design additions to be attached to the home at a later time

6. Expected Deliverables • Complete Booklet Manual for Haiti home • AutoCAD Drawings (eg. Elevations, Additions, Floor Plan) • Cost/Benefit Analysis • Construction procedure

7. Project Timeline • Complete Haiti Booklet • AutoCAD Drawings • Disaster Resistant Techniques • Complete Booklet Manual • Research • Existing disaster resistant techniques • Climate, culture and resources of countries • Country Background Research • Country profiles • Memorandum of Understanding Spring 2008 Spring2009 Spring 2011 Fall2007 Fall 2008 Fall 2009 • Haiti Core Design • Affordability Data • Disaster Resistant Techniques • Roof & Wall Design • Research • Cultural considerations for Haiti • Preliminary floor plans • Finished Product • Regional Booklet for all countries • Brochure

8. Core Home Additions Previous Semesters

9. Semester Goals • Design and draw the Additions to the Core • Disaster techniques to implement • Decisions on materials and perform Structural Analysis • Cost Analysis of the entire home • Complete Booklet Manual for Haiti

10. Current Specific Parameters Provide multiple design options for the additions • Roofing • Window/Door • Wall Configurations Research techniques/retrofitting for both Core and additions • Practically implemented • Cost beneficial

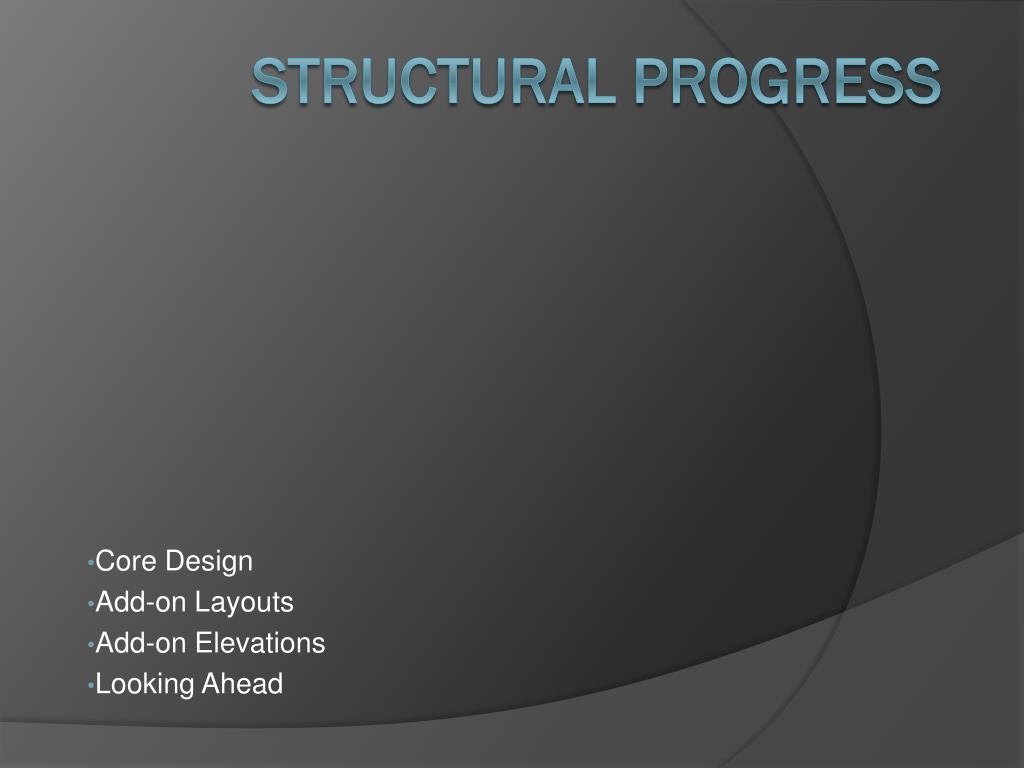

11. Core Design Add-on Layouts Add-on Elevations Looking Ahead Structural Progress

12. Core Design Add-on Layouts Add-on Elevations Looking Ahead Structural Progress

13. Core Design • Core model previously designed in Catia. • Created floor plan and profiles of core home in AutoCad. • Halted progress on our core model to focus on add-on rooms. • Copied existing core home plans into AutoCad.

14. Our Halted Core Design

15. Existing Core Home Design

16. Comparisons • Similarities • About 3 x 5 meters • Shed roof • Composed of concrete blocks • Accommodate add-on rooms • Use sheet metal for roof • Designed to provide immediate relief to Haitian families Differences Our Core Home -Roof comprised of concrete and sheet metal -Has doors built on sides for add-ons -Not designed with front porch -Roof slants from back to front -Designed with the goal of making the home disaster resistant Existing Core Home -Roof comprised of wood truss and sheet metal -Has windows to be turned into doors for add-ons -Designed with porch in front of home -Roof slants from side to side -Designed to provide immediate shelter to Haitian families

18. Core Design Add-on Layouts Add-on Elevations Looking Ahead Structural Progress

19. Add-on Layouts • Six add-on layout options created. • List narrowed down to three. • Plans of the existing core homes with the add-ons created in AutoCad.

20. Add-on Layouts Core room Bedroom Patio

21. Factors for Layout Choices • Simple designs • Symmetry • Patios well-received in Haiti • Personal preference

22. Core Design Add-on Layouts Add-on Elevations Looking Ahead Structural Progress

23. Add-on Elevations • Add-on elevations created in AutoCad along with the plans.

24. Add-on Elevations

25. Core Design Add-on Layouts Add-on Elevations Looking Ahead Structural Progress

26. Concerns • How to slope the roof so that add-on rooms are tall enough without using a gable roof. • How to connect the roofs of the add-on rooms to the roof of the core home. • Structural Analysis

27. Looking Ahead • Roof Connection • Roof Materials • Steel Rebar Placement • Nail Placement • Disaster Resistant Techniques to Implement

28. Disaster Resistant Technique

29. Research Focused On…. • Prevent water from leaking inside the house • Withstand the high wind gusts

30. Focuses • Prevent water from leaking inside the house • Withstand the high wind blow

31. DisasterResistant Technique • Well Reinforced Masonry Wall • Provide general stability to the load path of the home (top to bottom) • Reinforcement at the top ensures that any connections made to the room have no chance for collapse ⇒ Need to consider: This is mostly costly retrofit technique but should not make much difference if applied to the construction procedure

33. DisasterResistant Technique • Capillary Break using Elastomeric Coating • Elastomeric Coating is sprayed on the area where slab and concrete wall ⇒ seal small crack ⇒ Rainwater would be halted • Have to consider a spray is necessary to apply the material (Look for code in Haiti)

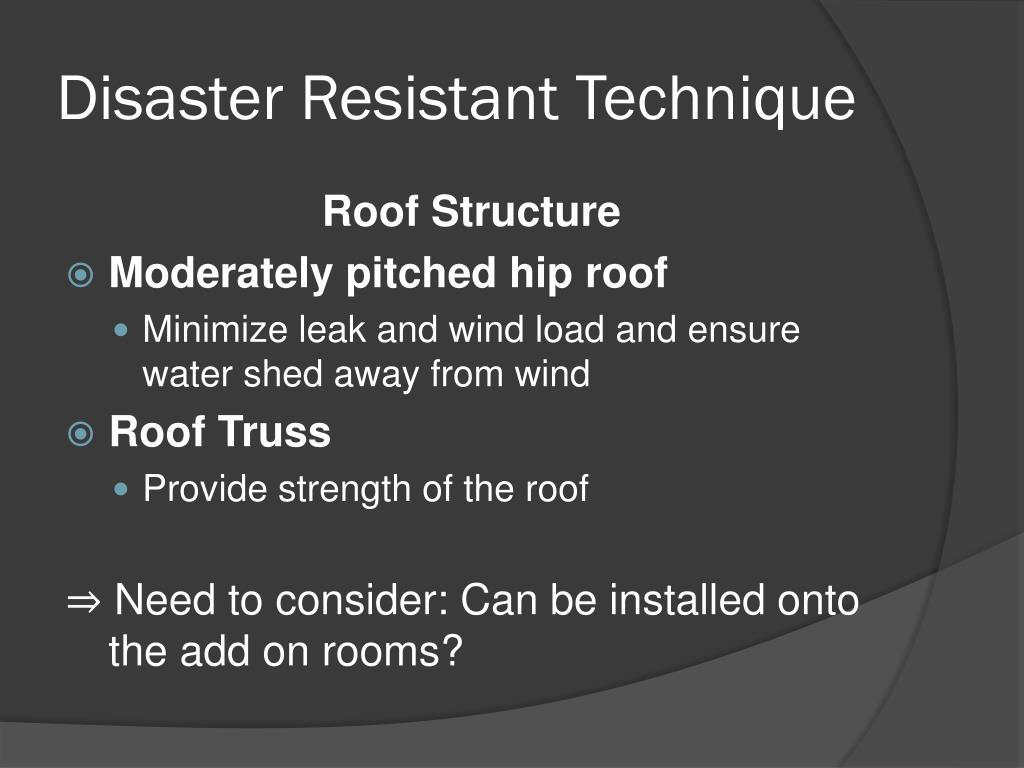

35. DisasterResistant Technique Roof Structure • Moderately pitched hip roof • Minimize leak and wind load and ensure water shed away from wind • Roof Truss • Provide strength of the roof ⇒ Need to consider: Can be installed onto the add on rooms?

37. Focuses • Prevent water leaking inside the house • Withstand the high wind blow

38. DisasterResistant Technique • Mortar Joint Resistant to water (Mortar Toughs) • Reduces ability for moisture to penetrate into the house • 2 kinds of joint • Concave • V shape

39. Pitched Hip Roof

40. Roof Truss

41. DisasterResistant Technique • Hurricane Strap • Tie with truss to supports/shapes the roof to the framework of the home • Prevent uplift to the roof ⇒ Need to consider: Can be applied to the concrete home?

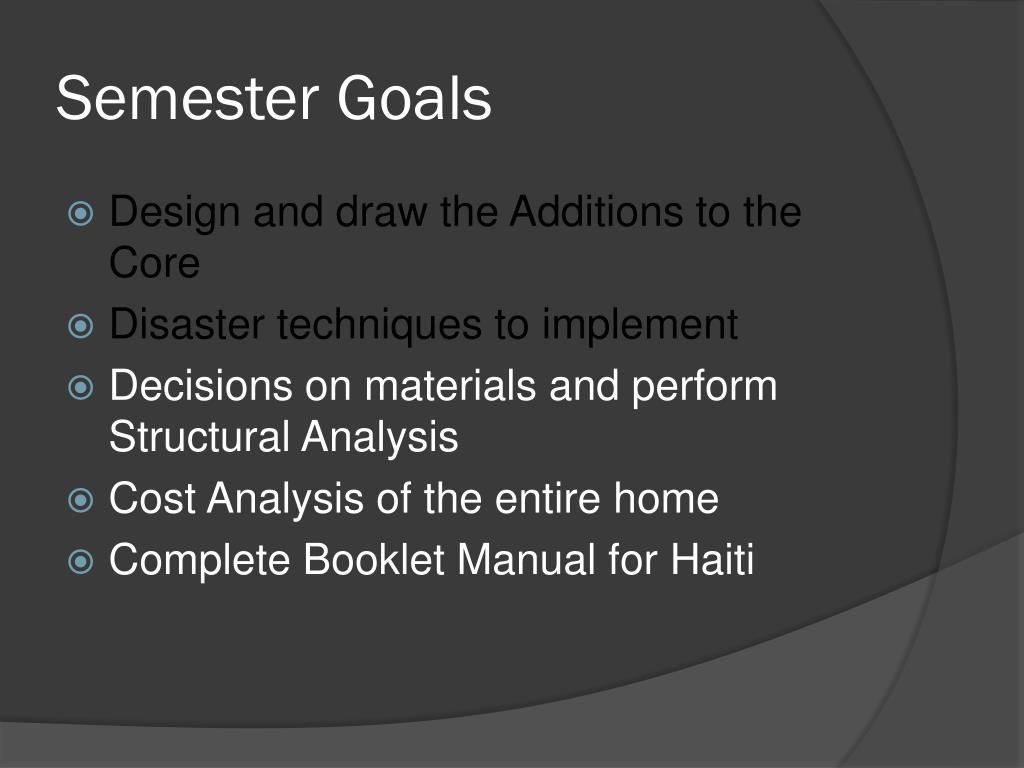

43. Semester Goals • Design and draw the Additions to the Core • Disaster techniques to implement • Decisions on materials and perform Structural Analysis • Cost Analysis of the entire home • Complete Booklet Manual for Haiti
