  1. Habitat For Humanity Matt Selvey

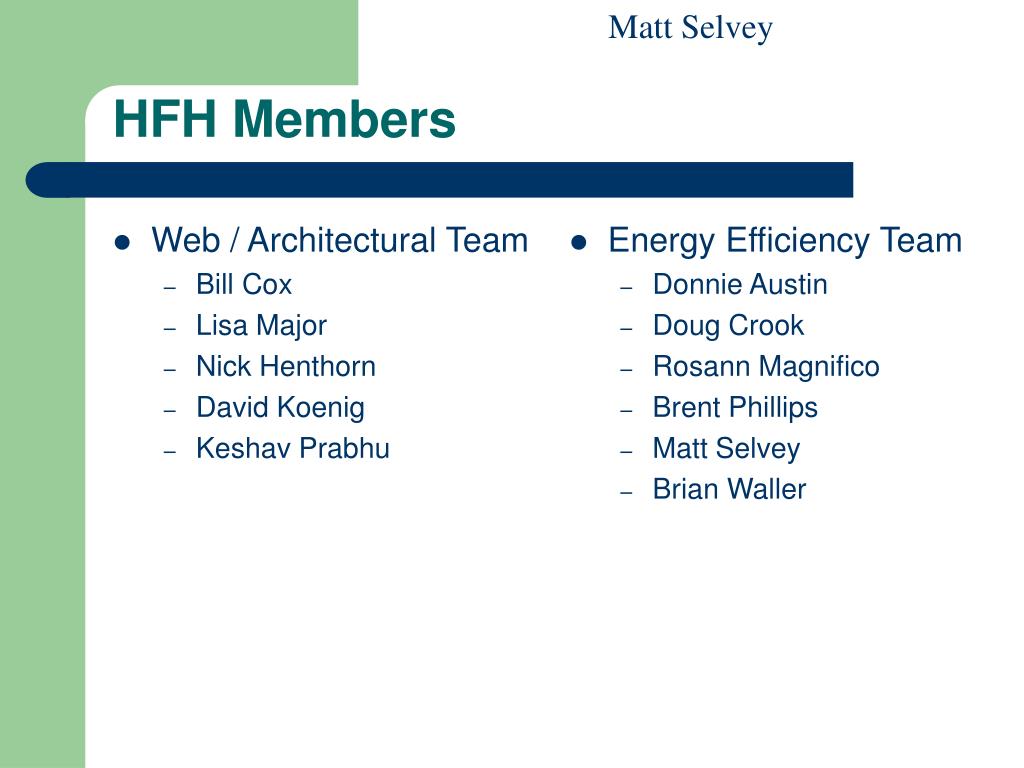

  2. Web / Architectural Team Bill Cox Lisa Major Nick Henthorn David Koenig Keshav Prabhu Energy Efficiency Team Donnie Austin Doug Crook Rosann Magnifico Brent Phillips Matt Selvey Brian Waller Matt Selvey HFH Members

  3. Home Owners Habitat for Humanity Web/Arch Team Energy Team Energy Team Matt Selvey

  4. Bill Cox Lisa Major Nick Henthorn David Koenig Keshav Prabhu Bill Cox Architecture / Web Team

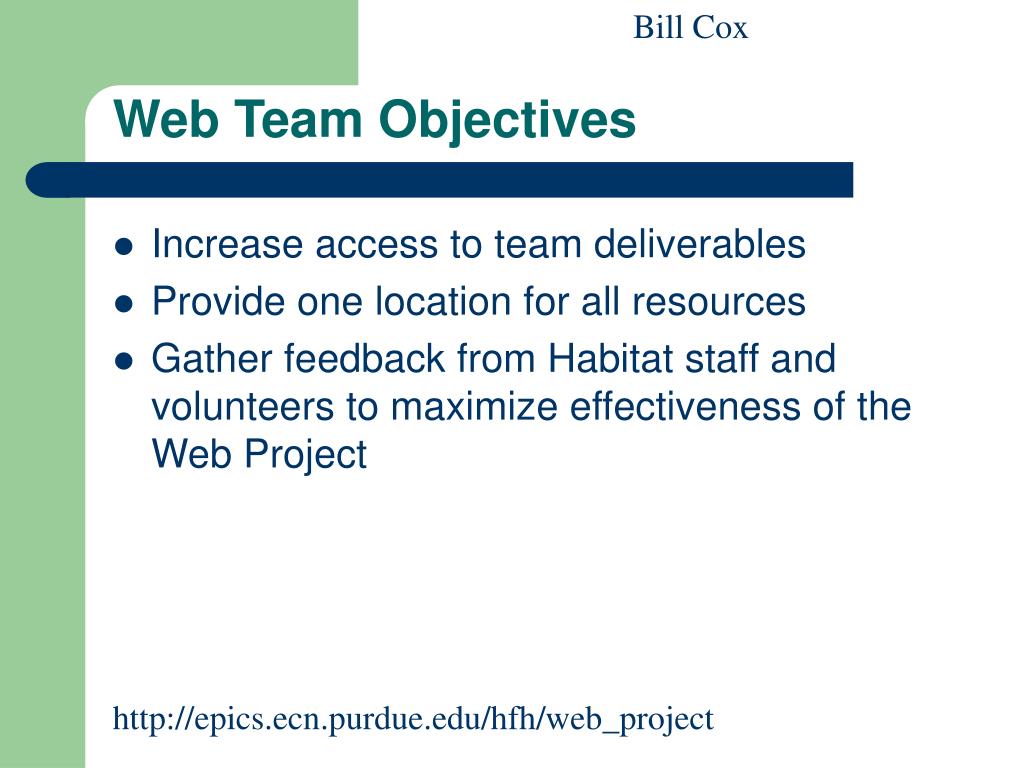

  5. Bill Cox Web Team Objectives • Increase access to team deliverables • Provide one location for all resources • Gather feedback from Habitat staff and volunteers to maximize effectiveness of the Web Project http://epics.ecn.purdue.edu/hfh/web_project

  6. Bill Cox Go to Web • Habitat Home Efficiency, Selection and Construction Online Resource Enter Guide http://epics.ecn.purdue.edu/hfh/web_project

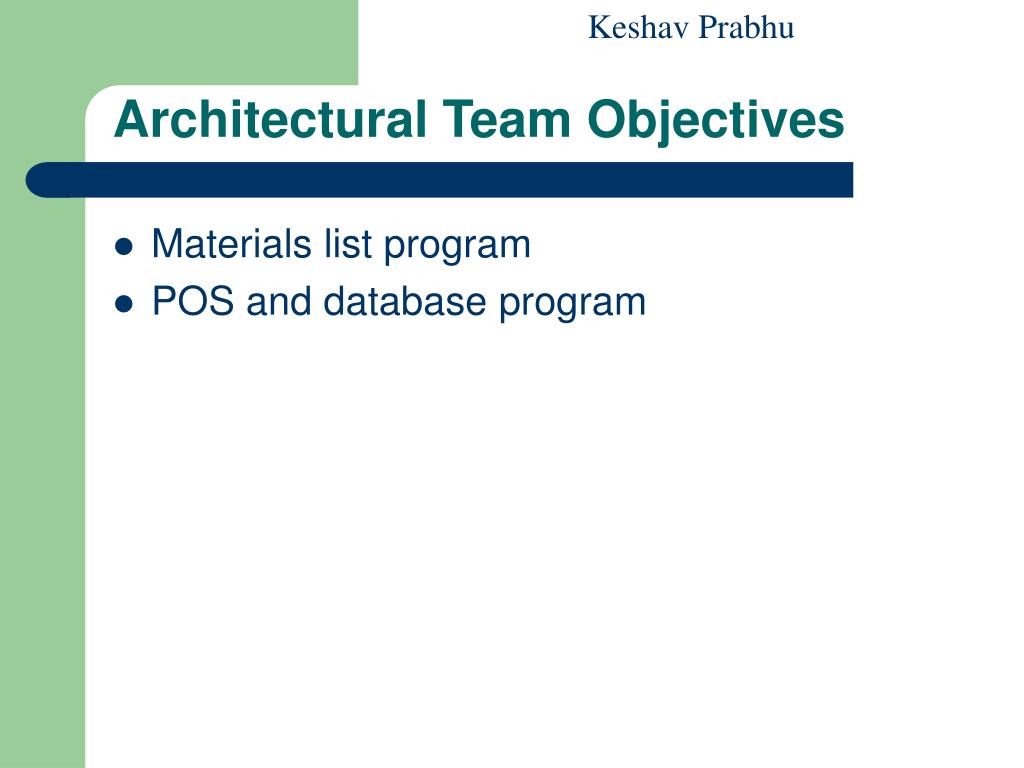

  7. Keshav Prabhu Architectural Team Objectives • Materials list program • POS and database program

  8. Keshav Prabhu Program Attributes • Capabilities • Many different styles of homes • Cost comparison between vendors • Limitations • Electrical, plumbing, and HVAC

  9. Keshav Prabhu Materials List Input

  10. Keshav Prabhu Materials List Output • Sections • Quantity buy • Quantity O/H (out of house) • Material description • Piece cost • Total cost

  11. Keshav Prabhu Edit Donor Information Edit Store Stock Resale Store Volunteer Ring Up Customer Inventory POS and Database • Purpose • Track inventory in the Habitat resale store • Track material donors • Provide user with point-of-sale terminal functionality • Status • Gathering requirements • Creating tables in database

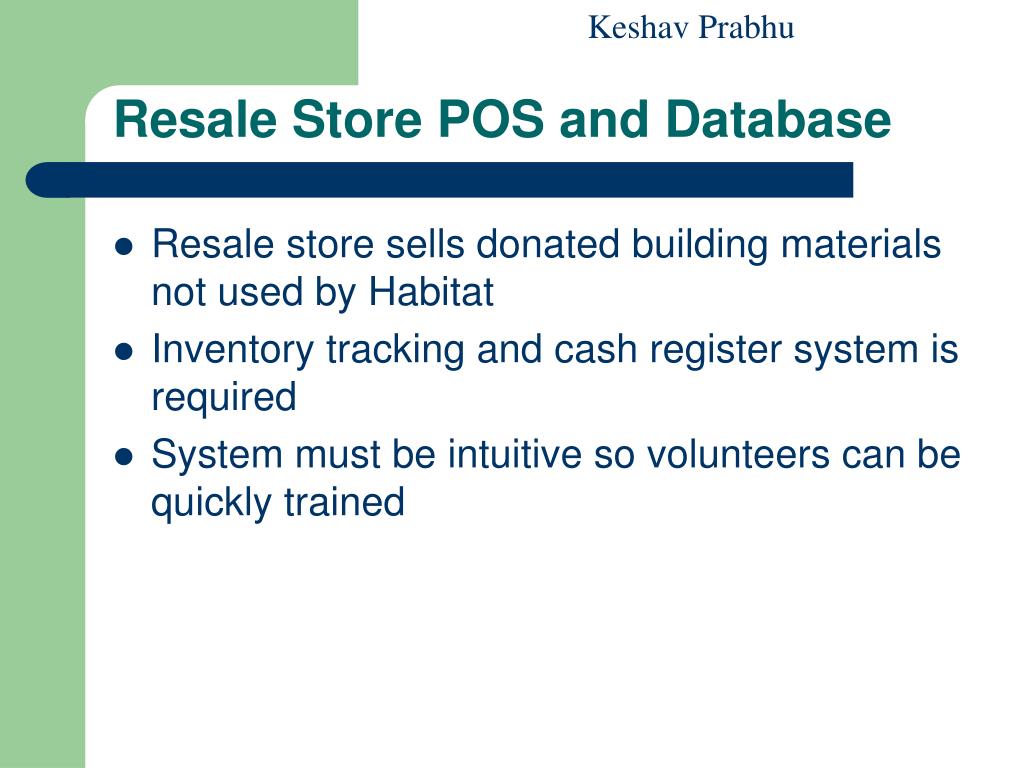

  12. Keshav Prabhu Resale Store POS and Database • Resale store sells donated building materials not used by Habitat • Inventory tracking and cash register system is required • System must be intuitive so volunteers can be quickly trained

  13. Keshav Prabhu POS and Database Overview • Keep track of donated materials • Donor name • Item donated • Quantity • Cost estimation • PC used to run database and cash register applications • Cash register application will modify database and track sales • Handheld barcode reader • Label printer

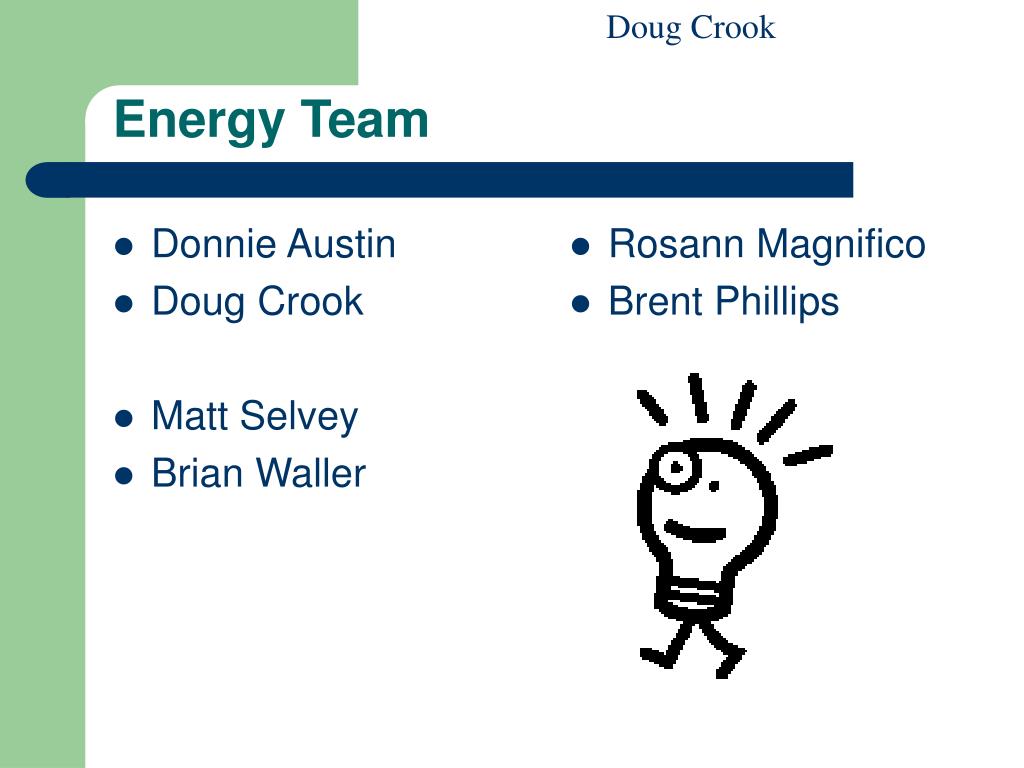

  14. Donnie Austin Doug Crook Matt Selvey Brian Waller Rosann Magnifico Brent Phillips Doug Crook Energy Team

  15. Doug Crook Energy Team Objectives • Five basic analyses were performed to reduce energy costs: • Cellulose vs. Fiberglass • Caulking wall joints • Attic fan • Window film • Future cost

  16. Assumptions R-values Cellulose: 38-40 Fiberglass: 31 Costs Cellulose: $0.43 (labor + material) Fiberglass: $0.41 (material) Payback period Approximately 1.5 years Doug Crook Cellulose vs. Fiberglass

  17. Assumptions Reduces air infiltration by 15% Infiltration through walls accounts for 20% of total infiltration No reduction in R-value of insulation $30 to caulk a house Results Average Savings = $10.27 Doug Crook Caulking Wall Joints

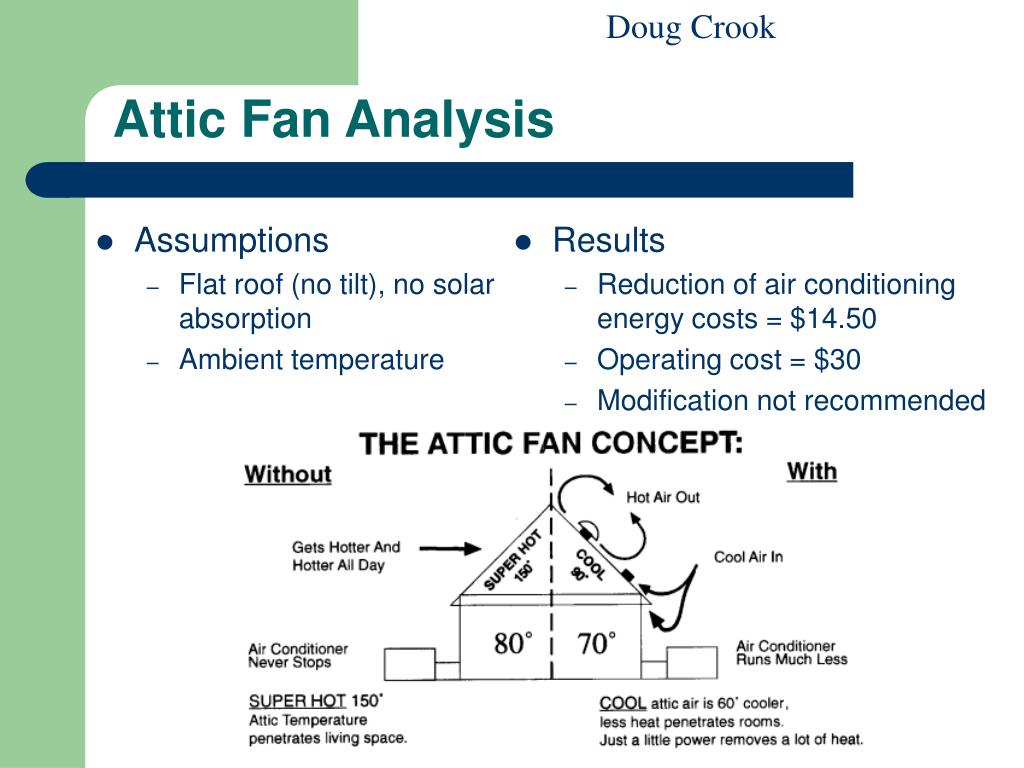

  18. Assumptions Flat roof (no tilt), no solar absorption Ambient temperature Results Reduction of air conditioning energy costs = $14.50 Operating cost = $30 Modification not recommended Doug Crook Attic Fan Analysis

  19. U-Value = 0.45 Btu/hr-ft2-F U-Value dependent upon distance between window and film Simulated from Nov 1 to March 1 $8.97 per roll of film Average of $27 per home (3 rolls) Reoccurring cost each year Doug Crook Window Film Analysis Information provided by ASHRAE Handbooks, Manco Consumer Hotline 800-321-0253 and www.3M.com

  20. Doug Crook Future Cost Analysis: Natural gas price outlook: .2% cost decrease per year Electricity price outlook: .5% cost decrease per year Electricity consumption outlook: 1.1% increase per year Source of information: www.eia.doe.gov linked from www.energy.gov

  21. Doug Crook Future Cost Analysis: Typical Habitat for Humanity house showing total analysis (both electrical and natural gas combined) for current and future energy costs.

  22. Habitat for Humanity • Web Team • Home Selection guide • Home Construction guide • Home Efficiency Options • Architectural Team • Plans added to Floor Plan Selection Guide • Material lists program • Energy Team • Recommended Efficiency options: • Caulking Wall Joints • Cellulose Insulation

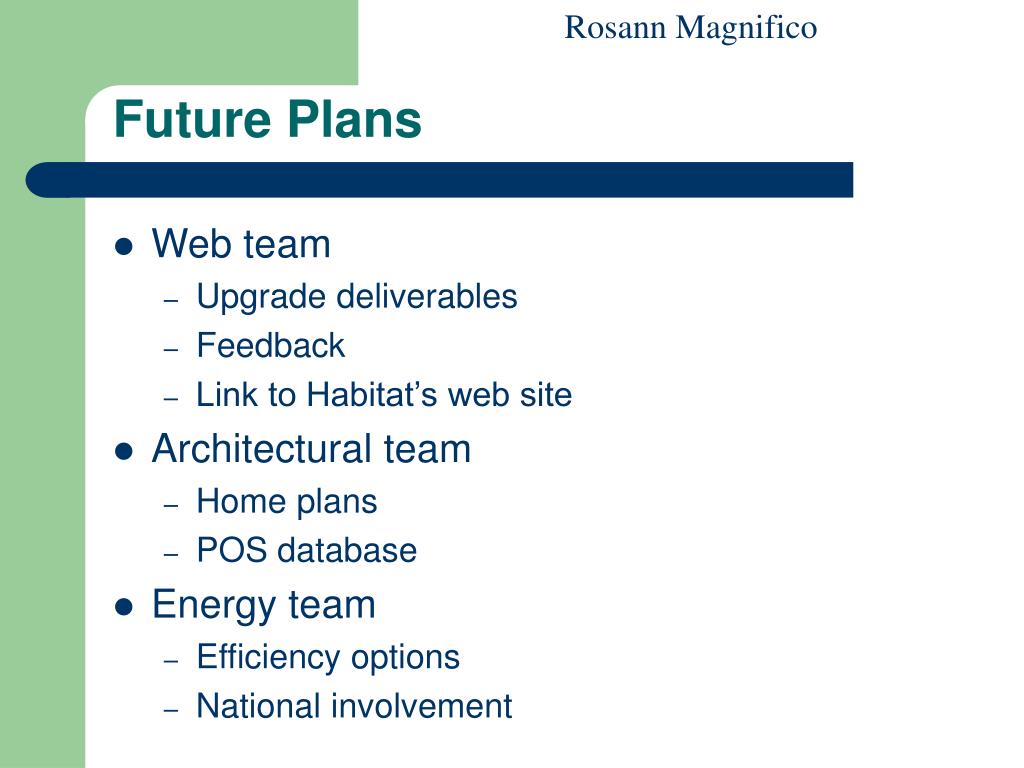

  23. Rosann Magnifico Future Plans • Web team • Upgrade deliverables • Feedback • Link to Habitat’s web site • Architectural team • Home plans • POS database • Energy team • Efficiency options • National involvement

  24. Habitat For Humanity Rosann Magnifico
