  1. Objectives • Control Terminology • Types of controllers • Differences • Controls in the real world • Problems • Response time vs. stability

  2. Motivation • Maintain environmental quality • Thermal comfort • Indoor air quality • Material protection • Conserve energy • Protect equipment

  3. Basic purpose of HVAC control • Daily, weekly, and seasonal swings make HVAC control challenging • Highly unsteady-state environment • Provide balance of reasonable comfort at minimum cost and energy • Two distinct actions: • 1) Switching/Enabling: Manage availability of plant according to schedule using timers. • 2) Regulation: Match plant capacity to demand

  4. History • Process controls • Self-powered controls • Pneumatic and electro-mechanical controls • Electronic controls • Direct digital control (DDC)

  5. Terminology • Sensor • Measures quantity of interest • Controller • Interprets sensor data • Controlled device • Changesbased on controller output Figure 2-13

  6. outdoor Direct Closed Loop or Feedback Indirect Open Loop or Feedforward

  7. Set Point • Desired sensor value • Control Point • Current sensor value • Error or Offset • Difference between control point and set point

  8. Two-Position Control Systems • Used in small, relatively simple systems • Controlled device is on or off • It is a switch, not a valve • Good for devices that change slowly

  9. Anticipator can be used to shorten response time • Control differential is also called deadband

  10. Residential system - thermostat • DDC thermostat • Daily and weekly • programming • ~50 years old

  11. Example: Heat exchanger control Modulating (Analog) control Cooling coil air water Modulating Control Systems x (set point temperature)

  12. Electric (pneumatic) motor Position (x) fluid Volume flow rate Vfluid = f(x) - linear or exponential function Modulating Control Systems • Used in larger systems • Output can be anywhere in operating range • Three main types • Proportional • PI • PID

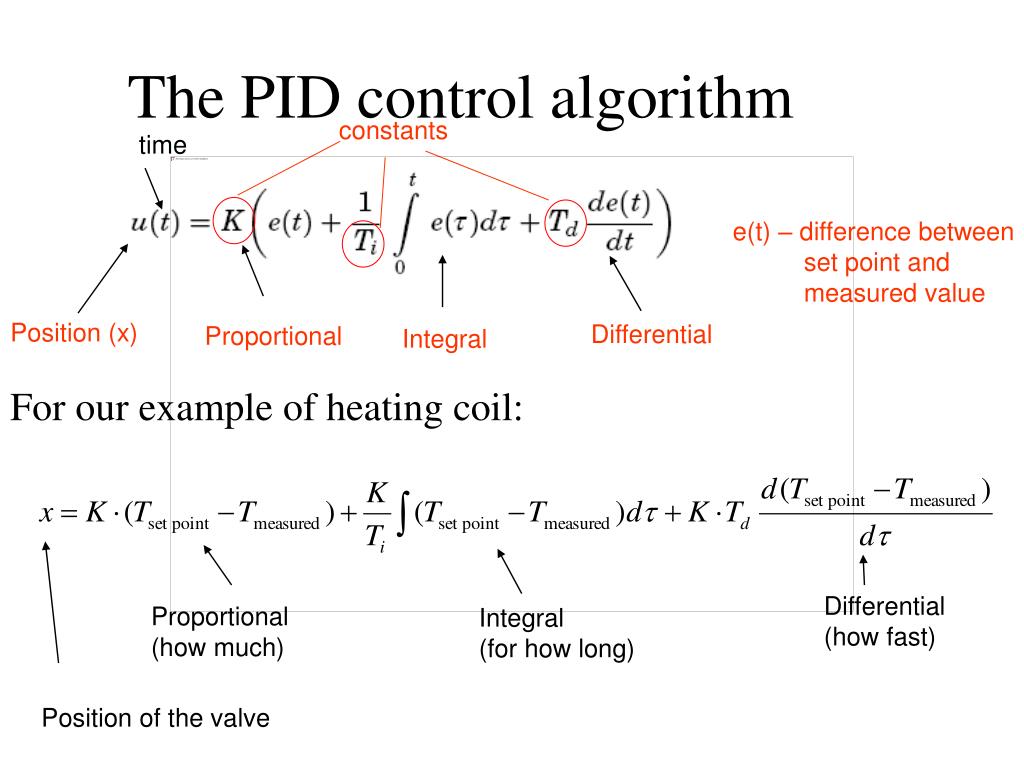

  13. The PID control algorithm For our example of heating coil: constants time e(t) – difference between set point and measured value Position (x) Differential Proportional Integral Differential (how fast) Proportional (how much) Integral (for how long) Position of the valve

  14. Proportional Controllers x is controller output A is controller output with no error (often A=0) Kis proportional gain constant e = is error (offset)

  15. Unstable system Stable system

  16. Issues with P Controllers • Always have an offset • But, require less tuning than other controllers • Very appropriate for things that change slowly • i.e. building internal temperature

  17. Proportional + Integral (PI) • K/Ti is integral gain If controller is tuned properly, offset is reduced to zero Figure 2-18a

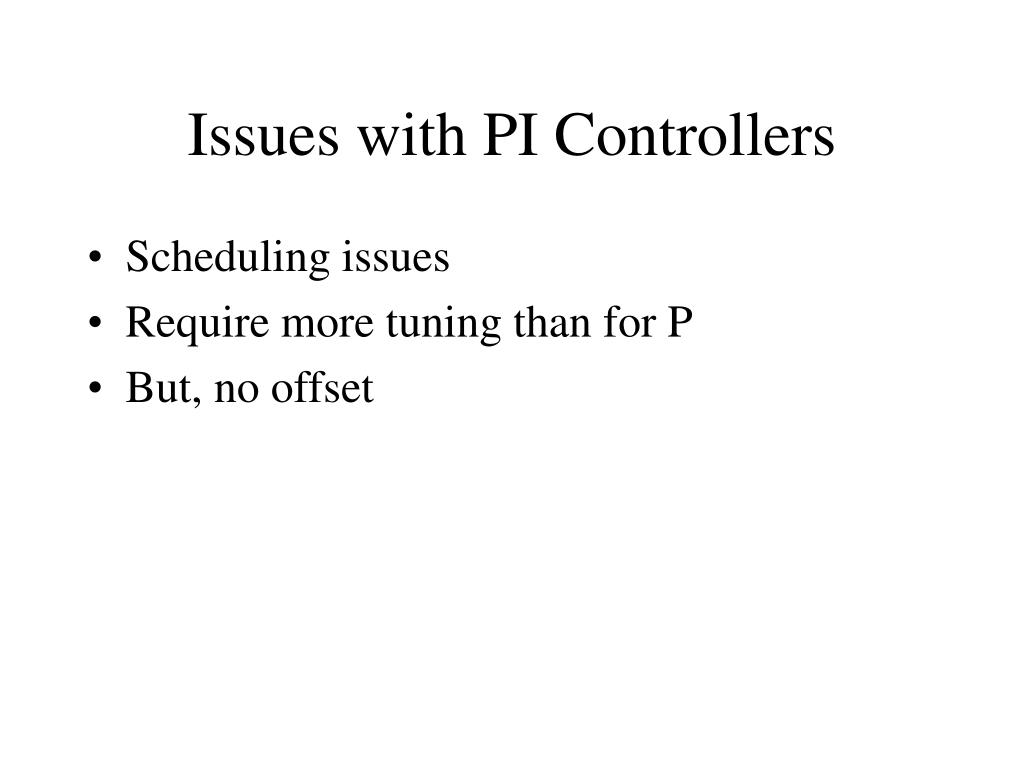

  18. Issues with PI Controllers • Scheduling issues • Require more tuning than for P • But, no offset

  19. Proportional + Integral + Derivative (PID) • Improvement over PI because of faster response and less deviation from offset • Increases rate of error correction as errors get larger • But • HVAC controlled devices are too slow responding • Requires setting three different gains

  20. Ref: Kreider and Rabl.Figure 12.5

  21. The control in HVAC system – only PI Proportional Integral value Set point Proportional affect the slope Integral affect the shape after the first “bump” Set point

  22. The Real World • 50% of US buildings have control problems • 90% tuning and optimization • 10% faults • 25% energy savings from correcting control problems • Commissioning is critically important

  23. Practical Details • Measure what you want to control • Verify that sensors are working • Integrate control system components • Tune systems • Measure performance Commission control systems

  24. HVAC Control Example 1: Economizer (fresh air volume flow rate control) Controlled device is damper - Damper for the air - Valve for the liquids fresh air damper mixing recirc. air T & RH sensors

  25. Economizer Fresh air volume flow rate control % fresh air 100% enthalpy Fresh (outdoor) air TOA (hOA) Minimum for ventilation damper mixing Recirc. air T & RH sensors

  26. Economizer – cooling regime How to control the fresh air volume flow rate? If TOA < Tset-point→ Supply more fresh air than the minimum required The question is how much? Open the damper for the fresh air and compare the Troom with the Tset-point . Open till you get the Troom = Tset-point If you have 100% fresh air and your still need cooling use cooling coil. What are the priorities: - Control the dampers and then the cooling coils or - Control the valves of cooling coil and then the dampers ? Defend by SEQUENCE OF OERATION the set of operation which HVAC designer provides to the automatic control engineer % fresh air 100% Minimum for ventilation

  27. Economizer – cooling regime Example of SEQUENCE OF OERATIONS: If TOA < Tset-point open the fresh air damper the maximum position Then, if Tindoor air < Tset-point start closing the cooling coil valve If cooling coil valve is closed and T indoor air < Tset-point start closing the damper till you get T indoor air = T set-point Other variations are possible

  28. HVAC Control Example 2: Dew point control (Relative Humidity control) fresh air damper filter cooling coil heating coil filter fan mixing T & RH sensors Heat gains Humidity generation We should supply air with lower humidity ratio (w) and lower temperature We either measure Dew Point directly or T & RH sensors substitute dew point sensor

  29. Relative humidity control by cooling coil Cooling Coil Mixture Room Supply TDP Heating coil

  30. Relative humidity control by cooling coil (CC) • Cooling coil is controlled by TDP set-point if TDP measured > TDP set-point → send the signal to open more the CC valve if TDP measured < TDP set-point → send the signal to close more the CC valve • Heating coil is controlled by Tair set-point if Tair < Tair set-point → send the signal to open more the heating coil valve if Tair > Tair set-point → send the signal to close more the heating coil valve Control valves Fresh air mixing cooling coil heating coil Tair & TDP sensors

  31. Mixture 3 DPTSP Set Point (SP) Mixture 2 Mixture 1 DBTSP Sequence of operation(ECJ research facility) Control logic: Mixture in zone 1: IF (( TM<TSP) & (DPTM<DPTSP) ) heating and humidifying Heater control: IF (TSP>TSA) increase heating or IF (TSP<TSA) decrease heating Humidifier: IF (DPTSP>DPTSA) increase humidifying or IF (DPTSP<DPTSA) decrease humid. Mixture in zone 2: IF ((TM>TSP) & (DPTM<DPTSP) ) cooling and humidifying Cool. coil cont.: IF (TSP<TSA) increase cooling or IF (TSP>TSA) decrease cooling Humidifier: IF (DPTSP>DPTSA) increase humidifying or IF (DPTSP<DPTSA) decrease hum. Mixture in zone 3: IF ((DPTM>DPTSP) ) cooling/dehumidifying and reheatin Cool. coil cont.: IF (DPTSP>DPTSA) increase cooling or IF (DPTSP<DPTSA) decrease cooling Heater control: IF (TSP>TSA) increase heating or IF (TSP<TSA) decrease heating
