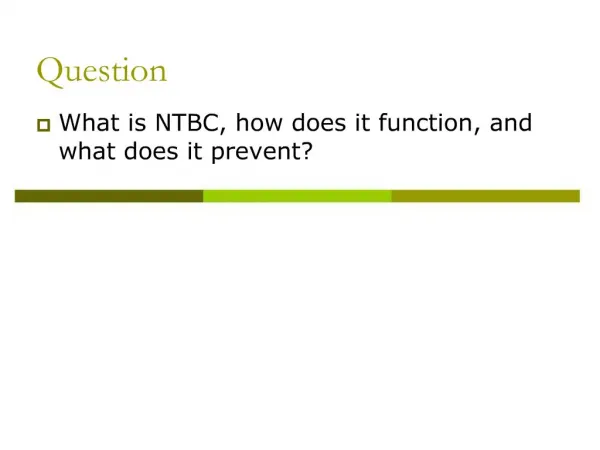

1. Question What is NTBC, how does it function, and what does it prevent?
2. Tyrosinemia Carolyn Jablonowski
3. Tyrosinemia Inborn error in the degradation of the amino acid tyrosine.
Hereditary autosomally recessive.
Three types (type I, type II, type III).
4. Tyrosine and Phenylalanine Tyrosine Phenylalanine
Structures made by Carolyn Jablonowski
6. Types of Tyrosinemia Type I deficiency of the enzyme fumarylacetoacetate hydrolase (FAH).
Type II deficiency of the enzyme tyrosine aminotransferase (TAT).
Type III deficiency of the enzyme 4-hydroxyphenylpyruvate dioxygenase (HPPD).
7. Type I Tyrosinemia Most common type of tyrosinemia.
Caused by a mutation in the FAH gene that encodes for the FAH enzyme.
Autosomally recessive
Can be either chronic or acute.
Acute infancy
Chronic later in life
8. FAH gene Chromosome 15
Contains 14 exons and extends 35kb long
34 mutations associated with HT1
All effect normal activity of FAH.
9. Symptoms of Type I Tyrosinemia Failture to gain wieight or grow
Diarrhea and vomiting
Jaundice of skin and eyes
Cabbage-like odor
Increased tendency to bleed (esp. nosebleeds)
Can lead to kidney and liver failure
Liver cirrhosis and/or hepatocellular carcinoma (chronic).
10. Fumarylacetoacetate Hydrolase FAH is the last in the series of five enzymes needed to catabolize tyrosine.
Metalloenzyme
Catalyzes the hydrolysis of 4-fumarylacetoacetate to fumarate + acetoacetate.
Deficiency of FAH results in accumulation of succinylacetone, maleylacetoacetone, and fumarylacetoacetate.
11. FAH Catalyzed Reaction
12. HT1
14. Type II Tyrosinemia Caused by a mutation in the TAT gene that encodes for the hepatic (liver) TAT enzyme.
Autosomally recessive
Rare
Also known as Richner-Hanhard syndrome
15. TAT gene Codes for tyr aminotransferase
10.9kb long
Makes 454-AA protein weighing ~ 50.4kDa.
12 exons
13 mutations associated with HT2.
16. Symptoms of Type II Tyrosinemia Elevated serum and plasma tyrosine levels also.
Lesions of skin and eyes
Due to clumping of cellular tyrosine crystals.
Excessive tearing and abnormal sensitivity to light (photophobia).
Mental retardation (caused by elevated blood tyrosine levels)
Symptoms often begin in early childhood.
17. Tyrosine Aminotransferase TAT is the enzyme involved in the first of a series of five reactions of tyrosine degradation.
In cytosol
Pyridoxal 5-phosphate (PLP) dependent enzyme
Transaminates tyrosine and
a-ketogluterate into p-hydrophenylpyruvate and glutamate.
Narrow substrate specificity
18. TAT Catalyzed Reaction
20. Type III Tyrosinemia Caused by a mutation in the HPPD gene that encodes for the enzyme HPPD.
Rare, autosomally recessive
Deficiency of 4-hydroxyphenylpyruvate dioxygenase (HPPD).
21. HPPD gene Located on 12q24-qter
14 exons
HT3 and Hawkinsinura both affect this gene.
22. Symptoms of Type III Tyrosinemia Mild mental retardation
Seizures
Loss of balance and coordination (intermittent ataxia).
High blood and urine concentrations of tyrosine and HPP
23. 4-Hydroxyphenylpyruvate Dioxygenase (HPPD) Second enzyme involved in tyrosine catabolism pathway.
Non-heme iron oxygenase. Often forms dimers.
Requires Fe(II), oxygen and a alpha-keto acid substrate (typically alpha-ketoglutarate).
24. HPPD
25. Reaction Catalyzed by HPPD
28. Treatments Dietary restriction of tyrosine and phenylalanine. (aim is below 500 µmol/L)
Treatement with NTBC (2-(2-nitro-4-trifluoro-methylbenzoyl)-1,3-cyclohexanedione) to block metabolism.
Pro- Inhibitor of HPPD. NTBC structurally similar to HPPD
Pro- Protects patients from fatal, end stages of disease
Con- However, increases plasma tyrosine levels and requires several follow-ups.
Liver transplant (popular in 1980s)
29. Inhibition of HPPD
30. Summary Tyrosinemia is an error in tyrosine catabolism.
Three types of tyrosinemia (I, II, and III)
Each is affect by a deficiency of a separate enzyme
HT1 FAH
HT2 TAT
HT3 HPPD
Treatments liver transplant, dietary restriction, inhibitors (NTBC)
31. More information http://umbbd.msi.umn.edu/tyr/tyr_map.html
