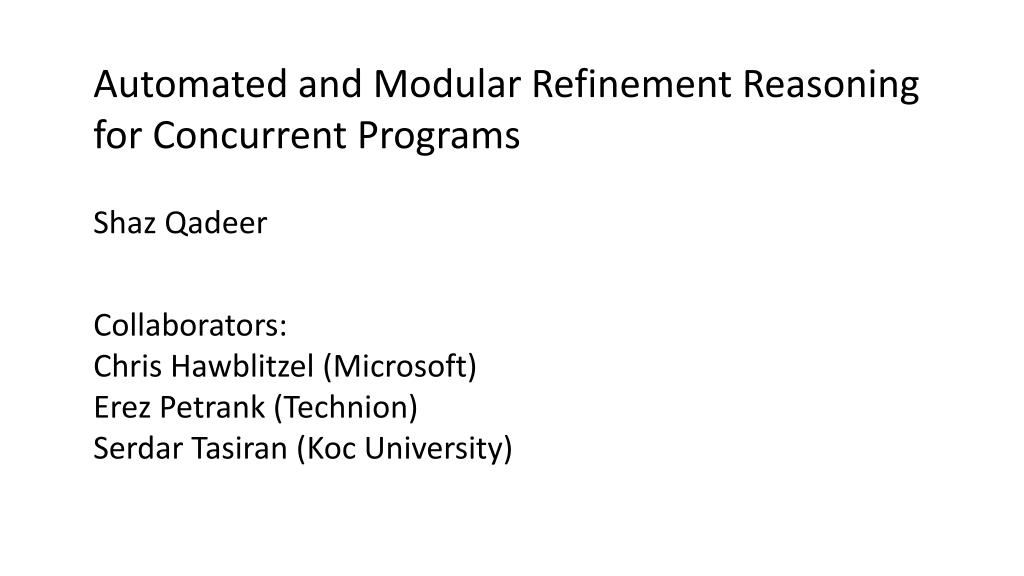

  1. Automated and Modular Refinement Reasoning for Concurrent Programs Shaz Qadeer Collaborators: Chris Hawblitzel (Microsoft) Erez Petrank (Technion) Serdar Tasiran (Koc University)

  2. Verve: a verifiably safe OS (Yang-Hawblitzel 10) Small Operating System (C#) “every assembly language instruction checked for safety” Verified Threads Verified Interrupt Handlers Verified Device Interface Verified Startup Verified Garbage Collector Verify safety & correctness with Boogie/Z3 Verified Boot x86 Hardware, Network, PCI, TPM

  3. An Ironclad app guarantees to remote parties that every instruction it executes adheres to a high-level security spec. My password will never leak I can run full SQL and the cloud learns nothing

  4. Ironclad project (MSR OS Group) • Goal: achieve end-to-end security • Use small trusted computing base (TCB) — thousands of lines of spec, not millions of lines of code • Make approach feasible for use by system and application developers • Show developers how to achieve correctness without testing • Approach: • Combine cryptography, secure hardware, and formal code verification • Push scale of formal verification tools to fully encompass large systems

  5. Ironclad apps atop Verve Notary Password Vault DiffPriv DB Bits & Arrays Net Driver RSA Enc + Sig Big Integers Ethernet UDP/IP SHA Hash TPM Driver Math Verified Threads Verified Interrupt Handlers Verified Device Interface Verified Startup Verified Garbage Collector Verified Boot x86 Hardware, Network, PCI, TPM

  6. Verve and concurrency • Provides threads • No mechanism to reason about them • Difficult to provide any assurance beyond memory safety • Verve boots on a single core • Stop-the-world garbage collector • Unacceptable multi-core performance

  7. Goal of our work • A scalable automated verifier for reasoning about low-level concurrency • A verified concurrent garbage collector

  8. Refining concurrent programs Verification works for me only when I start small. -Chris Hawblitzel • Atomic actions as specifications • Explicit non-interference (alaOwicki-Gries and Jones) • Linear resources providing free invariants

  9. Garbage collector implementation • Extends Dijkstra et al. 78 • multiple parallel mutators • no read barrier • fast write barrier • Features • Mark/Sweep/Idle phases separated by barriers • Mutatorcooperates with collector • Barrier for atomic root scan

  10. Garbage collector specification memAbs : [obj][fld]obj // Heap rootAbs : [idx]obj // Roots (stack, registers) allocSet: [obj]bool // Allocated objects

  11. Garbage collector verification • Simple high-level specification refined down individual instructions • load, store, CAS, atomic increment/decrement • Six levels of refinement • 2100 lines of code and specification • 6 min and 2GB memory on a modern Windows machine • Simplifying assumptions • Allocator is naïve (sequential search for free space) • All objects have the same number of fields • Sequentially consistent execution

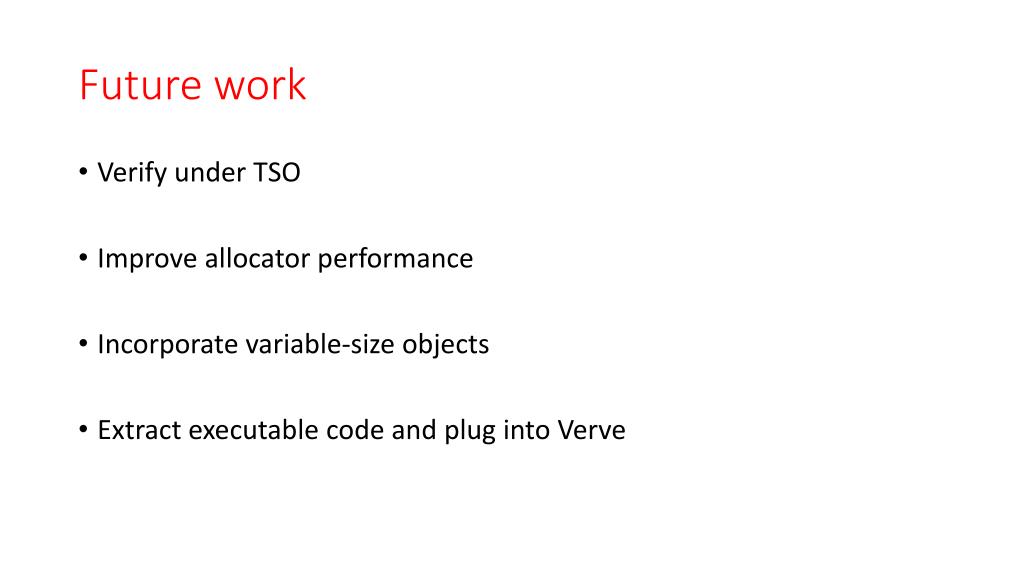

  12. Future work • Verify under TSO • Improve allocator performance • Incorporate variable-size objects • Extract executable code and plug into Verve
