dealing with legacy heritage codes in pses
Dealing with “legacy” (heritage) codes in PSEs

Maozhen Li, Matthew Shields, Yan Huang,

David W. Walker, Omer F. Rana

o.f.rana@cs.cf.ac.uk

Cardiff University, UK

computer application science interaction
Computer/Application Science Interaction

Wouldn’t it be nice if ...

Tools

+ Expertise

Scientific Code

computer application science interaction3
Computer/Application Science Interaction

Wouldn’t it be nice if ...

Tools

+ Expertise

Scientific Code

Can I do this…?

Tools

+ Expertise

Scientific Code

computer application science interaction4
Computer/Application Science Interaction

Wouldn’t it be nice if ...

Tools

+ Expertise

Scientific Code

Can I do this…?

Tools

+ Expertise

Scientific Code

Tools

+ Expertise

Scientific Code

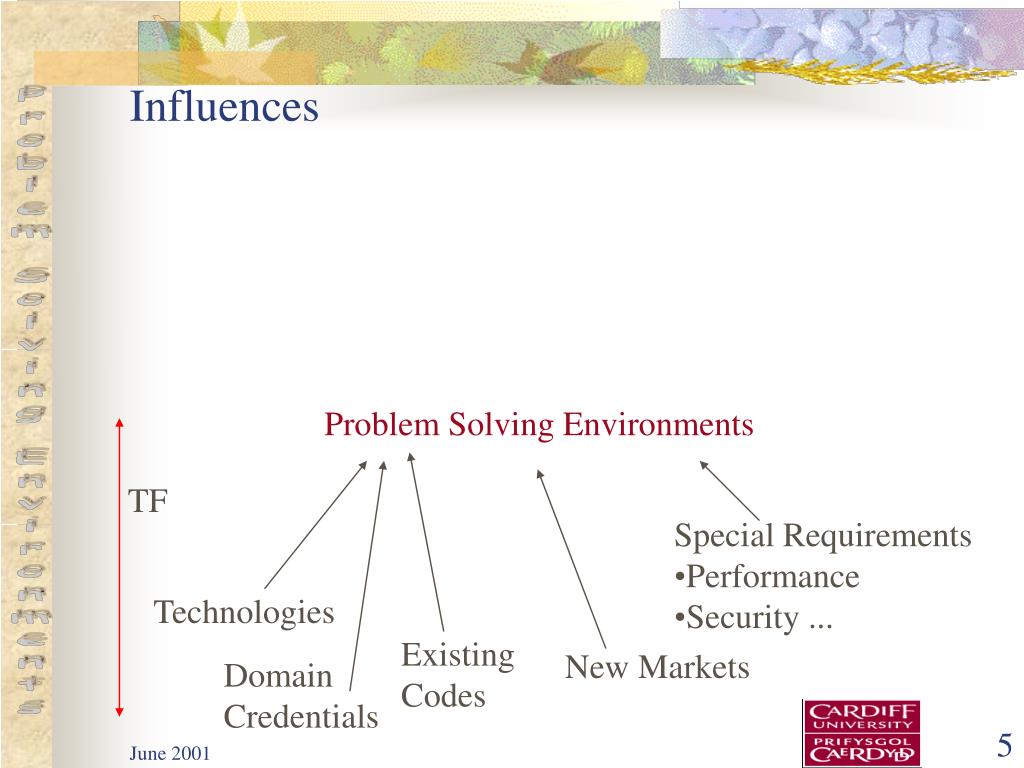

influences
Influences

Problem Solving Environments

TF

  • Special Requirements
  • Performance
  • Security ...

Technologies

Existing

Codes

New Markets

Domain

Credentials

influences6
Influences

New Markets

Mental Models

Preferences

HF

Profiles

Methodologies

Experience

Bias

Problem Solving Environments

TF

  • Special Requirements
  • Performance
  • Security ...

Technologies

Existing

Codes

New Markets

Domain

Credentials

slide7

Impacts

Problem Description/Evaluation Tools

- Visual Prog., Iris Explorer, MatLab,

ADL(Erlangen-Nuremberg)

PSE Infrastructure

Component Frameworks

- Imperial College, CCA,

INRIA, Gateway,

Arcade, Advice etc

Learning

Visualisation

Resource Management

- Codine, LSF

- Globus, Legion, Condor

Steering

Legacy Codes

(wrappers)

- SWIG, WG

PSE Services

Sharability

Repeatability

Persistence

Usage

Data

Management

Usability

ALL Three

are important

Result Sharing

(Electronic Notebooks)

Maturity

pse construction tools
PSE construction tools
  • Visual Composition
    • Data Flow or Control Flow
  • Language based
    • Functional Languages
  • Abstraction based
    • Petri nets, Process (Composition) Algebras

IRIS Explorer, ADL, Gateway/WebFlow, ARCADE, Mathematica, MatLab etc

- Good survey by “Grid Computing Environments” group -- see http://www.gridforum.org/

slide10

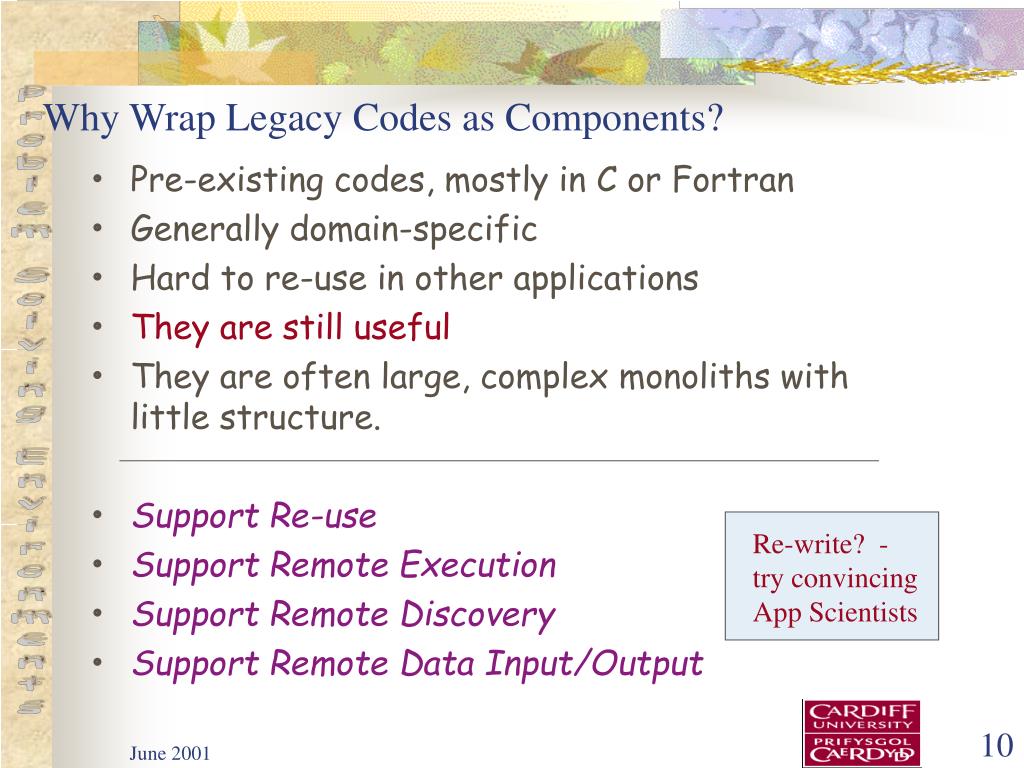

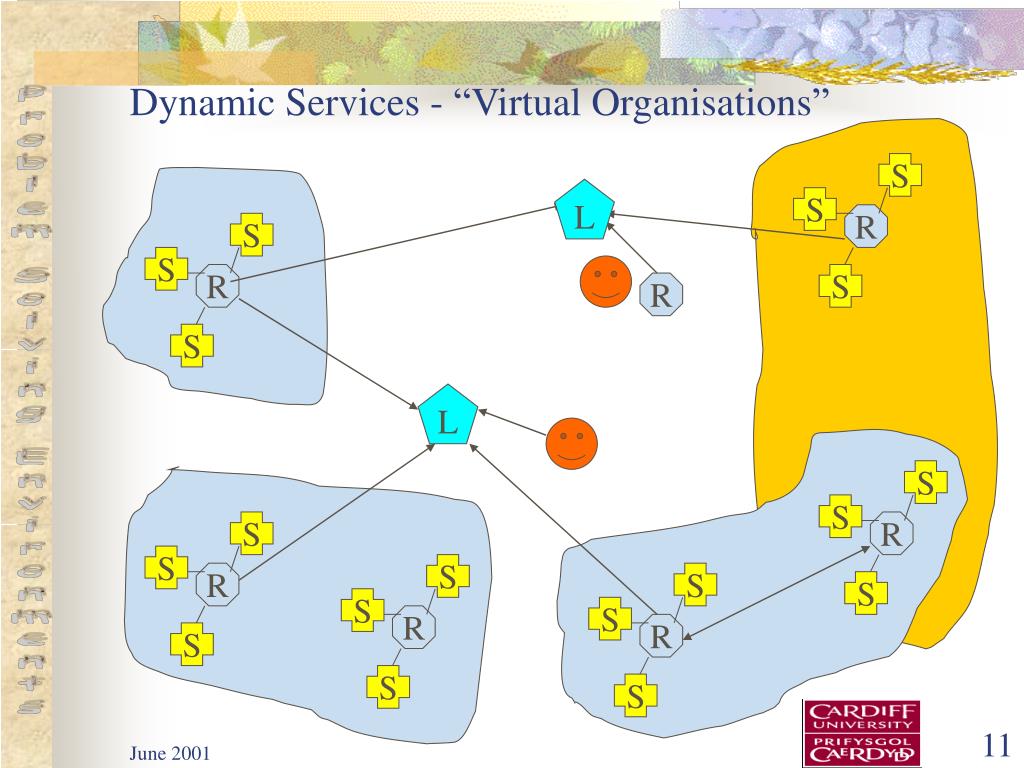

Why Wrap Legacy Codes as Components?

  • Pre-existing codes, mostly in C or Fortran
  • Generally domain-specific
  • Hard to re-use in other applications
  • They are still useful
  • They are often large, complex monoliths with little structure.
  • Support Re-use
  • Support Remote Execution
  • Support Remote Discovery
  • Support Remote Data Input/Output

Re-write? -

try convincing

App Scientists

wrapping approaches
Wrapping Approaches

Similar name in DBs,

but different approach

  • Wrapping executables - “As-Is” Approach
    • No source available (or provided)
    • Maintain execution environment
  • Wrapping Source - “Source-Update” Approach
    • Some source provided (generally I/O)
    • Executable can relinquish some control
    • Data type conversions
  • Source split Wrapping - “Unit-Mapping” Approach
    • Split source into units -- wrap units
    • Maintain unit execution environment + overall manager
  • Application Supported Wrapping - “App-Wrap”
    • Steering support
    • Data management support
wrapping approaches13
Wrapping Approaches
  • Wrapping executables - “As-Is” Approach
    • No source available (or provided)
    • Maintain execution environment
  • Wrapping Source - “Source-Update” Approach
    • Some source provided (generally I/O)
    • Executable can relinquish some control
    • Data type conversions
  • Source split Wrapping - “Unit-Mapping” Approach
    • Split source into units -- wrap units
    • Maintain unit execution environment + overall manager
  • Application Supported Wrapping - “App-Wrap”
    • Steering support
    • Data management support
  • Provide Isolation between existing code, in its present
  • form, and need to re-use and execute code remotely
  • Enable properties of code to be specified (in terms,
  • perhaps of its interface), to enable a discovery
  • mechanism to utilise in, say, a particular application.
  • Sustain performance, correctness of results, ownership,
  • and availability
automating wrapping

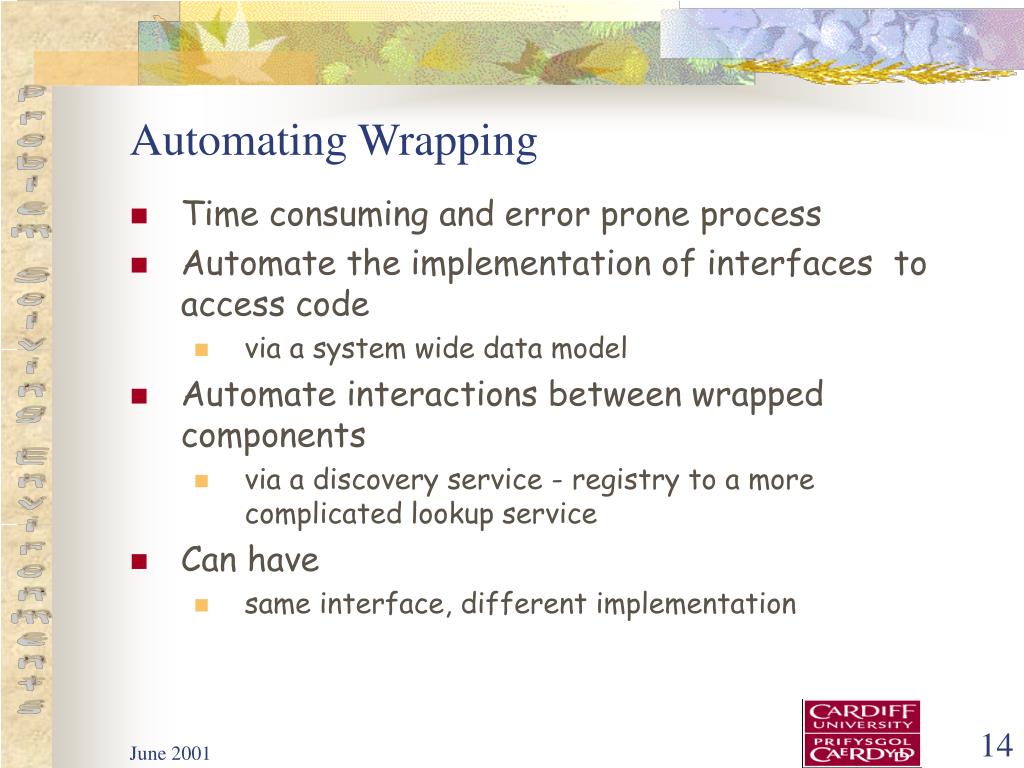

Automating Wrapping
  • Time consuming and error prone process
  • Automate the implementation of interfaces to access code
    • via a system wide data model
  • Automate interactions between wrapped components
    • via a discovery service - registry to a more complicated lookup service
  • Can have
    • same interface, different implementation
slide17

<pse-def>

<preface>

<name alt="MD1" id="MD01"> MDComponent</name>

<pse-type> Molecular Dynamics </pse-type>

<component-directory>/home/scmlm1/wgen/Component</component-directory>

<legacy-code>/home/scmlm1/md/moldyn</legacy-code>

<ORB-Compiler>idl2java</ORB-Compiler>

<processors>8</processors>

<host-name>sapphire.cs.cf.ac.uk</host-name>

</preface>

<outports>

<outportnum> 6 </outportnum>

<outport id="1"> int </outport>

<outport id="2"> float </outport>

<outport id="3"> float </outport>

<outport id="4"> float </outport>

<outport id="5"> float </outport>

<outport id="6"> float </outport>

<href name="file:/home/scmlm1/wgen/Component/output.data" value="output" />

</outports>

</ports>

XML Data Model

Existing

Code

slide18

Component Model and Extensions

Existing

Code

External Control

Input (for Steering)

slide19

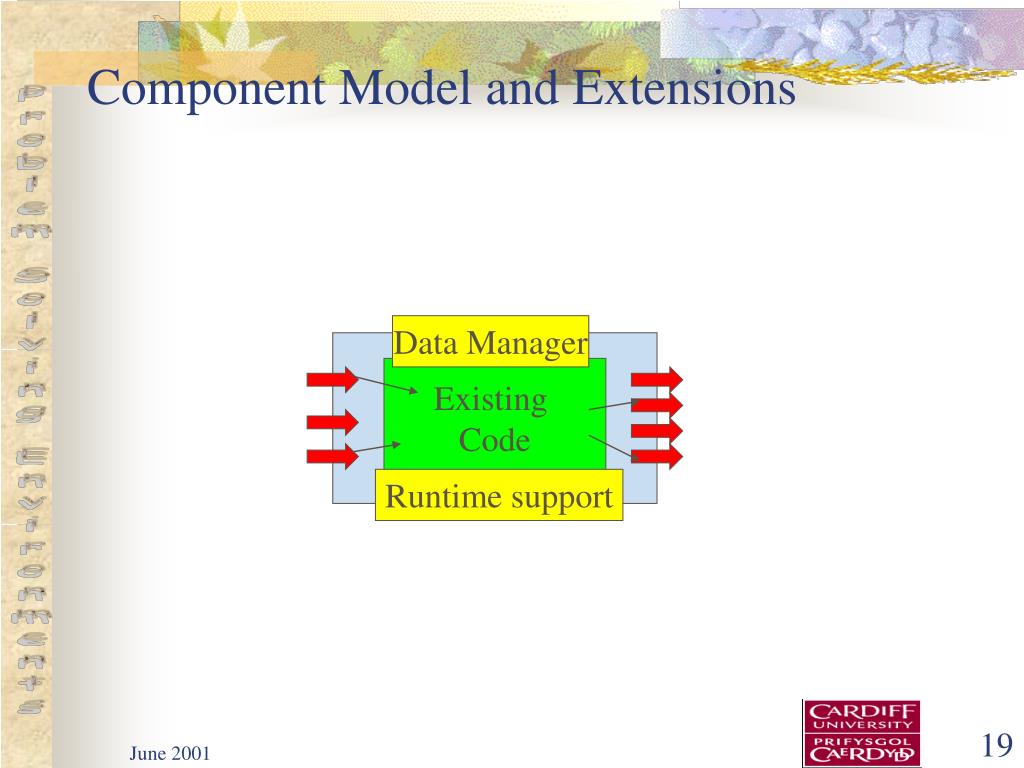

Component Model and Extensions

Data Manager

Existing

Code

Runtime support

slide20

Component Model and Extensions

Data Manager

Existing

Code

Runtime support

Execution Rules

proxy based
Proxy based

Server

Wrap code as

server

Transport can be

HTTP, RMI, Sockets

Runtime.exec()

B

I/F

C

Server

A

Discover Service

Parameter Marshalling

and Verification

Scheduling Constraints

Jini, JXTA,

RMI

D

P

write your own classloader

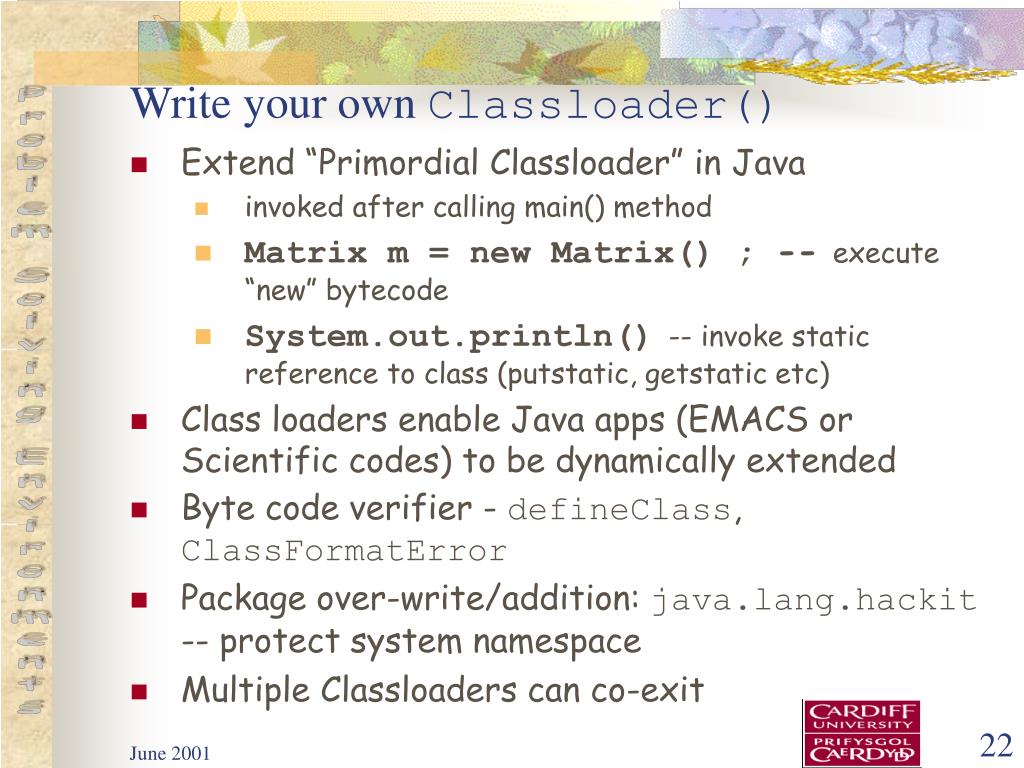

Write your own Classloader()
  • Extend “Primordial Classloader” in Java
    • invoked after calling main() method
    • Matrix m = new Matrix() ; -- execute “new” bytecode
    • System.out.println()-- invoke static reference to class (putstatic, getstatic etc)
  • Class loaders enable Java apps (EMACS or Scientific codes) to be dynamically extended
  • Byte code verifier - defineClass, ClassFormatError
  • Package over-write/addition: java.lang.hackit -- protect system namespace
  • Multiple Classloaders can co-exit
if you have source
If you have source ...
  • Take source header files - extract function defs
  • Create skeleton code that can be filled in, or integrated
  • SWIG
    • Interface compiler - takes C/C++ or Objective-C code
    • Use header file declarations to generate glue code
    • Scripting languages (Python, Perl, Tcl) can then access legacy code via glue code

David Beazley and Peter Lomdahl

“Light Weight Computational Steering of Very Large Scale MD Codes”, Supercomputing 96

slide24

Java: Linking to existing code

Fortran

Prolog

Sockets

C-F Link

C/C++ PROGRAM

COMPILER TO A DLL/.SO FILE

(Native Library)

JAVA PROGRAM

JNI

LIBRARY

HEADER

FILES

slide26

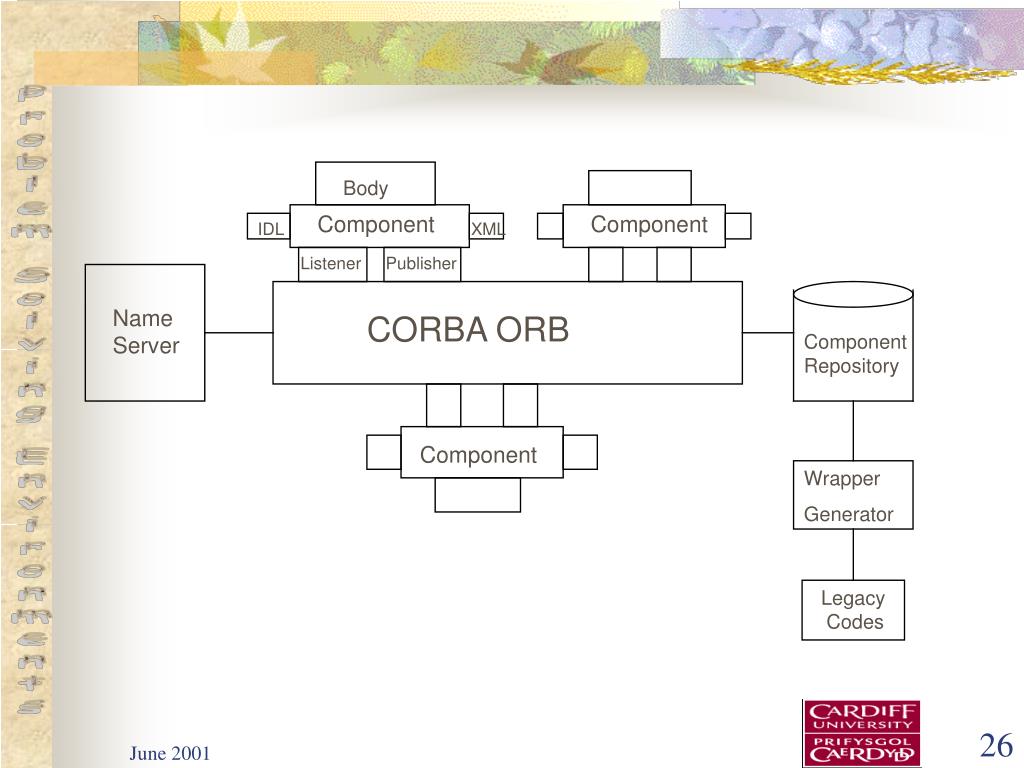

Body

Component

Component

IDL

XML

Listener

Publisher

Name

Server

CORBA ORB

Component

Repository

Component

Wrapper

Generator

Legacy

Codes

data flow for wrapper generator
Data Flow for Wrapper Generator

Executable in

Fortran/C

Wrapper

Generator

Client Stub

Server Interface

XML

Specification

Listener/Publisher

(Can also be used to

support Service Discovery)

Supercomputing 2000,

FGCS, September 2001

slide28

An Application using the WG

  • The legacy code-- A legacy code for molecular dynamics simulations written in C using MPI
    • Based on the Lennard-Jones Fluid
    • Performs Force and Velocity calculations
  • Code wrapping in two ways (Use Visibroker/Java ORB 4.2 from Inprise)
    • Single Object
    • Multiple Objects
slide29

Performance Evaluation

  • Experimental Environment
    • Running the legacy code itself and the wrapped CORBA object respectively on a cluster of workstations and a parallel machine.
    • The number of molecules is increased from 2048 to 256,000.
    • A cluster of workstations running Sun Solaris2.7 and MPICH1.2.0, connected over an intranet (with shared file space) with 10Mb/s Ethernet.
    • The parallel machine is a Sun E6500 with thirty 336MHz Ultra Sparc II processors, running Solaris2.7 and using MPI libraries from Sun Microsystems.
    • Using 8 workstations in the cluster and 8 processors of the parallel machine
splitting code
Splitting Code
  • Code divided into 4 MPI based objects
    • Initialisation - calculates starting positions (X,Y,Z) and velocities of molecules
    • Moveout - calculates molecule movement after each time step, and E/W/N/S/U/D comms - also handles “ghost” regions to support molecule migration
    • Force - calculates force between molecules
    • Output - generates simulation results at each time step
  • Controller object
    • co-ordinates looping across the other four objects
executing code

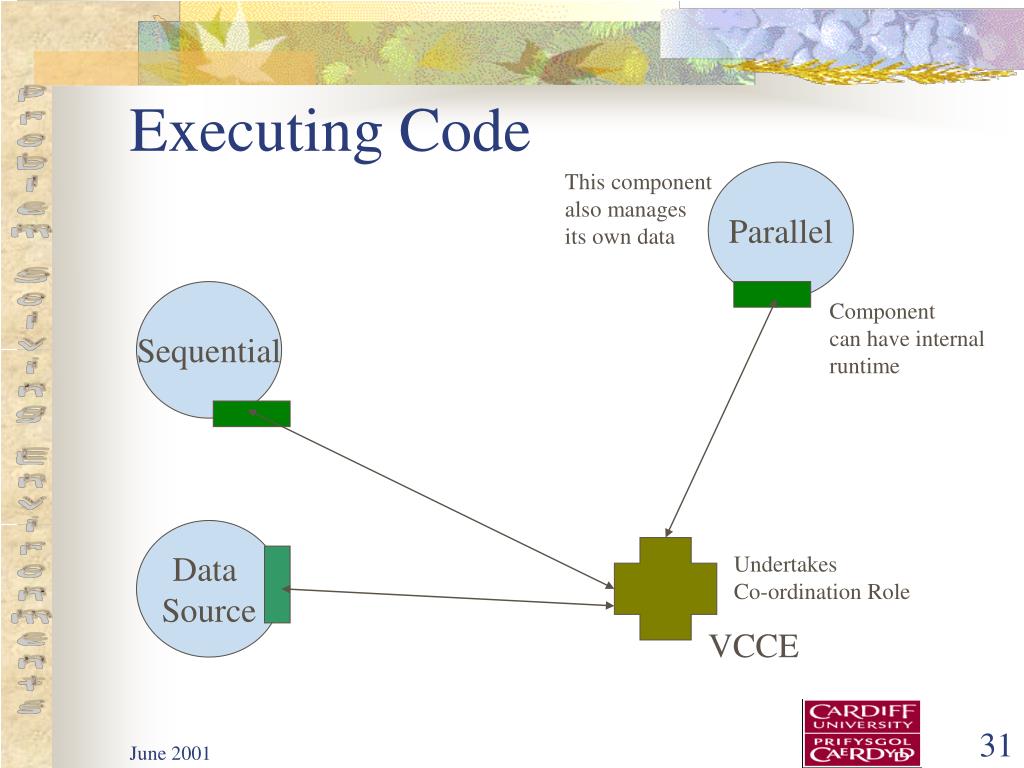

Executing Code

This component

also manages

its own data

Parallel

Sequential

Component

can have internal

runtime

Data

Source

Undertakes

Co-ordination Role

VCCE

performance
Performance

Cluster

Cspace (Sun E6500)

slide34

Listener, Publisher and Body

class SimulationImpl extends _SimulationImplBase

{

public void Listener(String ComponentID, String inputs)

{ ...

if(ComponentID==``MDSimulation'')

read parameters(inputs) from UI component

invoke Body of the Component

}

public void Body(String parameters)

{ ...

execute ``mpirun -np 8 moldyn parameters output.dat''

send data(output.dat) to the Publisher of the component

invoke the Publisher

}

public void Publisher(String ComponentID, String outputs)

{ ...

read data(output.dat) from the Body of the component

ComponentID=``UIComponent''

invoke UI component with outputs

} }

wrapping for grids
Wrapping for Grids
  • Assume existence of standard software
    • Globus for resource management/description
    • Service Request Broker/Data Cutter for data management
    • Jini for service discovery - (GRIP, GRRP)
  • Wrapping involves
    • Specifying executable properties via RSL

& (count=3)

(executable=/usr/bin/java)

(arguments= -classpath /home/comsc/scmds/research be2d)

(lookup = Locator.locator(“cs.cf.ac.uk”);

  • Publisher undertakes registration - GRRP/Discovery-Join Protocol
    • pass control toGRAM/local execution tool via VCCE

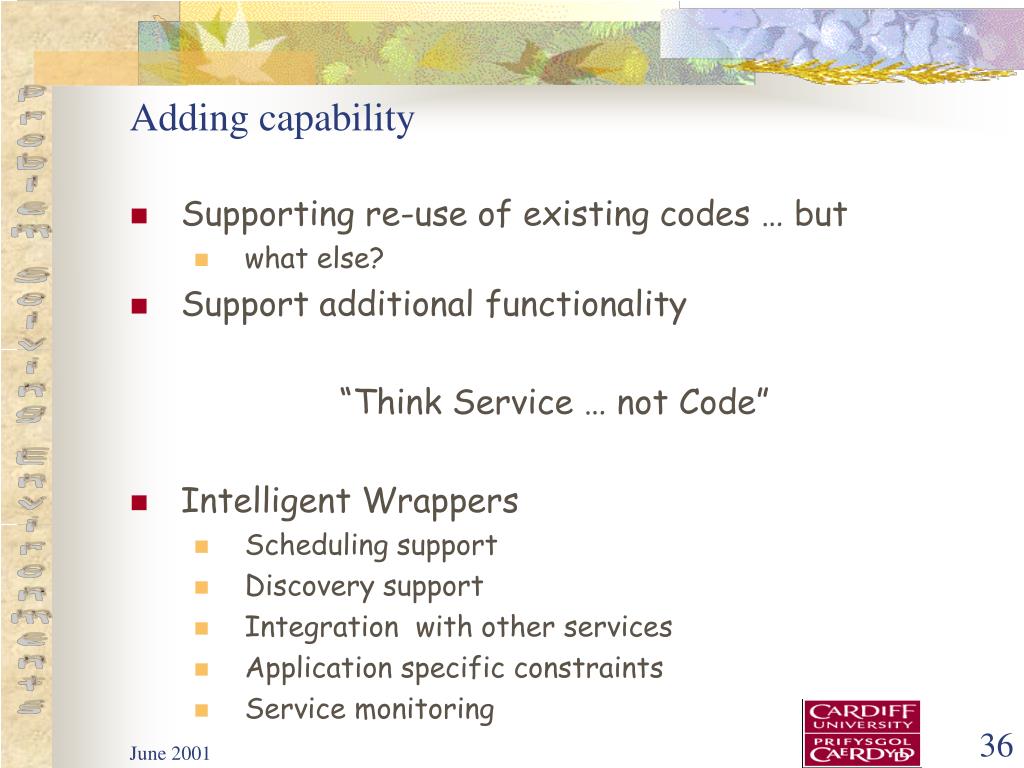

adding capability
Adding capability
  • Supporting re-use of existing codes … but
    • what else?
  • Support additional functionality

“Think Service … not Code”

  • Intelligent Wrappers
    • Scheduling support
    • Discovery support
    • Integration with other services
    • Application specific constraints
    • Service monitoring
agent as wrapper inteface
Agent as Wrapper Inteface
  • Gas Turbine talk: Agent Society
    • Mediator, Solver, User Interface, Mobile -- GrassHopper
    • No Intelligence - except in Pythia
  • Wrap code as an Agent
    • Code + Management function
    • Code receives request for service NOT data types
    • PERFORM, EXECUTE, UPDATE, TELL, ASK, INFORM
    • Can contain executable code OR can act as a proxy for a code
    • Programming language is now no longer important
slide40

Intelligent Agents … more than a message

  • Message contains more detail

Performative

(ask one

:sender pse-cardiff

:content (BAYES CART ?prior)

:receiver data-mine-server

:reply-with prior-probability

:language JAVA

:ontology Data-Mining-Algorithms )

Comms

layer

Message layer

Content layer

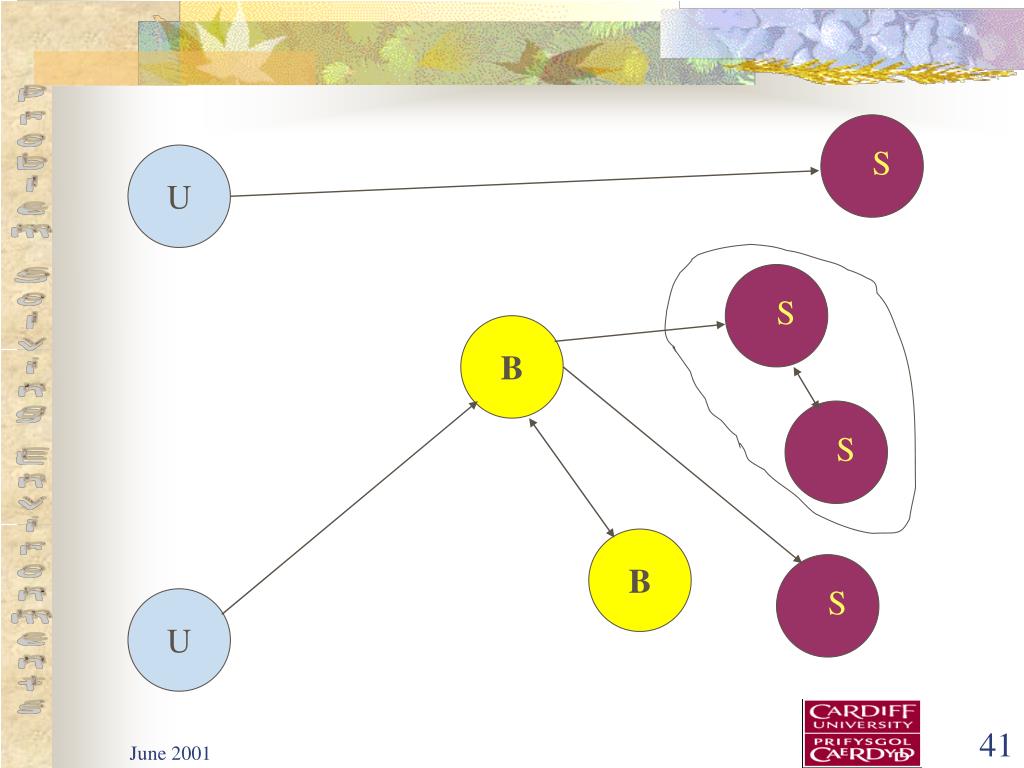

slide41

S

U

S

B

S

B

S

U

agent society
Agent Society
  • Create agents to support services
    • additional “broker” services
  • Agents interact via service requests
    • no data types
    • intuitive to understand
  • Agents are the core abstraction
    • can wrap codes + other software resources
    • negotiate for services
slide43

HPDC 2001 -- workshop on Heterogeneous Computing

with Ken Hawick, David Walker, Mike Surridge, Matthew

Addis, Daniel Bunford-Jones

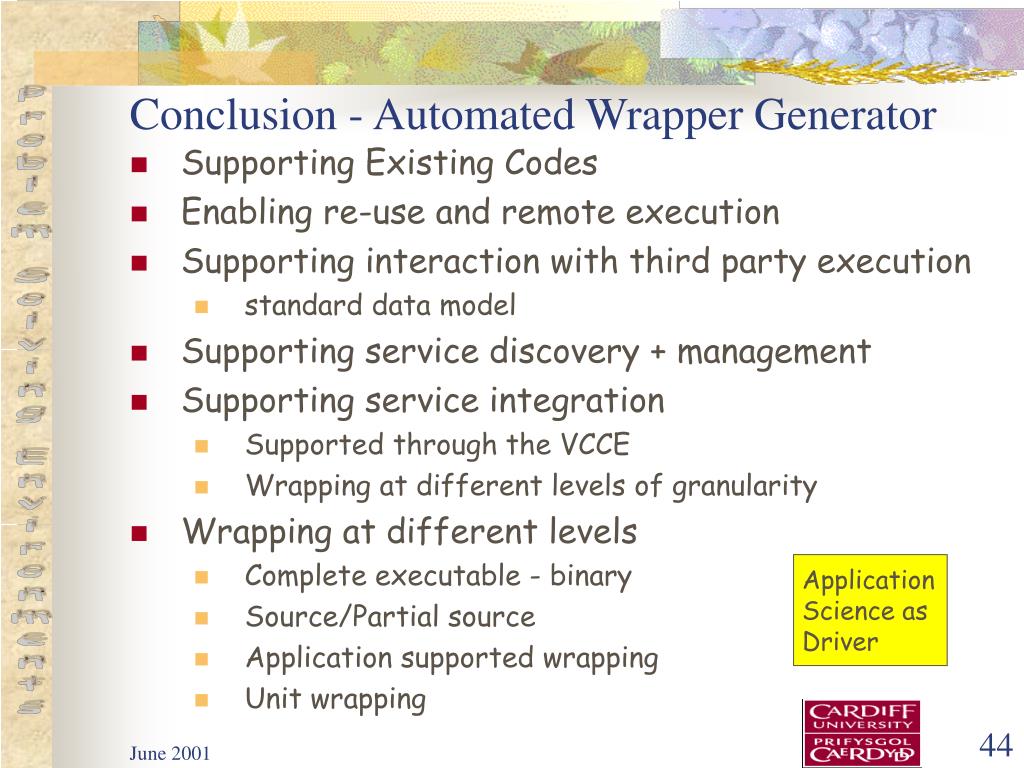

conclusion automated wrapper generator
Conclusion - Automated Wrapper Generator
  • Supporting Existing Codes
  • Enabling re-use and remote execution
  • Supporting interaction with third party execution
    • standard data model
  • Supporting service discovery + management
  • Supporting service integration
    • Supported through the VCCE
    • Wrapping at different levels of granularity
  • Wrapping at different levels
    • Complete executable - binary
    • Source/Partial source
    • Application supported wrapping
    • Unit wrapping

Application

Science as

Driver

some questions
Some Questions
  • How valid is the “services model” in scientific computing (say, vs. business computing)
    • Isn’t scientific computing much more well defined?
    • Do we really need this complexity?
    • What are we trying to do with wrappers?
  • Can we do more with wrappers than just “wrap”
    • Intelligent Wrappers
    • Integration with other software (Globus?)
    • Support for performance
    • Support for local data management
    • Support for streaming

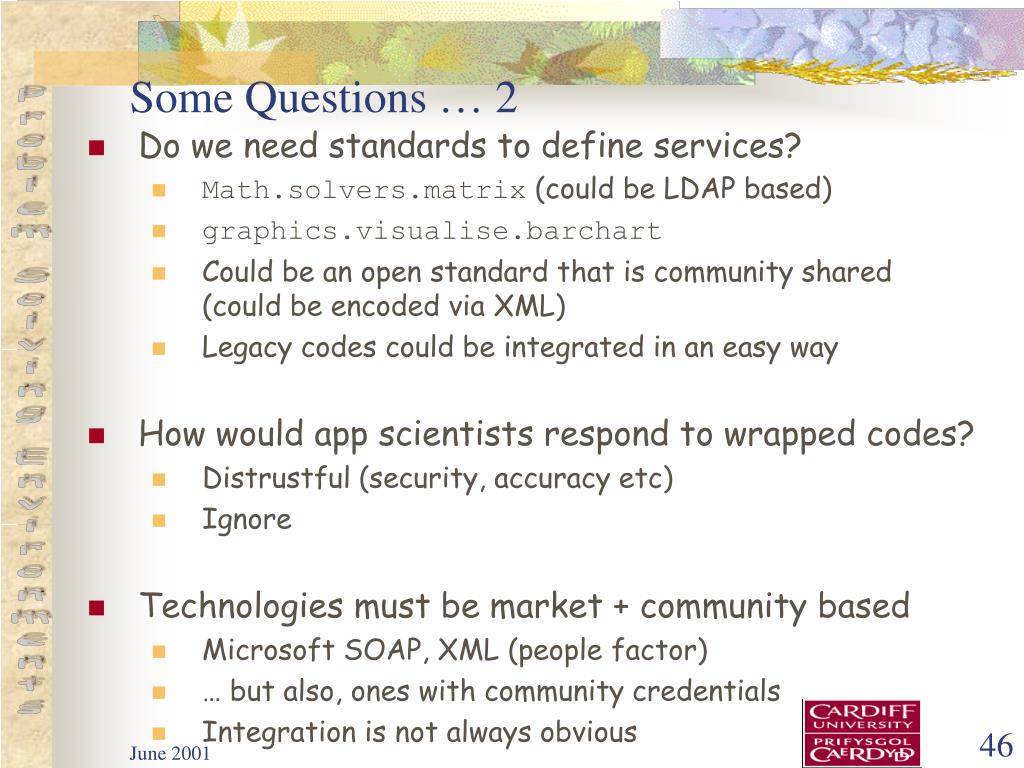

some questions 2
Some Questions … 2
  • Do we need standards to define services?
    • Math.solvers.matrix (could be LDAP based)
    • graphics.visualise.barchart
    • Could be an open standard that is community shared (could be encoded via XML)
    • Legacy codes could be integrated in an easy way
  • How would app scientists respond to wrapped codes?
    • Distrustful (security, accuracy etc)
    • Ignore
  • Technologies must be market + community based
    • Microsoft SOAP, XML (people factor)
    • … but also, ones with community credentials
    • Integration is not always obvious
