slide1

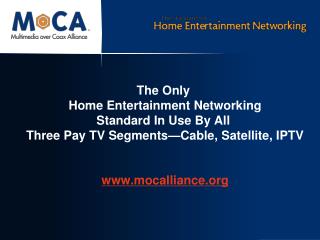

The Only Home Entertainment NetworkingStandard In Use By All Three Pay TV Segments—Cable, Satellite, IPTVwww.mocalliance.org

the organization
The Organization

Established in January 2004 by the most respected service providers and OEMs in the world.

Charter is to establish MoCA technology as the worldwide standard for home entertainment networking and multiroom DVR applications.

In mass deployment by Verizon, DIRECTV and Cox.

Comcast, TWC, Cox, Mediacom, Sunflower, Bright House Networks and many other MSOs and IPTV providers in advanced trials.

On the roadmap of several European cable MSOs.

Liaison with US CableLabs and Korean CableLabs

Liaison with HomePlug Powerline Alliance.

Incorporated into DLNA’s Interoperability Guidelines.

Proud member of CEDIA.

trends in connectivity
Trends in Connectivity

Whole Home DVRs

Connected TVs

Connected Game Consoles

All numbers in Millions

Source: Parks Associates, Home Networks for Consumer Electronics (2009).

Courtesy Comcast

Anything that can connect will connect!

set top boxes nas
...Set Top Boxes, NAS

ADB ADB-6880CX

Motorola DCX-3400M

Motorola QIP6416

Motorola DCX-3200M

Pace DC900X HD DVR

Network Attached Storage Device

Cisco Explorer 8652HDC DVR with M-Card Interface

ethernet bridges gateways
...Ethernet Bridges, Gateways…

Westell UltraLine

Series3 MoCA Gateway

Actiontec ECB2200

MoCA Network Adapter

Actiontec MI424WR Broadband Home Router

D-Link DXN-221

Coax Ethernet Adapter Kit

NetGear MCAB1001

Ethernet to Coax Bridge

moca by the numbers
MoCA By The Numbers

Only standard in use by all three pay TV segments (telco, cable, DBS).

More than 70 certified products (STBs, ONTs, BHRs, ECBs and chips)

More than 55 members. Multiple chip vendors.

More than 35 million nodes in the field.

MoCA is forecast to eventually be in more than 90 percent off all pay TV households in the US.

moca technology value proposition
MoCA Technology Value Proposition
  • No new wires. Uses existing coax.
  • Coax is the best medium for HD video
    • Found in 90 percent of all US homes
    • Prevalent in many (though not all) European homes.
  • No interference with other technologies and mediums.
  • Complementary to wireless—extends wireless backbone in home.
  • Independent field tests validating all claims regarding high performance and high reliability.
field tests
Field Tests

Field tests in 250 homes around US

Validated net throughputs of more than 100 Mb/s in 97 percent of ALL outlets.

Only Alliance to conduct and publish field tests!

moca 1 0 and 1 1
MoCA 1.0 and 1.1
  • MAC rate (net throughput): 175 Mb/s (MoCA 1.1)
  • PHY rate: 270 Mb/s
  • Operating frequency 850 – 1500 MHz
  • Flexible spectrum usage – 50 MHz coexisting with cable or satellite
  • Support for 16 nodes
  • Quality of Service (QoS)
    • Prioritized QoS – differentiated service for video, voice and gaming
    • Parameterized QoS – reserved bandwidth
    • MIB/SNMP and TR-069 Management interface
  • MoCA 1.1 Annex
    • Expanded operating frequency of 500 MHz—1500MHz
moca 2 0 ratified
MoCA 2.0 Ratified
  • Two performance modes
    • 400 and 800 Mb/s MAC (net or actual) throughputs
    • 700 and 1.4 Gb/s PHY rates
    • Turbo mode for each through channel bonding
  • Energy savings
    • Sleep and standby power modes
    • Address power consumption in entire network
  • Backward interoperable with MoCA 1.0/1.1
    • Protects investment in current equipment. No firmware or swap out necessary.
  • Enhanced reliability
    • One error packet in 100 million
    • 3.5 ms latency
  • Expanded operating frequency from 500 – 1650 MHz
slide16

MoCA CH1 - ONT to BHR WAN traffic

MoCA CH2 - BHR to STB LAN traffic

Early Adopter: Verizon FiOS

video the core product for telcos
Video…The Core Product for Telcos

From Advanced Television, September 21, 2009:

Verizon CEO Ivan Seidenberg says video, not voice, will be the core product over his expanding fibre network. He said he no longer worried about looking for the "inflection point" in the loss of access lines."I don't care about that any more, I am going to focus on driving FiOS penetration and taking costs out," he said, adding that he felt "liberated". He said capital spending would fall in the next two years, and the company was shedding "non-strategic" rural units. He expected the FiOS network would stretch to 70 per cent of Verizon’s fixed-line customer base.He said that with TV, the PC and the Internet converging, the carrier’s future would be in selling video services, such as interactive TV, bundled with wireless voice."So what I need to do is get ourselves focused around the following idea, that video is going to be the core product in the fixed line business. We are going to bundle it with wireless, we are going to integrate software over all the screens.“

http://www.advanced-television.com/2009/sep21_sep25.htm#t6

directv multi room hd dvr
DIRECTV Multi-room HD DVR
  • Streams full resolution HD recordings to any DIRECTV HD STB from one or more DIRECTV Plus® HD DVRs
    • Watch recorded shows in any room, with just one HD DVR
    • Start watching in one room, finish watching in another room
    • Record and delete shows from any room

18

comcast home networking
Comcast Home Networking
  • Important criteria for home networks
    • Throughput, ability to reliably and securely transfer video
    • QoS
    • Number of nodes supported within the home
    • Leverage existing wiring
    • Open Standards
    • Maintainability and support
    • Cost -Ubiquity
projected moca market share
Projected MoCA Market Share

97 Million Pay TV Households

slide24
The Only Home Entertainment Networking Standard in Use by all Three Pay TV segments —Cable, Satellite and IPTV
