analog to digital conversion
Analog-to-Digital Conversion

Terminology

analog: continuously valued signal, such as temperature or speed, with infinite possible values in between

digital: discretely valued signal, such as integers, encoded in binary

analog-to-digital converter: ADC, A/D, A2D; converts an analog signal to a digital signal

digital-to-analog converter: DAC, D/A, D2A

An embedded system’s surroundings typically involve many analog signals.

analog to digital converters

Vmax = 7.5V

4

4

1111

7.0V

1110

6.5V

1101

3

3

6.0V

1100

5.5V

1011

2

2

analog input (V)

analog output (V)

5.0V

1010

4.5V

1001

1

1

4.0V

1000

3.5V

0111

time

time

0110

3.0V

t1

t2

t3

t4

t1

t2

t3

t4

2.5V

0101

0100

0110

0110

0101

0100

1000

0110

0101

2.0V

0100

Digital input

Digital output

1.5V

0011

1.0V

0010

0.5V

0001

0V

0000

analog to digital

digital to analog

proportionality

Analog-to-digital converters

Embedded Systems Design: A Unified Hardware/Software Introduction,(c) 2000 Vahid/Givargis

proportional signals
Proportional Signals

Simple Equation

Assume minimum voltage of 0 V.

Vmax = maximum voltage of the analog signal

a = analog value

n = number of bits for digital encoding

2n = number of digital codes

M = number of steps, either 2nor 2n – 1

d = digital encoding

a / Vmax = d / M

resolution
Resolution

Let n = 2

M = 2n – 1

3 steps on the digital scale

d0 = 0 = 0b00

dVmax = 3 = 0b11

M = 2n

4 steps on the digital scale

d0 = 0 = 0b00

dVmax - r = 3 = 0b11 (no dVmax )

r, resolution: smallest analog change resulting from changing one bit

dac vs adc

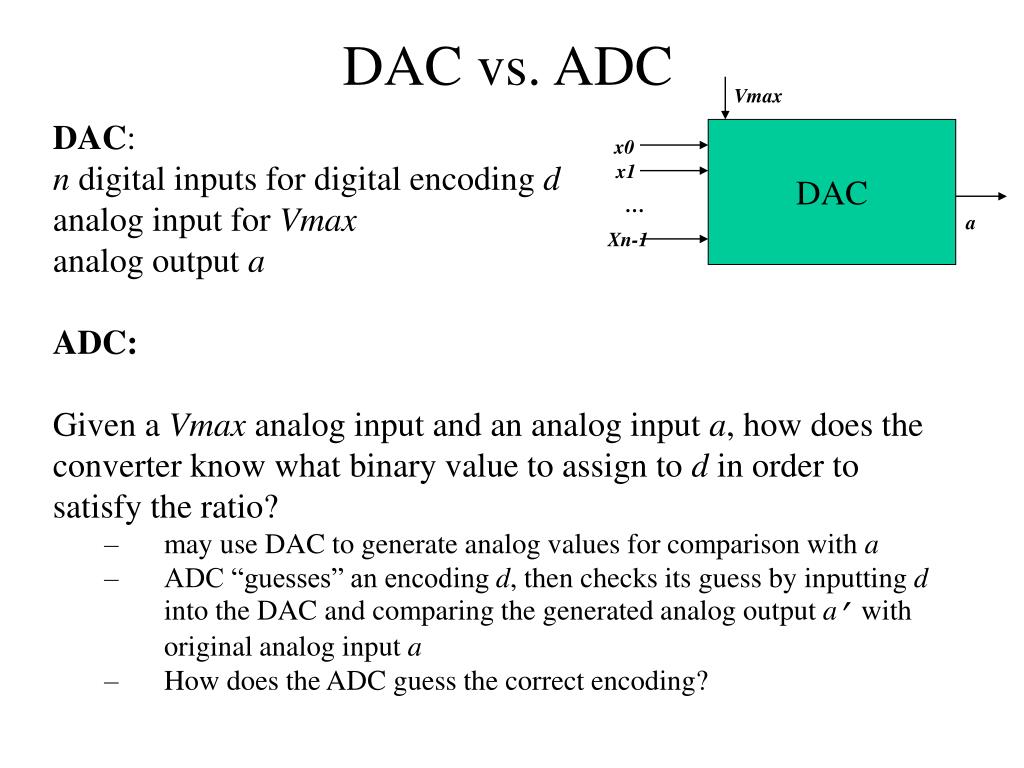

DAC vs. ADC

Vmax

DAC

x0

x1

a

DAC:

n digital inputs for digital encoding d

analog input for Vmax

analog output a

ADC:

Given a Vmax analog input and an analog input a, how does the converter know what binary value to assign to d in order to satisfy the ratio?

  • may use DAC to generate analog values for comparison with a
  • ADC “guesses” an encoding d, then checks its guess by inputting d into the DAC and comparing the generated analog output a’ with original analog input a
  • How does the ADC guess the correct encoding?

Xn-1

adc digital encoding
ADC: Digital Encoding

Guessing the encoding is similar to finding an item in a list.

  • Sequential search – counting up: start with an encoding of 0, then 1, then 2, etc. until find a match.
      • 2n comparisons: Slow!
  • Binary search – successive approximation: start with an encoding for half of maximum; then compare analog result with original analog input; if result is greater (less) than the original, set the new encoding to halfway between this one and the minimum (maximum); continue dividing encoding range in half until the compared voltages are equal
      • n comparisons: Faster, but more complex converter

 Takes time to guess the encoding: start conversion input, conversion complete output

adc using successive approximation
ADC using successive approximation
  • Given an analog input signal whose voltage should range from 0 to 15 volts, and an 8-bit digital encoding, calculate the correct encoding for 5 volts. Then trace the successive-approximation approach to find the correct encoding.
  • Assume M = 2n – 1

a / Vmax = d / M

5 / 15 = d / (256 - 1)

d = 85 or binary 01010101

adc using successive approximation8

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

1

0

1

0

0

0

0

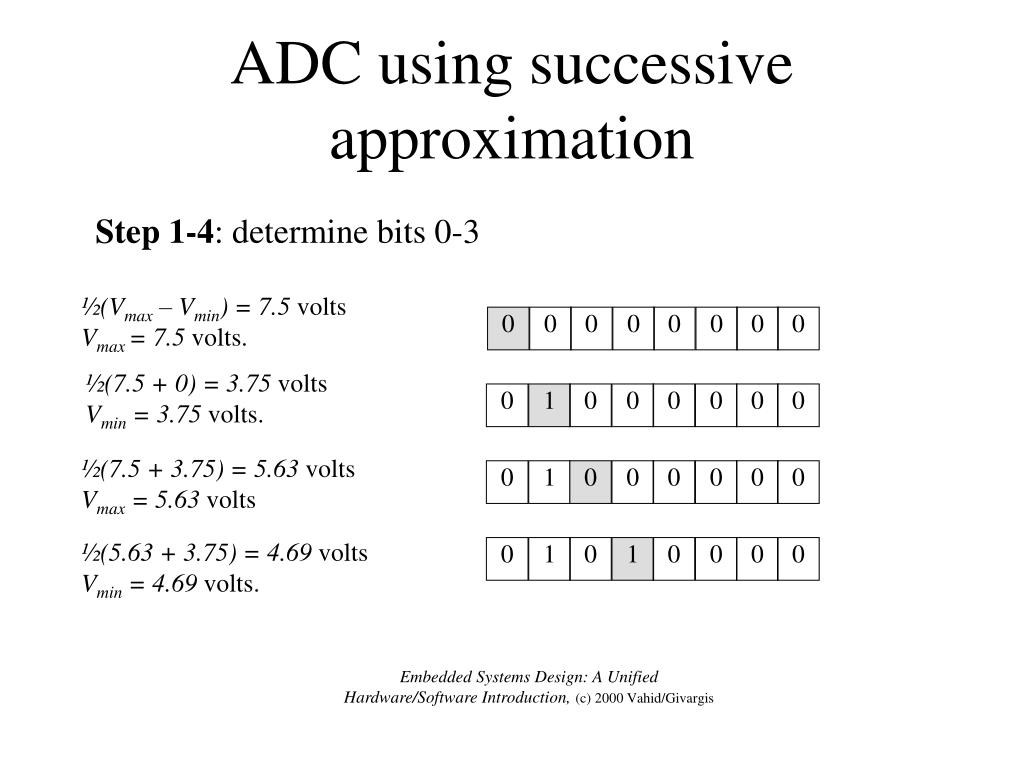

ADC using successive approximation

Step 1-4: determine bits 0-3

½(Vmax – Vmin) = 7.5 volts

Vmax = 7.5 volts.

½(7.5 + 0) = 3.75 volts

Vmin = 3.75 volts.

½(7.5 + 3.75) = 5.63 volts

Vmax = 5.63 volts

½(5.63 + 3.75) = 4.69 volts

Vmin = 4.69 volts.

Embedded Systems Design: A Unified Hardware/Software Introduction,(c) 2000 Vahid/Givargis

adc using successive approximation9

0

1

0

1

0

0

0

0

0

1

0

1

0

1

0

0

0

1

0

1

0

1

0

0

0

1

0

1

0

1

0

1

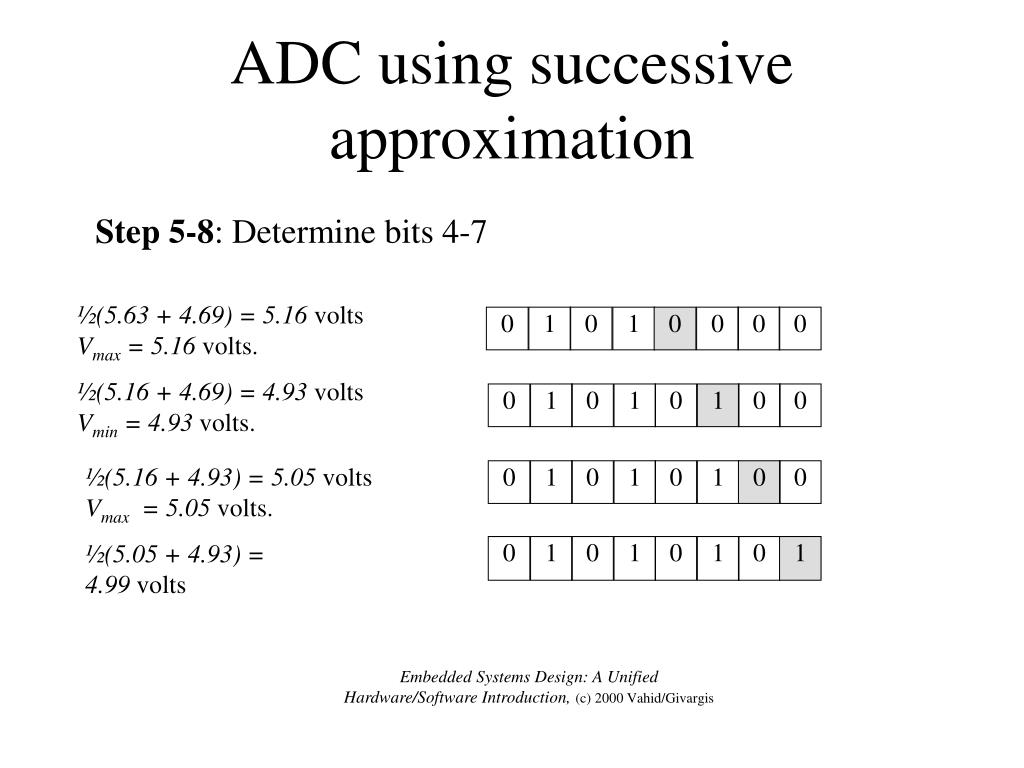

ADC using successive approximation

Step 5-8: Determine bits 4-7

½(5.63 + 4.69) = 5.16 volts

Vmax = 5.16 volts.

½(5.16 + 4.69) = 4.93 volts

Vmin = 4.93 volts.

½(5.16 + 4.93) = 5.05 volts

Vmax = 5.05 volts.

½(5.05 + 4.93) = 4.99 volts

Embedded Systems Design: A Unified Hardware/Software Introduction,(c) 2000 Vahid/Givargis

constructing adc
Constructing ADC

Statemachine

Analoginput

Timingcontrol

SAR

BUF

Vmax

DAC

Digitaloutput

Vmin

SAR

Comparator

SAR: Successiveapproximation register

bit weight
Bit Weight

Notice the concept of bit weight in the last example:

bit 7 = 7.5 V = 15/2

bit 6 = 3.75 V = 15/4

Each bit is weighted with an analog value, such that a 1 in that bit position adds its analog value to the total analog value represented by the digital encoding.

Example: -5 V to +5 V analog range, n=8

bit weight12

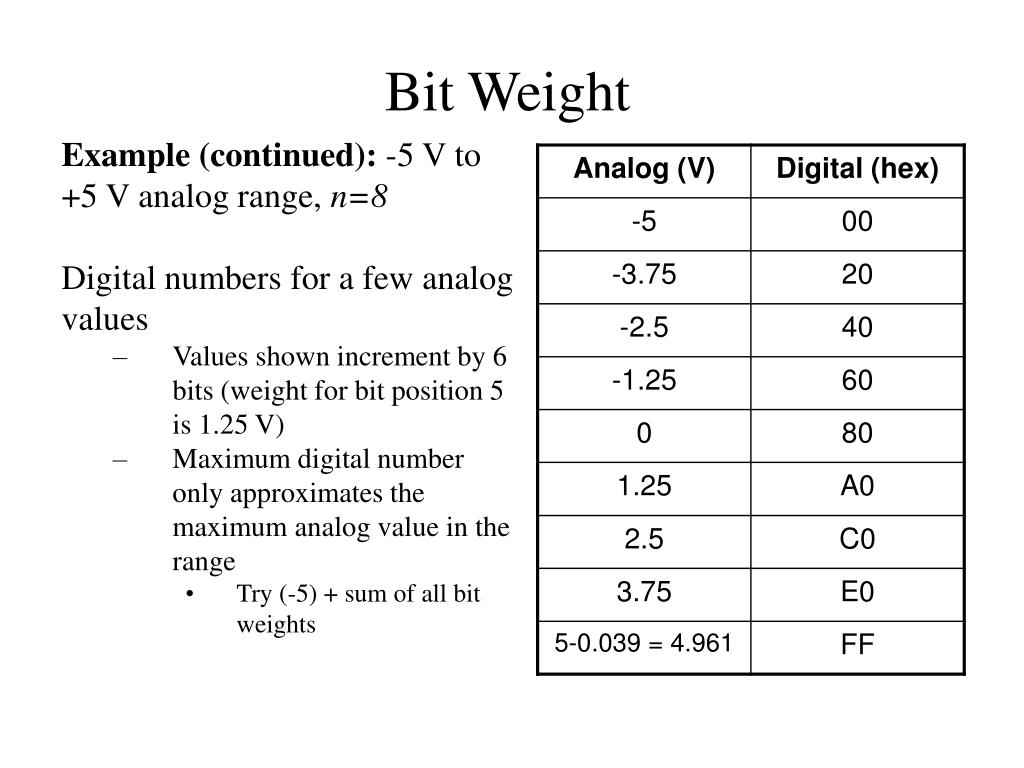

Bit Weight

Example (continued): -5 V to +5 V analog range, n=8

Digital numbers for a few analog values

  • Values shown increment by 6 bits (weight for bit position 5 is 1.25 V)
  • Maximum digital number only approximates the maximum analog value in the range
    • Try (-5) + sum of all bit weights
terms equations
Terms & Equations

Offset: minimum analog value

Span (or Range): difference between maximum and minimum analog values

Max - Min

n: number of bits in digital code (sometimes referred to as n-bit resolution)

Bit Weight: analog value corresponding to a bit in the digital number

Step Size (or Resolution): smallest analog change resulting from changing one bit in the digital number, or the analog difference between two consecutive digital numbers; also the bit weight of the

Span / 2n(Assume M = 2n)

Let AV be Analog Value; DN be Digital Number:

AV = DN * Step Size + Offset = (DN / 2n)* Span + Offset

DN = (AV - Offset) / Step Size = (AV - Offset) * 2n / Span

mpc555 qadc64
MPC555 QADC64

QADC64 - Queued Analog to Digital Converter Module-64

  • 16 analog channels via internal multiplexing
  • 10-bit ADC resolution
  • Converts voltage to an integer value (0-1023)
  • Polling or interrupt driven
  • Programmable channels

AN0-ANx

mpc555 qadc6416
MPC555 QADC64

CCW Table

CCW0

CCW1

CCW63

A CCW tells the ADC which channel to scan and how long to sample the signal.

AN0

AN1

AN2

AN3

ADC

QACR1: start a scan by setting SSE bit

QASR0: CF flag is set after conv is done

Result Table

Result0

Result1

Result63

A Result is stored for each scan of a channel when the conversion is complete.

scan sequence and conversion

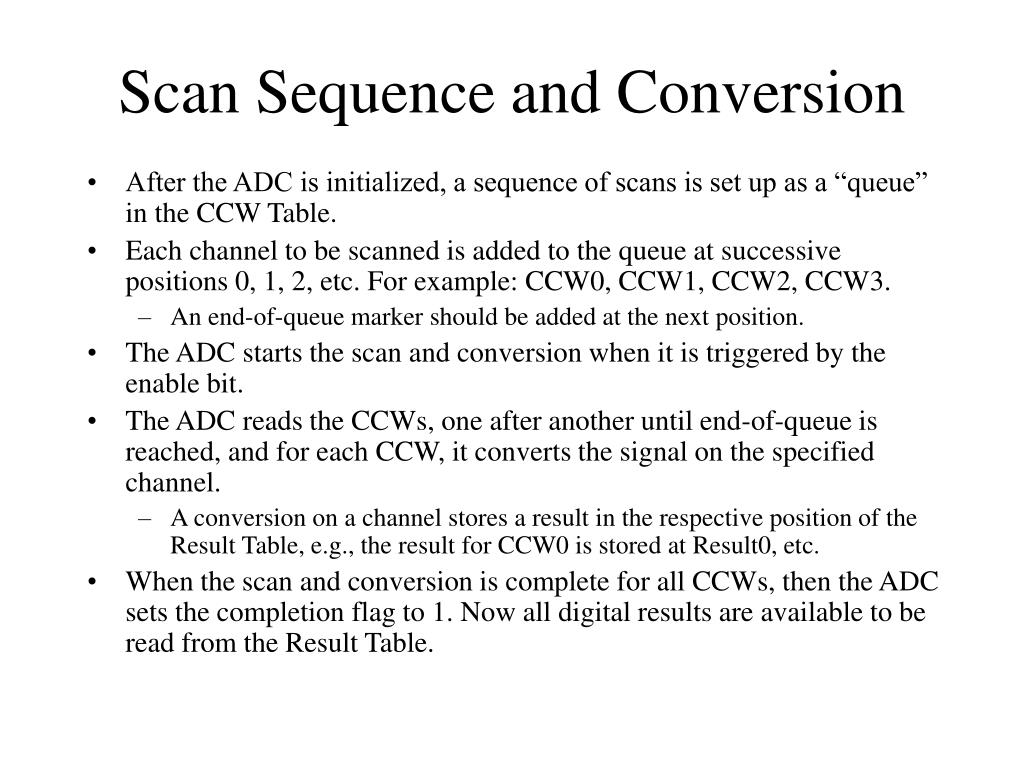

Scan Sequence and Conversion
  • After the ADC is initialized, a sequence of scans is set up as a “queue” in the CCW Table.
  • Each channel to be scanned is added to the queue at successive positions 0, 1, 2, etc. For example: CCW0, CCW1, CCW2, CCW3.
    • An end-of-queue marker should be added at the next position.
  • The ADC starts the scan and conversion when it is triggered by the enable bit.
  • The ADC reads the CCWs, one after another until end-of-queue is reached, and for each CCW, it converts the signal on the specified channel.
    • A conversion on a channel stores a result in the respective position of the Result Table, e.g., the result for CCW0 is stored at Result0, etc.
  • When the scan and conversion is complete for all CCWs, then the ADC sets the completion flag to 1. Now all digital results are available to be read from the Result Table.
qadc interface
QADC Interface
  • Programmability using a queue
    • Scan a few channels quickly
    • Scan a channel multiple times
    • Scan large number of channels
  • QACR1 – QADC64 Control Register 1
    • 16 bit register at 0x30480C
    • SSE1 – bit 2 – Single Scan enable (bit 0 is MSb)
    • MQ1 – bits 3-7
      • Set to binary 00001 to identify Queue 1
  • QASR0 – QADC64 Status Register 0
    • 16 bit register at 0x304810
    • ADC sets a flag when the conversion is done
    • CF1 – bit 0 – Conversion Complete flag (bit 0 is MSb)
qadc interface19
QADC Interface
  • CCW Table
    • table of Conversion Command Words, where each command word specifies how to perform a scan/conversion operation for an input channel
    • CCW: 16 bit command word, starting at address 0x304A00
    • A queue is a scan sequence of one or more input channels.
    • A queue is started by a trigger event, which is a way to cause the QADC64 to begin executing the command words.
    • Each CCW requests the conversion of an analog channel to a digital result. The CCW specifies the analog channel number, the input sample time, and whether the queue is to pause after the current CCW.
qadc interface20
QADC Interface
  • Total conversion time: initial sample time, final sample time, and resolution time
    • Initial sample time – time during which the selected input channel is driven by the buffer amplifier onto the sample capacitor (disabled by means of the BYP bit in the CCW)
    • Final sampling period – time to set up DAC array
    • Resolution period – time to convert voltage in the DAC array to a digital value
qadc interface21

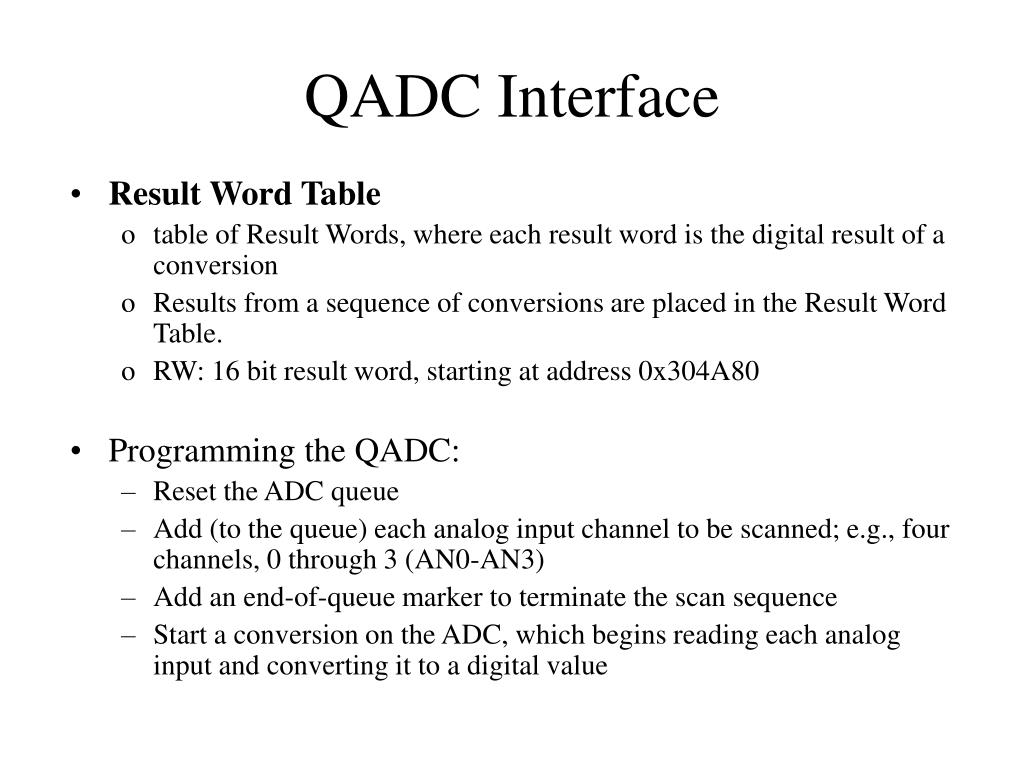

QADC Interface
  • Result Word Table
    • table of Result Words, where each result word is the digital result of a conversion
    • Results from a sequence of conversions are placed in the Result Word Table.
    • RW: 16 bit result word, starting at address 0x304A80
  • Programming the QADC:
    • Reset the ADC queue
    • Add (to the queue) each analog input channel to be scanned; e.g., four channels, 0 through 3 (AN0-AN3)
    • Add an end-of-queue marker to terminate the scan sequence
    • Start a conversion on the ADC, which begins reading each analog input and converting it to a digital value

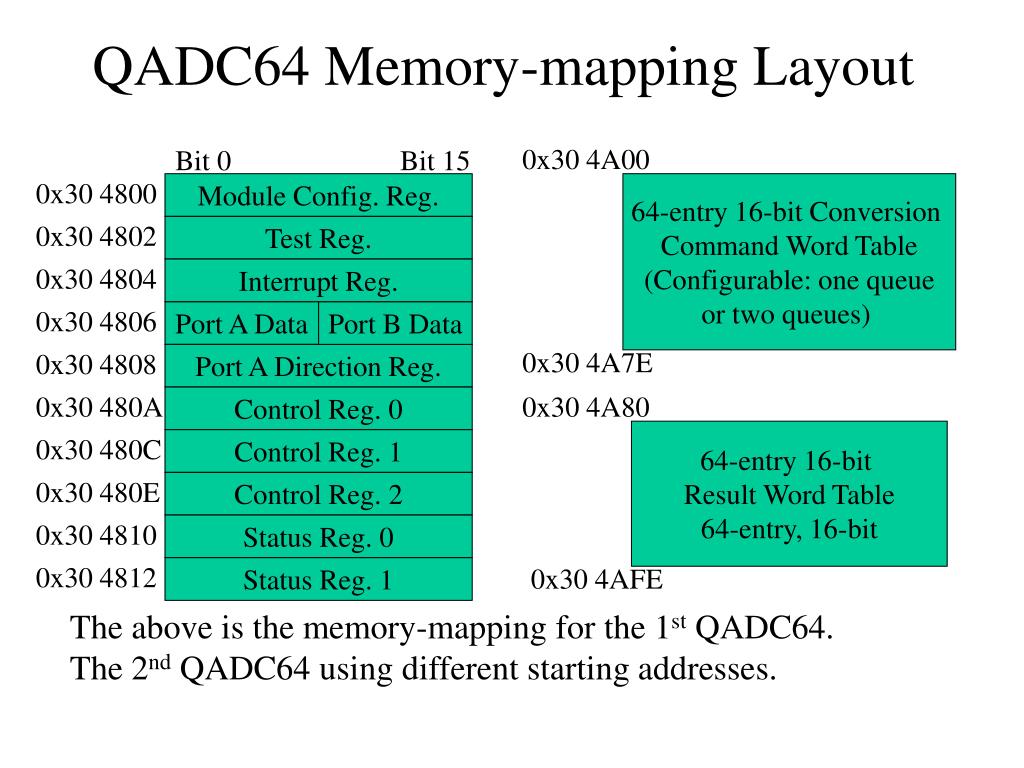

qadc64 memory mapping layout
QADC64 Memory-mapping Layout

0x30 4A00

Bit 0

Bit 15

0x30 4800

Module Config. Reg.

64-entry 16-bit Conversion Command Word Table(Configurable: one queueor two queues)

0x30 4802

Test Reg.

0x30 4804

Interrupt Reg.

0x30 4806

Port A Data

Port B Data

0x30 4A7E

0x30 4808

Port A Direction Reg.

0x30 480A

0x30 4A80

Control Reg. 0

64-entry 16-bit

Result Word Table

64-entry, 16-bit

0x30 480C

Control Reg. 1

0x30 480E

Control Reg. 2

0x30 4810

Status Reg. 0

0x30 4812

0x30 4AFE

Status Reg. 1

The above is the memory-mapping for the 1st QADC64.The 2nd QADC64 using different starting addresses.

programming qadc64
Programming QADC64

6

7

8

9

10

11

12

12

14

15

CCW Format:

P

BYP

IST

CHAN

  • Example: Write a CCW into CCW table to scan channel nChannel with no amplifier bypassing and 4-cycle initial sample time (16 cycles in total).
    • nQueueVal = nChannel;nQueueVal = nQueueVal & 0xFF3F; nQueueVal = nQueueVal | 0x0040;*(pCCWTable + nQueue) = nQueueVal;
programming the adc
Programming the ADC
  • Initialize the QADC: reset queue to be empty; set up interrupt driven mode, interrupt levels, clock rate.
  • Write into the command word queue (a sequence of A to D conversion commands).
  • In software triggered mode, initiate the conversion by writing into QACR[SSE] bit.
  • Monitor the conversion finished flag (CF).
  • Read the results, and reset CF and PF flags.
programming qadc6427
Programming QADC64

Example: Reset QADC64 by writing END-OF-QUEUE (63 in decimal) as the first word of CCW table.

void QADCR64_Reset()

{

g_nNumChannels = 0;

QADCR64_SetQueue(0, QADCR64_END_QUEUE, QADCR64_QCKL_MAX);

}

QADCR64_SetQueue: Given CCW entry index, CCW channel/end-of-queue command, and final sample setting, write the corresponding CCW.

programming qadc6428
Programming QADC64

Example: Start scanning in polling mode (interrupt disabled)

  • Set up control register 1

void QADCR64_Start_Convert_Poll ()

{

unsigned short * pQACR1;

pQACR1 = (unsigned short *) 0x30480C;

// Bit 0 CIE1 Conversion Interrupt Enable 0

// Bit 1 PIE1 Pause Interrupt Enable 0

// Bit 2 SSE1 Single Scan Enable 1

// MQ=00001; software triggered single scan mode

*pQACR1 = 0x2100;

}

programming qadc6429
Programming QADC64

Example: Determine if all conversions has finished

  • Checking status register 0

unsigned short QADCR64_Is_Done()

{

unsigned short * pQASR0;

unsigned short nResult;

pQASR0 = (unsigned short *) 0x304810; nResult = (*pQASR0 & 0x8000);

return nResult;

}

qadc64 interrupt programming
QADC64 Interrupt Programming

Set up interrupt register (0x304804 for 1st QADC)

  • IRL1, IRL2: interrupt levels for queue 1 and queue 2, respectively.
  • 5-bit interrupt level: QADC64 is IMB3 device with interrupt level 0-31 (stored in UIPEND).
  • Interrupt is generated at the completion of a CCW if it is the end of queue or has the pause bit set.

0

4

5

9

10

15

IRL1

IRL2

Reserved
