Presentation Transcript

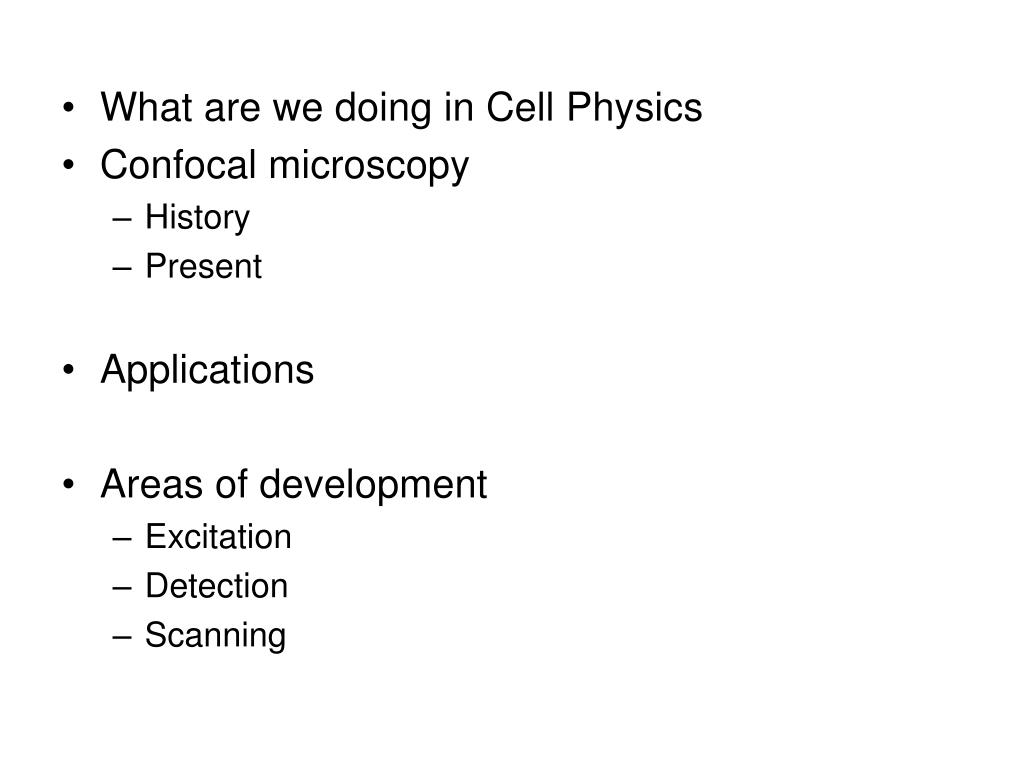

slide2
What are we doing in Cell Physics
  • Confocal microscopy
    • History
    • Present
  • Applications
  • Areas of development
    • Excitation
    • Detection
    • Scanning
cell physics

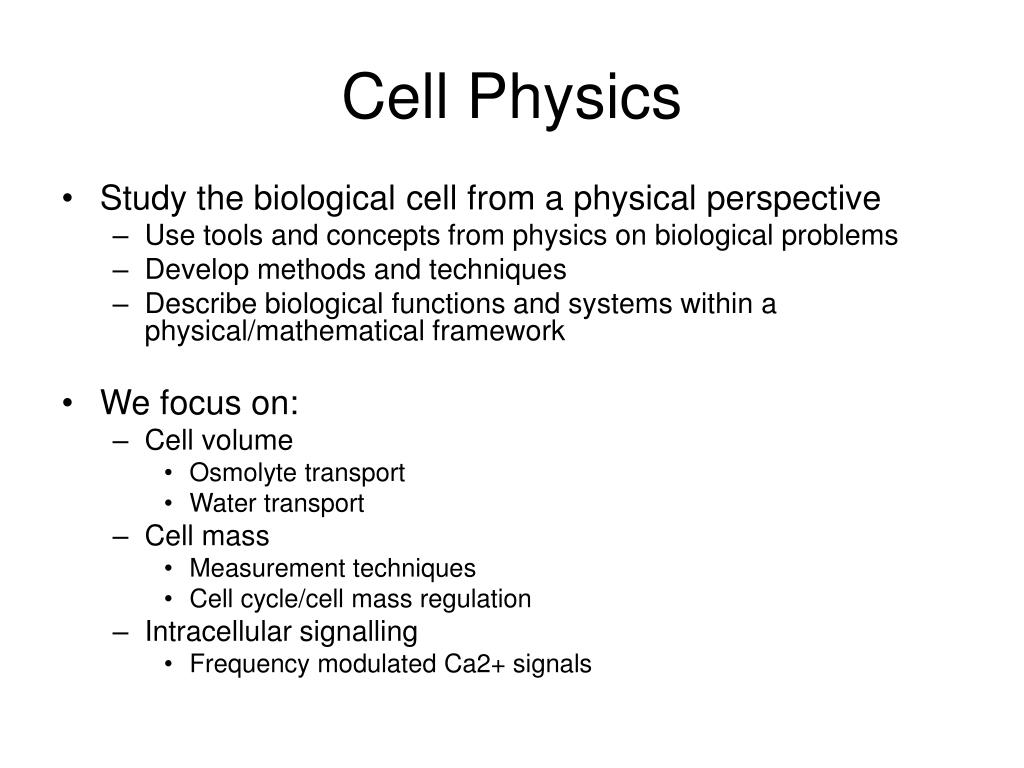

Cell Physics
  • Study the biological cell from a physical perspective
    • Use tools and concepts from physics on biological problems
    • Develop methods and techniques
    • Describe biological functions and systems within a physical/mathematical framework
  • We focus on:
    • Cell volume
      • Osmolyte transport
      • Water transport
    • Cell mass
      • Measurement techniques
      • Cell cycle/cell mass regulation
    • Intracellular signalling

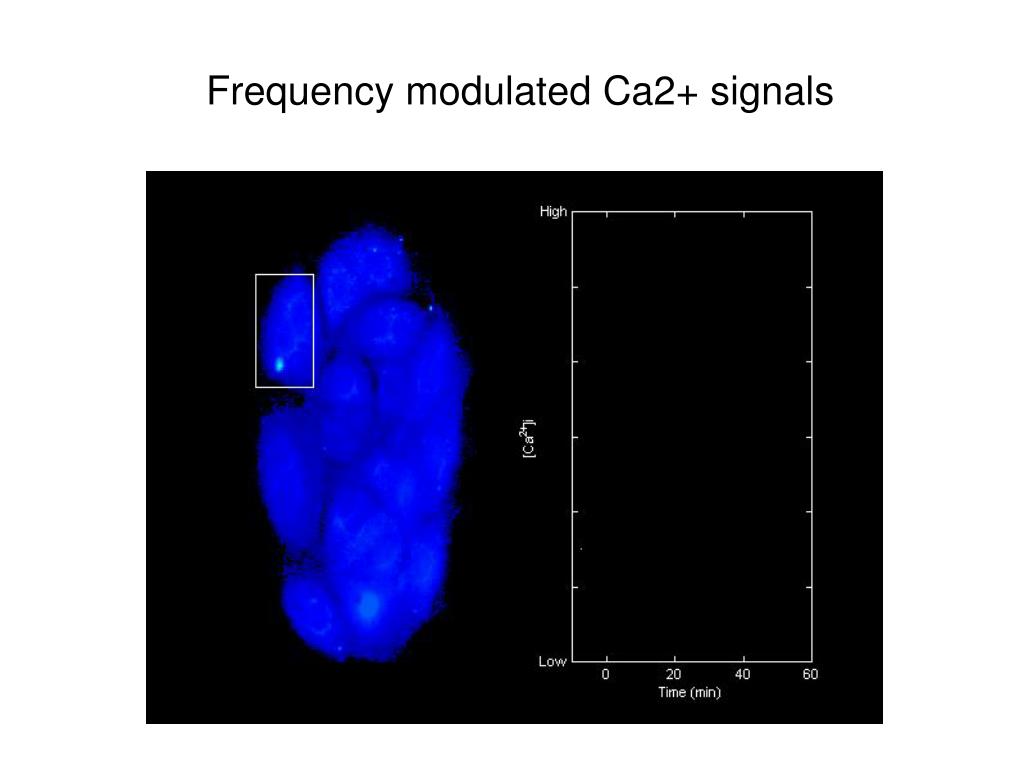

      • Frequency modulated Ca2+ signals
instrumentation
Instrumentation
  • Microscopy (widefield, confocal, multiphoton)
    • Fluorescencent probes
    • Fluorescent labels, antibodies
    • Genetically engineered, GFP
  • Electrophysiology
    • Patch clamp
    • MEA, multi electrode arrays
confocal microscopy

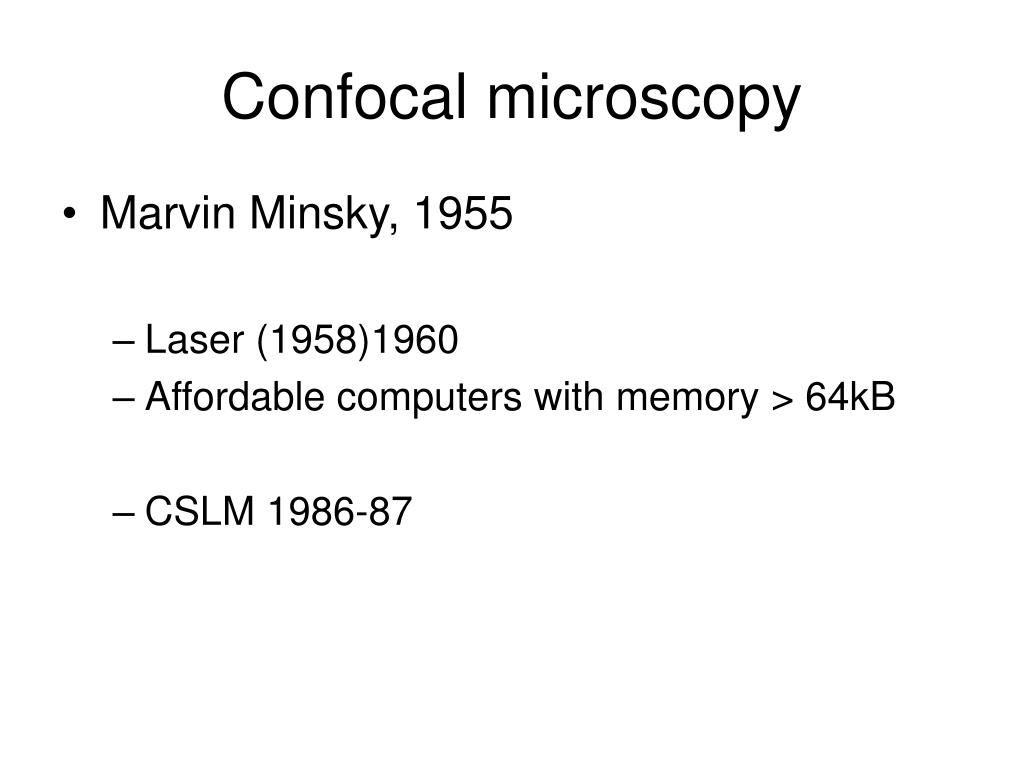

Confocal microscopy
  • Marvin Minsky, 1955
    • Laser (1958)1960
    • Affordable computers with memory > 64kB
    • CSLM 1986-87

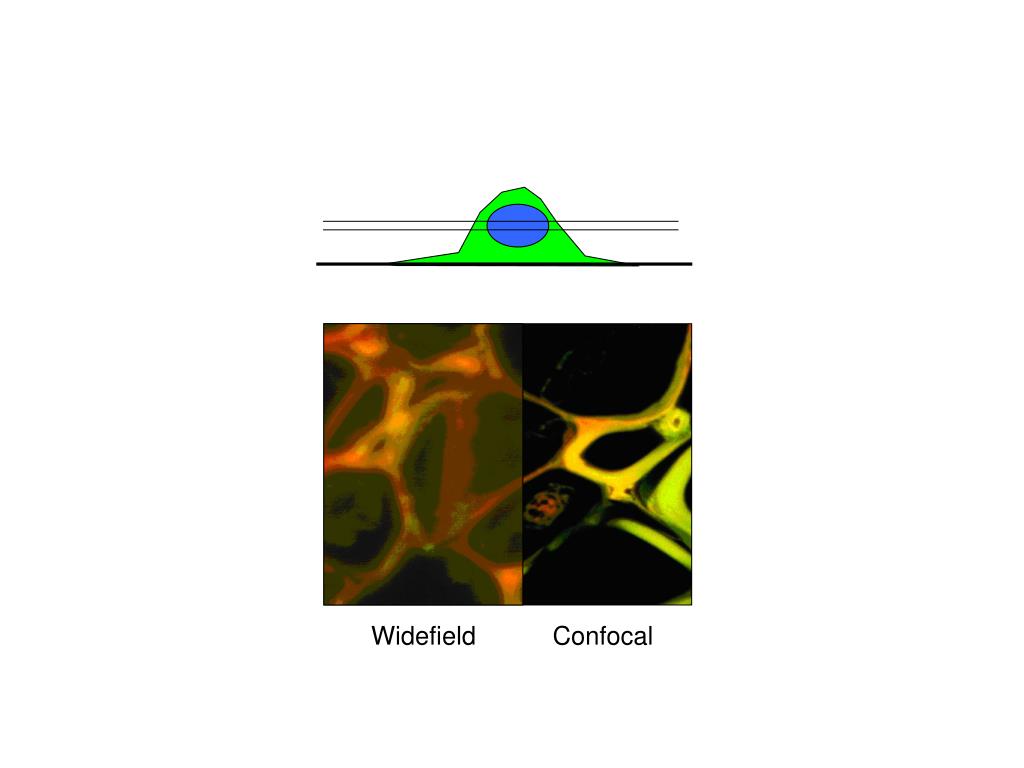

slide8

Widefield

Confocal

confocal evolution

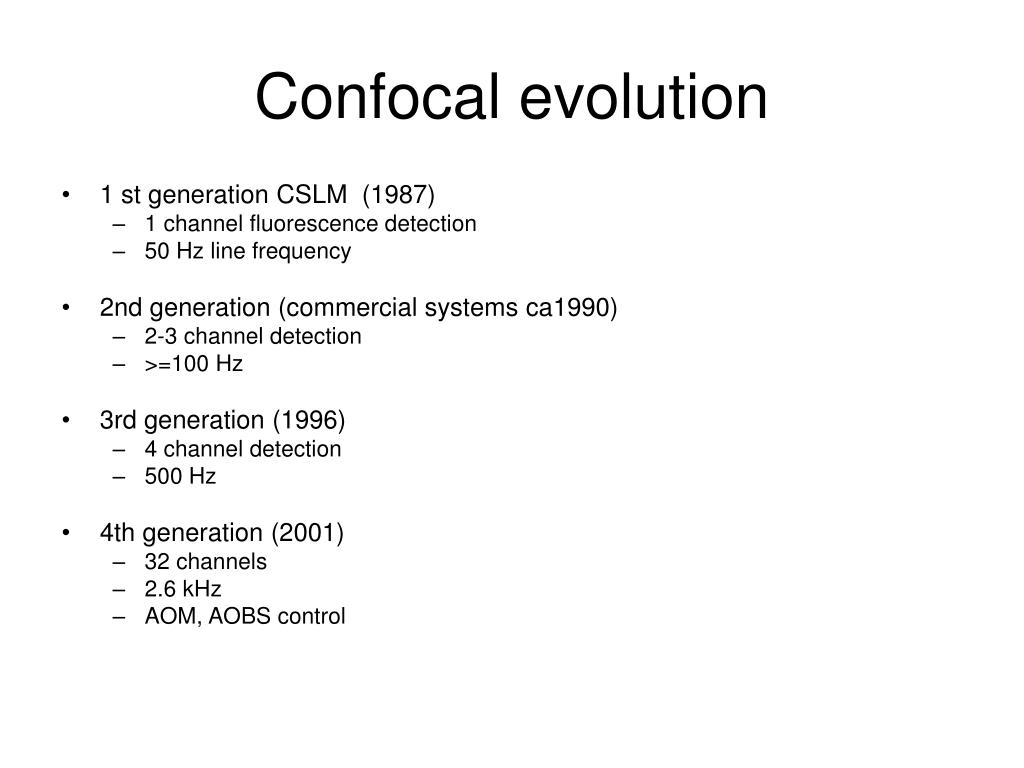

Confocal evolution
  • 1 st generation CSLM (1987)
    • 1 channel fluorescence detection
    • 50 Hz line frequency
  • 2nd generation (commercial systems ca1990)
    • 2-3 channel detection
    • >=100 Hz
  • 3rd generation (1996)
    • 4 channel detection
    • 500 Hz
  • 4th generation (2001)
    • 32 channels
    • 2.6 kHz
    • AOM, AOBS control

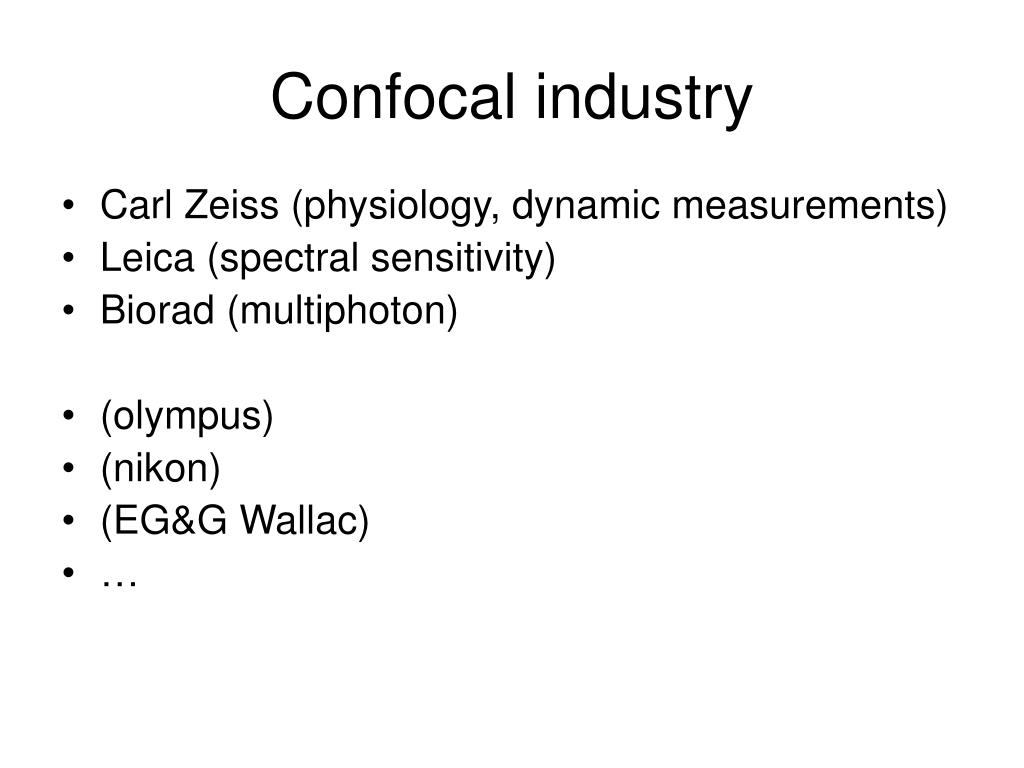

confocal industry
Confocal industry
  • Carl Zeiss (physiology, dynamic measurements)
  • Leica (spectral sensitivity)
  • Biorad (multiphoton)
  • (olympus)
  • (nikon)
  • (EG&G Wallac)
slide12

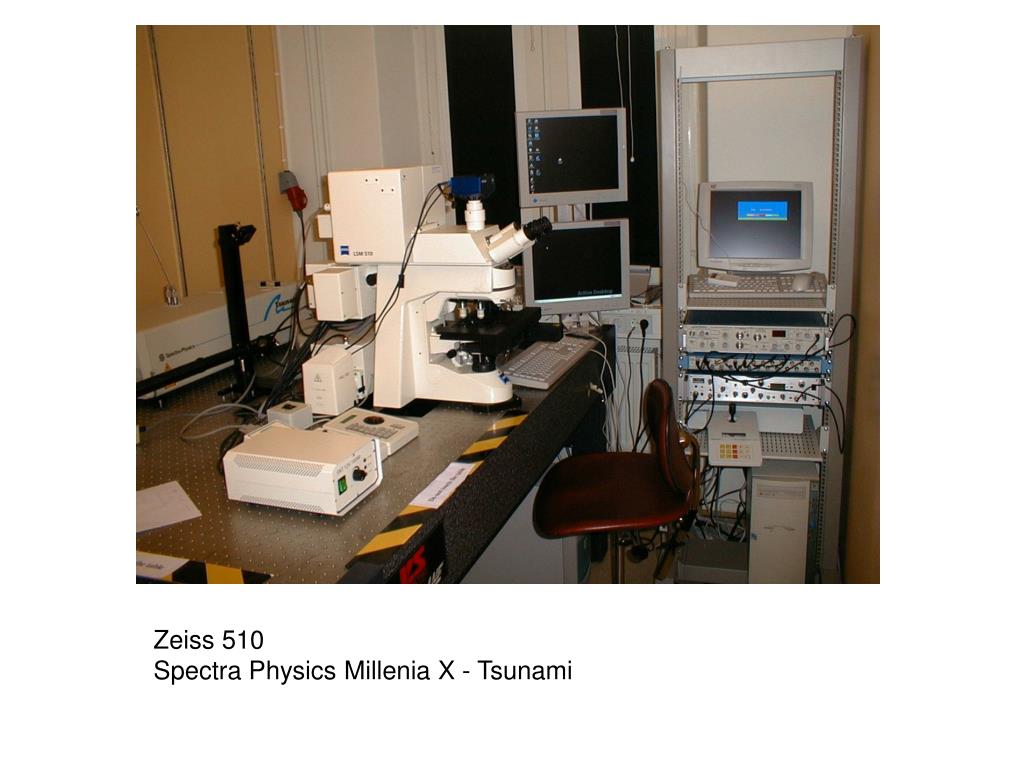

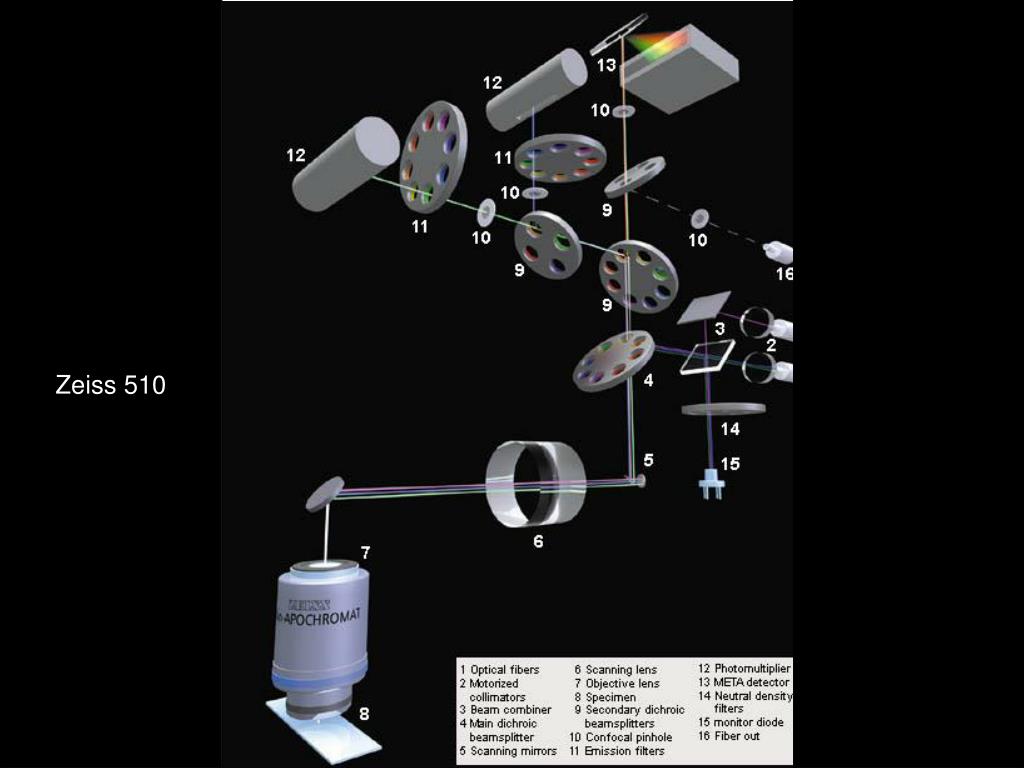

Zeiss 510

Spectra Physics Millenia X - Tsunami

slide14

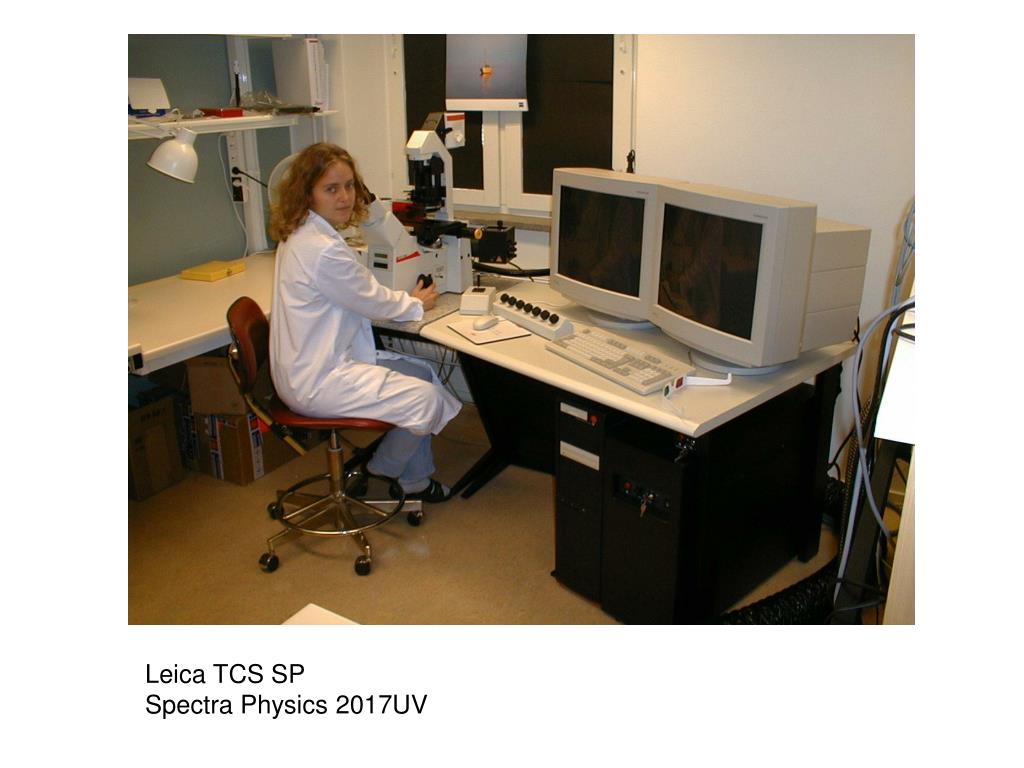

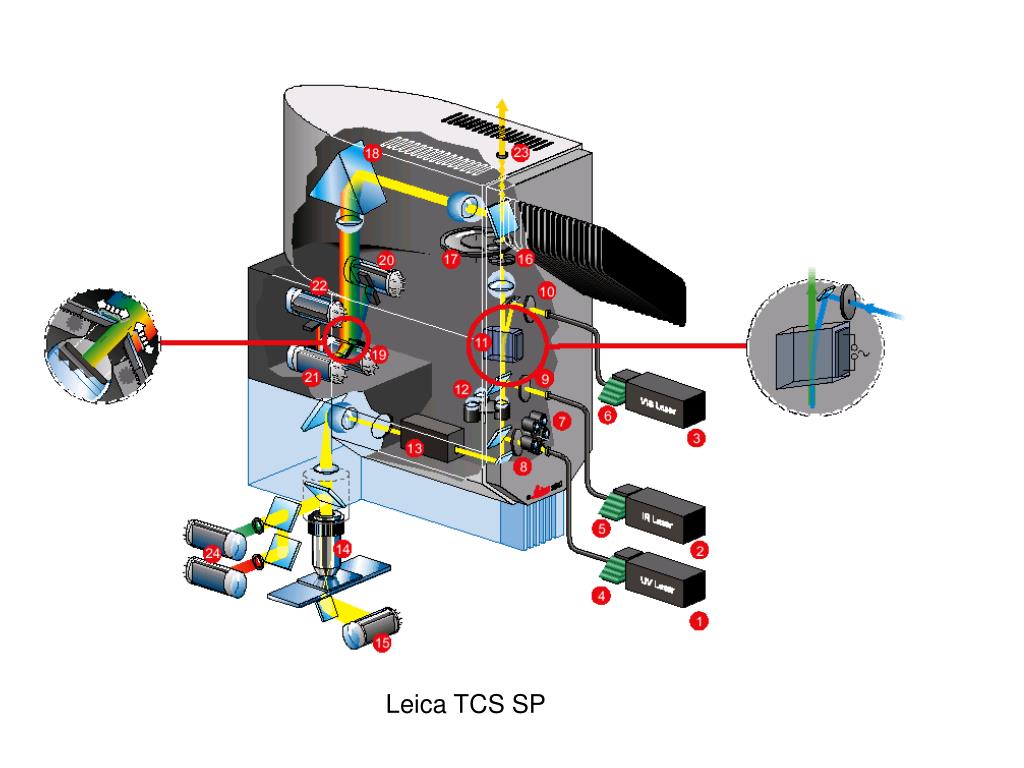

Leica TCS SP

Spectra Physics 2017UV

applications techniques

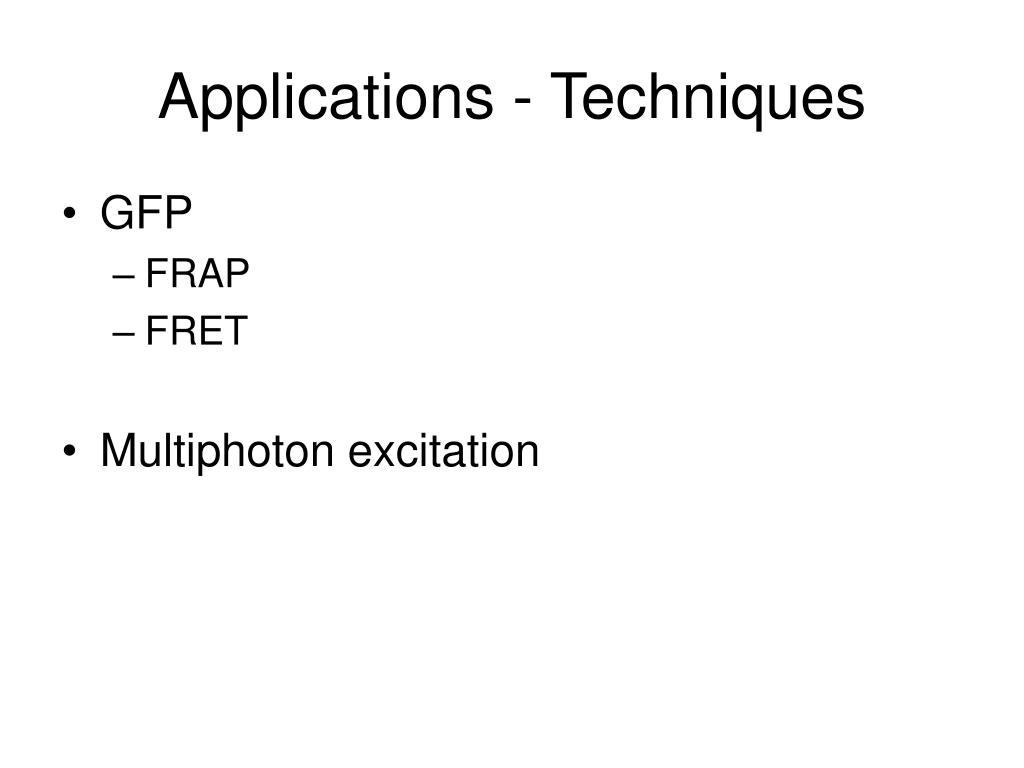

Applications - Techniques
  • GFP
    • FRAP
    • FRET
  • Multiphoton excitation

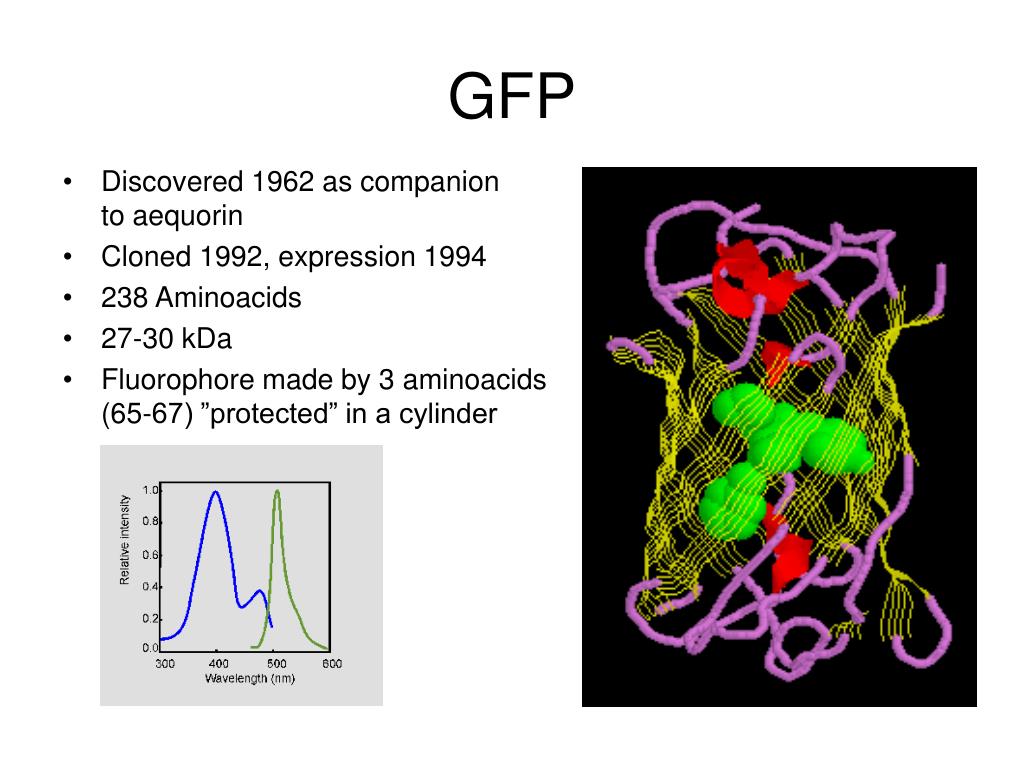

slide17
GFP
  • Discovered 1962 as companion to aequorin
  • Cloned 1992, expression 1994
  • 238 Aminoacids
  • 27-30 kDa
  • Fluorophore made by 3 aminoacids (65-67) ”protected” in a cylinder
dynamics
Dynamics

GFP-Tubulin in Drosophila

protein mobility bleaching experiments

immobile

mobile

Bleach

Protein mobility – bleaching experiments

FRAP – Fluorescence recovery after photbleaching

variants of fp
Variants of FP
    • Blue BFP
    • Cyan CFP
    • Green GFP
    • Yellow YFP
    • Red DsRedHcRed
  • GFP timer

CFP GFP

CFP YFP

fluorescence resonance energy transfer fret
Fluorescence Resonance Energy Transfer FRET

Donor

Acceptor

  • Spectral overlap
  • Distance <10 nm
interaction fret fluorescence resonance energy transfer

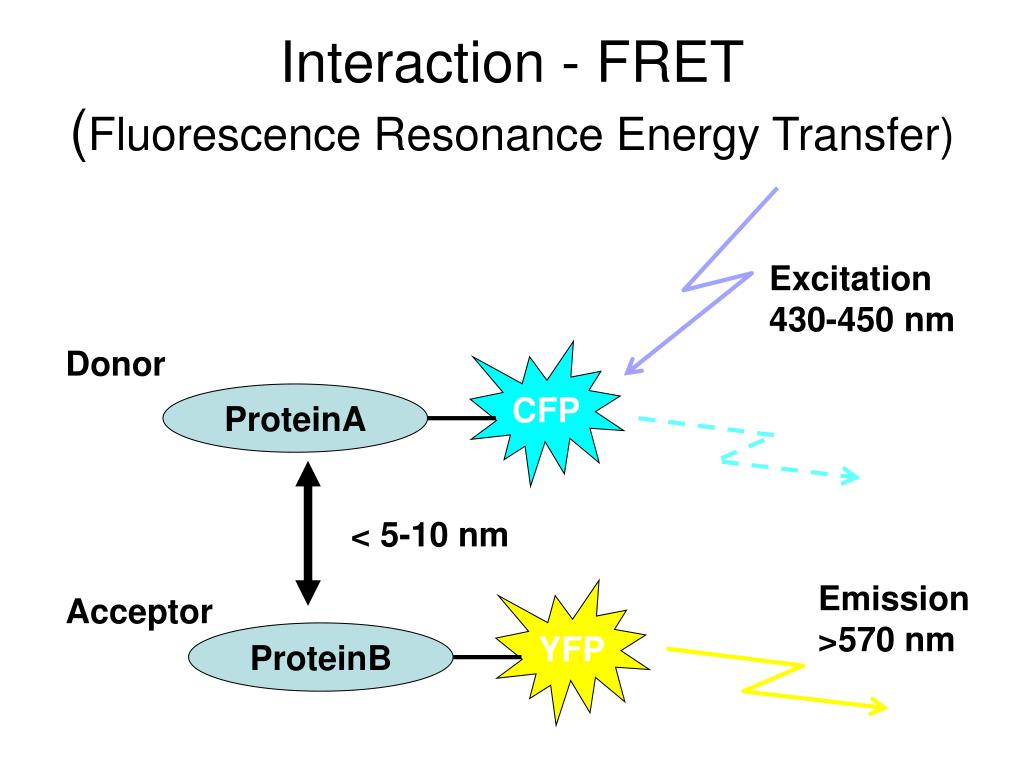

Interaction - FRET(Fluorescence Resonance Energy Transfer)

Excitation 430-450 nm

Donor

CFP

ProteinA

< 5-10 nm

Emission

>570 nm

YFP

Acceptor

ProteinB

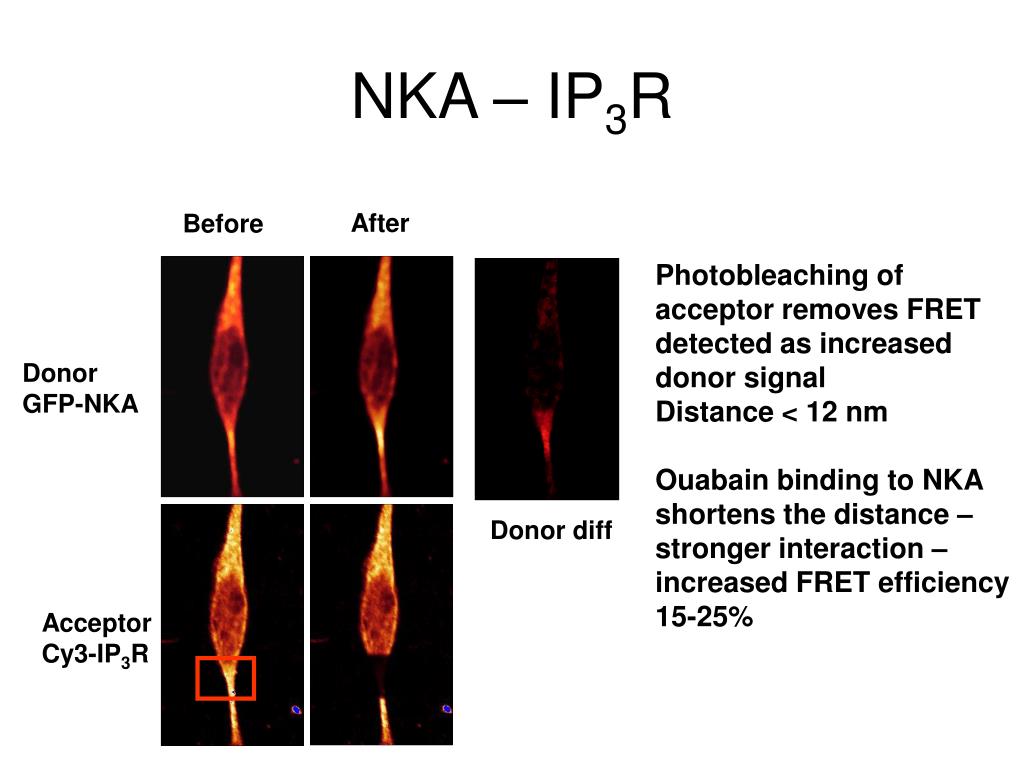

nka ip 3 r

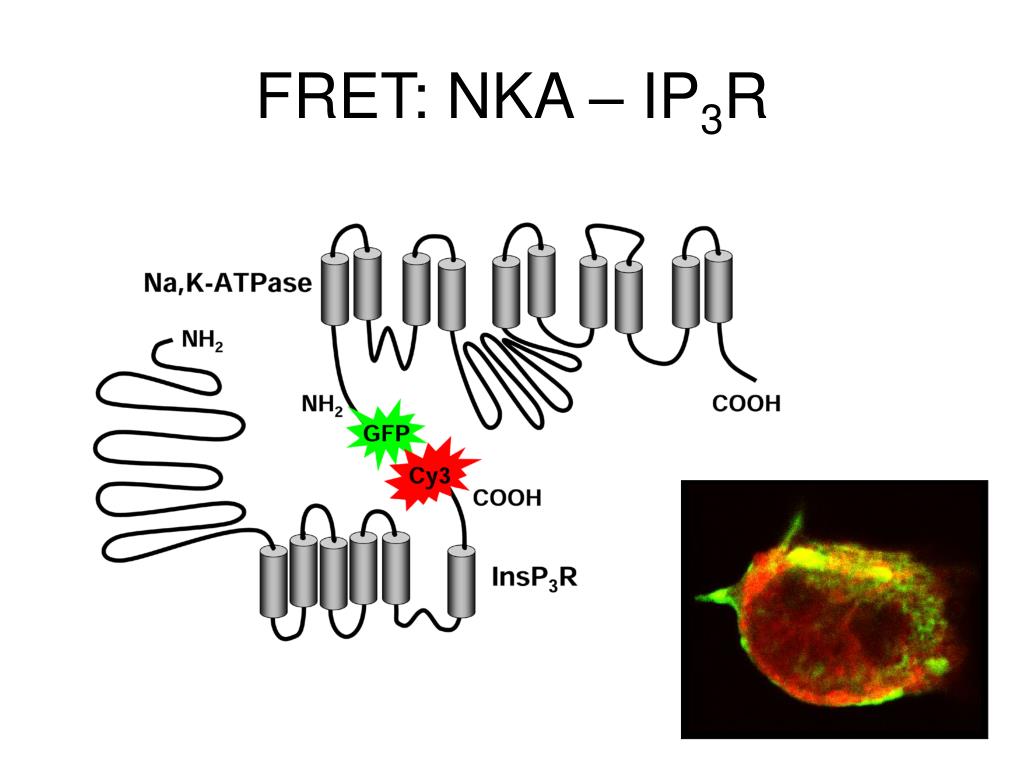

NKA – IP3R

After

Before

Photobleaching ofacceptor removes FRETdetected as increased donor signal

Distance < 12 nm

Ouabain binding to NKAshortens the distance – stronger interaction –increased FRET efficiency15-25%

Donor

GFP-NKA

Donor diff

Acceptor

Cy3-IP3R

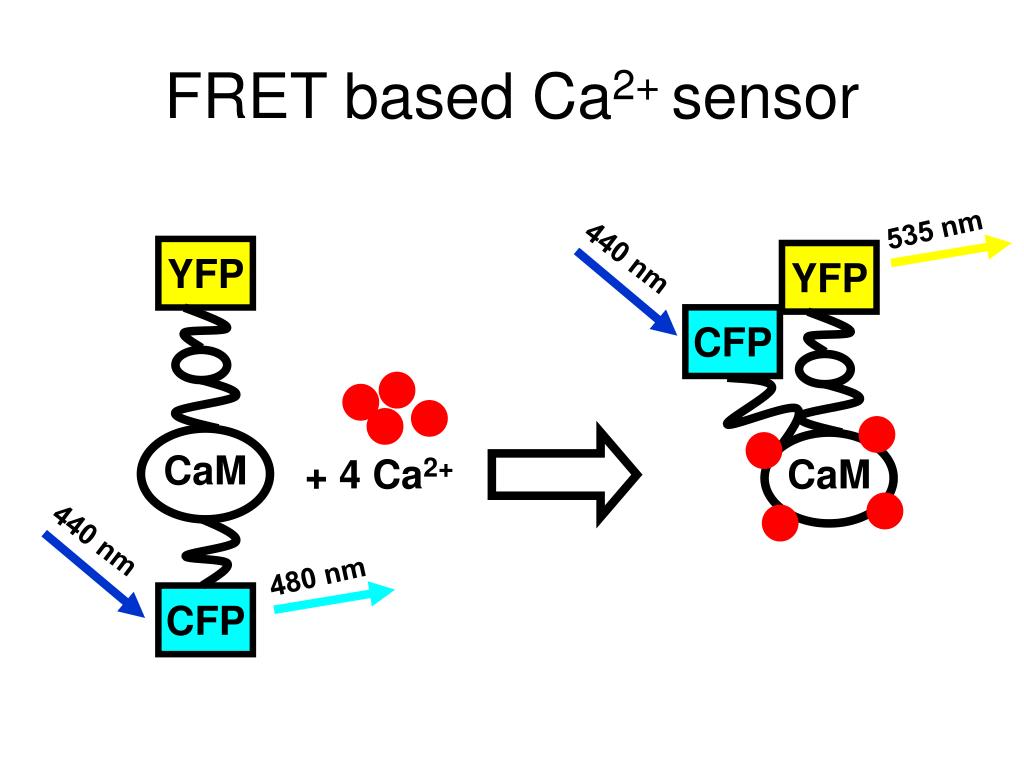

fret based ca 2 sensor

535 nm

440 nm

YFP

YFP

CFP

CaM

CaM

+ 4 Ca2+

440 nm

480 nm

CFP

FRET based Ca2+ sensor

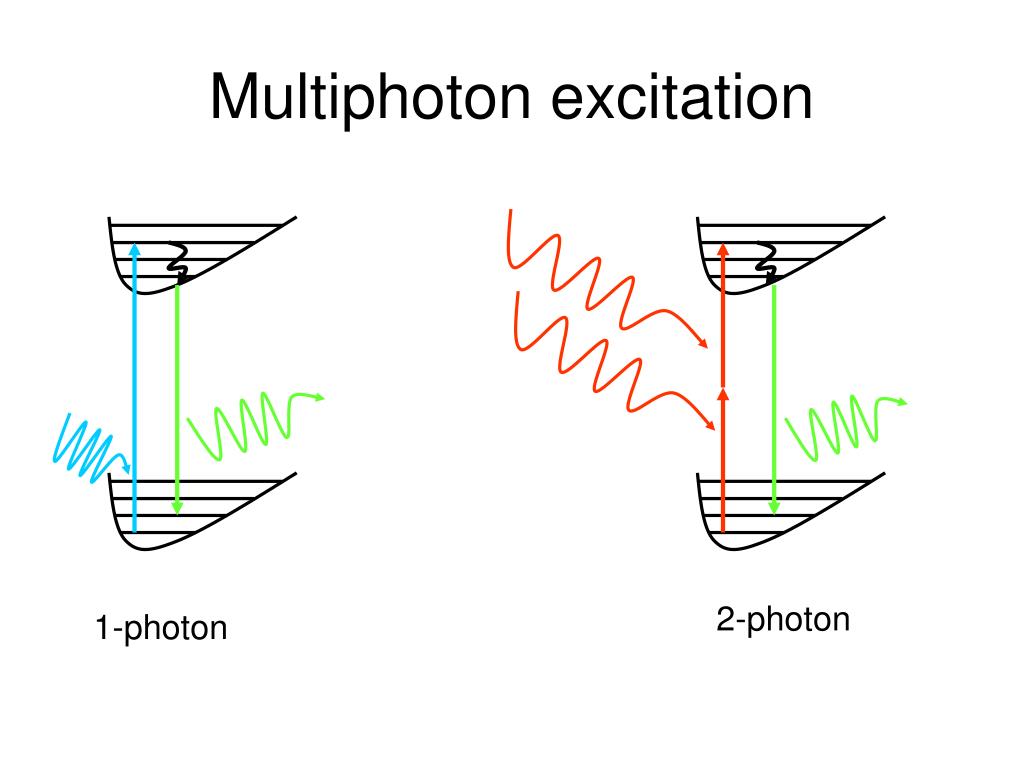

multiphoton excitation
Multiphoton excitation

2-photon

1-photon

slide27

Builtin confocality

1-photon

2-photon

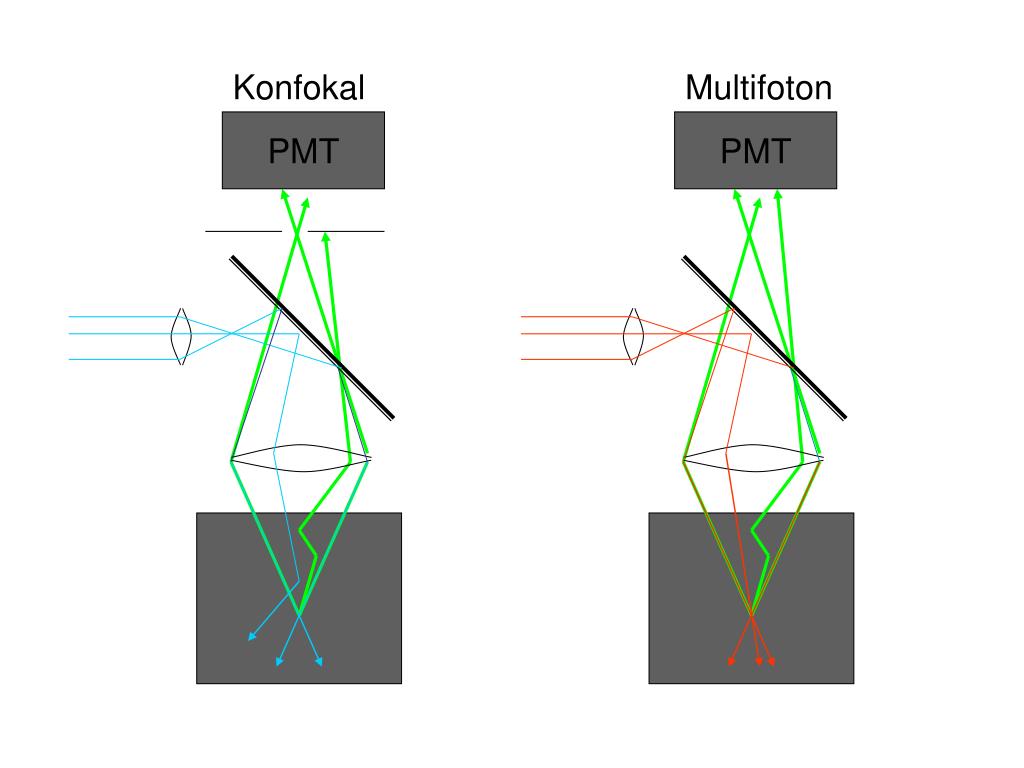

slide28

Konfokal

Multifoton

PMT

PMT

slide29

0

20

80 mm

Better penetration (2-400 mm)

Enables measurements from

intact cells in a proper physiological

environment.

Electrophysiology

40

60

80

1-photon

2-photon

slide30

FRET CFP-YFP multiphoton

CFP – YFP separated by a 6 aminoacid linker

Fluorochrome distance 5 nm

2-photon @ 790 nm

2-photon @ 790 nm

790

790

YFP – Calcyon

No excitation at 790 nm

YFP excited at 880 nm

790

880

2-photon @ 790 nm

1-photon @ 514 nm

development excitation
Development - Excitation

Currently used lasers

  • Ar ion, 458,488,514 nm
  • HeNe 543, 633 nm
  • Ar ion 351,364 nm
  • ArKr 488,568 nm
  • HeCd 442 nm
  • Diode 405 nm
  • HeNe 594 nm
  • Multiphoton excitation, TiSa 700-1100

We need affordable, low noise, low power consumption lasers

370-700 nm !

development detection

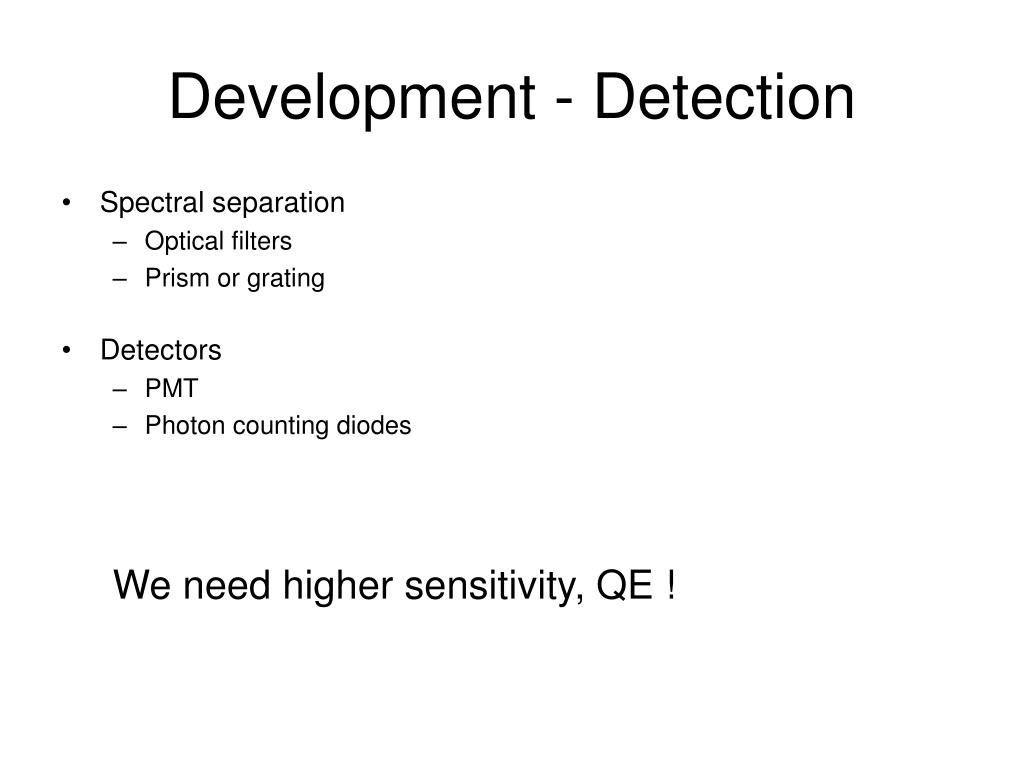

Development - Detection
  • Spectral separation
    • Optical filters
    • Prism or grating
  • Detectors
    • PMT
    • Photon counting diodes

We need higher sensitivity, QE !

development scanning

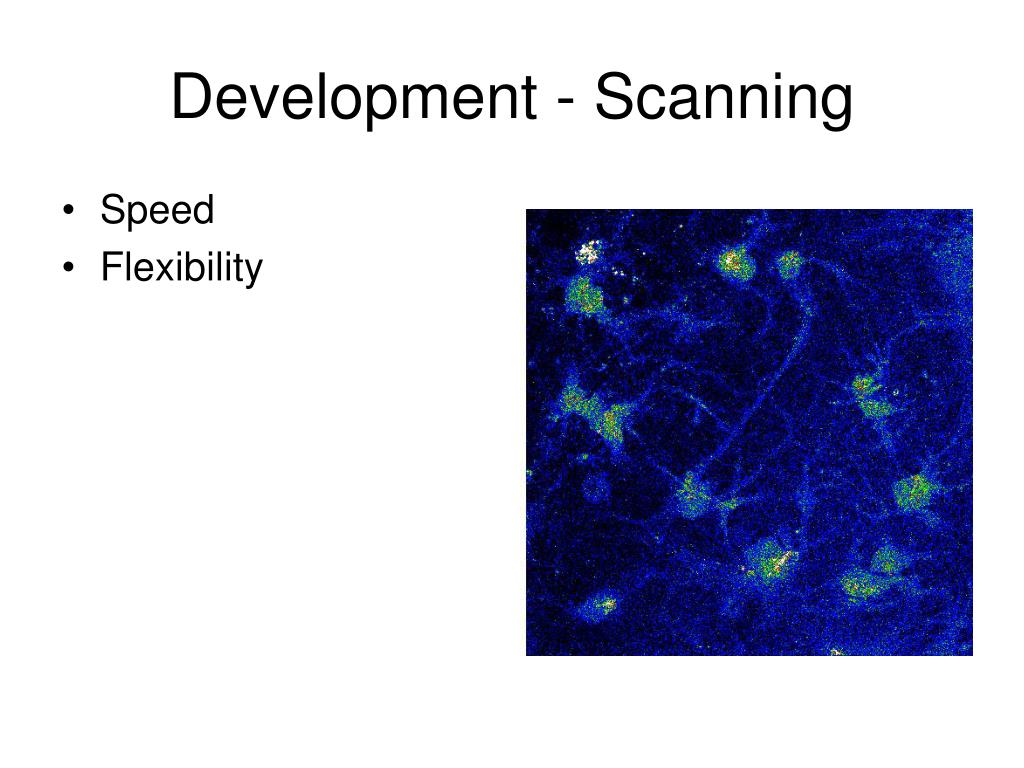

Development - Scanning

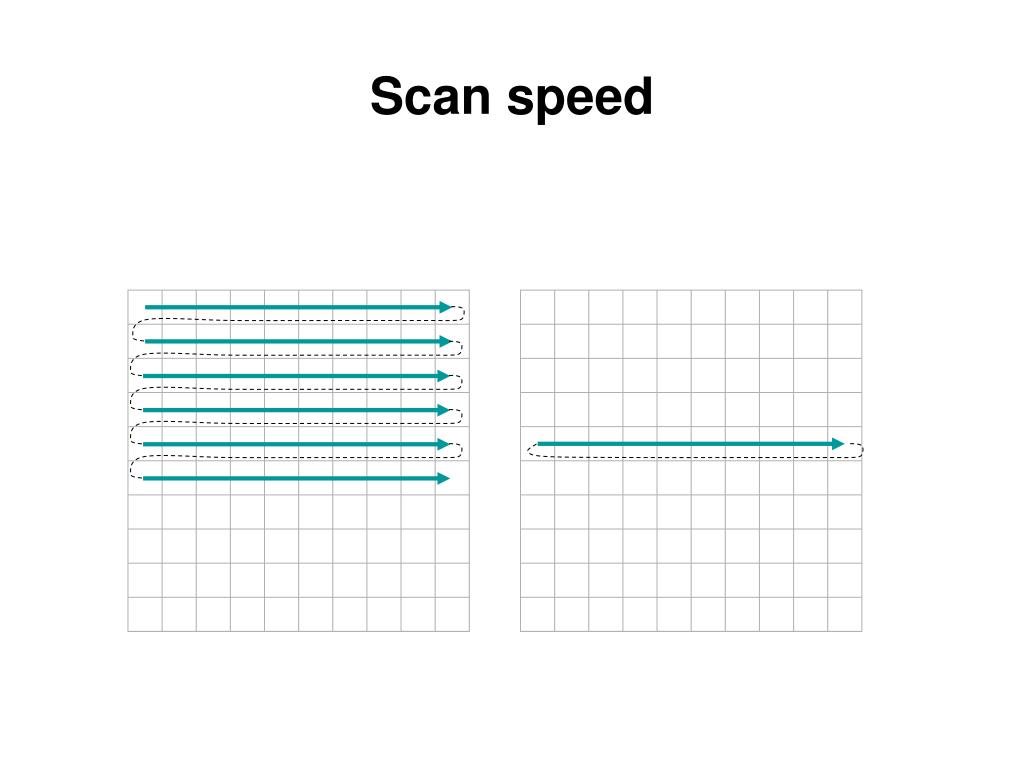

  • Speed
  • Flexibility

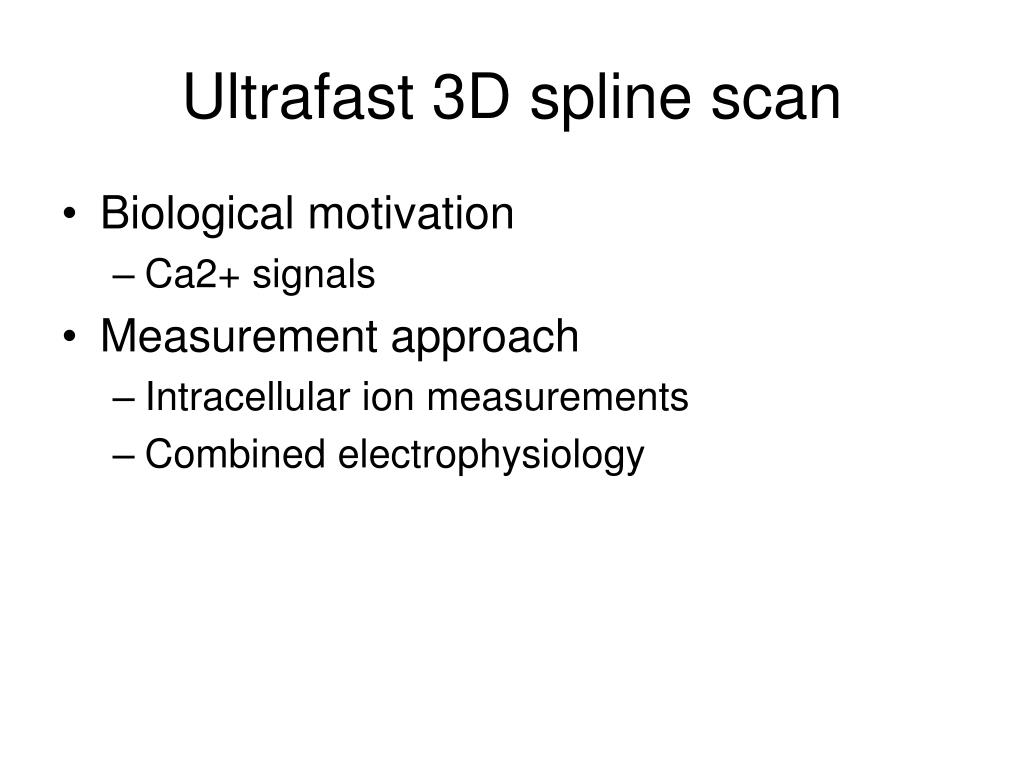

ultrafast 3d spline scan
Ultrafast 3D spline scan
  • Biological motivation
    • Ca2+ signals
  • Measurement approach
    • Intracellular ion measurements
    • Combined electrophysiology
slide36

Ca - wave

[Ca2+]

Data from live cell experiments combined with biochemical data is used as input for mathematical modeling-simulations

Models verified by experiments can provide

new information and direct the further investigations

approach

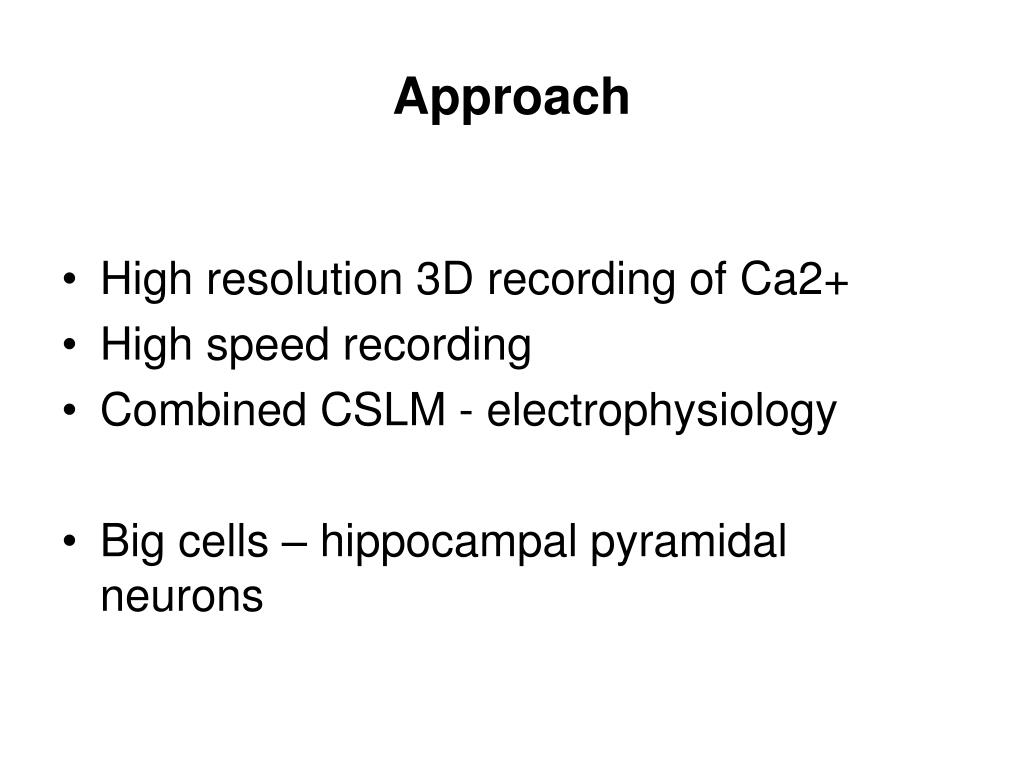

Approach
  • High resolution 3D recording of Ca2+
  • High speed recording
  • Combined CSLM - electrophysiology
  • Big cells – hippocampal pyramidal neurons

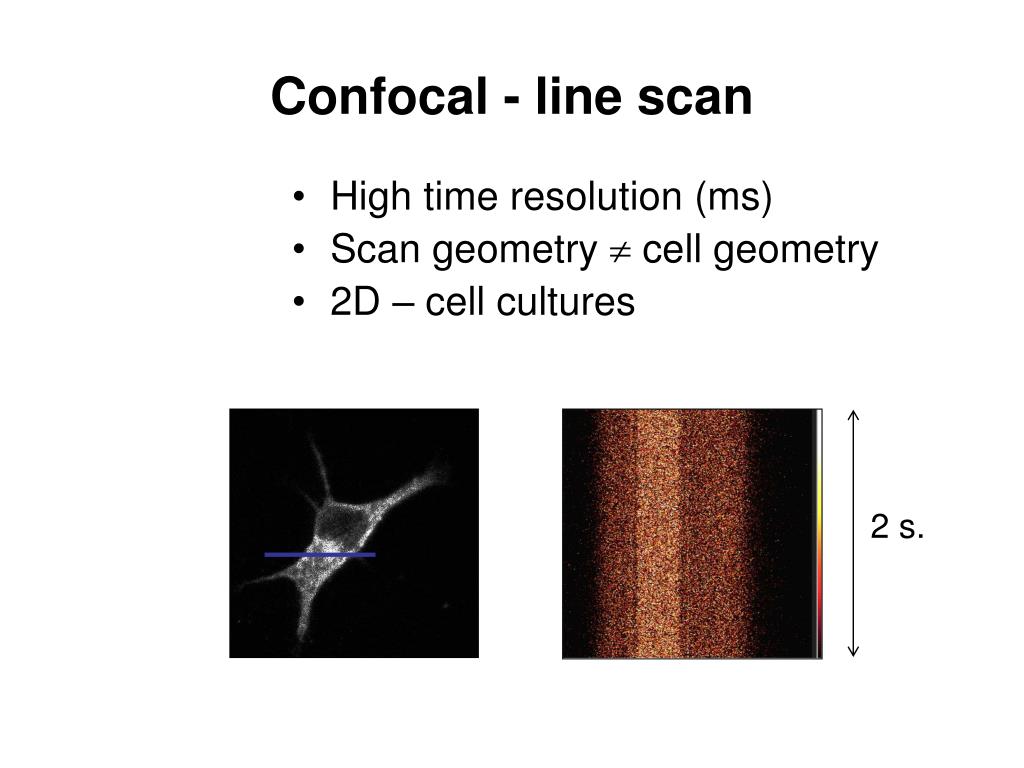

confocal line scan
Confocal - line scan
  • High time resolution (ms)
  • Scan geometry  cell geometry
  • 2D – cell cultures

2 s.

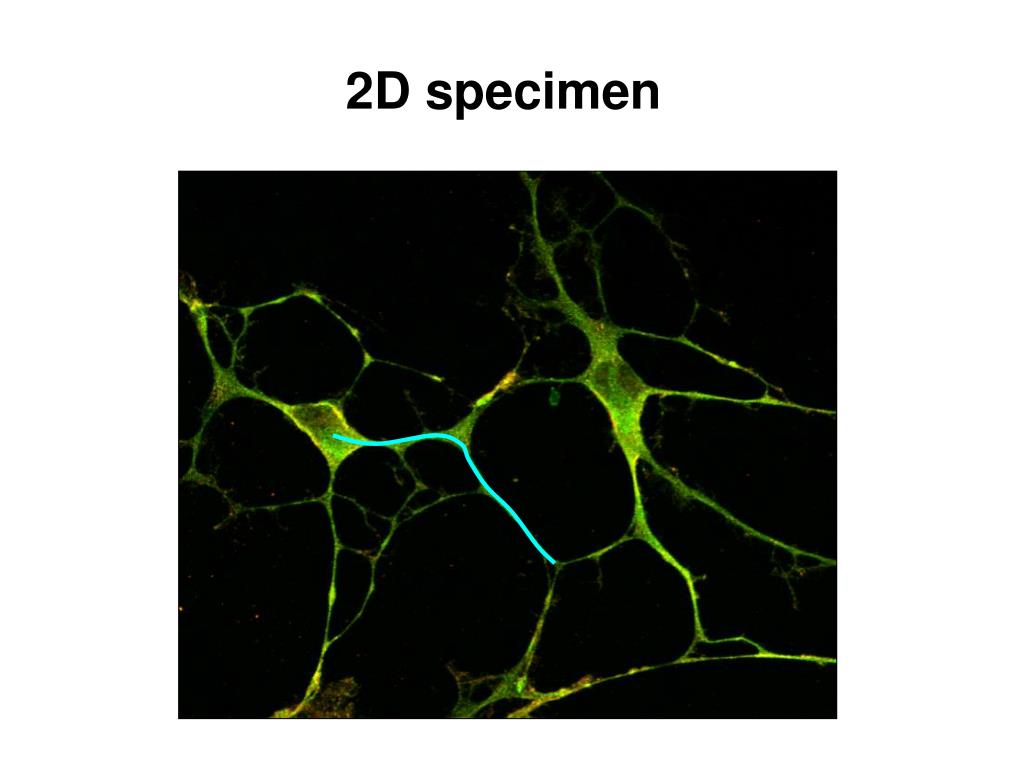

arbitrary scan 2d
Arbitrary scan – 2D

(Patwardhan & Åslund 1994)

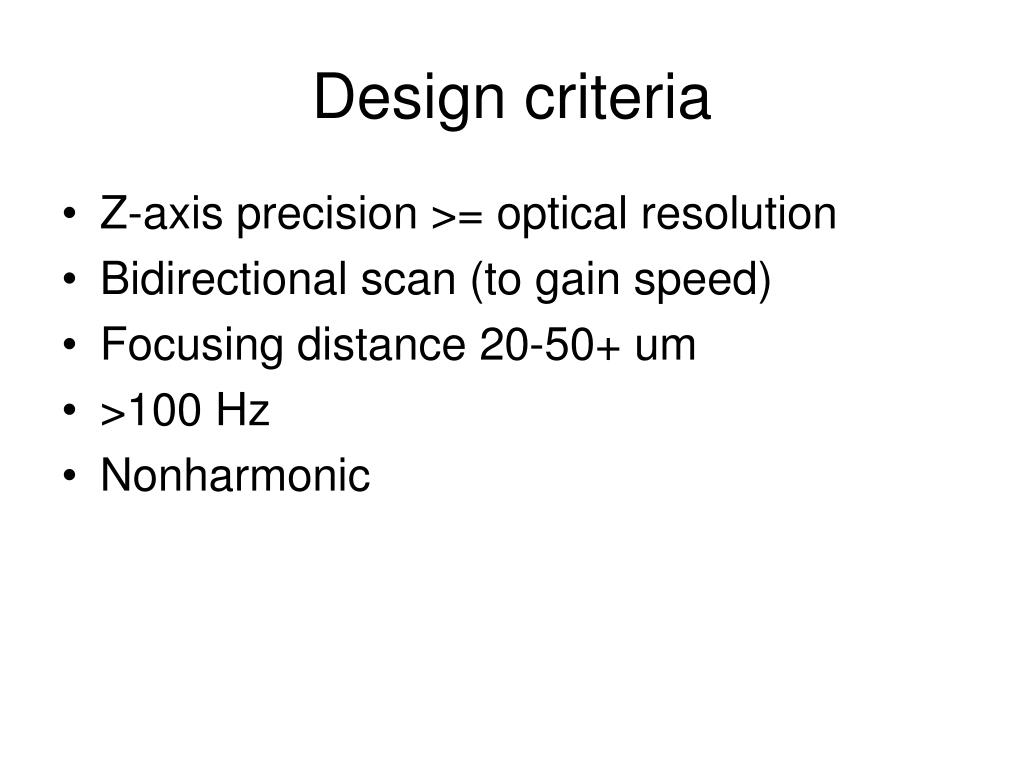

design criteria
Design criteria
  • Z-axis precision >= optical resolution
  • Bidirectional scan (to gain speed)
  • Focusing distance 20-50+ um
  • >100 Hz
  • Nonharmonic

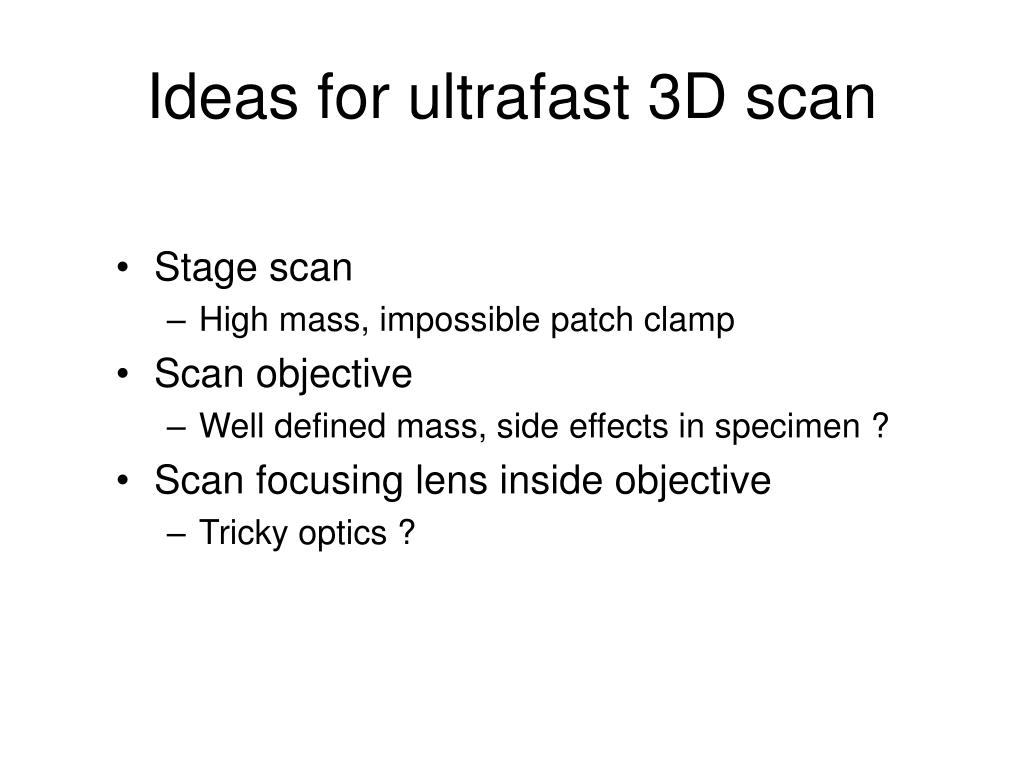

ideas for ultrafast 3d scan
Ideas for ultrafast 3D scan
  • Stage scan
    • High mass, impossible patch clamp

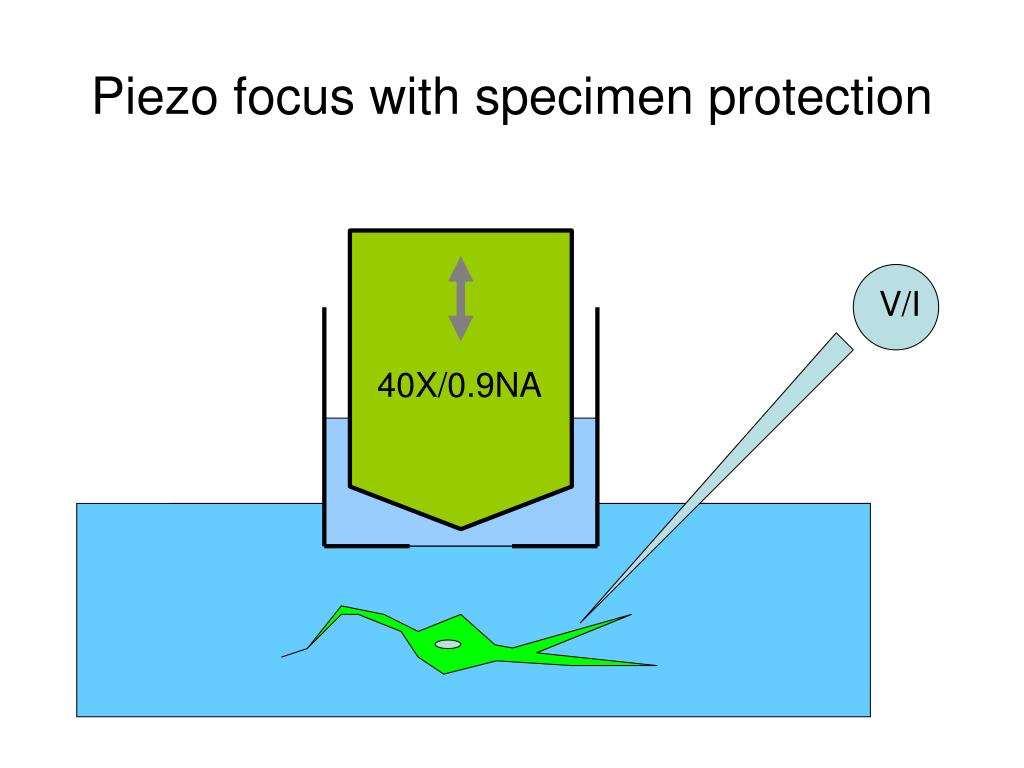

  • Scan objective
    • Well defined mass, side effects in specimen ?
  • Scan focusing lens inside objective
    • Tricky optics ?
