품 목 : CEILING SPEAKER 모델명 : CONCOURSE R8 제조사 : QUAD

품 목 : CEILING SPEAKER 모델명 : CONCOURSE R8 제조사 : QUAD. Specifications POWER HANDLING : 100watts continuous, 200watts program , 400watts peak Recommended amplifier : 10-100 watts Impedance : Selectable 4 or 16 ohms nominal Frequency response (-10dB) : 35Hz-20kHz

avalon
Download Presentation

품 목 : CEILING SPEAKER 모델명 : CONCOURSE R8 제조사 : QUAD

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

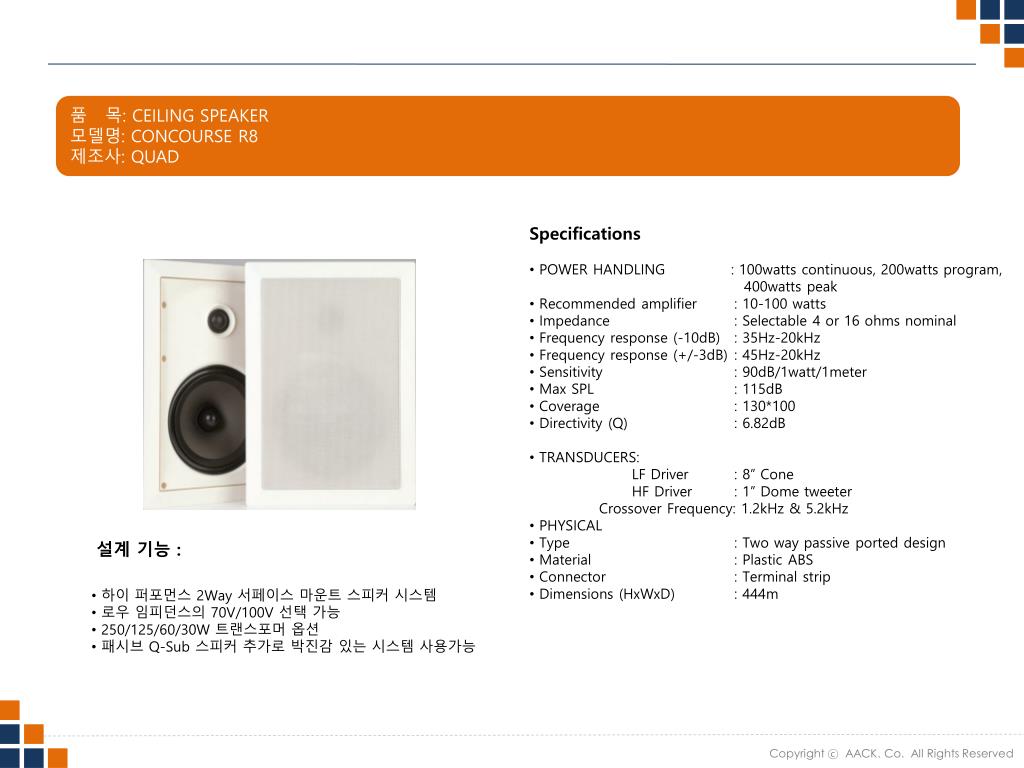

  1. 품 목: CEILING SPEAKER 모델명: CONCOURSE R8 제조사: QUAD • Specifications • POWER HANDLING : 100watts continuous, 200watts program, • 400watts peak • Recommended amplifier : 10-100 watts • Impedance: Selectable 4 or 16 ohms nominal • Frequency response (-10dB) : 35Hz-20kHz • Frequency response (+/-3dB) : 45Hz-20kHz • Sensitivity: 90dB/1watt/1meter • Max SPL : 115dB • Coverage: 130*100 • Directivity (Q) : 6.82dB • TRANSDUCERS: • LF Driver : 8” Cone • HF Driver : 1” Dome tweeter • Crossover Frequency: 1.2kHz & 5.2kHz • PHYSICAL • Type: Two way passive ported design • Material: Plastic ABS • Connector: Terminal strip • Dimensions (HxWxD) : 444m • 설계 기능 : • 하이 퍼포먼스2Way 서페이스마운트 스피커 시스템 • 로우임피던스의70V/100V 선택 가능 • 250/125/60/30W 트랜스포머 옵션 • 패시브Q-Sub 스피커 추가로 박진감 있는 시스템 사용가능
