Innovative Low-NOx Fuel Injector for Aircraft Engine Combustors

DESCRIPTION

This innovative piloted airblast lean-direct fuel injector features a bifurcated flow pattern designed to significantly reduce emissions in aircraft engines. Achievements include a remarkable 60-65% reduction in NOx emissions compared to 1996 ICAO landing-takeoff cycle standards and demonstrated ignition reliability at low equivalence ratios. With approximately $1.5M funding from major engine manufacturers and backing from NASA's Advanced Subsonic Technology and Ultra-Efficient Engine Technology programs, this technology shows promising potential for commercial applications and government interest.

1 / 1

Download Presentation

Innovative Low-NOx Fuel Injector for Aircraft Engine Combustors

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

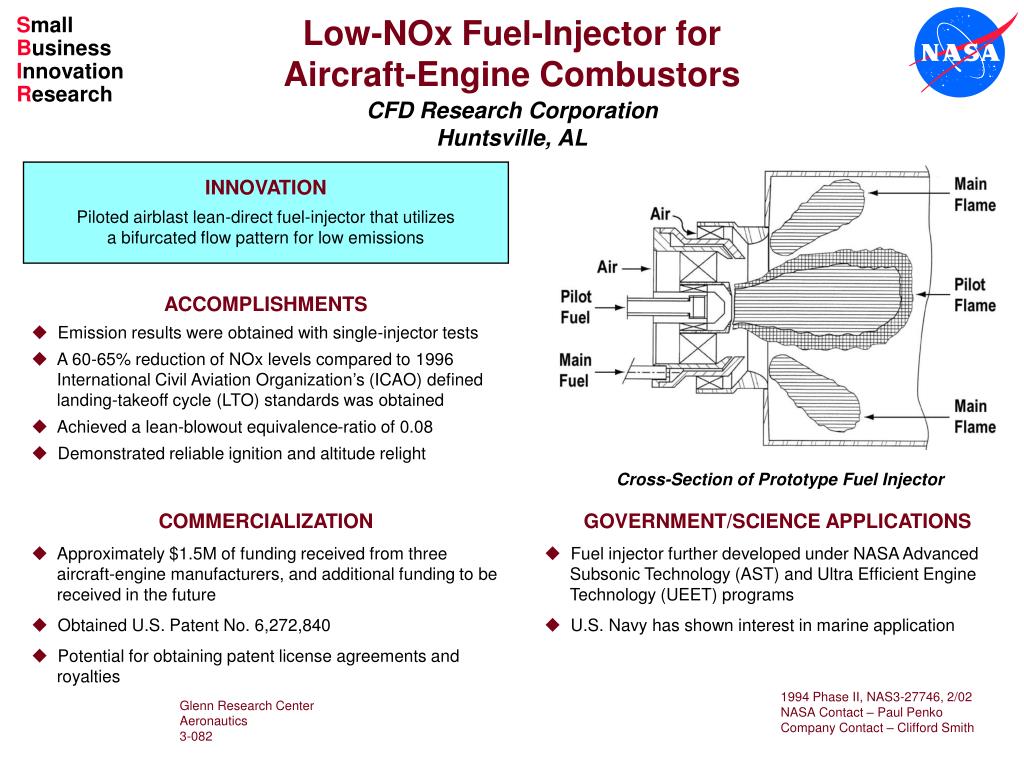

  1. Low-NOx Fuel-Injector for Aircraft-Engine Combustors Small Business Innovation Research CFD Research Corporation Huntsville, AL INNOVATION Piloted airblast lean-direct fuel-injector that utilizes a bifurcated flow pattern for low emissions • ACCOMPLISHMENTS • Emission results were obtained with single-injector tests • A 60-65% reduction of NOx levels compared to 1996 International Civil Aviation Organization’s (ICAO) defined landing-takeoff cycle (LTO) standards was obtained • Achieved a lean-blowout equivalence-ratio of 0.08 • Demonstrated reliable ignition and altitude relight Cross-Section of Prototype Fuel Injector • COMMERCIALIZATION • Approximately $1.5M of funding received from three aircraft-engine manufacturers, and additional funding to be received in the future • Obtained U.S. Patent No. 6,272,840 • Potential for obtaining patent license agreements and royalties • GOVERNMENT/SCIENCE APPLICATIONS • Fuel injector further developed under NASA Advanced Subsonic Technology (AST) and Ultra Efficient Engine Technology (UEET) programs • U.S. Navy has shown interest in marine application 1994 Phase II, NAS3-27746, 2/02 NASA Contact – Paul Penko Company Contact – Clifford Smith Glenn Research Center Aeronautics 3-082
