sentiment and affect analysis of dark web forums measuring radicalization on the internet

Sentiment and Affect analysis of Dark Web Forums: Measuring Radicalization on the Internet

Hsinchun Chen, Fellow, IEEE

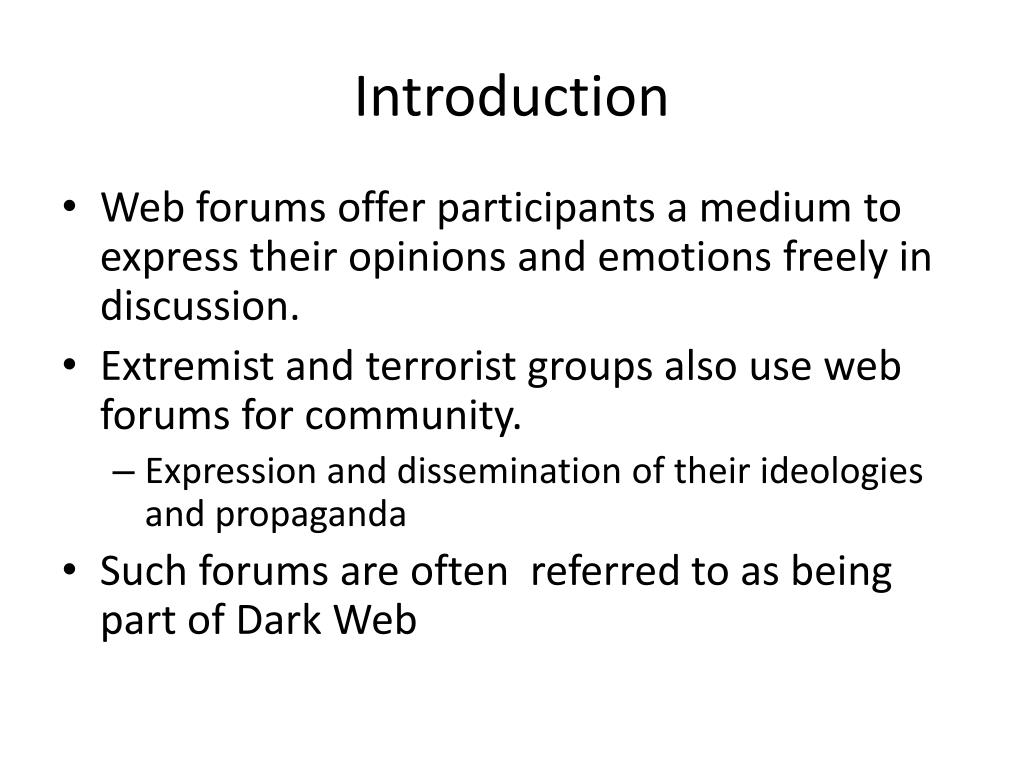

  • Web forums offer participants a medium to express their opinions and emotions freely in discussion.
  • Extremist and terrorist groups also use web forums for community.
    • Expression and dissemination of their ideologies and propaganda
  • Such forums are often referred to as being part of Dark Web
  • Information contained within Dark Web forums represent asignificant source of knowledge for security and intelligence organizations.
  • Theopinions and emotions expressed within these forums provide valuable insights:
    • the nature and position of the online community
    • Characterizing individual participants
  • Manual analysis of the vast quantities of messages to measure the opinions and emotions expressed is often infeasible.

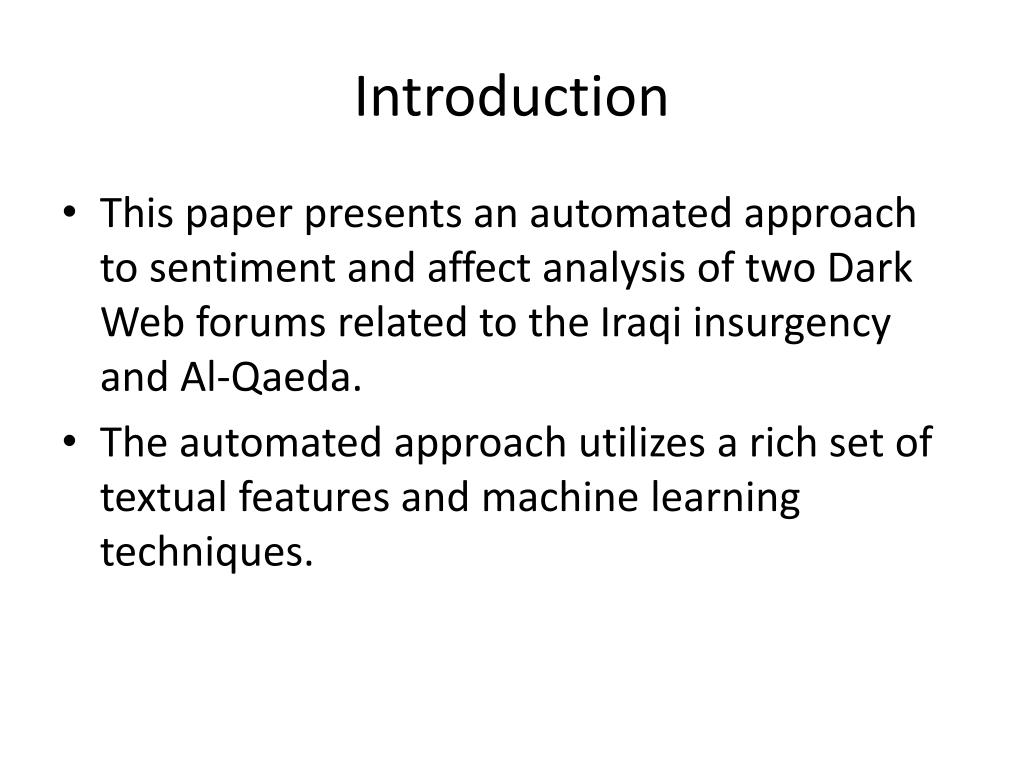

  • This paper presents an automated approach to sentiment and affect analysis of two Dark Web forums related to the Iraqi insurgency and Al-Qaeda.
  • The automated approach utilizes a rich set of textual features and machine learning techniques.
related work
Related Work
  • Sentiment and affect analysis are related tasks in text mining that focus on directional text, containing opinions, emotions, and biases.

[5] M. A. Hearst, “Direction-based text interpretation as an information

access refinement,” In Text-Based Intelligent Systems: Current Research

and Practice in Information Extraction and Retrieval. Lawrence

Erlbaum Associates, 1992.

[6] J. Wiebe, “Tracking point of view in narrative,” Computational

Linguistics, vol. 20 (2), pg. 233-287, 1994.

related work6
Related Work
  • Sentiment analysis attempt to identify, analyze, and measure opinions expressed in text.
  • Affect analysis focuses on the emotional content of the communication.

R. Agrawal, S. Rajagopalan, R. Srikant, and Y. Xu, “Mining

newsgroups using networks arising from social behavior,” Proc. of the

12th Int’l WWW Conf., 2003.

P. Subasic and A. Huettner, “Affect analysis of text using fuzzy

semantic typing,” IEEE Trans. Fuzzy Systems, vol. 9 (4), pg. 483-496.

related work7
Related Work
  • There are some important distinction between the two
    • Affect analysis evaluates the intensity of a number of potential emotions, including happiness, sadness, anger, fear, etc
    • Sentiment analysis considers the polarity of opinions along a positive-neutral-negative continuum.
    • The words and phrases associated with sentiments are mutually exclusive.
    • Segments of text can convey multiple affects
related work8
Related Work
  • Researchers have utilized various machine learning approaches to perform automated sentiment and affect analysis.

B. Pang, L. Lee, and S. Vaithyanathain, “Thumbs up? sentiment

classification using machine learning techniques,” Proc. Empirical

Methods in Natural Language Processing, pg. 79-86, 2002.

R. W. Picard, E. Vyzas, and J. Healey, “Toward machine emotional

intelligence: analysis of affective physiological state,” IEEE Tran.

Pattern Analysis and Machine Intelligence, vol. 23 (10), pg. 1179-1191,


related work9
Related Work
  • In particular, the SVM learning approach has been shown to be particularly effective in determining whether a text segment contains expression of a particular affects class.
  • Only for discrete label.

Y. H. Cho and K. J. Lee, “Automatic affect recognition using natural

language processing techniques and manually built affect lexicon,”

IEICE Tran. Information Systems, vol. E89 (12), pg. 2964-2971, 2006.

related work10
Related Work
  • SVR is an alternate approach that is capable of predicting continuous sentiment and affect intensities while benefitting from the robustness of SVM.

A. Webb, Statistical Pattern Recognition. John Wiley & Sons, 2002.

research questions
Research Questions

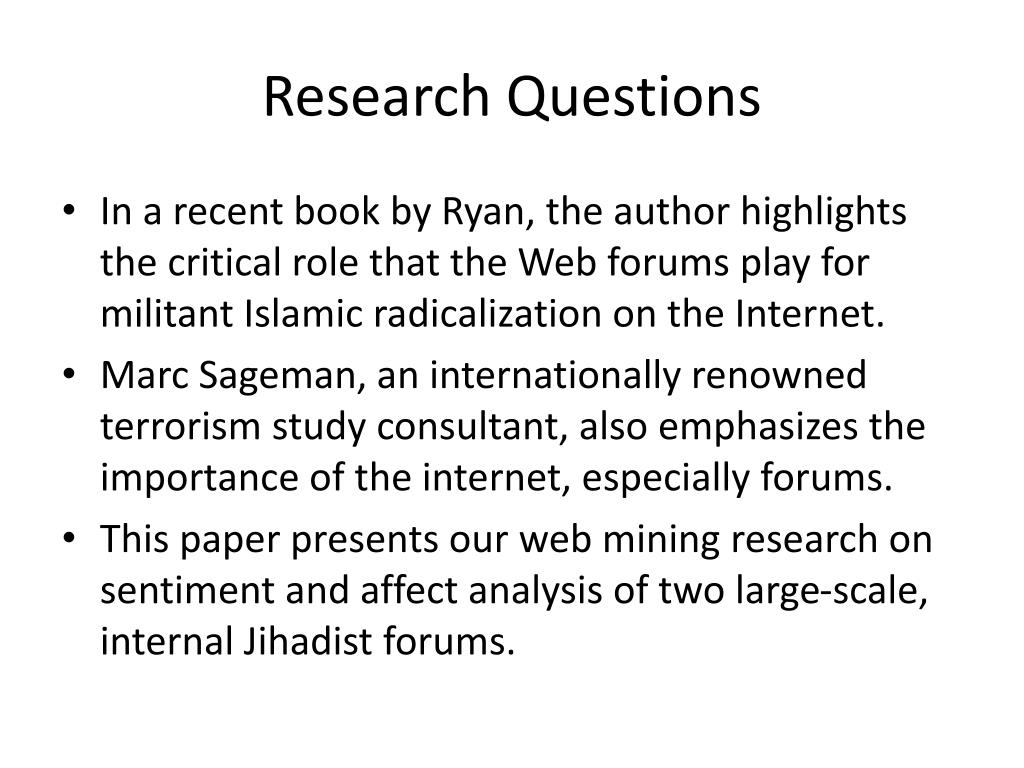

  • In a recent book by Ryan, the author highlights the critical role that the Web forums play for militant Islamic radicalization on the Internet.
  • Marc Sageman, an internationally renowned terrorism study consultant, also emphasizes the importance of the internet, especially forums.
  • This paper presents our web mining research on sentiment and affect analysis of two large-scale, internal Jihadist forums.
research questions12
Research Questions
  • This study seeks to answer the following research questions:
    • How effective are automated methods of sentiment and affect analysis in measuring the polarities of opinions and intensities of emotions in Dark Web forums?
    • What insights into the Dark Web forums are gained by performing sentiment and affect analysis?

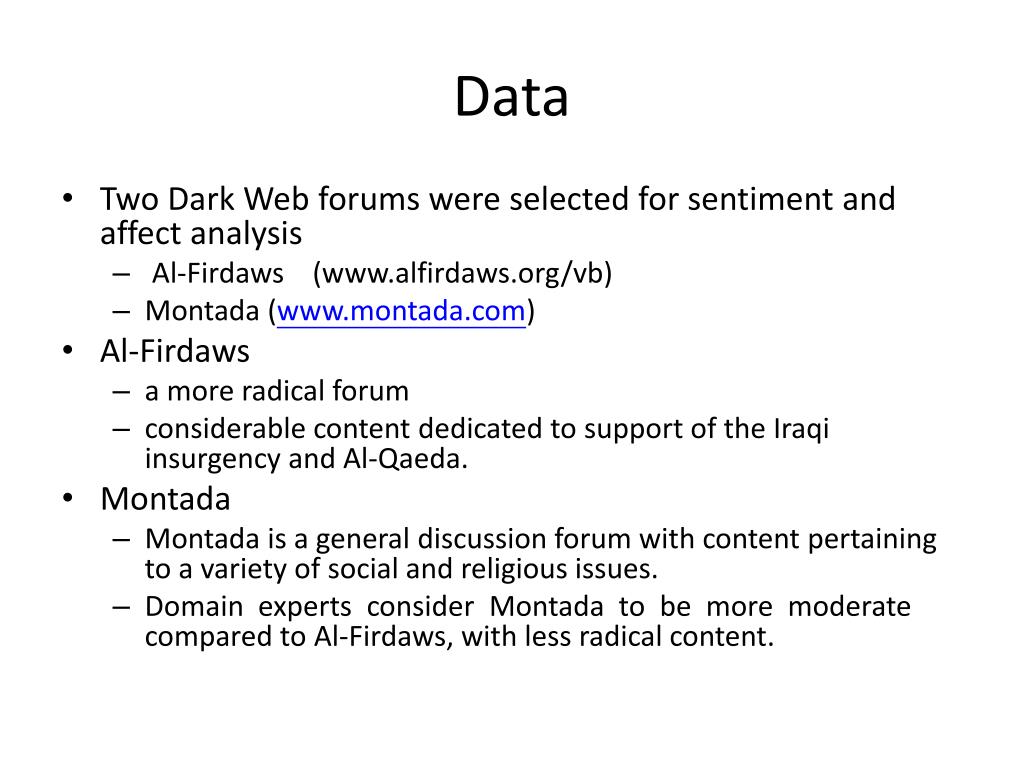

  • Two Dark Web forums were selected for sentiment and affect analysis
    • Al-Firdaws (
    • Montada (
  • Al-Firdaws
    • a more radical forum
    • considerable content dedicated to support of the Iraqi insurgency and Al-Qaeda.
  • Montada
    • Montada is a general discussion forum with content pertaining to a variety of social and religious issues.
    • Domain experts consider Montada to be more moderate compared to Al-Firdaws, with less radical content.
  • Spidering programs were used to collect the content from the two web forums.
  • A summary of the collection statistics is presented in Table I.

Data set is larger.

An older forum

Al-Firdaws is too radical

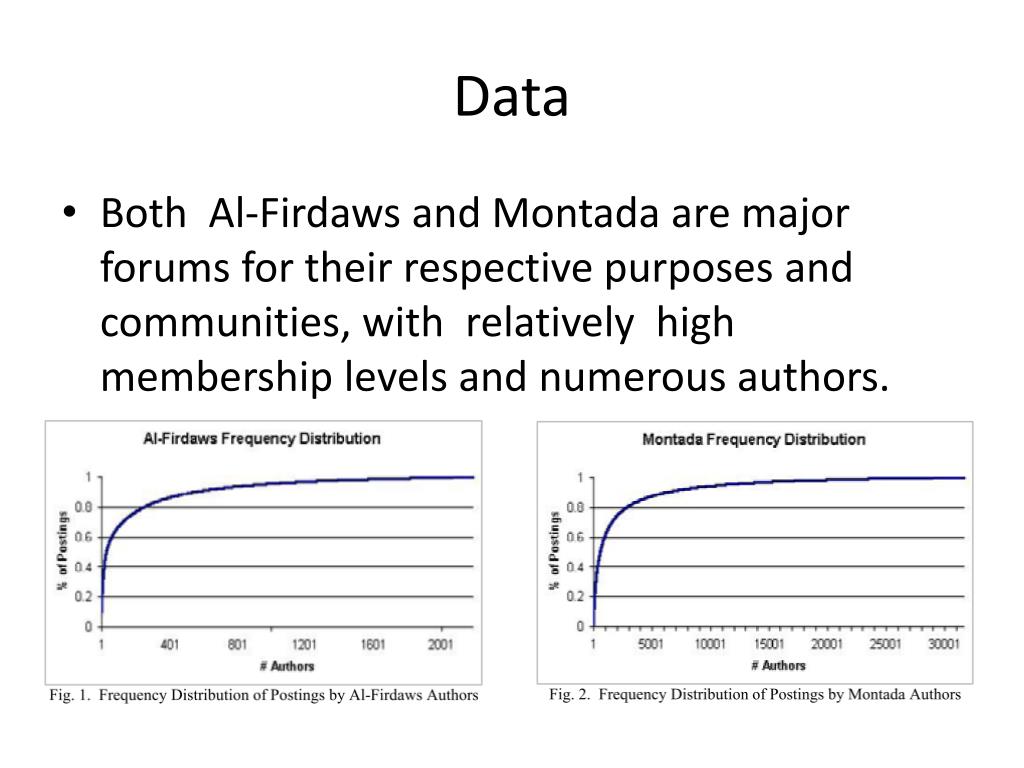

  • Both Al-Firdawsand Montada are major forums for their respective purposes and communities, with relatively high membership levels and numerous authors.
  • In both cases postings are more evenly distributed across web forum threads.
  • Although the Montada forum has a larger average number of posts per thread compared to Al-Firdaws, the median number of posts per thread is nearly equal.
  • 500 sentences were selected from each web forum, and scored for the intensities of sentiments and affects expressed.
  • The affects of interest in the study included those of most interest to security and intelligence organizations
    • including violence, anger, hate, and racism.
  • These affects were measured on a continuous scale ranging from 0 to 1.
  • The sentiment measurement was on a continuous scale from -1 to 1

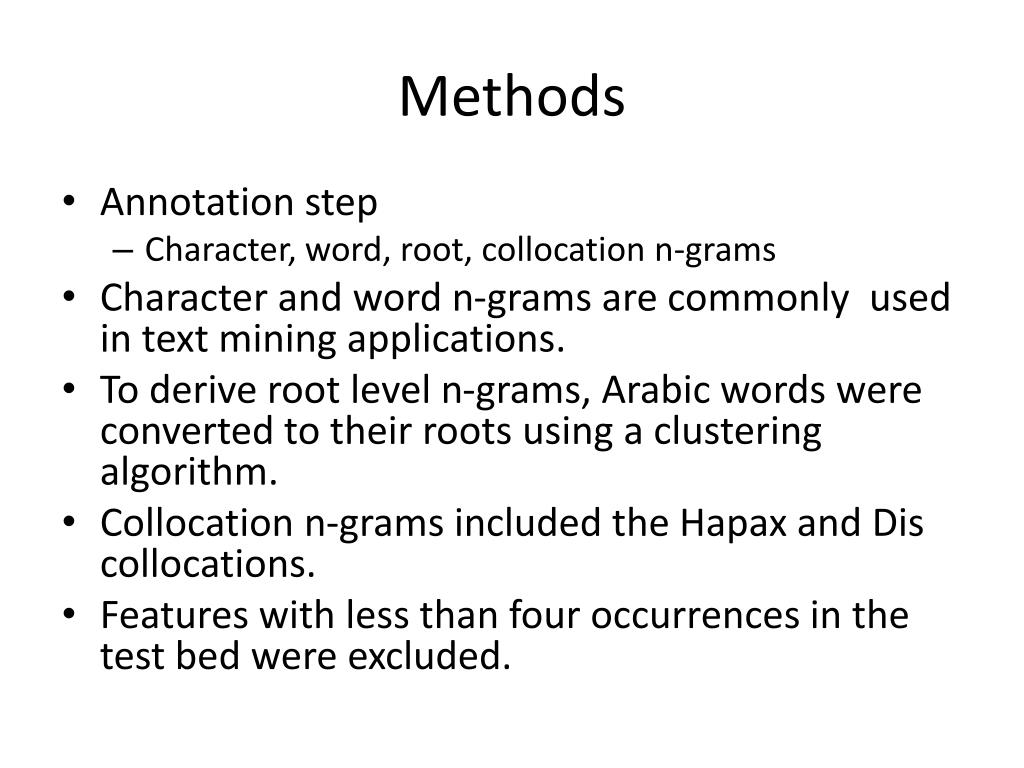

  • Annotation step
    • Character, word, root, collocation n-grams
  • Character and word n-grams are commonly used in text mining applications.
  • To derive root level n-grams, Arabic words were converted to their roots using a clustering algorithm.
  • Collocation n-grams included the Hapax and Dis collocations.
  • Features with less than four occurrences in the test bed were excluded.
  • The machine learning approach for identifying the presence and intensities of sentiments and affects in Dark Web forum sentences utilized a SVR ensemble.
  • SVR was utilized toleverage the robustness of SVM, while accommodating the continuous intensities of sentiments and affects.
  • Ensemble classifiers aggregate multiple independent classifiers built using different techniques or feature subsets
    • improving performance over a single classifier.
  • For the analysis of the Al-Firdaws and Montada web forums, a separate classifier was developed for each of the five sentiment and affect classes

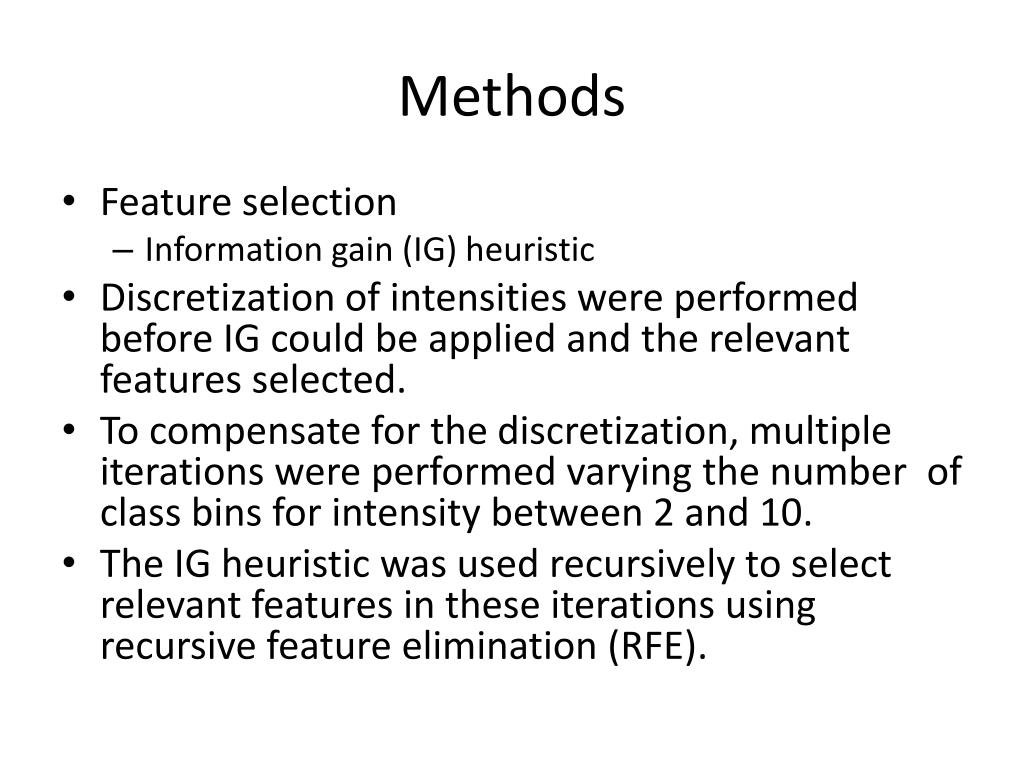

  • Feature selection
    • Information gain (IG) heuristic
  • Discretization of intensities were performed before IG could be applied and the relevant features selected.
  • To compensate for the discretization, multiple iterations were performed varying the number of class bins for intensity between 2 and 10.
  • The IG heuristic was used recursively to select relevant features in these iterations using recursive feature elimination (RFE).

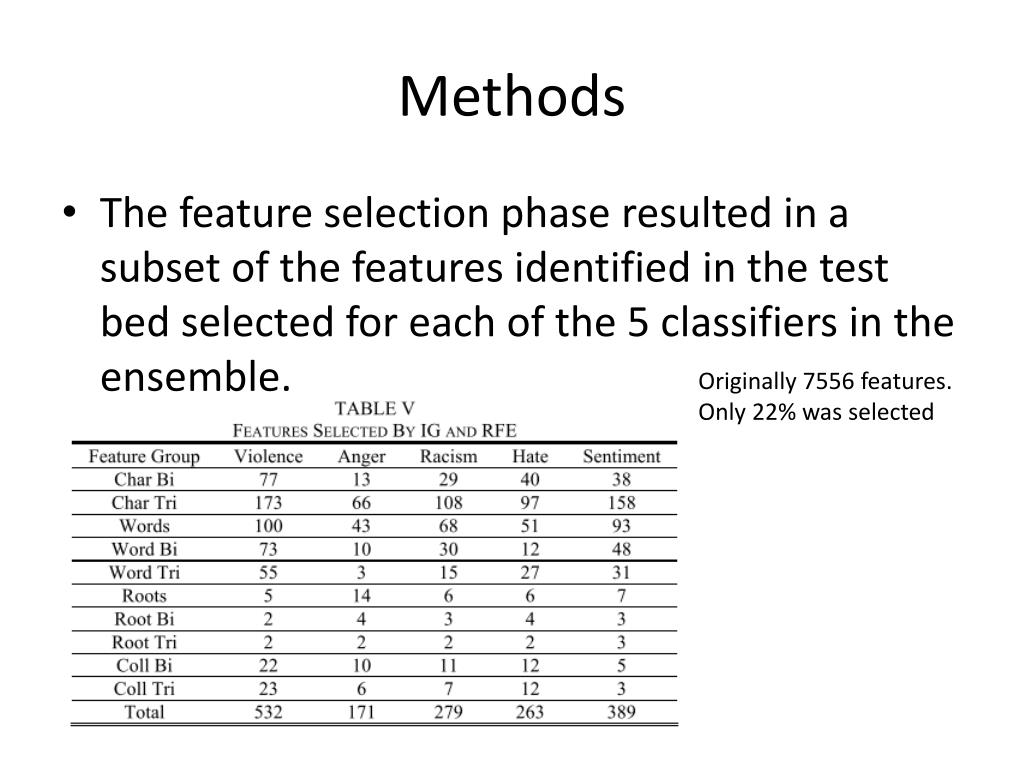

  • The feature selection phase resulted in a subset of the features identified in the test bed selected for each of the 5 classifiers in the ensemble.

Originally 7556 features.

Only 22% was selected

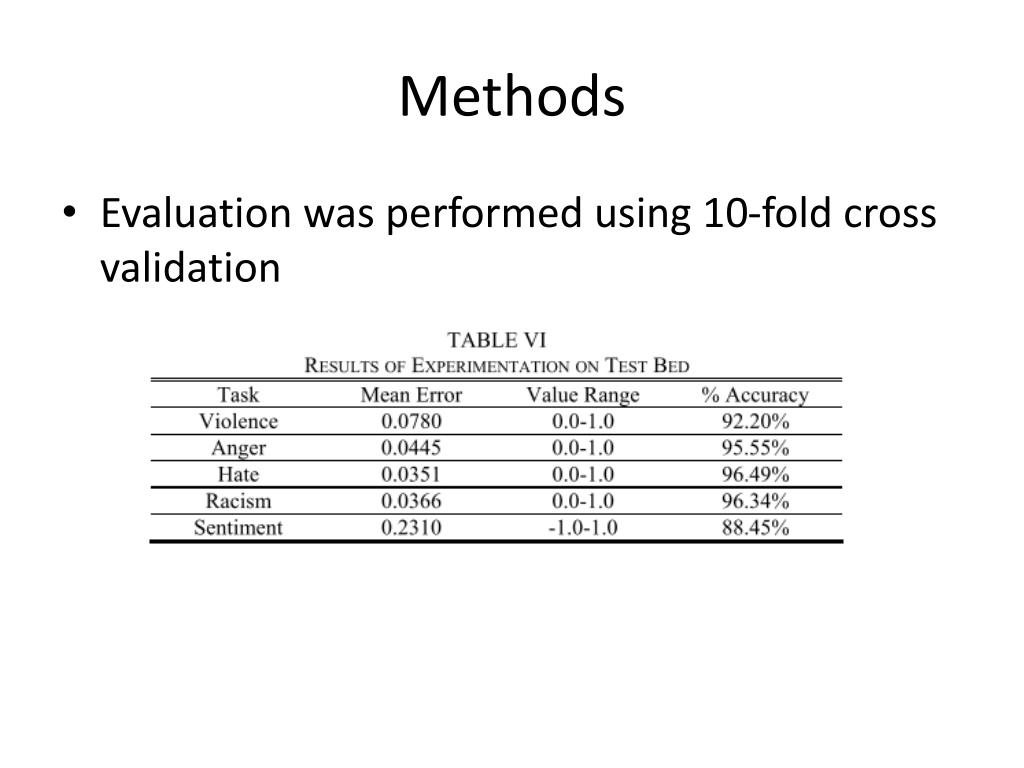

  • Evaluation was performed using 10-fold cross validation
  • A sample of messages and their sentiment and affect intensities determined through automated analysis are presented inTable VII.
  • Results confirm the assessment of the forums by domain experts.
  • The Al-Firdaws forum contained higher intensities of violence and hate affects with a more negative sentiment polarity

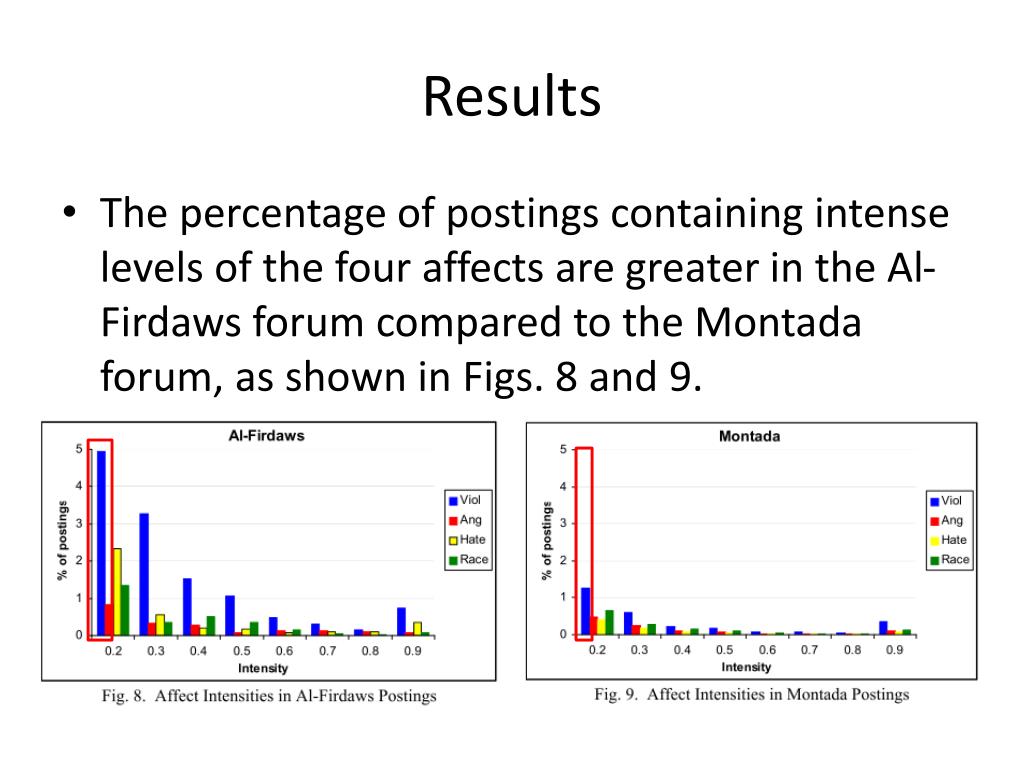

  • The percentage of postings containing intense levels of the four affects are greater in the Al-Firdaws forum compared to the Montada forum, as shown in Figs. 8 and 9.
  • The violence and hate affects were used by a relatively large percentage of Al-Firdaw authors

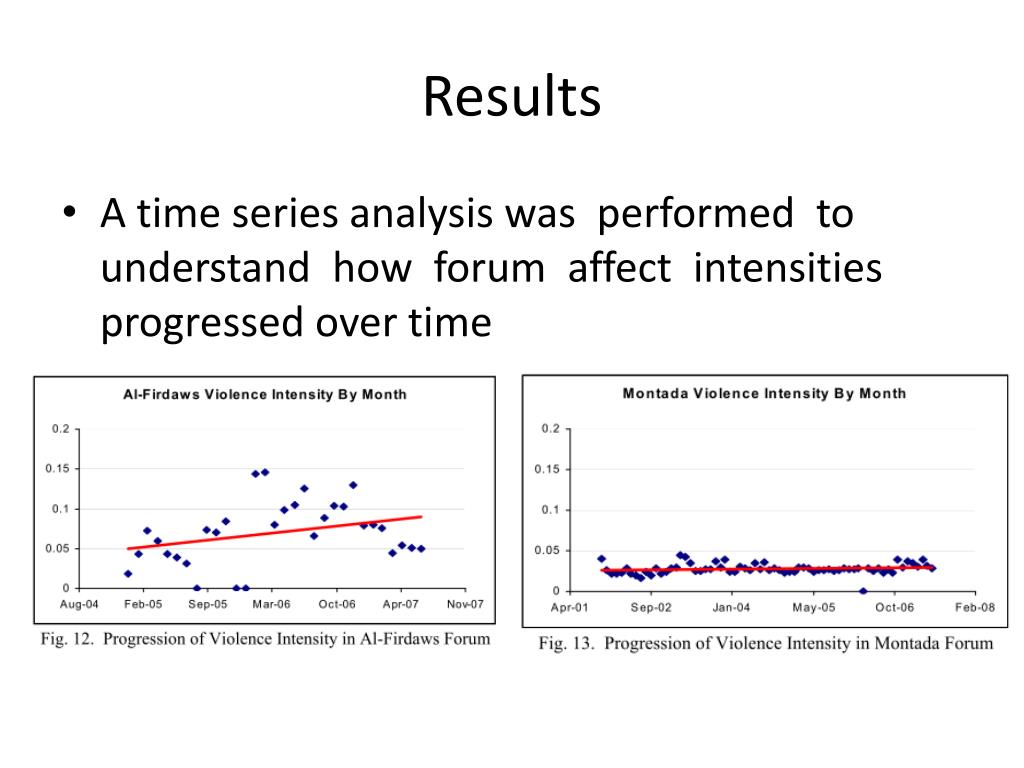

  • A time series analysis was performed to understand how forum affect intensities progressed over time
