MICRO VERTEX DETECTOR ZEUS experiment at DESY (HAMBURG). WHEEL WITH SILICON DETECTORS. BEAMPIPE. SUPPORT STRUCTURE. LADDER WITH SILICON DETECTORS. Start elaborate design idees. Detail designs. Physical design proposal. Installation in ZEUS detector. Start prototype work.
E N D
MICRO VERTEX DETECTOR ZEUS experiment at DESY (HAMBURG) WHEEL WITHSILICON DETECTORS BEAMPIPE SUPPORT STRUCTURE LADDER WITHSILICON DETECTORS Start elaborate design idees Detail designs Physical design proposal Installation in ZEUS detector Start prototype work Start production Finish design state 1997 1998 1999 2000 2001 • PROJECT SPECIFICATIONS: • Design and production of a silicon Micro Vertex Detector (MVD) for the ZEUS experiment at the HERA accelerator in DESY (Hamburg). With this new detector the positions of the charged particles, which are produced by the electron-proton collisions, will be measured with extremely high precision (10 micron). • PROJECT GROUPS : • Desy-Hamburg, Desy-Zeuthen, Hamburg Un., Bonn Un. (Germany) • Nikhef (Netherlands) , Padova Un. (Italy) , Oxford Un., UCL (UK) , KEK (Japan) • NIKHEF SUPPORT: • Design and production of the silicon detector support structures. • Assembly and precise geometrical measurement of the complete detector. • Design and test of the cooling system for the readout electronics • IMPORTANT DESIGN REQUIREMENTS: • Extreme light and stiff construction to achieve: • high position accuracy (5-10 micron) • low radiation length, such that the trajectory of particles is hardly disturbed • These requirements results in using high-tech materials and construction methods. www.nikhef.nl/pub/departments/mt/projects/zeus/vertex MECHANICAL TECHNOLOGY GROUP

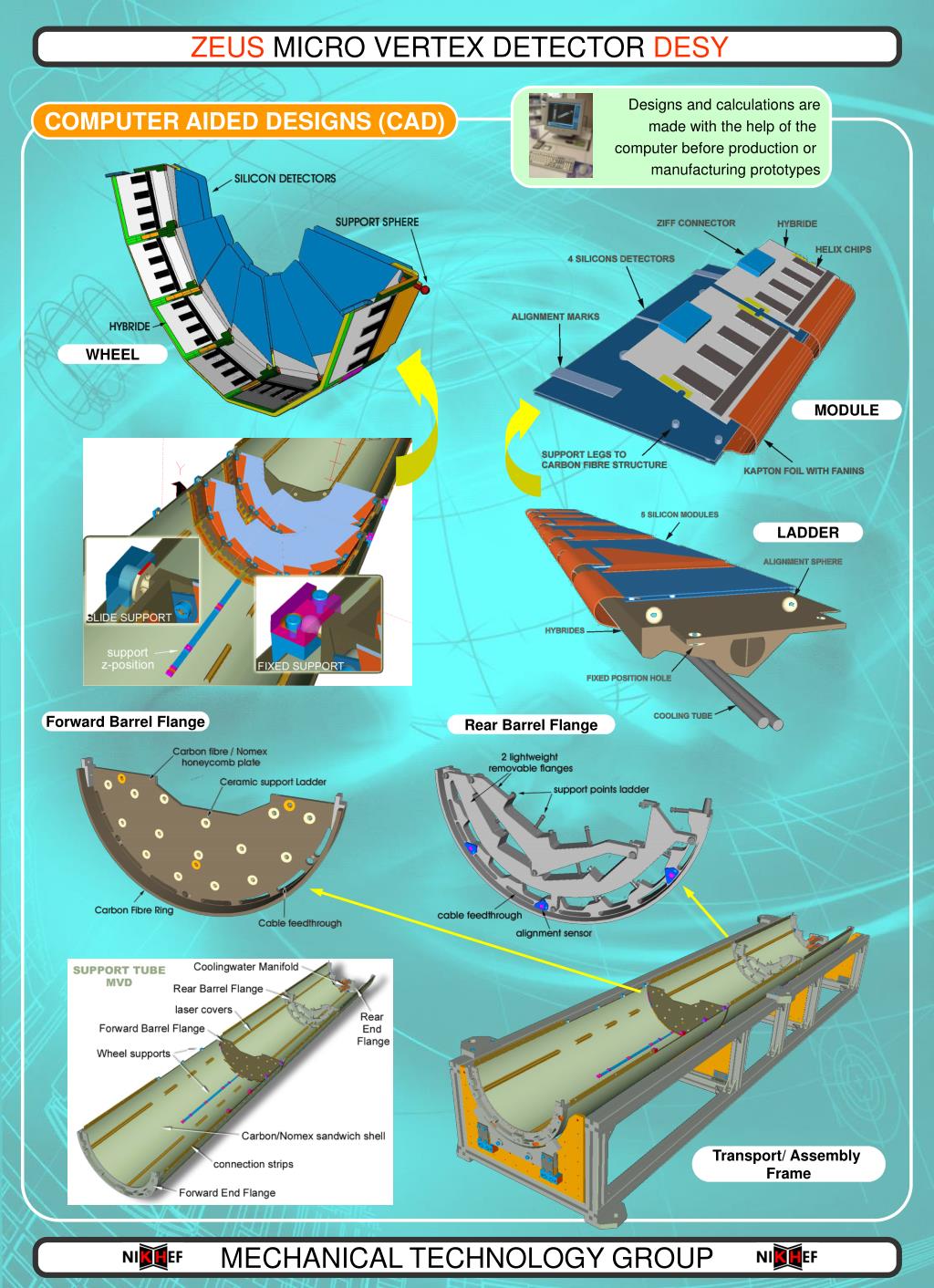

ZEUS MICRO VERTEX DETECTOR DESY Designs and calculations are made with the help of the computer before production or manufacturing prototypes COMPUTER AIDED DESIGNS (CAD) WHEEL MODULE LADDER Forward Barrel Flange Rear Barrel Flange Transport/ Assembly Frame MECHANICAL TECHNOLOGY GROUP
ZEUS MICRO VERTEX DETECTOR DESY COMPUTER AIDED DESIGNS (CAD) Ladder Assembly Jig FINITE ELEMENT CALCULATIONS LADDER DEFORMATION MODULE TEMPERATURE SIMULATION WHEEL DEFORMATION COOLING TESTS INFRARED PICTURE Mockup Cooling Setup MECHANICAL TECHNOLOGY GROUP
ZEUS MICRO VERTEX DETECTOR DESY PROTOTYPES Carbon Ladder Support Structure Barrel prototype Rear Barrel Flange Forward Barrel Flange Barrel + 3 ladders Carbonfibre/Nomex honeycomb shell Carbonfibre Wheel Support Structure MECHANICAL TECHNOLOGY GROUP

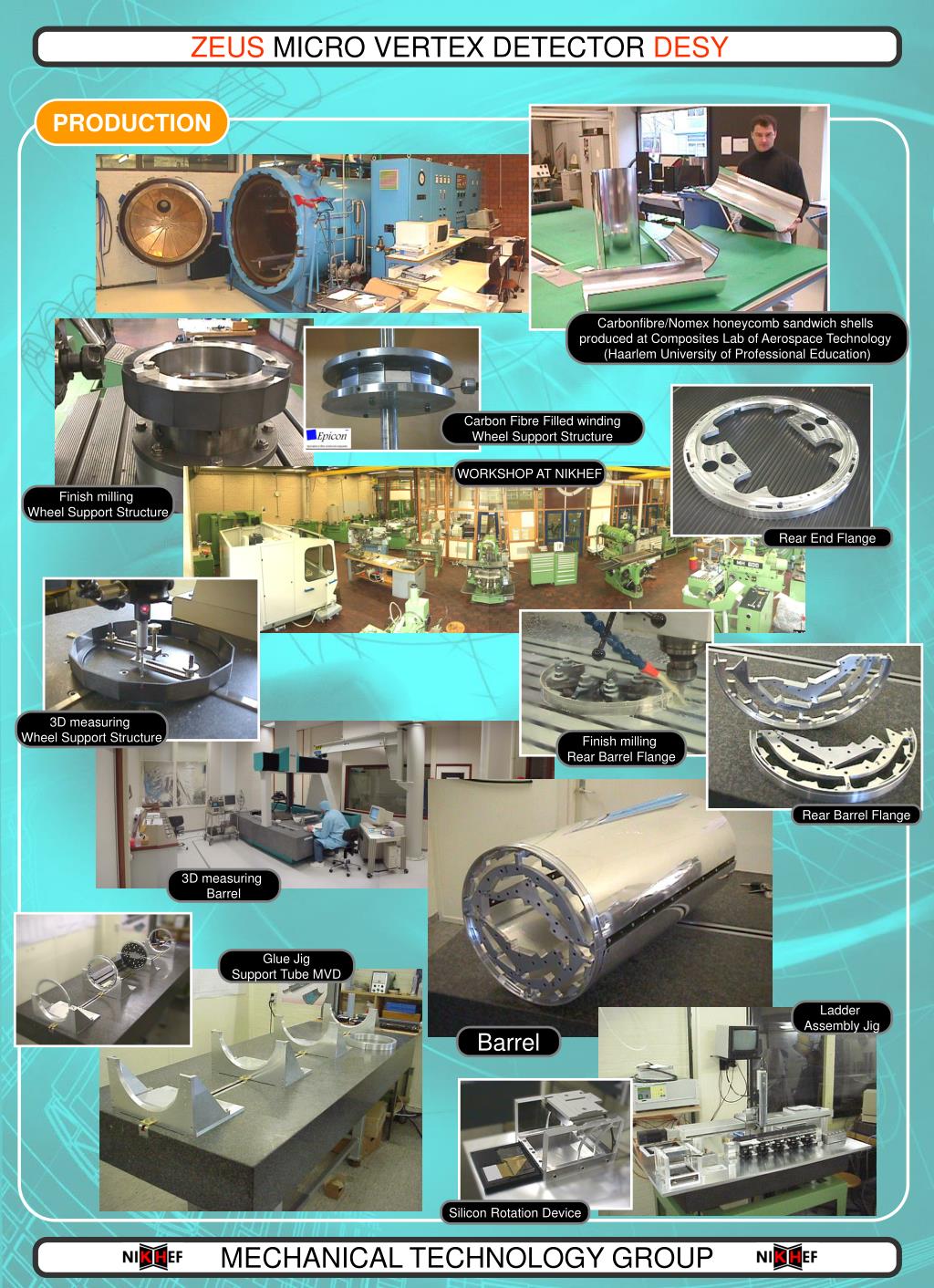

ZEUS MICRO VERTEX DETECTOR DESY PRODUCTION Carbonfibre/Nomex honeycomb sandwich shells produced at Composites Lab of Aerospace Technology (Haarlem University of Professional Education) Carbon Fibre Filled winding Wheel Support Structure WORKSHOP AT NIKHEF Finish milling Wheel Support Structure Rear End Flange 3D measuring Wheel Support Structure Finish milling Rear Barrel Flange Rear Barrel Flange 3D measuring Barrel Glue Jig Support Tube MVD Ladder Assembly Jig Barrel Silicon Rotation Device MECHANICAL TECHNOLOGY GROUP
