new concepts in the management of severe traumatic brain injury

NEW CONCEPTS IN THE MANAGEMENT OF SEVERE TRAUMATIC BRAIN INJURY

FIA MEDICINE IN MOTOR SPORT SUMMIT 2010

Stephen E. Olvey M.D.

Associate Professor of Clinical Neurology/Neurosurgery

Director Neuroscience Intensive Care Unit

University of Miami-Miller School of Medicine

Fellow FIA Institute for Motor Sport Safety

history

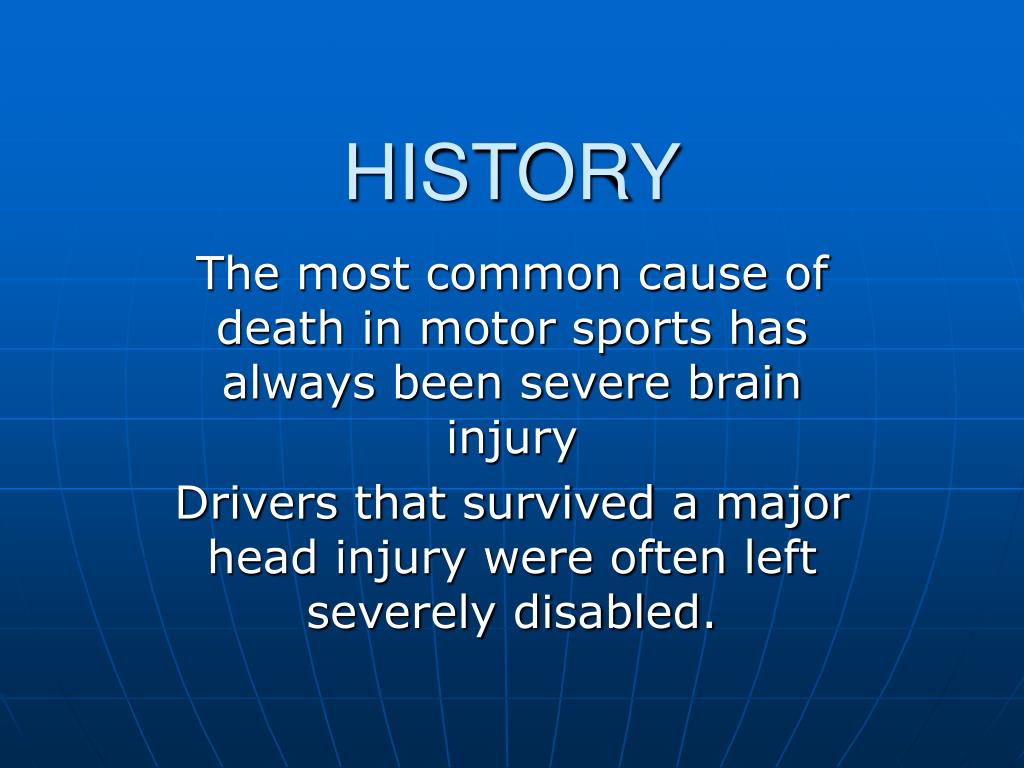

HISTORY

The most common cause of death in motor sports has always been severe brain injury

Drivers that survived a major head injury were often left severely disabled.

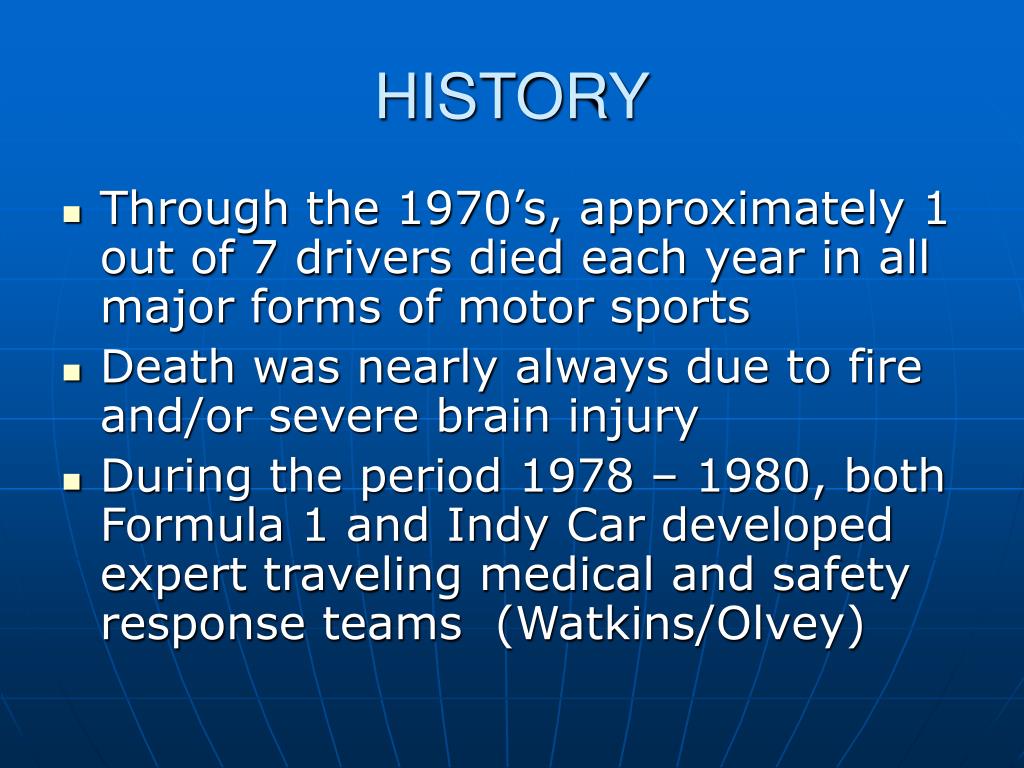

history4
HISTORY
  • Through the 1970’s, approximately 1 out of 7 drivers died each year in all major forms of motor sports
  • Death was nearly always due to fire and/or severe brain injury
  • During the period 1978 – 1980, both Formula 1 and Indy Car developed expert traveling medical and safety response teams (Watkins/Olvey)
history5
HISTORY
  • Mortality and morbidity among drivers has steadily declined since the institution of these rapid response teams
  • In Indy Car, from 1996 thru 2006 there have been 57 recorded head injuries with 6 fatalities, 45 concussions, 8 classified as severe with diffuse axonal injury.
  • All 8 of these drivers were able to return to competition. Some are still competing and none have developed late onset seizures.
history6

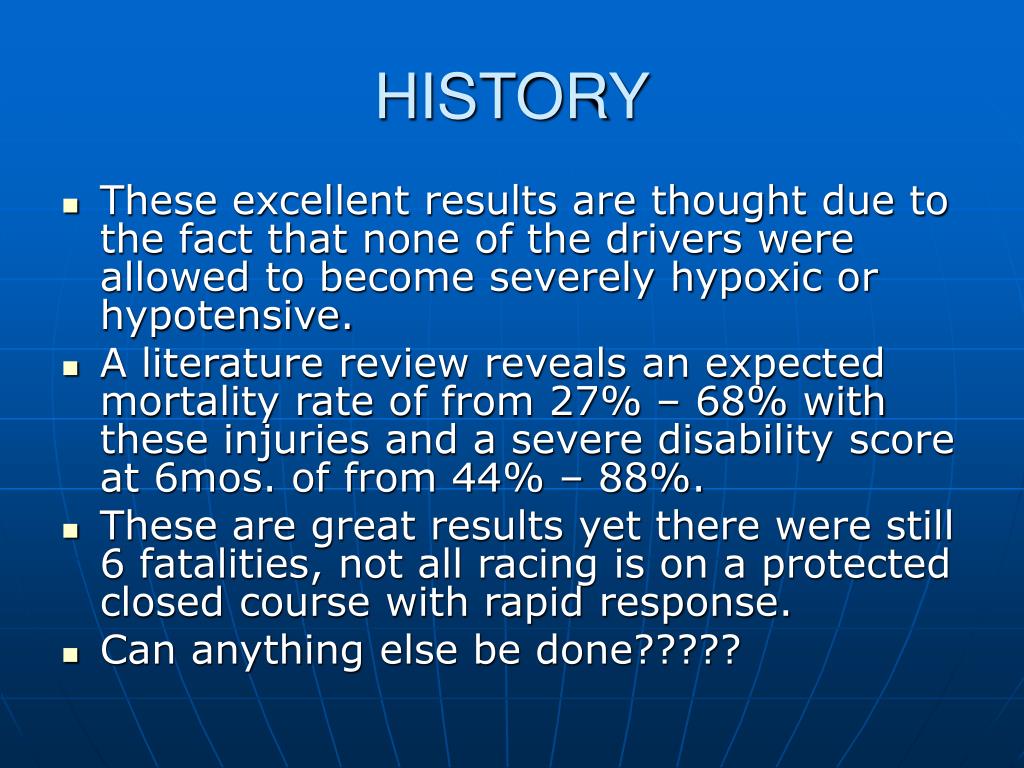

HISTORY
  • These excellent results are thought due to the fact that none of the drivers were allowed to become severely hypoxic or hypotensive.
  • A literature review reveals an expected mortality rate of from 27% – 68% with these injuries and a severe disability score at 6mos. of from 44% – 88%.
  • These are great results yet there were still 6 fatalities, not all racing is on a protected closed course with rapid response.
  • Can anything else be done?????
slide7
Actual and experimental neuro-protective agents do exist, but for these agents to have their greatest effect they must be administered very early post injury in order to avoid the secondary chemical cascade responsible for severe and often fatal outcomes
available now
AVAILABLE NOW
  • HYPOTHERMIA
  • HYPERTONIC SALINE
hypothermia good results shown with animal studies

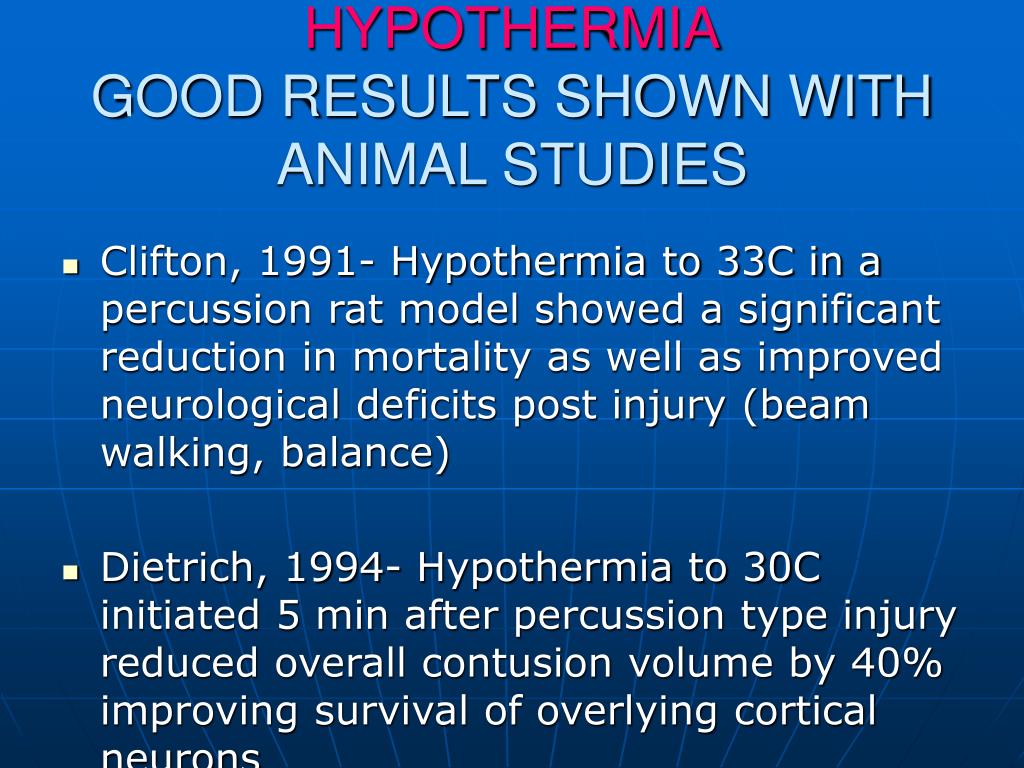

HYPOTHERMIAGOOD RESULTS SHOWN WITH ANIMAL STUDIES
  • Clifton, 1991- Hypothermia to 33C in a percussion rat model showed a significant reduction in mortality as well as improved neurological deficits post injury (beam walking, balance)
  • Dietrich, 1994- Hypothermia to 30C initiated 5 min after percussion type injury reduced overall contusion volume by 40% improving survival of overlying cortical neurons
hypothermia
HYPOTHERMIA
  • Cooling patients post cardiac arrest has now become the accepted standard of care.

- Two common methods are used:

Surface cooling

Intravascular cooling

- Both require in-patient locations

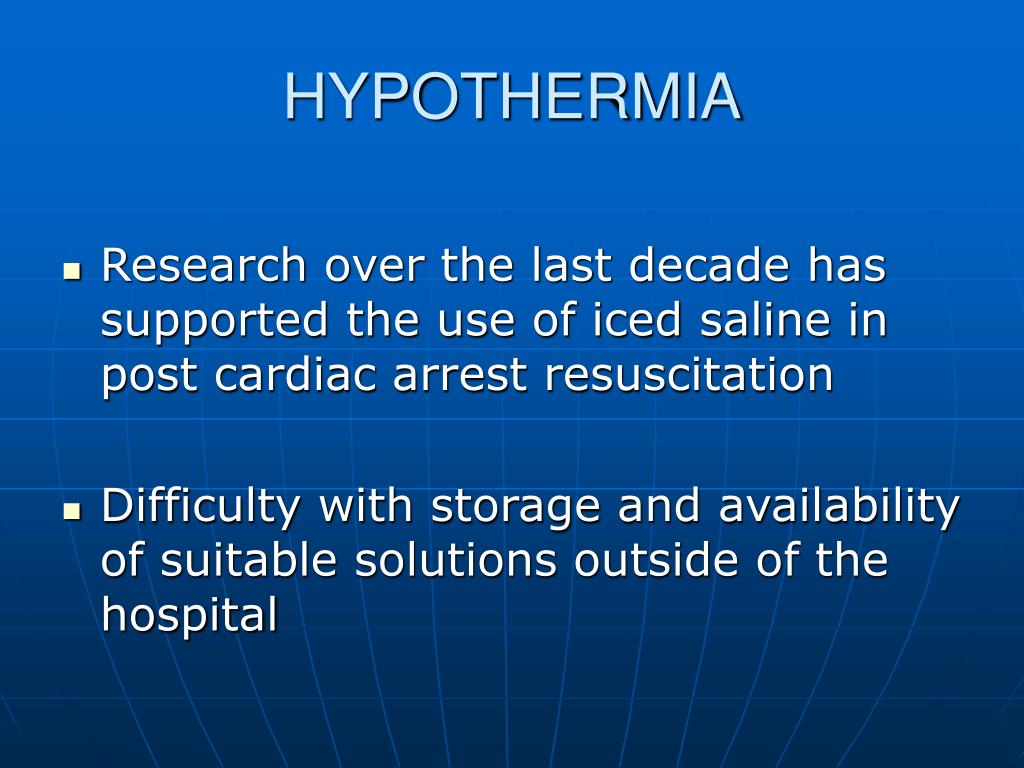

hypothermia13
HYPOTHERMIA
  • Research over the last decade has supported the use of iced saline in post cardiac arrest resuscitation
  • Difficulty with storage and availability of suitable solutions outside of the hospital
field use is available

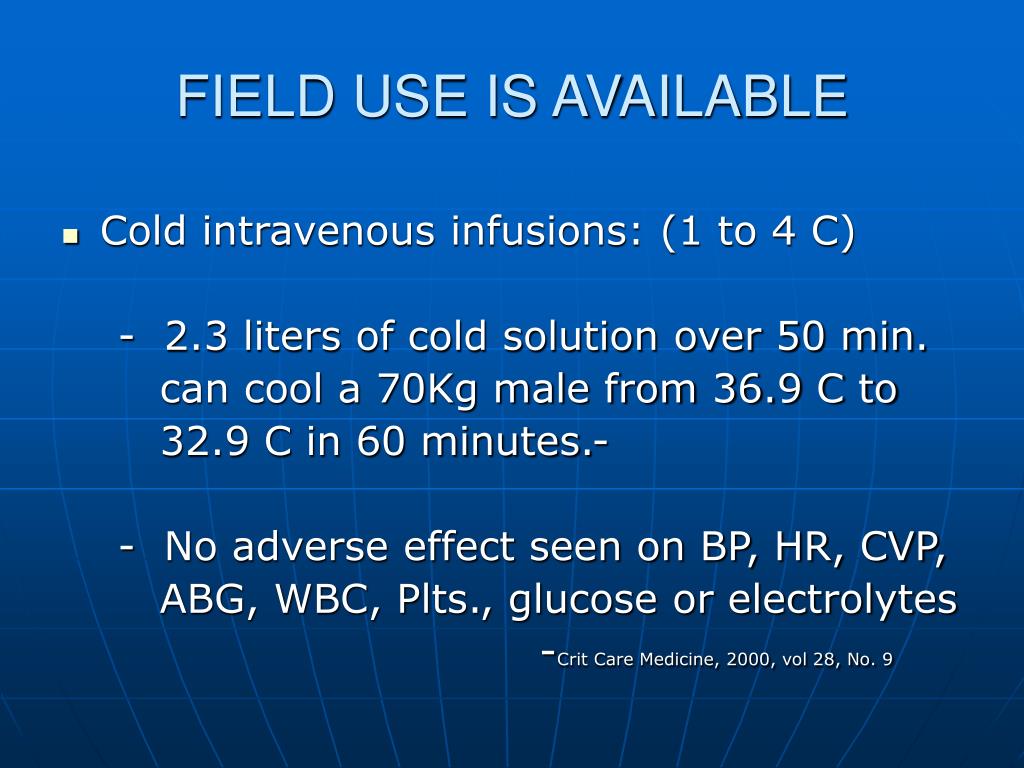

FIELD USE IS AVAILABLE
  • Cold intravenous infusions: (1 to 4 C)

- 2.3 liters of cold solution over 50 min.

can cool a 70Kg male from 36.9 C to

32.9 C in 60 minutes.-

- No adverse effect seen on BP, HR, CVP,

ABG, WBC, Plts., glucose or electrolytes

-Crit Care Medicine, 2000, vol 28, No. 9

techniques
TECHNIQUES
  • NOW, A common cooler with ice packs can store up to 3-4 liters of saline at 4C for > 20 hours- Kampmeyer, M. Pre- Hosp. Emerg. Care, 2009
  • FUTURE, Argonne’s Energy Technology Division: Developing iceslurry, now used in industry, for human use in partnership with the University of Chicago (micro ice slivers for injection)- University of Chicago Emergency Resuscitation Center
hypertonic saline
HYPERTONIC SALINE

THE BRAIN NEEDS TWO THINGS

TO FUNCTION NORMALLY

1. Oxygen

2. Glucose

hypertonic saline17

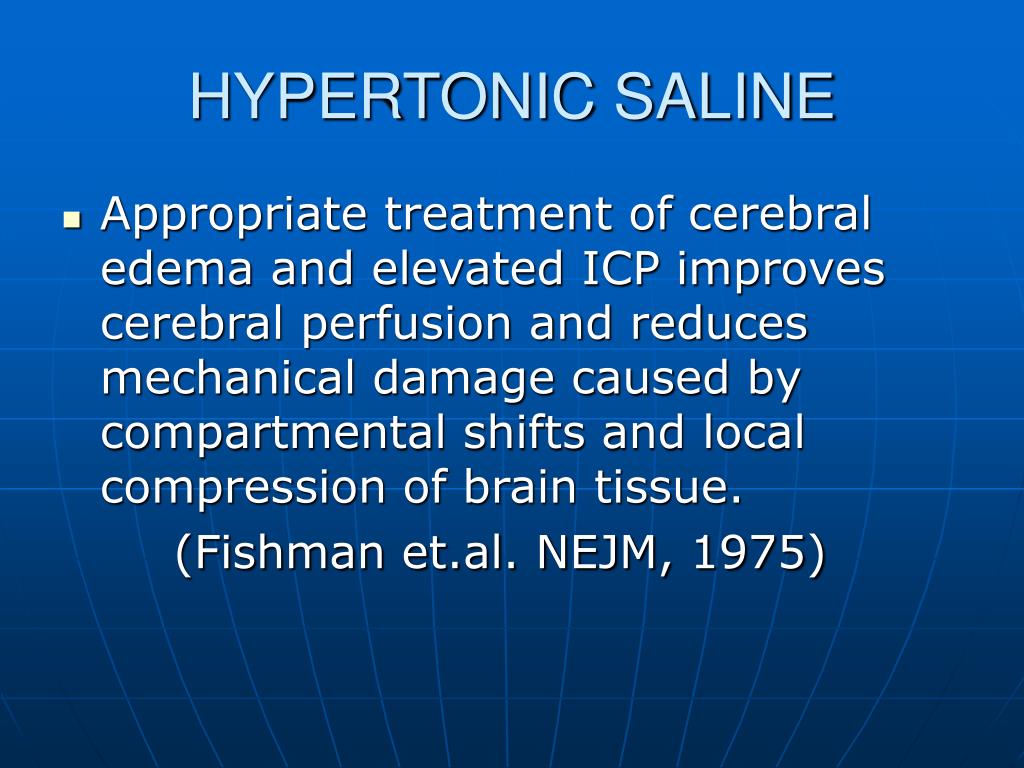

HYPERTONIC SALINE
  • Appropriate treatment of cerebral edema and elevated ICP improves cerebral perfusion and reduces mechanical damage caused by compartmental shifts and local compression of brain tissue.

(Fishman et.al. NEJM, 1975)

hypertonic saline will
HYPERTONIC SALINE WILL
  • Improve intravascular volume and cardiac performance
  • Improve intracranial elastance, and regional cerebral blood flow by reducing the size of ischemic, swollen endothelial cells.
  • Stabilize ion concentrations of sodium and chloride thus maintaining resting membrane potentials.
  • Reduce adhesion of polymorphonuclear cells to intravascular membranes thought important in reducing the secondary inflammatory insults following TBI.
  • Reduce ICP !!!!!

(Qureshi, et. al. Crit. Care Medicine 2000)

available solutions
AVAILABLE SOLUTIONS
  • 3% Saline: A continuous drip of from 20 -40 cc/hr. may work better than mannitol to remove cerebral edema fluid with less side effects while helping to maintain ICP.
  • 7.5% Saline: Boluses of 250 cc’s can

reduce ICP and enhance systemic BP

in hemorrhagic shock with TBI.-Neurosurgery, Aug/2005

  • 23.4% Saline: Boluses of 30-60 cc over 5 minutes will drastically reduce ICP and can prevent herniation syndrome!!!! Can be given in peripheral vein -Brain over Vein
potential side effects

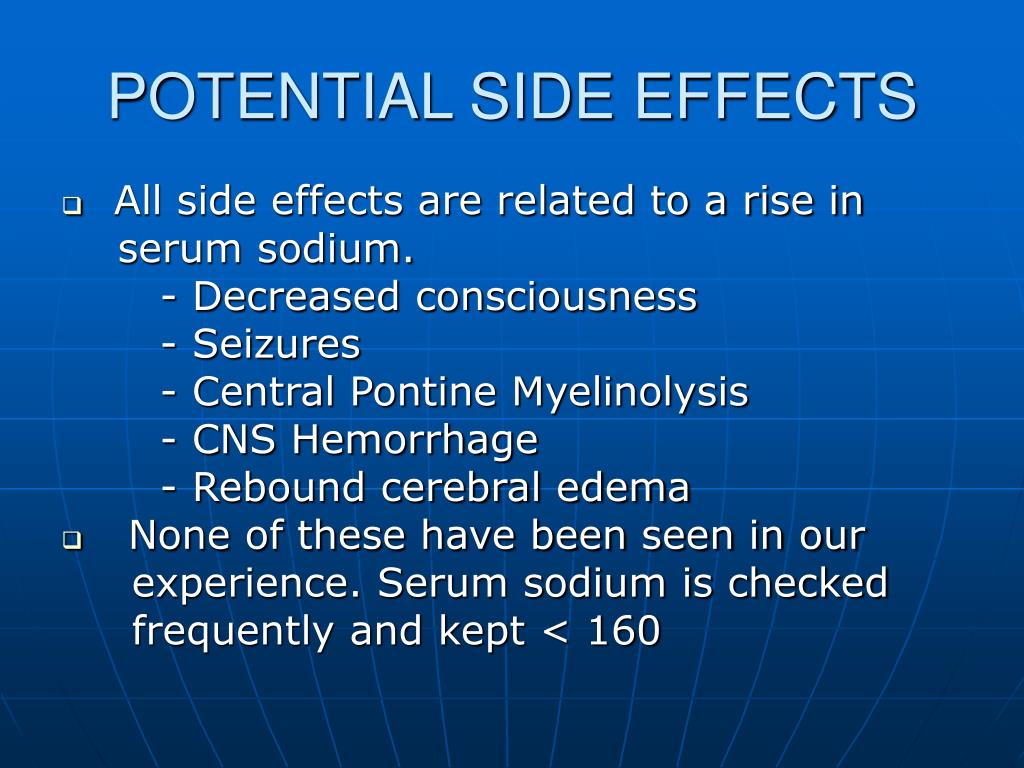

POTENTIAL SIDE EFFECTS
  • All side effects are related to a rise in

serum sodium.

- Decreased consciousness

- Seizures

- Central Pontine Myelinolysis

- CNS Hemorrhage

- Rebound cerebral edema

  • None of these have been seen in our

experience. Serum sodium is checked

frequently and kept < 160

suggested pre hospital therapy for severe tbi
SUGGESTED PRE-HOSPITAL THERAPY FOR SEVERE TBI

In severe TBI:

- ABC’s (O2 at 100%, SBP >100)

- Hyperventilate patient (15 to 20 bpm)

- 3% Iced saline IV (1-2 liters at 4C)

- Blown pupil/pupils: 23.4% saline

(30 to 60 cc boluses IV over 5

min, may repeat x 3) unproven but looks good

- Rapid transport, continue above in

ER and in the OR, or also use 7.5% in 250

cc boluses to control ICP once

monitored especially with multiple trauma and shock
