SIMS 213: User Interface Design & Development Marti Hearst Tues, Feb 3, 2004 Participatory Design A subset of user-centered design User actively participates in design of the system Pros: potentially more accurate information about the tasks

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'SIMS 213: User Interface Design & Development' - arleen


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
participatory design
Participatory Design
  • A subset of user-centered design
  • User actively participates in design of the system
  • Pros:
    • potentially more accurate information about the tasks
    • more opportunity for users to influence the design decisions
    • buy-in from sense of participation
    • potential greater acceptance of final system

Slide adapted from Ben Shneiderman

participatory design3
Participatory Design
  • Cons (potential):
    • more costly
    • lengthier implementation period
    • antagonism from those whose suggestion are not incorporated
    • force designers to compromise design
    • exacerbate personality conflicts between designers and users
    • highlight organizational politics

Slide adapted from Ben Shneiderman

user centered design overview

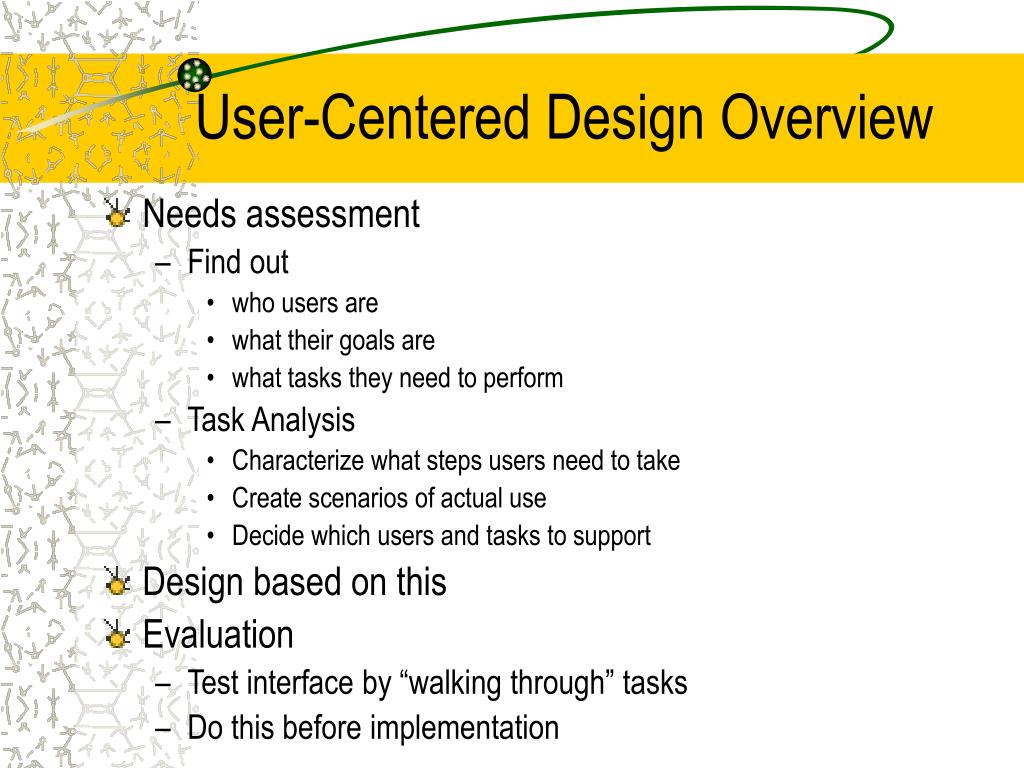

User-Centered Design Overview
  • Needs assessment
    • Find out
      • who users are
      • what their goals are
      • what tasks they need to perform
    • Task Analysis
      • Characterize what steps users need to take
      • Create scenarios of actual use
      • Decide which users and tasks to support
  • Design based on this
  • Evaluation
    • Test interface by “walking through” tasks
    • Do this before implementation
example student course enrollment how to help students achieve their goals
Example: Student Course Enrollment:How to Help Students Achieve their Goals?

achieve lifetime of success

become successful IT manager

learn to build useful systems

enroll in sims 213

help users achieve goals
Help Users Achieve Goals
  • Example: Course Enrollment Software
    • What matters from the programmers’ point of view?
    • What matters from users’ point of view?
    • What about the course administrators?
user centered design example

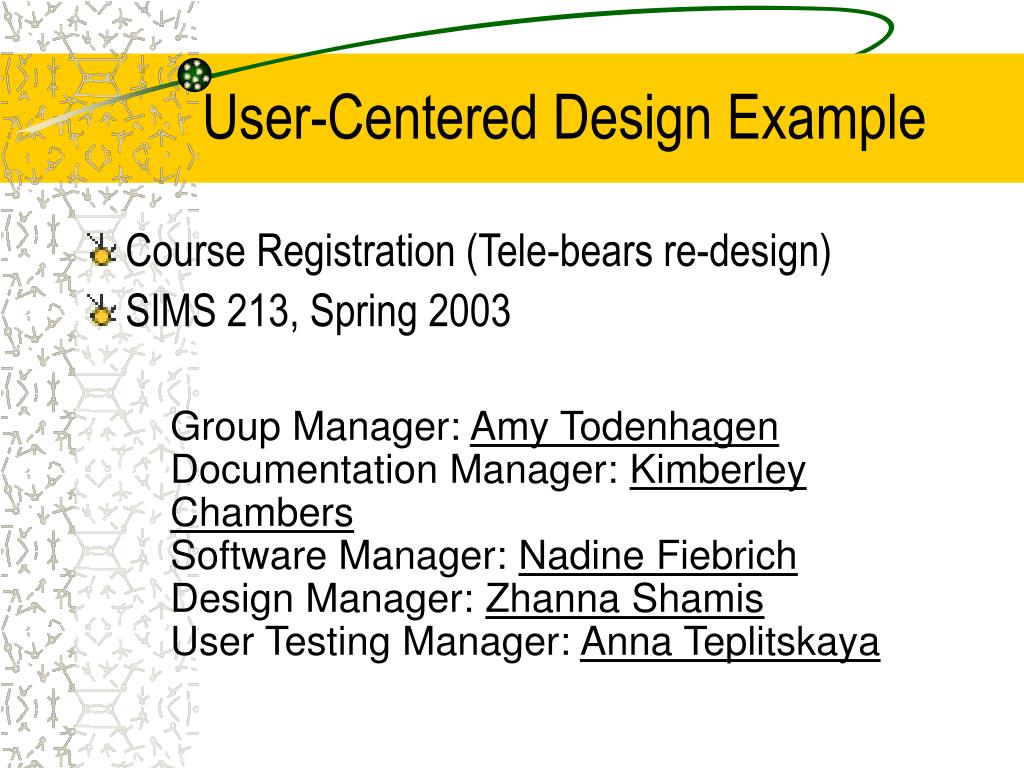

User-Centered Design Example
  • Course Registration (Tele-bears re-design)
  • SIMS 213, Spring 2003

Group Manager: Amy TodenhagenDocumentation Manager: Kimberley ChambersSoftware Manager: Nadine FiebrichDesign Manager: Zhanna ShamisUser Testing Manager: Anna Teplitskaya

user centered design example10
User-Centered Design Example
  • Needs Assessment Procedure:
    • Answer the needs assessment questions
    • Make a table showing
      • user types
      • tasks
      • (guesses about) relative frequencies of tasks
    • Decide which of the new tasks users may perform using the new interface.
      • Make note of which ideas you decided to drop based on your interviews.
needs assessment questions
Needs Assessment Questions
  • Who is going to use the system?
  • What tasks do they now perform?
  • What tasks are desired?
  • How are the tasks learned?
  • Where are the tasks performed?
  • What is the relationship between the user and the data?

Slide adapted from James Landay

needs assessment questions12

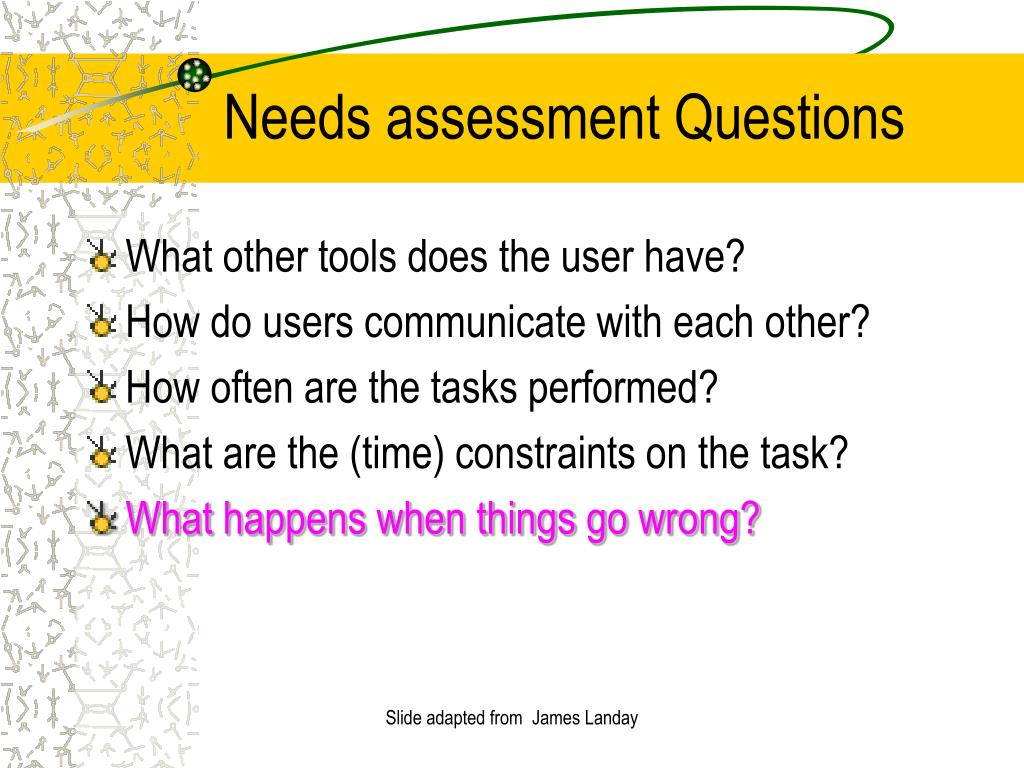

Needs assessment Questions
  • What other tools does the user have?
  • How do users communicate with each other?
  • How often are the tasks performed?
  • What are the (time) constraints on the task?
  • What happens when things go wrong?

Slide adapted from James Landay

user centered design example13
User-centered Design Example
  • Needs assessment techniques:
    • Observation
    • Interviews
    • Study existing successful designs
user centered design example14
User-Centered Design Example
  • Interview
    • Prepare a list of questions about how people do their task now and what they would like to have be different.
    • Interview at least three people
      • Try to identify people with different needs and preferences, with respect to their attitudes about using online ordering systems.
    • Ask them what, if anything, must be in the system in order for them to prefer it over the current system
      • Refer to needs assessment questions shown above.
    • Go look at existing interfaces for the goal and see how they handle the necessary tasks.
user centered design example15

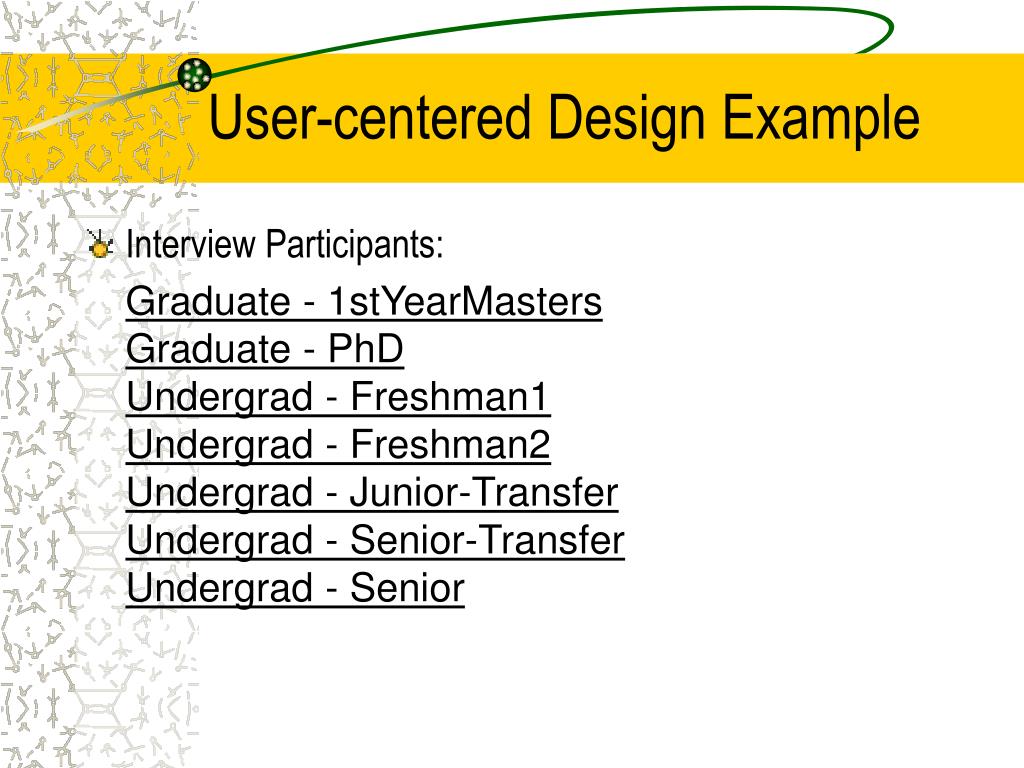

User-centered Design Example
  • Interview Participants:

Graduate - 1stYearMastersGraduate - PhDUndergrad - Freshman1Undergrad - Freshman2Undergrad - Junior-TransferUndergrad - Senior-TransferUndergrad - Senior

user centered design example16
User-centered Design Example

Interview Questions & Summary Results

user centered design example17
User-centered Design Example

Interview Questions & Summary Results

user centered design example19

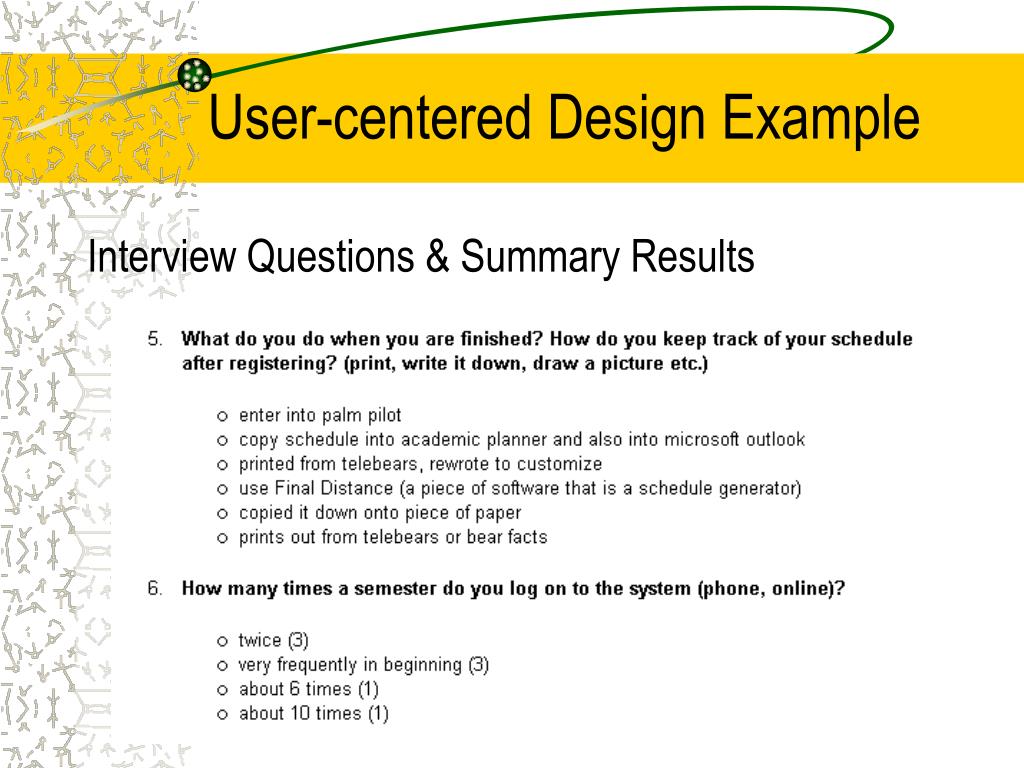

User-centered Design Example

Interview Questions & Summary Results

user centered design example21

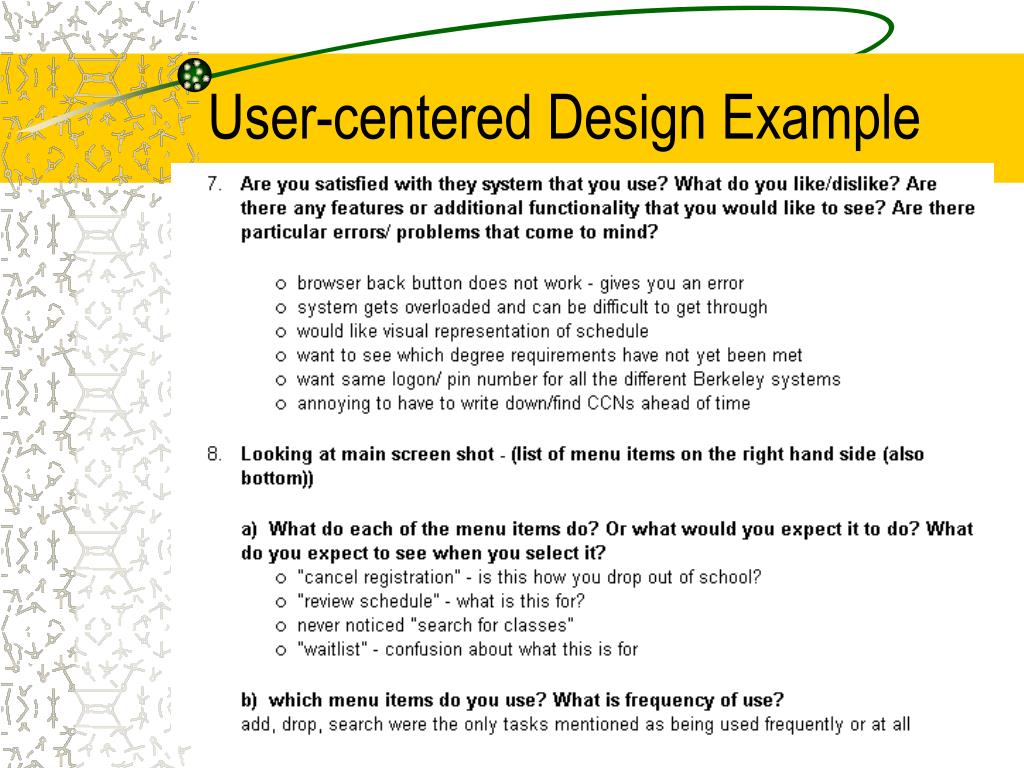

User-centered Design Example

Interview Questions & Summary Results

user centered design example22
User Centered Design Example
  • Create the Personas from these results
    • Next time
task analysis
Task Analysis
  • Characterize what happens when users perform typical tasks
  • Tools:
    • table of user communities vs. tasks
      • Who x What
    • table of task sequences
    • flowchart or transition diagram
    • videotape depicting scenario

Slide adapted from Ben Shneiderman

how often do users perform the tasks
How Often Do Users Perform the Tasks?
  • Frequent users remember more details
  • Infrequent users may need more prompting
  • Which function is performed
    • most frequently?
    • by which users?
    • optimize system for tasks that will improve perception of its performance

Slide adapted from James Landay's

user centered design example25
User-Centered Design Example
  • Task Analysis Table
user centered design example26
User-Centered Design Example
  • Task Analysis Table
user centered design example27
User-Centered Design Example
  • Task Analysis Table
slide28

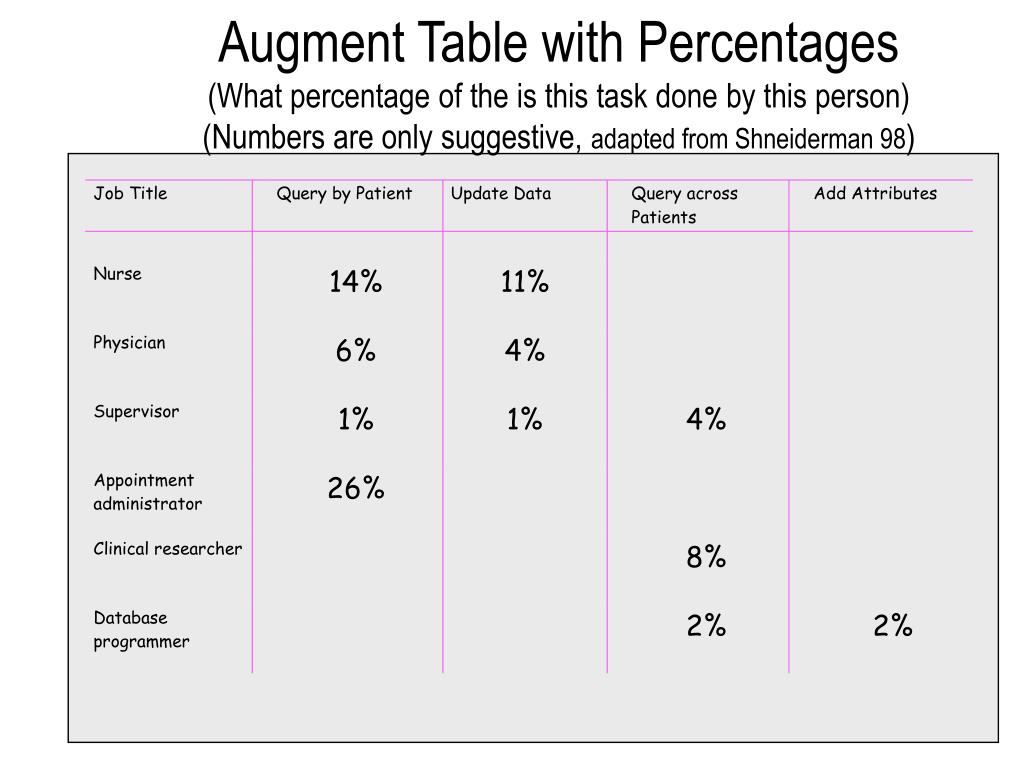

Augment Table with Percentages(What percentage of the is this task done by this person)(Numbers are only suggestive, adapted from Shneiderman 98)

user centered design example29
User-Centered Design Example
  • Scenarios
    • Use Task Matrix to Create Scenarios
    • Scenarios indicate the sequence of steps the personas go through to complete certain tasks
user centered design example30
User-Centered Design Example
  • Sketch an initial design
    • Explain how the system will work.
      • Either a textual description or a flow chart (or both) showing the sequences of steps that will be allowed in the system.
      • Provide rough sketches showing at least three of the important screens.
    • Walk through at least one of the scenarios you developed and show how it can be handled by the interface.
