Presentation Transcript
bunker fuel regulations latest updates status an intertanko view

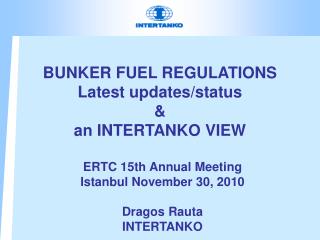

BUNKER FUEL REGULATIONSLatest updates/status&an INTERTANKO VIEW

ERTC 15th Annual Meeting

Istanbul November 30, 2010

Dragos Rauta

INTERTANKO

slide2

INTERTANKO

International Association of Independent Tanker Owners

A non-governmental organization established in Oslo in 1970 to

represent the interests of independent tanker operators

at international, regional, national and local levels

260 Members

45 countries

3,100 tankers

250 million dwt

330 Associate Members

Spokesman – information service - meeting place

23 Secretariat

Oslo, London, Washington & Singapore

14 Committees and 5 Regional Panels

Bunker Sub-Committee (tanker operatos, IBIA, test labs)

regulations standards
REGULATIONS/STANDARDS
  • IMO
    • MARPOL ANNEX VI
    • GREENHOUSE GAS EMISSIONS (GHG)
    • SOLAS
  • REGIONAL
    • EU SULPHUR DIRECTIVE
    • CALIFORNIA AIR RESOURCES BOARD
  • ISO 8217:2010
imo marpol annex vi
IMO - MARPOL ANNEX VI
  • Limits SOx emissions
  • Includes PM (particulate maters)
  • Compliance through sulphur content in fuels
  • Alternative methodologies accepted as Equivalent Measures
  • Addresses marine fuel oil quality
  • Recommends no measures on ships if supply is not adequate
  • Guidelines to asses compliance if BDN data is challenged by PSC (or by lab test results)
sulphur limits imo application dates
SULPHUR LIMITSIMO APPLICATION DATES
  • IMO Global S limit (by weight)
    • current 4.5%
    • 1 July 2012 3.5%
    • 1 January 2020/(2025) 0.5%
  • IMO ECA S limits (by weight):
    • up to 1 July 2010 1.5%
    • 1 July 2010 1.0%
    • 1 July 2015 0.1%
slide6

MARPOL ANNEX VI ECAs

62˚N

4˚W

ECA 1

ECA 2

57˚44.8’ N

5˚W

48˚30’N

marpol annex vi ecas
MARPOL ANNEX VI ECAs

Entry into force 1 August 2012

200 nm

ECA 3

200 nm

Caribs?

regional regulations on bunkers
REGIONAL REGULATIONS ON BUNKERS
  • EU SULPHUR DIRECTIVE
    • as MARPOL Annex VI sulphur provisions
    • additional provision: use of 0.10% sulphur content fuel (or alternative) when ships ”at berth” (1 Janaury 2010)
    • MGO/MDO on the EU market should have < 0.1% S content (1 January 2010)
  • CALIFORNIA AIR RESOURCE BOARD (CARB)
    • use of marine distillates within 24nm off shore
    • sulphur content in the marine distillates:
      • current – MDO max. 0.50%; MGO max. 1.50%
      • after 1 January 2012 - MDO/MGO max. 0.10%
application dates s cap
APPLICATION DATES & S Cap

HFO

MGO

LSFO

MDO/MGO

MDO

MGO

marpol annex vi regulation 4 equivalent measures
MARPOL ANNEX VIRegulation 4 – Equivalent measures
  • An Administration may allow any fitting, material, appliance or apparatus to be fitted in a ship or other procedures, alternative fuel oils, or compliance methods used as an alternative to that required by this Annex if such methods are at least as effective in terms of emissions reductions as that required by this Annex
  • This means the Administration (and not the ship) have to acknowledge that:
    • technologies have equivalent efficiency in terms of SOx, PM and NOx.
    • they do not harm the environment
    • they operate within the requirements of the IMO guidelines
marpol annex vi fuel oil availability
MARPOL ANNEX VIFUEL OIL AVAILABILITY
  • IMO set up a correspondence group to consider establishing a methodology to determine the availability of fuel to comply with the global sulphur limit in 2020
  • Supply/demand models
  • Consider
    • current experience with supply
    • new ECAs
    • shipping increased efficiency
    • use of alternative fuels, e.g. LNG
    • use of alternative technologies, e.g. scrubbers
global bunkering
GLOBAL BUNKERING

One - third of bunkers are supplied in ECA ports

Marine distillates on EU must have < 0.10% sulphur content

Source: Poten & Partners

greenhouse gas emissions
GREENHOUSE GAS EMISSIONS
  • Efficient Designs
  • Efficient Operations
  • Ship Energy Efficiency Management Plan
  • Market Based Mechanisms (MBMs)
efficient designs
EFFICIENT DESIGNS
  • Energy Efficiency Design Index (EEDI)
    • - require a minimum energy efficiency of new ships
    • - technical and design based measures only
  • - Environmental Cost: CO2 emissions
  • Benefit: Cargo capacity transported
  • Attained index < Required index
eedi required tankers
EEDI REQUIRED - TANKERS

Required Index/ Phase 0 = no reduction (2013 & 2014)

EEDI

IMO impact analysis

10%

Req. Index

Phase 1

2015 - 2019

20%

Req. Index

Phase 2

2020 - 2024

30%

Req. Index

Phase 3

on and after 2025

DWT

seemp
SEEMP

Ship Energy Efficiency Management Plan

- operational and commercial measures

  • Developed as a ship-specific plan by the ship owner
  • What the Plan should look like in four parts
    • Planning: Package of measures identified & Goal setting
    • Implementation: Implementation system
    • Monitoring: Monitoring system (tools and record keeping)
    • Self-evaluation & Improvement: Voluntary reporting
operational initiatives
OPERATIONAL INITIATIVES
  • INTERTANKO is actively involved in developing best industry practice together with other stakeholders, particularly charterers, for a better planning of the voyage with the view of reducing CO2 emissions.
ghg regulatory impact on bunkers
GHG REGULATORY IMPACTON BUNKERS
  • Less fuel consumption/tonne-mile
  • Current suggestions for fuel efficiency
    • savings > 10% by 2020
    • savings > 30% by 2030
  • Search for higher specific energy fuels
  • Still an increase in demand of bunkers but maybe slower than recent historical data
  • Still fossil fuels but which type
challenges for ships
CHALLENGES FOR SHIPS
  • Switching between at least 3 grades of fuel
  • Calling at EU/Californis ports, ships use:
    • Deep sea fuel (HFO)
    • ECA fuel (LSFO)
    • EU - ”at berth”/”at anchor” fuel (MGO)
    • California – MDO/MGO fuel
  • Onboard storage & segregation capacity
  • Increase risk of fuel incompatibility
  • Increases the risks of incidents
  • Viscosity, lubricity, flash point temperature
  • Need of closer monitoring of fuel quality
fuel oil quality marpol annex vi regulation 18
FUEL OIL QUALITYMARPOL Annex VI - REGULATION 18
  • blend of HC derived from petroleum refining
  • free from inorganic acid
  • should not include any substance or chemical waste which:
    • jeopardise ship safety and adversely affects machinery
    • is harmful to personnel
    • contributes to overall addition to the air emissions
  • Annex VI – Regulation 18 does not define parameters for a fuel oil standard
  • Annex VI – Regulation 18 requires MARPOL sample & BDN guaranteeing fuel compliance
reported problems with marine fuel oils
REPORTED PROBLEMS WITH MARINE FUEL OILS
  • HIGH ABRASIVE FUELS
  • HIGH ASH
  • LOW FLASH POINT
  • HIGH SEDIMENTS
  • HIGH DENSITY
  • FUELS CONTAINING USED LUBE OILS
  • POLYETHYLENE CONTAMINATION
  • POLYSTYRENE CONTAMINATION
  • HIGH CALCIUM & HIGH SODIUM
  • HIGH WATER CONTENT
  • CONTAMINATED FUELS
  • INCOMPATIBILITY OF BLENDS
  • FATTY ACIDE METHYL ESTER (FAME)
fuel quality bdn information
FUEL QUALITY - BDN INFORMATION
  • Name and IMO Number of receiving ship
  • Port
  • Date of commencement of delivery
  • Name, address, & tel. number of marine fuel oil supplier
  • Product name
  • Quantity in metric tons
  • Density at 15°C, kg/m3
  • Sulphur content (%m/m)
  • A declaration signed and certified by the fuel oil supplier’s representative that the fuel oil supplied is in conformity with the applicable subparagraph of regulation 14.1 or 14.4 and regulation 18.3 of this Annex.

HOW IS THIS ASCERTAINED?

ACTUAL or TYPICAL VALUES?

ISO 8217:2010 TO PLAY A ROLE? WHO CONTROLS?

iso 8217 2010
ISO 8217:2010
  • New grade DMZ (as DMA grade but minimum viscosity @ 3 cSt)
  • DMA grade minimum viscosity @ 2 cSt
  • Previous DMC grade has been re-defined as residual fuel (RMA grade)
  • Additional criteria and specifications for:
    • hydrogen sulphide (H2S)
    • acid number
    • oxydation stability
    • lubricity
iso 8217 201024
ISO 8217:2010
  • Sulphur limits related to MARPOL Annex VI
  • Values for ash reduced
  • Value for Al + Si reduced
  • New informative Annexes on:
    • bio-derived products
    • deleterious materials
    • hydrogen sulphide
  • Positive development but . . .
  • ISO 8217 is not referred to in MARPOL
  • Could some criteria be used in the BDN?
imo iso agreed appropritae parameters
IMO/ISO AGREED “APPROPRITAE PARAMETERS”
  • “Appropriate parameters considered by ISO to be pertinent to fuel oil quality with respect to air quality, ship safety, crew health and engine performance”
  • Density at 15ºC
  • Kinematic Viscosity
  • Vanadium
  • Al + Si
  • Cetane Index
  • Ignition Quality (CCAI)
  • Fuel Stability
  • Flash Point - minimum value required under SOLAS II-2, regulation. 4. 2.1.1
imo iso agreed appropritae parameters cont
IMO/ISO AGREED “APPROPRITAE PARAMETERS” (cont)
  • “Appropriate parameters considered by ISO to be pertinent to fuel oil quality with respect to air quality, ship safety, crew health and engine performance”
  • Pour Point
  • Water
  • Sodium
  • Acid Number
  • Lubricity HFRR
  • Micro Carbon Residue
  • Ash
  • Sulphur - maximum value required under MARPOL, Annex VI, regulation 14
  • Appearance (for transparent fuels)
  • Used lubricating oil (ULO) - free of such elements as required by MARPOL Annex VI, regulation 18
    • Zinc
    • Phosphorus
    • Calcium
  • Hydrogen Sulphide - value required to be given by SOLAS/MSDS
measures to control fuel quality
MEASURES TO CONTROL FUEL QUALITY
  • Stricter enforcement of Reg. 18 of MARPOL Annex VI:
    • Port Authorities keep registries of local recognised bunker suppliers; make these available for publication on the IMO web site
    • Port Authorities to report the results of investigations & eventual follow-up actions in response to any Note of non-compliant fuel delivered in their jurisdiction
    • Port Authorities should consider not allowing fuel blending during delivery to ship (Singapore MPA already forbids onboard barge blending)
    • Singapore MPA Code of Practice for Bunkering (SS600:2008) and Quality Management for Bunker Supply Chain (SS524:2006) are excellent examples
measures to control fuel quality28
MEASURES TO CONTROL FUEL QUALITY
  • Improvements to MARPOL Annex VI:
    • Include in the BDN a number of “appropriate parameters” jointly recognised by the IMO and ISO as pertaining to seafarers' health, safety of the ship and air emissions
    • Port Authorities to set up a system monitoring compliance of bunkers delivered to ships
    • Consider the safety and environmental improvements if residual fuels would be treated (i.e. purification) prior to delivery to ships
slide29

Thank you

For more information, please visit:

www.intertanko.com

London, Oslo. Washington and Singapore

n american eca cost impact
N AMERICAN ECA - COST IMPACT*
  • Extra costs of a VLCC (2 m bbls) for a round trip of 400 nm :

Premium MGOExtra cost(%)

$200/t $40,000 0.8%

$500/t $100,000 2.0%

  • Apparently US and Canada will have minimal problems to ensure supply

* Poten Fuel Oil Monthly Opinion, 6 April 2010
