Ece 371 unit 9

ECE 371 – Unit 9

Interrupts (continued)


Example

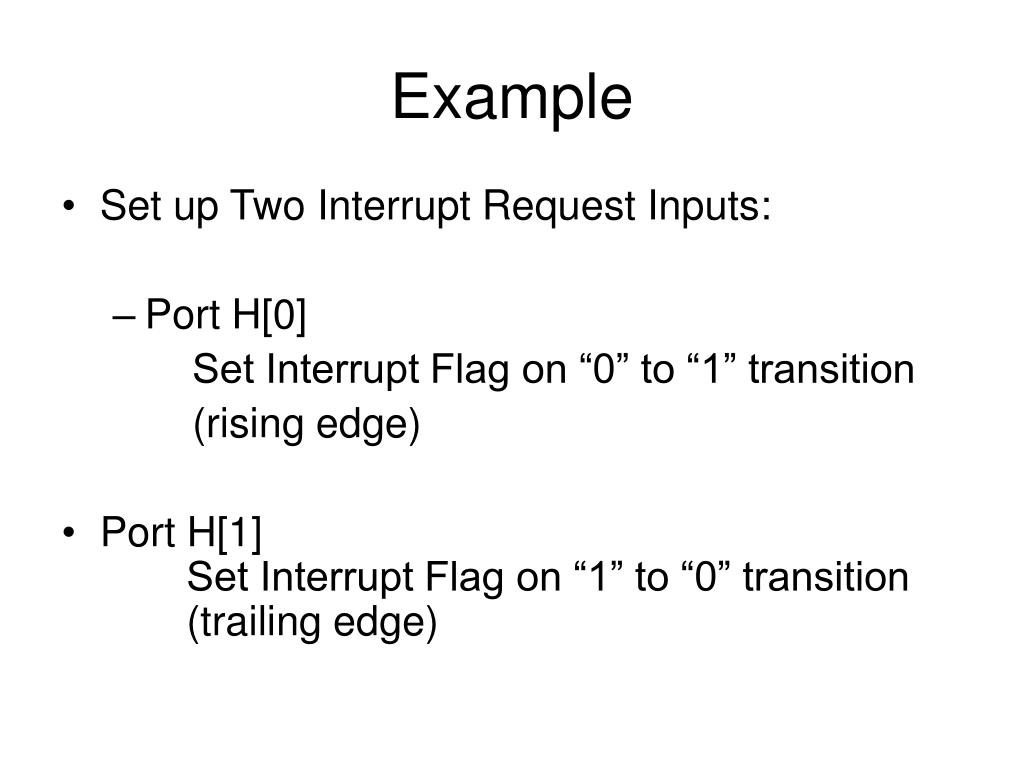

Example

  • Set up Two Interrupt Request Inputs:

    • Port H[0]

      Set Interrupt Flag on “0” to “1” transition

      (rising edge)

  • Port H[1]

    Set Interrupt Flag on “1” to “0” transition

    (trailing edge)


Example cont
Example (cont)

Response to Interrupts:

• Toggle H[4] on each H[0] Interrupt

• Toggle H[5] on each H[1] Interrupt


Example port h interrupt
Example – Port H Interrupt

#include ece371.h

/* Port H Port Definitions */

#define PTH _P( 0x260)

#define PTIH _P( 0x261)

#define DDRH _P( 0x262)

#define RDRH _P( 0x263)

#define PERH _P( 0x264)

#define PPSH _P( 0x265)

#define PIEH _P( 0x266)

#define PIFH _P( 0x267)


Interrupt service routine

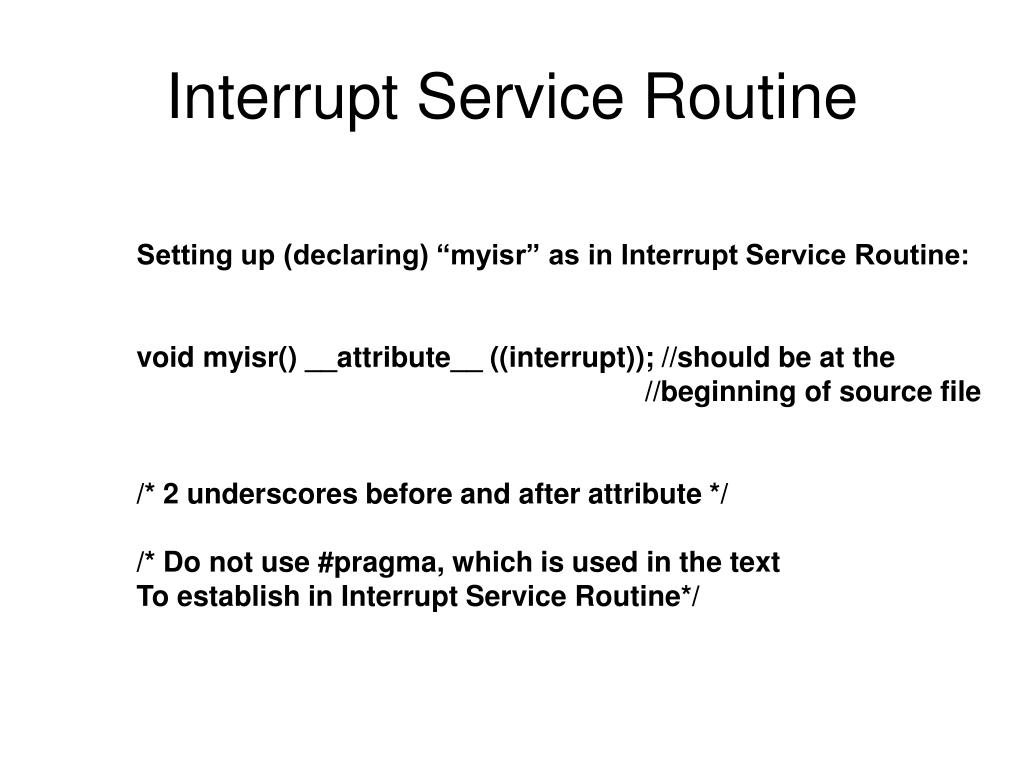

Interrupt Service Routine

Setting up (declaring) “myisr” as in Interrupt Service Routine:

void myisr() __attribute__ ((interrupt)); //should be at the

//beginning of source file

/* 2 underscores before and after attribute */

/* Do not use #pragma, which is used in the text

To establish in Interrupt Service Routine*/


Example main program

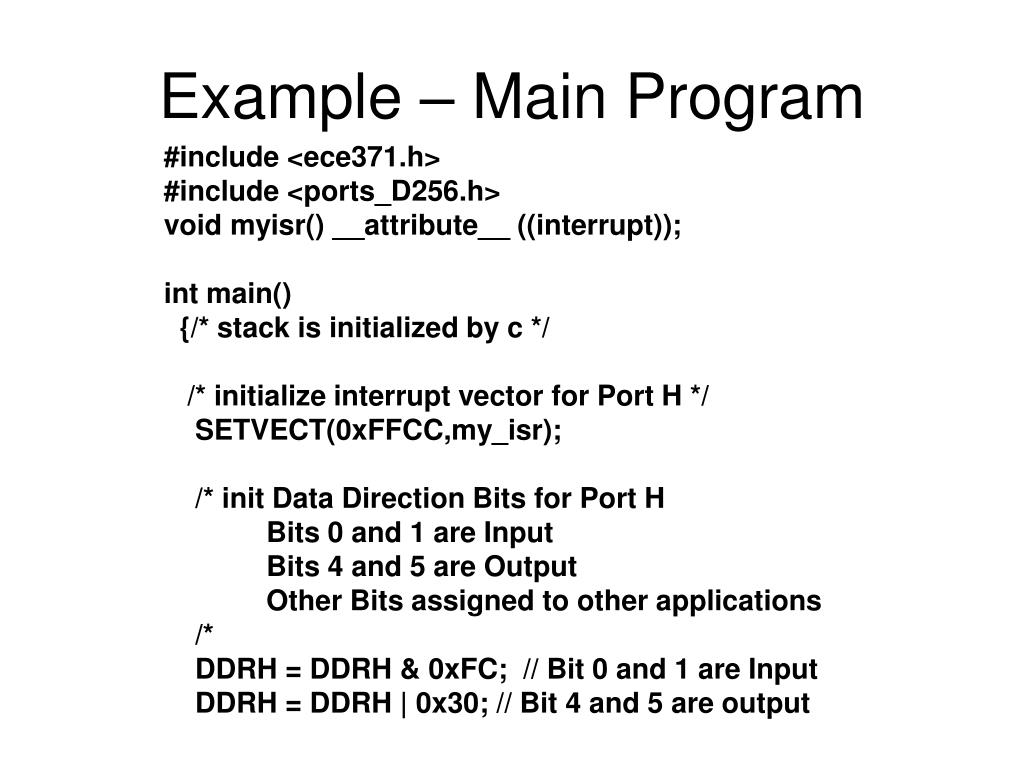

Example – Main Program

#include <ece371.h>

#include <ports_D256.h>

void myisr() __attribute__ ((interrupt));

int main()

{/* stack is initialized by c */

/* initialize interrupt vector for Port H */

SETVECT(0xFFCC,my_isr);

/* init Data Direction Bits for Port H

Bits 0 and 1 are Input

Bits 4 and 5 are Output

Other Bits assigned to other applications

/*

DDRH = DDRH & 0xFC; // Bit 0 and 1 are Input

DDRH = DDRH | 0x30; // Bit 4 and 5 are output


Ece 371 unit 9

/* Set Bit 4 and 5 to full drive outputs */

RDRH = RDRH & 0xCF; //11001111

/* Enable Bit 0 and 1 Pull Device on Input */

PERH = PERH | 0x03; // Enable Bit 0 and 1 Pull Device

PPSH = (PPSH & 0xFC) | 0x01; // Bit 0 Rise, Bit 1 Fall

/* Clear Pending Port H Bit 0 and 1 Interrupts */

PIFH = 0x03;

/* Enable Bit 0 and 1 to Interrupt */

PIEH = PIEH | 0x03; // Enable Interrupts

/* Enable Maskable Interrupt System */

ENABLE();

/* do main program processing */

while(TRUE); // loop

}


Example interrupt handler

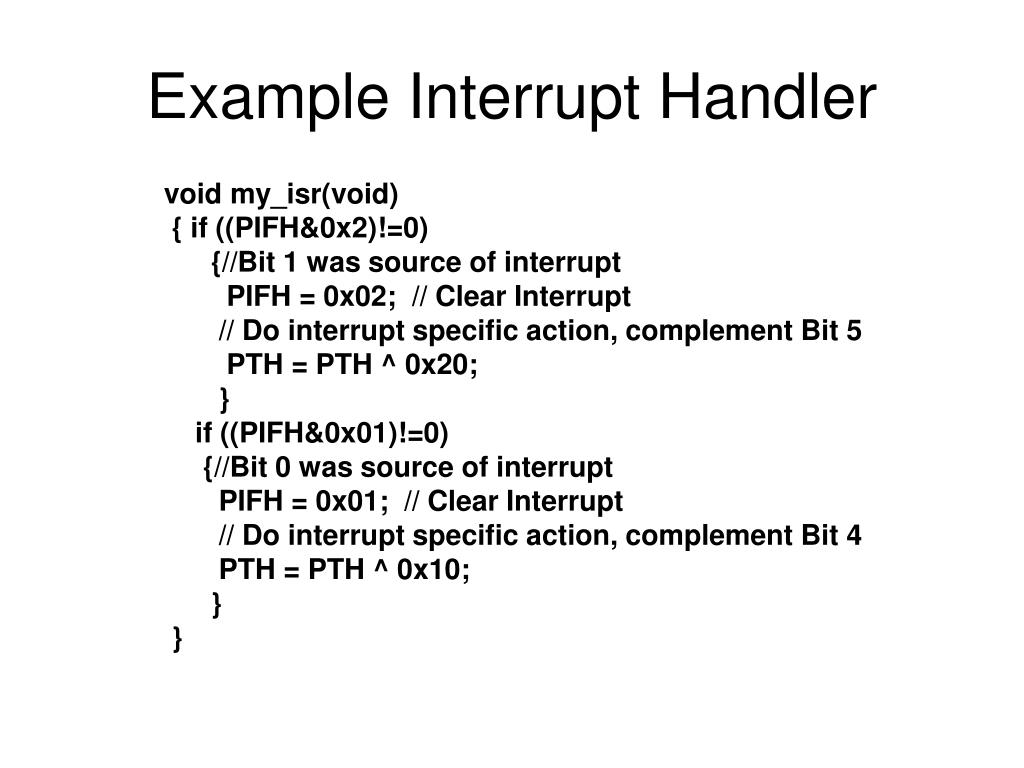

Example Interrupt Handler

void my_isr(void)

{ if ((PIFH&0x2)!=0)

{//Bit 1 was source of interrupt

PIFH = 0x02; // Clear Interrupt

// Do interrupt specific action, complement Bit 5

PTH = PTH ^ 0x20;

}

if ((PIFH&0x01)!=0)

{//Bit 0 was source of interrupt

PIFH = 0x01; // Clear Interrupt

// Do interrupt specific action, complement Bit 4

PTH = PTH ^ 0x10;

}

}


Another example 8 switch counter implemented using interrupts

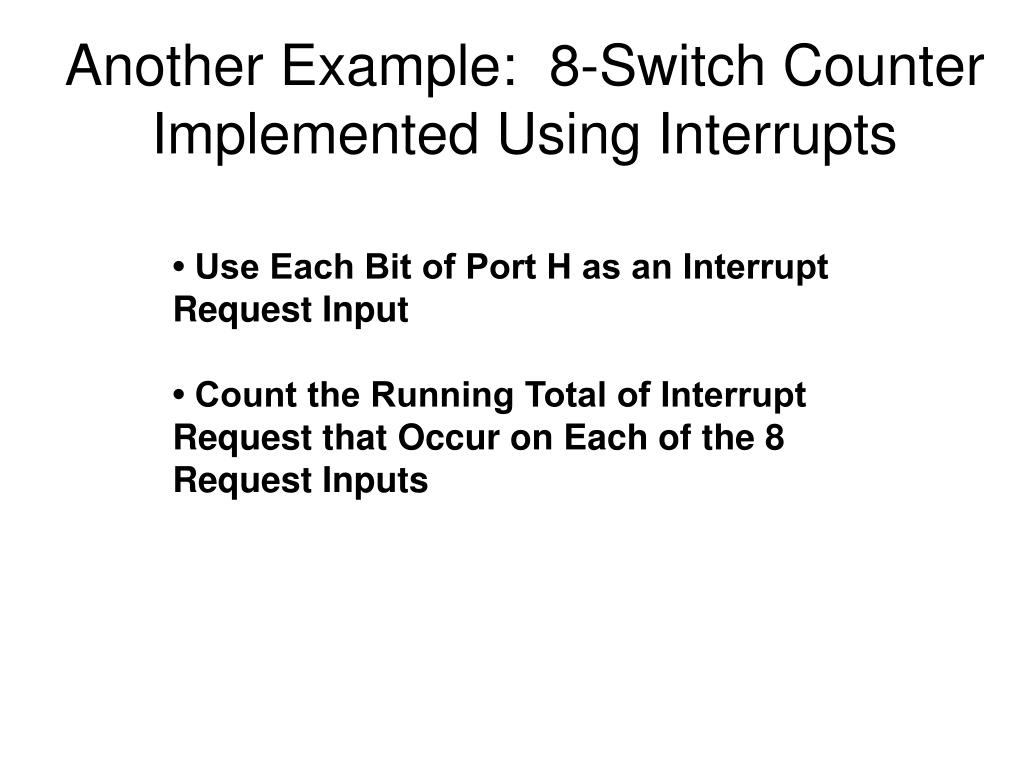

Another Example: 8-Switch CounterImplemented Using Interrupts

• Use Each Bit of Port H as an Interrupt Request Input

• Count the Running Total of Interrupt Request that Occur on Each of the 8 Request Inputs


Another example cont
Another Example: (cont)

#include <ece371.h>

#include <ports_D256.h>

void myisr() __attribute__ ((interrupt));

/* Port H definitions go here */

int count[8]=0,0,0,0,0,0,0,0; // global

int main()

{/* stack is initialized by c */

/* initialize interrupt vector for Port H */

SETVECT(0xFFCC,my_isr);

/* Init Data Direction Bits for Port H

All bits are input

/*

DDRH = 0x00;


Ece 371 unit 9

/* Enable Pull Devices on Port H all bits */

PERH = 0xFF;

/* Interrupt on “1” to “0” Transitions all bits

PPSH = 0x00;

/* Clear Pending Port H Interrupts all bits */

PIFH = 0xFF;

/* Enable all Port H bits to Interrupt */

PIEH = 0xFF; // Enable Interrupts

/* Enable Maskable Interrupt System */

ENABLE();

/* do main program processing */

while(TRUE); // loop

}


Method 1 for implementing interrupt service routine

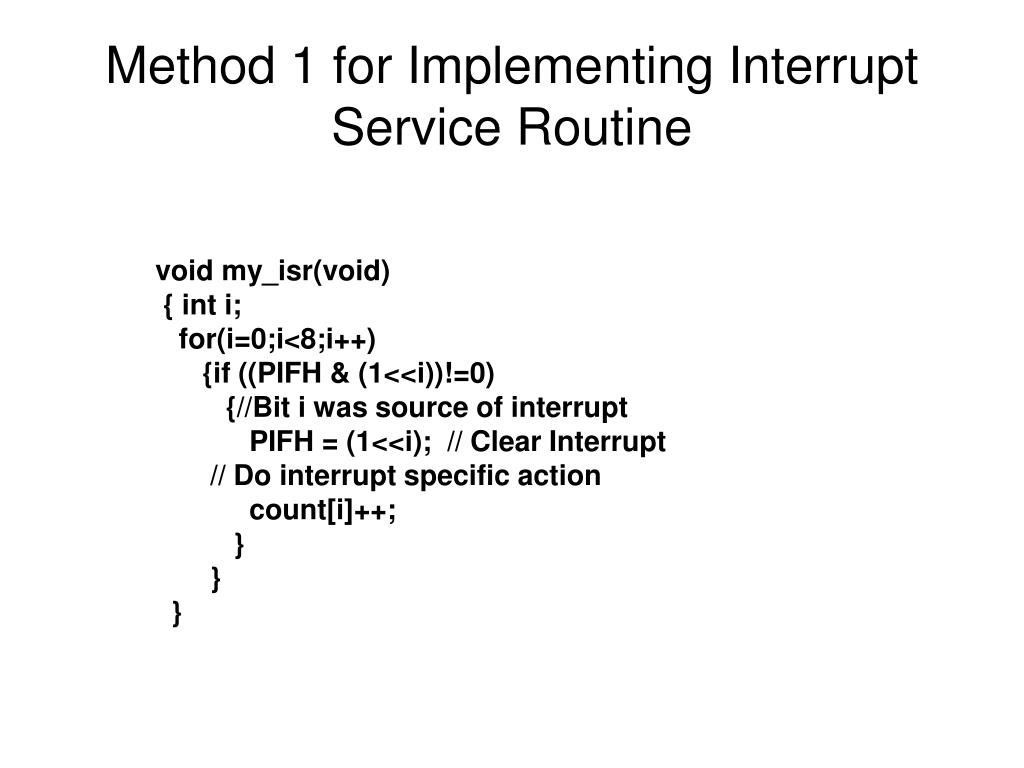

Method 1 for Implementing Interrupt Service Routine

void my_isr(void)

{ int i;

for(i=0;i<8;i++)

{if ((PIFH & (1<<i))!=0)

{//Bit i was source of interrupt

PIFH = (1<<i); // Clear Interrupt

// Do interrupt specific action

count[i]++;

}

}

}


Method 2 for implementing interrupt service routine

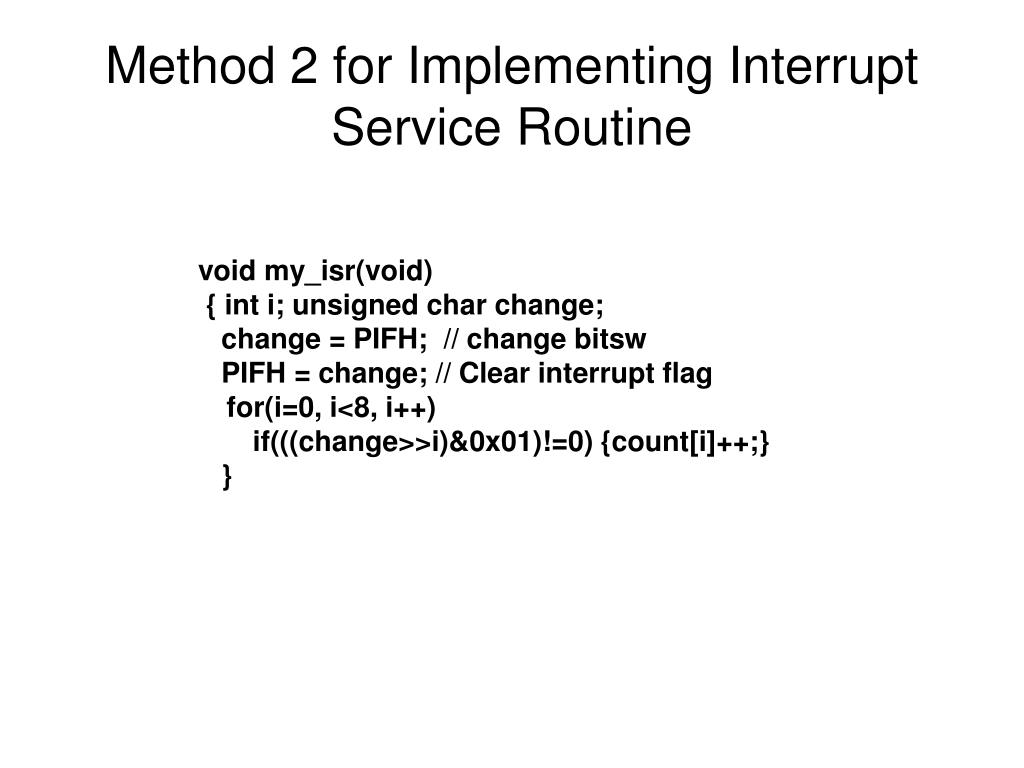

Method 2 for Implementing Interrupt Service Routine

void my_isr(void)

{ int i; unsigned char change;

change = PIFH; // change bitsw

PIFH = change; // Clear interrupt flag

for(i=0, i<8, i++)

if(((change>>i)&0x01)!=0) {count[i]++;}

}

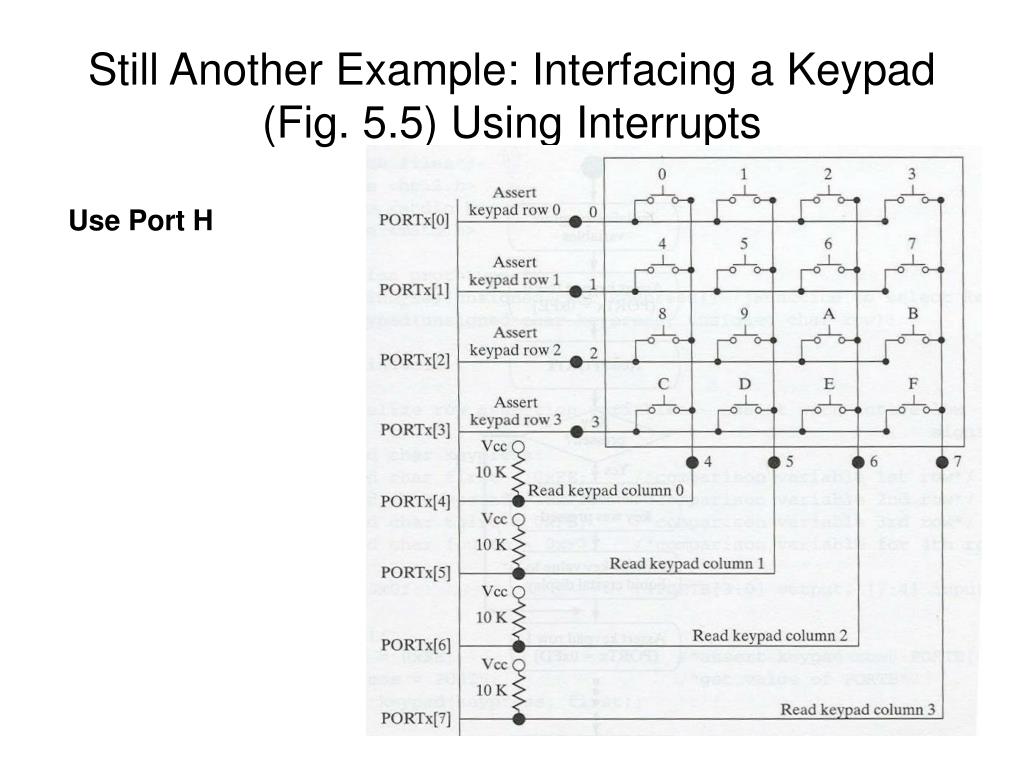

Keypad with interrupts
Keypad with Interrupts Interrupts

  • Port H[3:0]

    • Output

    • Full Drive

    • Set Bits to “0” (all at once)

  • Port H[7:4]

    • Input

    • Interrupt on “1” to “0” (Key Pressed)


Main isr communication shared variables
Main –ISR Communication InterruptsShared Variables

Intr. Service Routine

Function “ci” to Read Keypad

Interrupt

==0

Cflag!=0 ?

Scan

Keypad

!=0

c=cin;

cflag=0;

cin=keypad character

cflag=1;


Passing parameters between main program and interrupt service routine

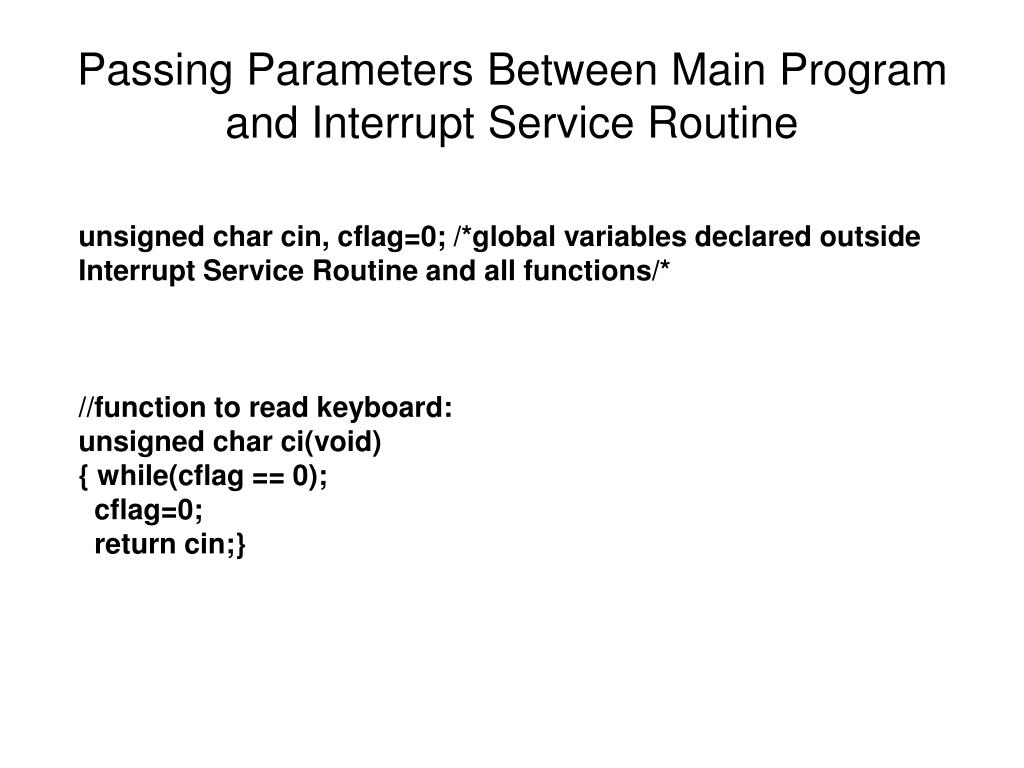

Passing Parameters Between Main Program and Interrupt Service Routine

unsigned char cin, cflag=0; /*global variables declared outside Interrupt Service Routine and all functions/*

//function to read keyboard:

unsigned char ci(void)

{ while(cflag == 0);

cflag=0;

return cin;}


Main program receiving character from isr
Main Program – Receiving Character from ISR Service Routine

Int main()

{ unsigned char c;

PTH=0; // select all rows

ENABLE(); // enable all interrupts

----

c=ci(); // input character from keypad

//function ci defined on previous slide

----

}


Tasks for keypad isr

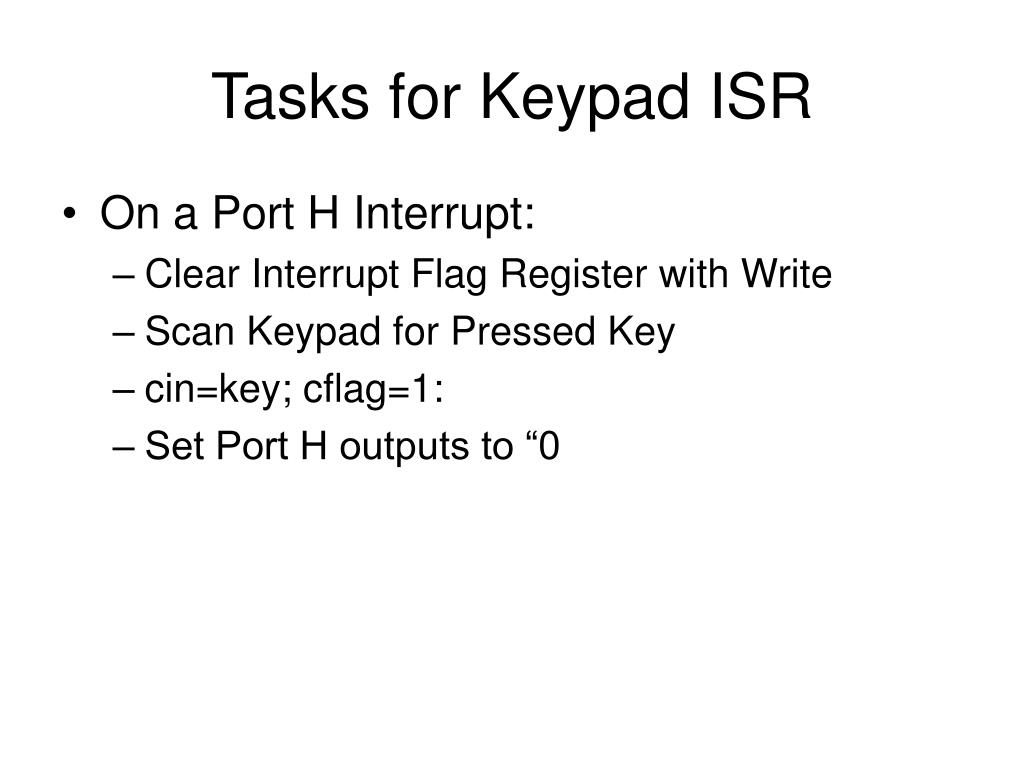

Tasks for Keypad ISR Service Routine

  • On a Port H Interrupt:

    • Clear Interrupt Flag Register with Write

    • Scan Keypad for Pressed Key

    • cin=key; cflag=1:

    • Set Port H outputs to “0


Keypad isr
Keypad ISR Service Routine

void kbisr() __attribute__ ((interrupt)); //Establish kbisr as ISR

void kbisr() //define ISR

{unsigned char mask[4]=0x0E,0x0D,0x0B,0x07;int i,j;

//1110, 1101, 1011, 0111

PIFH = PIFH; // clear interrupt request

for(i=0;i<4;i++)

{PTH = mask[i]; // assert row in keypad

for(j=0;j<4;j++)

{if((PTH>>4) == mask[j])

{if (((i<<2)+j)<10) {cin = ‘0’+(i<<2)+j;cflag=1;}

else cin=‘A’+(i<<2)+j -10;cflag=1;}

}

}

PTH = 0x00; // select all rows

}
