asynchronous input example
Asynchronous Input Example
  • Program counter normally increments, jumps to address of interrupt subroutine on asynchronous interrupt
  • How many states can Jump/Increment have?

Jump

Program

Counter

Increment

Interrupt

Clock

F. U. Rosenberger, Washington University

asynchronous input example revised
Asynchronous Input Example – Revised

Jump

Program

Counter

Increment

Interrupt

Clock

  • Did we solve the problem? Why not?

F. U. Rosenberger, Washington University

metastability
Metastability
  • Metastable State – signal not 1 or 0 or
  • oscillating for a nondeterministic length of time
  • Can occur when insufficient energy is applied to cause a latch to switch to either a 1 or 0.
  • Examples:
    • Dual processor with shared memory
    • FIFO with asynchronous input and output
    • Processor interrupts
    • Yellow traffic light
    • Two people meet in hallway
    • Dog midway between two food dishes may starve

Altera Application Note 42

design approach where metastability present
Design Approach Where Metastability Present
  • Don’t look for solution, there is none (don’t believe everything you read).
    • Bottom line - Can’t guarantee correct operation with arbitrary clock and data phase
  • Do design such that worst case probability of error is acceptable
  • Do understand and be able to identify trouble spots in design

F. U. Rosenberger, Washington University

why metastability is a special problem charles e molnar
Why Metastability is a “Special” Problem, Charles E. Molnar
  • Because it “breaks most of the conceptual and computatonal tools that we use from day to day (e.g., binary or two state circuits)
  • It defies careful and accurate measurements
  • It can produce failures that leave no discernable evidence
  • It can cause failures in systems whose software is “correct” and whose hardware passes all conventional tests
  • It involves magnitudes of time and voltage to be removed from our daily experience

F. U. Rosenberger, Washington University

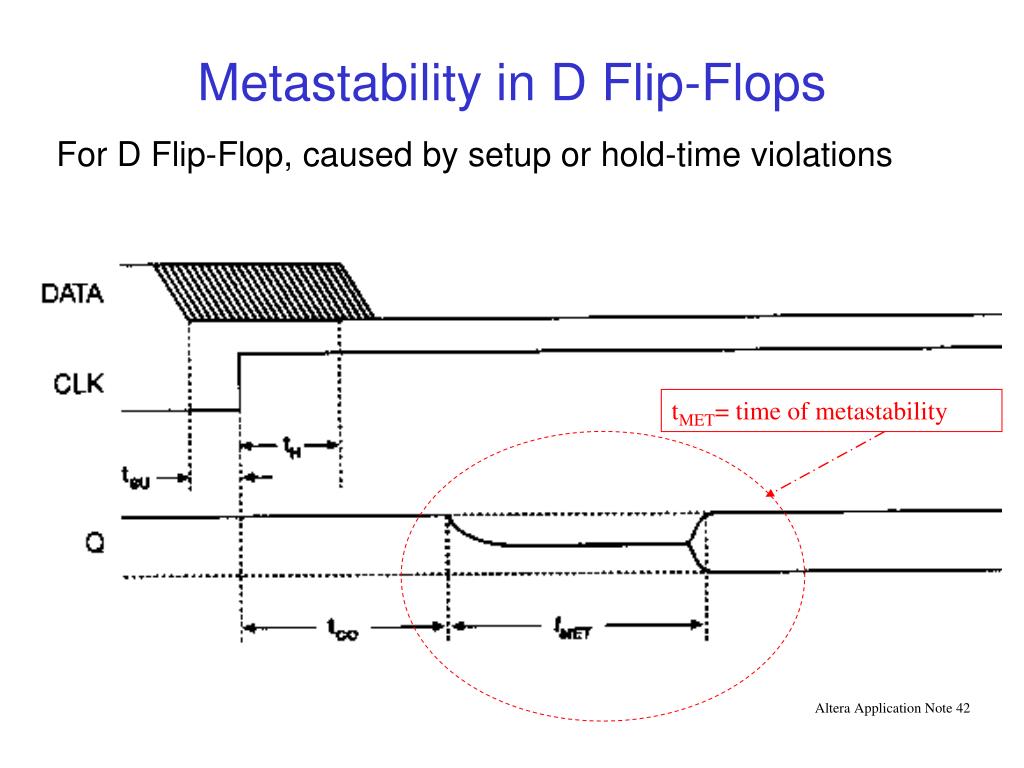

metastability in d flip flops
Metastability in D Flip-Flops

For D Flip-Flop, caused by setup or hold-time violations

tMET= time of metastability

Altera Application Note 42

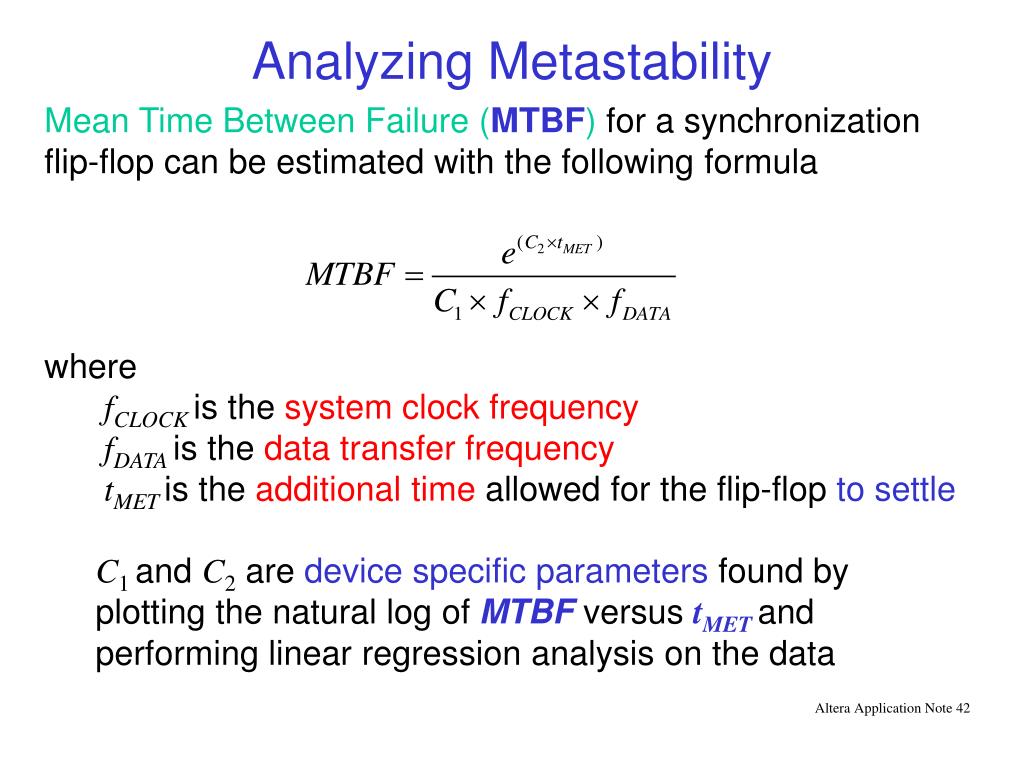

analyzing metastability
Analyzing Metastability
  • Mean Time Between Failure (MTBF) for a synchronization flip-flop can be estimated with the following formula
  • where
    • fCLOCK is the system clock frequency
    • fDATA is the data transfer frequency
    • tMET is the additional time allowed for the flip-flop to settle
    • C1and C2 are device specific parameters found by plotting the natural log of MTBF versus tMETand performing linear regression analysis on the data

Altera Application Note 42

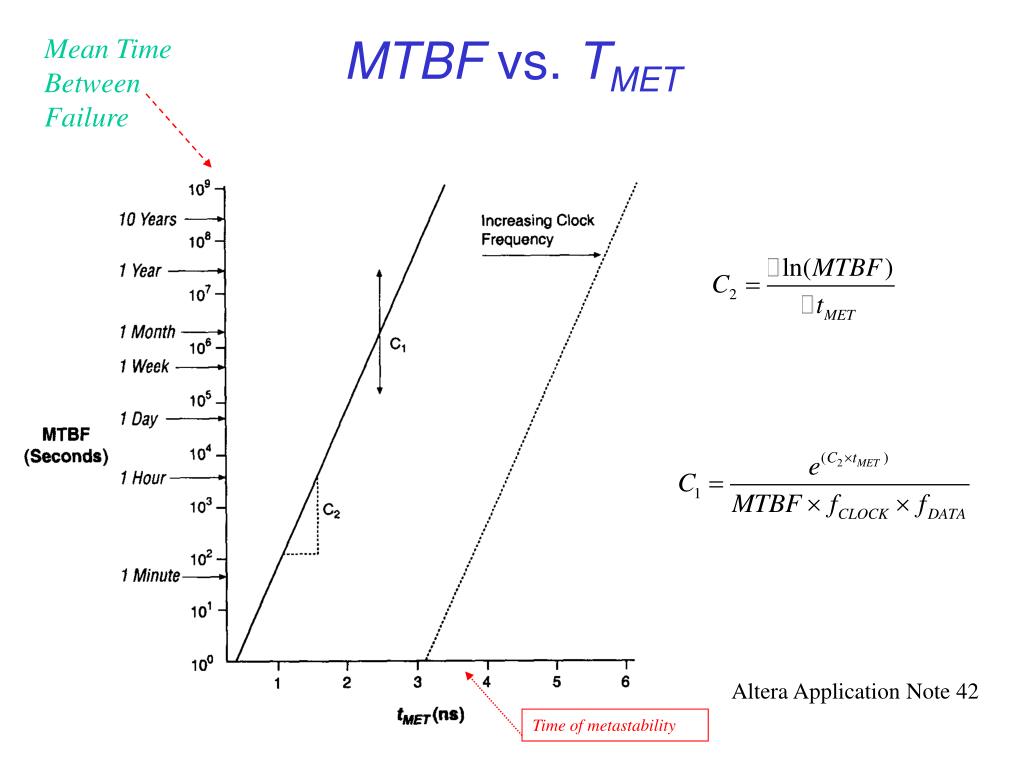

mtbf vs t met

Mean Time Between Failure

MTBF vs. TMET

Altera Application Note 42

Time of metastability

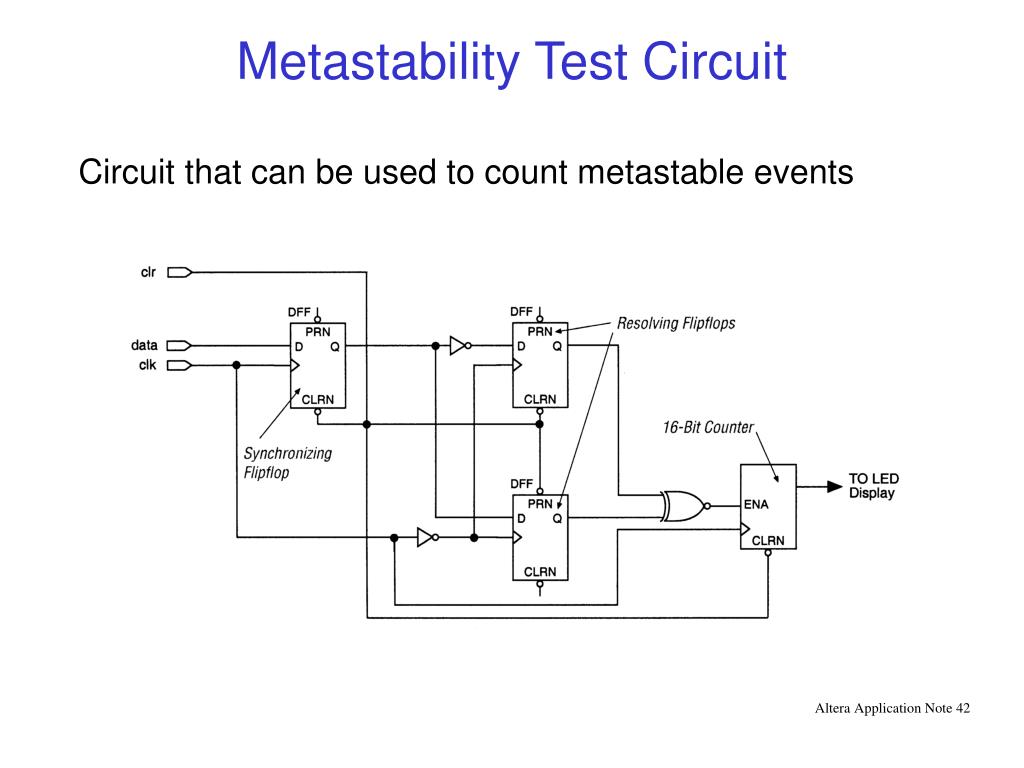

metastability test circuit
Metastability Test Circuit

Circuit that can be used to count metastable events

Altera Application Note 42

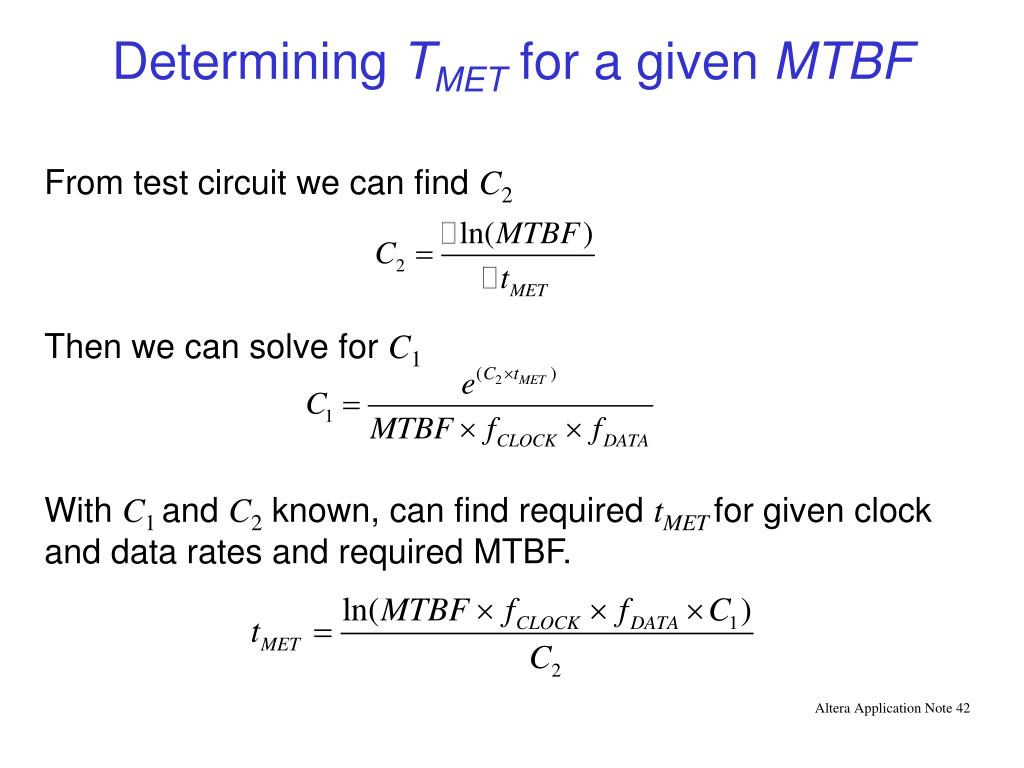

determining t met for a given mtbf
Determining TMET for a given MTBF

From test circuit we can find C2

Then we can solve for C1

With C1and C2 known, can find required tMET for given clock and data rates and required MTBF.

Altera Application Note 42

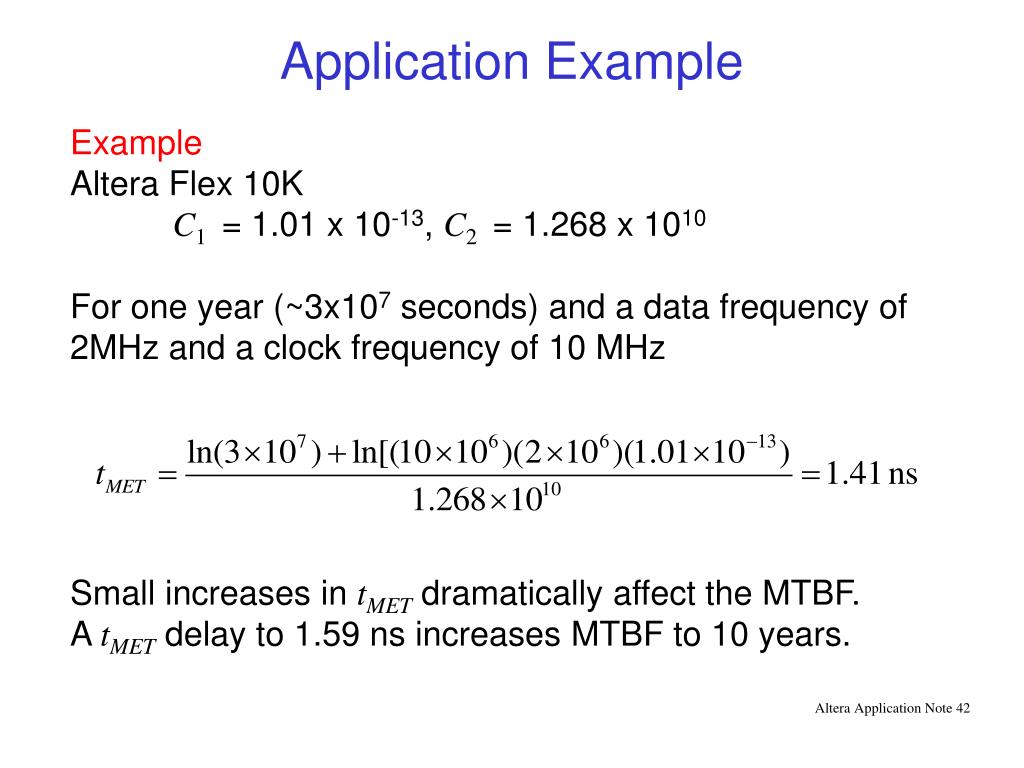

application example
Application Example

Example

Altera Flex 10K

C1 = 1.01 x 10-13, C2 = 1.268 x 1010

For one year (~3x107 seconds) and a data frequency of 2MHz and a clock frequency of 10 MHz

Small increases in tMET dramatically affect the MTBF.

A tMET delay to 1.59 ns increases MTBF to 10 years.

Altera Application Note 42

synchronizer circuits
Synchronizer Circuits

Example

tMETis the clock period minus the setup time and wiring delays (and combinational logic delays if there is logic between the flip-flops).

Metastable Output

Synchronized Output

Data

Clock
