Presentation Transcript
examining the damaging new england windstorm of 25 26 february 2010 as a shapiro keyser cyclone

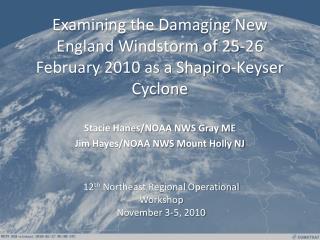

Examining the Damaging New England Windstorm of 25-26 February 2010 as a Shapiro-Keyser Cyclone

Stacie Hanes/NOAA NWS Gray ME

Jim Hayes/NOAA NWS Mount Holly NJ

12th Northeast Regional Operational Workshop November 3-5, 2010

outline
Outline
  • Overview of the event
  • Review of the structure and evolution of a Norwegian and a Shapiro-Keyser cyclone
  • Overview of the synoptic setup prior to the damaging winds
  • Use of observational and model data to identify the structure of Shapiro-Keyser cyclone
brief overview of the event
Brief overview of the event
  • East to northeast winds gusted as high as 94 mph during the late evening and overnight of 25-26 Feb 2010
  • The strongest gusts occurred with the passage of a surface trough
  • Significant damage occurred across southeast New Hampshire and southwest and central Maine

This wind event caused the second largest number of power outages ever in New Hampshire

brief overview of the event4
Brief overview of the event
  • Three peak wind gusts of over 90 MPH were recorded during this event
  • Portland ME (PWM) had its highest wind gust ever recorded. It may have been higher, but the power failed at the ASOS
slide5

The highest wind speeds occurred with surface trough between 1100 PM and 200 AM across southeast New Hampshire and southern Maine.

Destructive winds from the east or northeast are fairly rare in northern New England, especially at night.

norwegian cyclone model
Norwegian Cyclone Model

Typically the strong winds occur in the warm sector in this cyclone model or on the back side in the cold air advection

norwegian cyclone model8
Norwegian Cyclone Model

This cyclone model could account for stronger winds reaching the surface in the “warm sector”, but the low levels appear too stable to allow turbulent mixing in the “cool sector”

This model does not explain the destructive winds on the cold side of the warm/occluded front

shapiro keyser model
Shapiro-Keyser Model

Open wave (similar to the Norwegian cyclone model

Frontal fracture (T bone frontal structure)

Bent-back front – strong winds on the cold side of the warm front

Warm seclusion – evaporative cooling/descent can allow an eye-like feature to develop.

shapiro keyser model10
Shapiro-Keyser model
  • Typically develops as a marine cyclone
  • Generally forms in large scale confluence and a high zonal index flow
  • Characterized by a strong warm front, weak cold front and T bone frontal structure
slide11

Models were fairly close concerning the overall sequence of events. The 1200 UTC 25 Feb 2010 NAM model solution is examined.

So now that we have an idea of how the storm should look…what did the models show?

bottom line
Bottom line
  • The NAM was forecasting a highly anomalous event for northern New England
    • Many forecast parameters showed departures of 4 to 5 standard deviations
    • Main time frame was 0300 UTC to 0900 UTC for the forecast area
slide19

0000 UTC 26 Feb 2010 GYX observed sounding

The depth of the mixed later is unusual for an easterly flow at night

summary
Summary
  • Damaging winds occurred in northern New England during the late evening of 25 February 2010 and the early morning of 26 February 2010
    • Damage was caused by east to northeast winds during an unusual time
    • A few locations had maximum wind gusts over 90 MPH
      • PWM had its high wind gust ever before the ASOS power failed
  • The damaging winds occurred in the cold air ahead of the warm front, which suggests a Shapiro-Keyser cyclone
