  1. Atomic Structure & Periodic Table review 8.P.1

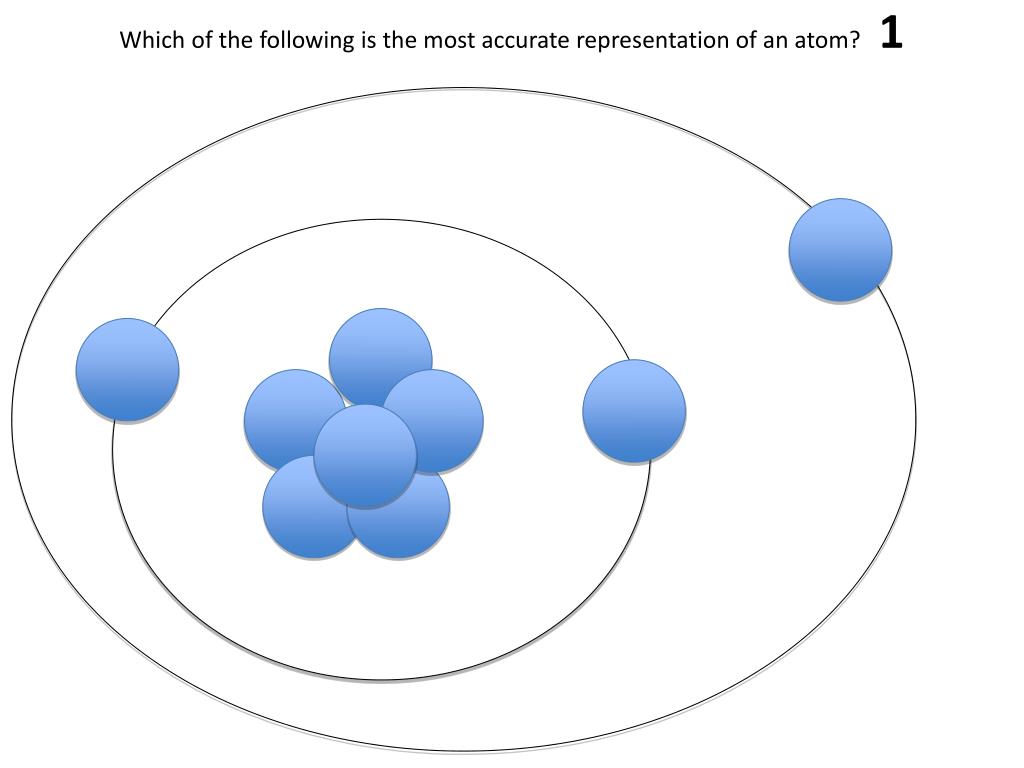

  2. Which of the following is the most accurate representation of an atom? 1

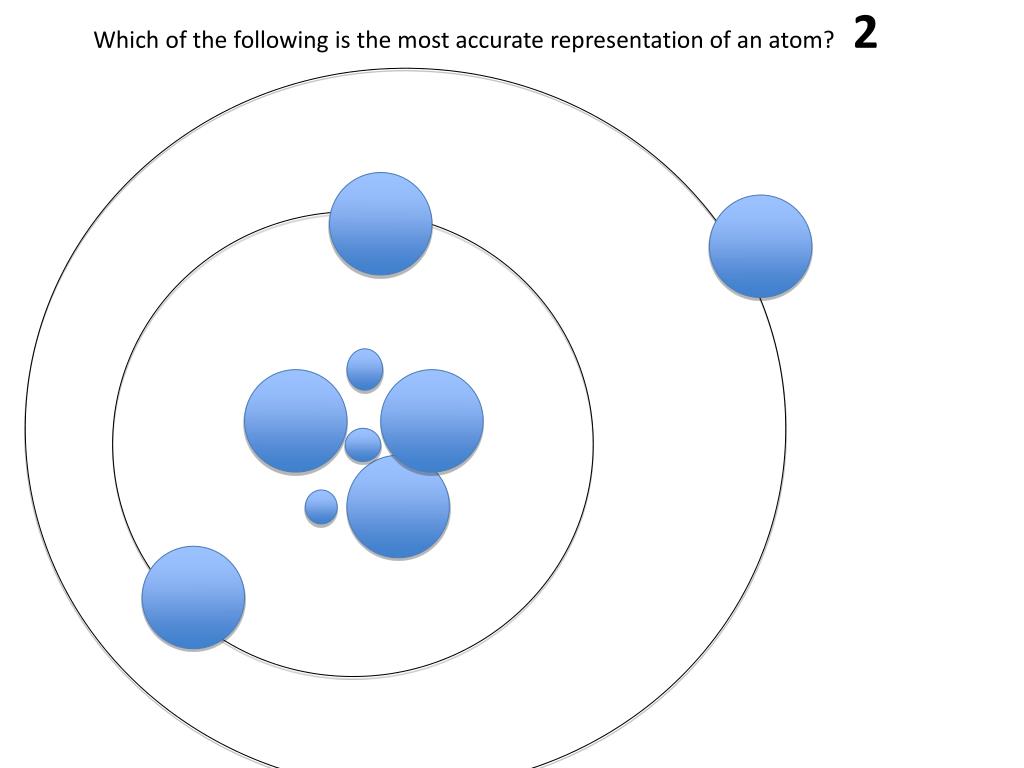

  3. Which of the following is the most accurate representation of an atom? 2

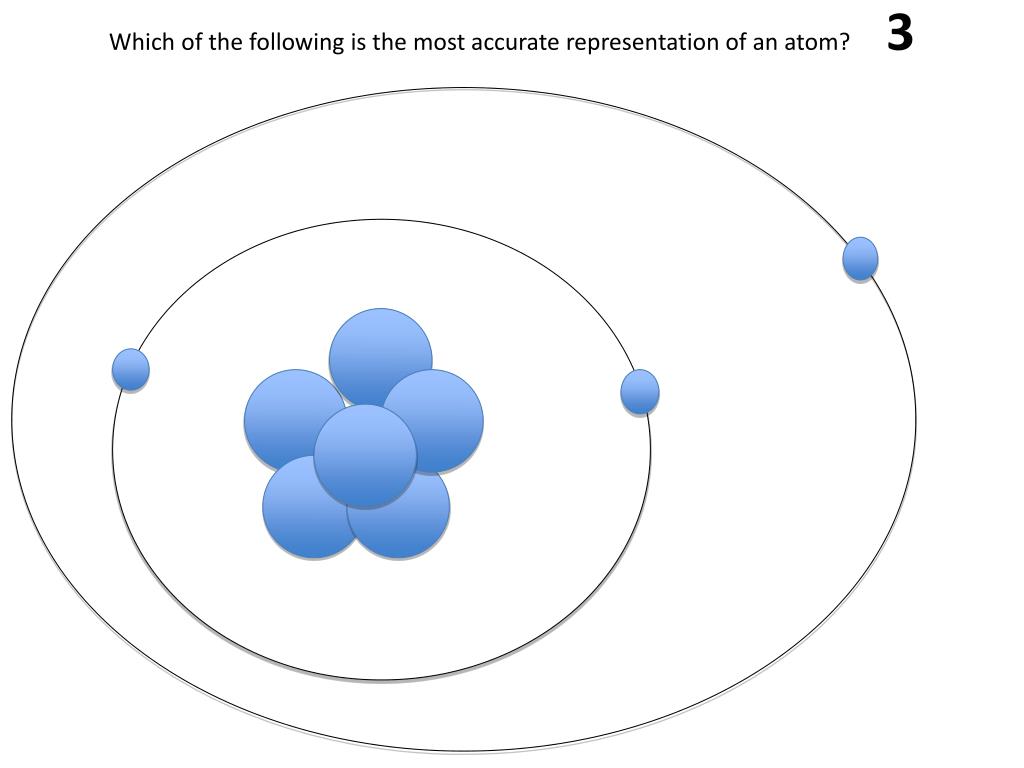

  4. Which of the following is the most accurate representation of an atom? 3

  5. Which of the following is the most accurate representation of an atom? 4

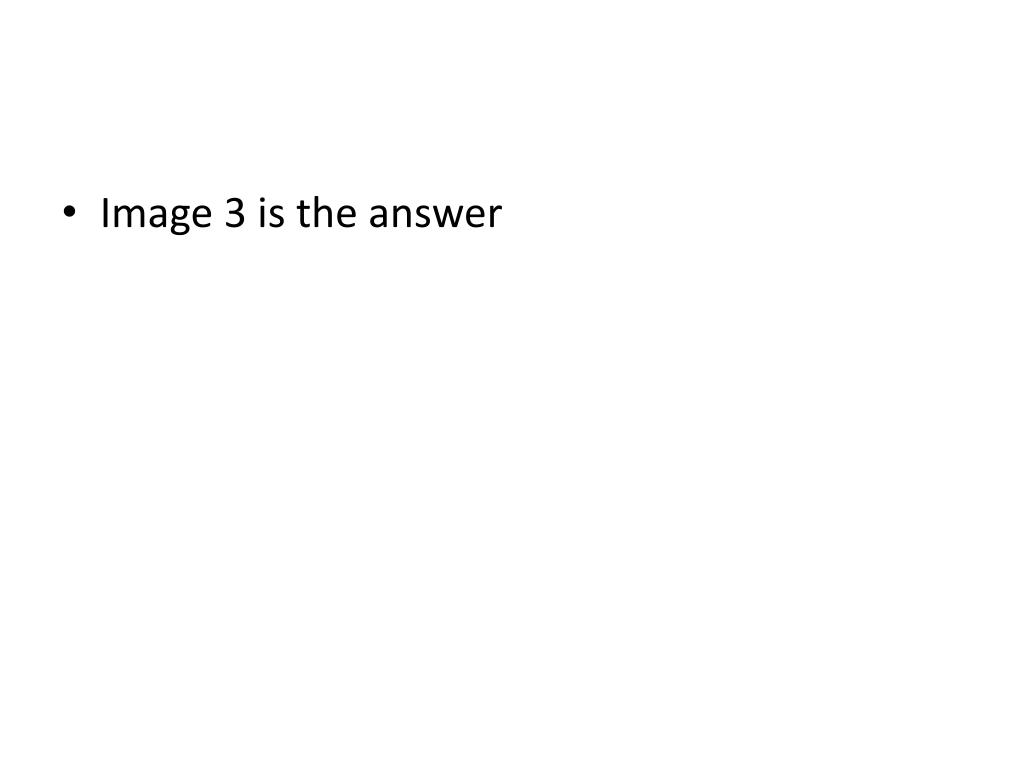

  6. Image 3 is the answer

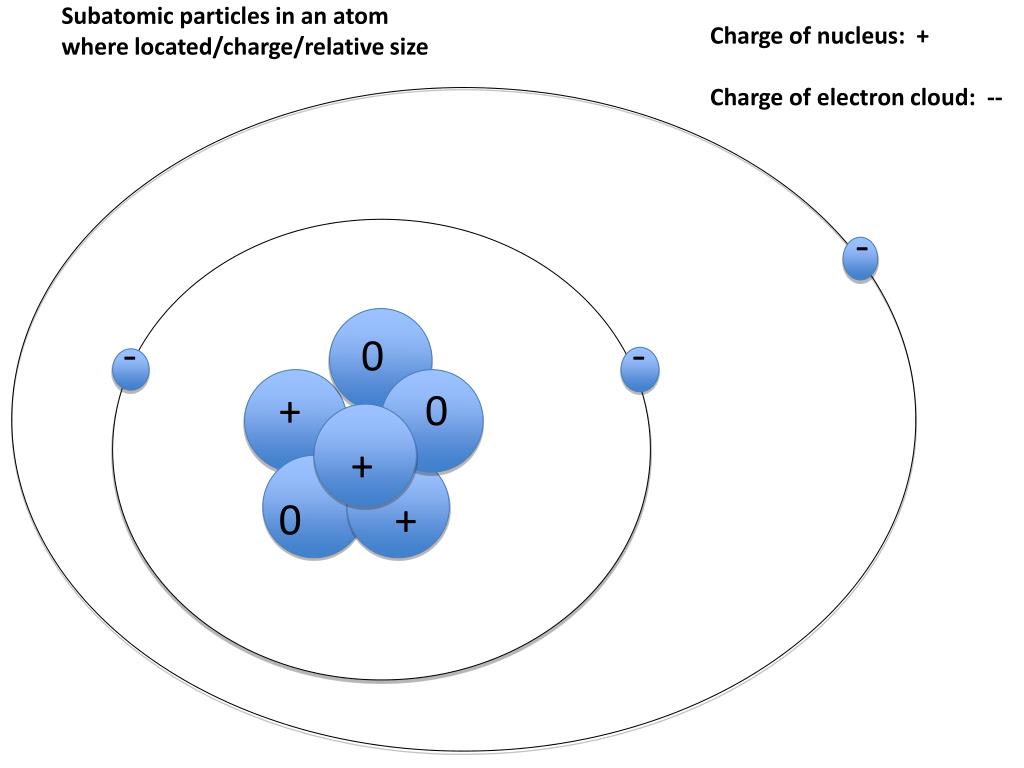

  7. Charge of nucleus: + Charge of electron cloud: -- Subatomic particles in an atomwhere located/charge/relative size - - - 0 + 0 + 0 +

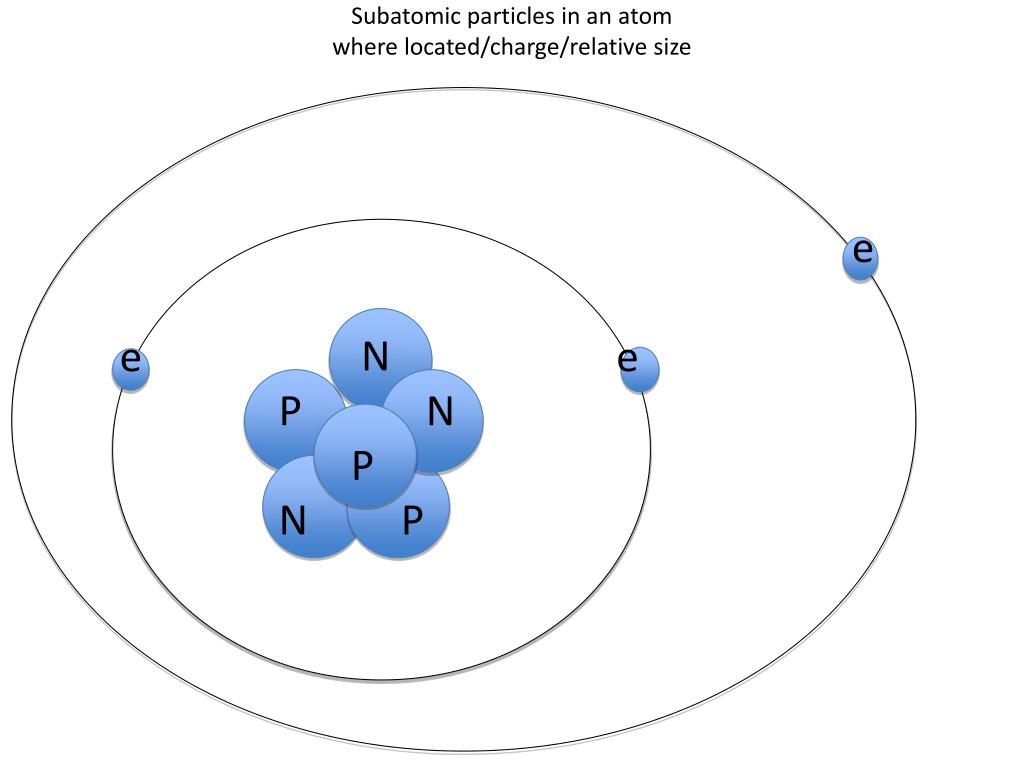

  8. Subatomic particles in an atomwhere located/charge/relative size e e e N P N P N P

  9. SPACE MASS

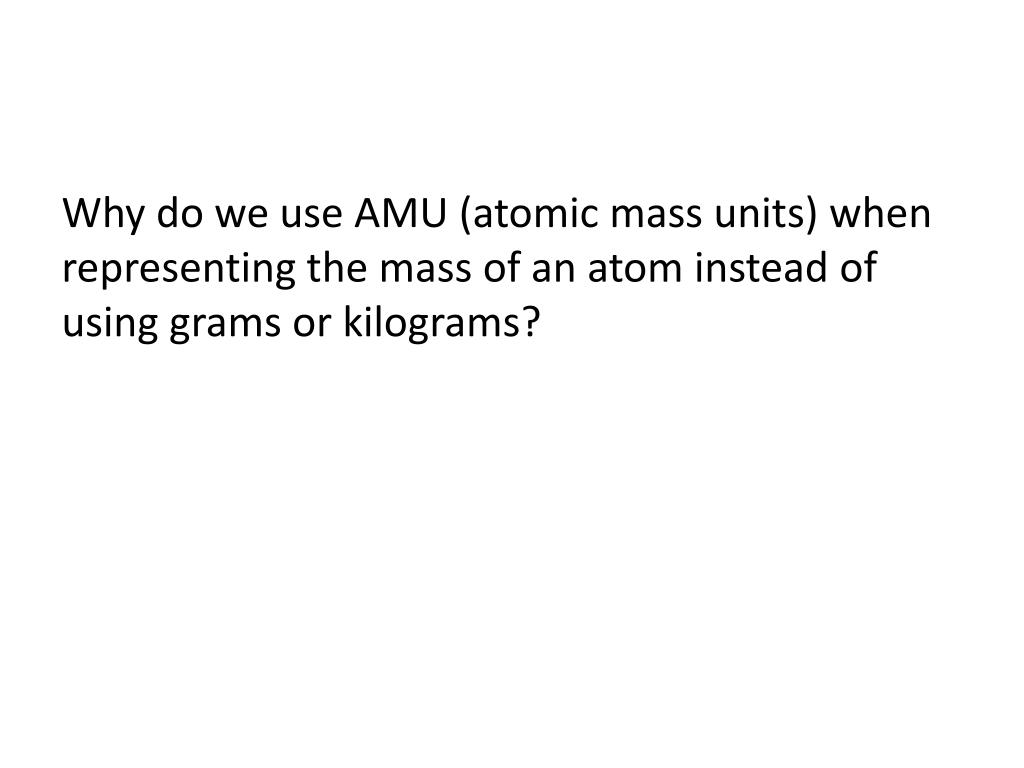

  10. Why do we use AMU (atomic mass units) when representing the mass of an atom instead of using grams or kilograms?

  11. Atoms are very small, using grams would result in a number with a scientific notation of 10-23. • AMU is a unit used exclusively for atoms, it is much smaller than grams and therefore more useful

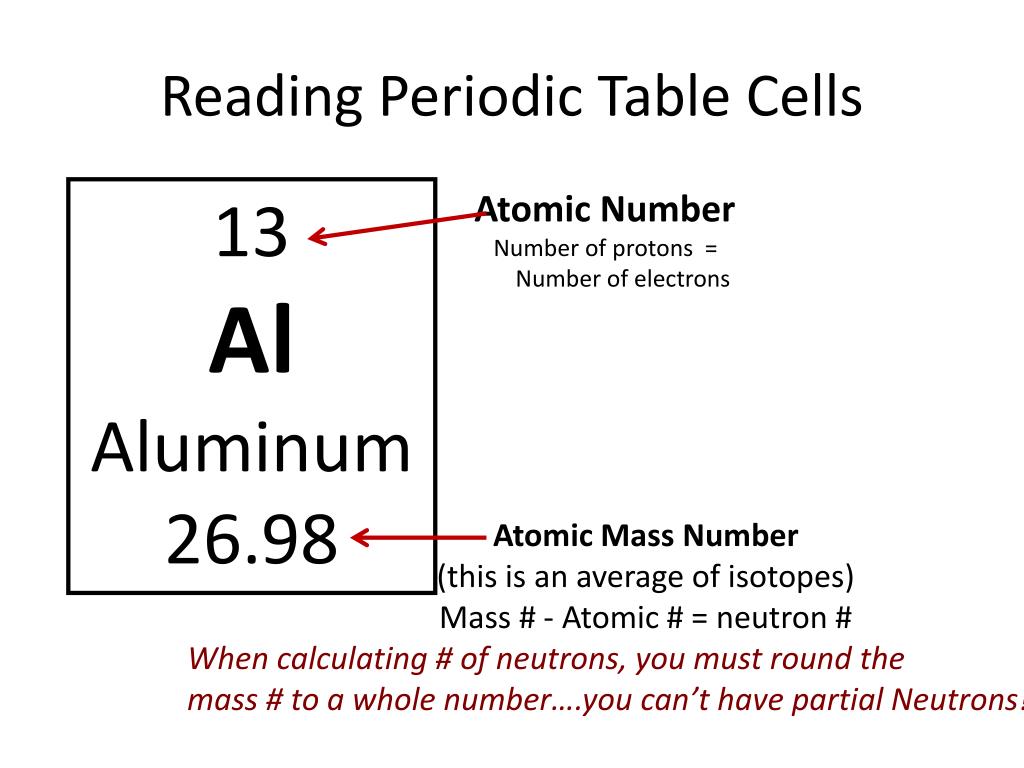

  12. Reading Periodic Table Cells 13 Al Aluminum 26.98 Atomic Number Number of protons = Number of electrons Atomic Mass Number (this is an average of isotopes) Mass # - Atomic # = neutron # When calculating # of neutrons, you must round the mass # to a whole number….you can’t have partial Neutrons!

  13. A = P = E (ATOMIC NUMBER) (PROTONS) (ELECTRONS) M - A = N (MASS) (ATOMIC NUMBER) (NEUTRONS)

  14. An atom has an atomic number of: 11…..what can you infer 27…..what can you infer 87….what can you infer

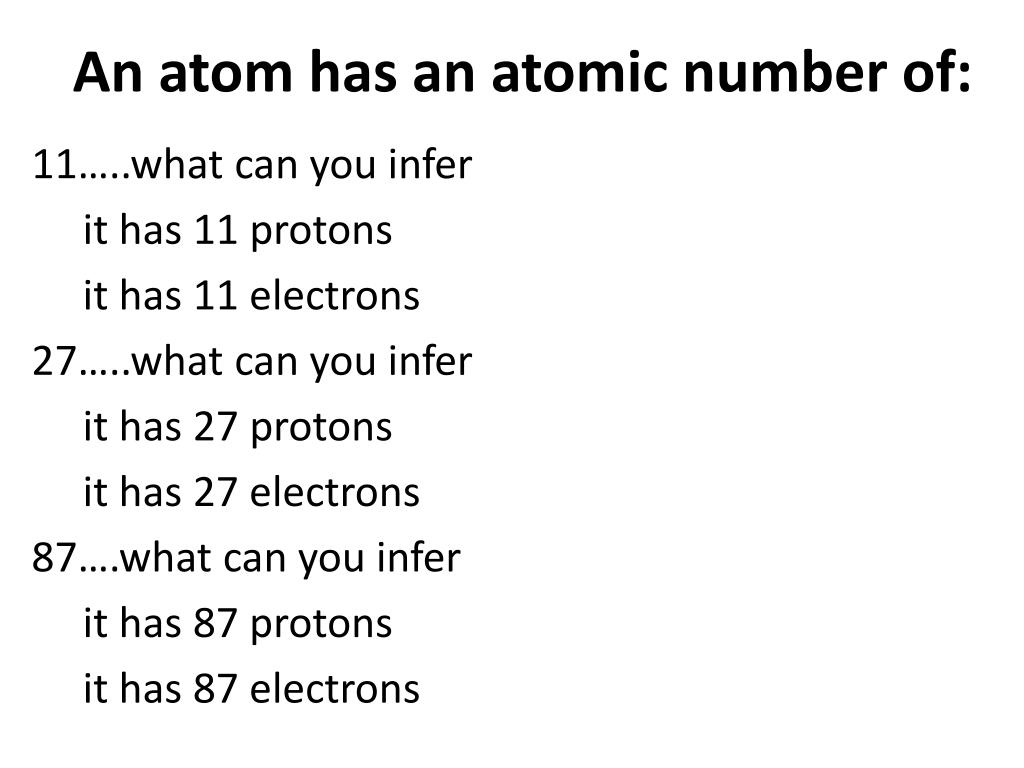

  15. An atom has an atomic number of: 11…..what can you infer it has 11 protons it has 11 electrons 27…..what can you infer it has 27 protons it has 27 electrons 87….what can you infer it has 87 protons it has 87 electrons

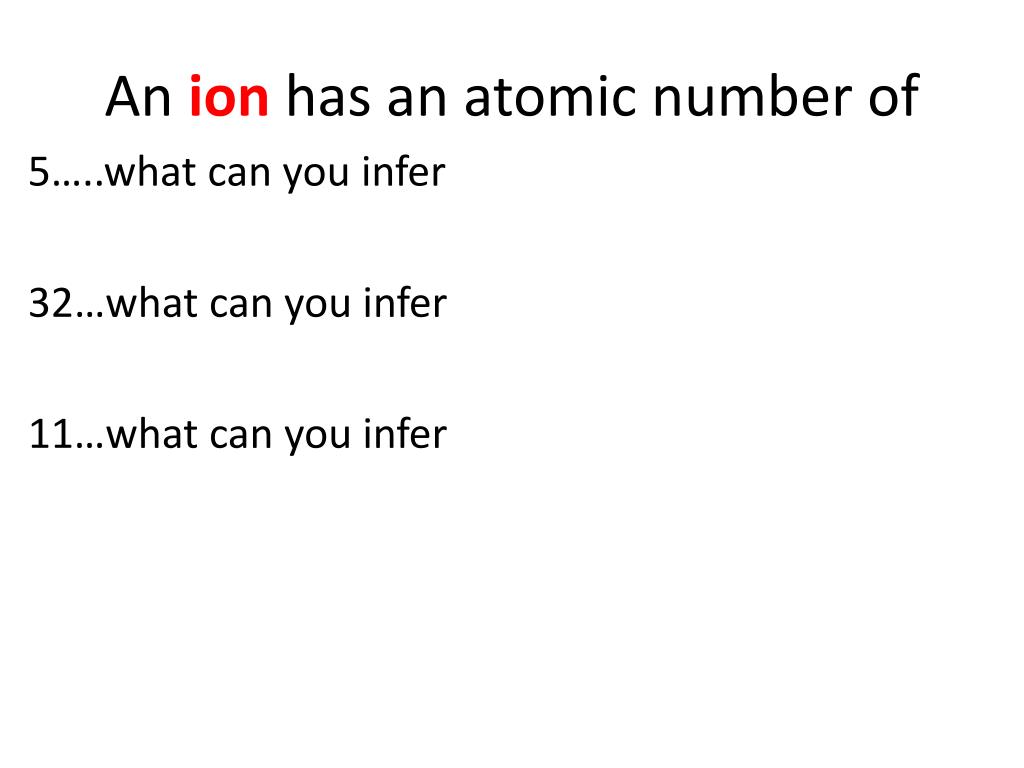

  16. Anionhas an atomic number of 5…..what can you infer 32…what can you infer 11…what can you infer

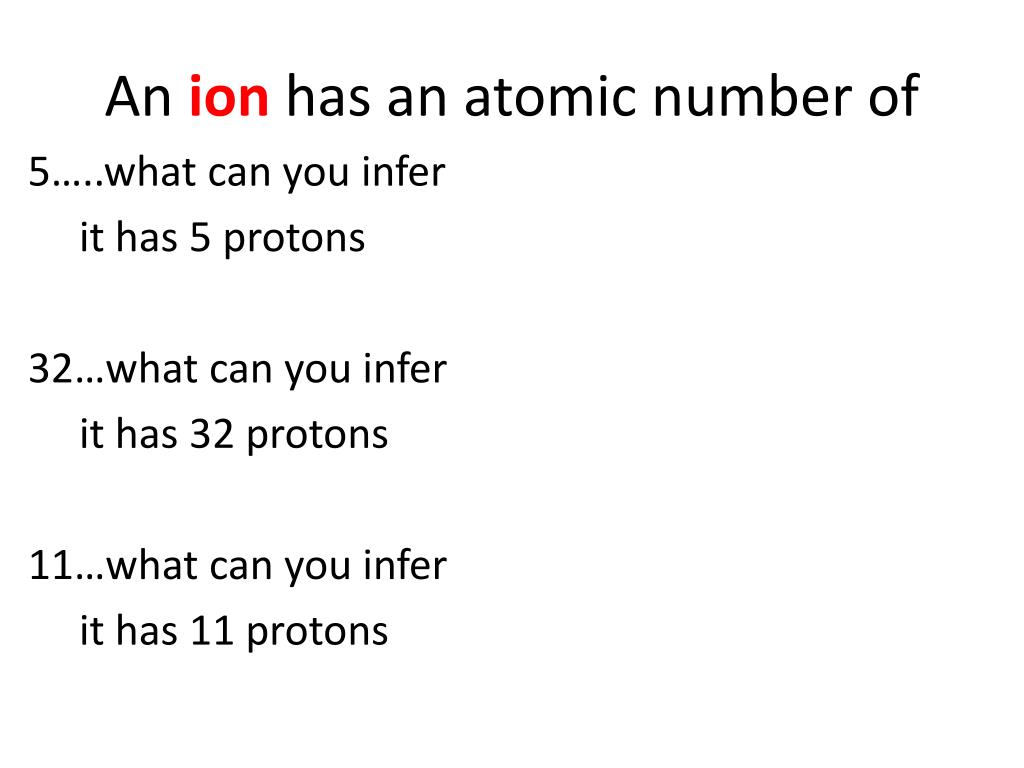

  17. Anionhas an atomic number of 5…..what can you infer it has 5 protons 32…what can you infer it has 32 protons 11…what can you infer it has 11 protons

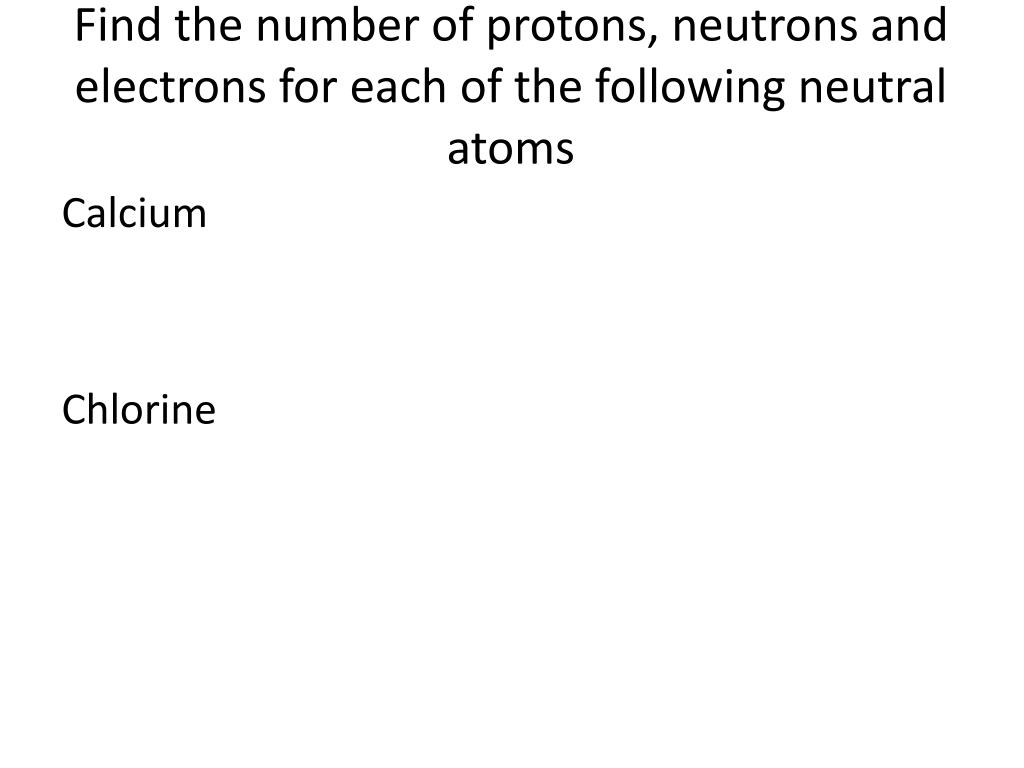

  18. Find the number of protons, neutrons and electrons for each of the following neutral atoms Calcium Chlorine

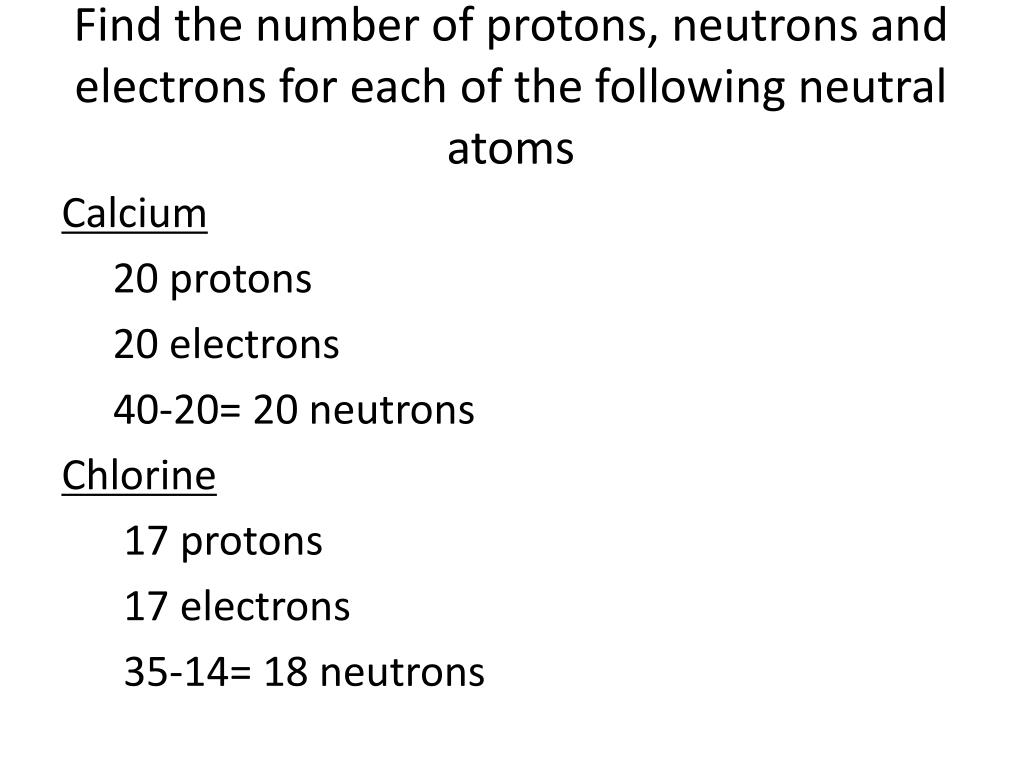

  19. Find the number of protons, neutrons and electrons for each of the following neutral atoms Calcium 20 protons 20 electrons 40-20= 20 neutrons Chlorine 17 protons 17 electrons 35-14= 18 neutrons

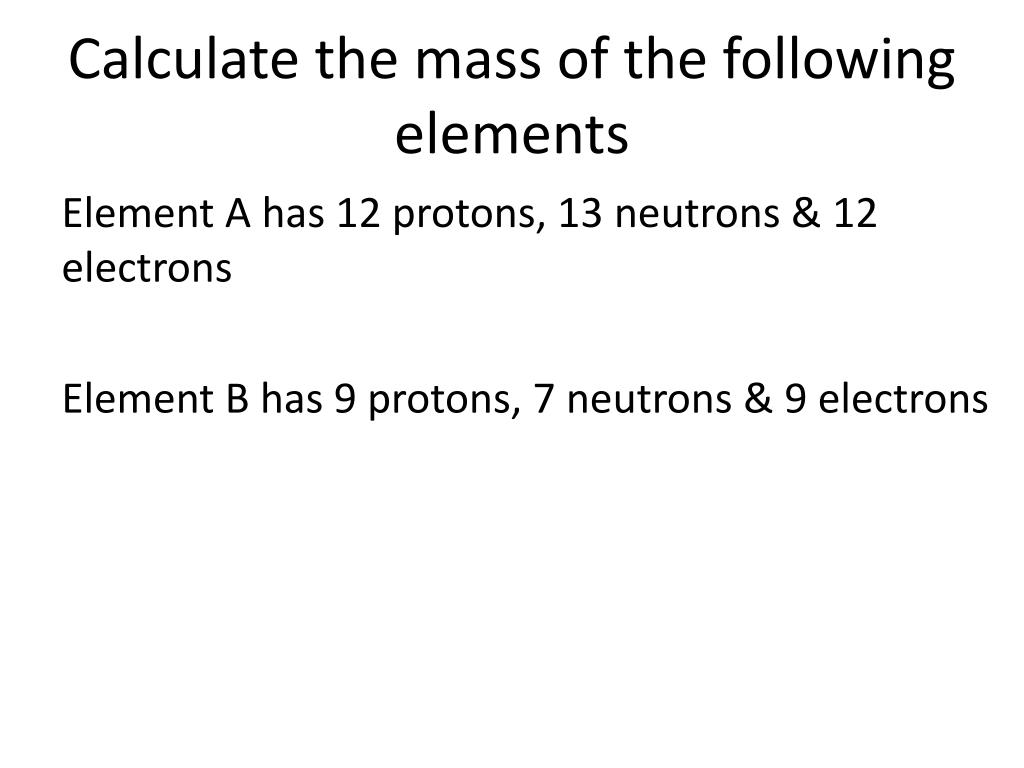

  20. Calculate the mass of the following elements Element A has 12 protons, 13 neutrons & 12 electrons Element B has 9 protons, 7 neutrons & 9 electrons

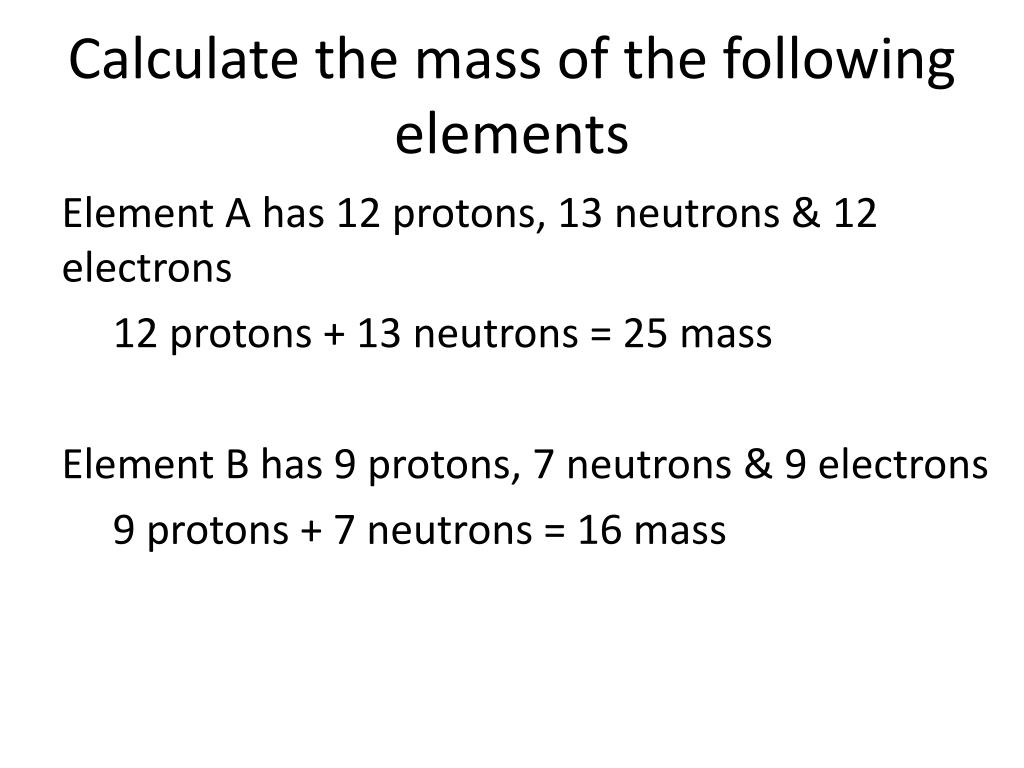

  21. Calculate the mass of the following elements Element A has 12 protons, 13 neutrons & 12 electrons 12 protons + 13 neutrons = 25 mass Element B has 9 protons, 7 neutrons & 9 electrons 9 protons + 7 neutrons = 16 mass

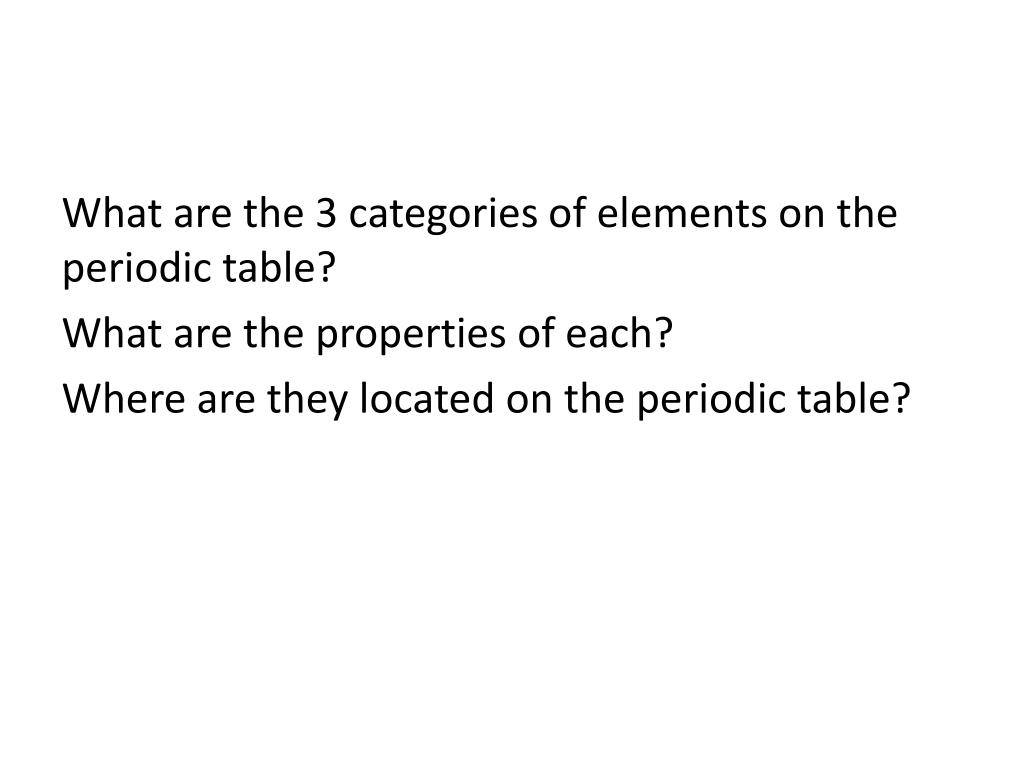

  22. What are the 3 categories of elements on the periodic table? What are the properties of each? Where are they located on the periodic table?

  23. Metals:left side of table Shiny conductive malleable Ductile Metalloids: along the stairsteps Properties of metals and nonmetals Semiconductors, used in computer industry NonMetals: right side of table Dull Insulator Do not conduct heat or electricity brittle

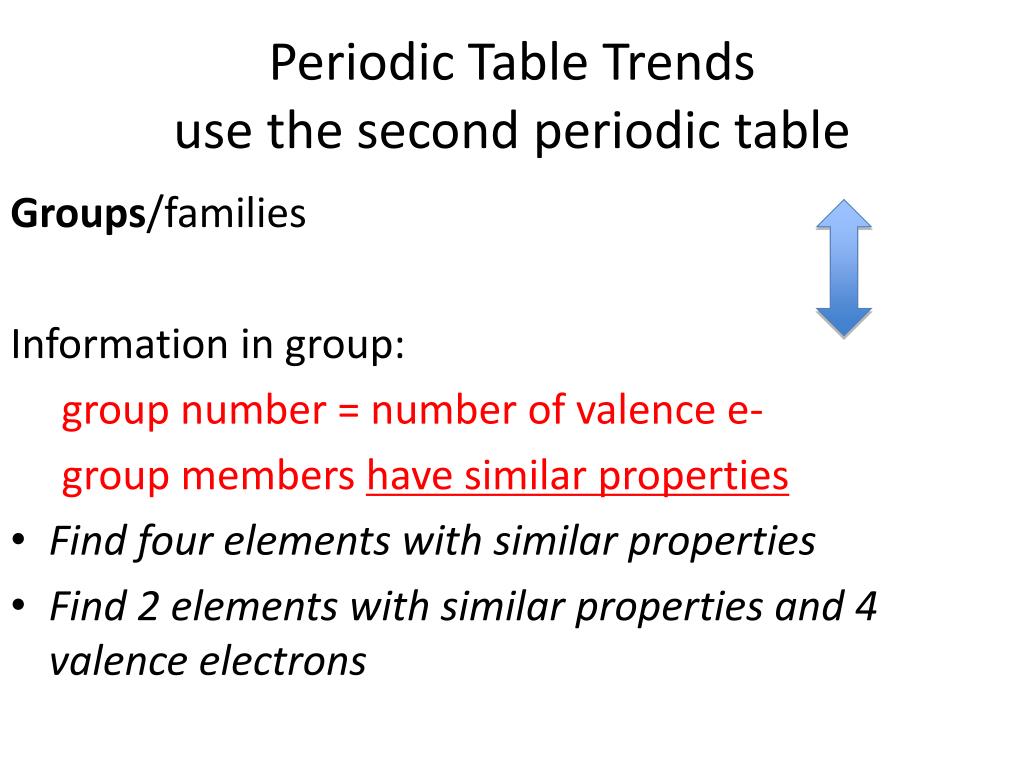

  24. Periodic Table Trendsuse the second periodic table Groups/families Information in group: group number = number of valence e- group members have similar properties • Find four elements with similar properties • Find 2 elements with similar properties and 4 valence electrons

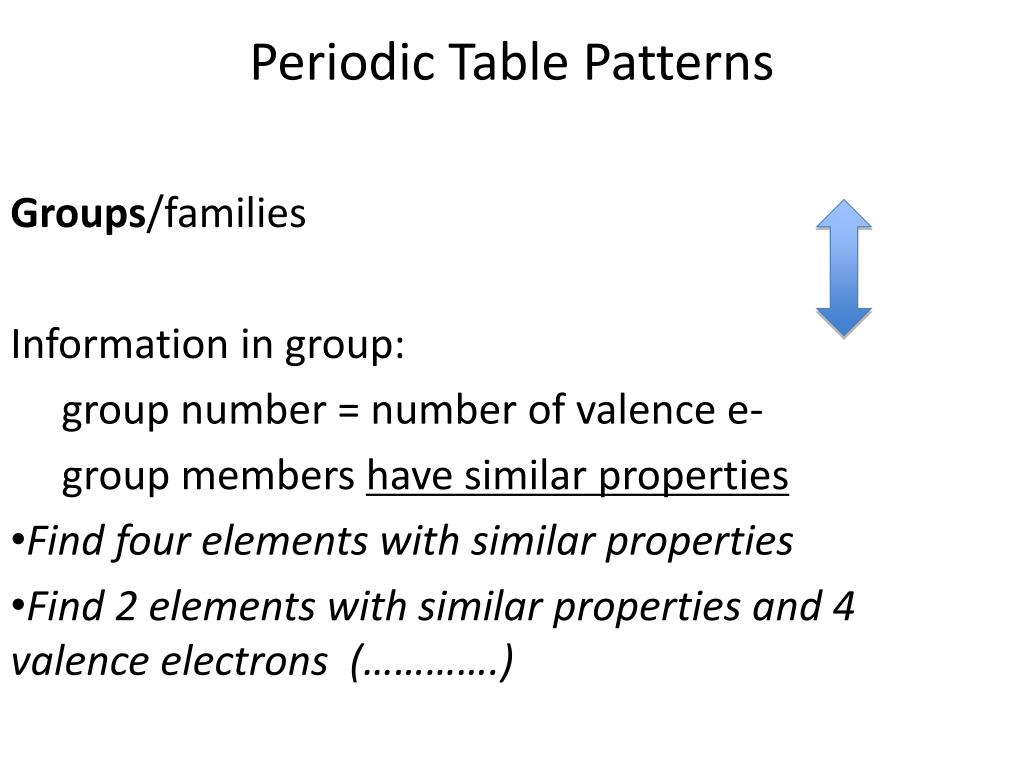

  25. Periodic Table Patterns Groups/families Information in group: group number = number of valence e- group members have similar properties • Find four elements with similar properties • Find 2 elements with similar properties and 4 valence electrons (………….)

  26. Periodic Table Patterns • Find four elements with similar properties elements in the same column/family..H, Li, Na • Find 2 elements with similar properties and 4 valence electrons (C, Si, Ge…..any in group `4)

  27. Periodic Table Trends Period Information in period: period number = number of electron energy levels max # of electrons in each level (ring) period 1….2 e- period 2….8 e- period 3….8 e- Find 3 elements with 4 electron energy levels Find 3 elements with two energy levels

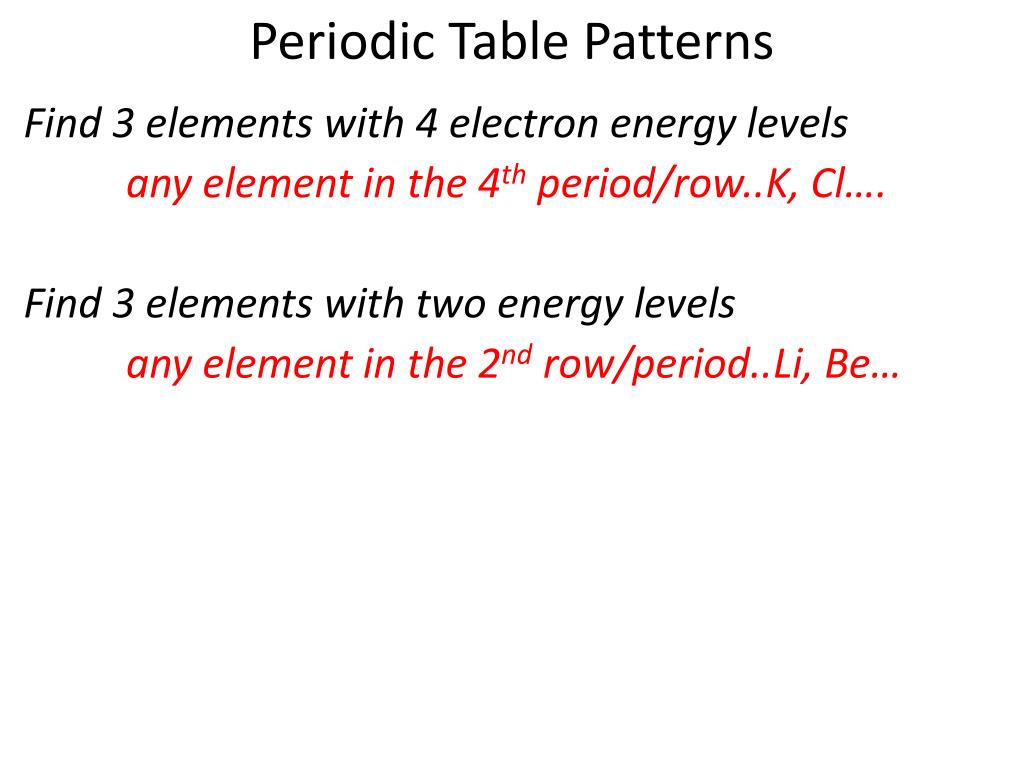

  28. Periodic Table Patterns Find 3 elements with 4 electron energy levels any element in the 4th period/row..K, Cl…. Find 3 elements with two energy levels any element in the 2nd row/period..Li, Be…

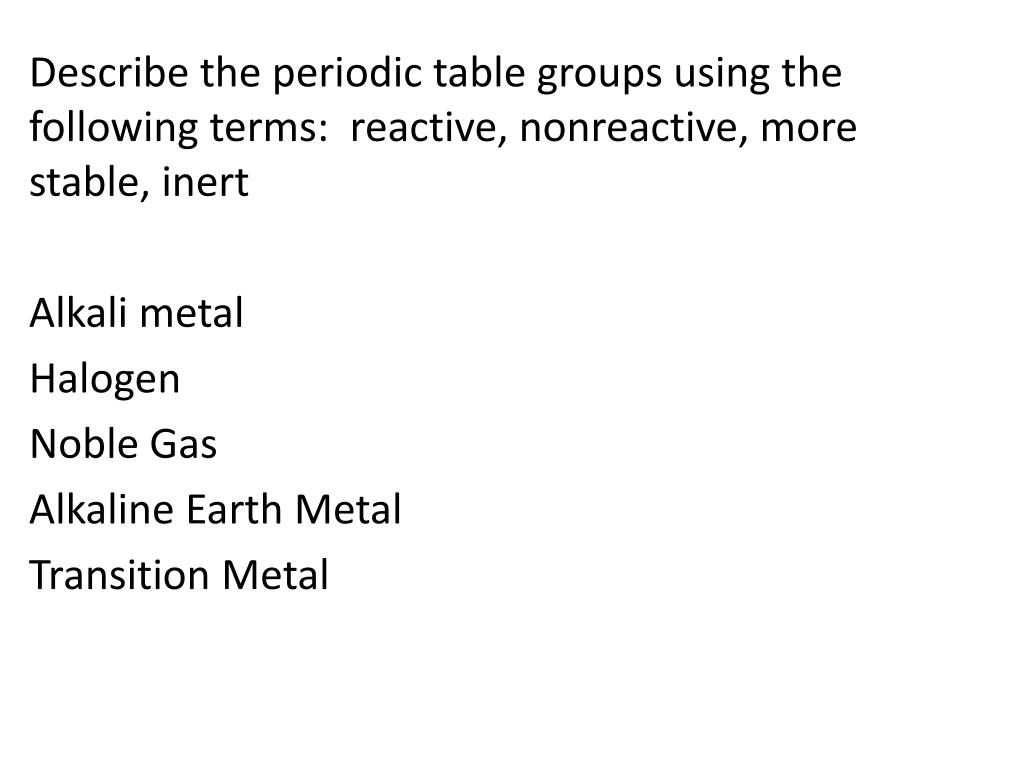

  29. Describe the periodic table groups using the following terms: reactive, nonreactive, more stable, inert Alkali metal Halogen Noble Gas Alkaline Earth Metal Transition Metal

  30. Group /family characteristics Alkali metal…..reactive metals, group 1, +1 ion Alkaline earth metal…..reactive metals, group 2, +2 ion Transition metals/elements….more stable metals, located at the center of the table, groups 3-12 Halogen…reactive nonmetals, used in cleaning agents, group 17, -1 ion Noble Gases….nonreactive, inert, nonmetals, group 18, very stable due to complete outer electron ring, do not form ions

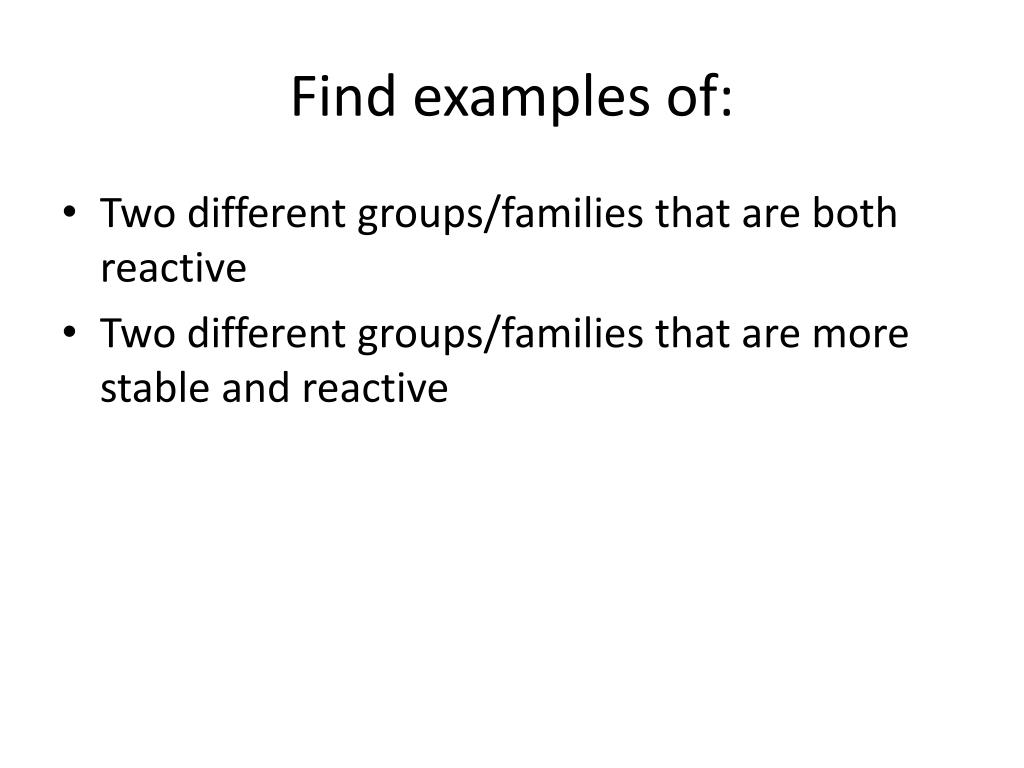

  31. Find examples of: • Two different groups/families that are both reactive • Two different groups/families that are more stable and reactive

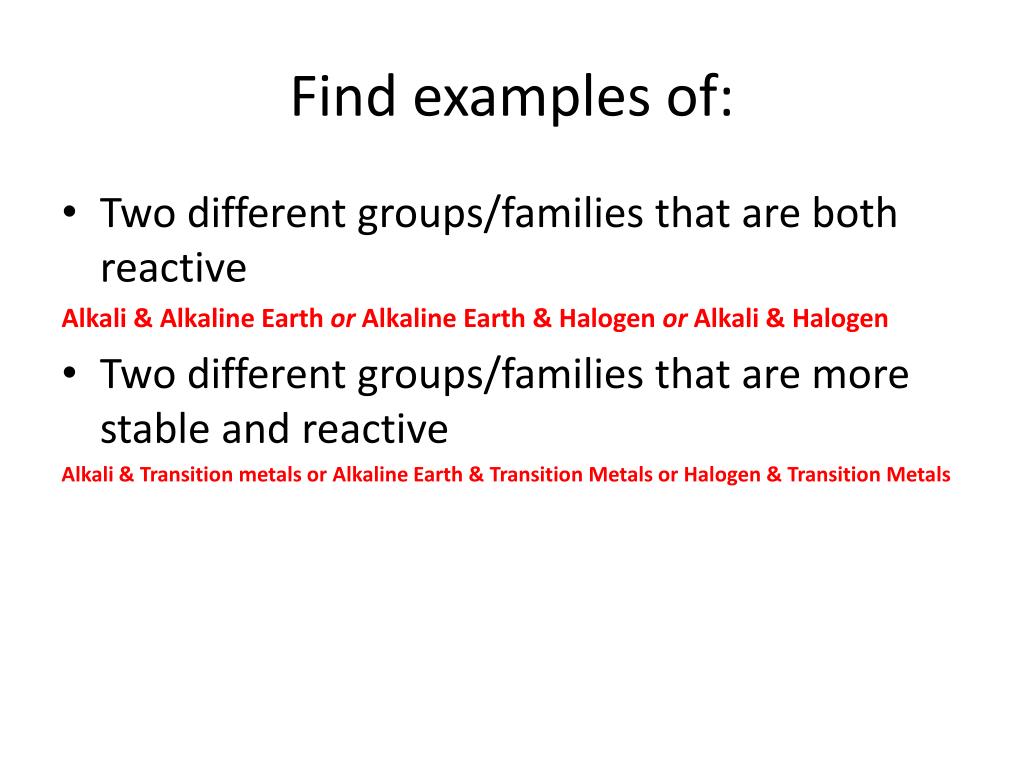

  32. Find examples of: • Two different groups/families that are both reactive Alkali & Alkaline Earth or Alkaline Earth & Halogen or Alkali & Halogen • Two different groups/families that are more stable and reactive Alkali & Transition metals or Alkaline Earth & Transition Metals or Halogen & Transition Metals

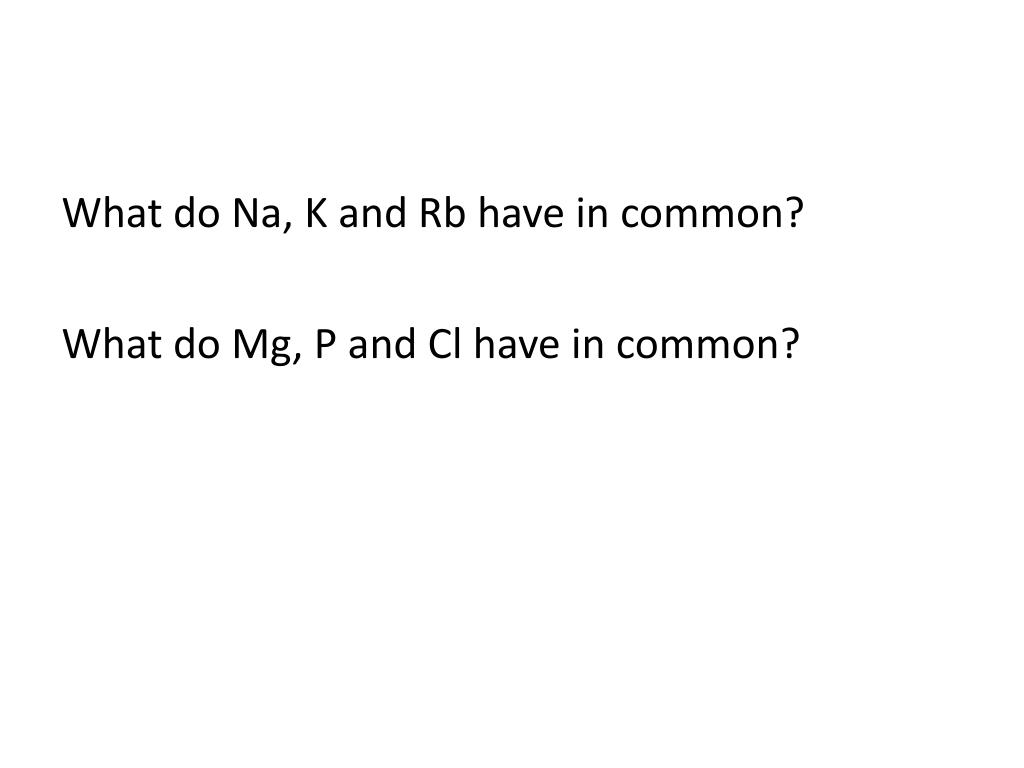

  33. What do Na, K and Rb have in common? What do Mg, P and Cl have in common?

  34. What do Na, K and Rb have in common? They are all in the same group/family so they have similar properties and all have 1 valence electron What do Mg, P and Cl have in common? The are all in the same period/row. They are in period 3 so they have 3 electron energy levels (shells)

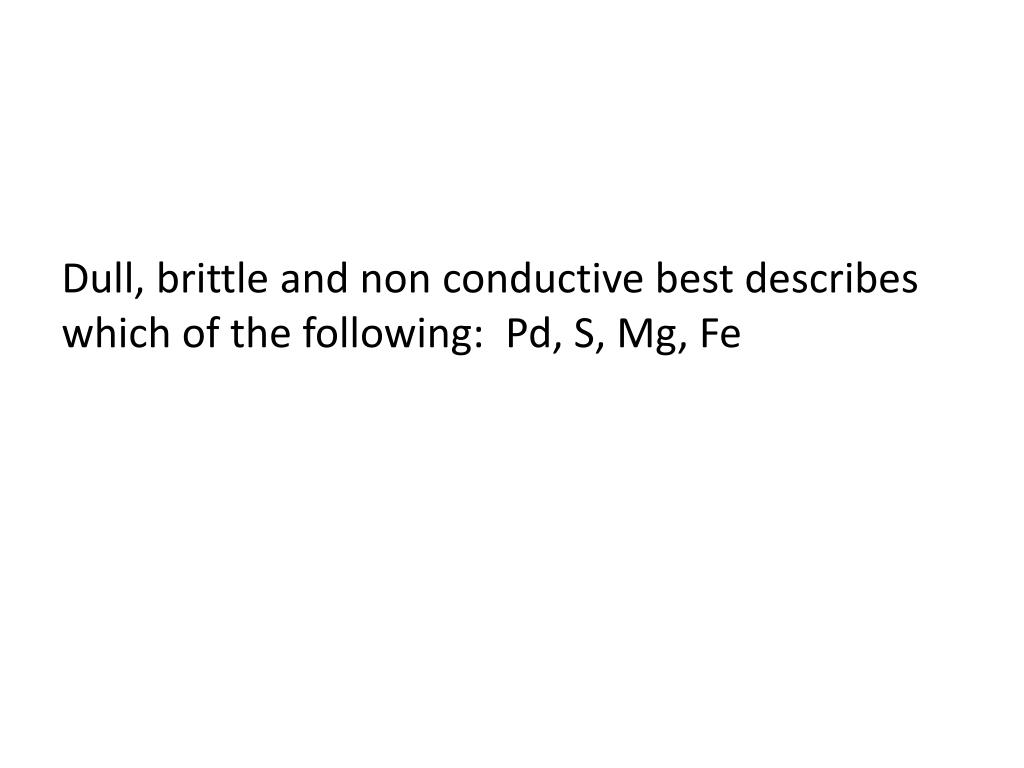

  35. Dull, brittle and non conductive best describes which of the following: Pd, S, Mg, Fe

  36. Dull, brittle and non conductive best describes which of the following: Pd, S, Mg, Fe S (sulfur) because it is a nonmetal and those are nonmetal properties.

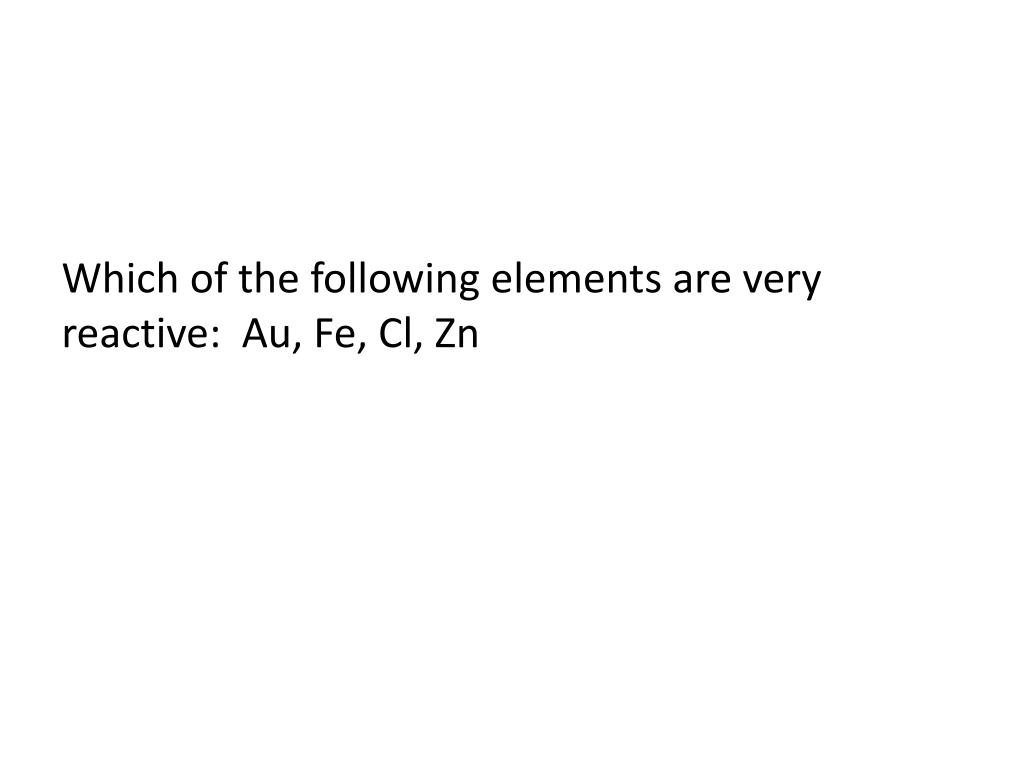

  37. Which of the following elements are very reactive: Au, Fe, Cl, Zn

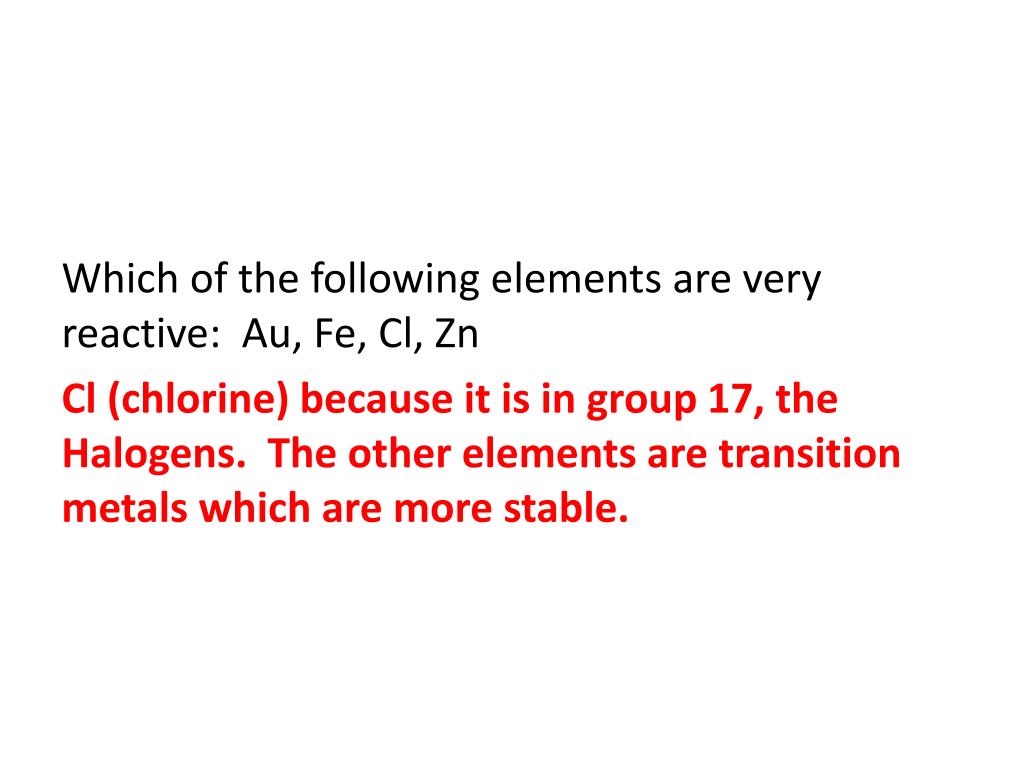

  38. Which of the following elements are very reactive: Au, Fe, Cl, Zn Cl (chlorine) because it is in group 17, the Halogens. The other elements are transition metals which are more stable.

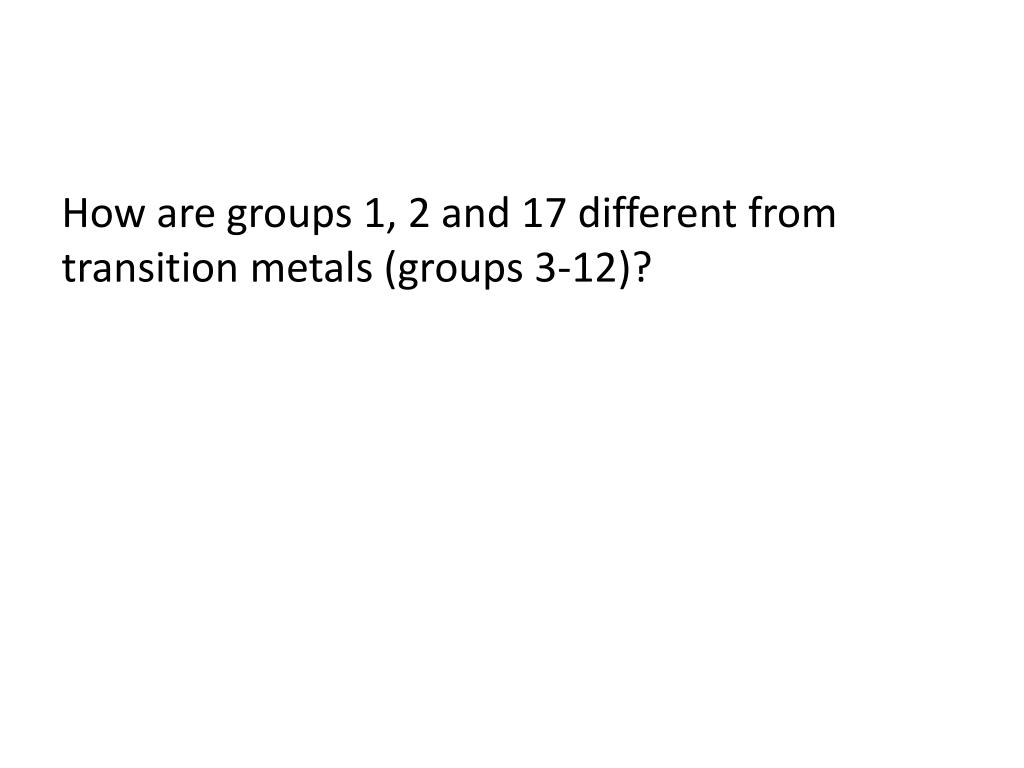

  39. How are groups 1, 2 and 17 different from transition metals (groups 3-12)?

  40. How are groups 1, 2 and 17 different from transition metals (groups 3-12)? 1, 2 & 17 are highly reactive because they are 1 or 2 electrons away from a stable configuration (full valence ring of electrons). Groups 3-12 are transition metals and are more stable.

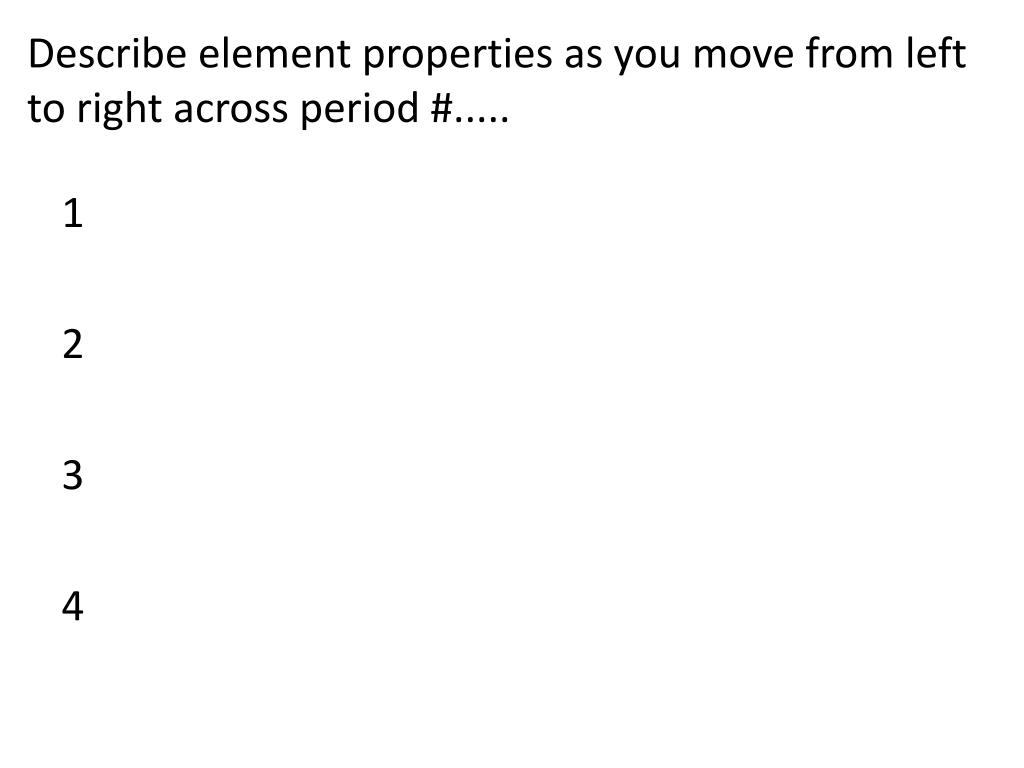

  41. Describe element properties as you move from left to right across period #..... 1 2 3 4

  42. Ions • Formed by losing or gaining electrons • Metals give electrons • Nonmetals take electrons • An atom gives/takes electrons in order to create a complete outer ring of electrons (valence)…..this makes it stable, like the noble gases.

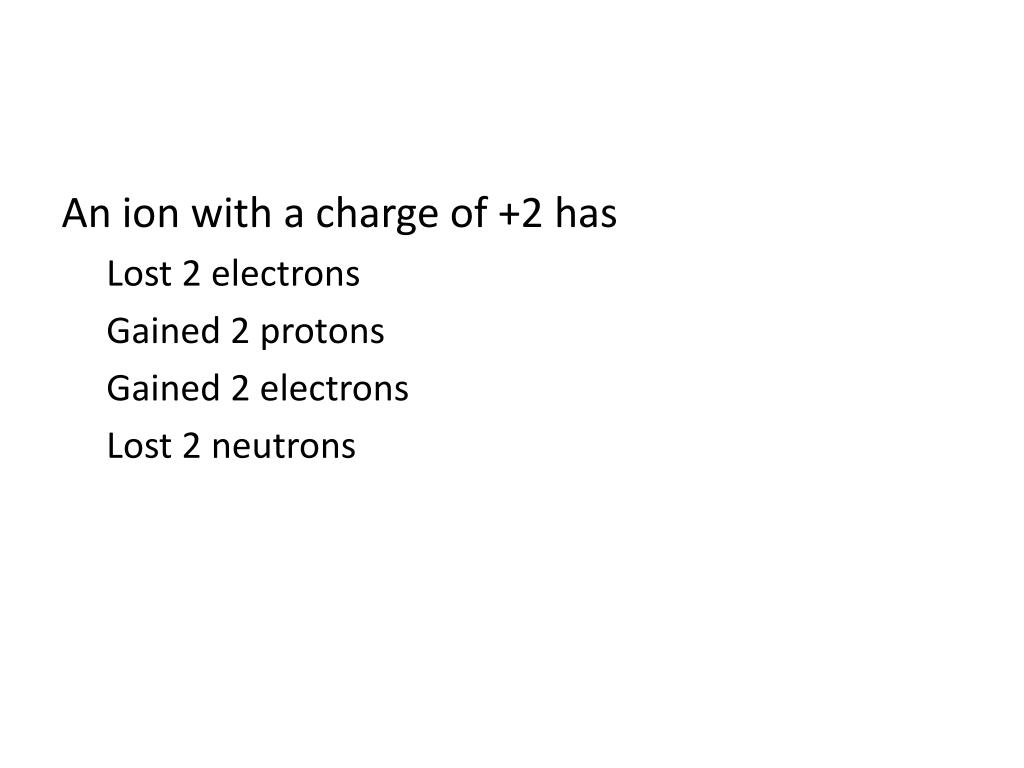

  43. An ion with a charge of +2 has Lost 2 electrons Gained 2 protons Gained 2 electrons Lost 2 neutrons

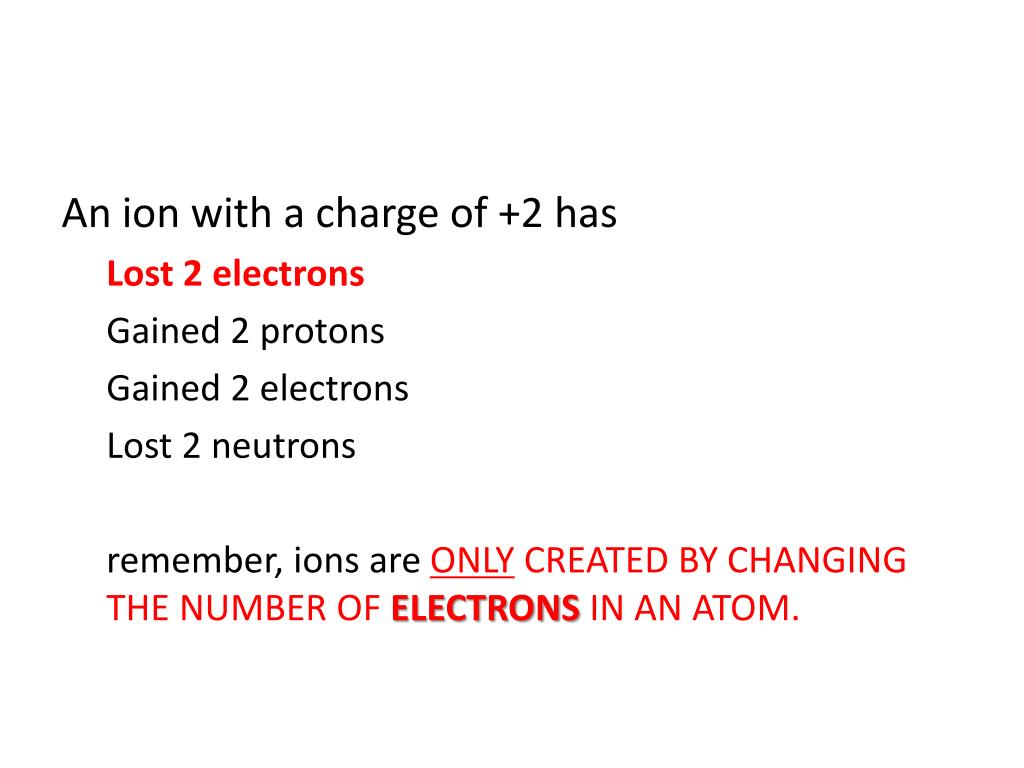

  44. An ion with a charge of +2 has Lost 2 electrons Gained 2 protons Gained 2 electrons Lost 2 neutrons remember, ions are ONLY CREATED BY CHANGING THE NUMBER OF ELECTRONS IN AN ATOM.

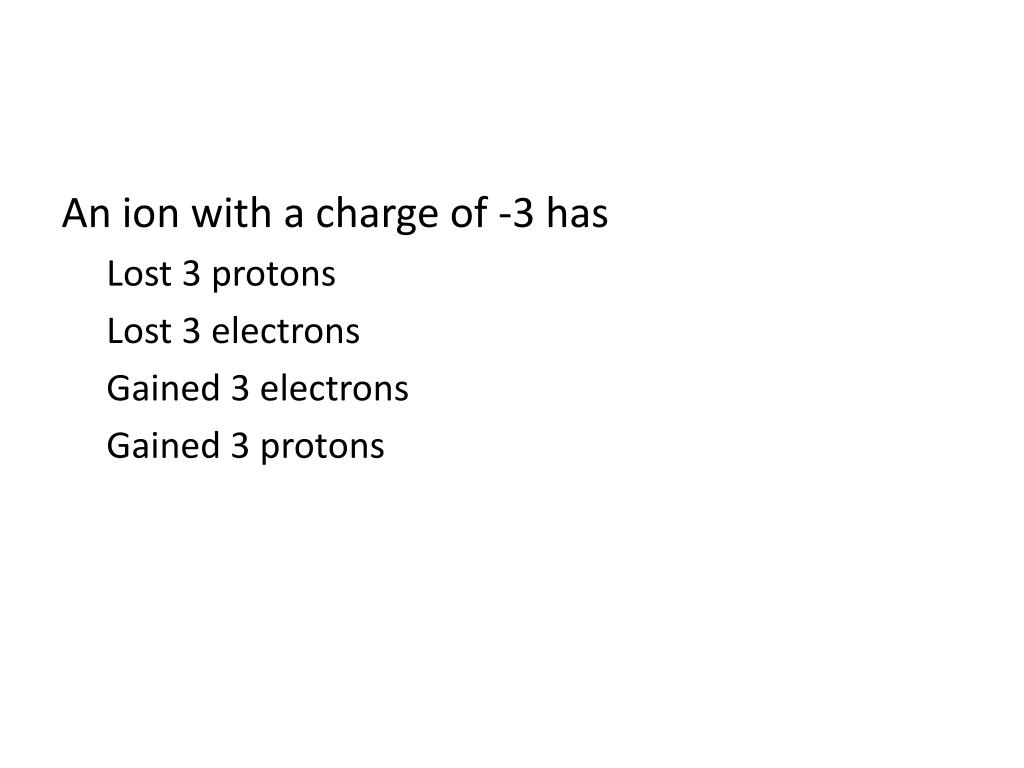

  45. An ion with a charge of -3 has Lost 3 protons Lost 3 electrons Gained 3 electrons Gained 3 protons

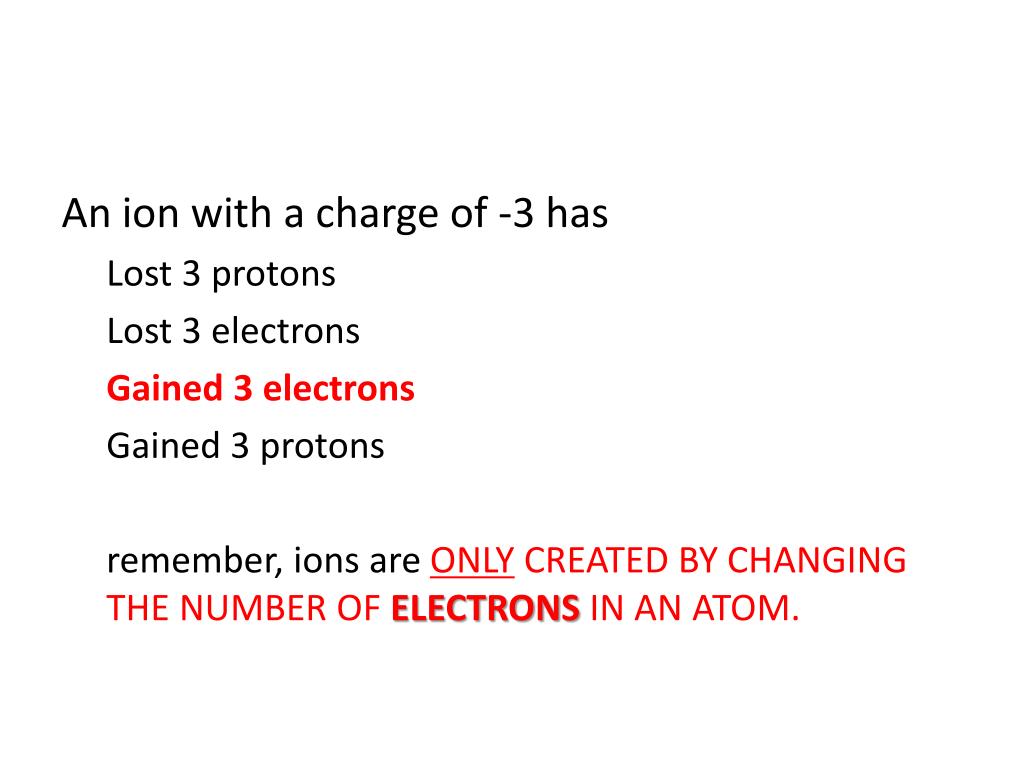

  46. An ion with a charge of -3 has Lost 3 protons Lost 3 electrons Gained 3 electrons Gained 3 protons remember, ions are ONLY CREATED BY CHANGING THE NUMBER OF ELECTRONS IN AN ATOM.

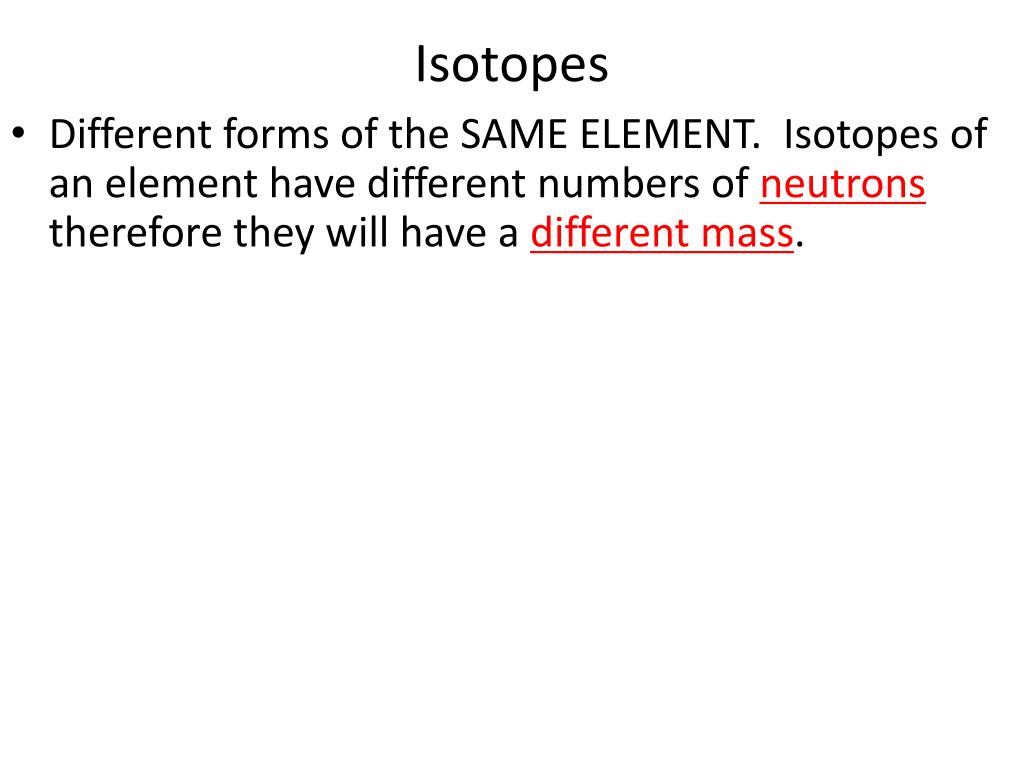

  47. Isotopes • Different forms of the SAME ELEMENT. Isotopes of an element have different numbers of neutrons therefore they will have a different mass.

  48. D F E B C A Which element is very reactive with 3 electron rings? Which element is a nonmetal with 2 electron rings? Which element is a very reactive metal with 1 valence electron? Which element is inert? Which element has 5 electron rings? Which metal has 2 valence electrons?

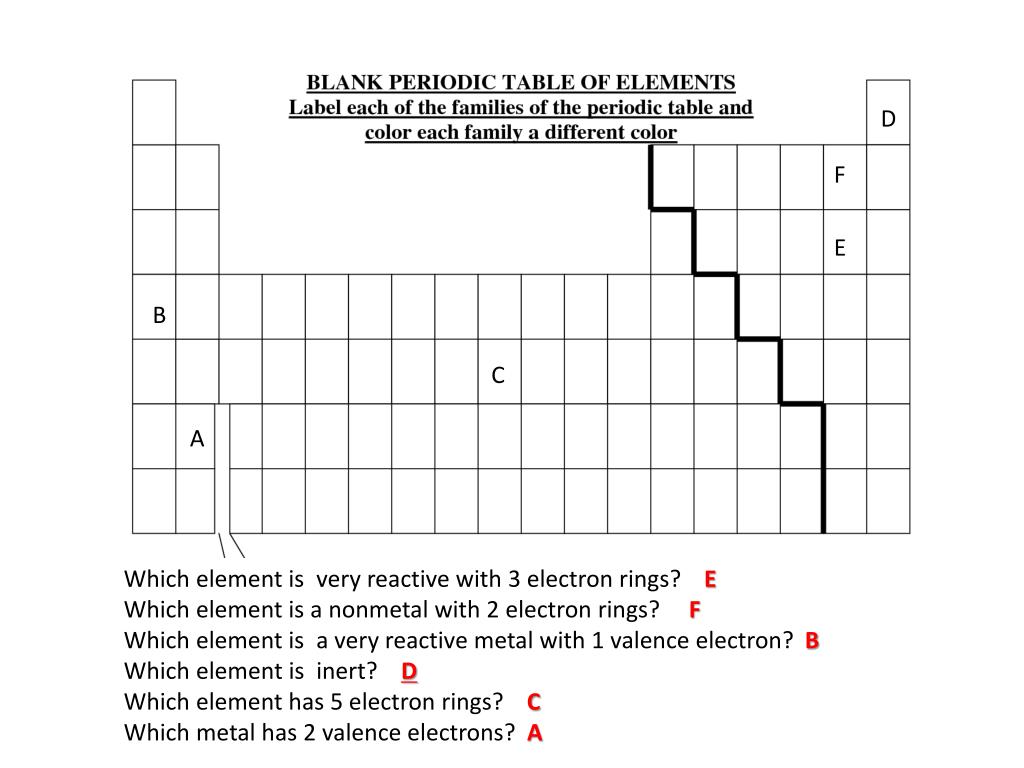

  49. D F E B C A Which element is very reactive with 3 electron rings? E Which element is a nonmetal with 2 electron rings? F Which element is a very reactive metal with 1 valence electron? B Which element is inert? D Which element has 5 electron rings? C Which metal has 2 valence electrons? A
