Presentation Transcript
why we chose email
Why we chose Email
  • Concepts match the charter exactly
  • Implementations match the charter exactly*
  • Well understood by end users
  • Well understood by existing ISP industry
  • Well understood by existing vendors
  • Almost no new code - security agent only(same code that is a subset of other implementations)
  • ISPs can participate with their existing infrastructure and skill set
implementation overview

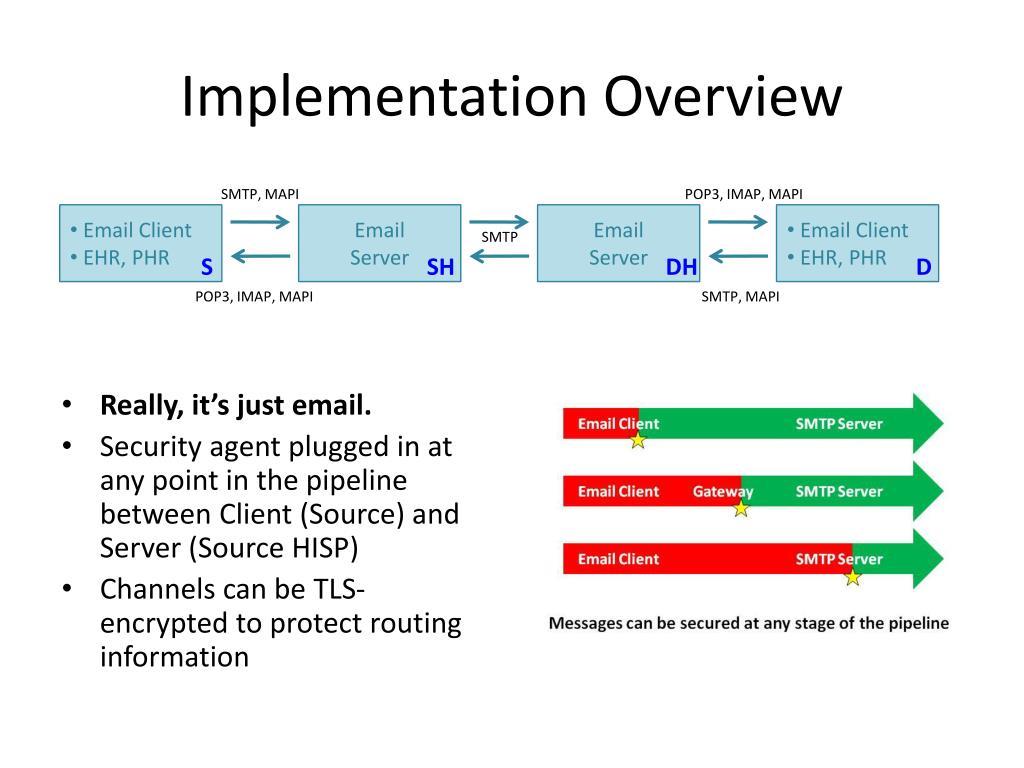

Implementation Overview
  • Really, it’s just email.
  • Security agent plugged in at any point in the pipeline between Client (Source) and Server (Source HISP)
  • Channels can be TLS-encrypted to protect routing information

SMTP, MAPI

POP3, IMAP, MAPI

  • Email Client
  • EHR, PHR

Email

Server

Email

Server

  • Email Client
  • EHR, PHR

SMTP

S

SH

DH

D

POP3, IMAP, MAPI

SMTP, MAPI

key technologies
Key Technologies
  • Content Packaging: RFC 5322 + MIME
  • Addressing: endpoint@domain
  • Security & Trust: S/MIME
  • HISP-HISP Transport: SMTP(S)
  • Client-HISP Transport: SMTP, POP3, IMAP, MAPI, etc…
  • Certificate distribution: DNS CERT
structure metadata and innovation
Structure, metadata and innovation
  • Scalable structure
    • Body Text (always available, Individual Involvement)
    • Unstructured attachments (PDF)
    • Structured attachments (CCx, SCRIPT, etc.)
    • Explicit metadata MIME part (XDM)
  • Transport has proven itself over 20+ years
  • Innovate in the payload
security agent
Security Agent
  • S/MIME Sign and Encrypt of messages fully supports requirements of Security & Trust Workgroup
  • Certificate distribution by DNS CERT records
  • Scalable approach to PKI Management – starts easy as TLS, adds ability to scale down to individual
    • HISP manages certificates
    • Organization manages certificates
    • Individual manages certificates
  • Ability to use across implementations demonstrates the value of taking a transport-independent approach
sample message on the wire
Sample Message “On the wire”

thread-index: AcsGjnbwhdd7B5CFQSuA2mgm0a8D9Q==

Received: from umeshma4 ([131.107.0.72])

by nhind.hsgincubator.com with Microsoft SMTPSVC(6.0.3790.4675); Mon, 7 Jun 2010 15:12:05 -0700

Message-ID: <3854EE3793424007ADEA236042807DF0@northamerica.corp.microsoft.com>

From: "Dr Biff Hooper" <biff@nhind.hsgincubator.com>

To:"Dr. Alsip" <highlandclinic@securehealthemail.com>,

daa858cb-a066-4c76-885f-ffa67242d6c3.9c24b165-7429-4ee2-a646-3bd7986b9968@hvnhind.hsgincubator.com

Subject: Fw: Patient Referral

Date: Mon, 7 Jun 2010 15:11:44 -0700

Organization: Biff's Clinic

Content-Transfer-Encoding:base64

MIME-Version: 1.0

Content-Type:application/pkcs7-mime; smime-type=enveloped-data; name="smime.p7m"

X-Priority: 3

X-MSMail-Priority: Normal

Importance: Normal

X-Mailer: Microsoft Windows Live Mail 14.0.8089.726

X-MimeOLE: Produced By Microsoft MimeOLE V6.00.3790.4657

Content-Class: urn:content-classes:message

Priority: normal

Return-Path: <biff@nhind.hsgincubator.com>

X-OriginalArrivalTime: 07 Jun 2010 22:12:05.0717 (UTC) FILETIME=[76B95050:01CB068E]

MIMDtx4GCSqGSIb3DQEHA6CDA7cOMIMDtwkCAQAxggJvMIG6AgEAMCMwFTETMBEGA1UEAxMKVU0t

QU1BTEdBMQIKFmbg8QAAAAAAGDANBgkqhkiG9w0BAQEFAASBgMrVicD/tjx0ZZ0daK0nN2GMLqJg

FalBuKGxe+ZZATxHxJPCD4rg80pI5vLt/s8A3sRrCrrOSniwpl1kzg6Nunlq6wz/PpK7QTVofwpt

H0ZGYMRin/CxQD4tlf9YFmLuXNdvrvG7AkgRdMS7MZZzBliEdCdUZncb6qnyEf9Y1JlsMIIBrgIB

ADCBlTCBhzELMAkGA1UEBhMCVVMxETAPBgNVBAgTCE1pc3NvdXJpMQ8wDQYDVQQKEwZDZXJuZXIx

...

fEL7VbSd34tez2pUHCL9FbtRBWReSW1hcLEvlsJjeCBaVAKFrW6VZqzTt+M=

reliable messaging
Reliable Messaging
  • Store and forward model is critical in a massively distributed network – because it is likely that destinations will be unavailable
    • Daily issues, upgrades, disaster, remote
  • Ability to route across intermediate hops will be important in a heterogeneous network
    • Corporate intranet gateways
why existing services matter
Why Existing Services Matter
  • Operations
    • Administration and provisioning
    • Backups
    • System health monitoring
    • Patch and upgrade process
  • Security history, minimal new attack surface
  • Multi-tenant issues worked out
  • Training and industry skill set
    • admin, NOC, customer service
  • Account support: quota management, billing, fraud detection, etc.
demo step 1
Demo: Step 1
  • Source: Outlook + Windows SMTP
  • Destination: Thunderbird + Postfix
  • Notes
    • Attached CCD document
    • Read receipt
demo step 2
Demo: Step 2
  • Source: Millennium + IronPort
  • Destination: Thunderbird + Postfix
  • Notes
    • EHR integration
    • Flexible attachment types
demo step 3
Demo: Step 3
  • Source: Thunderbird + Postfix
  • Destination: Windows Live Mail + Windows SMTP
  • Notes
    • Simple text message
    • Out of Office
demo step 4
Demo: Step 4
  • Source: Windows Live Mail + Windows SMTP
  • Destination: HealthVault & Thunderbird
  • Notes
    • Multiple recipients
    • Structured PHR integration
demo technologies
Demo Technologies
  • Clients
    • Cerner Millennium
    • Thunderbird
    • Outlook
    • Windows Live Mail
    • HealthVault
  • DNS
    • Bind
  • Servers
    • Windows SMTP
    • Postfix
  • Operating Systems
    • Amazon EC2
    • Windows Server
    • Linux
since tuesday
Since Tuesday
  • Secure Exchange Solutions has successfully sent and received NHIN-D messages using the SMTP implementation
  • A “desktop gateway” is available that enables any currently-live mail service (Gmail, Hotmail) to be used for NHIN-D messaging
    • We believe that with the SMTP solution, the bar for the largest webmail providers to offer NHIN-D service is low enough that we can expect to see offerings emerge.
