w3c workshop bedford ma february 2007

An Insurance Industry Perspective

Making the Web of Services Real

W3C Workshop, Bedford, MA – February 2007

slide2

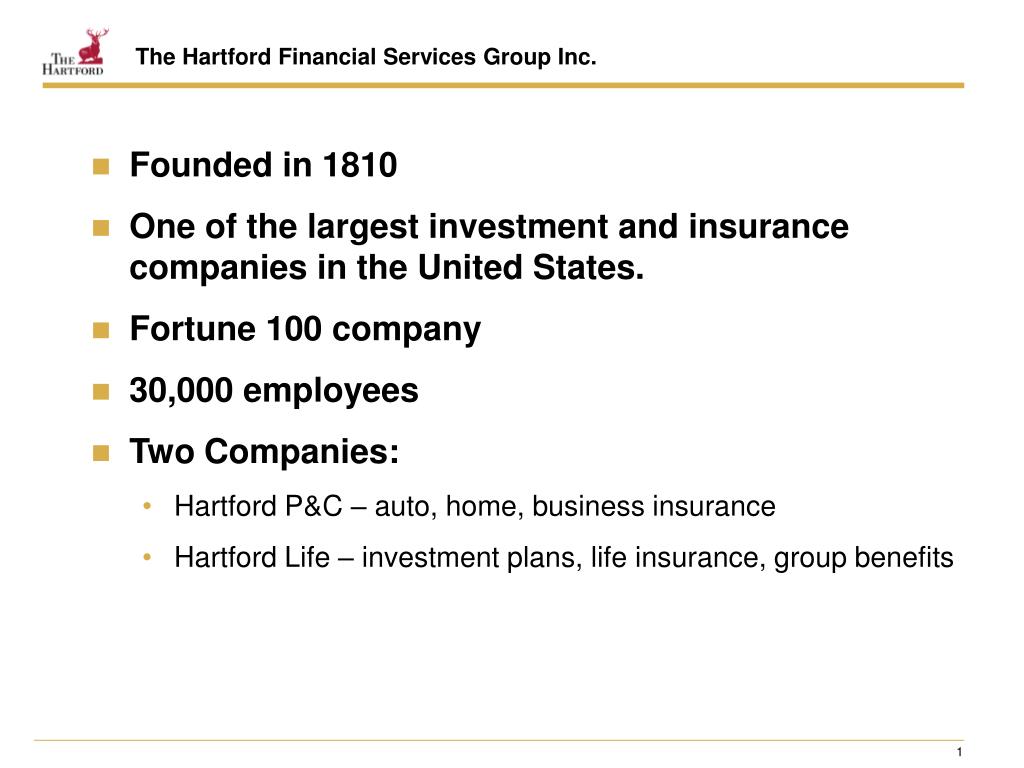

The Hartford Financial Services Group Inc.

  • Founded in 1810
  • One of the largest investment and insurance companies in the United States.
  • Fortune 100 company
  • 30,000 employees
  • Two Companies:
    • Hartford P&C – auto, home, business insurance
    • Hartford Life – investment plans, life insurance, group benefits
slide3

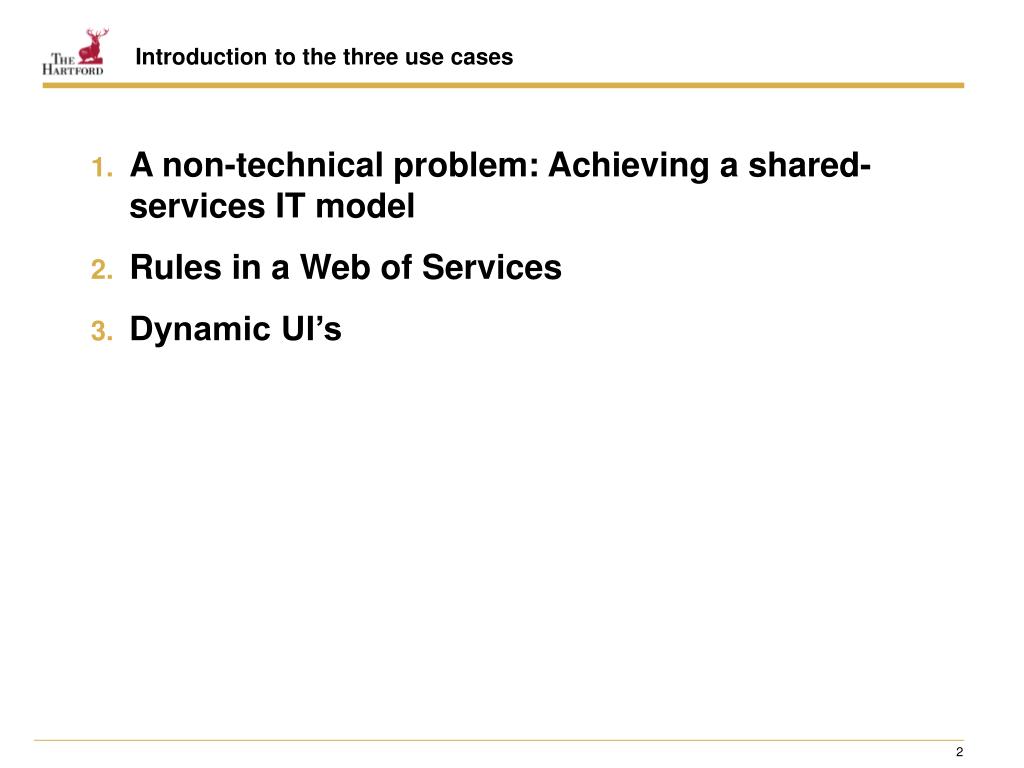

Introduction to the three use cases

  • A non-technical problem: Achieving a shared-services IT model
  • Rules in a Web of Services
  • Dynamic UI’s
the web of services needs to extend from a complex legacy base

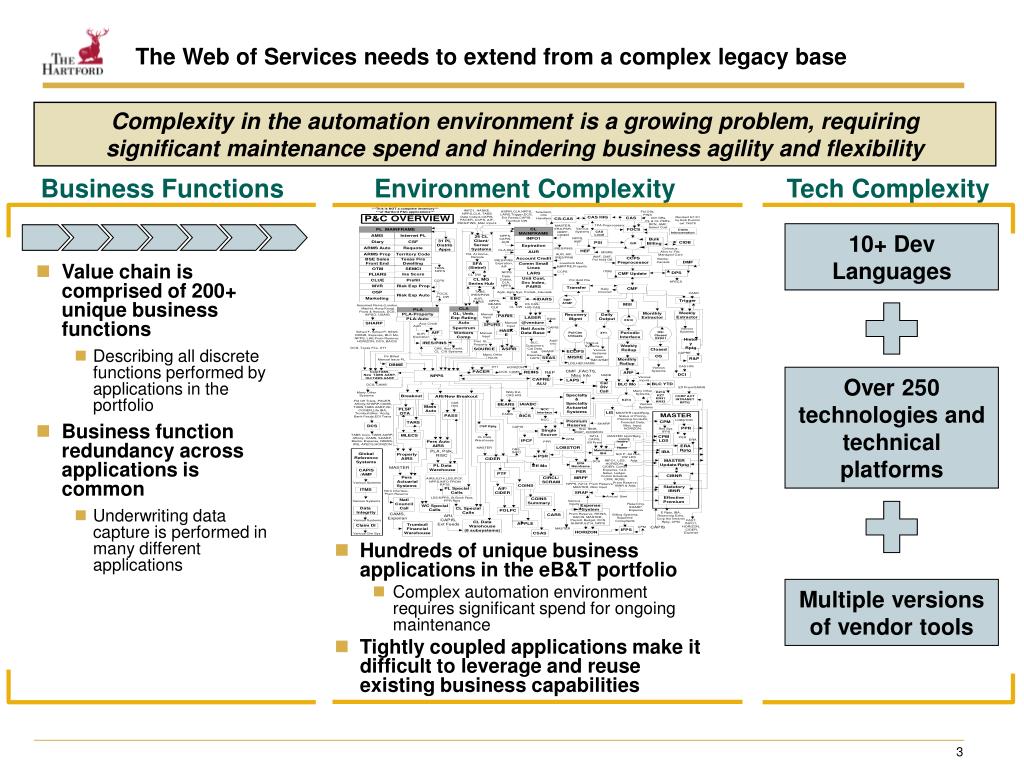

Context

The Web of Services needs to extend from a complex legacy base

Complexity in the automation environment is a growing problem, requiring significant maintenance spend and hindering business agility and flexibility

Business Functions

Environment Complexity

Tech Complexity

10+ Dev Languages

  • Value chain is comprised of 200+ unique business functions
    • Describing all discrete functions performed by applications in the portfolio
  • Business function redundancy across applications is common
    • Underwriting data capture is performed in many different applications

Over 250 technologies and technical platforms

  • Hundreds of unique business applications in the eB&T portfolio
    • Complex automation environment requires significant spend for ongoing maintenance
  • Tightly coupled applications make it difficult to leverage and reuse existing business capabilities

Multiple versions of vendor tools

slide5

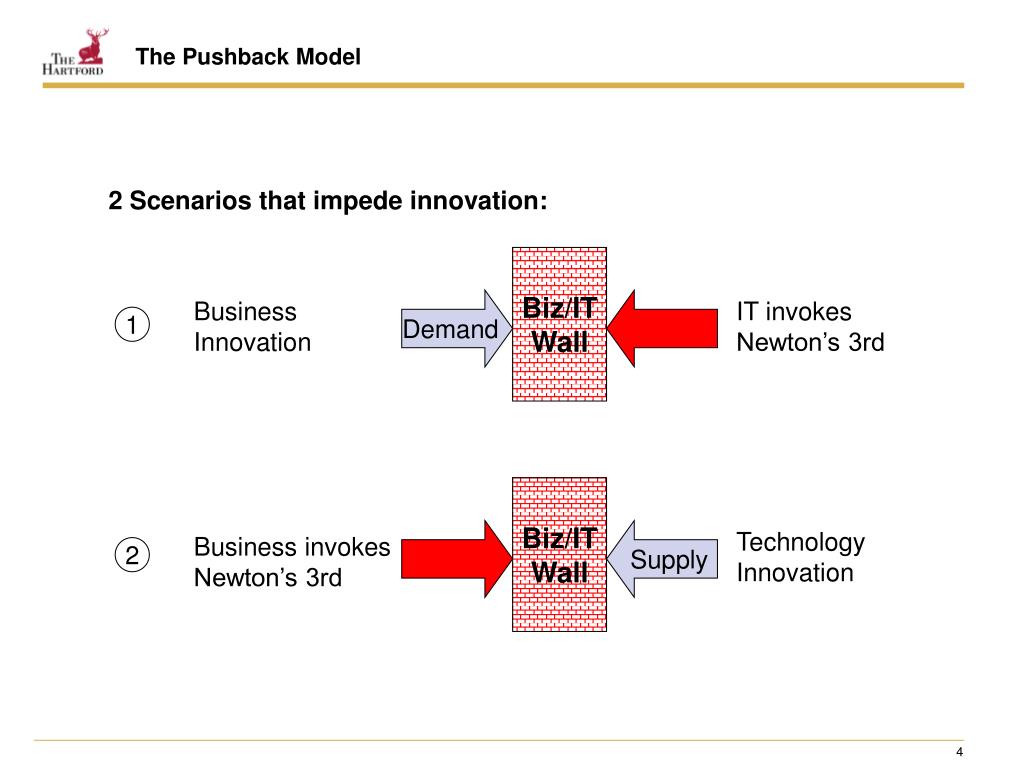

The Pushback Model

2 Scenarios that impede innovation:

Biz/IT

Wall

Business

Innovation

Demand

IT invokes

Newton’s 3rd

1

Biz/IT

Wall

Supply

Technology

Innovation

Business invokes

Newton’s 3rd

2

slide6

Services

Information Management

Future Platform

Building the Technology Platform one rationalization step at a time …

Foundational

Architecture

Application Rationalization Step

The P&C Technology Platform: Common IT capabilities enabling business capabilities

slide7

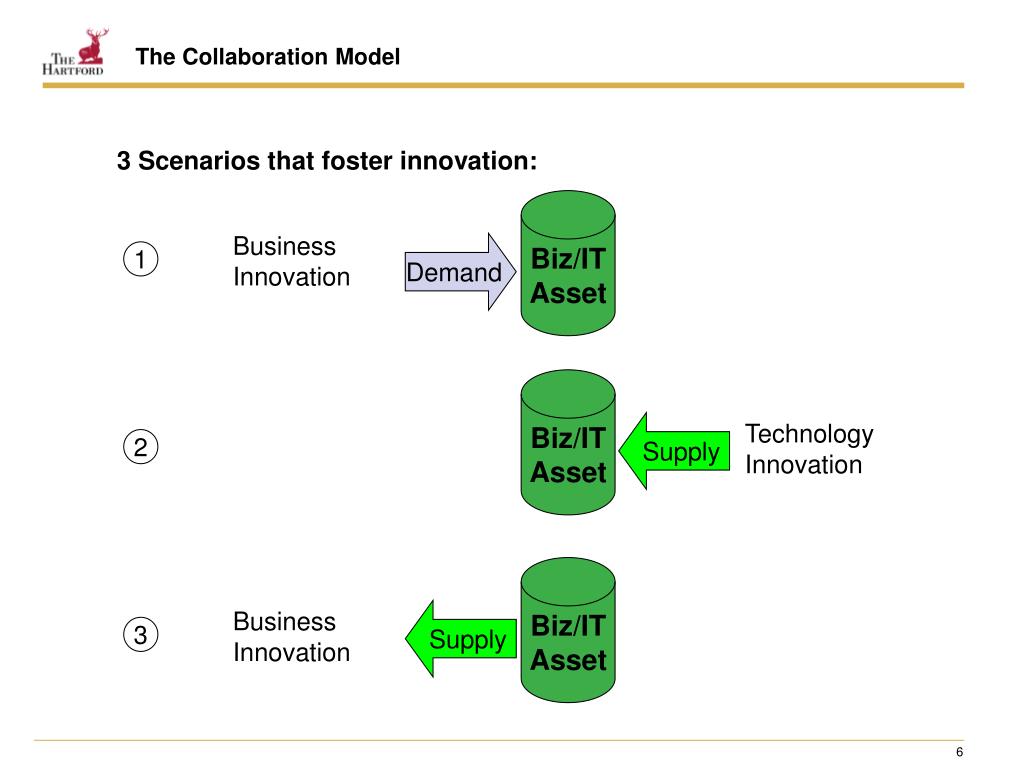

The Collaboration Model

3 Scenarios that foster innovation:

Biz/IT

Asset

Business

Innovation

Demand

1

Biz/IT

Asset

Supply

Technology

Innovation

2

Biz/IT

Asset

Business

Innovation

Supply

3

use case 1 achieving a shared services it model

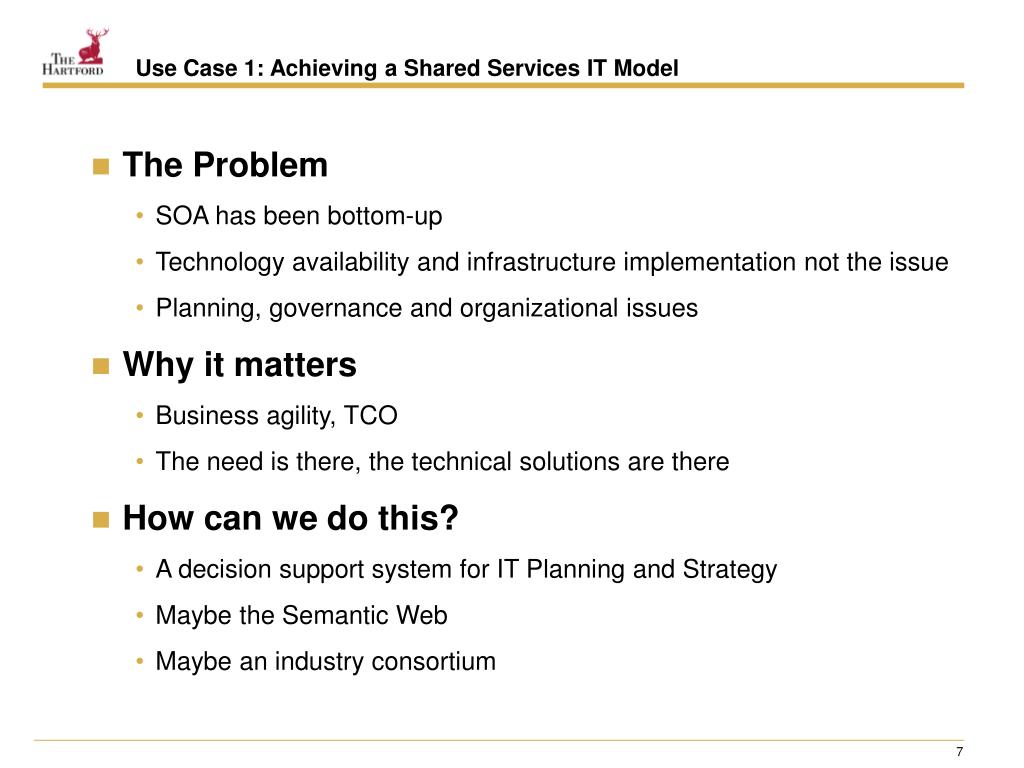

Use Case 1: Achieving a Shared Services IT Model
  • The Problem
    • SOA has been bottom-up
    • Technology availability and infrastructure implementation not the issue
    • Planning, governance and organizational issues
  • Why it matters
    • Business agility, TCO
    • The need is there, the technical solutions are there
  • How can we do this?
    • A decision support system for IT Planning and Strategy
    • Maybe the Semantic Web
    • Maybe an industry consortium
soa semci

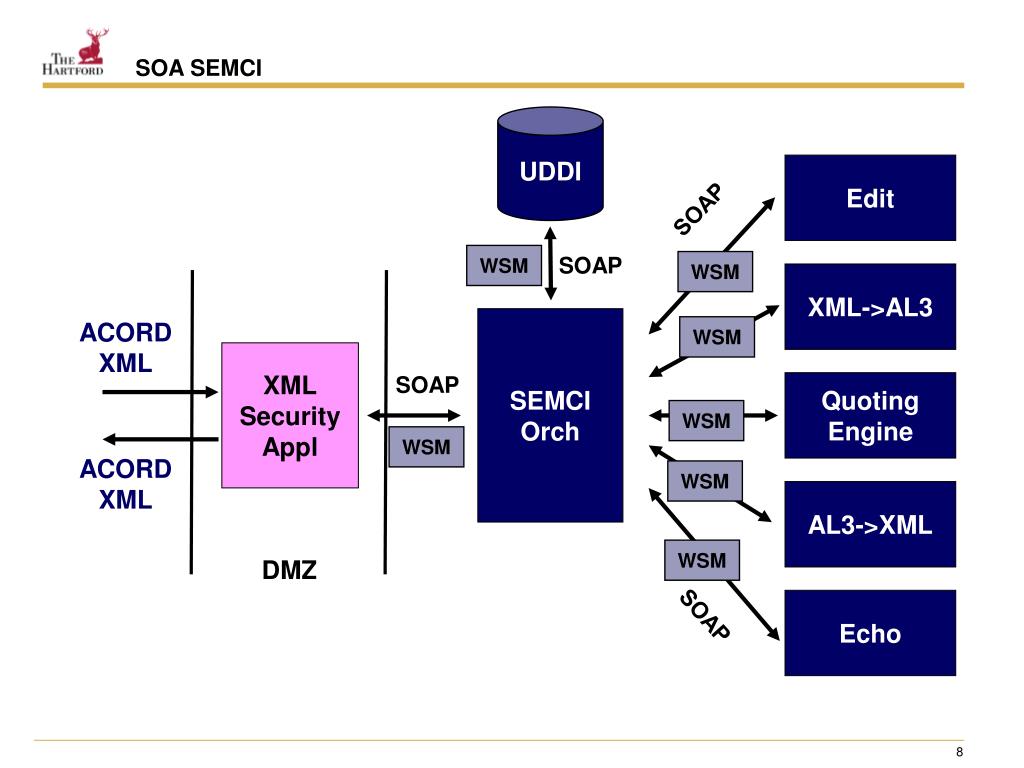

SOA SEMCI

UDDI

Edit

SOAP

WSM

SOAP

WSM

XML->AL3

SEMCI

Orch

ACORD XML

WSM

XML

Security

Appl

SOAP

Quoting

Engine

WSM

WSM

ACORD XML

WSM

AL3->XML

WSM

DMZ

Echo

SOAP

use case 2 rules in a web of services

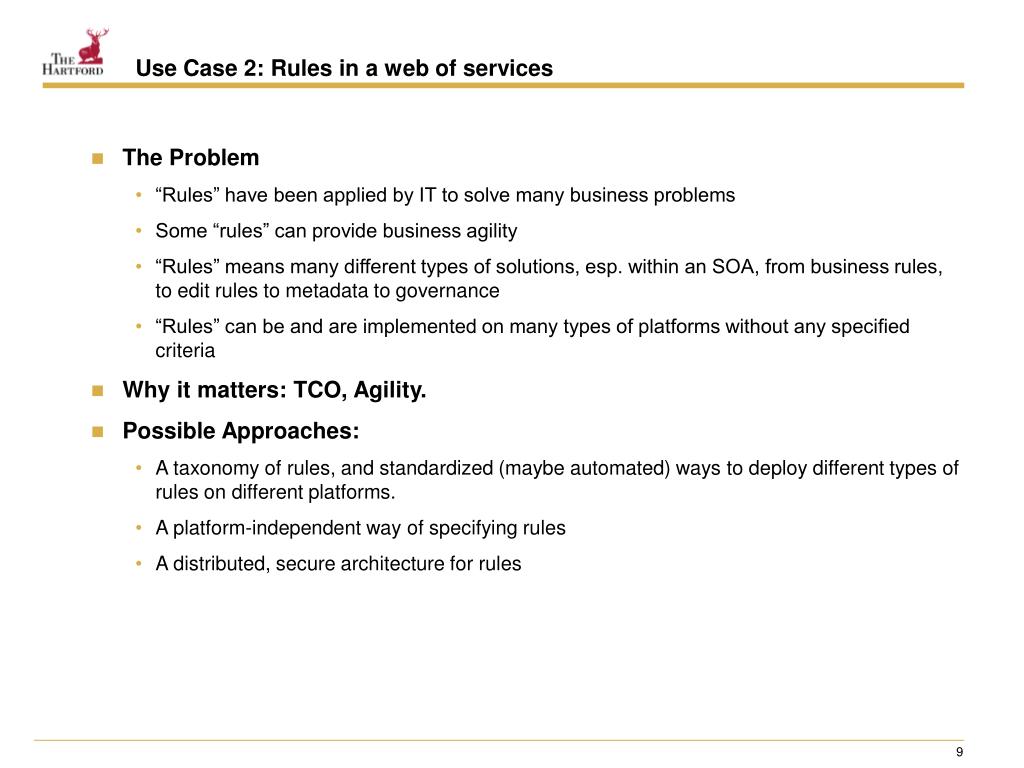

Use Case 2: Rules in a web of services
  • The Problem
    • “Rules” have been applied by IT to solve many business problems
    • Some “rules” can provide business agility
    • “Rules” means many different types of solutions, esp. within an SOA, from business rules, to edit rules to metadata to governance
    • “Rules” can be and are implemented on many types of platforms without any specified criteria
  • Why it matters: TCO, Agility.
  • Possible Approaches:
    • A taxonomy of rules, and standardized (maybe automated) ways to deploy different types of rules on different platforms.
    • A platform-independent way of specifying rules
    • A distributed, secure architecture for rules
use case 2 rule types within the hartford p c

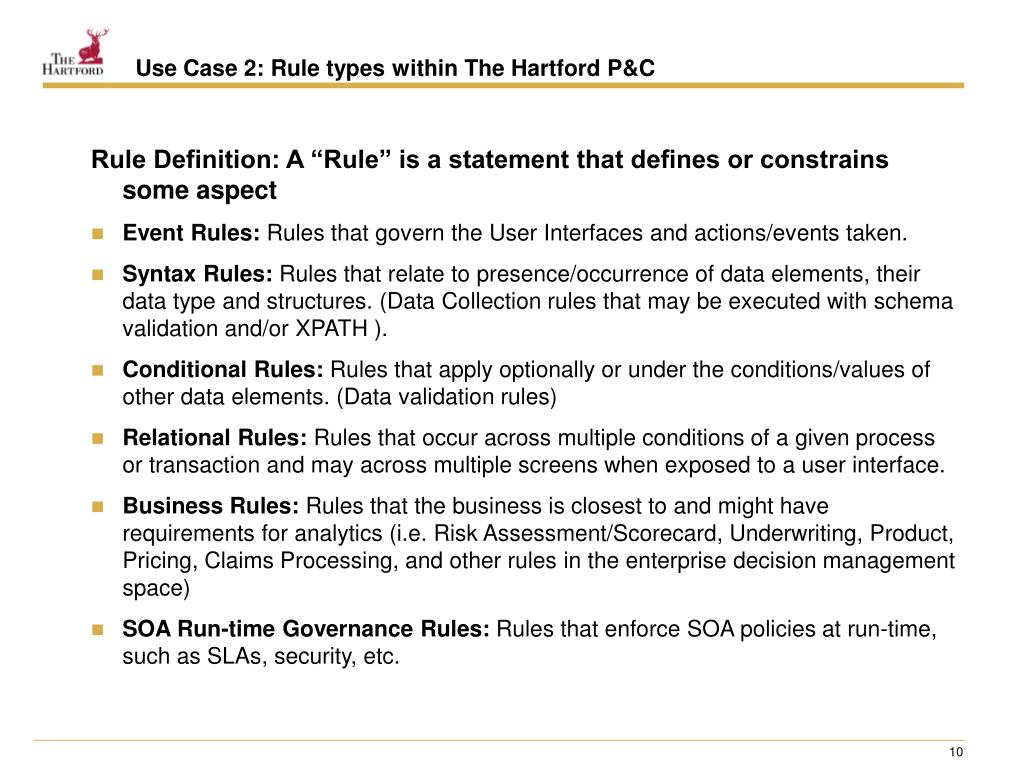

Use Case 2: Rule types within The Hartford P&C

Rule Definition: A “Rule” is a statement that defines or constrains some aspect

  • Event Rules: Rules that govern the User Interfaces and actions/events taken.
  • Syntax Rules: Rules that relate to presence/occurrence of data elements, their data type and structures. (Data Collection rules that may be executed with schema validation and/or XPATH ).
  • Conditional Rules: Rules that apply optionally or under the conditions/values of other data elements. (Data validation rules)
  • Relational Rules: Rules that occur across multiple conditions of a given process or transaction and may across multiple screens when exposed to a user interface.
  • Business Rules: Rules that the business is closest to and might have requirements for analytics (i.e. Risk Assessment/Scorecard, Underwriting, Product, Pricing, Claims Processing, and other rules in the enterprise decision management space)
  • SOA Run-time Governance Rules: Rules that enforce SOA policies at run-time, such as SLAs, security, etc.
soa semci1
SOA SEMCI

UDDI

Edit

SOAP

WSM

SOAP

WSM

XML->AL3

SEMCI

Orch

ACORD XML

WSM

XML

Security

Appl

SOAP

Quoting

Engine

WSM

WSM

ACORD XML

WSM

AL3->XML

WSM

DMZ

Echo

SOAP

use case 3 dynamic ui s

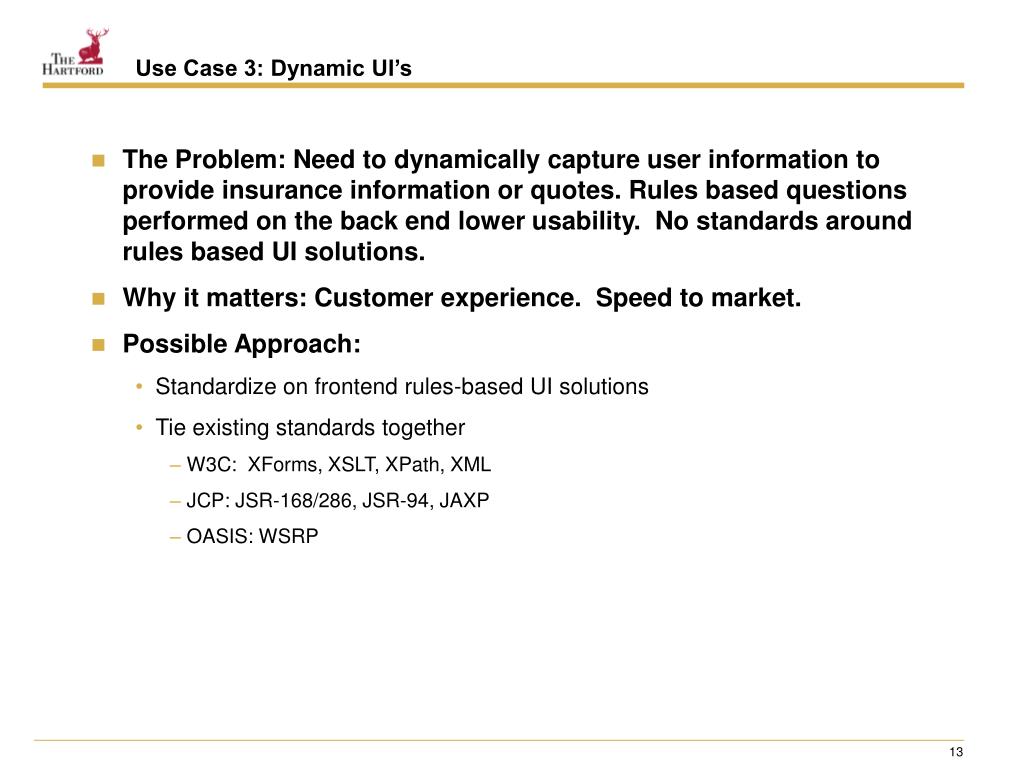

Use Case 3: Dynamic UI’s
  • The Problem: Need to dynamically capture user information to provide insurance information or quotes. Rules based questions performed on the back end lower usability. No standards around rules based UI solutions.
  • Why it matters: Customer experience. Speed to market.
  • Possible Approach:
    • Standardize on frontend rules-based UI solutions
    • Tie existing standards together
      • W3C: XForms, XSLT, XPath, XML
      • JCP: JSR-168/286, JSR-94, JAXP
      • OASIS: WSRP
slide16
Q & A

Thank You

Balaji Prasad

Director, Enterprise Architecture

&

Benjamin Moreland

Director, Foundation Services

Enterprise Architecture Group

The Hartford Financial Services Group
