Presentation Transcript

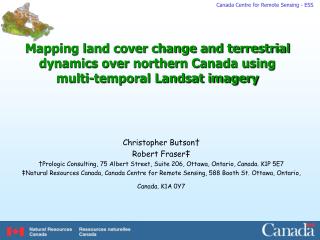

slide1

Mapping land cover change and terrestrial dynamics over northern Canada using multi-temporal Landsat imagery

Christopher Butson†

Robert Fraser‡

†Prologic Consulting, 75 Albert Street, Suite 206, Ottawa, Ontario, Canada. K1P 5E7

‡Natural Resources Canada, Canada Centre for Remote Sensing, 588 Booth St. Ottawa, Ontario, Canada. K1A 0Y7

presentation outline
Presentation Outline
  • Introduction
  • Research Objectives
  • Data & Materials
  • Methodology
      • Cross-Correlation Analysis
      • Change Vector Analysis
      • Theil-Sen Regression Analysis
  • Results
  • Conclusions
  • Future Work
introduction
Introduction

Northern areas are characterized by:

  • Low air and soil temperatures
  • Permafrost
  • Short growing season and limited productivity
  • Climate data indicate large relative warming at high latitudes.

Intergovernmental Panel on Climate Change (IPCC) projects an increase in global mean surface temperature of 1º to 3.5º C by 2100 and an increase in sea level by 15-95cm.

slide4
Goal:

Develop automated methods for detecting past and future land cover changes in the north and use this information to report on carbon fluxes for UNFCCC and track indicators of climate change in Canada.

Where:

Four pilot sites have been setup along the forest-tundra boundary (tree line) in northern Canada. Yukon-NWT, Manitoba, Ontario, Quebec.

How:

Use various change methods to monitor; I) Natural disturbances (tundra fires, vegetation) and II) Human induced changes (mining and settlements).

research objectives
Research Objectives

The main objective of this research is to develop an automated change detection technique for use with Landsat imagery to quantify past and present land cover changes in northern areas. More specifically, we aim to:

  • Test three change detection approaches for quantifying land cover changes in Landsat imagery.
  • Quantify total changed area, and land cover changes throughout the specified time periods using circa 2000 imagery as the base-year over four pilot areas located in the forest-tundra transition zone of northern Canada.
data materials
Data & Materials

Map of Canada highlighting the locations of the four pilot sites.

slide7

Landsat Scene Selection:

Study sites #1-4, represent the multi-temporal sites under investigation.

Sites #5-7 represent the overlap image pairs that the change methods were tested on.

cross correlation analysis cca
Cross-Correlation Analysis (CCA) uses a land cover map to delineate spectral cluster statistics between the baseline image year (Time 1) and each scene in the temporal sequence (Time 2). Calculating the Z-statistic deviations from the cluster mean identifies change pixels within each land cover cluster.Cross-Correlation Analysis (CCA)
change vector analysis cva
Change Vector Analysis (CVA) uses two spectral channels to map both the: 1) magnitude of change and, 2) the direction of change between the two (spectral) input images for each date. Change Vector Analysis (CVA)
theil sen regression analysis tsa
Much like typical image regression change, we use Theil-Sen as it is more robust to sample outliers than ordinary least-squares regression.

Medians are outlier resistant measures of central tendency and the method uses the median of all pairwise slopes to calculate the slope of the regression line.

The median value of the sample offsets represents the intercept.

Theil-Sen Regression Analysis (TSA)
tsa con t
TSA con’t…
  • Generate mask to sample pixels in each land cover
  • Samples are used to build a regression equation
  • for each cover type using the baseline circa 2000 ETM+ scene as the regressor and each scene in the temporal sequence as the response.
  • A change mask was created by mapping pixels characterizing large residuals away from the regression line
results objective 1
The overlap scene acquired earlier in the season was used as the baseline image while the latter scene was considered the time 2 map

By analyzing only the overlap portion between the two orbital paths, we assumed that the land surface (and thus land cover) does not change between acquisition dates

Results – Objective #1
results objective 1 con t
Comparison of techniques for

burned vegetation (high probability):

Results – Objective #1 con’t…

CVA

CCA

RGB=4,5,3

TSA

slide15

Results – Objective #1 con’t…

Comparison of techniques for

regenerating vegetation (medium probability):

RGB=4,5,3

CVA

CCA

TSA

results objective 2
Study site#1: Changes 1992-2000, Inuvik, NWTResults – Objective #2

a) 1992, RGB=1,2,3 b) 2000, RGB c) Prob-Change

results objective 2 con t
Results - Objective #2 con’t…

Study site #2: Changes 1985-2001, Churchill, MN

a) 2001, RGB b) 1985, Prob-Change c) 1991, Prob-Change

conclusions
CVA –Does not rely on the quality/accuracy of a baseline land cover map to identify changes. Relatively large commission errors but less noise in some cases.

CCA – Relies on the quality/accuracy of a land cover map to identify changes. May under estimate land cover changes.

TSA- Relies on the quality/accuracy of a land cover map to correctly classify changes. Although the commission errors were much lower in the overlap analysis, the change maps were still noisy. Computationally intensive.

Conclusions
future work
Validate change conditions using historic and current ancillary data

Develop interactive thresholding

Spatial aggregation of change pixels

Analyze seasonal change detection limitations

Apply change methods to northern mosaic of Canada

Assess land cover/land use changes for UNFCCC reporting in the north

Future work
baseline classification
Baseline Classification

Circa 2000 Landsat ETM+ 90m landcover

of northern Canada – Version I (preliminary)

Olthof, I., Butson, C., Fernandes, R., Fraser, R., Latifovic, R. and Orazietti, J. (2004). Landsat ETM+ mosaic of northern Canada.

Canadian Journal of Remote Sensing, submitted 06/04.

acknowledgements
Global Land Cover Facility (http://glcf.umiacs.umd.edu/data/) for the use of the Landsat MSS imagery

Canadian Space Agency (CSA)- Government Related Initiatives Program (GRIP) funding

Acknowledgements
