  1. Biotechnology DNA technology

  2. Review • Some of the most important techniques used in biotechnology involve making recombinant DNA molecules • Recombinant objects have been reassembled from parts taken from more than one source • Bicycles

  3. Recombinant DNA • Your genome is recombinant in that part of it came from your mother and part of it came from your father • Recombinant DNA molecules are pieces of DNA that have been reassembled from pieces taken from more than one source of DNA • Often one of the sources is a Plasmid

  4. Plasmids • Small circular DNA molecules that can reside in cells. • Often contain genes fro resistance to antibiotics. • They can spread antibiotic resistance • They are also used for human benefit.

  5. Genetic Engineering • Possible because of special enzymes that cut DNA • These enzymes are called RESTRICTION ENZYMES

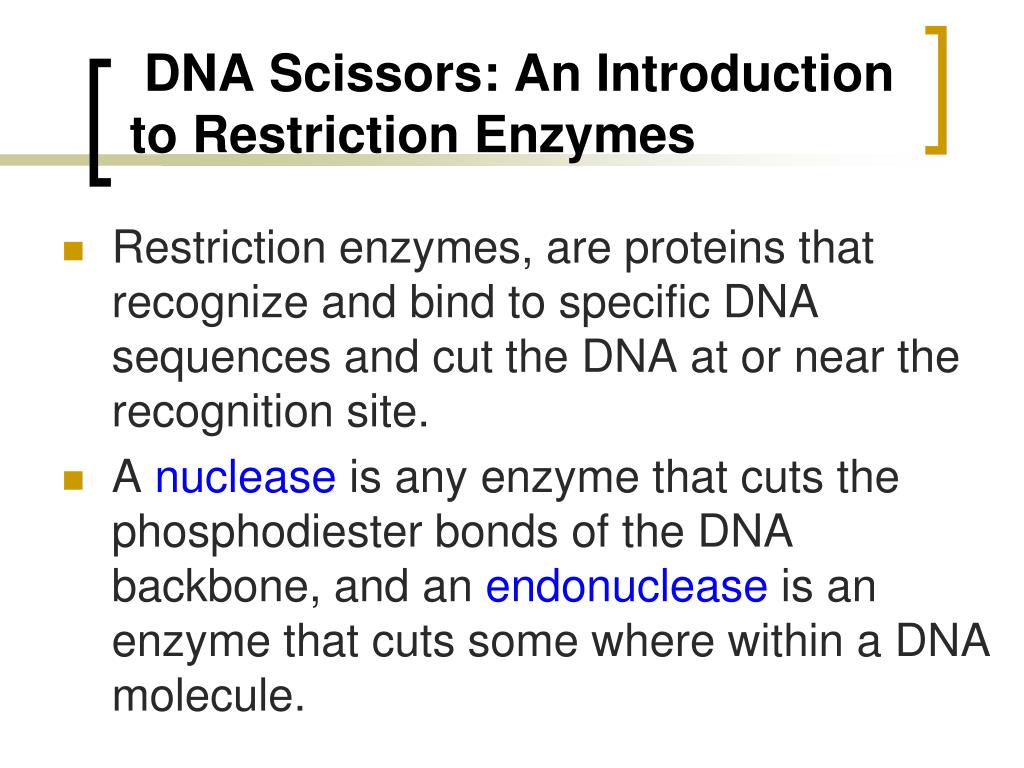

  6. DNA Scissors: An Introduction to Restriction Enzymes • Restriction enzymes, are proteins that recognize and bind to specific DNA sequences and cut the DNA at or near the recognition site. • A nuclease is any enzyme that cuts the phosphodiester bonds of the DNA backbone, and an endonuclease is an enzyme that cuts some where within a DNA molecule.

  7. Restriction enzymes • were originally discovered through their ability to break down, or restrict, foreign DNA. • can distinguish between the DNA normally present in the cell and foreign DNA, such as infecting bacteria virus DNA • The enzymes defend the cell from invasion by cutting the foreign DNA into pieces, rendering the DNA nonfunctional. • Restriction enzymes appear to be made exclusively by prokaryotes.

  8. Restriction enzymes • generally recognize specific DNA sequences of 4 to 6 base pairs. • These recognition sites are a palindrome in that the 5’ 3' base sequence is the same on both strands. • Most of the enzymes make a cut in the phosphodiester backbone of DNA at a specific position within the recognition site, resulting in a break in the DNA.

  9. These recognition cleave sites are called restriction sites.

  10. Restriction Enzymes • Recognize and cut at specific places along the DNA molecule called restriction sites. • Each different restriction enzyme has its own type of site. • Restriction site is a 4 or 6 base pair sequence that is a palindrome. • A DNA palidrome is a sequence in which the “top strand read from left to right is the same as the bottom strand read from right to left.
