  1. Customizing Office 2010 Backstage view and Ribbon John R. Durant Senior Product Manager Microsoft Corporation

  2. Agenda • Describe improvements to the existent UI extensibility model in Office applications • Define the new UI extensibility model of the Backstage view • Identify end-user customization features introduced in Office 2010 applications • Demos! • Resources • Q&A

  3. Extensibility vs. Customization • UI extensibility • Modifying the UI via programmatic methods • End-user UI customization • Modifying the UI via end-user features that are part of the application itself

  4. What’s the Read “User” Value? • Familiarity of Office applications • Reduces training time • Increases productivity • Streamline business processes and tasks where people “live”

  5. UI Extensibility Platform Improvements demo

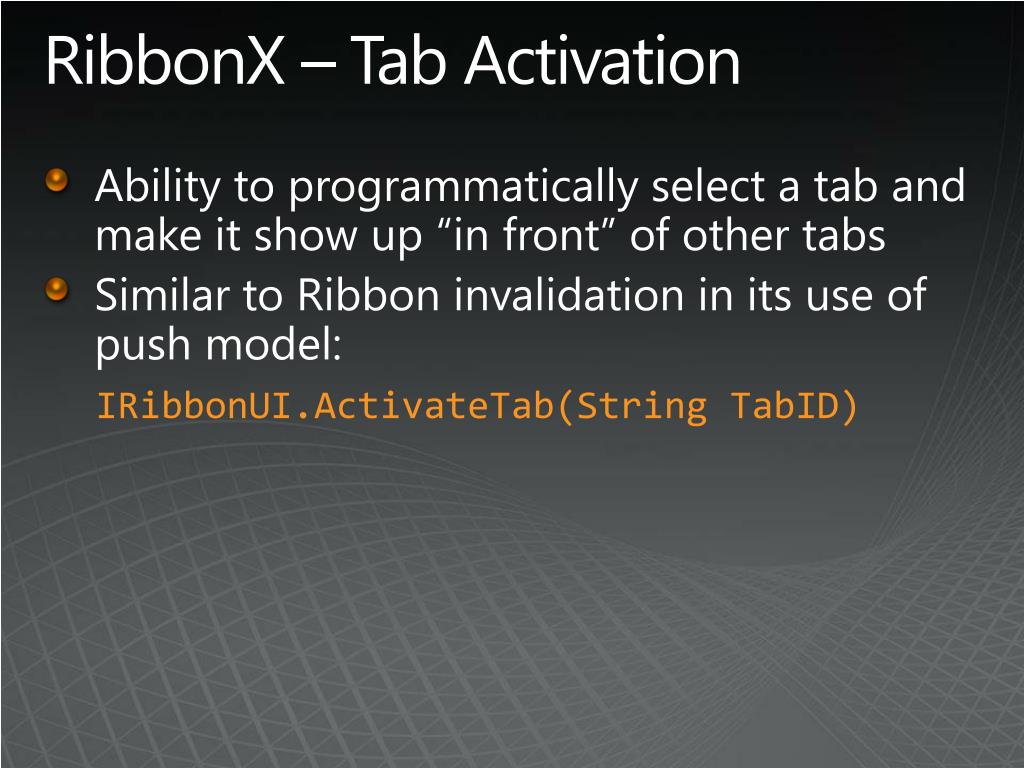

  6. RibbonX – Tab Activation • Ability to programmatically select a tab and make it show up “in front” of other tabs • Similar to Ribbon invalidation in its use of push model: IRibbonUI.ActivateTab(String TabID)

  7. RibbonX – Group Scaling • Built-in Ribbon groups change layout as window resizes: • New Office 2010 scenarios

  8. RibbonX – Group Scaling • In Office 2010, autoScale property can be set on a custom group: • Custom group then changes its layout as the window resizes, like built-in groups do: <group id=“Wheel" autoScale="true">

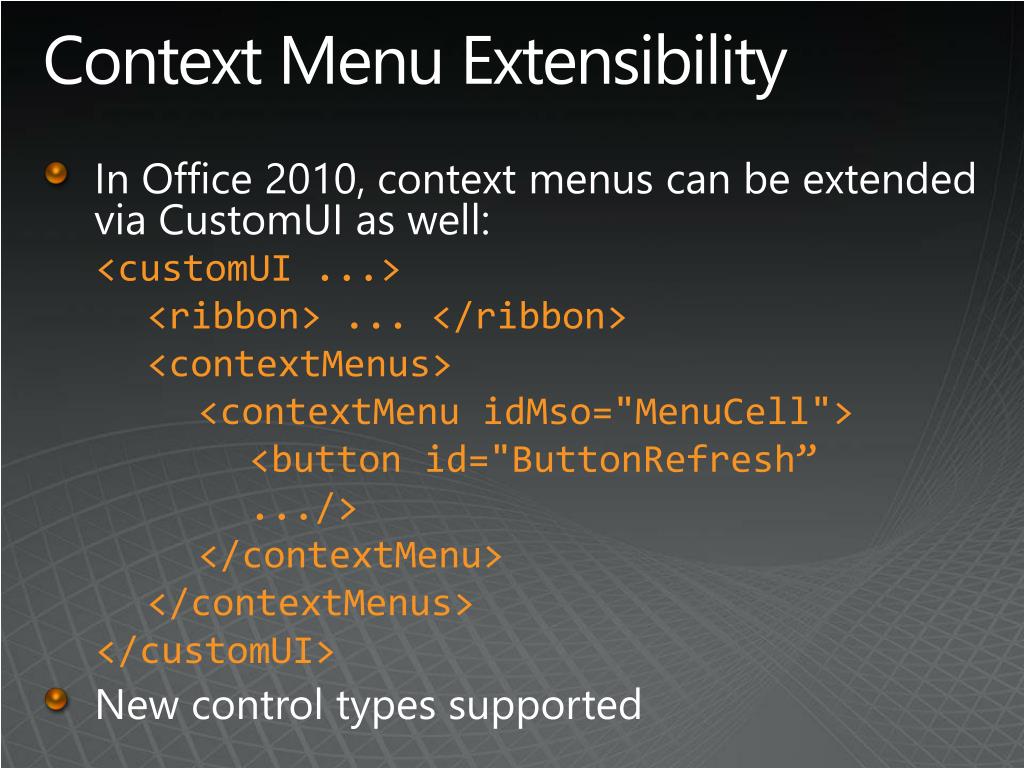

  9. Context Menu Extensibility • In Office 2010, context menus can be extended via CustomUI as well: • New control types supported • <customUI ...> • <ribbon> ... </ribbon> • <contextMenus> • <contextMenu idMso="MenuCell"> • <button id="ButtonRefresh” .../> • </contextMenu> • </contextMenus> • </customUI>

  10. Backstage Extensibility demo

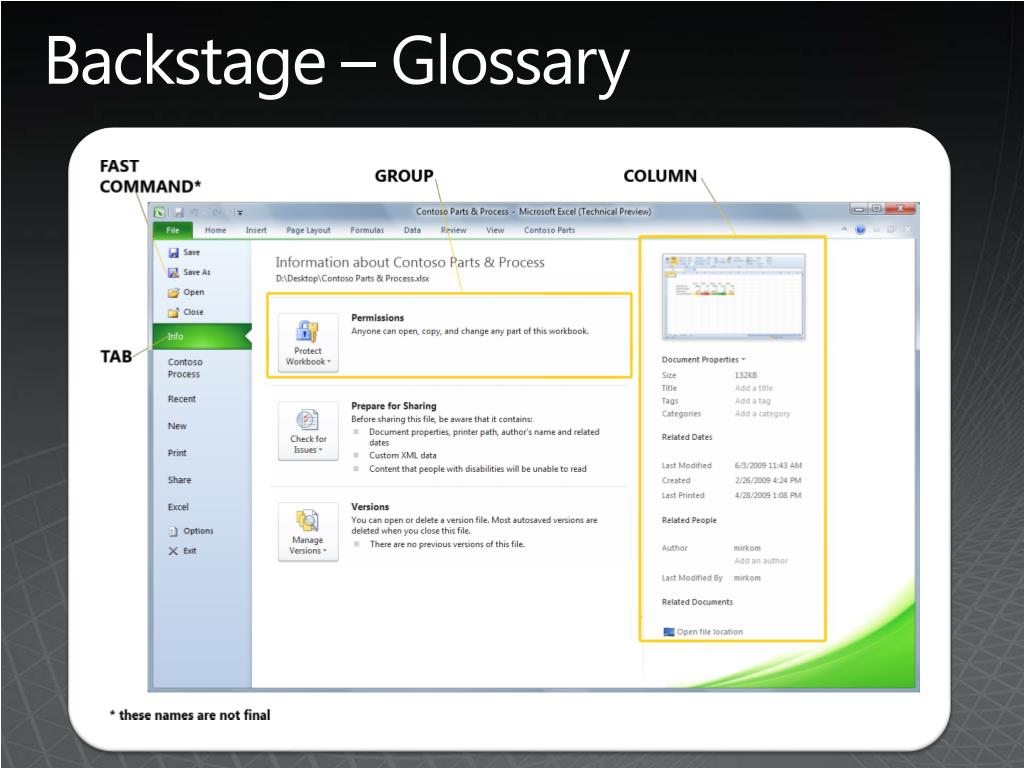

  11. Backstage – Glossary

  12. Backstage Extensibility – Hierarchy • At the same level as the Ribbon and context menus: • <customUI ...> • <ribbon> ... </ribbon> • <outspace> ... </outspace> • <contextMenus> ... </contextMenus> • </customUI>

  13. Backstage Tab Extensibility • Add new custom tabs • Hide, disable built-in tabs • Specify layout in custom tabs:

  14. Fast Command Extensibility • Add custom fast commands • Hide, disable built-in fast commands

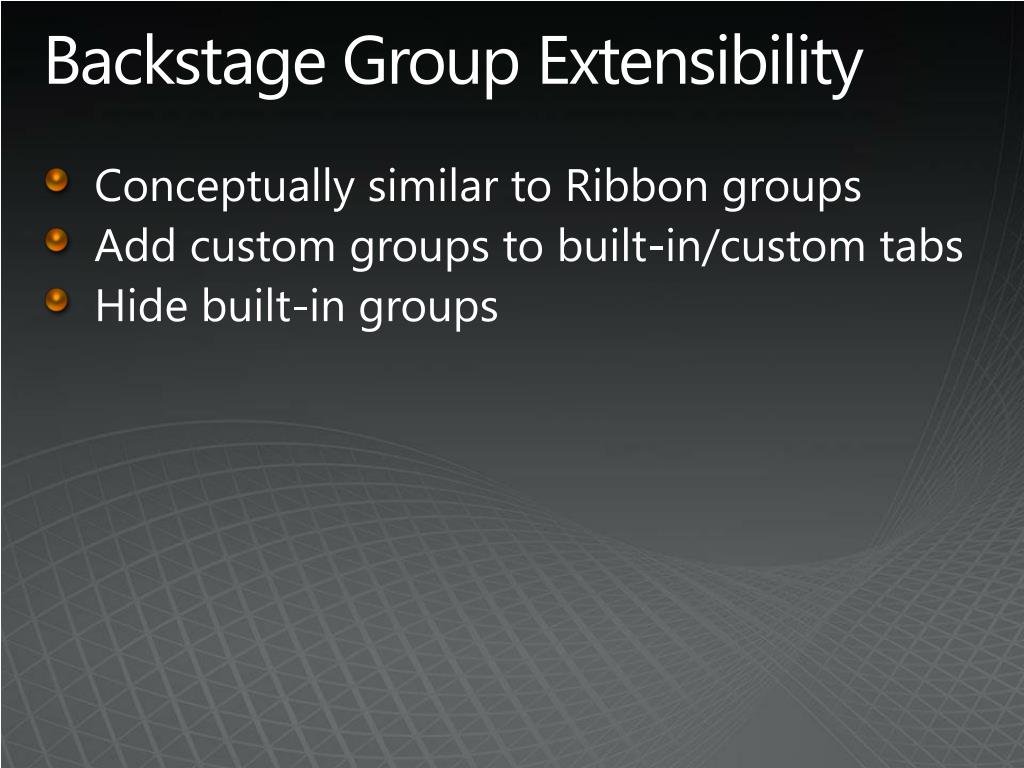

  15. Backstage Group Extensibility • Conceptually similar to Ribbon groups • Add custom groups to built-in/custom tabs • Hide built-in groups

  16. Backstage Control Types • Wide variety of control types available for building custom slabs (button, checkBox, editBox, dropDown, radioGroup, comboBox, hyperlink, labelControl, groupBox, layoutContainer, imageControl, etc.) • Callbacks are similar, often identical, to those in the RibbonX • Rich set of layout capabilities

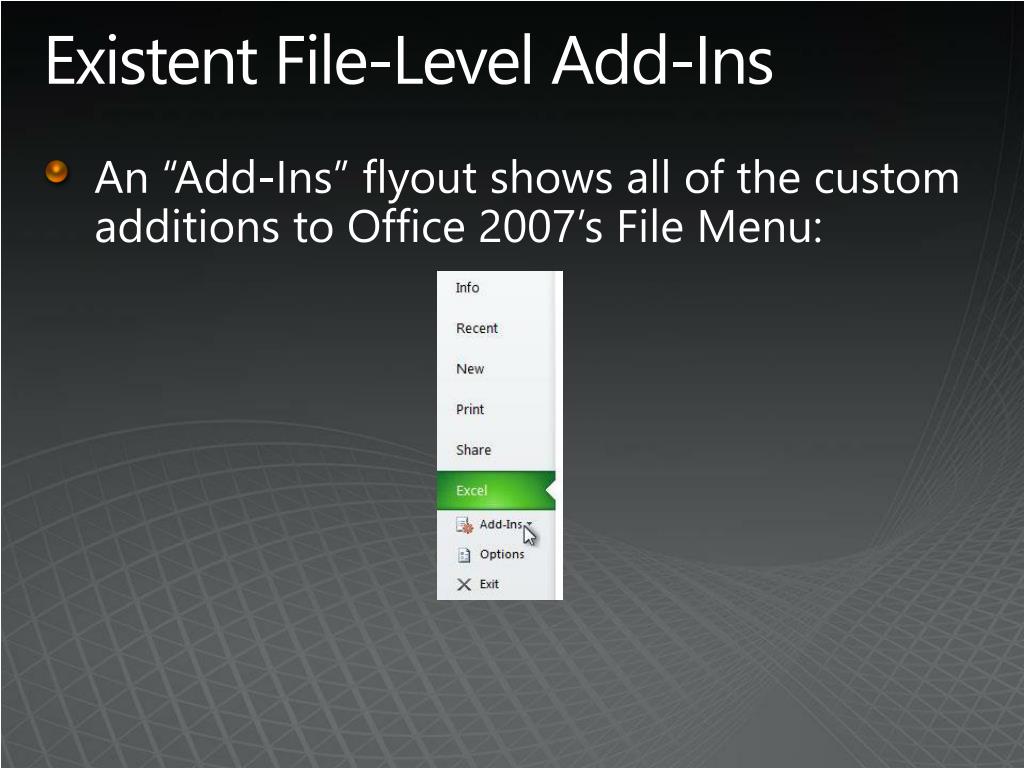

  17. Existent File-Level Add-Ins • An “Add-Ins” flyout shows all of the custom additions to Office 2007’s File Menu:

  18. End-User Customization demo

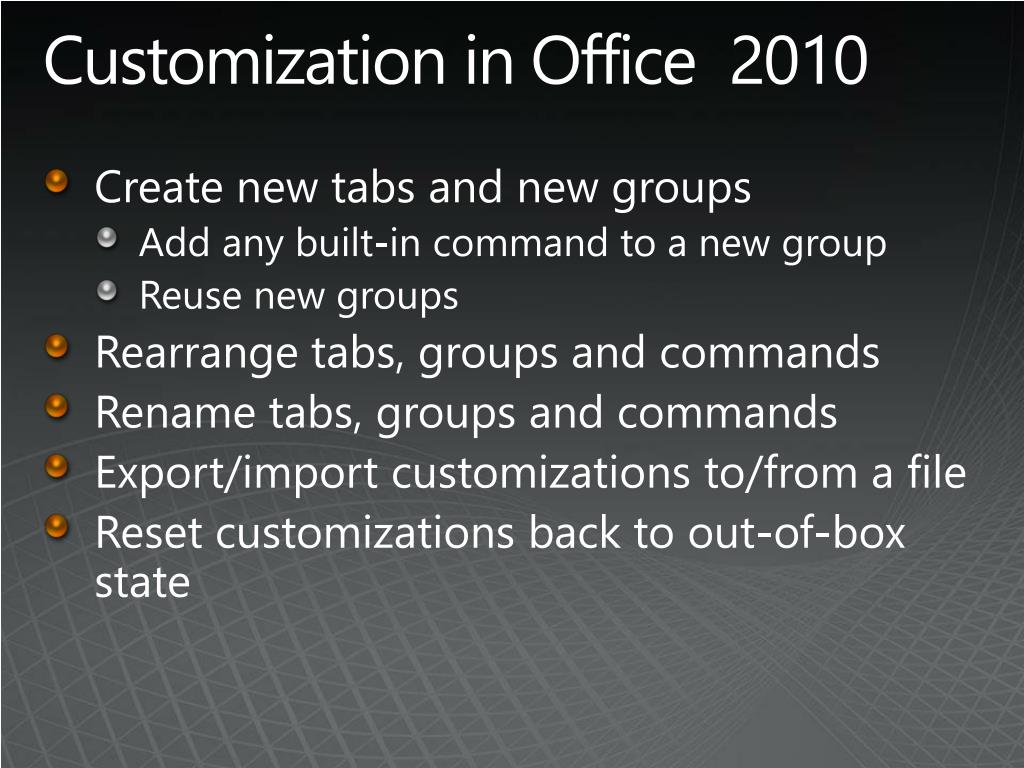

  19. Customization in Office 2010 • Create new tabs and new groups • Add any built-in command to a new group • Reuse new groups • Rearrange tabs, groups and commands • Rename tabs, groups and commands • Export/import customizations to/from a file • Reset customizations back to out-of-box state

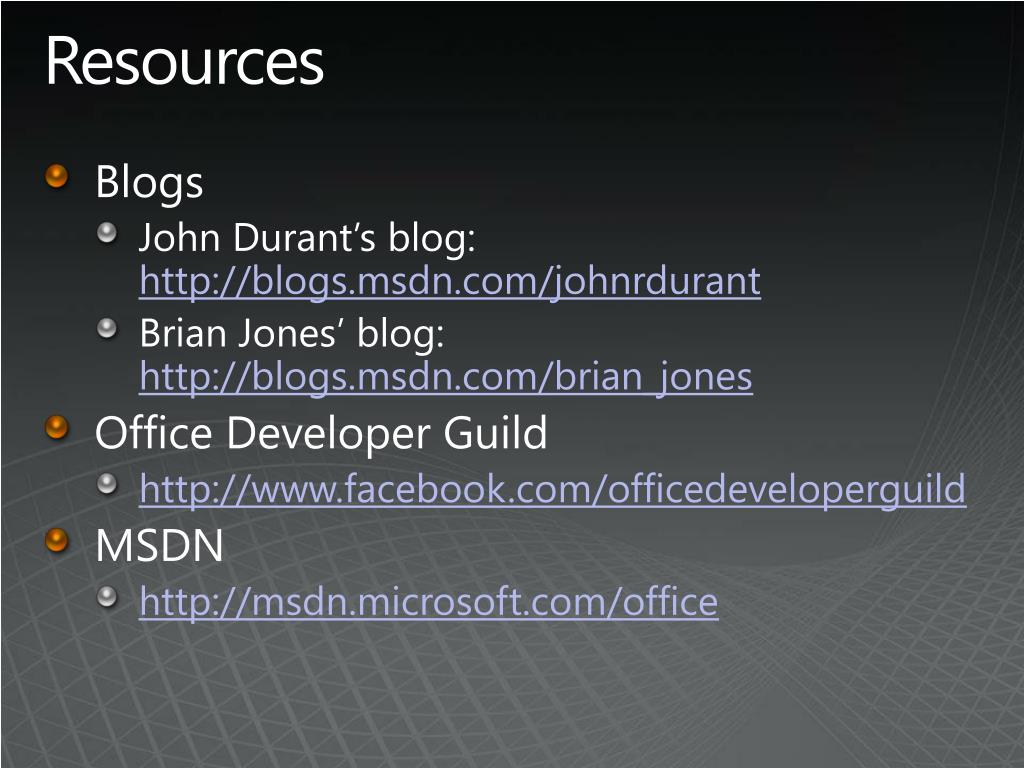

  20. Resources • Blogs • John Durant’s blog: http://blogs.msdn.com/johnrdurant • Brian Jones’ blog: http://blogs.msdn.com/brian_jones • Office Developer Guild • http://www.facebook.com/officedeveloperguild • MSDN • http://msdn.microsoft.com/office

  21. Remember to fill out your evaluations onMySPCfor your chance to win two HD web cams and a designer mouse (3 prizes awarded daily)

  22. Learn More about SharePoint 2010 Information forIT Prosat TechNet http://MSSharePointITPro.com Information forDevelopersat MSDN http://MSSharePointDeveloper.com Information forEveryone • http://SharePoint.Microsoft.com

  23. Any questions? Want to share scenarios/solutions? Q&A
