    Presentation Transcript

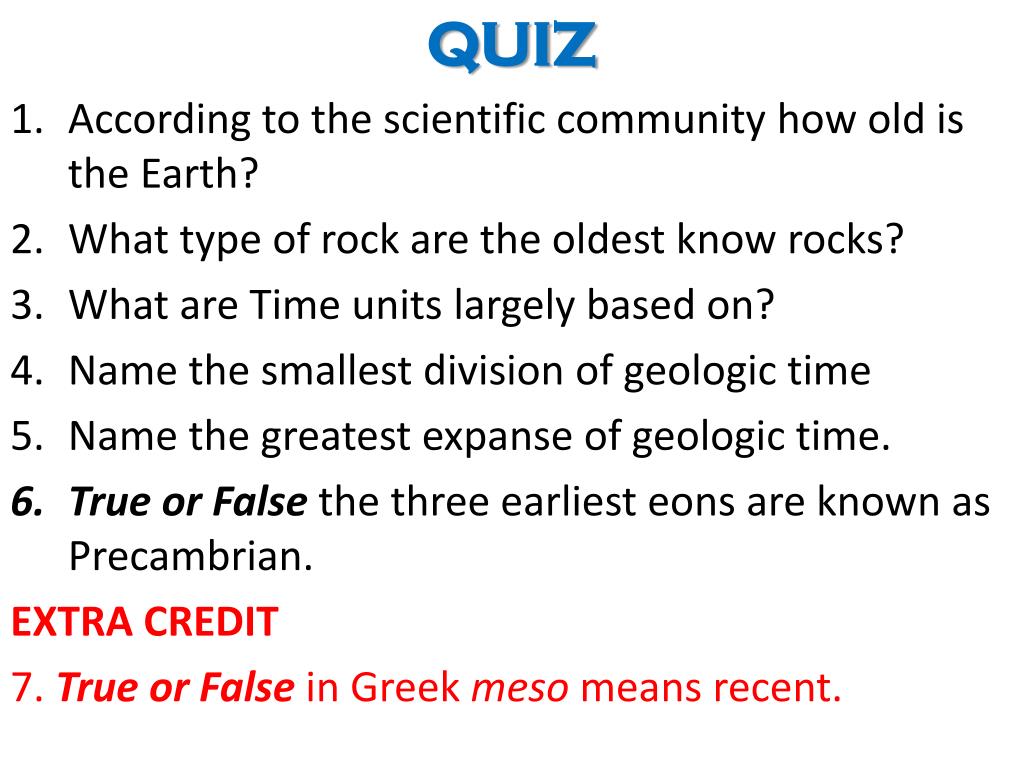

    1. QUIZ • According to the scientific community how old is the Earth? • What type of rock are the oldest know rocks? • What are Time units largely based on? • Name the smallest division of geologic time • Name the greatest expanse of geologic time. • True or False the three earliest eons are known as Precambrian. EXTRA CREDIT 7. True or False in Greekmesomeans recent.

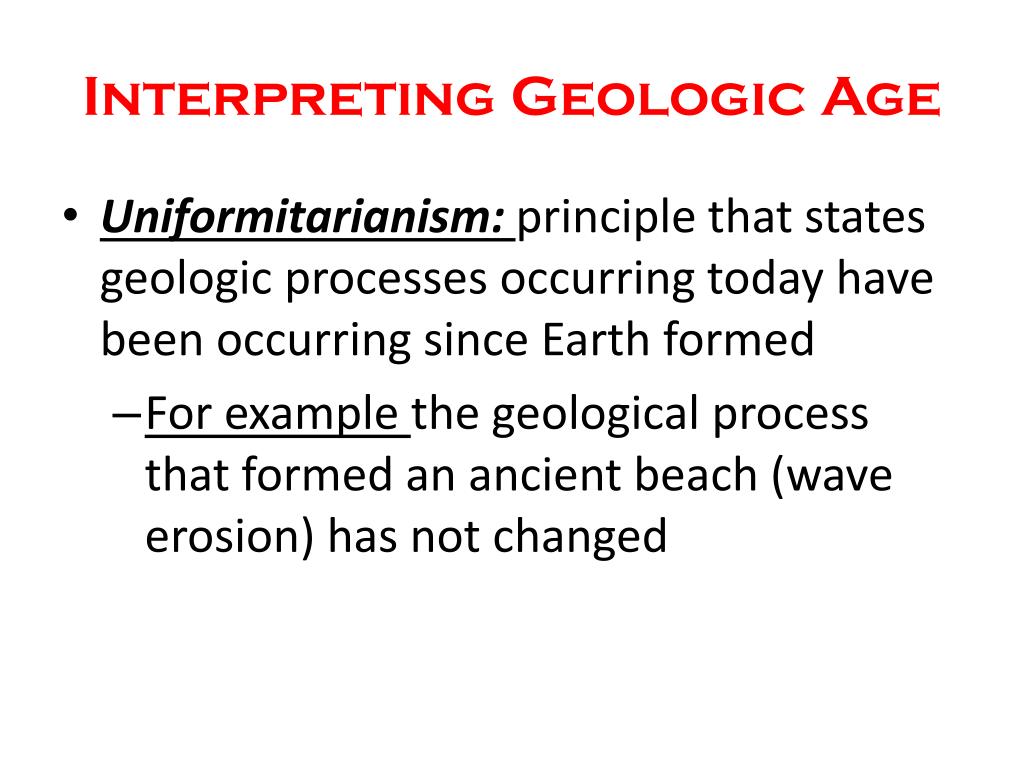

    2. Interpreting Geologic Age • Uniformitarianism: principle that states geologic processes occurring today have been occurring since Earth formed • For example the geological process that formed an ancient beach (wave erosion) has not changed

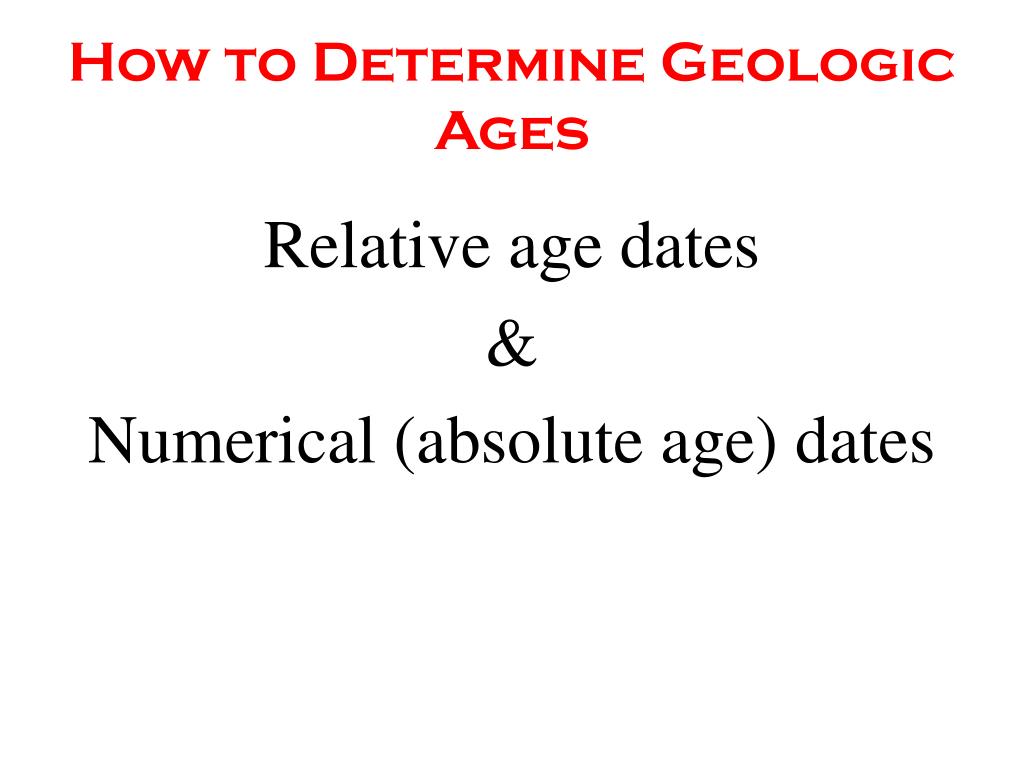

    3. How to Determine Geologic Ages Relative age dates & Numerical (absolute age) dates

    4. Relative Age Dating Placing rocks and events in their proper sequence of formation Unable to determine exactly how many years ago an event occurred Gain understanding about geologic events Use several ways to determine age called principles of relative dating

    5. Principles of Relative Dating • Original Horizontality • Superposition • Cross-cutting Relationships • Inclusions

    6. Horizontality • Layers of sediment are generally deposited in a horizontal position • Rock layers that are flat have not been disturbed (deformed)

    7. Superposition Sedimentary or layered igneous rocksOldest rocks are on the bottom

    8. Cross-cutting relationships • The intrusion is younger than the rock it cuts across • Younger features cut across older features • Similar to faulting

    9. Inclusions A piece of rock that is enclosed within another rock Rock containing the inclusion is younger Example a rock has eroded, the sediment might be transported & redeposited a distance away

    10. Unconformities • Break in rock record produced by erosion and other processes; result of constant surface changes • 3 different types • Disconformity • Nonconformity • Angular conformity

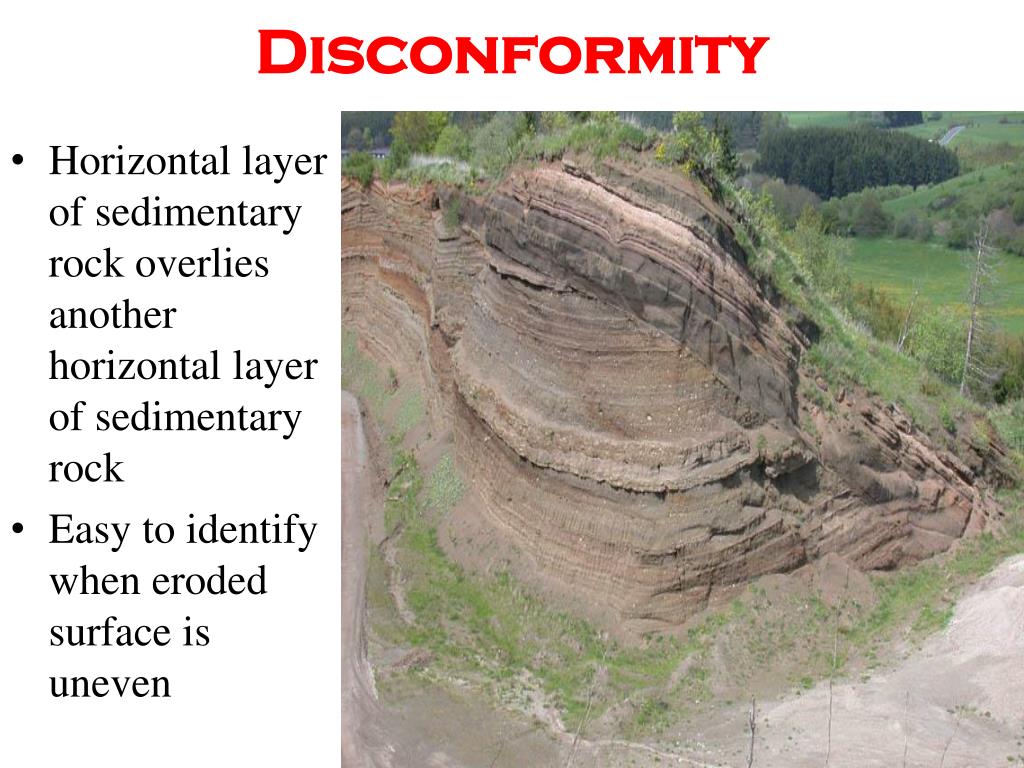

    11. Disconformity • Horizontal layer of sedimentary rock overlies another horizontal layer of sedimentary rock • Easy to identify when eroded surface is uneven

    12. Disconformity

    13. Nonconformity • Layer of sedimentary rock overlies a layer of Metamorphic or igneous rock

    14. Nonconformity Inclusions

    15. Nonconformity

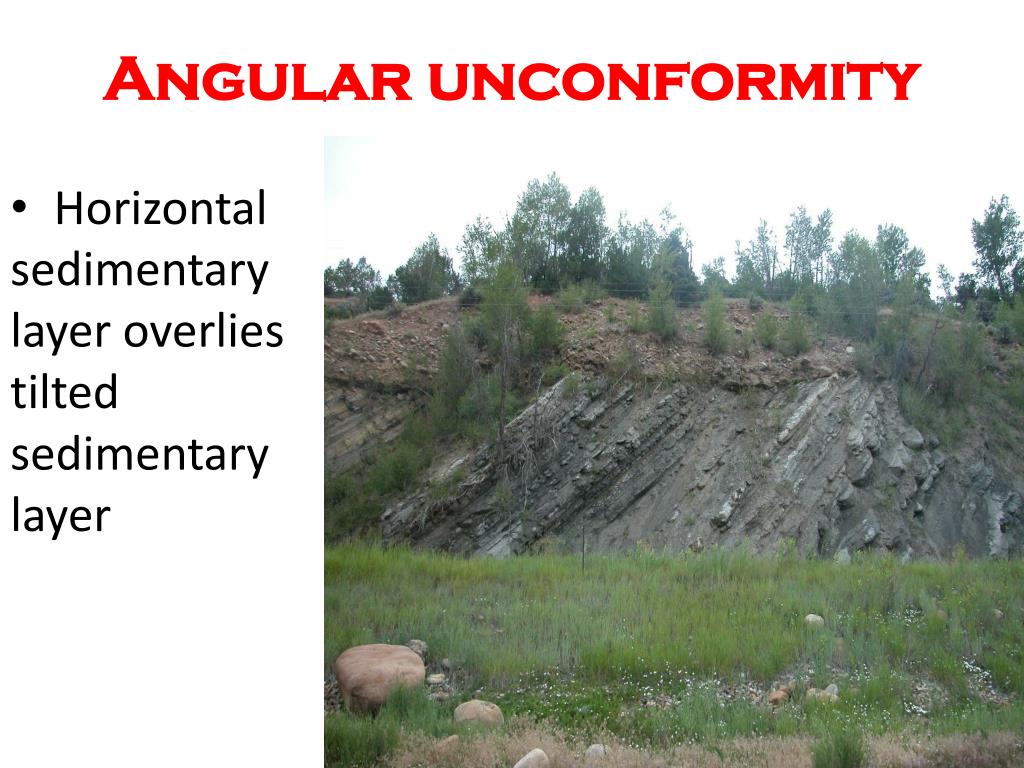

    16. Angular unconformity • Horizontal sedimentary layer overlies tilted sedimentary layer

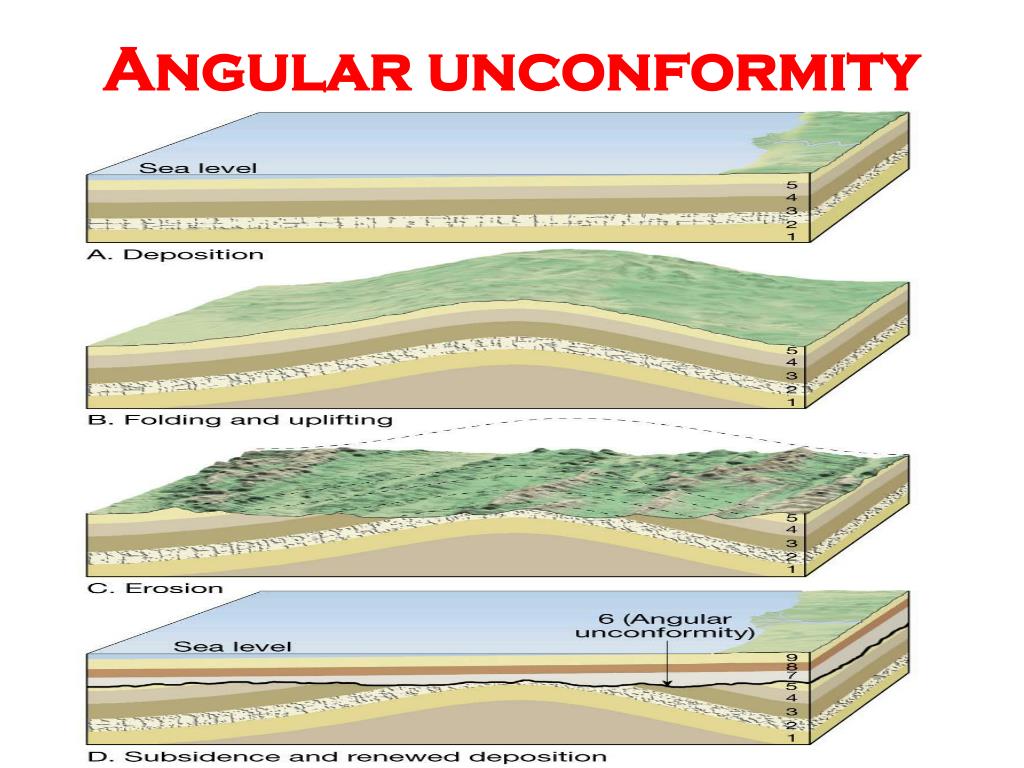

    17. Angular unconformity

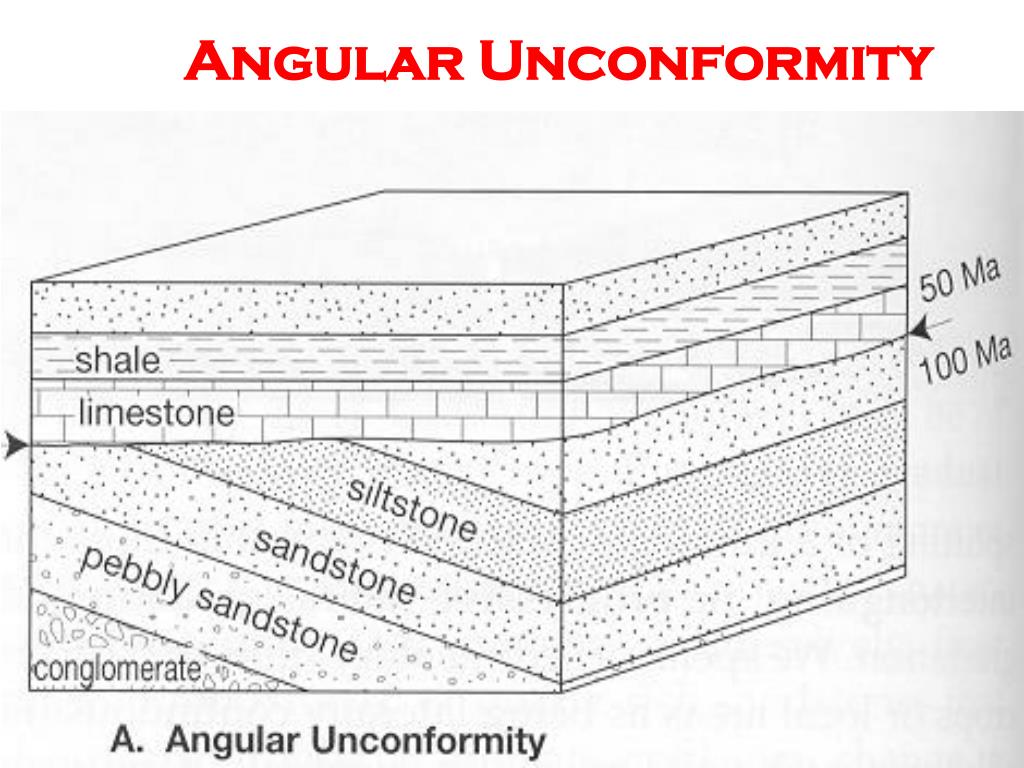

    18. Angular Unconformity

    19. Grand Canyon Unconformities

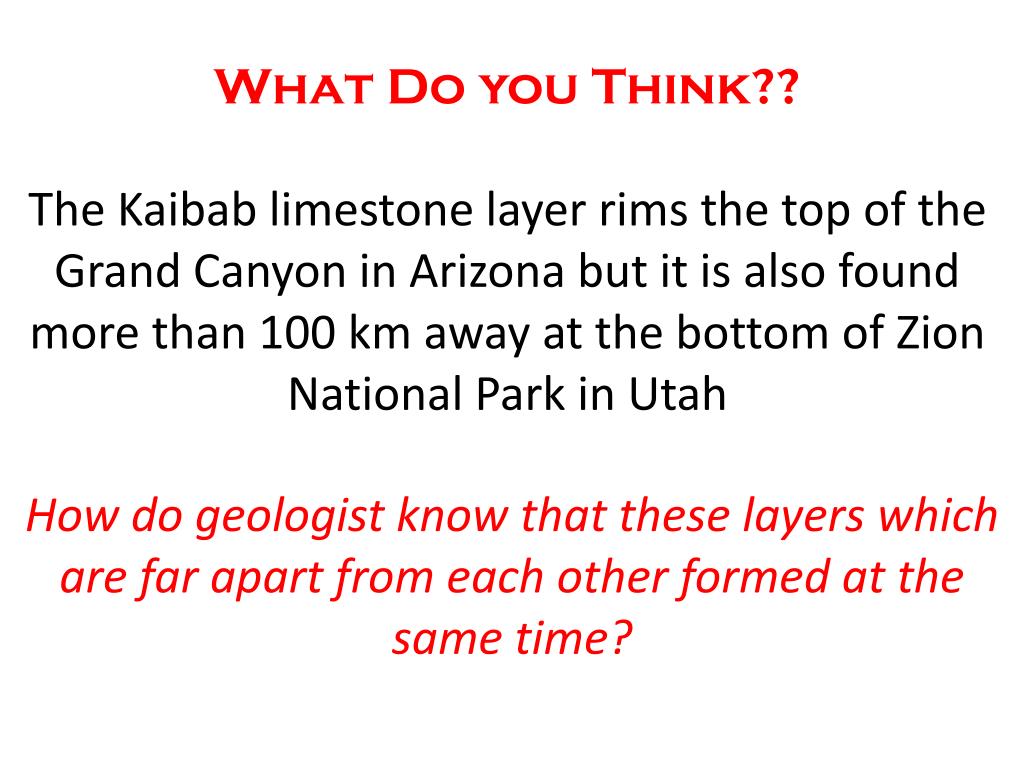

    20. What Do you Think??The Kaibab limestone layer rims the top of the Grand Canyon in Arizona but it is also found more than 100 km away at the bottom of Zion National Park in Utah How do geologist know that these layers which are far apart from each other formed at the same time?

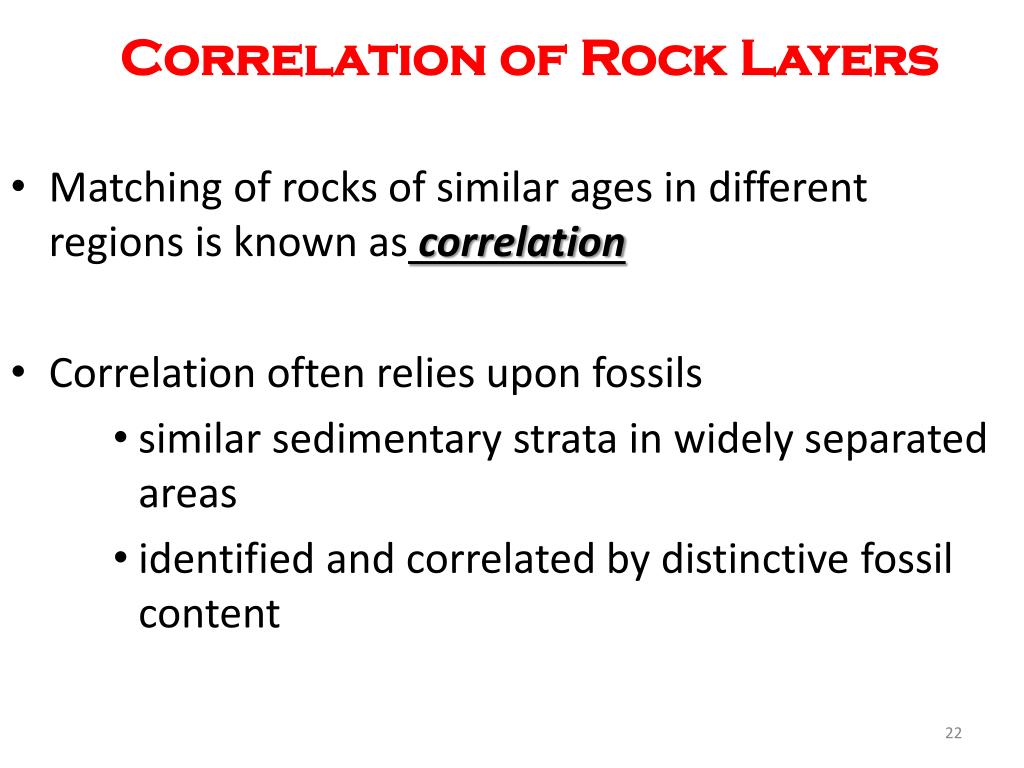

    21. Correlation of Rock Layers • Matching of rocks of similar ages in different regions is known as correlation • Correlation often relies upon fossils • similar sedimentary strata in widely separated areas • identified and correlated by distinctive fossil content

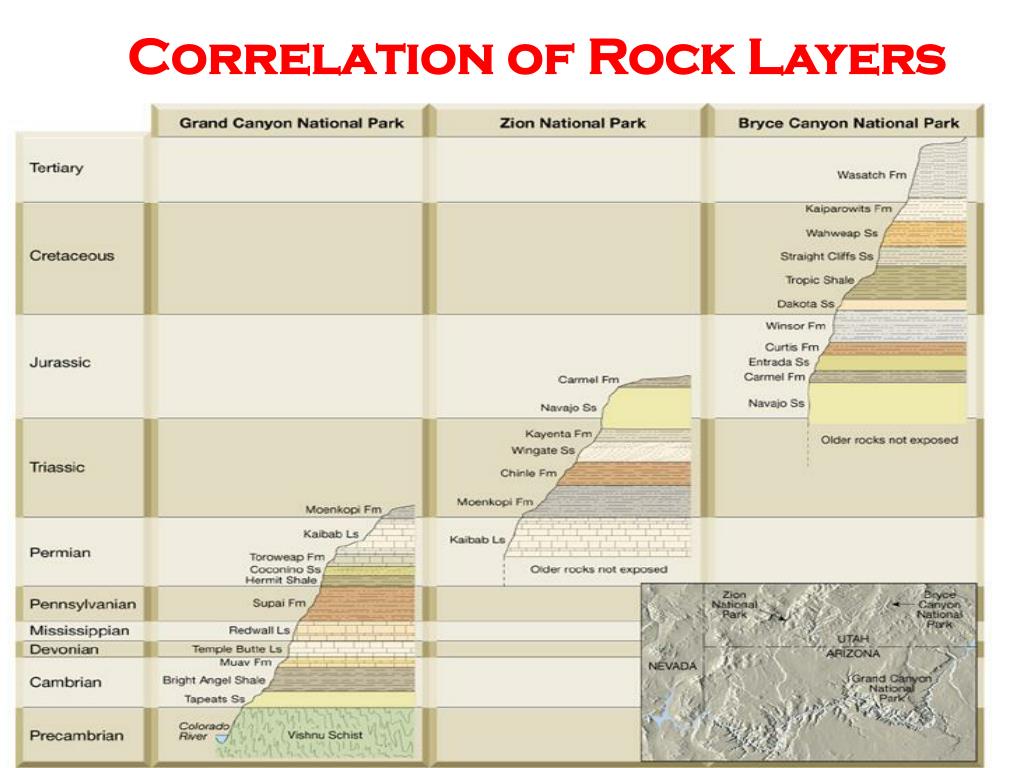

    22. Correlation of Rock Layers

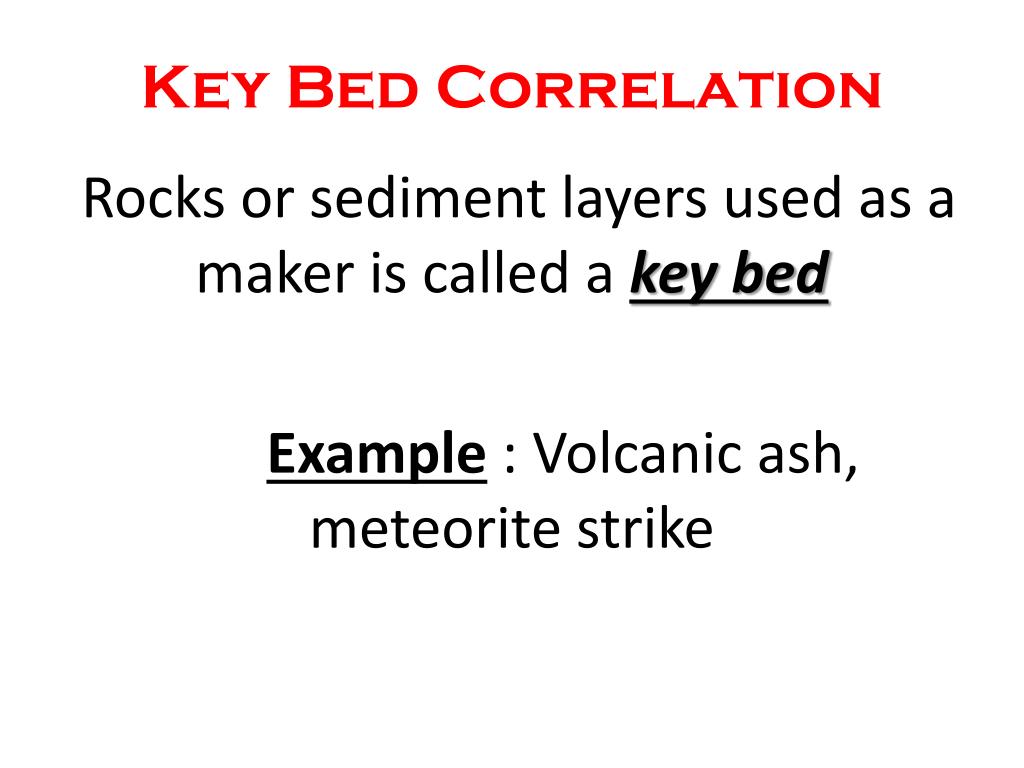

    23. Key Bed Correlation Rocks or sediment layers used as a maker is called a key bed Example: Volcanic ash, meteorite strike

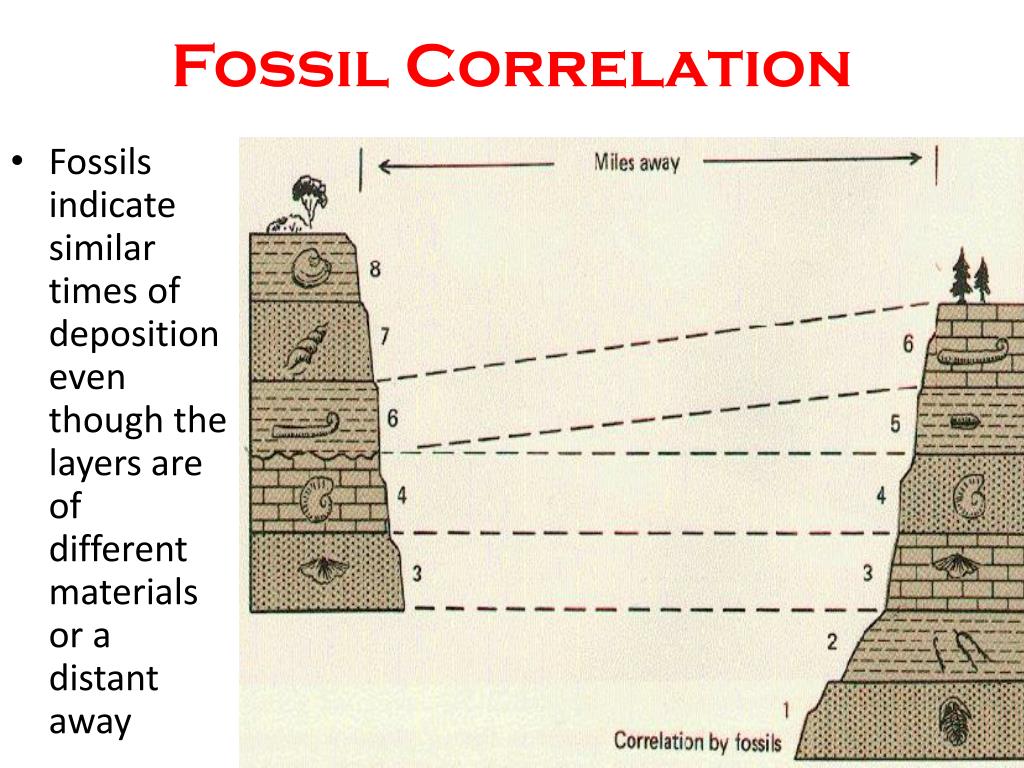

    24. Fossil Correlation • Fossils indicate similar times of deposition even though the layers are of different materials or a distant away

    25. ANY QUESTIONS?
