  1. Chapter 6 Current State of XBRL IFRS Taxonomy Discoverable Taxonomy Set Extension Taxonomies Validation of XBRL vs xml

  2. Current State of XBRL

  3. Who Must File • All companies are now required to file using XBRL • All companies are filing Level 1 to Level 4 footnotes • Limited Liability protection has been waived • Foreign Private Issuers are required to file using IFRS taxonomy

  4. SEC Filing Packages Discoverable Taxonomy Set (DTS)

  5. DTS – What must be filed with SEC • Contains: • Instance Document • Extension Taxonomy • Linkbases • Calculation • Definition • Labels • Presentation • All Imported Schemas • Filename Format • Identifier-yyyymmdd.xml for instance • Identifier-yyyymmdd.xsd for schema • Identifier_yyyymmdd_cal.xml or _def or _lab or _pre

  6. Extension Taxonomy

  7. Structure of SEC Extension Taxonomy • Schema Root Element, namespace declarations (same as chapter 3) • annotation/appinfo • link:linkbaseRef • Links all the linkbases to the schema document • link:roleType • Links each statement and disclosure to the linkbases

  8. link:linkbaseRef (International Speedway Corp 10Q) • <link:linkbaseRefxlink:type="simple" xlink:href="isca-20110531_cal.xml" xlink:role="http://www.xbrl.org/2003/role/calculationLinkbaseRef" xlink:arcrole="http://www.w3.org/1999/xlink/properties/linkbase" xlink:title="Calculation Links, all"/> • <link:linkbaseRefxlink:type="simple" xlink:href="isca-20110531_pre.xml" xlink:role="http://www.xbrl.org/2003/role/presentationLinkbaseRef" xlink:arcrole="http://www.w3.org/1999/xlink/properties/linkbase" xlink:title="Presentation Links, all"/> • <link:linkbaseRefxlink:type="simple" xlink:href="isca-20110531_lab.xml" xlink:role="http://www.xbrl.org/2003/role/labelLinkbaseRef" xlink:arcrole="http://www.w3.org/1999/xlink/properties/linkbase" xlink:title="Label Links, all"/> • <link:linkbaseRefxlink:type="simple" xlink:href="isca-20110531_def.xml" xlink:role="http://www.xbrl.org/2003/role/definitionLinkbaseRef" xlink:arcrole="http://www.w3.org/1999/xlink/properties/linkbase" xlink:title="Definition Links, all"/>

  9. link:roleType (International Speedway Corp 10Q) <link:roleTyperoleURI="http://internationalspeedwaycorporation.com/role/BalanceSheetsParenthetical" id="BalanceSheetsParenthetical"> <link:definition>0111 - Statement - Consolidated Balance Sheets (Unaudited) (Parenthetical)</link:definition> <link:usedOn>link:presentationLink</link:usedOn> <link:usedOn>link:calculationLink</link:usedOn> <link:usedOn>link:definitionLink</link:usedOn> </link:roleType>

  10. Import schemas • <xsd:import namespace="http://fasb.org/us-gaap/2012-01-31" schemaLocation="http://xbrl.fasb.org/us-gaap/2012/elts/us-gaap-2012-01-31.xsd"/> • <xsd:import namespace="http://fasb.org/us-roles/2012-01-31" schemaLocation="http://xbrl.fasb.org/us-gaap/2012/elts/us-roles-2012-01-31.xsd"/> • <xsd:import namespace="http://fasb.org/us-types/2012-01-31" schemaLocation="http://xbrl.fasb.org/us-gaap/2012/elts/us-types-2012-01-31.xsd"/> • <xsd:import namespace="http://www.xbrl.org/2003/instance" schemaLocation="http://www.xbrl.org/2003/xbrl-instance-2003-12-31.xsd"/> • <xsd:import namespace="http://www.xbrl.org/2003/linkbase" schemaLocation="http://www.xbrl.org/2003/xbrl-linkbase-2003-12-31.xsd"/> • <xsd:import namespace="http://www.xbrl.org/2009/arcrole/fact-explanatoryFact" schemaLocation="http://www.xbrl.org/lrr/arcrole/factExplanatory-2009-12-16.xsd"/> • <xsd:import namespace="http://www.xbrl.org/2009/role/negated" schemaLocation="http://www.xbrl.org/lrr/role/negated-2009-12-16.xsd"/> • <xsd:import namespace="http://www.xbrl.org/2009/role/net" schemaLocation="http://www.xbrl.org/lrr/role/net-2009-12-16.xsd"/> • <xsd:import namespace="http://www.xbrl.org/dtr/type/non-numeric" schemaLocation="http://www.xbrl.org/dtr/type/nonNumeric-2009-12-16.xsd"/> • <xsd:import namespace="http://www.xbrl.org/dtr/type/numeric" schemaLocation="http://www.xbrl.org/dtr/type/numeric-2009-12-16.xsd"/> • <xsd:import namespace="http://xbrl.org/2005/xbrldt" schemaLocation="http://www.xbrl.org/2005/xbrldt-2005.xsd"/> • <xsd:import namespace="http://xbrl.sec.gov/country/2012-01-31" schemaLocation="http://xbrl.sec.gov/country/2012/country-2012-01-31.xsd"/> • <xsd:import namespace="http://xbrl.sec.gov/currency/2012-01-31" schemaLocation="http://xbrl.sec.gov/currency/2012/currency-2012-01-31.xsd"/> • <xsd:import namespace="http://xbrl.sec.gov/dei/2012-01-31" schemaLocation="http://xbrl.sec.gov/dei/2012/dei-2012-01-31.xsd"/> • <xsd:import namespace="http://xbrl.sec.gov/exch/2012-01-31" schemaLocation=http://xbrl.sec.gov/exch/2012/exch-2012-01-31.xsd/> • <xsd:import namespace="http://xbrl.sec.gov/invest/2012-01-31" schemaLocation="http://xbrl.sec.gov/invest/2012/invest-2012-01-31.xsd"/> • <xsd:import namespace="http://xbrl.sec.gov/naics/2011-01-31" schemaLocation="http://xbrl.sec.gov/naics/2011/naics-2011-01-31.xsd"/> • <xsd:import namespace="http://xbrl.sec.gov/sic/2011-01-31" schemaLocation=http://xbrl.sec.gov/sic/2011/sic-2011-01-31.xsd/> • <xsd:import namespace="http://xbrl.sec.gov/stpr/2011-01-31" schemaLocation="http://xbrl.sec.gov/stpr/2011/stpr-2011-01-31.xsd"/>

  11. Extension Element (International Speedway 10Q) <element id="isca_PrepaidExpensesAndOtherCurrentAssets” name="PrepaidExpensesAndOtherCurrentAssets" type="xbrli:monetaryItemType" substitutionGroup="xbrli:item" nillable="true" xbrli:periodType="instant" xbrli:balance="debit"/> • Note: No longer used in current 10-Q • Examine International Speedway

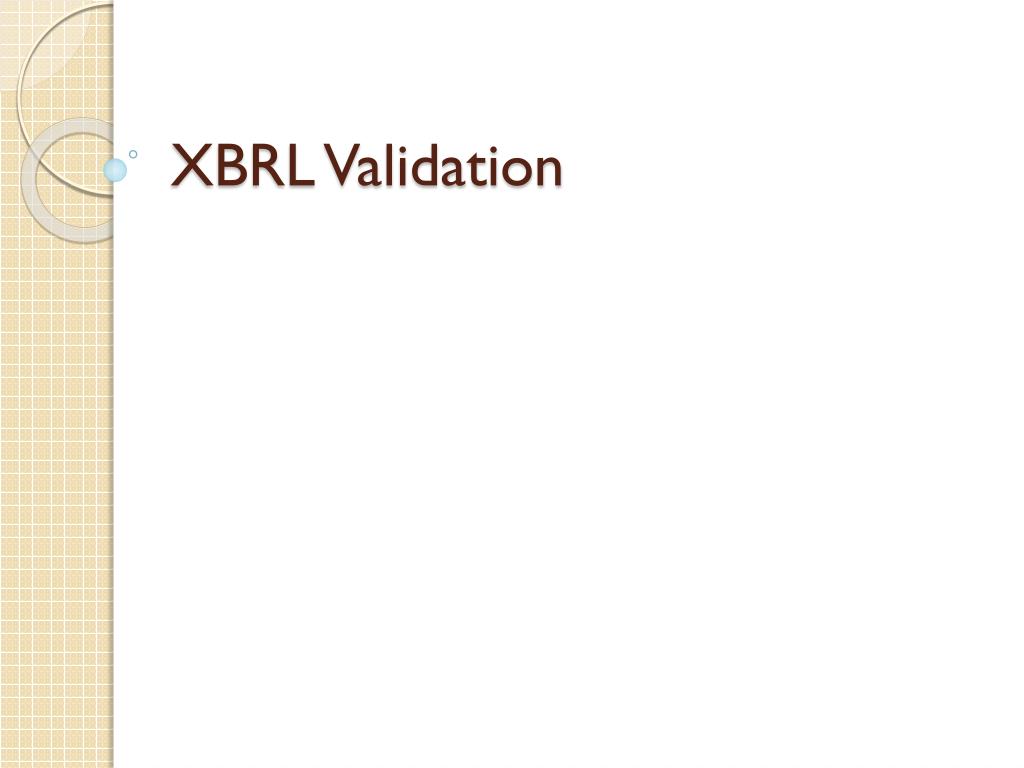

  12. XBRL Validation

  13. XBRL Validation Levels • Phase I • xml validation (NOT XBRL) • Schema validation – does the xml match the schema structure? • International Speedway (will it validate?) • Phase II • Validates XBRL semantics in DTS • Requires specialized software ($’s) • Phase III • Validates XBRL based on reporting rules • SEC XBRL filing requirements • Requires specialized software ($’s)

  14. XBRL IFRS

  15. IFRS Instance Document • Same structure as XBRL • Uses different taxonomy • Root element / namespace declarations • SchemaRef • Context • Unit • Items

  16. IFRS Taxonomy • 2012 Taxonomy Issued March 25, 2011 • Compared to US GAAP, ~ 4000 elements vs. 15,000 • Documentation is not included in IFRS (as it is NOT rule based). • Instead disclosures and example references are included

  17. Illustrations of IFRS XBRL • iXBRL (next week) • XBRL IFRS

  18. <?xml version="1.0" encoding="utf-8"?> <!-- XBRL instance shell - Skip White December 2010 --> <!-- File name: XBRLInstanceShell2010.xml --> <xbrli:xbrlxmlns:xbrli="http://www.xbrl.org/2003/instance" xmlns:link="http://www.xbrl.org/2003/linkbase" xmlns:xlink="http://www.w3.org/1999/xlink" xmlns:iso4217="http://www.xbrl.org/2003/iso4217" xmlns: _____1_________ > <link:schemaRefxlink:type="simple" xlink:href= _____2_________ /> <xbrli:context id= _____3_________ > <xbrli:entity> <xbrli:identifier scheme= _____4_________ > _____5_________ </xbrli:identifier> </xbrli:entity> <xbrli:period> <xbrli:instant> _____6_________ </xbrli:instant> </xbrli:period> </xbrli:context> <xbrli:unit id= _____7_________ > <xbrli:measure> _____8_________ </xbrli:measure> </xbrli:unit> <!-- Insert the XBRL items (facts) below --> </xbrli:xbrl>
