chapter 14

Chapter 14

Introduction to Microprocessors

microcomputer
Microcomputer
  • A self-contained computer system that consists of CPU (central processing unit), memory (RAM and ROM) and peripheral devices.
  • A peripheral device acts as the interface between the computer and the external world.
microprocessor
Microprocessor
  • The part of a computer that generates control signals for the other components.
  • Performs arithmetic and logic functions.

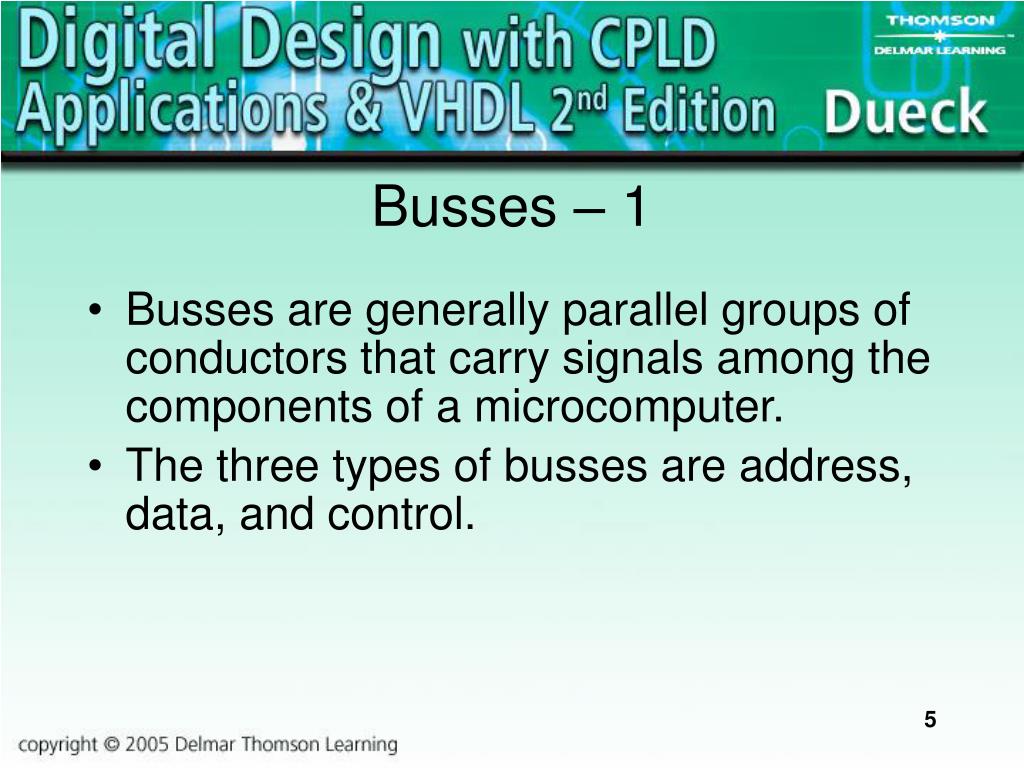

busses 1
Busses – 1
  • Busses are generally parallel groups of conductors that carry signals among the components of a microcomputer.
  • The three types of busses are address, data, and control.
busses 2
Busses – 2
  • Address bus: Used to address (specify) which part of memory or which peripheral device should receive or send data.
  • Data Bus: Used to send and receive data.
  • Control Bus: A set of control lines from the CPU that directs the flow of data among the various components.
tristate bussing 1
Tristate Bussing – 1
  • Used to prevent more than one device from writing to the bus at a time.
  • Avoids bus contention (conflicting signals on the bus).
  • Tristate devices can be in one of three possible states: logic HIGH, LOW, or high impedance.
tristate bussing 2
Tristate Bussing – 2
  • In Figure 14.2, the source registers write data to the bus when the output enable lines SRC1_OE or SRC2_OE are HIGH.
  • The destination registers accept data when a positive edge clock is applied to DEST1_LD or DEST2_LD when they are HIGH.
synchronous data transfer

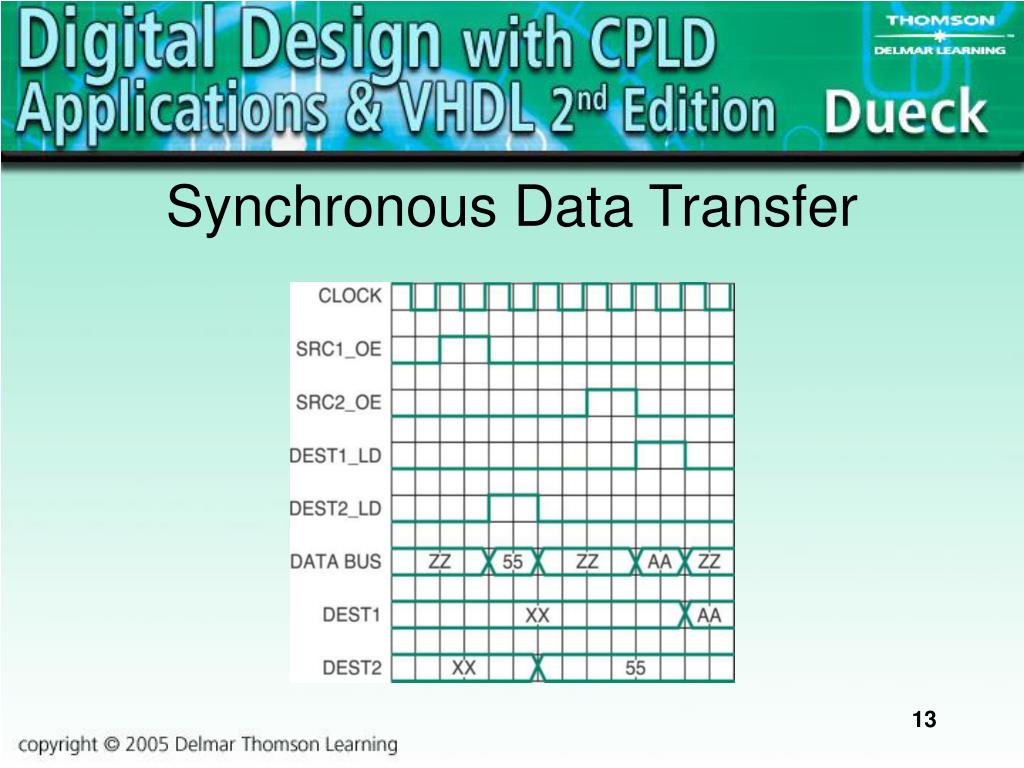

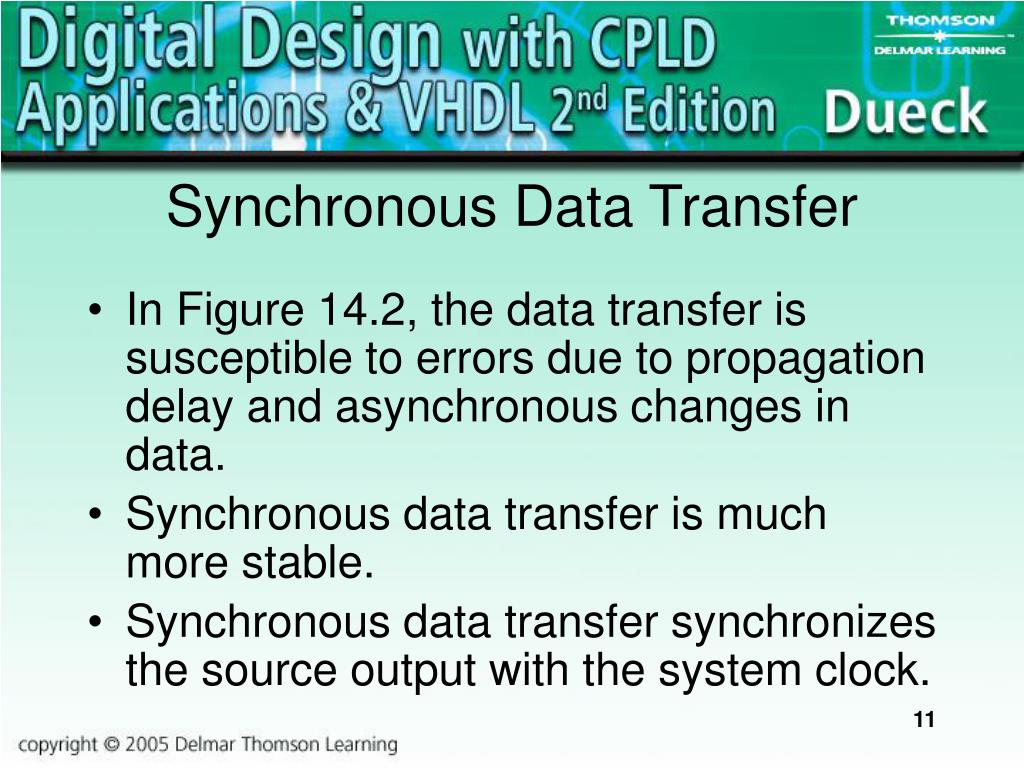

Synchronous Data Transfer
  • In Figure 14.2, the data transfer is susceptible to errors due to propagation delay and asynchronous changes in data.
  • Synchronous data transfer is much more stable.
  • Synchronous data transfer synchronizes the source output with the system clock.
risc8v1 mcu 1
RISC8v1 MCU – 1
  • See Figure 14.6 in textbook
  • RISC reduced instruction set computer.
  • 8-bit data bus.
  • 4-bit address bus.
  • Can be programmed into the FLEX10K. device on the UP-2 board.
risc8v1 mcu 2
RISC8v1 MCU – 2
  • Each block can be programmed in VHDL.
  • Blocks are controlled by output enable (OE) and load signals (LD).
  • Program instructions are stored in ROM.

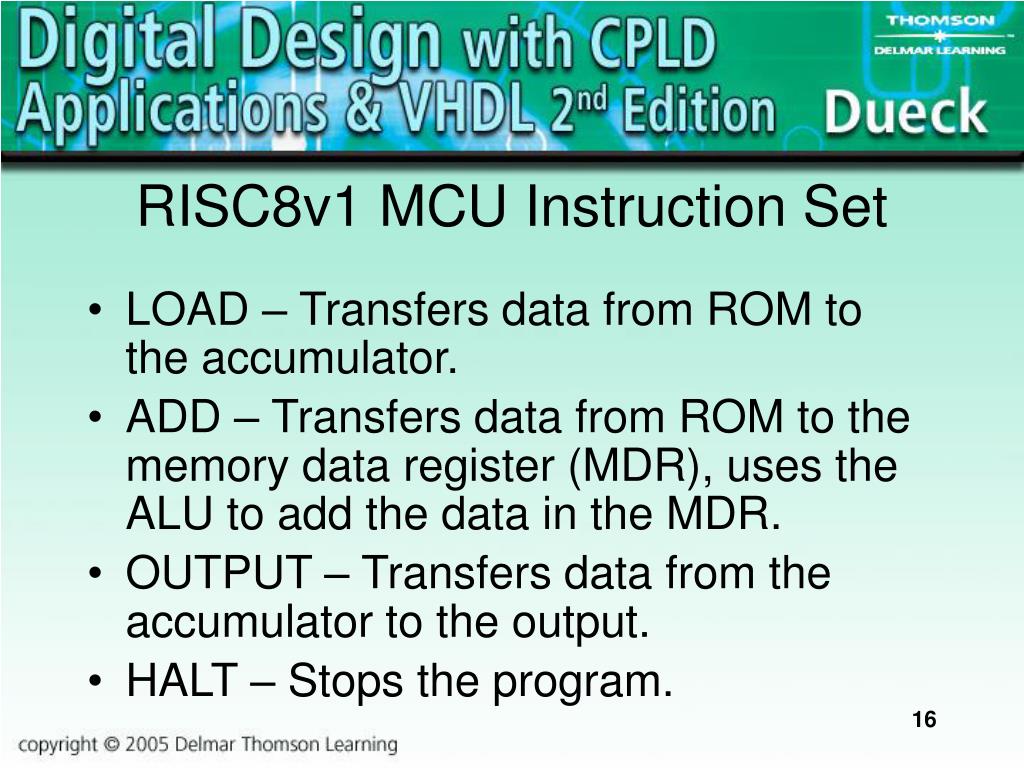

risc8v1 mcu instruction set
RISC8v1 MCU Instruction Set
  • LOAD – Transfers data from ROM to the accumulator.
  • ADD – Transfers data from ROM to the memory data register (MDR), uses the ALU to add the data in the MDR.
  • OUTPUT – Transfers data from the accumulator to the output.
  • HALT – Stops the program.

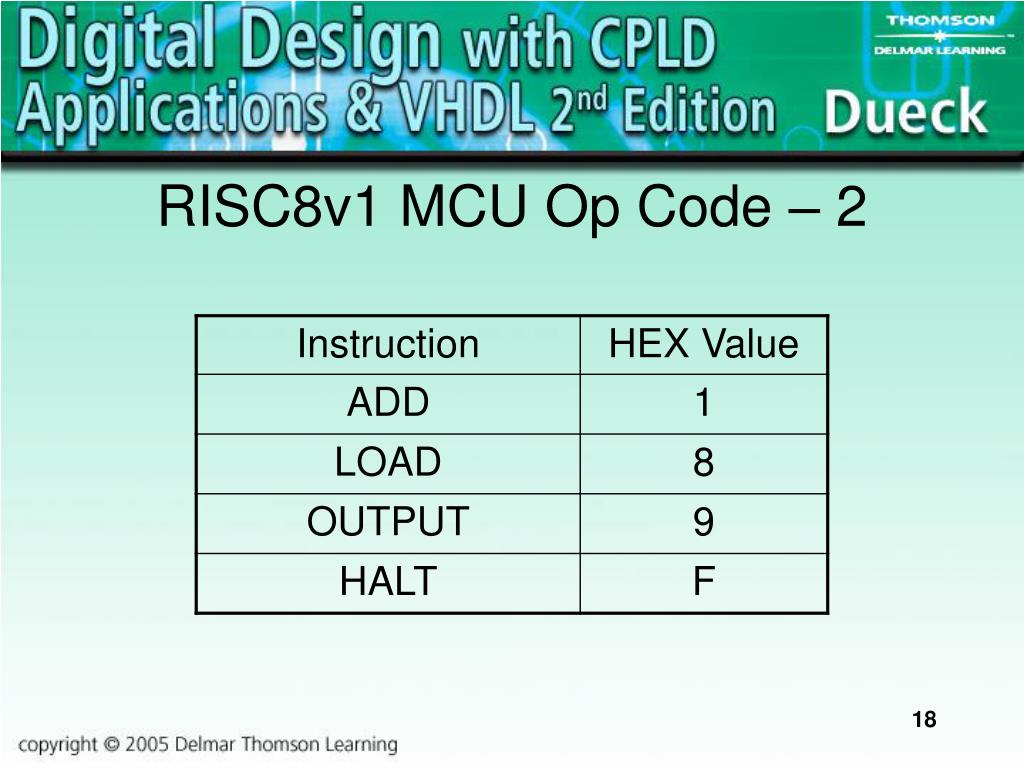

risc8v1 mcu op code 1
RISC8v1 MCU Op Code – 1
  • The 4 instructions correspond to a 4-bit code called an op code.
  • Usually written in binary or HEX.
  • The op code is determined by the design of the instruction decoder.
  • The op code may require an operand (data that is operated on by the computer).
risc8v1 control unit
RISC8v1 Control Unit
  • The control unit has three functions:
    • Fetch an instruction from memory
    • Decode the instruction to determine which operation is to be performed
    • Execute the instruction

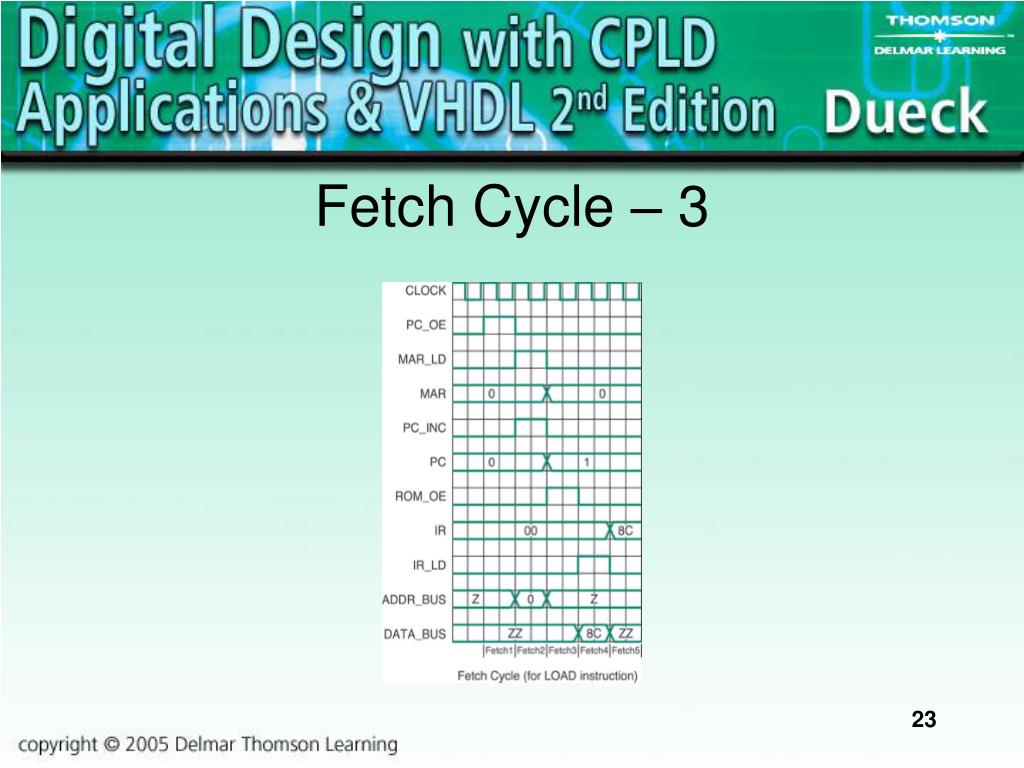

fetch cycle 1
Fetch Cycle – 1
  • Fetch 1 – Transfers the content of the program counter (PC) to the address bus (see Figure 14.7 in textbook).
  • Fetch 2 – Transfers the PC address to the memory address register (see Figure 14.8 in textbook).
  • Fetch 3 – Transfers the instruction from ROM to to the data bus (see Figure 14.9 in textbook).
fetch cycle 2

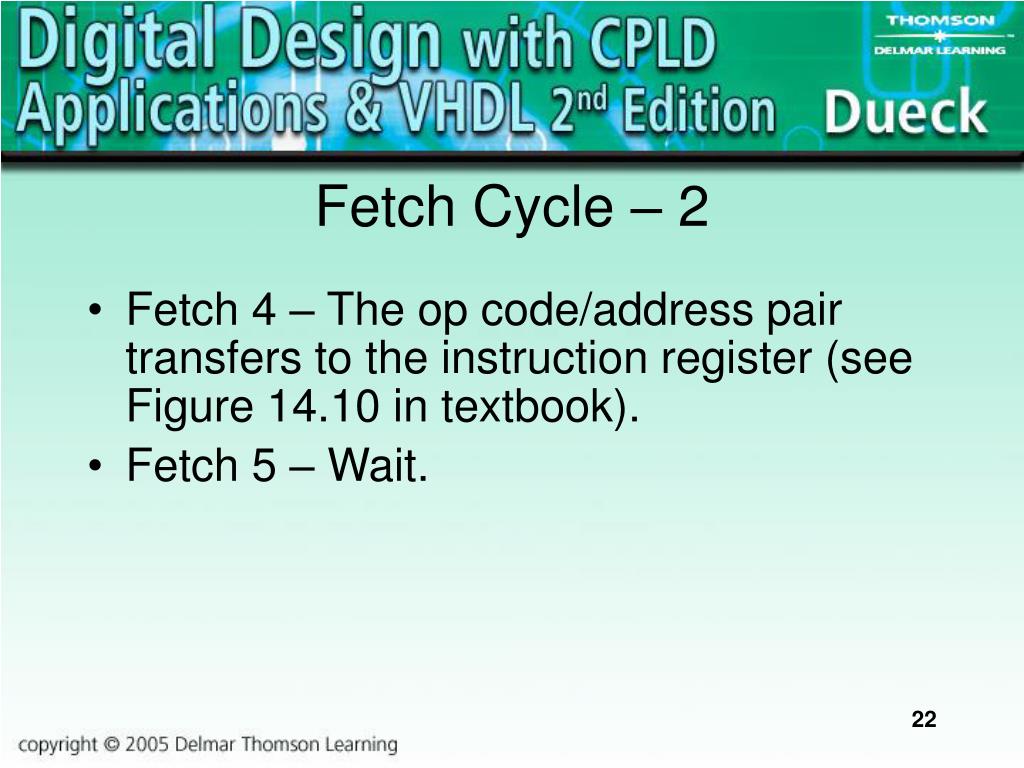

Fetch Cycle – 2
  • Fetch 4 – The op code/address pair transfers to the instruction register (see Figure 14.10 in textbook).
  • Fetch 5 – Wait.

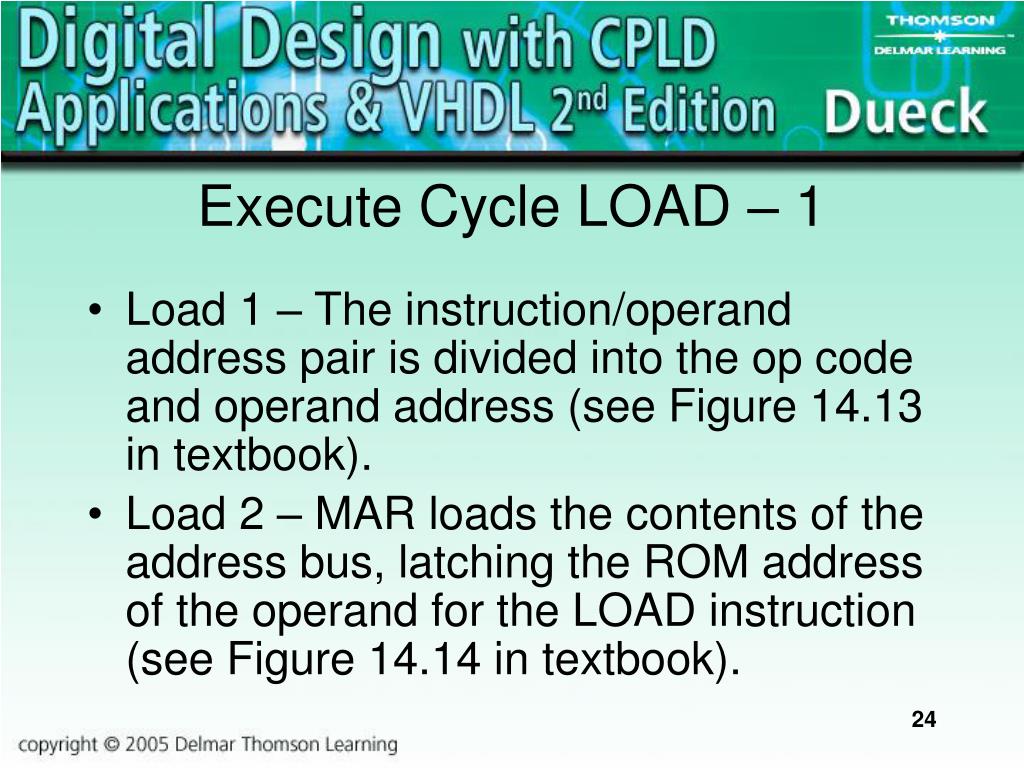

execute cycle load 1
Execute Cycle LOAD – 1
  • Load 1 – The instruction/operand address pair is divided into the op code and operand address (see Figure 14.13 in textbook).
  • Load 2 – MAR loads the contents of the address bus, latching the ROM address of the operand for the LOAD instruction (see Figure 14.14 in textbook).
execute cycle load 2

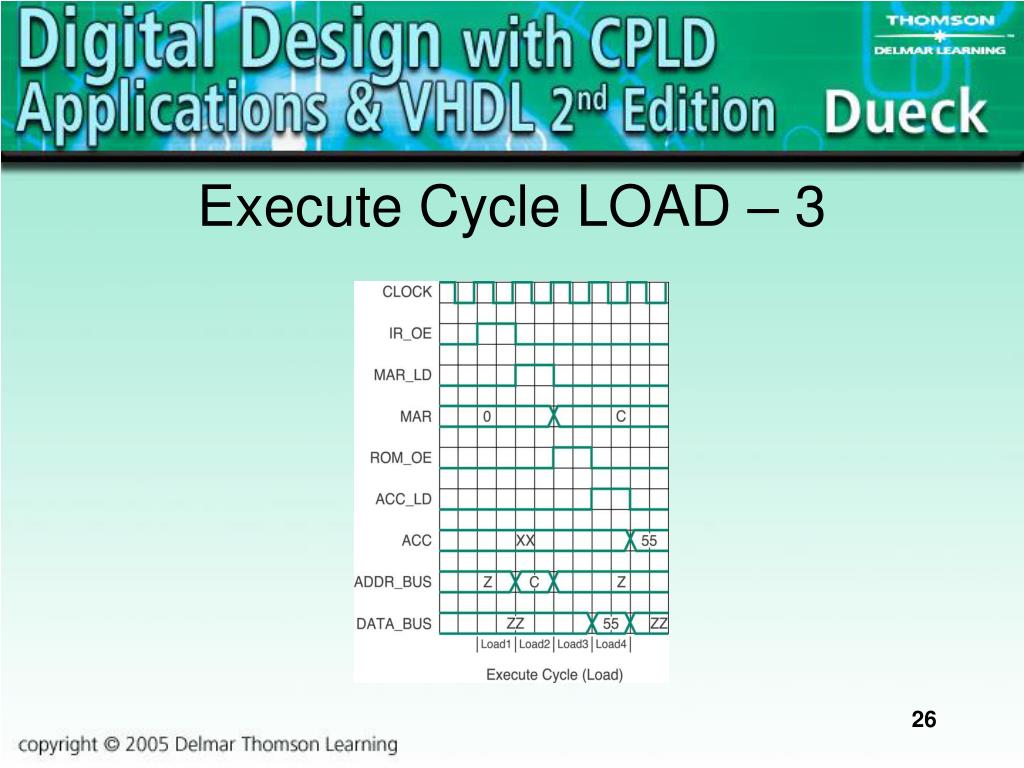

Execute Cycle LOAD – 2
  • Load 3 – Data transfers from ROM to data bus (see Figure 14.15 in textbook).
  • Load 4 – Data transfers from the data bus to the accumulator (see Figure 14.16 in textbook).
arithmetic logic unit alu 1

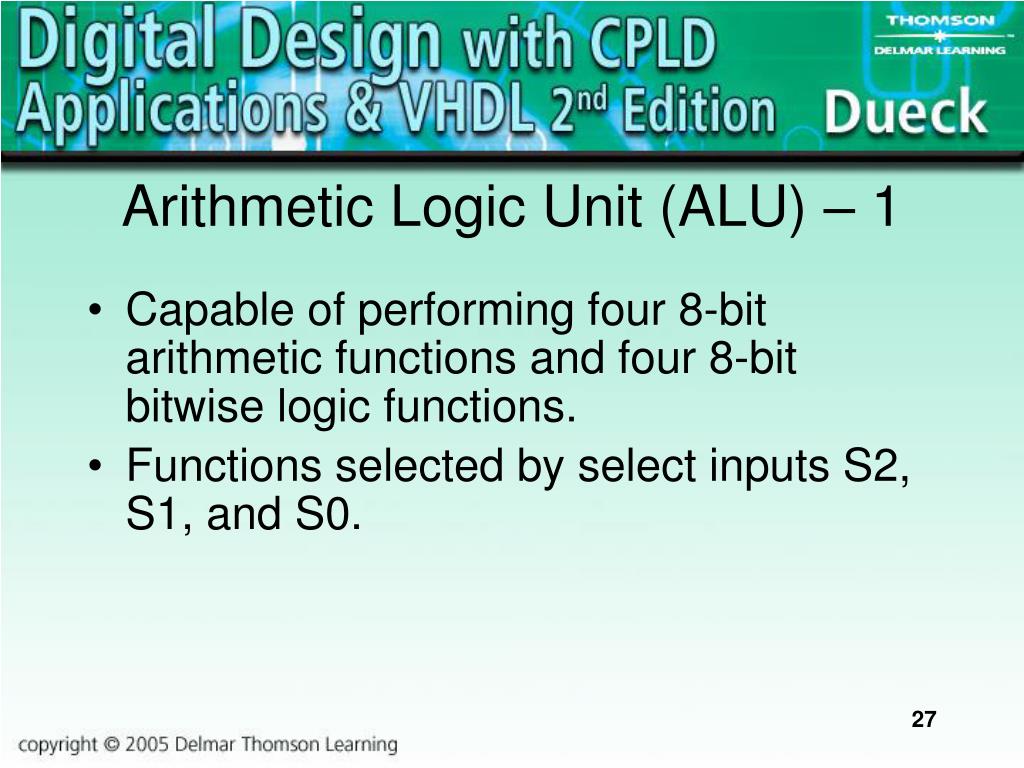

Arithmetic Logic Unit (ALU) – 1
  • Capable of performing four 8-bit arithmetic functions and four 8-bit bitwise logic functions.
  • Functions selected by select inputs S2, S1, and S0.
vhdl code alu
VHDL Code ALU
  • LIBRARY ieee;
  • USE ieee.std_logic_1164.ALL;
  • USE ieee.std_logic_signed.ALL;
  • USE ieee.std_logic_arith.ALL;

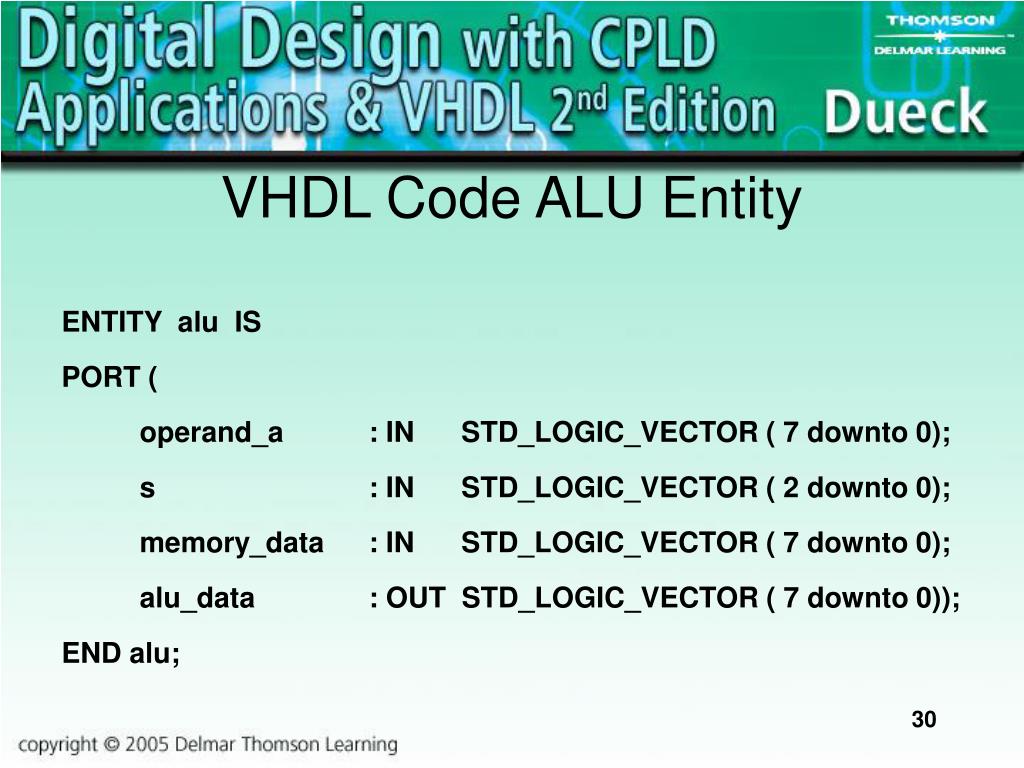

vhdl code alu entity
VHDL Code ALU Entity

ENTITY alu IS

PORT (

operand_a : IN STD_LOGIC_VECTOR ( 7 downto 0);

s : IN STD_LOGIC_VECTOR ( 2 downto 0);

memory_data : IN STD_LOGIC_VECTOR ( 7 downto 0);

alu_data : OUT STD_LOGIC_VECTOR ( 7 downto 0));

END alu;

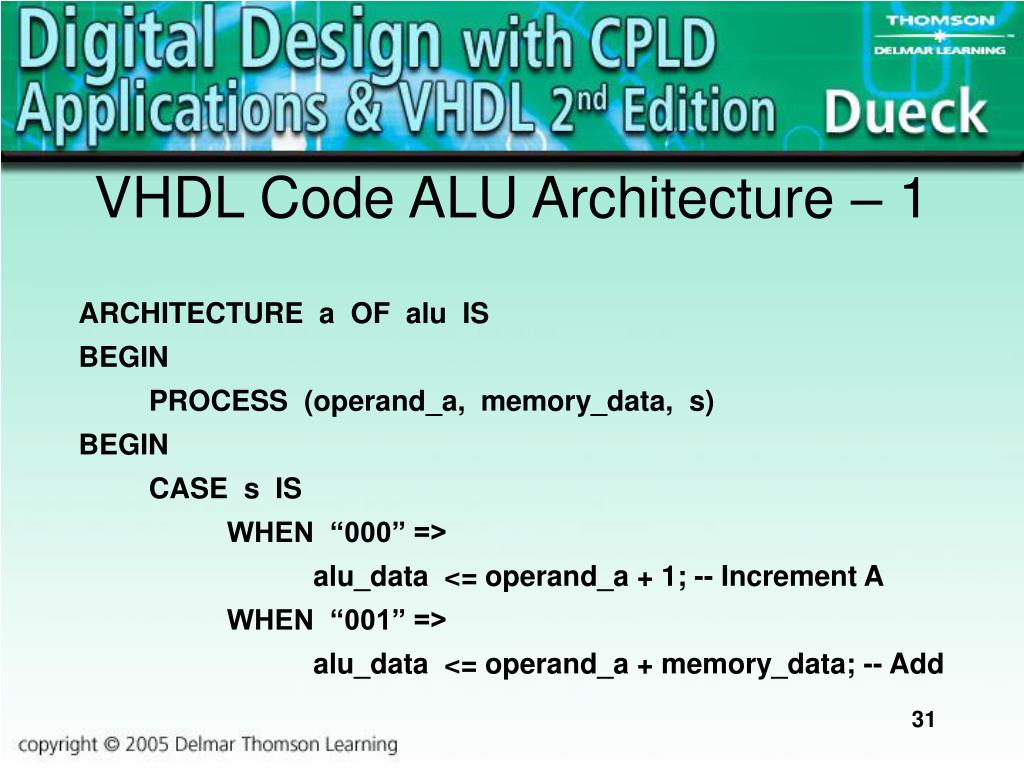

vhdl code alu architecture 1
VHDL Code ALU Architecture – 1

ARCHITECTURE a OF alu IS

BEGIN

PROCESS (operand_a, memory_data, s)

BEGIN

CASE s IS

WHEN “000” =>

alu_data <= operand_a + 1; -- Increment A

WHEN “001” =>

alu_data <= operand_a + memory_data; -- Add

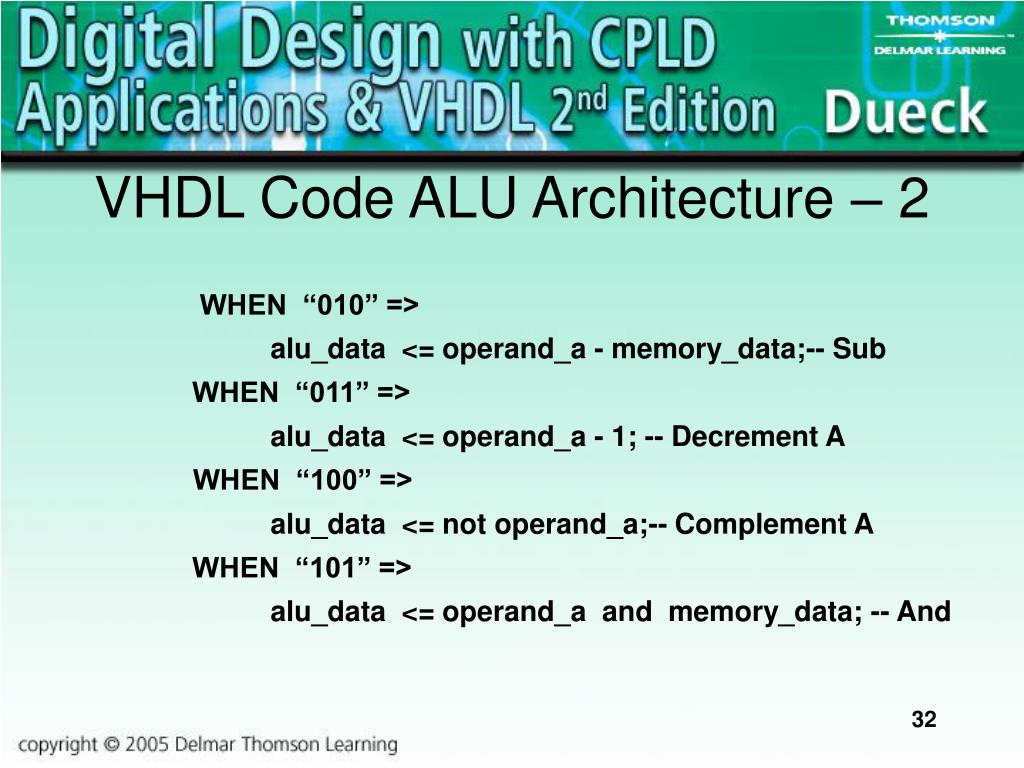

vhdl code alu architecture 2
VHDL Code ALU Architecture – 2

WHEN “010” =>

alu_data <= operand_a - memory_data;-- Sub

WHEN “011” =>

alu_data <= operand_a - 1; -- Decrement A

WHEN “100” =>

alu_data <= not operand_a;-- Complement A

WHEN “101” =>

alu_data <= operand_a and memory_data; -- And

vhdl code alu architecture 3

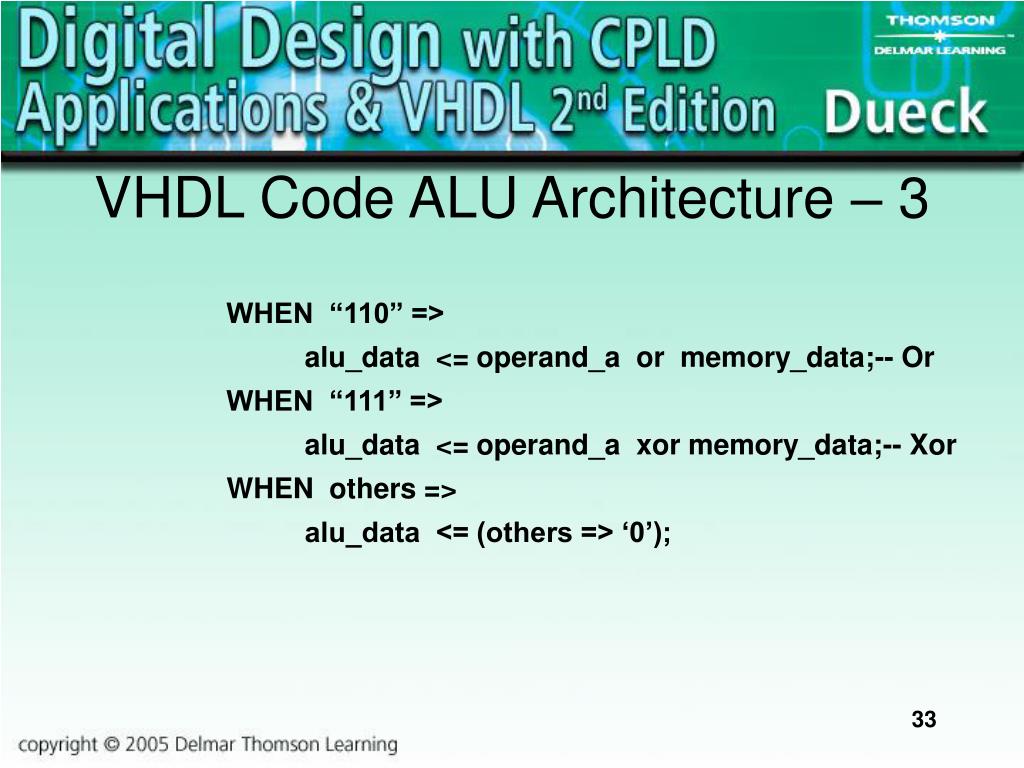

VHDL Code ALU Architecture – 3

WHEN “110” =>

alu_data <= operand_a or memory_data;-- Or

WHEN “111” =>

alu_data <= operand_a xor memory_data;-- Xor

WHEN others =>

alu_data <= (others => ‘0’);

execute cycle add 1
Execute Cycle ADD – 1
  • First three cycles the same as for LOAD (see Figures 14.18, 14.19 and 14.20 in textbook), except the s inputs are set to 001.
  • Add 4 – Transfers data from the data bus to the MDR (see Figure 14.21 in textbook).
  • Add 5 – The ALU adds the accumulator contents to the MDR contents.
execute cycle add 2
Execute Cycle ADD – 2
  • Add 6 – Accumulator transfers the final result from the data bus to the accumulator (see Figure 14.23 in textbook).
  • Figure 14.24 in textbook – ADD fetch cycle timing diagram.
  • Figure 14.25 in textbook – ADD execute cycle timing diagram.

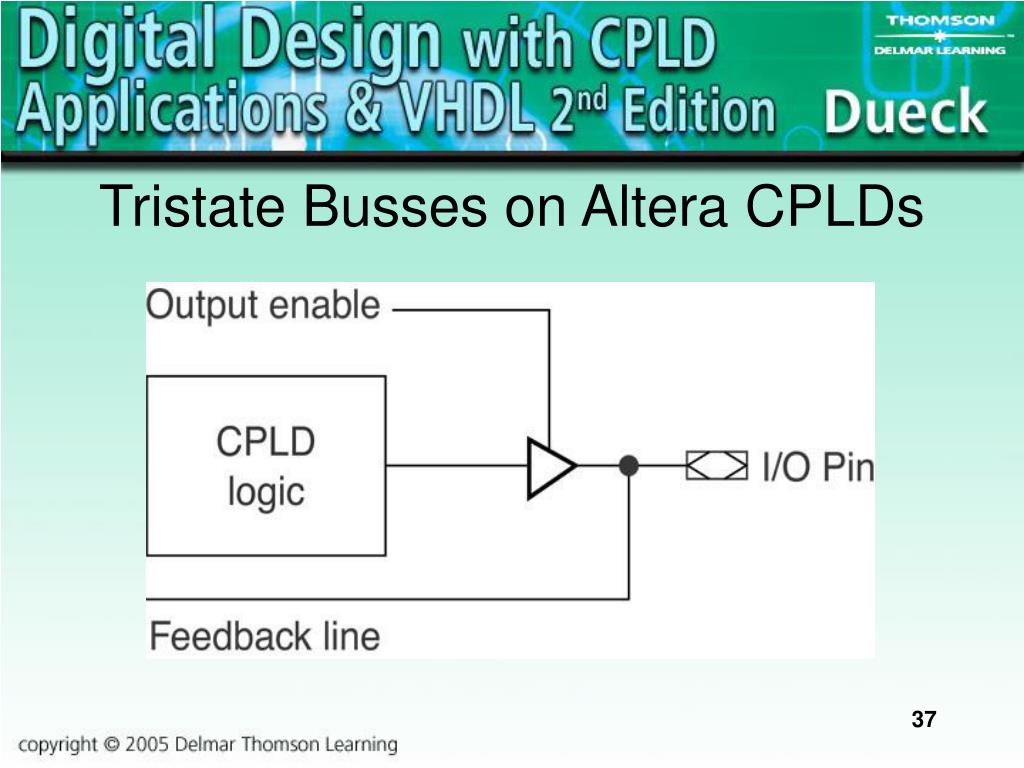

tristate busses on altera cplds

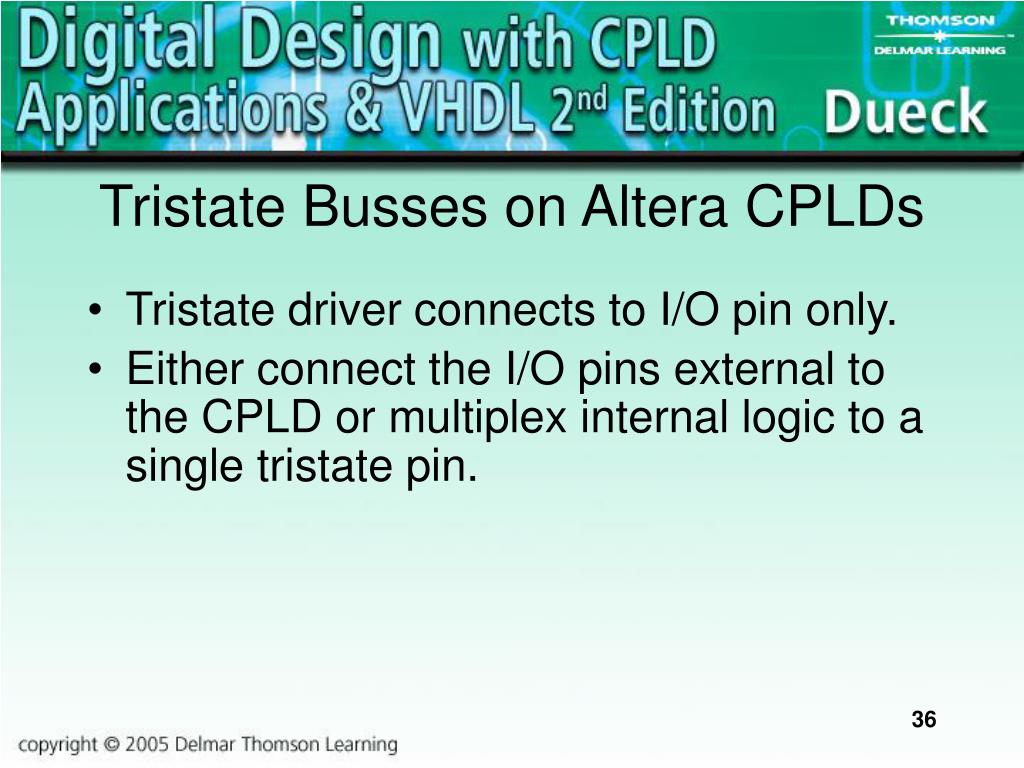

Tristate Busses on Altera CPLDs
  • Tristate driver connects to I/O pin only.
  • Either connect the I/O pins external to the CPLD or multiplex internal logic to a single tristate pin.
tristate addressing risc8v1
Tristate Addressing RISC8v1
  • Addressing system consists of:
    • The program counter
    • Instruction register
    • Memory address register
    • Synchronous tristate address MUX

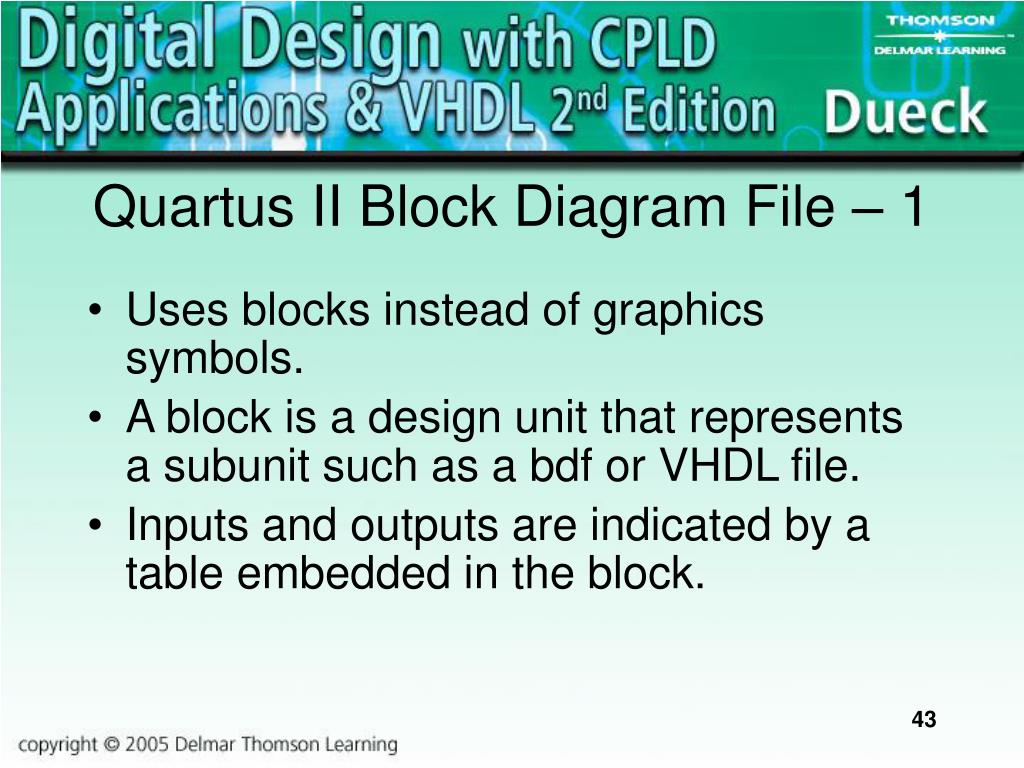

quartus ii block diagram file 1
Quartus II Block Diagram File – 1
  • Uses blocks instead of graphics symbols.
  • A block is a design unit that represents a subunit such as a bdf or VHDL file.
  • Inputs and outputs are indicated by a table embedded in the block.

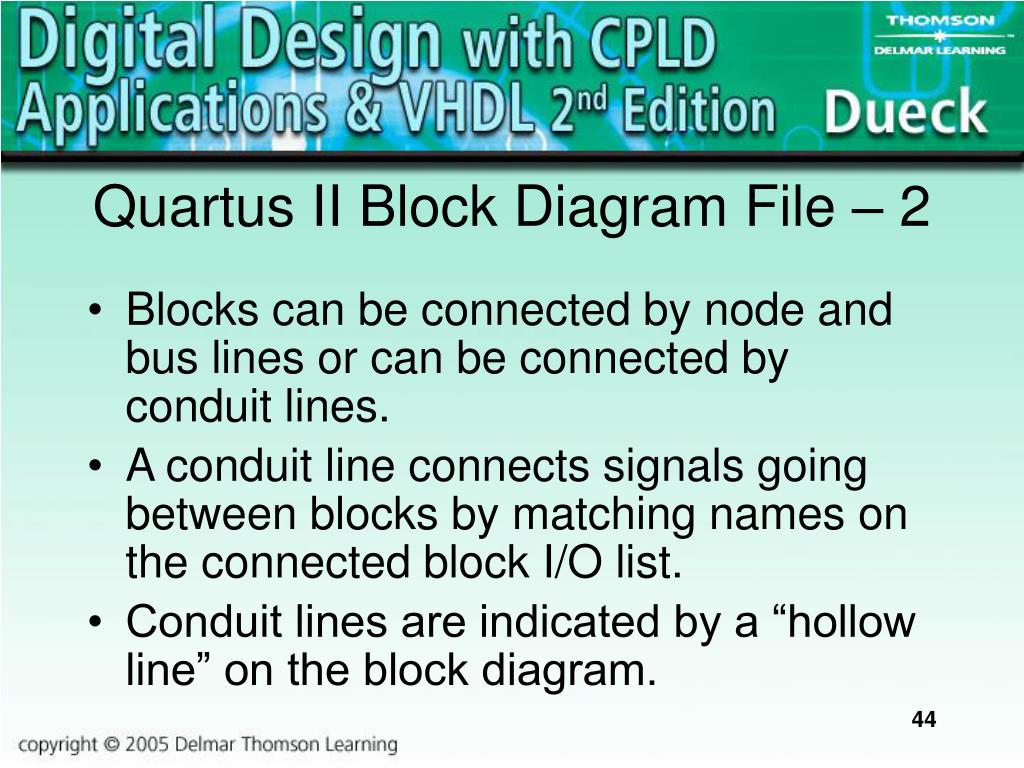

quartus ii block diagram file 2
Quartus II Block Diagram File – 2
  • Blocks can be connected by node and bus lines or can be connected by conduit lines.
  • A conduit line connects signals going between blocks by matching names on the connected block I/O list.
  • Conduit lines are indicated by a “hollow line” on the block diagram.
quartus ii block diagram file 3

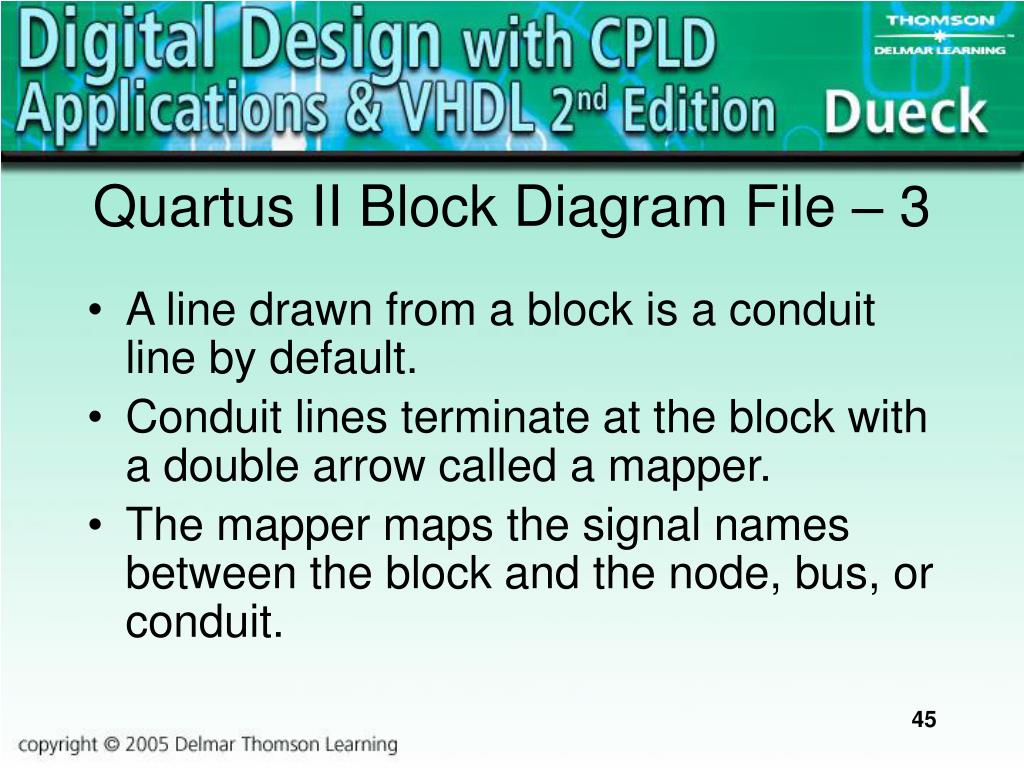

Quartus II Block Diagram File – 3
  • A line drawn from a block is a conduit line by default.
  • Conduit lines terminate at the block with a double arrow called a mapper.
  • The mapper maps the signal names between the block and the node, bus, or conduit.

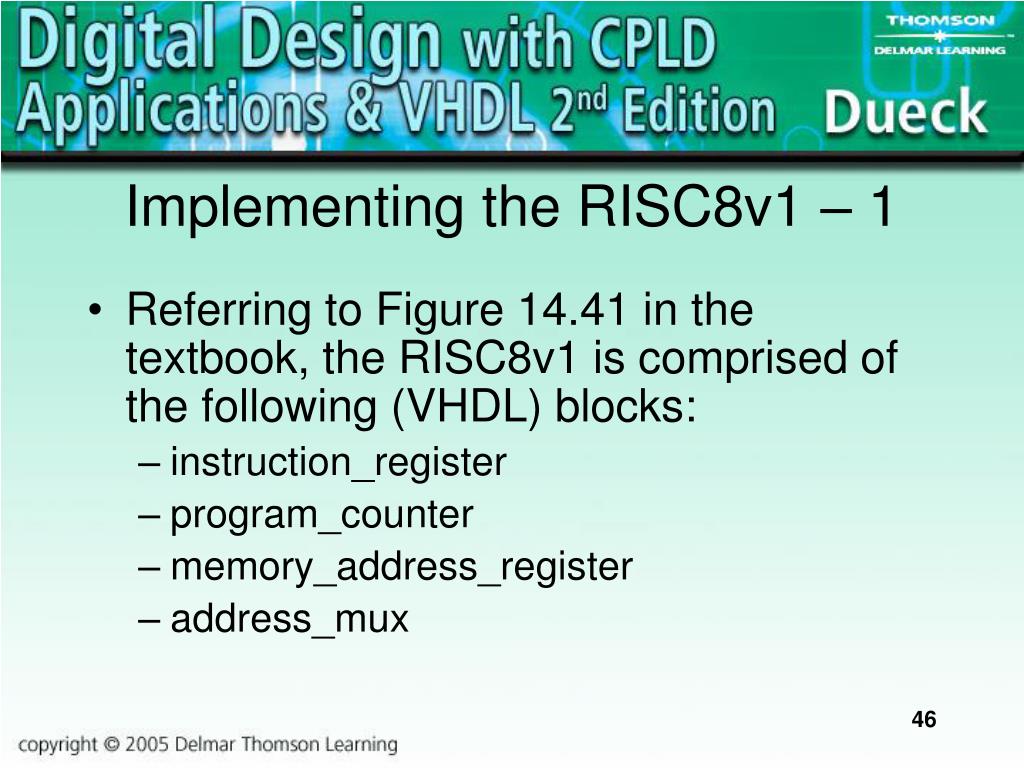

implementing the risc8v1 1
Implementing the RISC8v1 – 1
  • Referring to Figure 14.41 in the textbook, the RISC8v1 is comprised of the following (VHDL) blocks:
    • instruction_register
    • program_counter
    • memory_address_register
    • address_mux

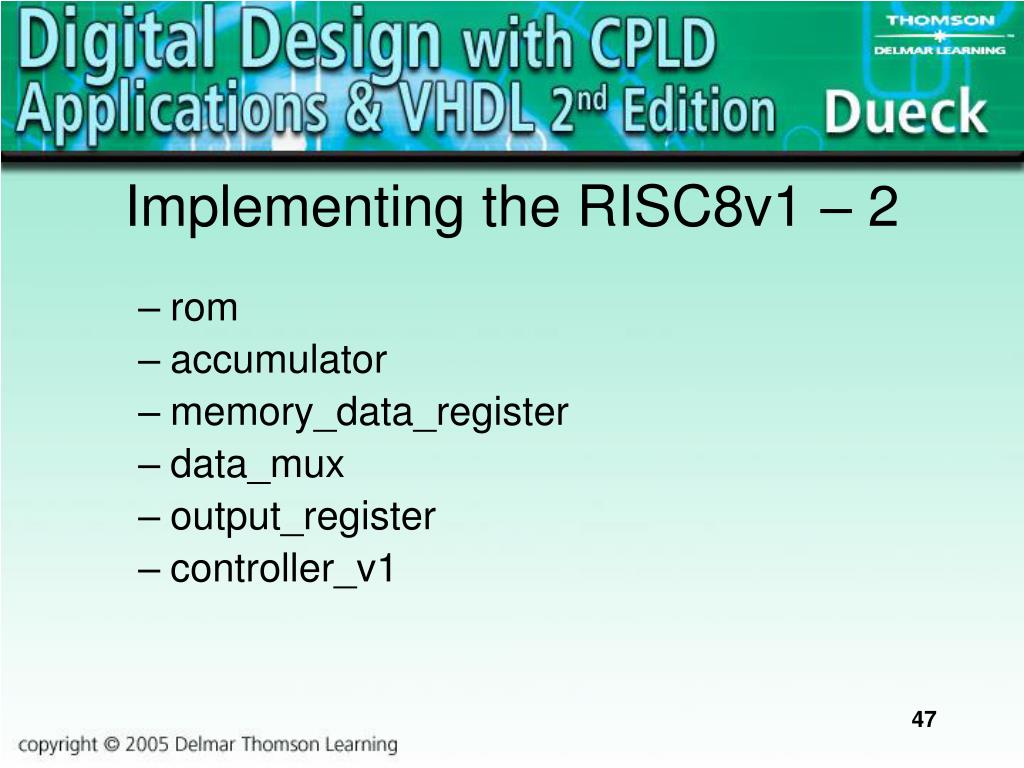

implementing the risc8v1 2
Implementing the RISC8v1 – 2
  • rom
  • accumulator
  • memory_data_register
  • data_mux
  • output_register
  • controller_v1
the ir block
The IR Block
  • Data latched from the data bus on a positive clock edge when ir_ld is HIGH.
  • Latched data is split into an instruction part and a operand address part.
the program counter pc block
The Program Counter (PC) Block
  • Output connects to the address bus via the tristate address bus MUX.
  • 4-bit binary counter with count enable.
  • Increments once every Fetch/Execute cycle.
pc vhdl code

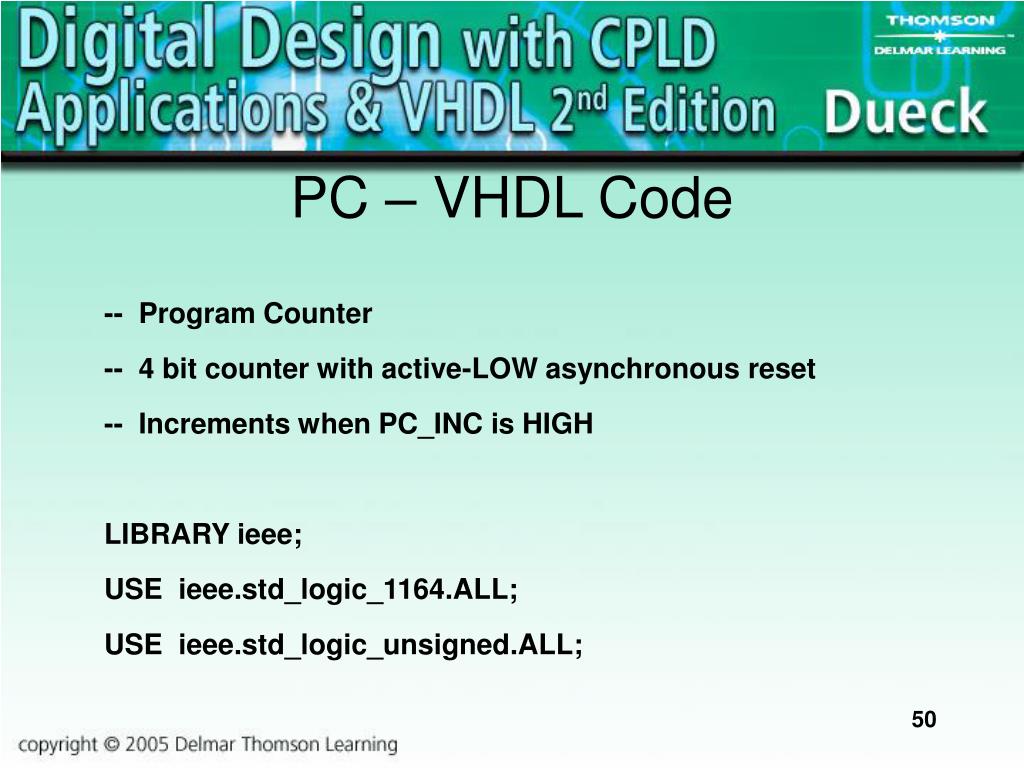

PC – VHDL Code

-- Program Counter

-- 4 bit counter with active-LOW asynchronous reset

-- Increments when PC_INC is HIGH

LIBRARY ieee;

USE ieee.std_logic_1164.ALL;

USE ieee.std_logic_unsigned.ALL;

pc vhdl entity
PC – VHDL Entity

ENTITY program_counter IS

PORT (

clock, reset, pc_inc : IN STD_LOGIC;

pc_addr : BUFFER STD_LOGIC_VECTOR (3 downto 0));

END program_counter;

pc vhdl architecture
PC – VHDL Architecture

ARCHITECTURE pc OF program_counter IS

BEGIN

PROCESS (clock, reset)

BEGIN

IF (reset = ‘0’) THEN

pc_addr <= (others => ‘0’);

ELSEIF (clock ‘EVENT and clock = ‘1’) THEN

IF (pc_inc = ‘1’) THEN

pc_addr <= pc_addr + 1;

END IF;

END IF;

END PROCESS;

END pc;

the mar block
The MAR Block
  • When enabled, data is latched from the address bus on the positive clock edge.
  • Outputs directly connect to the ROM.
the address mux block
The Address MUX Block
  • Uses a separate select input for each logic signal to be MUX’ed.
  • Combined into an internal signal called controls.
  • CASE statement used to select which logic input is to be switched to the MUX.
  • Data applied asynchronously, latched synchronously to the address bus.
the rom block
The ROM Block
  • Program instructions and operands are stored in the LPM_ROM component, instantiated as a megafunction.
  • The parameter LPM_File points to a Memory Initialization File (MIF).
  • During compilation the ROM is loaded with the contents of MIF.
the accumulator block
The Accumulator Block
  • Constructed from an 8-bit flip-flop with input and output enables.
  • Data latched when acc_ld is HIGH.
  • Data directly applied to the 8-bit input port of the ALU through operand_a[7..0].
  • Data synchronously sent to data bus when acc_oe is HIGH.
the mdr block
The MDR Block
  • Has no output to the system data bus.
  • Data loaded synchronously when mdr_ld is HIGH.
  • Port memory_data [7..0] connects directly to the ALU without any enable.
the data bus mux block
The Data Bus MUX Block
  • Necessary to implement a tristate bus on an Altera CPLD.
  • Combines output data from the ROM, ALU, or accumulator, selects one of these lines to go to the 8-bit data bus.
  • Bidirectional pin acts as a data bus allowing input and output signals to go to and from the MUX.
the output register block
The Output Register Block
  • An 8-bit flip-flop that is synchronously loaded when or_ld is HIGH.
the controller block 1
The Controller Block – 1
  • Interprets the CPU instructions and generates the control signals for all registers to correctly execute the program functions.
  • Implemented as a VHDL-based state machine.
the controller block 2
The Controller Block – 2
  • The state machine:
    • Defines the state type and lists all states in the machine.
    • Uses two CASE statements to define the actual progress of states.
the controller block 3
The Controller Block – 3
  • Uses concurrent signal assignment statements to map the output ports to a 16-bit internal signal control_word.
  • Uses a select signal assignment statement to decode the states of the state machine and generate the required control signals by assigned them to control_word.
